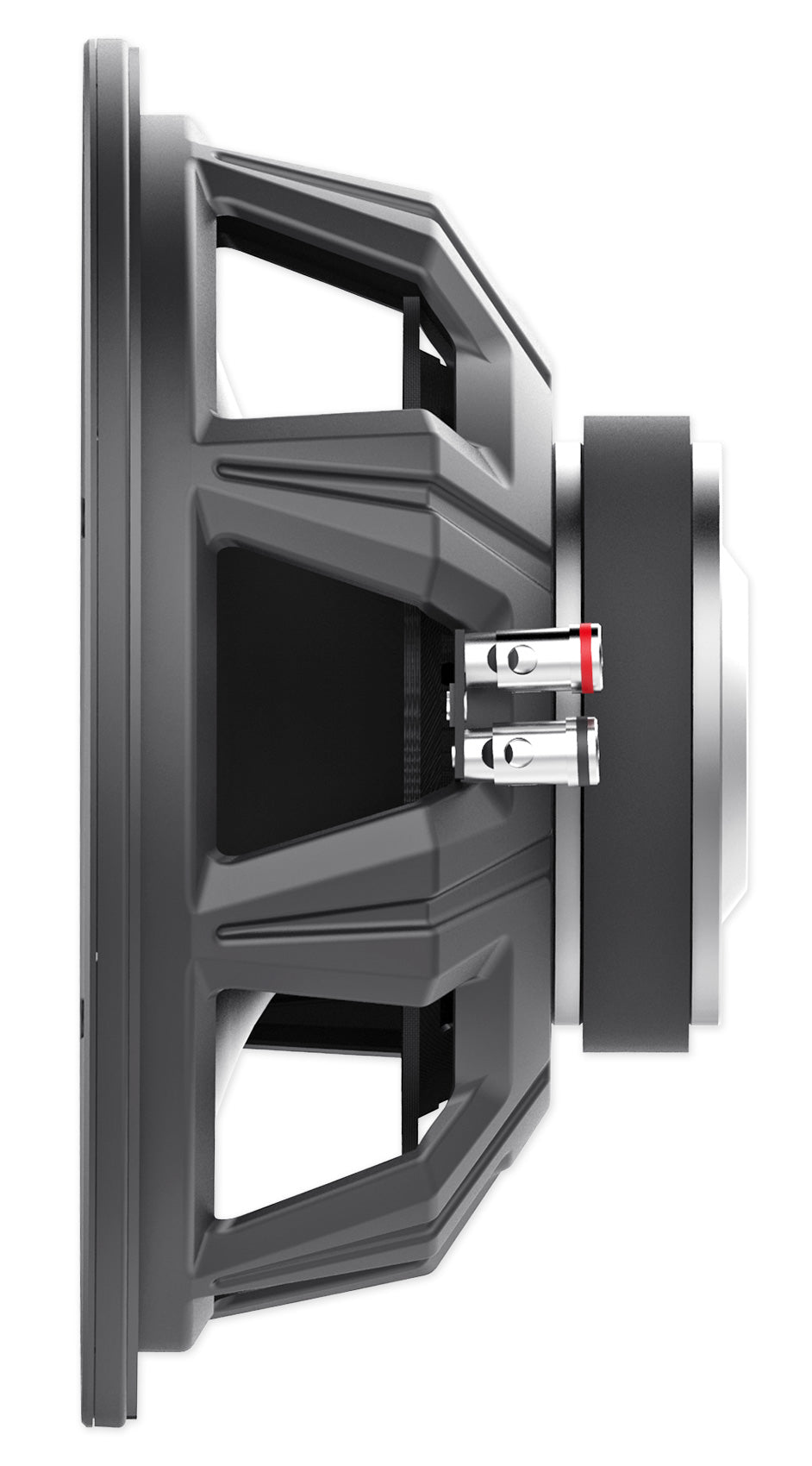

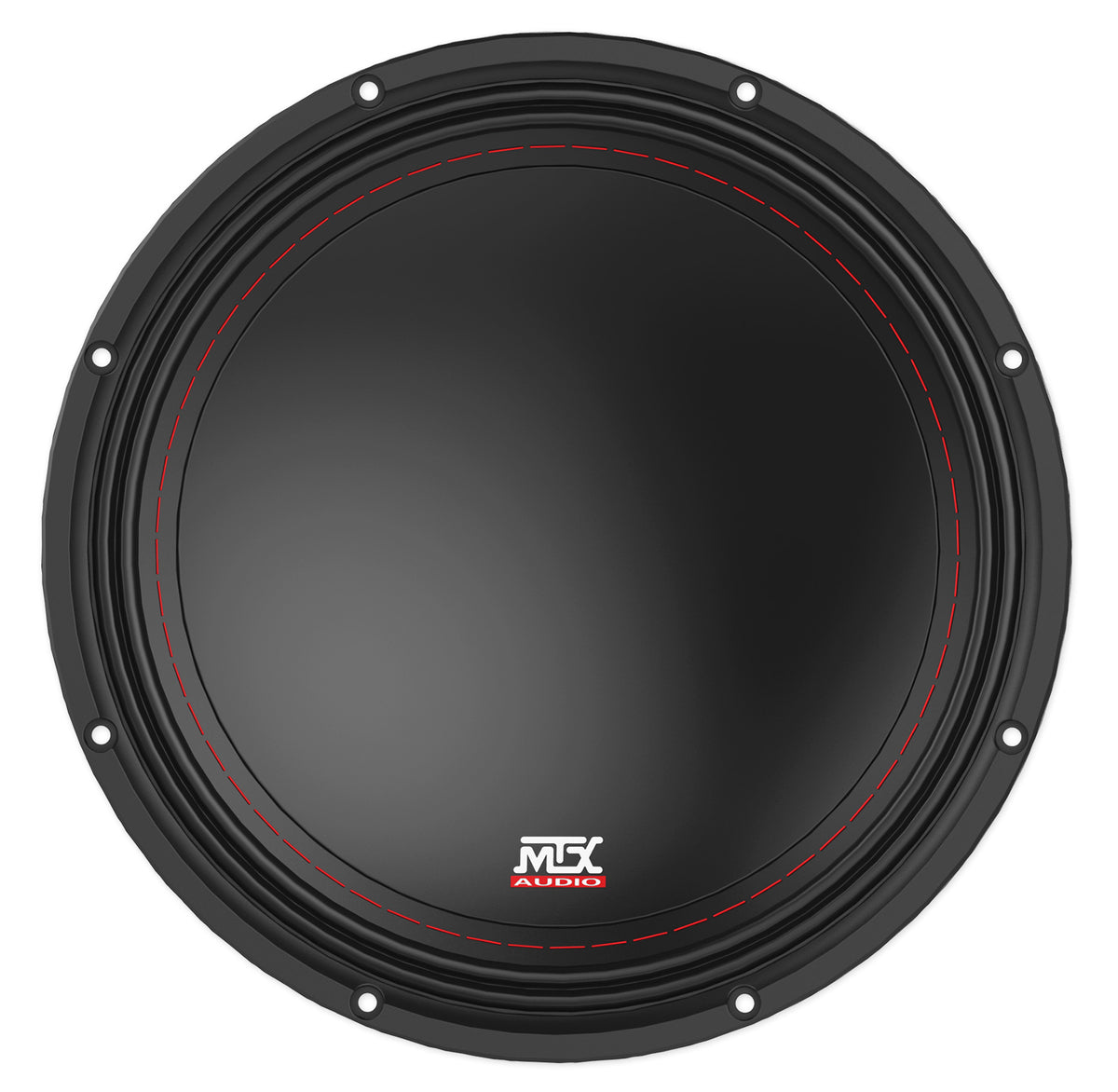

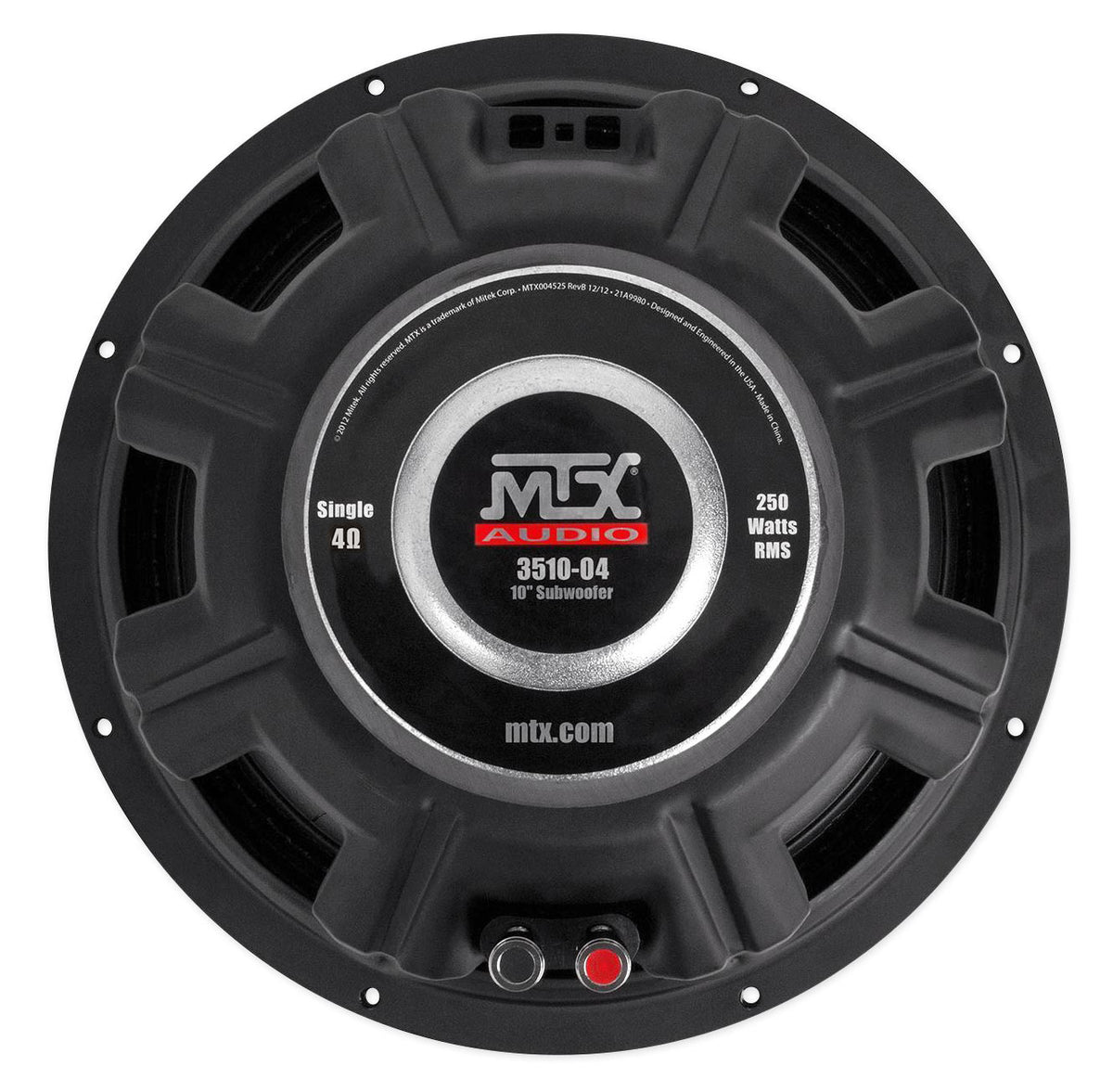

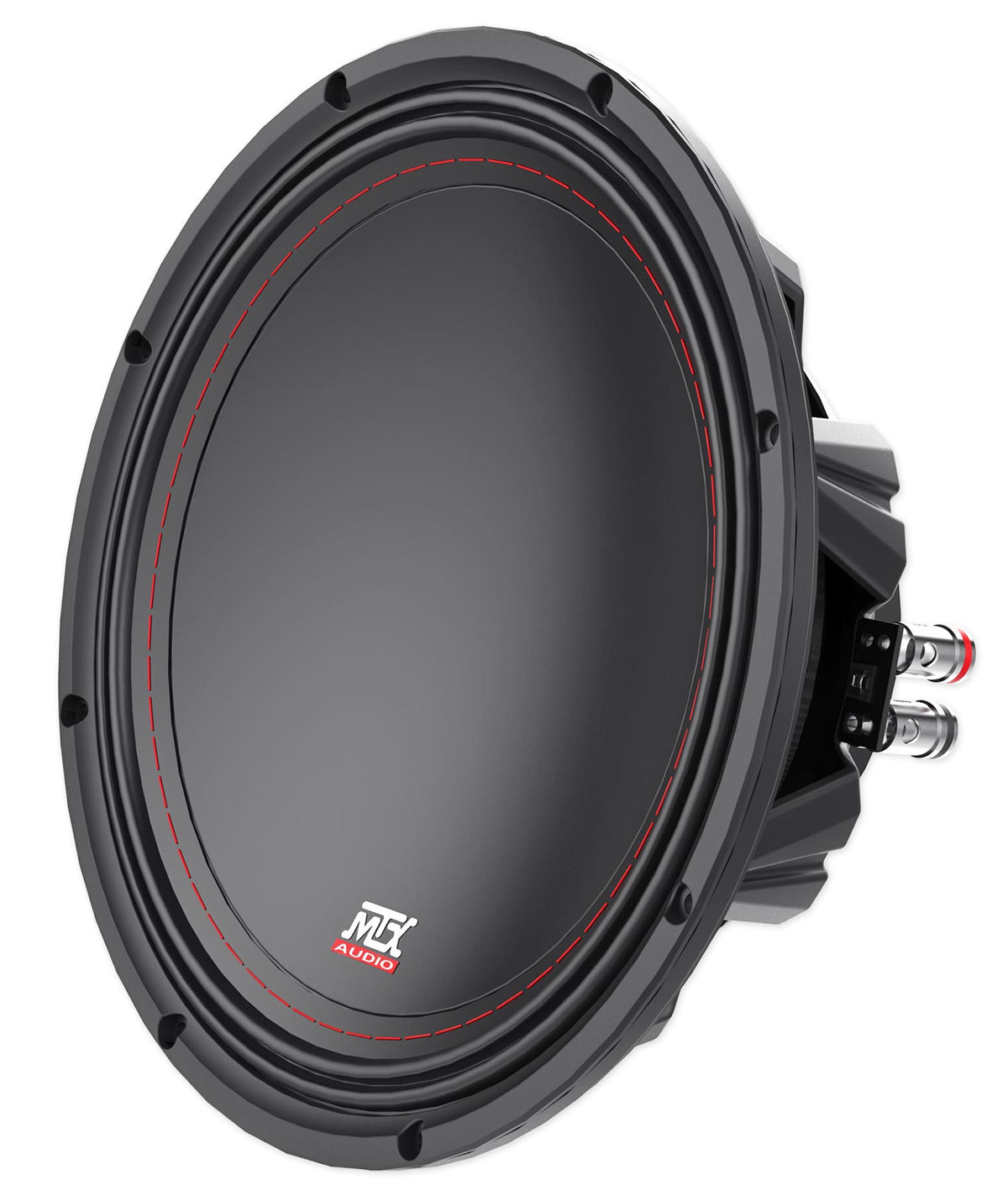

Car Audio Subwoofer, 10-Inch, 250W RMS, Single 4-Ohm Voice Coil

Free Shipping

$109.95
$109.95 $99.95
Shipping calculated at checkout.
Features
    • 10-inch car audio subwoofer rated at 250W RMS
    • Single 4-ohm voice coil suits a mono amplifier
    • 500W peak handling with 250W RMS rating
    • Choose 0.75 cu ft sealed or 2.0 cu ft vented enclosure
    • Spider Plateau Venting directs cool air toward the voice coil
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later
    • (1) 10-Inch Car Audio Subwoofer

SKU: 3510-04

View full details

Product Description

The 3510-04 is a 10-inch car audio subwoofer rated at 250W RMS, built to add low-frequency output in a sealed or vented enclosure. Its single 4-ohm voice coil pairs with a mono amplifier in the recommended 125W to 250W RMS range. Frequency response spans 28Hz to 130Hz, and sensitivity is 83.2 dB. An Inverted Apex surround increases surface area for more air movement and higher SPL. Spider Plateau Venting directs cool air toward the voice coil to manage heat during extended play, while progressive suspension controls excursion at high power to reduce distortion. Set the enclosure around the recommended net volume: 0.75 cu ft sealed or 2.0 cu ft vented. Check the 4.625-inch mounting depth and 9.188-inch cutout diameter before installation.

Features

    • Build a Balanced Car Audio System

      The 10-inch subwoofer handles 250W RMS and works with a 125W to 250W RMS mono amplifier, giving installers a clear range for matching system power.

    • Pick the Right Box

      A sealed enclosure with 0.75 cu ft net volume or a vented enclosure with 2.0 cu ft net volume gives two documented paths for system planning.

    • Move More Air

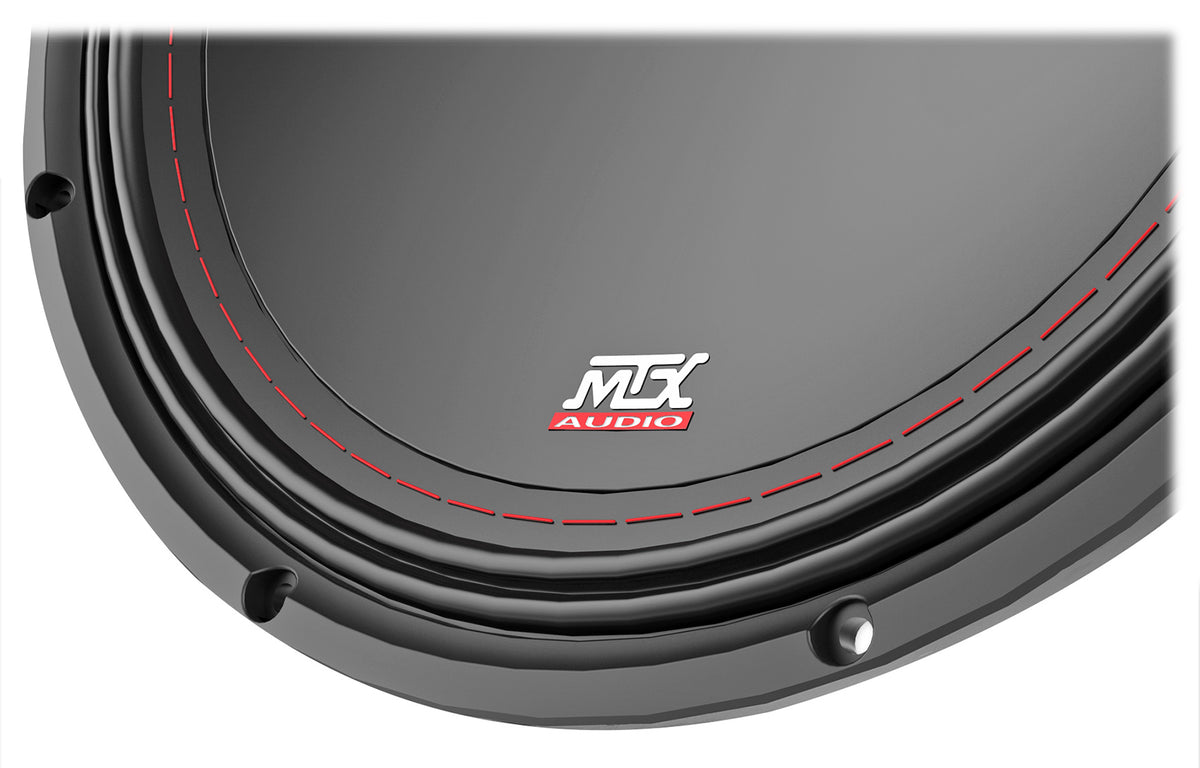

      The Inverted Apex surround increases surface area for additional air movement and higher SPL, adding low-frequency output while retaining the subwoofer's single 4-ohm voice coil.

    • Manage Heat in Extended Play

      Spider Plateau Venting directs cool air toward the voice coil, managing temperature during extended play and supporting long-term performance in a properly matched car audio system.

    • Control High-Power Motion

      Progressive suspension controls excursion at high power to reduce distortion, helping the subwoofer maintain cleaner sound as bass levels rise in a car audio system.

Technical Specifications

  • Product Type 10-inch car audio subwoofer
  • RMS Power Handling 250W RMS
  • Peak Power Handling 500W peak
  • Recommended Amplifier Power 125W to 250W RMS
  • Impedance 4 Ohms
  • Frequency Response 28Hz to 130Hz
  • Sensitivity 83.2 dB
