MUD50.2

Product Description Specifications

MUD50.2

  • MUD50.2
  • MUD50.2
  • MUD50.2
  • MUD50.2
  • MUD50.2
  • MUD50.2
  • MUD50.2
1 7

MTX

MUD50.2

MUD50.2

2-Channel Amplifier, 100W RMS at 2 Ohms, 25W x 2 at 4 Ohms, Wiring Pigtail

Free Shipping

$139.95
$139.95 $149.95
Save 6%
Shipping calculated at checkout.
Features
    • 100W RMS total at 2 ohms, with 50W RMS per channel
    • 25W RMS per channel at 4 ohms
    • Full-range Class D design with a fixed 80Hz high-pass crossover
    • Weather-resistant design with conformal-coated circuit board and covered controls
    • Includes a pigtail for power, ground, and signal connections
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later
    • (1) 2-Channel Amplifier
    • (1) Wiring Pigtail

SKU: MUD50.2

View full details

Product Description

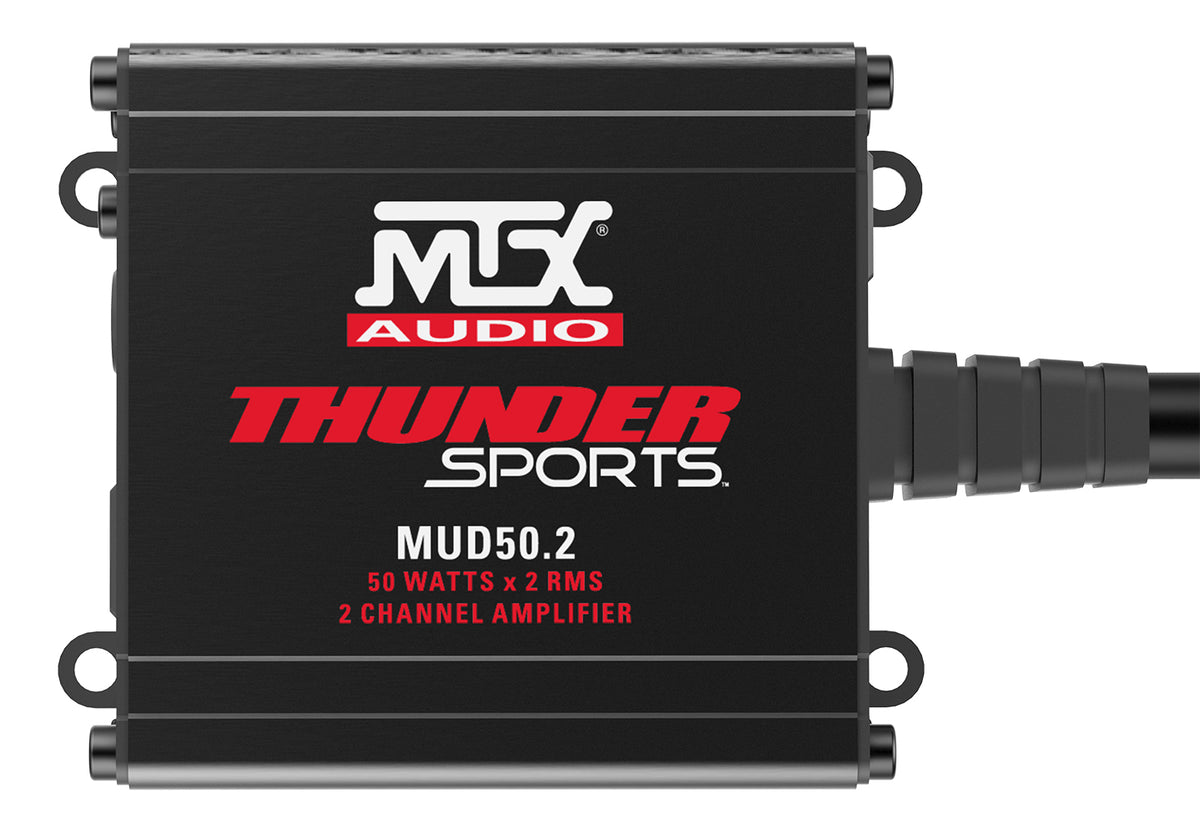

The MUD50.2 is a compact 2-channel amplifier that delivers 100W RMS at 2 ohms. Its full-range Class D topology pairs useful output with efficient operation in motorcycles, boats, UTVs, sand rails, and carts. The weather-resistant design uses a conformal-coated circuit board and covered controls to resist moisture. High- and low-level inputs accommodate different signal sources, while the fixed 80Hz high-pass crossover shapes output for connected speakers. A wiring pigtail carries power, ground, and signal connections without requiring connection points directly at the amplifier. Choose the 2-ohm rating for up to 50W RMS per channel, or the 4-ohm rating for 25W RMS per channel.

Features

    • Fit Tight Installation Spaces

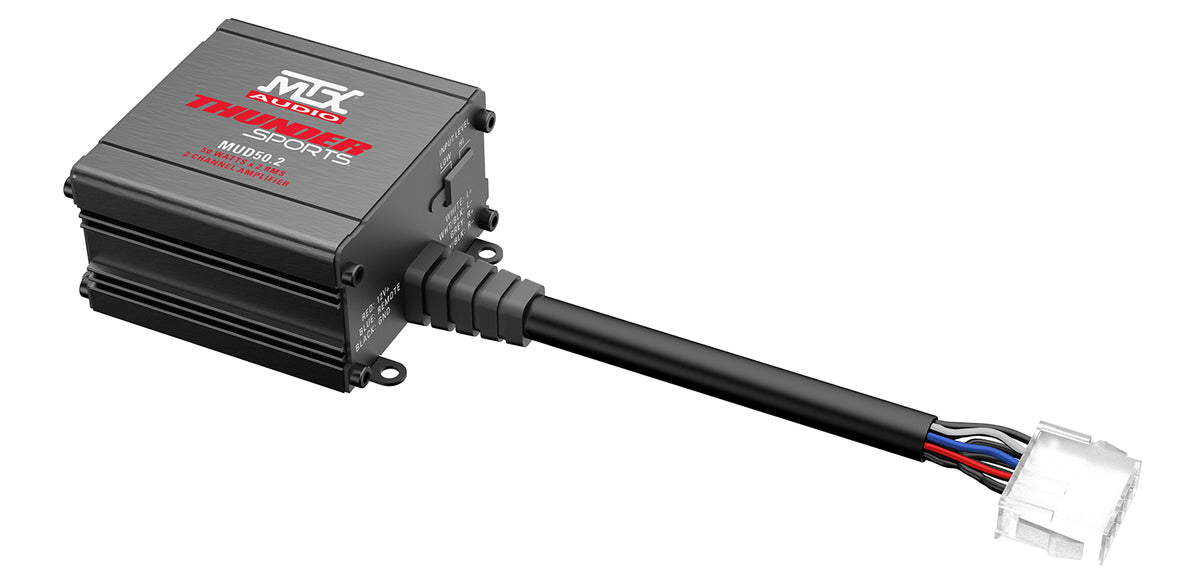

      At 3.64" x 2.85" x 1.73", the compact housing fits limited spaces on motorcycles, UTVs, boats, sand rails, and carts.

    • Power a Pair of Speakers

      The 2-ohm rating delivers 50W RMS per channel, providing 100W RMS total to power a pair of full-range speakers on a motorcycle or UTV.

    • Stay Protected from Moisture

      A conformal-coated circuit board and covered controls help resist moisture intrusion, giving the amplifier added protection in boats and off-road vehicle installations.

    • Match Different Audio Sources

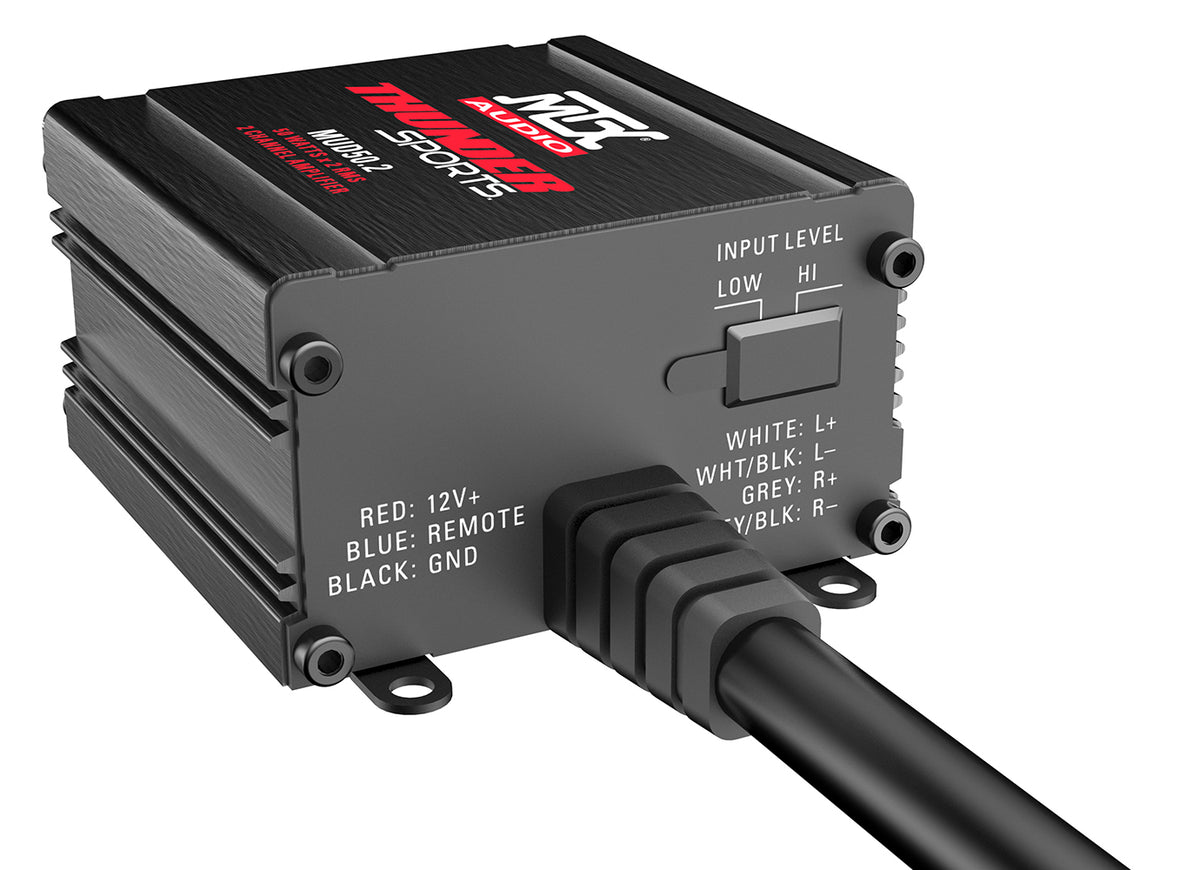

      High- and low-level inputs accommodate different audio sources, while the fixed 80Hz high-pass crossover shapes output for connected speakers in compact systems.

    • Simplify Amplifier Connections

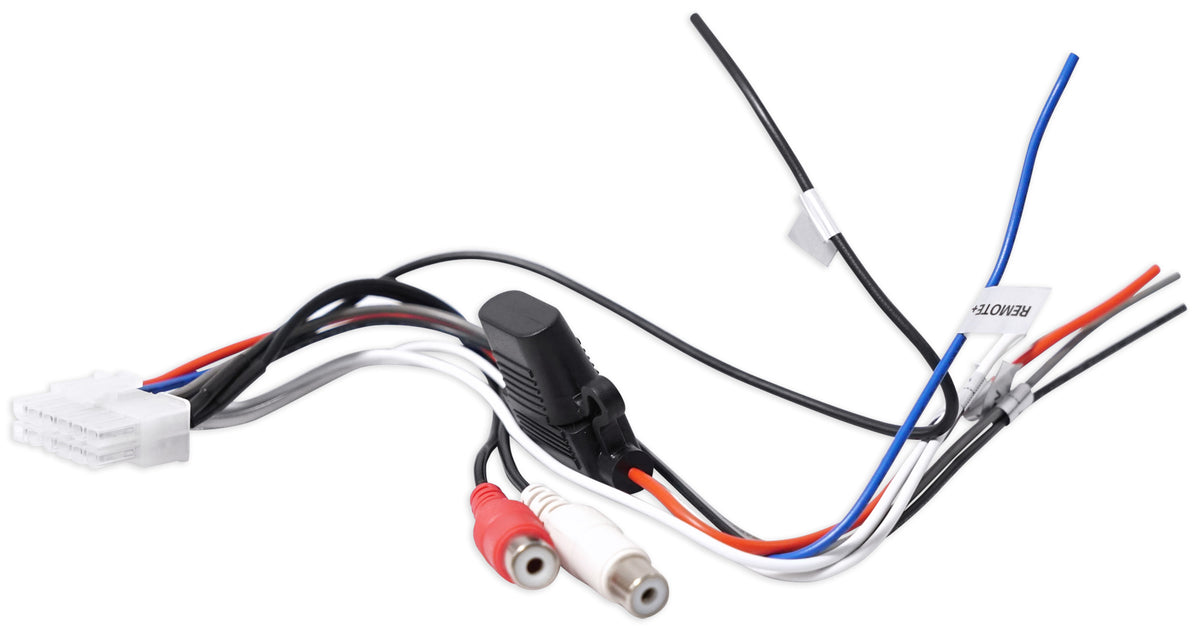

      The included wiring pigtail carries power, ground, and signal connections, so installers can wire the setup without making connections directly at the amplifier.

Technical Specifications

  • Product Type 2-Channel Audio Amplifier
  • Channels 2
  • Topology Full-Range Class D
  • RMS Power at 2 Ohms 100W total (50W x 2 channels)
  • Peak Power at 2 Ohms 200W (paired with 100W RMS)
  • RMS Power at 4 Ohms 25W x 2 channels
  • THD Less than 1.0%
