Home / ATV & UTV /

RZR-14-THUNDER5

Product Description Specifications

RZR-14-THUNDER5

  • RZR-14-THUNDER5
  • RZR-14-THUNDER5
  • RZR-14-THUNDER5
  • RZR-14-THUNDER5
  • RZR-14-THUNDER5
  • RZR-14-THUNDER5
  • RZR-14-THUNDER5
1 7

MTX

RZR-14-THUNDER5

RZR-14-THUNDER5

UTV Audio System, 50W RMS x 4 Channels at 2 Ohms, RGB Speakers, 10-Inch Subwoofer, Two Amplifiers
$1,799.95
$1,799.95 $2,199.95
Save 18%
Shipping calculated at checkout.
Features
    • 50W RMS x 4 receiver output at 2 ohms
    • IP66-rated receiver and four-channel amplifier
    • Two 6.5-inch RGB cage-mount speakers fit 1.5-, 1.75-, and 2-inch bars
    • Loaded 10-inch subwoofer enclosure supports sealed or ported operation
    • Direct-fit kick-panel speaker enclosure installs without cutting or drilling
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later
    • AWMC3 marine receiver
    • RZR-14-FS direct-fit kick-panel speakers
    • RZR-14-SW loaded 10-inch subwoofer enclosure
    • MUD100.4 four-channel amplifier
    • (2) MUD65PL 6.5-inch cage-mount RGB speakers
    • Mono amplifier

SKU: RZR-14-THUNDER5

View full details

Product Description

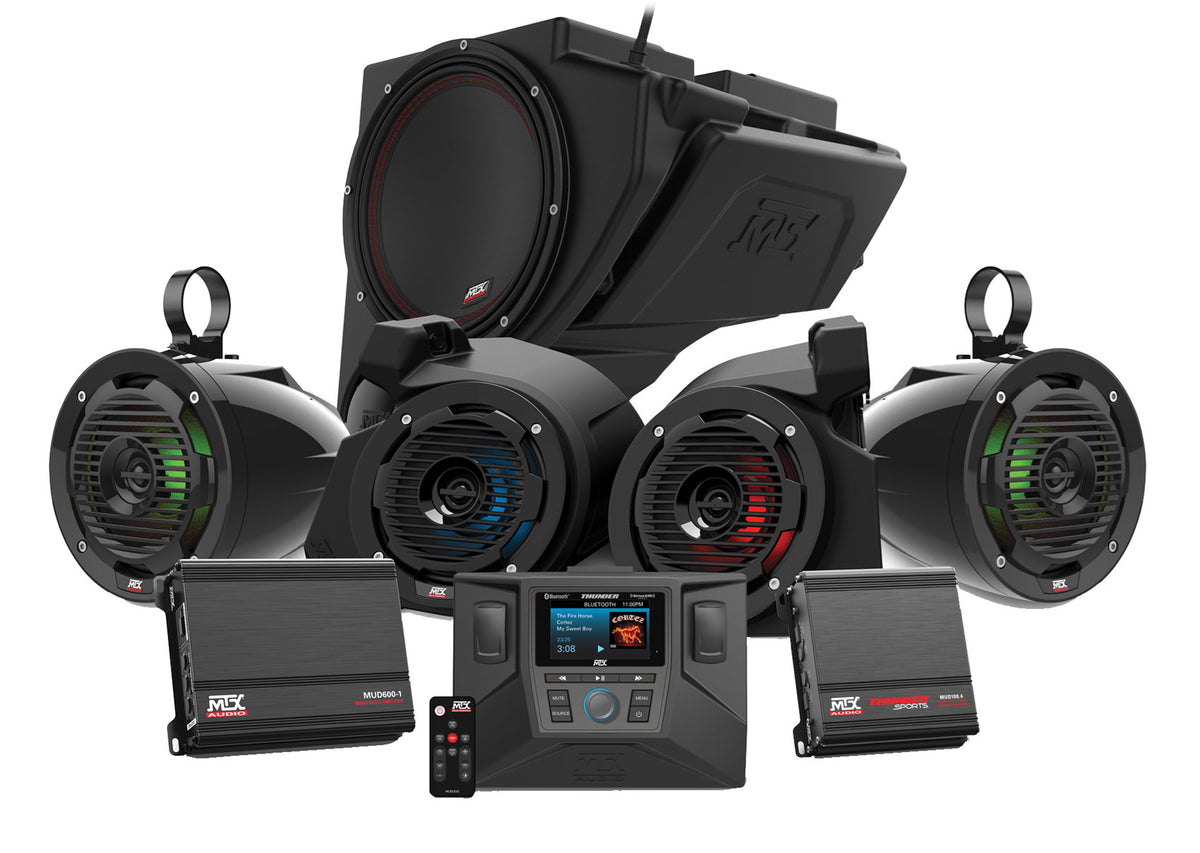

RZR-14-THUNDER5 is a UTV audio system built around a marine receiver, RGB-lit speakers, two amplifiers, and a loaded 10-inch subwoofer enclosure. The receiver delivers 50W RMS x 4 channels at 2 ohms and offers wireless audio streaming, AM/FM/weather-band radio, an auxiliary input, USB charging, a 3-inch full-color display, and two pairs of front/rear pre-outs. It carries an IP66 weather-resistance rating, and a USB memory stick can play MP3 files with album artwork. The RZR-14-FS kick-panel speaker system has a sealed enclosure and a direct-fit mount that needs no cutting or drilling. The RZR-14-SW subwoofer enclosure can run sealed or ported. Two 6.5-inch MUD65PL cage-mount speakers fit 1.5-, 1.75-, and 2-inch bars and add selectable red, blue, or green grille lighting. The four-channel amplifier is IP66 rated, while the mono amplifier has a 300W RMS primary rating at 4 ohms. Check the fit guide for your exact RZR model before ordering.

Features

    • Choose Your Audio Source

      Wireless audio streaming, AM/FM/weather-band radio, an auxiliary input, and USB-stick MP3 playback give riders several source choices through the receiver's 3-inch full-color display.

    • Mount Without Cutting

      The RZR-14-FS speaker system uses a quick-mount bracket and factory-matched texture, so the kick-panel install needs no cutting or drilling.

    • Set the Bass Enclosure

      The loaded 10-inch subwoofer enclosure supports sealed or ported operation, letting the installer select the bass configuration while mounting it behind the dashboard.

    • Fit Common Cage Bars

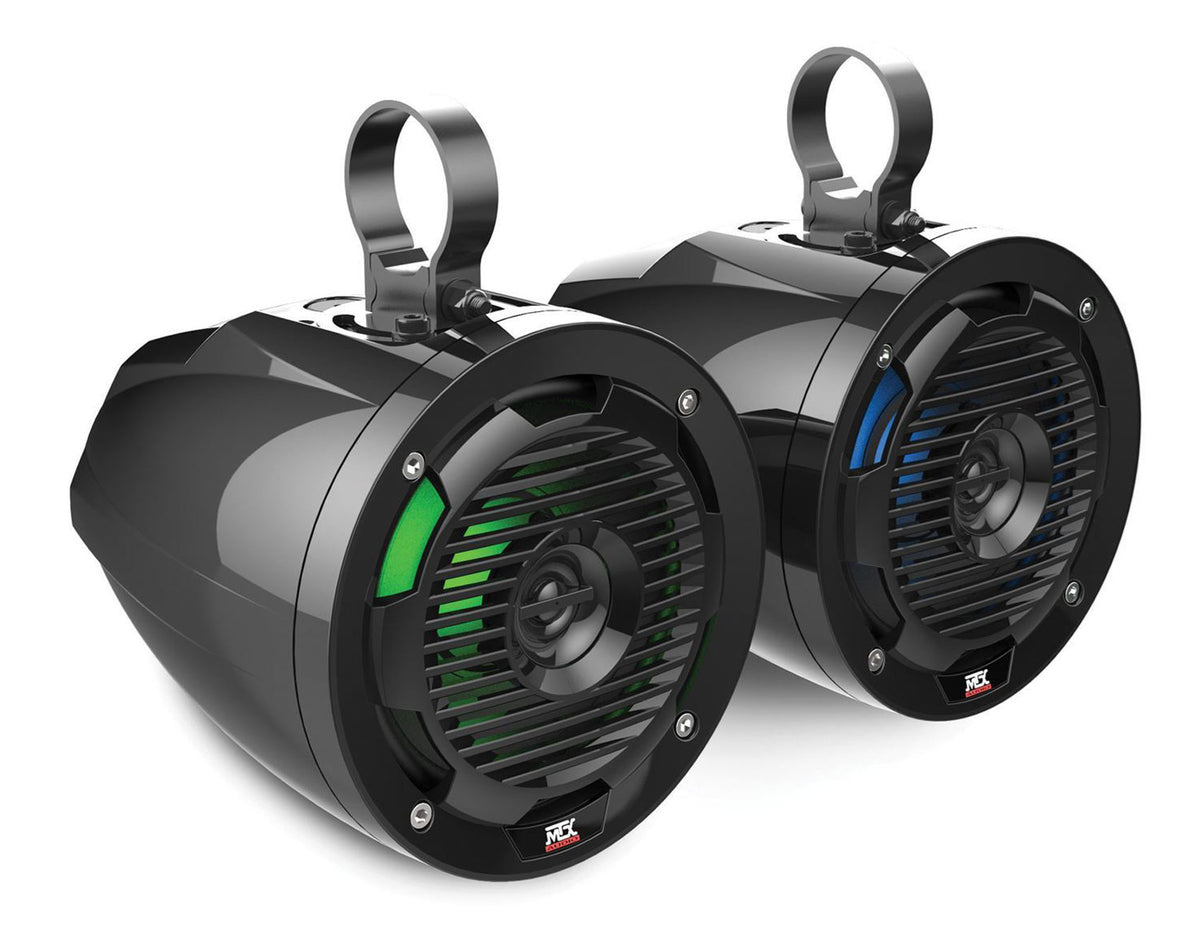

      Two 6.5-inch MUD65PL speakers fit 1.5-, 1.75-, and 2-inch bars, with grille lighting selectable in red, blue, or green.

    • Handle Wet-Ride Conditions

      The IP66-rated receiver and four-channel amplifier, plus grilles tested for 500 hours under ASTM B117 and D4329, suit wet and exposed off-road settings.

Technical Specifications

  • Product Type UTV Audio System

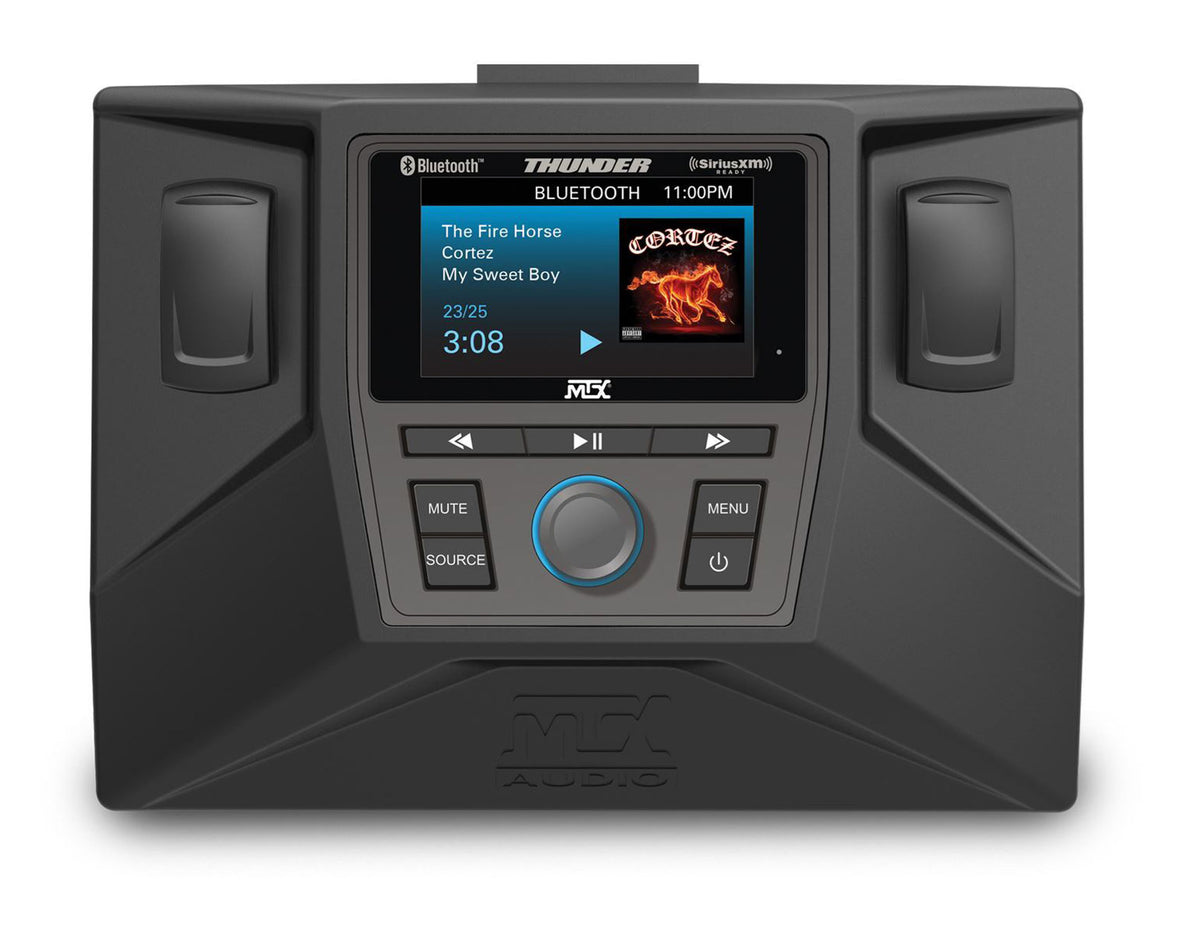

  • Marine Receiver (AWMC3) RMS power at 2 ohms: 50W x 4 channels; 3-inch full-color TFT display; AM/FM/weather-band tuner; wireless audio streaming; USB charging; auxiliary input; 2 sets of front/rear pre-outs at 2V; line output impedance: 10k ohms; IP66

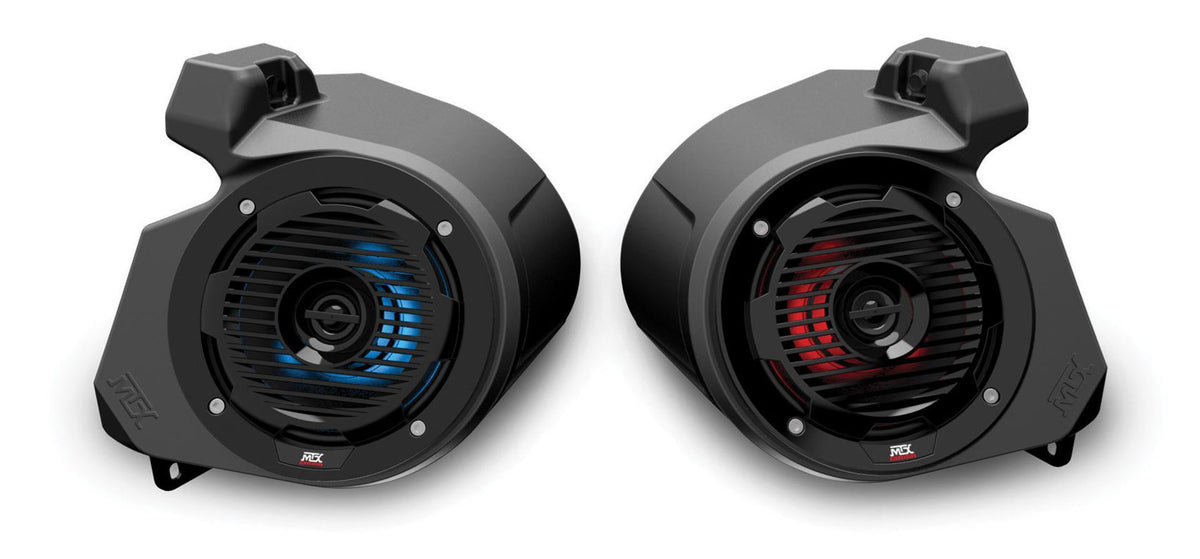

  • Kick-Panel Speaker System (RZR-14-FS) RMS power handling: 50W; peak power handling: 100W; sensitivity: 89.9 dB (2.83V/1m), 85.6 dB (1W/1m); frequency response: 70Hz-20kHz; impedance: 4 ohms; RGB LED lighting; polypropylene woofer; dome tweeter; sealed enclosure

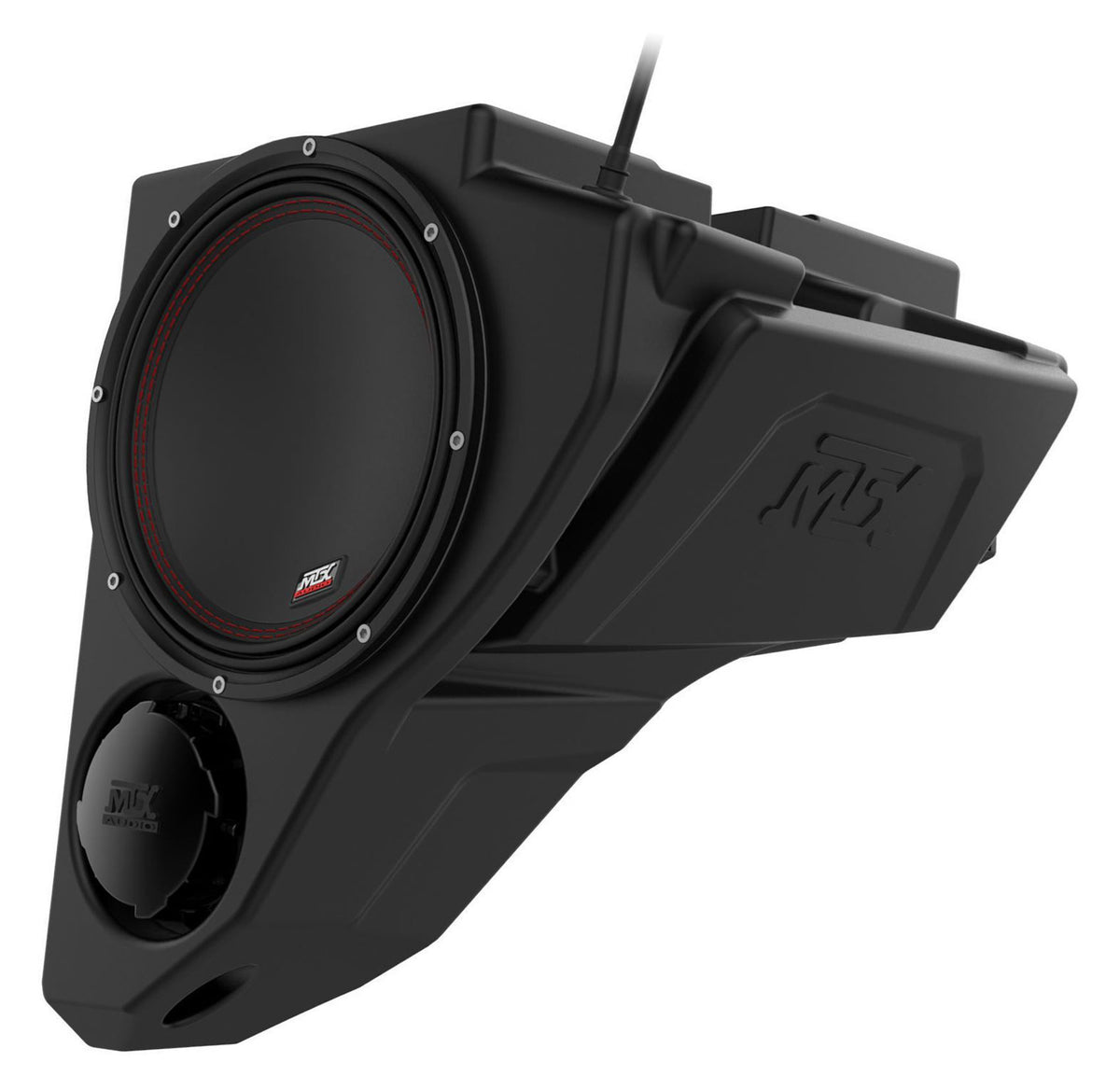

  • Subwoofer Enclosure (RZR-14-SW) 10-inch loaded subwoofer; RMS power handling: 400W; peak power handling: 800W; frequency response: 28Hz-130Hz; impedance: dual 4 ohms; sealed or ported operation

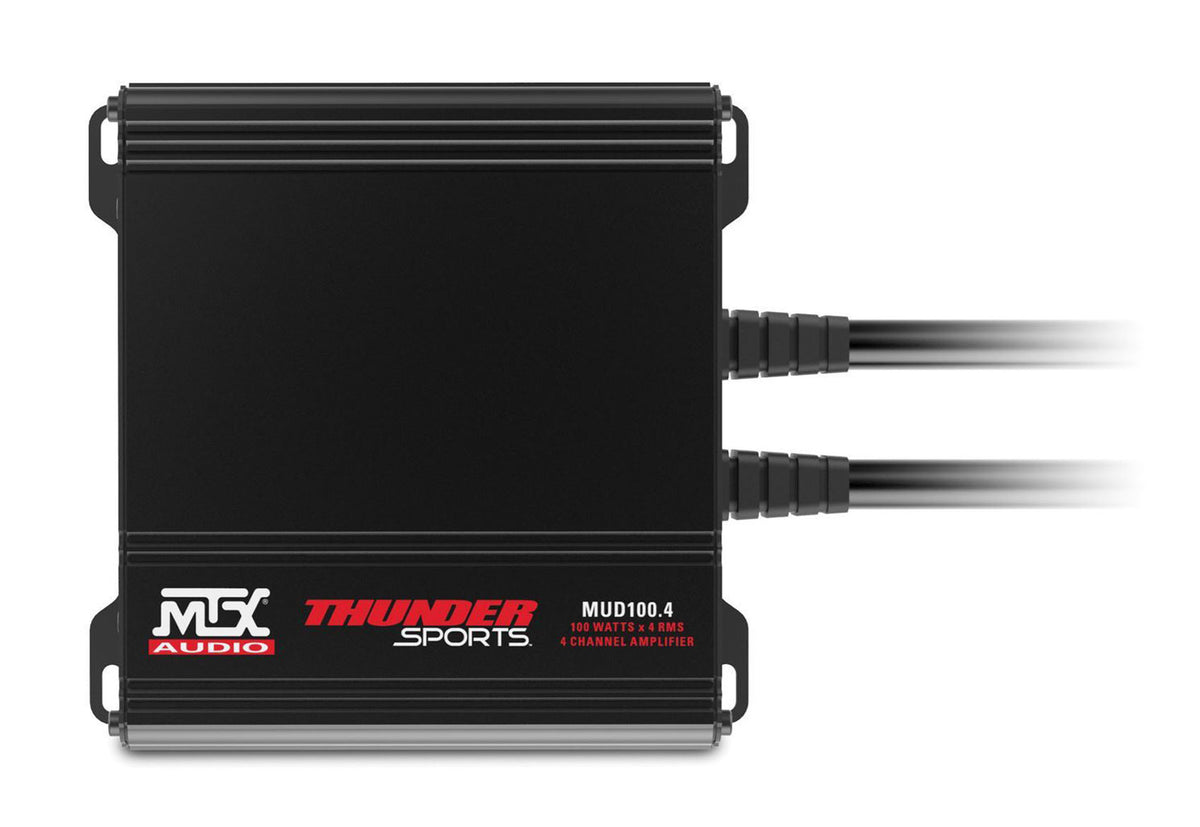

  • 4-Channel Amplifier (MUD100.4) RMS power: 50W x 4 at 4 ohms, 100W x 4 at 2 ohms; bridged: 200W x 2 at 4 ohms; peak power handling: 400W; full-range Class D; IP66; THD: below 0.2%; frequency response: 10Hz-32kHz; fixed HPF/LPF: 80Hz, 12dB/octave
  • Cage-Mount Speakers (MUD65PL) Quantity: 2; 6.5-inch 2-way; RMS power: 50W; peak power: 100W; sensitivity: 86 dB; impedance: 4 ohms; frequency response: 70Hz-20kHz; fits 1.5-, 1.75-, and 2-inch bars; RGB grille lighting

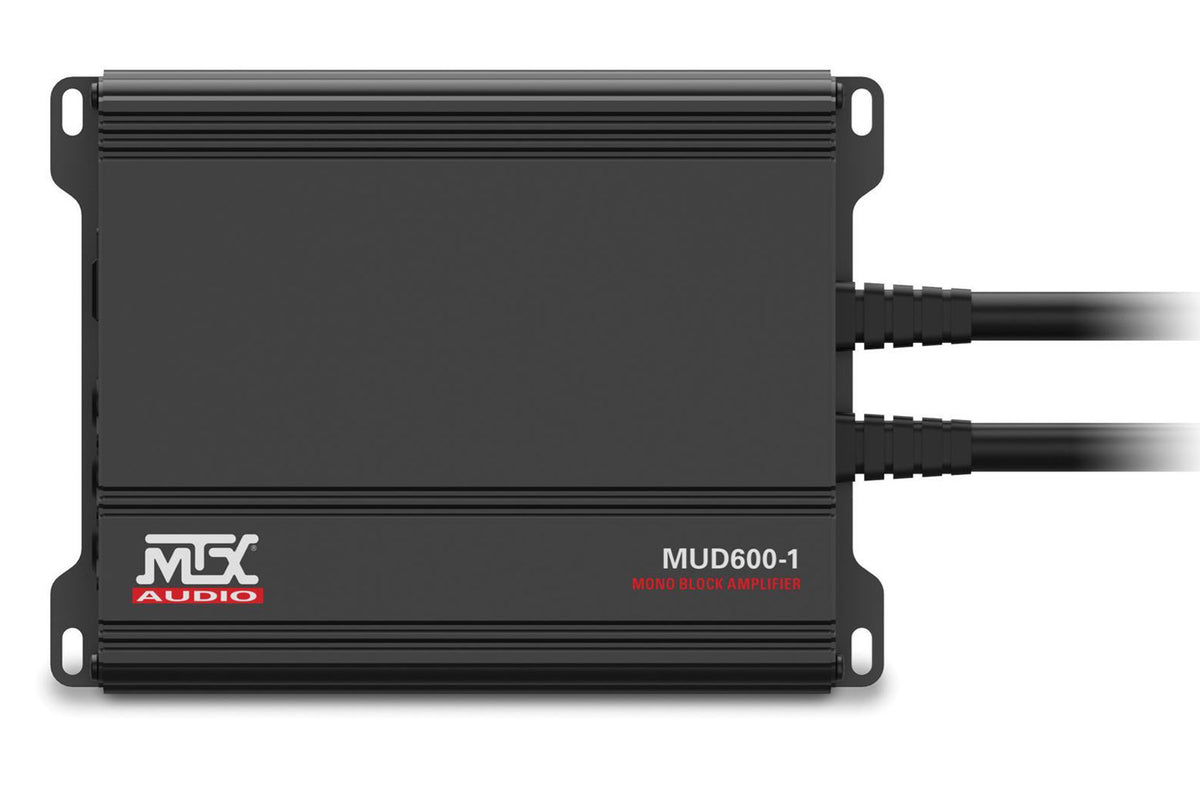

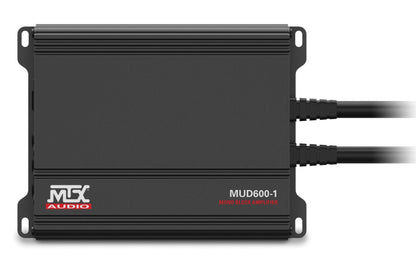

  • Mono Amplifier Primary power: 300W RMS at 4 ohms, 20-165Hz; signal-to-noise ratio: 85 dBA; input level: 0.2-5V low-level, 0.4-10V high-level; frequency response: 10Hz-250Hz; variable low-pass filter: 40-250Hz; minimum load: 2 ohms; low-voltage protection below 8.5V
