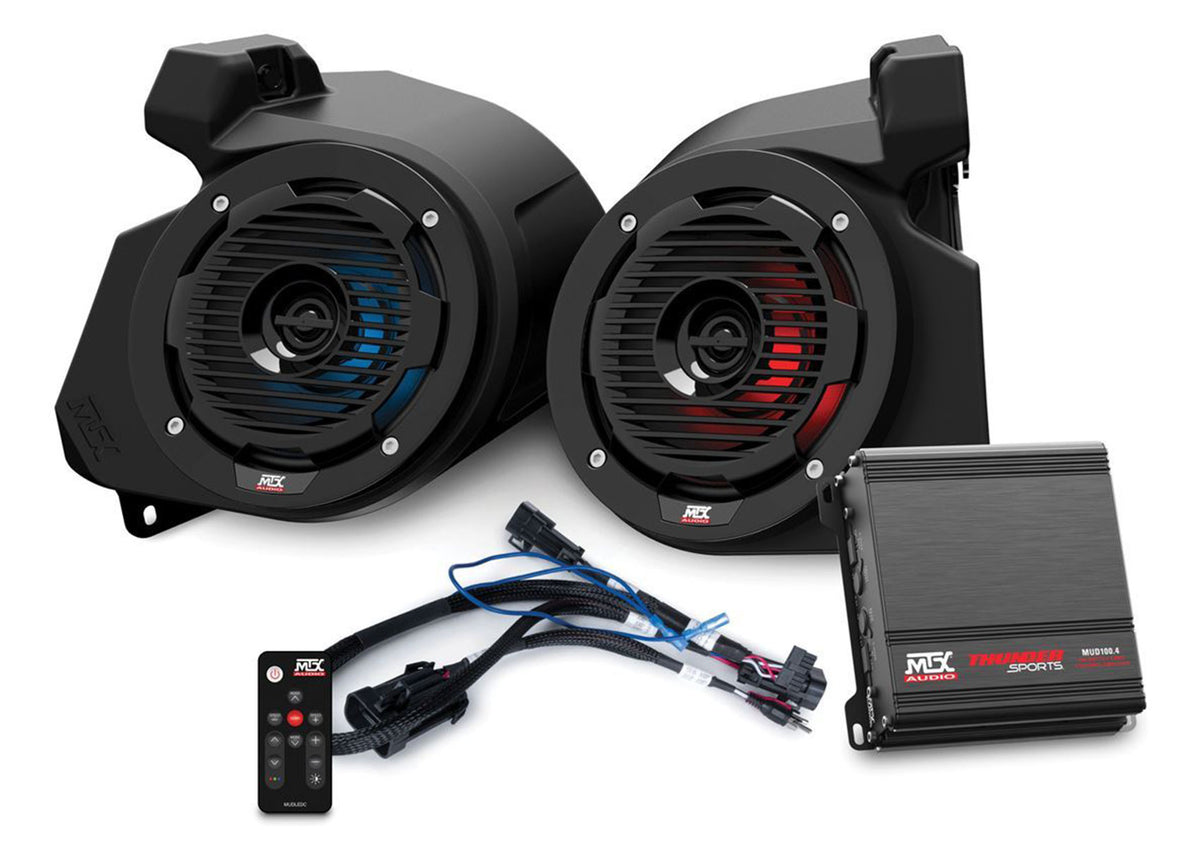

RZR Kick Panel Speaker System, (2) 50W RMS RGB Speaker Pods, 4-Channel Amplifier, Direct Fit
Free Shipping
Features
- Left and right kick panel speaker pods custom fit for the RZR
- Each pod handles 50W RMS and 100W peak at 4 ohms
- Integrated RGB LED lighting in sealed, rotationally molded enclosures
- MUD100.4 amp delivers 50W RMS x 4 at 4 ohms, IP66 rated
- POD-LOC quick mount brackets install with no cutting or drilling
Couldn't load pickup availability
What's Included in the box
- (1) Pair RZR-14-FS kick panel speaker pods (left and right enclosures)
- (2) Mounting brackets
- (2) 10mm screws
- Mounting hardware
- (1) MUD100.4 4-channel amplifier
SKU: SKU: RZR-14RC-THUNDER2
View full details



Product Description

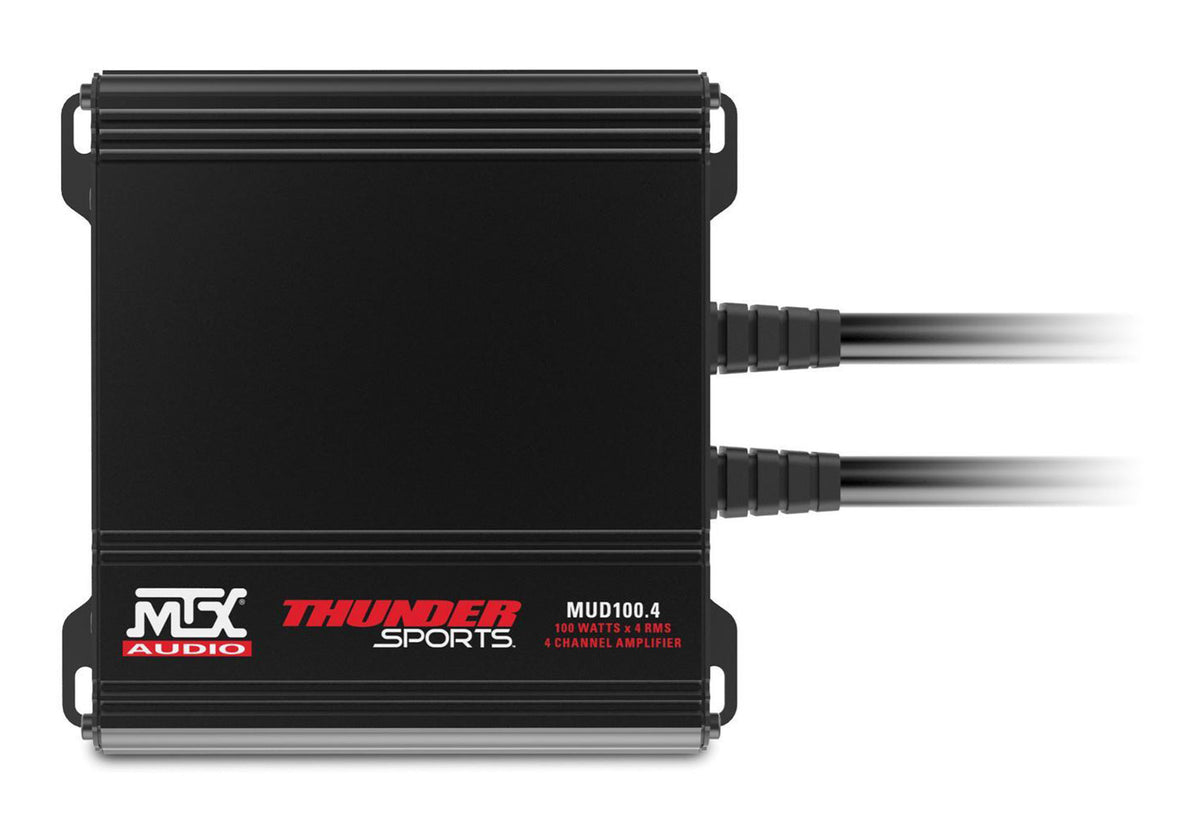

The MUD100.4 amplifier delivers 50W RMS x 4 channels at 4 ohms, a direct match for the pods' 50W RMS rating, and 100W x 4 at 2 ohms or 200W x 2 bridged at 4 ohms. Its full range Class D design is IP66 rated, the conformal coated circuit board resists moisture, and fixed 80Hz high and low pass crossovers let it run full range speakers or subwoofers. At 6.52 x 5.51 x 1.86 inches, the amp fits in tight spaces on the machine.
Features
Matched Speakers and Amp
The MUD100.4 sends 50W RMS per channel at 4 ohms, matching the 50W RMS rating of each kick panel pod for a balanced front-cab system.
Direct-Fit Kick Panel Pods
Left and right pods are custom fit for the RZR kick panel, and POD-LOC quick mount brackets install them with no cutting or drilling.
Lighting Built Into the Pods
Integrated RGB LEDs add color to the kick panels, while sealed, rotationally molded enclosures with factory-matched texture blend into the surrounding trim.
Weather-Resistant Amplifier
An IP66 rating and a conformal coated circuit board help the compact Class D amp resist moisture, dust, and spray from the trail.
Room to Expand the System
Four channels, a bridged 200W x 2 mode, and fixed 80Hz crossovers let the amp run full range speakers or a subwoofer later.
Technical Specifications
- Product Type Kick Panel Speaker Pod and 4-Channel Amplifier System
- Vehicle Fit RZR kick panel, direct fit
- Speaker Pods RZR-14-FS, left and right enclosures
- Speaker Components Polypropylene woofer and Mylar dome tweeter
- Speaker RMS Power 50W each
- Speaker Peak Power 100W each
- Speaker Sensitivity (2.83V/1m) 89.9 dB
- Speaker Sensitivity (1W/1m) 85.6 dB
- Speaker Frequency Response 70Hz to 20kHz
- Speaker Impedance 4 ohms
- Speaker Enclosure Rotationally molded, sealed, factory-matched texture
- Speaker Lighting Integrated RGB LEDs
- Speaker Mounting Quick mount bracket with POD-LOC technology
- Amplifier MUD100.4, 4-channel full range Class D
- Amplifier RMS Power @ 4 Ohms 50W x 4
- Amplifier RMS Power @ 2 Ohms 100W x 4
- Amplifier Bridged @ 4 Ohms 200W x 2
- Amplifier Peak Power 400W
- Amplifier Weather Rating IP66
- Amplifier THD Less than 0.2%
- Amplifier Frequency Response 10Hz to 32kHz
- Amplifier Crossover Fixed HPF/LPF at 80Hz, 12 dB/octave
- Amplifier Input Sensitivity 200mV max sensitivity, 5V max input
- Dimensions MUD100.4: 6.52 in H x 5.51 in W x 1.86 in D
