RZR-14RC-THUNDER3
MTX
RZR-14RC-THUNDER3
RZR-14RC-THUNDER3
Plug-And-Play 3-Speaker Audio System for 2014+ Polaris RZR with RideCommand, 10" Subwoofer Enclosure, RGB Speaker Pods, 2 Amplifiers
Free Shipping
Features
- Direct-connect harness uses your RZR's RideCommand display as the source unit
- Two 6.5" coaxial kick panel pods with 50W RMS each and integrated RGB lighting
- 10" 55 Series subwoofer enclosure rated for 400W RMS, sealed or ported
- 400W RMS MUD100.4 and 600W RMS MUD600.1 amplifiers power the full system
- Plug-in harnesses and direct-fit mounts install with no cutting or drilling
Couldn't load pickup availability

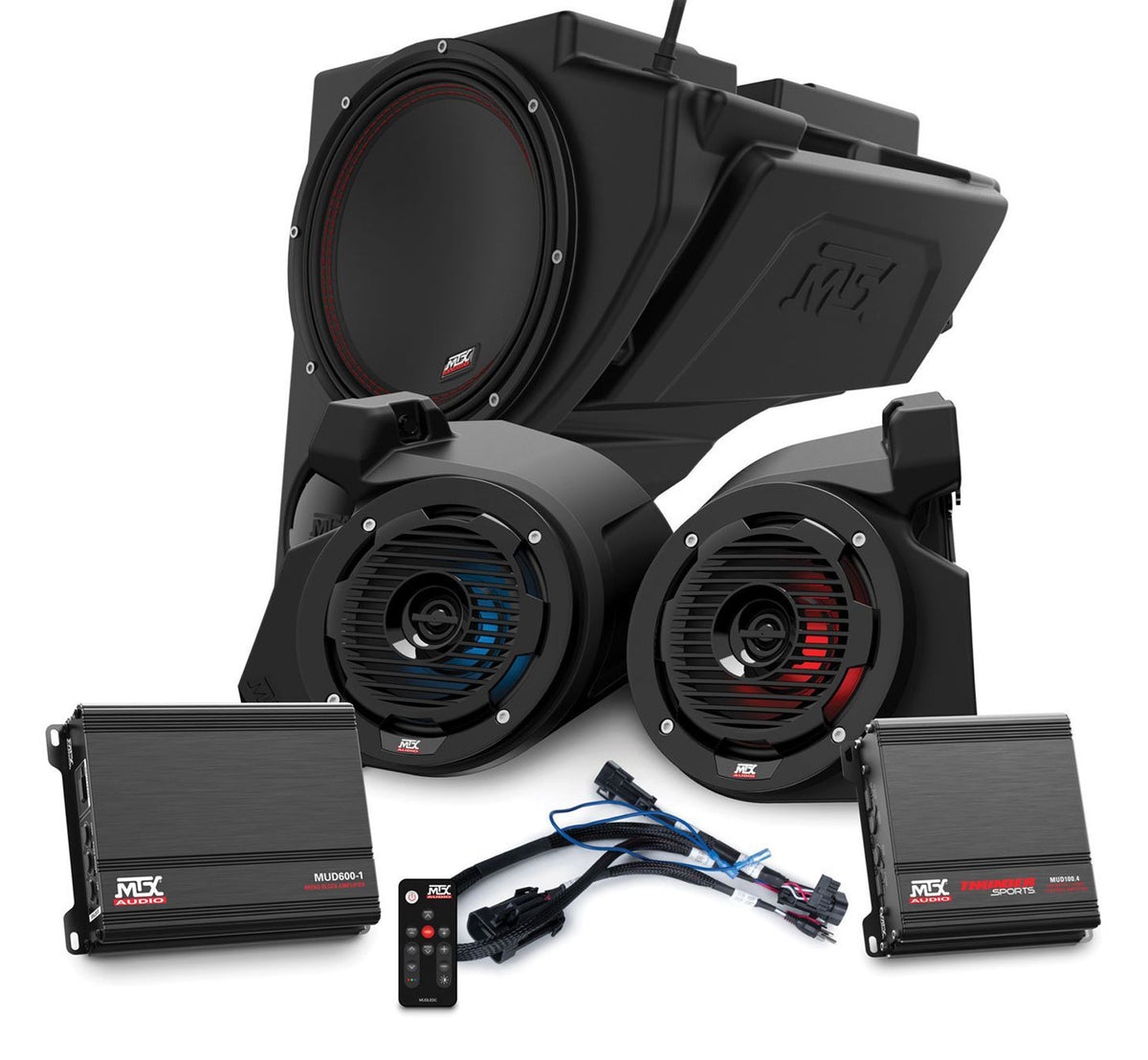

What's Included in the box
- (2) RZR-14-FS Front Speaker Pods with Quick Mount Brackets
- (1) RZR-14-SW 10" Loaded Subwoofer Enclosure
- (1) MUD100.4 4-Channel Amplifier
- (1) MUD600.1 Mono Amplifier

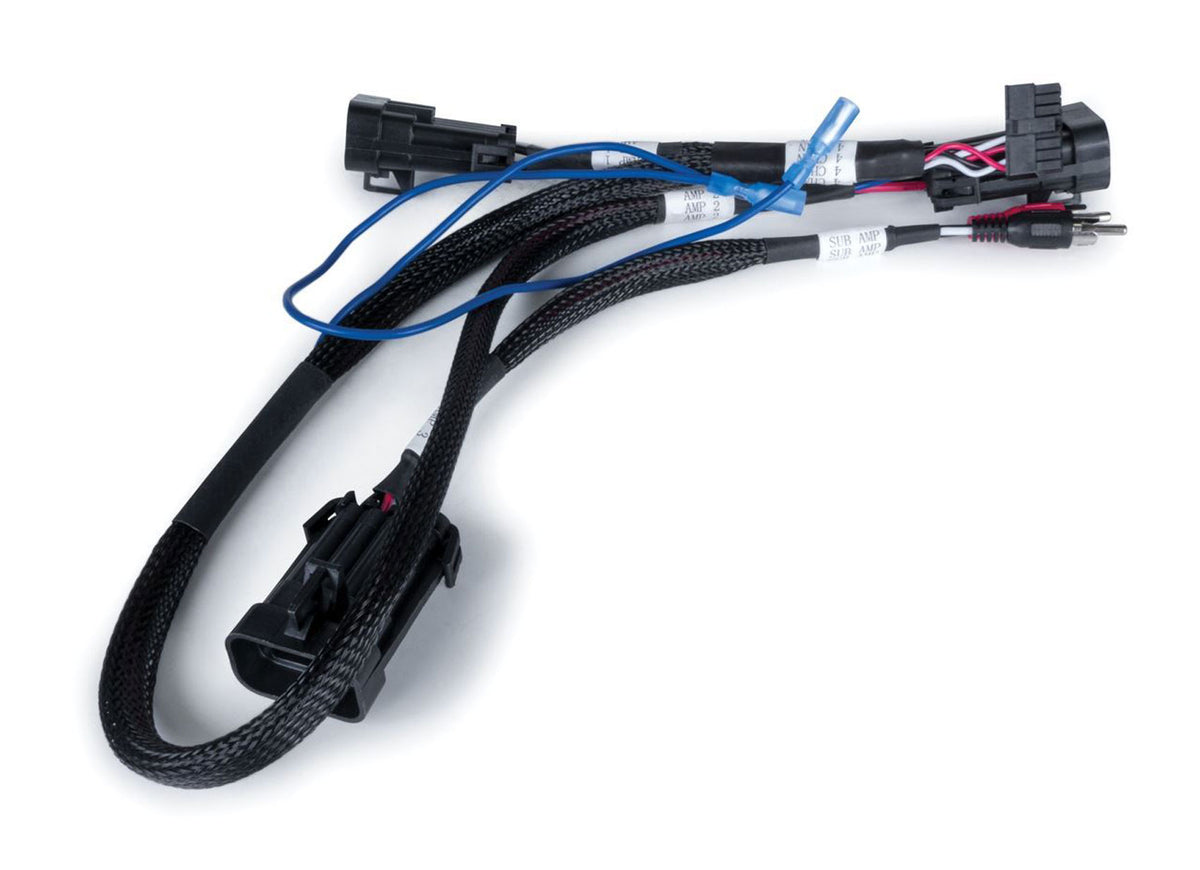

- (1) RideCommand Direct-Connect Harness
- Plug-In Wiring Harnesses for All Components
SKU: SKU: RZR-14RC-THUNDER3
View full details






Product Description
Power comes from two compact amplifiers. The MUD100.4 4-channel amp delivers 400W RMS to the speaker pods, and the high-efficiency Class D MUD600.1 mono amp sends 600W RMS to the subwoofer. Both have conformal coated circuit boards that resist moisture, fixed crossovers, and high and low level inputs. Every component connects through terminated plug-in harnesses built to handle dust, water, and vibration, and the install requires no cutting or drilling. This kit does not fit Pro XP or Pro R models, or RZRs with an existing factory audio system.
Features
Uses Your RideCommand Display
A direct-connect harness links the system to your factory RideCommand, so you control music from the screen you already use without mounting a separate head unit.

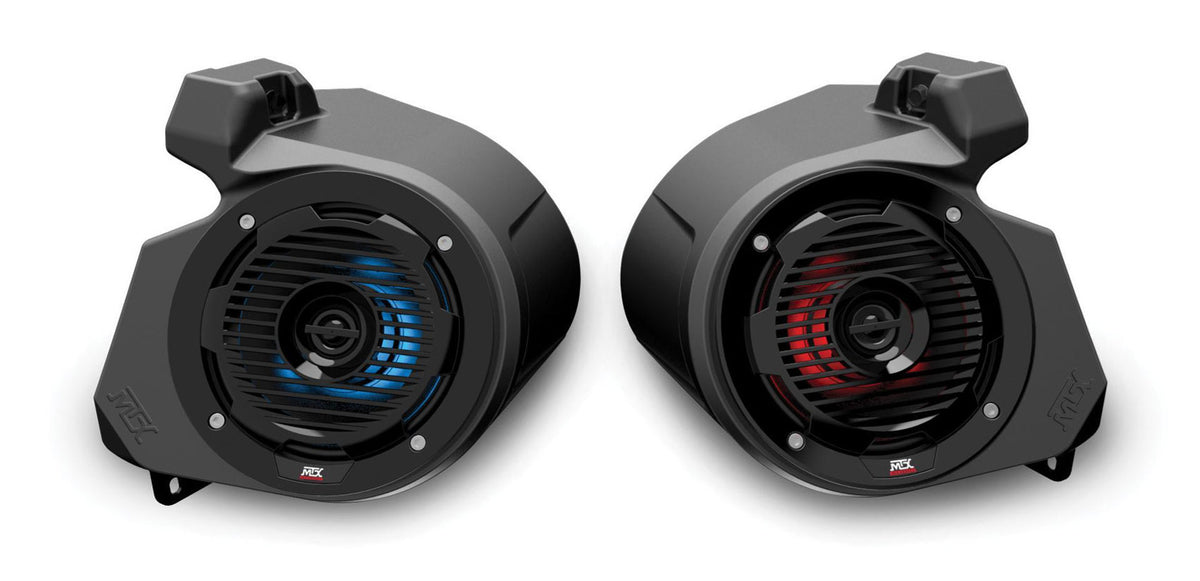

Lit Speakers Built for the Trail
Two 6.5" coaxial pods handle 50W RMS each, with integrated RGB lighting and all-weather construction with a UV inhibitor to stand up to sun and dust.

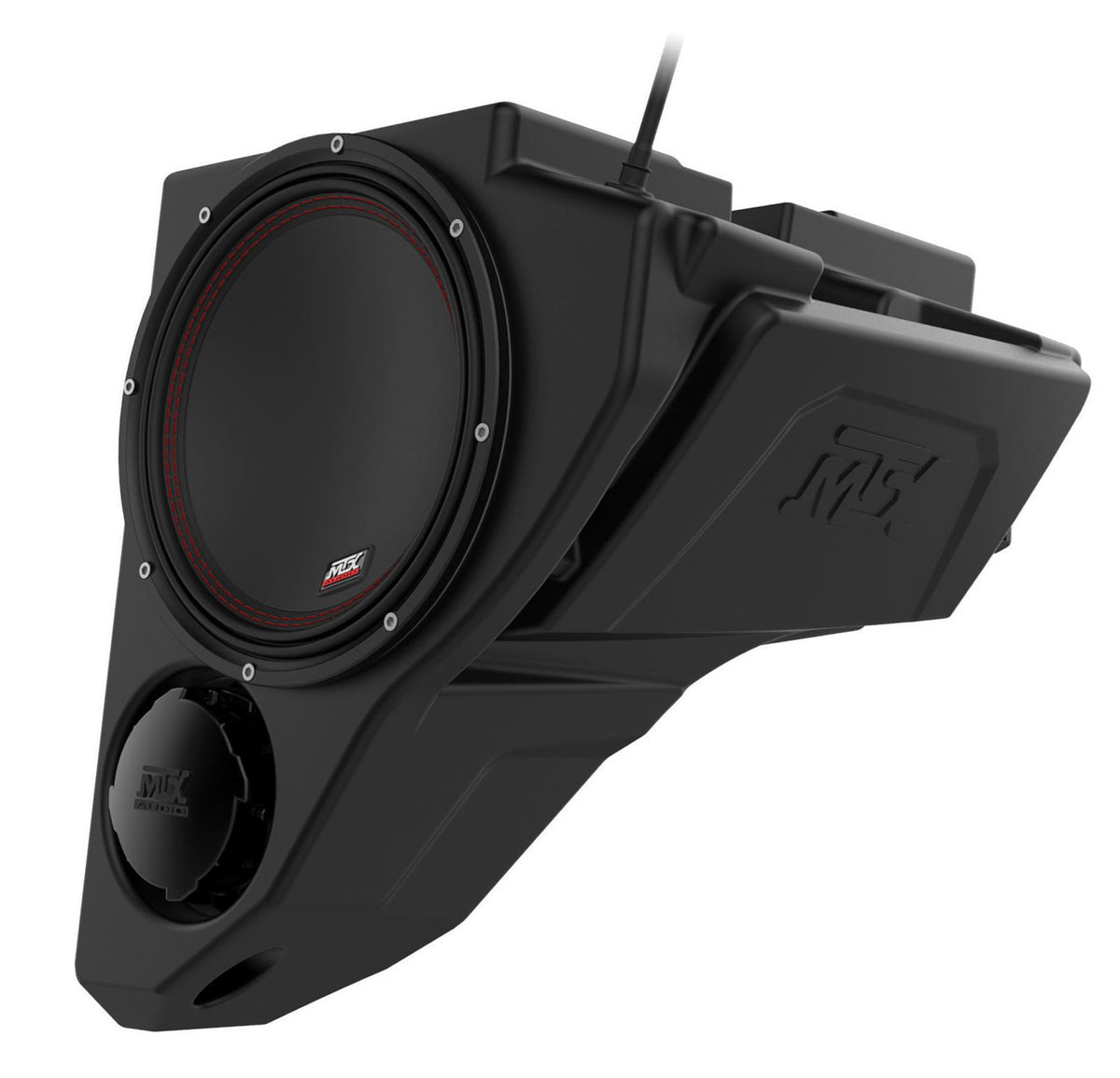

Deep Bass from Behind the Dash
The 10" 55 Series subwoofer handles 400W RMS and plays down to 28Hz, and QuIPS technology lets you run the enclosure sealed or ported.
Two Amps Matched to the Load
The MUD100.4 delivers 400W RMS to the speaker pods while the Class D MUD600.1 sends 600W RMS to the subwoofer, both with moisture-resistant coated circuit boards.
Bolt-In Install, No Modifications
Custom-fit mounts and terminated plug-in harnesses connect every component with no cutting or drilling, so you spend less time in the garage and more time riding.
Technical Specifications
- Product Type Plug-and-Play UTV Audio System
- Vehicle Fit 2014+ Polaris RZR with RideCommand (not compatible with Pro XP, Pro R, or factory audio systems)
- Number of Speakers 3
- Front Speakers (2) RZR-14-FS 6.5" Coaxial Pods
- Front Speaker Construction All-Weather with UV Inhibitor
- Front Speaker RMS Power 50W each
- Front Speaker Peak Power 100W each
- Front Speaker Sensitivity (2.83V/1m) 89.9dB
- Front Speaker Sensitivity (1W/1m) 85.6dB
- Front Speaker Frequency Response 70Hz - 20kHz
- Front Speaker Impedance 4 ohms
- Front Speaker Lighting Integrated RGB
- Front Speaker Mounting Quick Mount Bracket with POD-LOC
- Subwoofer RZR-14-SW 10" Custom Fit Enclosure (55 Series subwoofer)
- Subwoofer RMS Power 400W
- Subwoofer Peak Power 800W
- Subwoofer Sensitivity (2.83V/1m) 90.2dB
- Subwoofer Sensitivity (1W/1m) 83.5dB
- Subwoofer Frequency Response 28Hz - 130Hz
- Subwoofer Impedance Dual 4 ohm
- Enclosure Type Sealed or Ported (QuIPS)
- Subwoofer Mounting Behind Dashboard

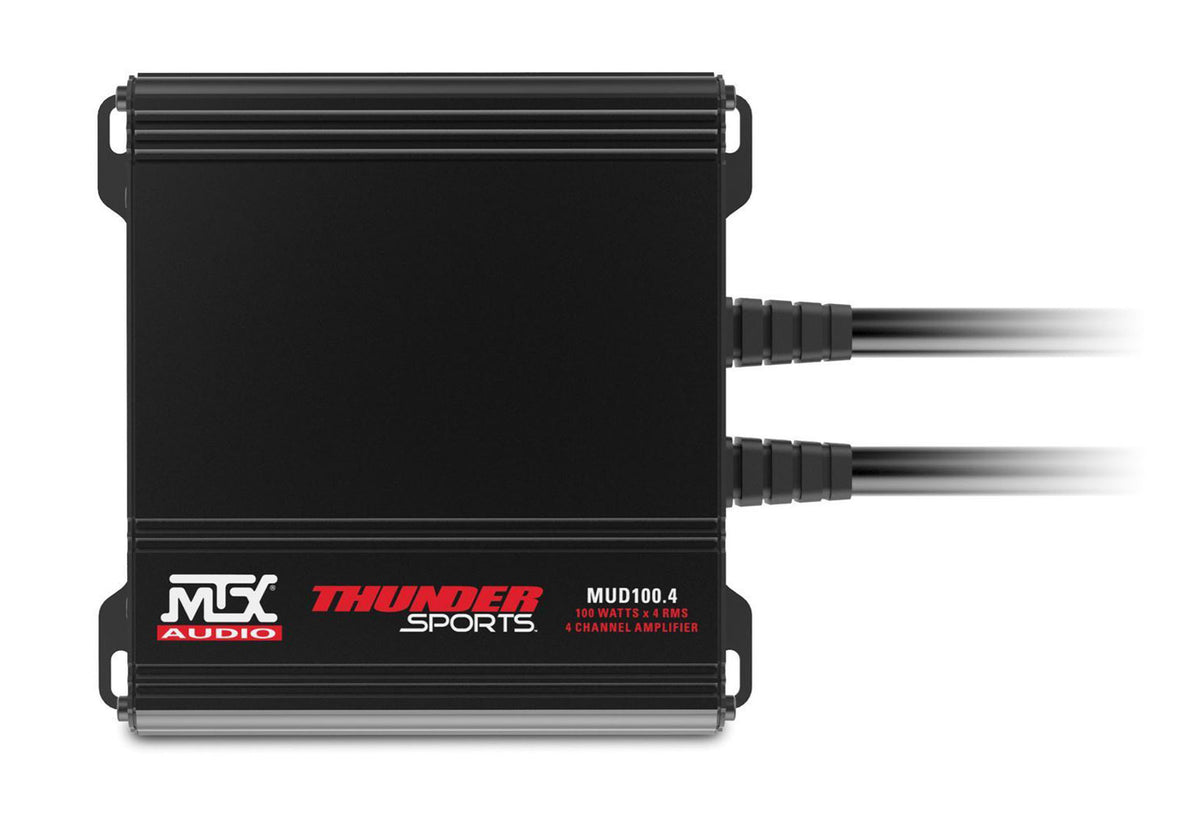

- 4-Channel Amplifier MUD100.4
- MUD100.4 RMS Power 400W
- MUD100.4 Crossover Fixed
- MUD100.4 Inputs High and Low Level
- MUD100.4 Circuit Board Conformal Coated, Moisture Resistant
- MUD100.4 Dimensions (H x W x D) 6.52" x 5.51" x 1.86"

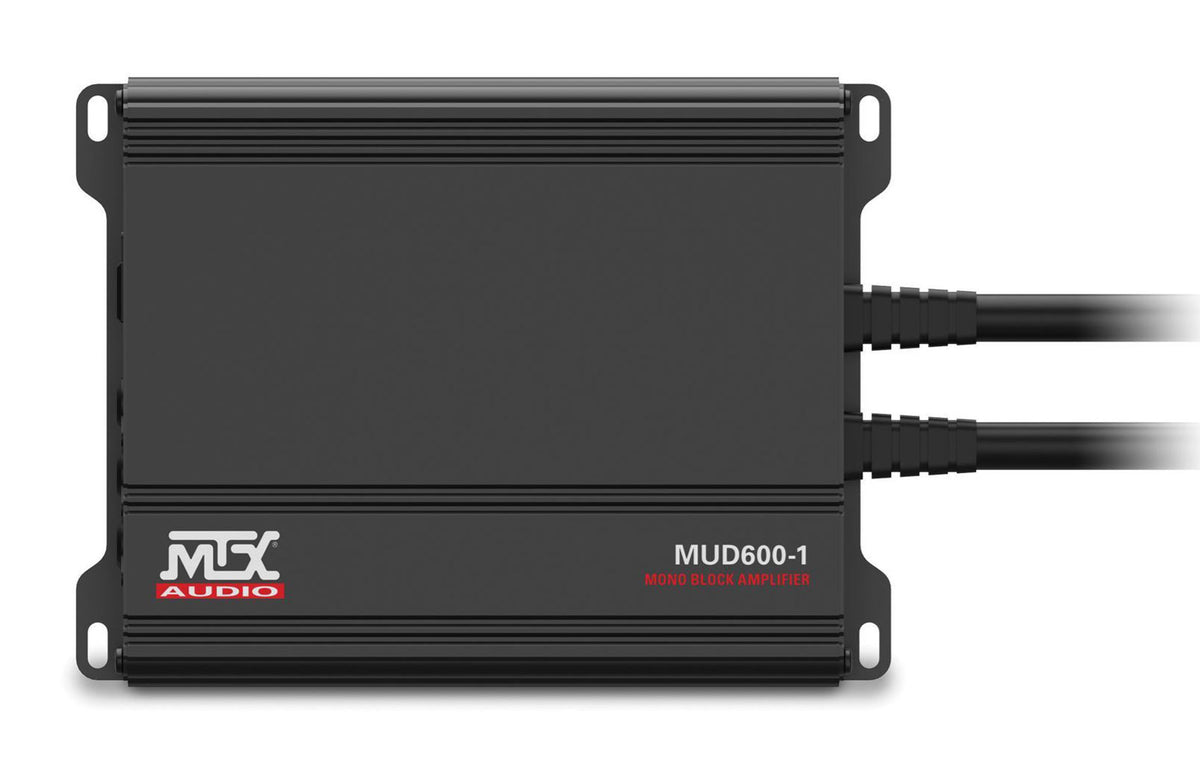

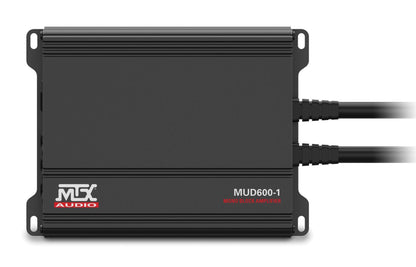

- Mono Amplifier MUD600.1
- MUD600.1 Topology High Efficiency Class D
- MUD600.1 RMS Power 600W
- MUD600.1 Crossover Fixed
- MUD600.1 Inputs High and Low Level
- MUD600.1 Circuit Board Conformal Coated, Moisture Resistant
- MUD600.1 Dimensions (H x W x L) 1.85" x 5.51" x 7.36"
