S6510-44

Product Description Specifications

S6510-44

  • S6510-44
  • S6510-44
  • S6510-44
  • S6510-44
  • S6510-44
  • S6510-44
  • S6510-44
  • S6510-44
1 8

MTX

S6510-44

S6510-44

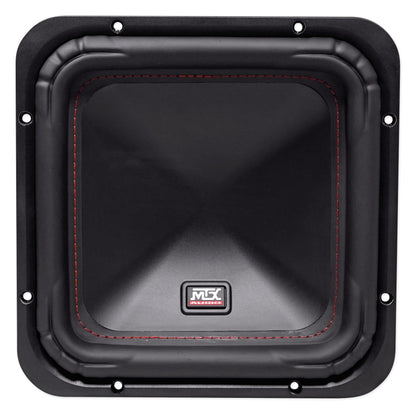

10" Square Car Subwoofer, 500W RMS, Dual 4-Ohm Voice Coils, Spider Plateau Venting

Free Shipping

$349.95
$349.95 $299.95
Shipping calculated at checkout.
Features
    • 10" square subwoofer rated 500W RMS and 1000W peak

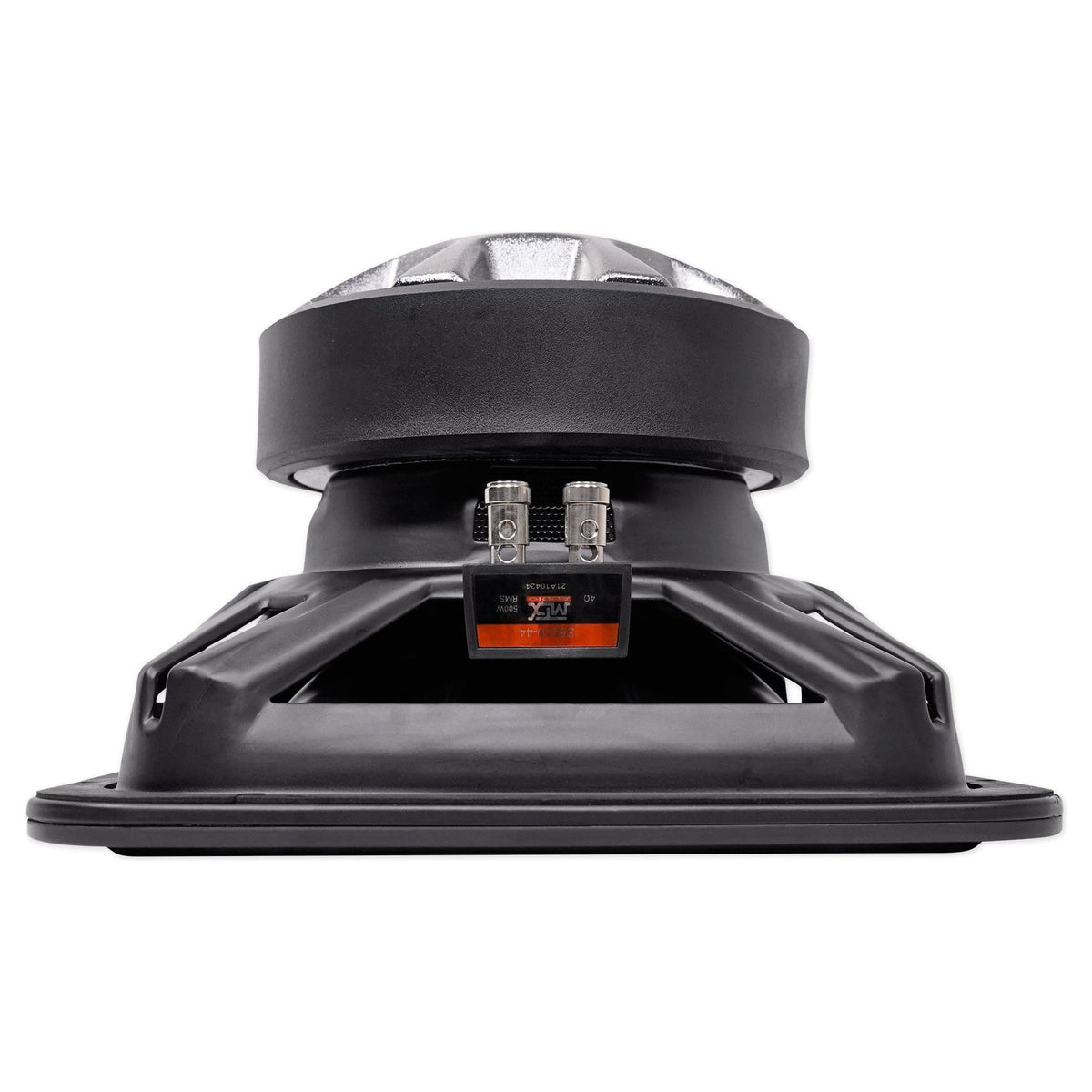

    • Dual 4-ohm voice coils allow flexible amplifier wiring
    • Patented corner geometry increases Xmax and volume displacement
    • Spider Plateau Venting targets cool air at the voice coil

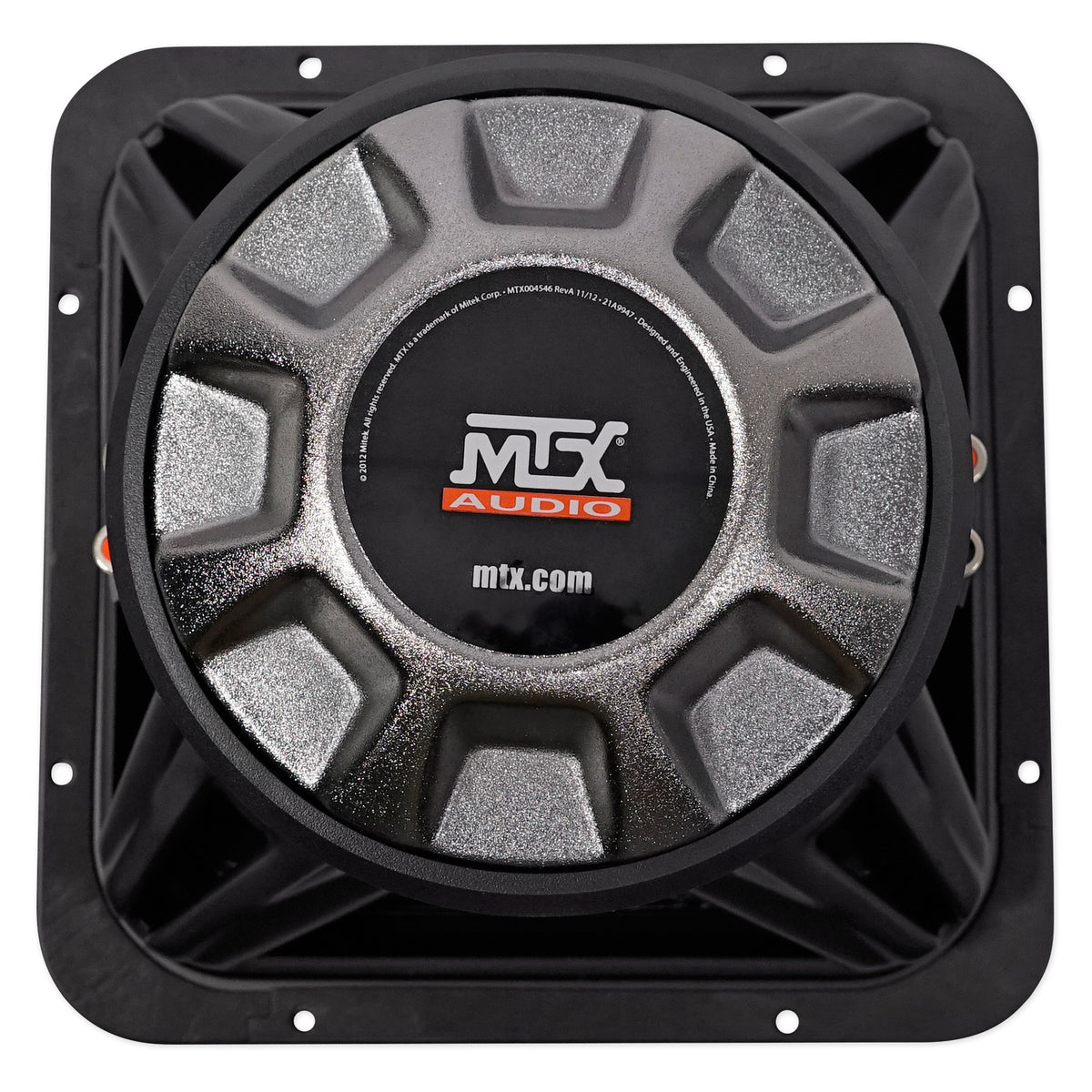

    • Radial ribbed t-yoke pulls heat away through the back plate
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later
    • (1) S6510-44 10" Square Subwoofer

SKU: S6510-44

View full details

Product Description

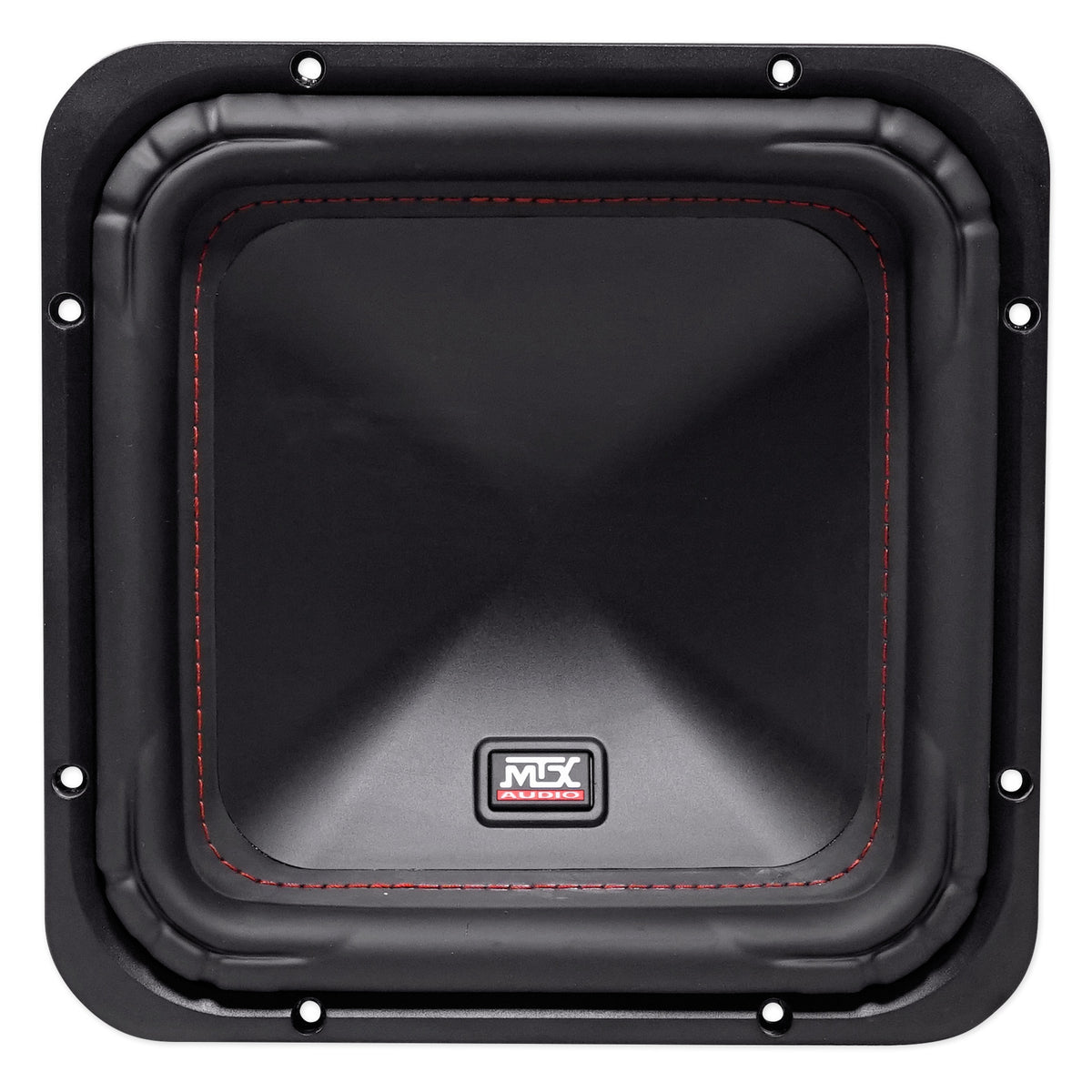

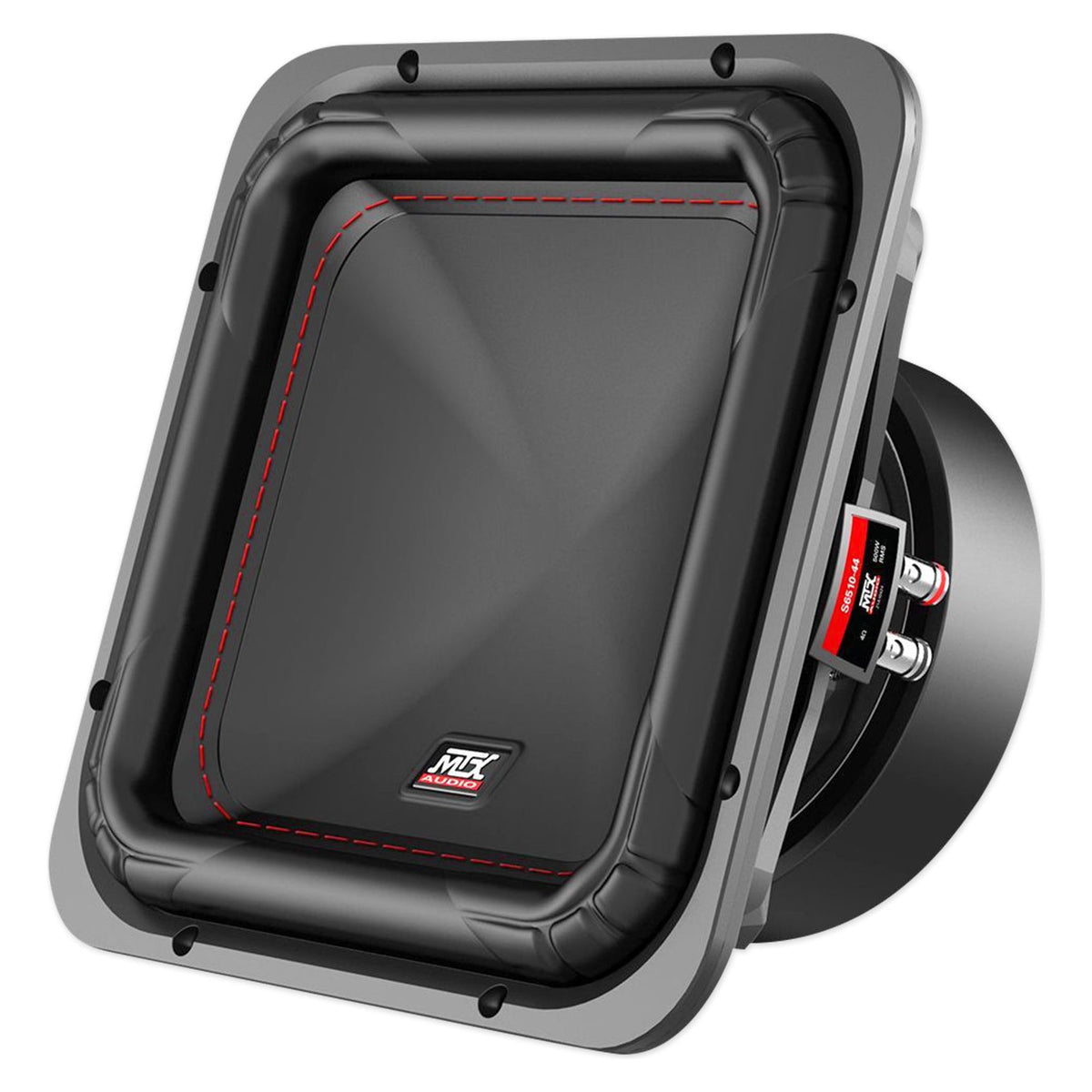

The S6510-44 is a 10" square subwoofer from the MTX S65 Series, built for high output in sealed or vented enclosures. Its square frame puts more cone area in the same mounting footprint than a round 10", and patented corner surround geometry increases Xmax for 45.65 cubic inches of volume displacement. More air moved means more SPL from the same amplifier power. Power handling is 500W RMS and 1000W peak, with dual 4-ohm voice coils that give you wiring options: 8 ohms in series or 2 ohms in parallel from a single sub, or a 1-ohm load with a pair. Recommended amplifier power is 250 to 500W RMS, and response runs from 26Hz to 130Hz. Thermal control comes from two directions. Spider Plateau Venting uses cone movement to push cool air at the voice coil, and a radial ribbed t-yoke pulls heat away through the back plate, so long sessions at high volume stay reliable. Progressive suspension holds excursion in check at high power, which keeps distortion down. Mounting depth is 6.625" with a 9.313" cutout.

Features

    • More Output From The Same Space

      The square frame adds cone area over a round 10" in the same footprint, and 45.65 cubic inches of displacement translates that into higher SPL.

    • Wiring Options For Any Amp

      Dual 4-ohm voice coils let you present 2 or 8 ohms from a single sub, so the woofer matches the amplifier you already own.

    • Stays Cool Under Pressure

      Spider Plateau Venting pushes cool air at the voice coil while a radial ribbed t-yoke sinks heat through the back plate during long sessions.

    • Clean Bass At High Power

      Progressive suspension controls excursion as power climbs, holding distortion down so low notes stay tight instead of turning muddy.

    • Deep Low End

      Response reaches 26Hz with 500W RMS handling and a recommended 250 to 500W amplifier, covering both sealed and vented enclosure builds.

Technical Specifications

  • Product Type 10" Square Car Audio Subwoofer
  • RMS Power Handling 500W
  • Peak Power Handling 1000W
  • Recommended Amplifier Power 250 - 500W RMS
  • Impedance Dual 4 Ohms
  • Frequency Response 26Hz - 130Hz
  • Sensitivity 84.5dB
