MTX THUNDER1000.1 1000 Watt RMS Mono Class D 1-Ohm Amplifier Car Audio Amp

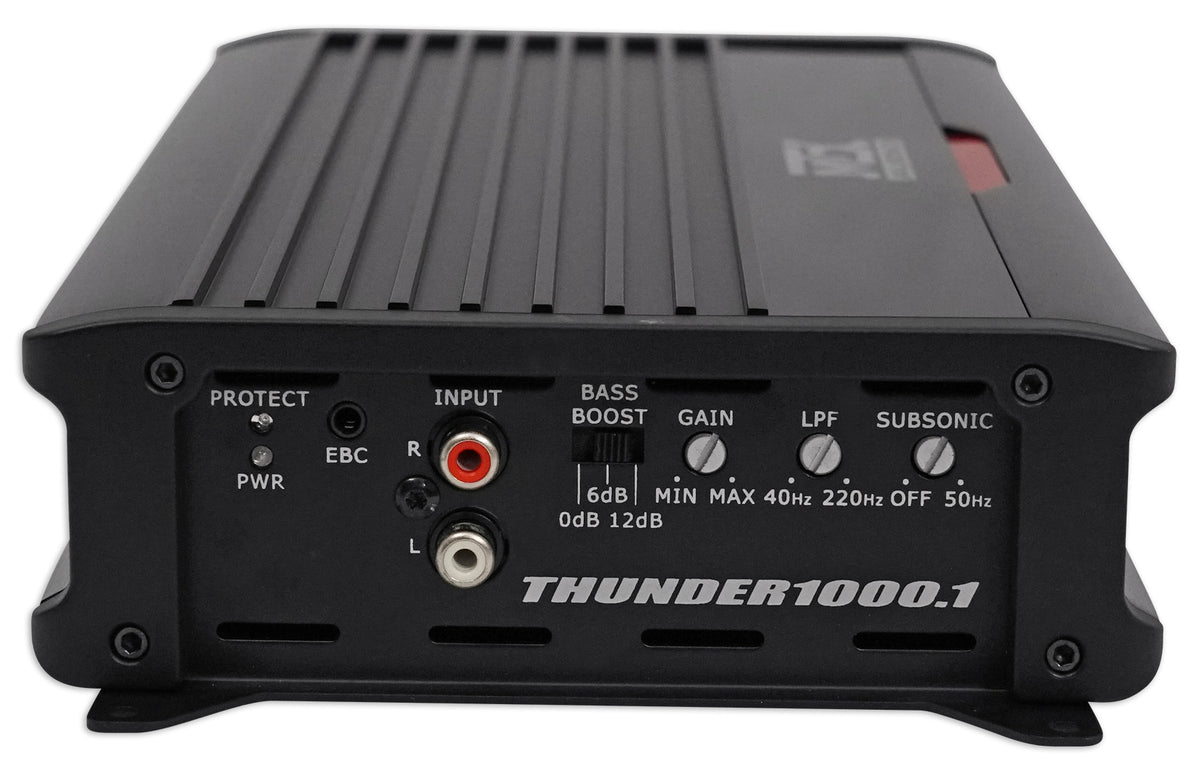

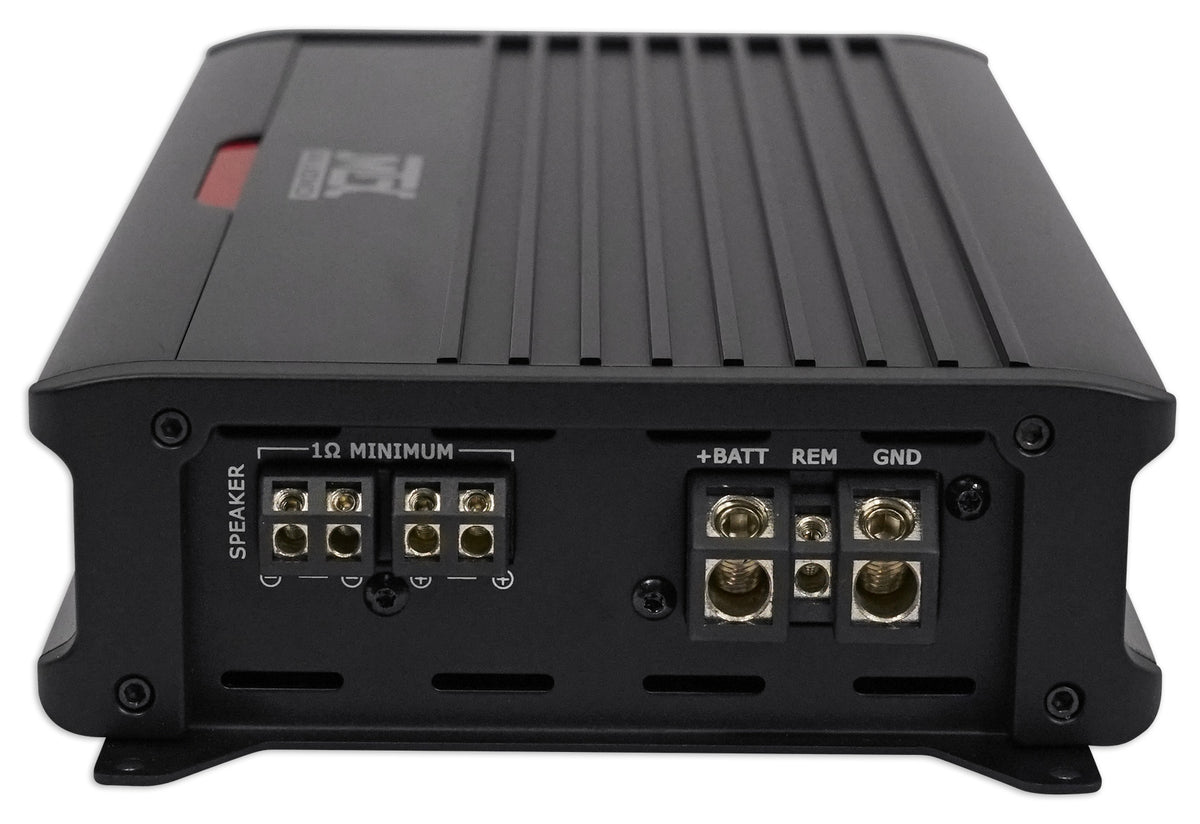

The THUNDER1000.1 is a mono block class D subwoofer amplifier rated at 1000W RMS into 1 ohm, 600W into 2 ohms, and 350W into 4 ohms. That range of stable loads lets it run a single dual voice coil sub or a pair of woofers without you rewiring the whole system. Class D topology converts more of the incoming current into output instead of heat, which is why the chassis stays small enough to mount behind a seat, under a console, or against a trunk wall. Surface mount PCB construction uses smaller components bonded directly to the board, so the amplifier resists the constant vibration of a vehicle better than through-hole designs. Tuning is handled on an accessible control panel with a variable Butterworth low pass crossover from 40Hz to 220Hz at 12dB per octave, a variable subsonic filter from 10Hz to 50Hz for vented enclosures, and switchable bass boost at 0, 6, or 12dB. Power and ground terminals accept up to 1/0 AWG and speaker terminals up to 12 AWG, using set screw connections that hold tight and limit voltage drop. Thermal, DC offset, and short circuit protection watch the amplifier in the background.
