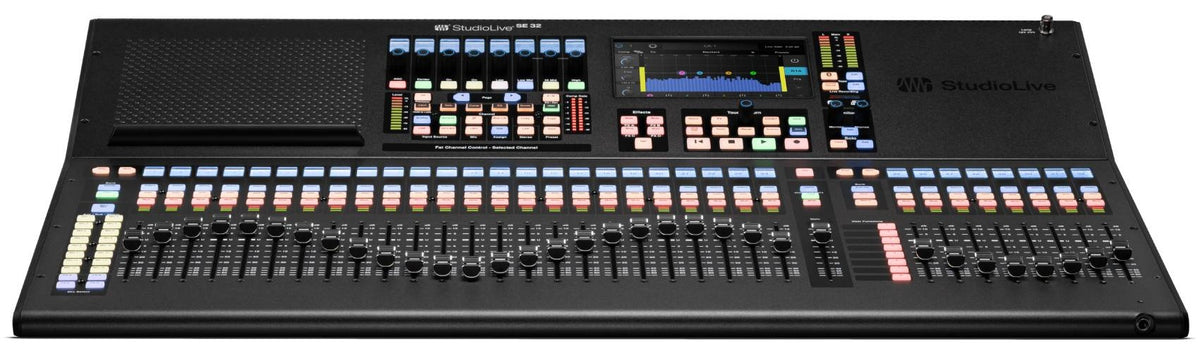

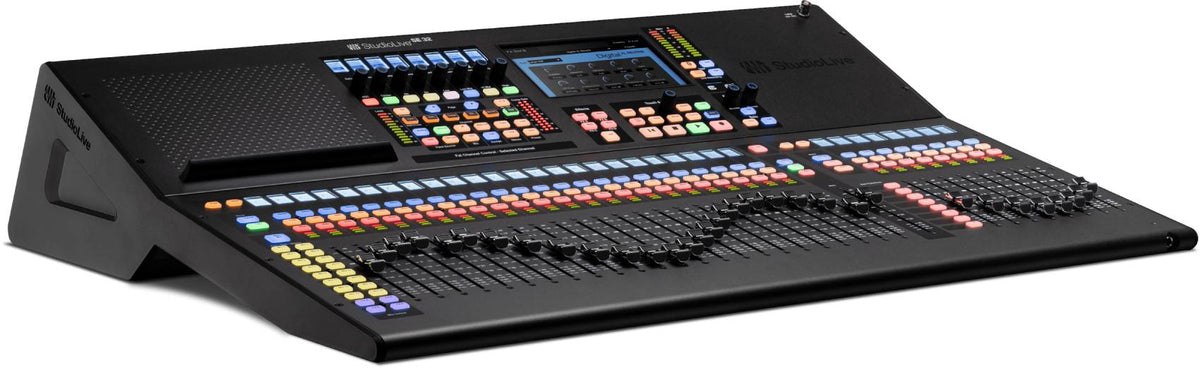

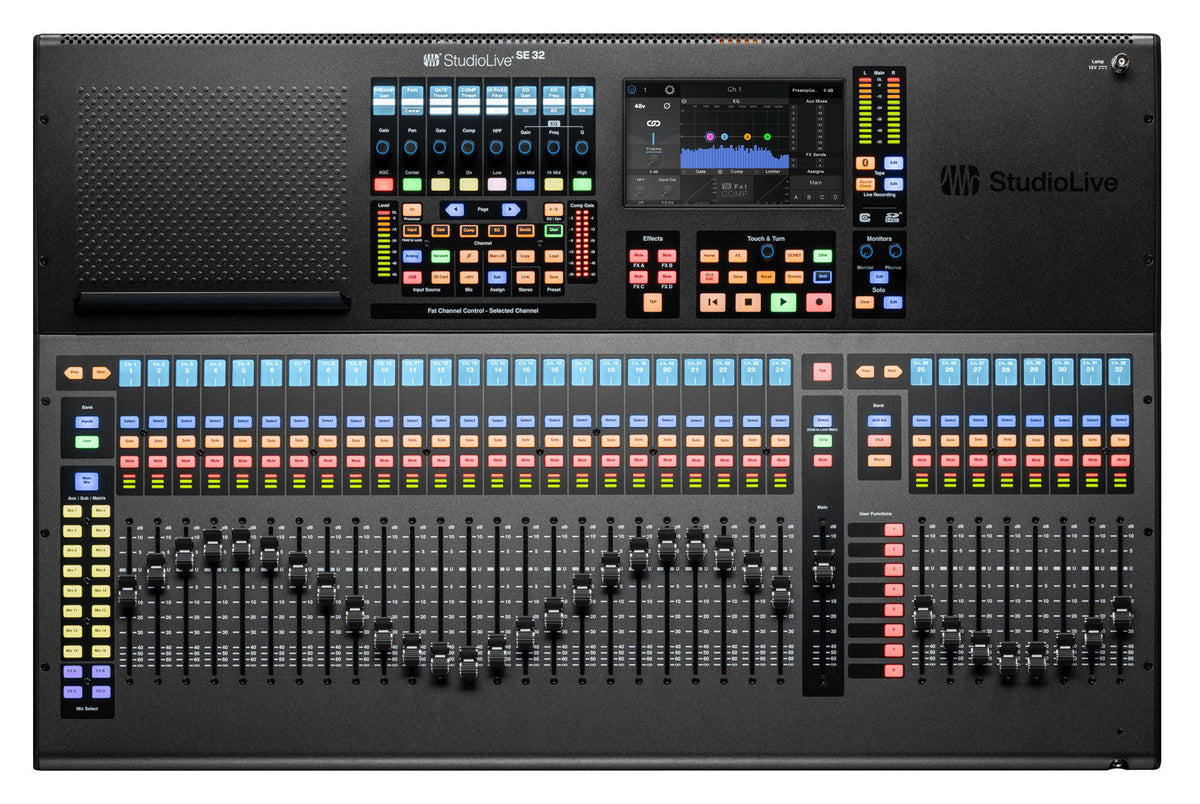

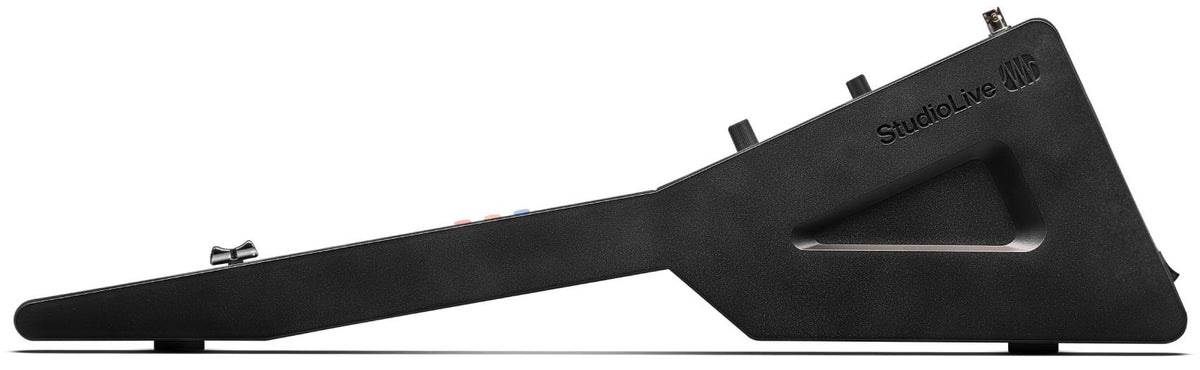

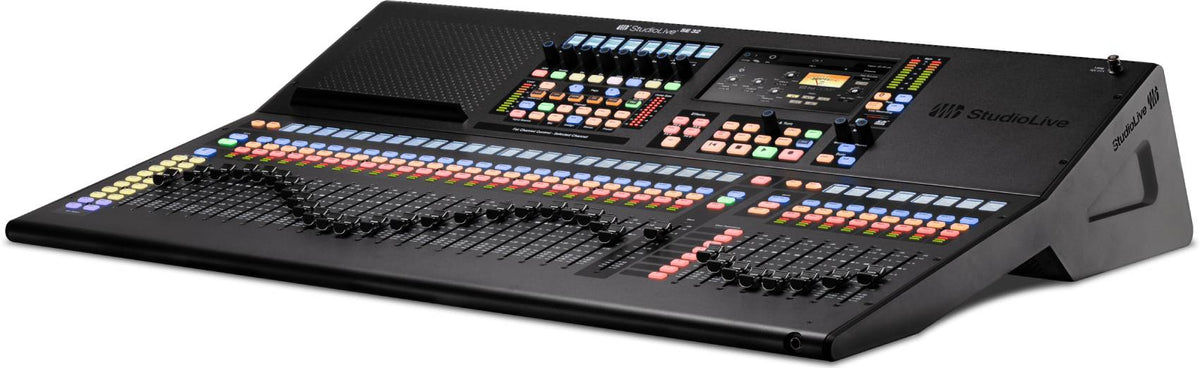

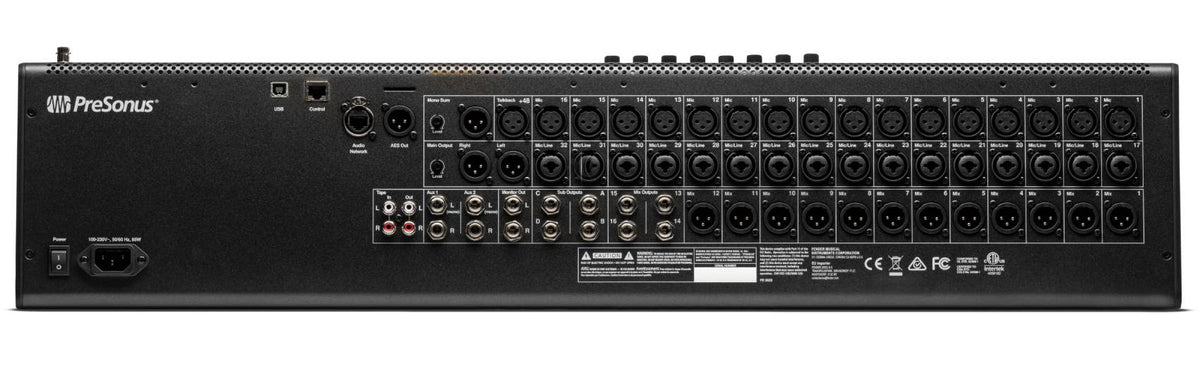

Presonus StudioLive SE 32 Series III Digital Console Mixer w/64x64 USB Interface
PRESONUS
Presonus StudioLive SE 32 Series III Digital Console Mixer w/64x64 USB Interface
Presonus StudioLive SE 32 Series III Digital Console Mixer w/64x64 USB Interface
40-Channel Digital Console, 33 XMAX-Remote Preamps, 33 Motorized Faders, 64x64 USB, Milan AVB
Features
- 40 mixing channels and 26 buses with 33 touch-sensitive motorized faders
- 33 XMAX-Remote preamps with 32-bit floating-point DSP and 115 dB converters
- 64x64 USB interface and onboard SD recorder with one-click Virtual Soundcheck
- All 8 Fat Channel compressor models and all 7 EQs included as standard
- Metro remote access controls routing, levels, and configuration over the internet
Couldn't load pickup availability

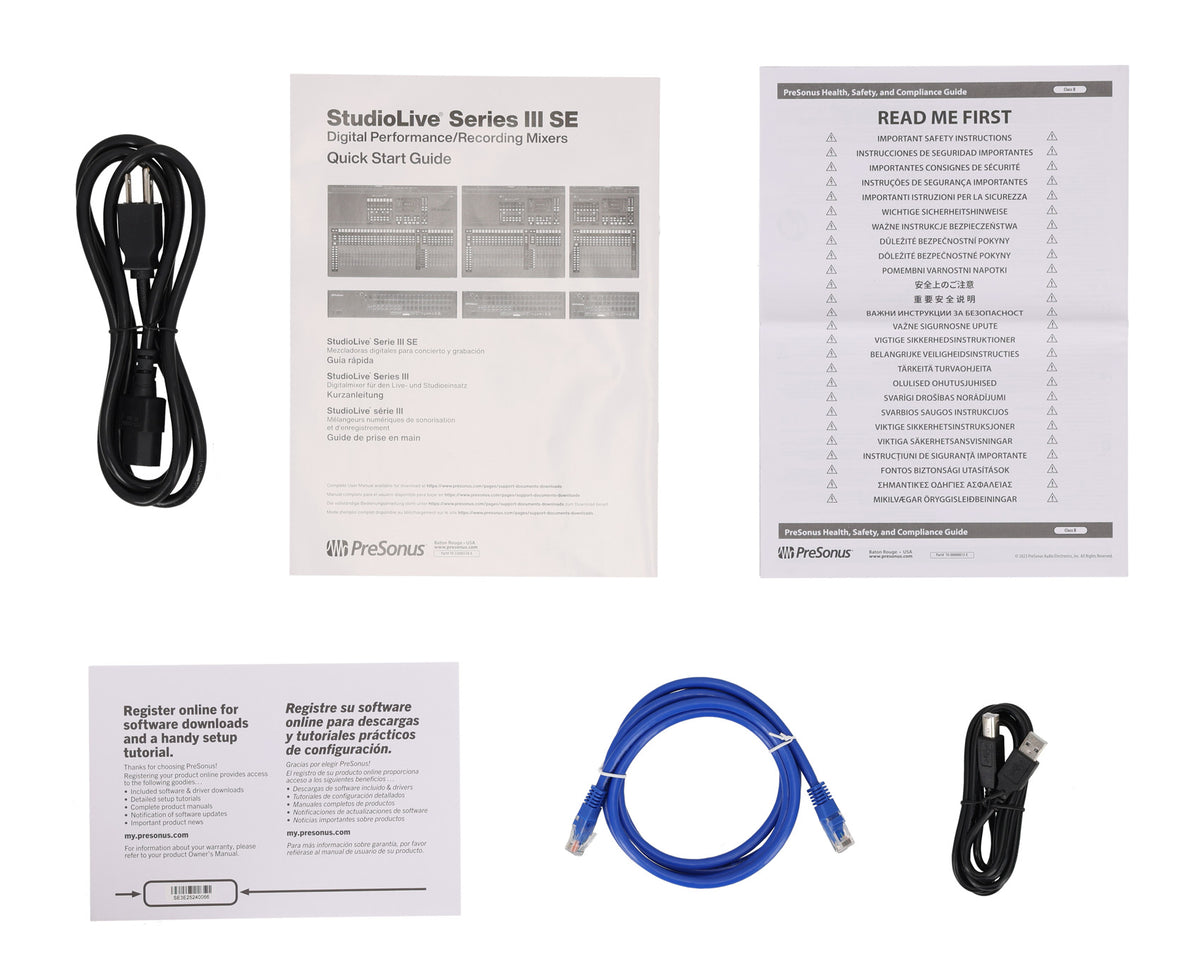

What's Included in the box
- StudioLive SE 32 digital console mixer
- IEC power cable
- Capture multitrack recording software (download)
- Universal Control software with Metro remote access (download)
- QMix-UC monitor control app for iOS and Android (download)
SKU: SKU: StudioLive SE 32
View full details






Product Description
Audio quality starts with 33 XMAX-Remote preamps for transparent analog tone with digital recall, 32-bit floating-point DSP, and 115 dB A/D and D/A converters with ultra-low jitter clocking. Total system latency is 1.9 ms with all processing active.
Processing comes from the dual-core FLEX DSP Engine and includes all eight Fat Channel compressor models and all seven EQs from the Fat Channel Collection as standard, modeled on hardware such as Brit Comp, FC-670, and Tube EQ. Digital Reverb XL adds diffusion, predelay, room size, and advanced damping, and the limiter has a variable release. Eight scribble strip displays sit in the Fat Channel section for fast visual access.
Recording and playback run through the 64x64 USB interface or the onboard SD recorder, with one-click Virtual Soundcheck in Capture and out-of-the-box operation with Fender Studio Pro. A Bluetooth input covers break music and reference mixes.
Metro remote access controls routing, levels, processing, and full configuration over the internet from anywhere, Universal Control runs locally on a tablet or phone, and QMix-UC hands monitor mixes to performers. Sixteen FlexMixes, four effects buses, four subgroups, and 24 DCAs handle routing, and AVB connects StudioLive Stage Boxes and Milan-compatible I/O.
Features
-
Studio Sound On Stage
33 XMAX-Remote preamps, 32-bit floating-point DSP, and 115 dB converters with low-jitter clocking keep the signal clean at 1.9 ms total system latency.
-
Mix, Record, And Stream From One Desk
A 64x64 USB interface and onboard SD recorder capture every channel, while integrated Capture gives you one-click Virtual Soundcheck before the room fills up.
-
Every Fat Channel Model Included
All eight compressor models and all seven EQs from the Fat Channel Collection ship as standard, with expanded Digital Reverb XL parameters and a variable limiter release.
-
Support It From Anywhere
Metro remote access controls routing, levels, processing, and full console configuration over the internet, so an installed system can be reconfigured without a site visit.
-
Comfortable Through A Long Show
33 motorized faders, redesigned fader caps, eight scribble strips, and a high-contrast flat screen keep channel information readable across hours at the console.
Technical Specifications
- Product Type Digital Console Mixer with USB Audio Interface
- Mixing Channels 40
- Mix Buses 26, including 16 FlexMixes (aux, subgroup, matrix), 4 effects buses, and 4 subgroups
- DCAs 24
- Faders 33 touch-sensitive motorized
- Microphone Preamps 33 XMAX-Remote
- DSP Dual-core FLEX DSP Engine, 32-bit floating-point internal processing
- Converters 115 dB ADC and DAC dynamic range (A-weighted, 48 kHz)
- Bit Depth 24-bit
- Supported Sample Rates 44.1 kHz, 48 kHz
- Total System Latency 1.9 ms (local routing, analog in to analog out, all processing active)
- USB Recording 64x64, USB 2.0 Type-B
- SD Recorder 24-bit recording, 16- or 24-bit playback, WAV, SD up to 2 GB / SDHC up to 32 GB
- AVB Networking Milan-certified, Neutrik etherCON ports
- Bluetooth Input 4.1, stereo
- Microphone Input XLR female balanced, 1 k ohm, gain range 0 dB to 60 dB, 94 dB signal-to-noise
- Line Input 1/4 in. TRS female balanced, 10 k ohms, maximum +18 dBu
- XLR Output Maximum +24 dBu, 100 ohms
- Line Output 1/4 in. TRS female balanced, maximum +18 dBu, 100 ohms
- Headphone Output 1/4 in. TRS active stereo, 100 mW per channel at 60 ohms
- Tape Connection RCA female unbalanced stereo pair
- AES/EBU Output XLR male
- Network Control Port RJ-45
- Phantom Power +48 VDC
- Remote Control Metro remote access, Universal Control, QMix-UC
- Power 100-230 VAC, 50-60 Hz, IEC cable, 85W continuous
- Color Black
- Dimensions 32.37 in. W x 22.97 in. D x 6.51 in. H
- Weight 37.2 lb
