XC-MXF05

XC-MXF05

Unbalanced Adapter Cable, 5 Ft Length, 3.5mm TRS Male To XLR Female, Stereo Summed To Mono On Pin 2
$13.95
$13.95 $17.00
Save 17%
Shipping calculated at checkout.
Features
    • 5 ft cable connects a 3.5mm headphone output to an XLR input
    • Left and right channels combined on pin 2 for a full mono feed
    • Works with phones, tablets, laptops and voice recorders
    • 20 AWG x 2 oxygen-free copper conductors with 93% braided shield
    • Gold- and silver-plated contacts on ProX branded connectors
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later
    • XLR-F To 1/8" TRS Adapter Cable

SKU: XC-MXF05

View full details

Product Description

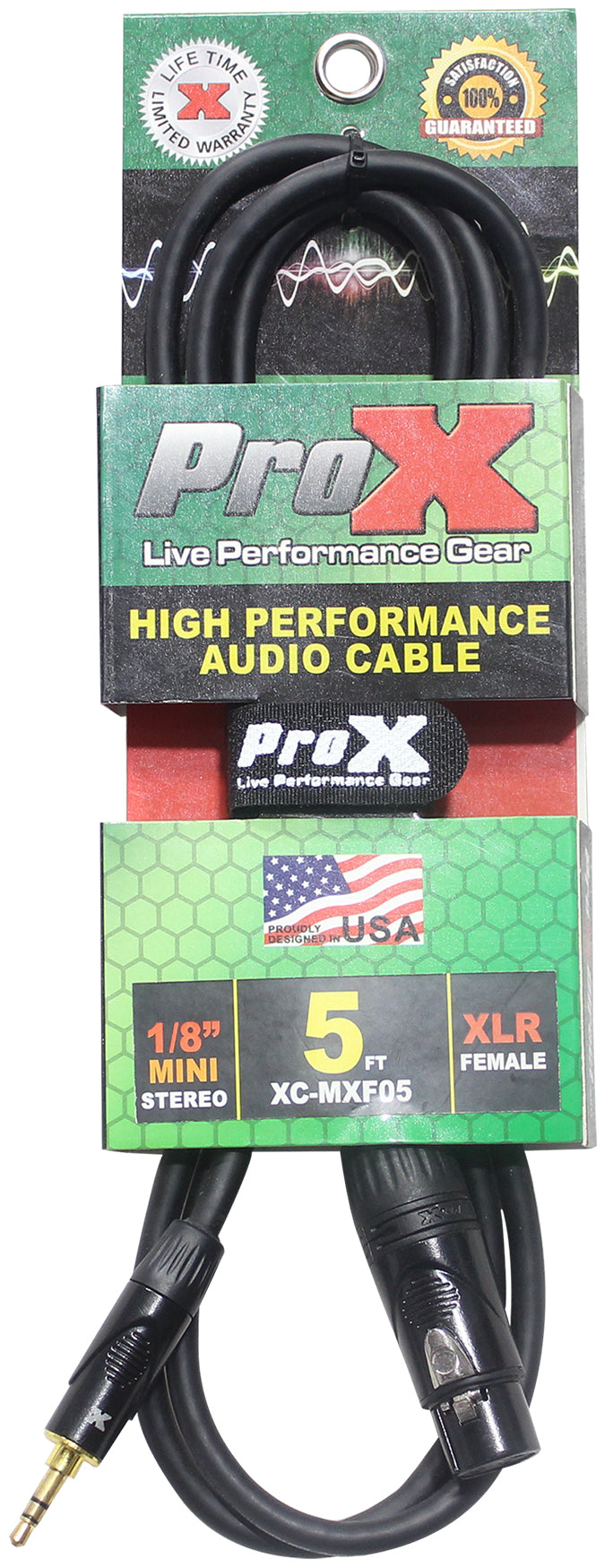

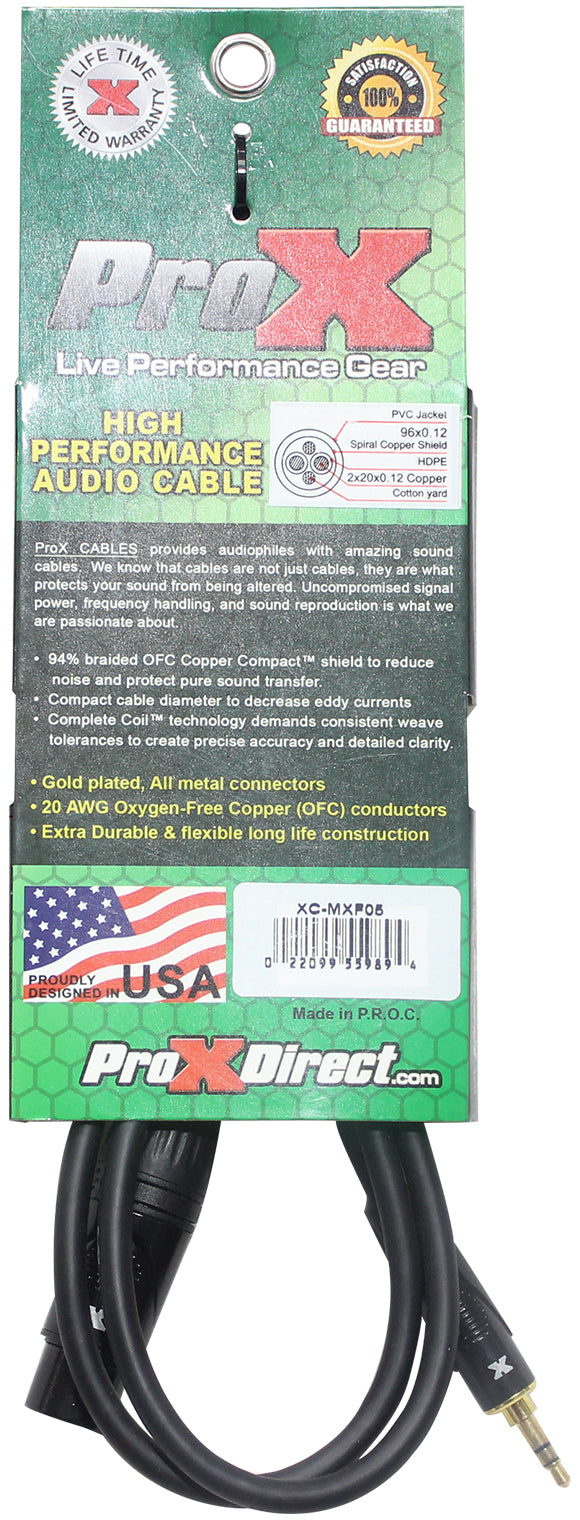

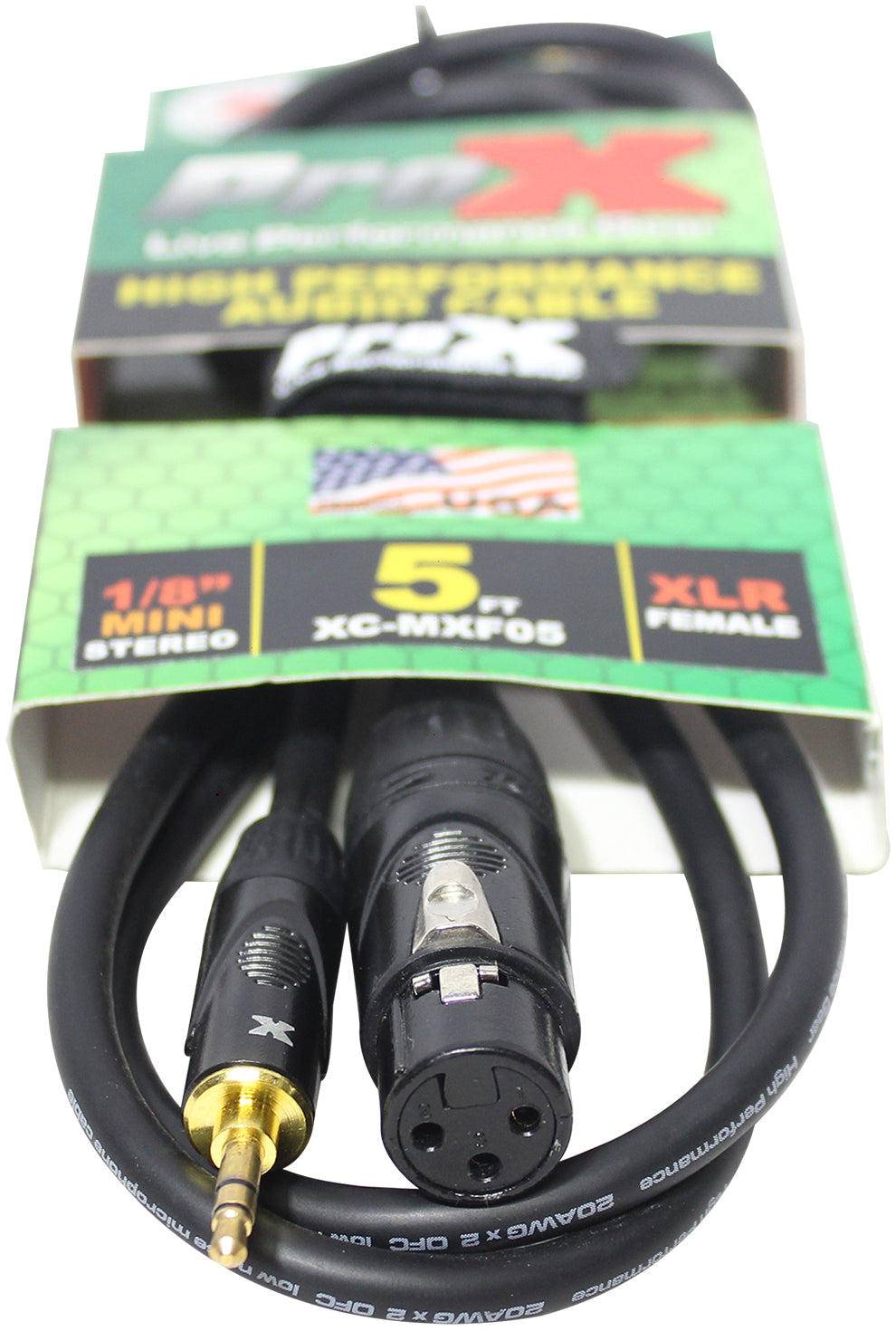

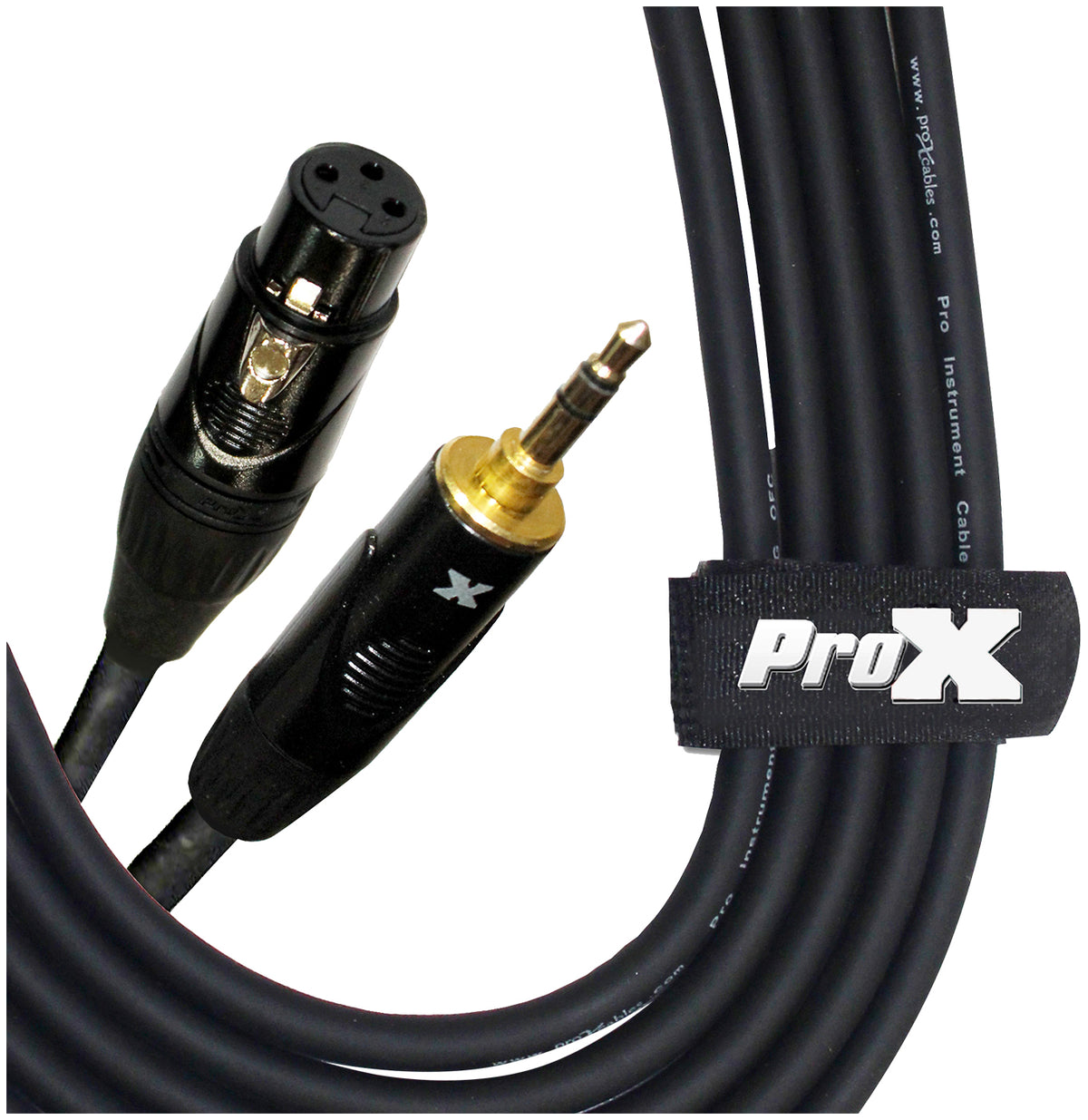

The ProX XC-MXF05 connects a headphone output to an XLR input. It is a 5-foot cable with a 1/8" (3.5mm) TRS mini plug on one end and a female XLR on the other, and the left and right channels are combined onto pin 2 of the XLR so a stereo source arrives as a single mono feed rather than half a signal.

That solves the problem every DJ, presenter and house tech runs into: a phone, tablet, laptop, MP3 player or voice recorder needs to feed a mixing console or powered speaker that only offers XLR. Playing walk-in music from a phone, running a backing track from a tablet app, sending a recorder into a console for playback, or feeding a video source into a PA all work with this one cable.

The build is 20 AWG x 2 oxygen-free copper conductors with a 93% braided OFC compact shield to keep noise out, and a compact cable diameter that reduces eddy currents. Contacts are gold and silver plated, connectors are ProX branded, and Complete Coil manufacturing holds consistent weave tolerances for accurate reproduction. The jacket is flexible and durable enough for the drawer, gig bag or console shelf where a cable like this lives, and it carries the ProX Limited Lifetime Warranty.

Features

    • Phone To Console, Solved

      A 3.5mm TRS plug on one end and a female XLR on the other connects any headphone-jack device to a mixing board or powered speaker input.

    • Both Channels, One Feed

      Left and right are summed onto pin 2 of the XLR, so you hear the complete track in mono instead of losing half the mix.

    • Quiet Under Stage Lighting

      A 93% braided oxygen-free copper shield and compact cable diameter keep noise and eddy currents out of a low-level consumer output.

    • Connections That Hold

      Gold- and silver-plated contacts inside ProX branded connectors keep passing signal cleanly after years of being plugged and unplugged.

    • Backed For Life

      Extra durable, flexible long-life construction with Complete Coil weave tolerances for accurate reproduction, all covered by the ProX Limited Lifetime Warranty.

Technical Specifications

  • Product Type Audio Adapter Cable
  • Length 5 ft
  • Connectors 1/8" (3.5mm) TRS Male To XLR Female
  • Signal Unbalanced, Left And Right Summed To Mono On Pin 2
  • Conductors 20 AWG x 2 Oxygen-Free Copper (OFC)
  • Shield 93% Braided OFC Compact Shield
  • Contacts Gold- And Silver-Plated
