XT-BH180

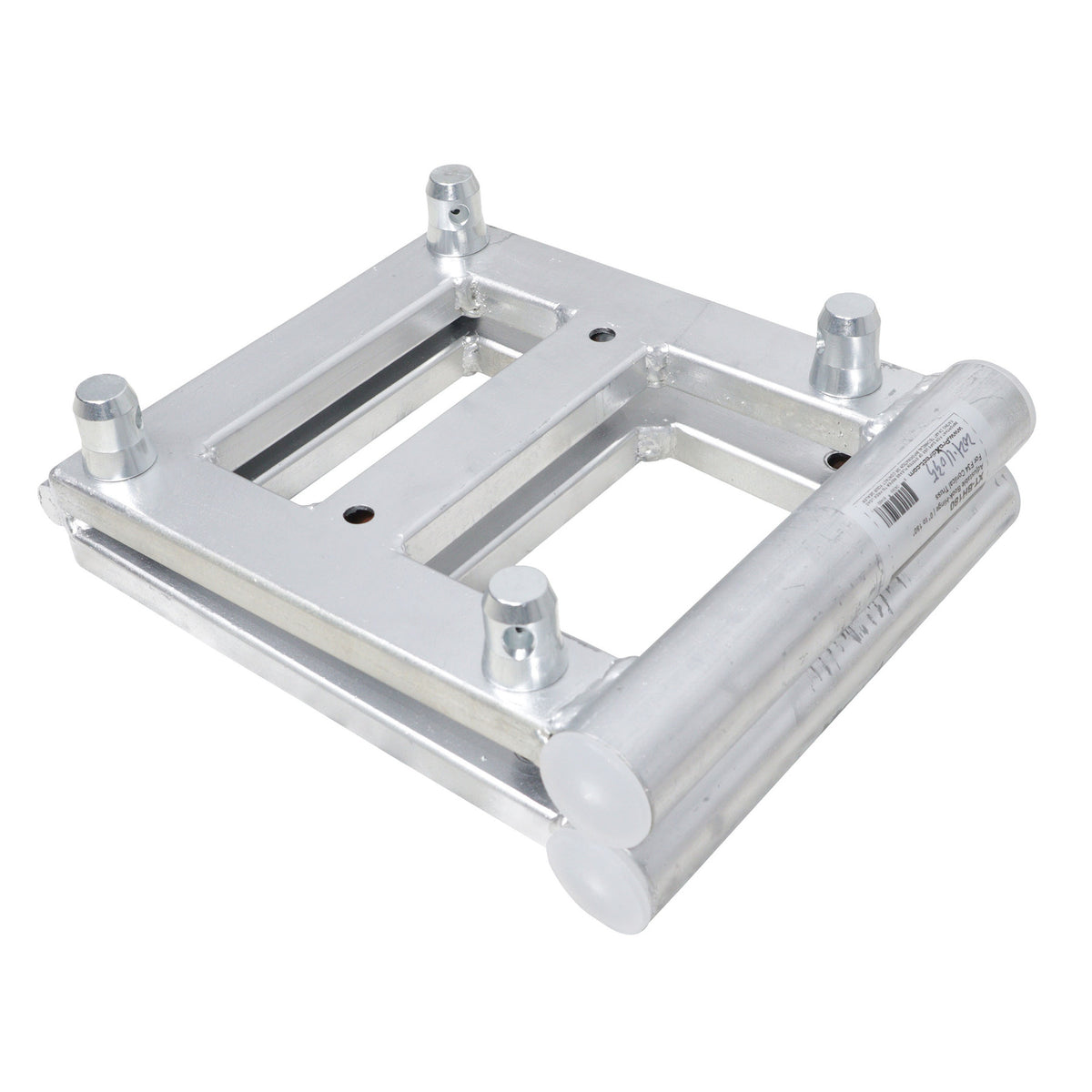

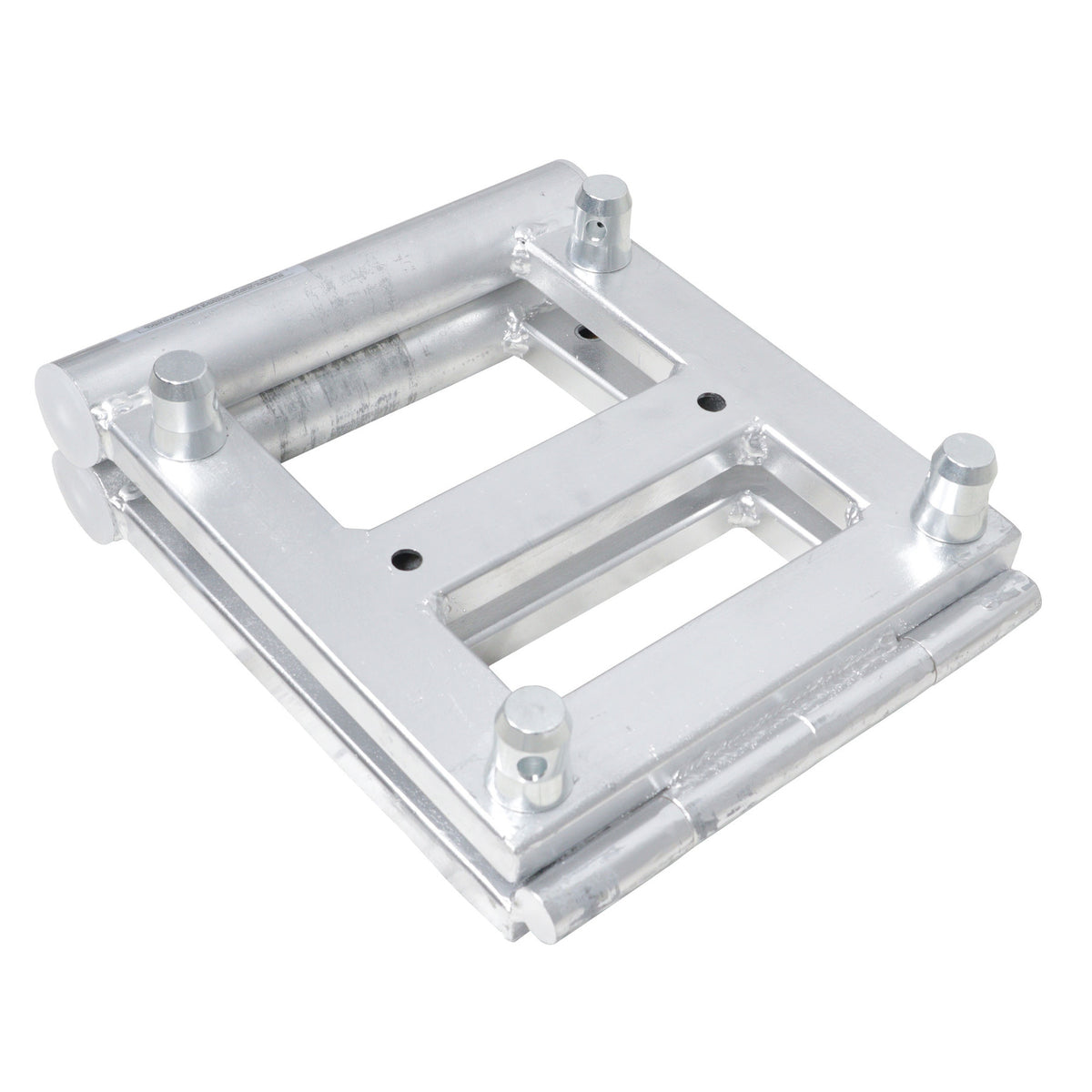

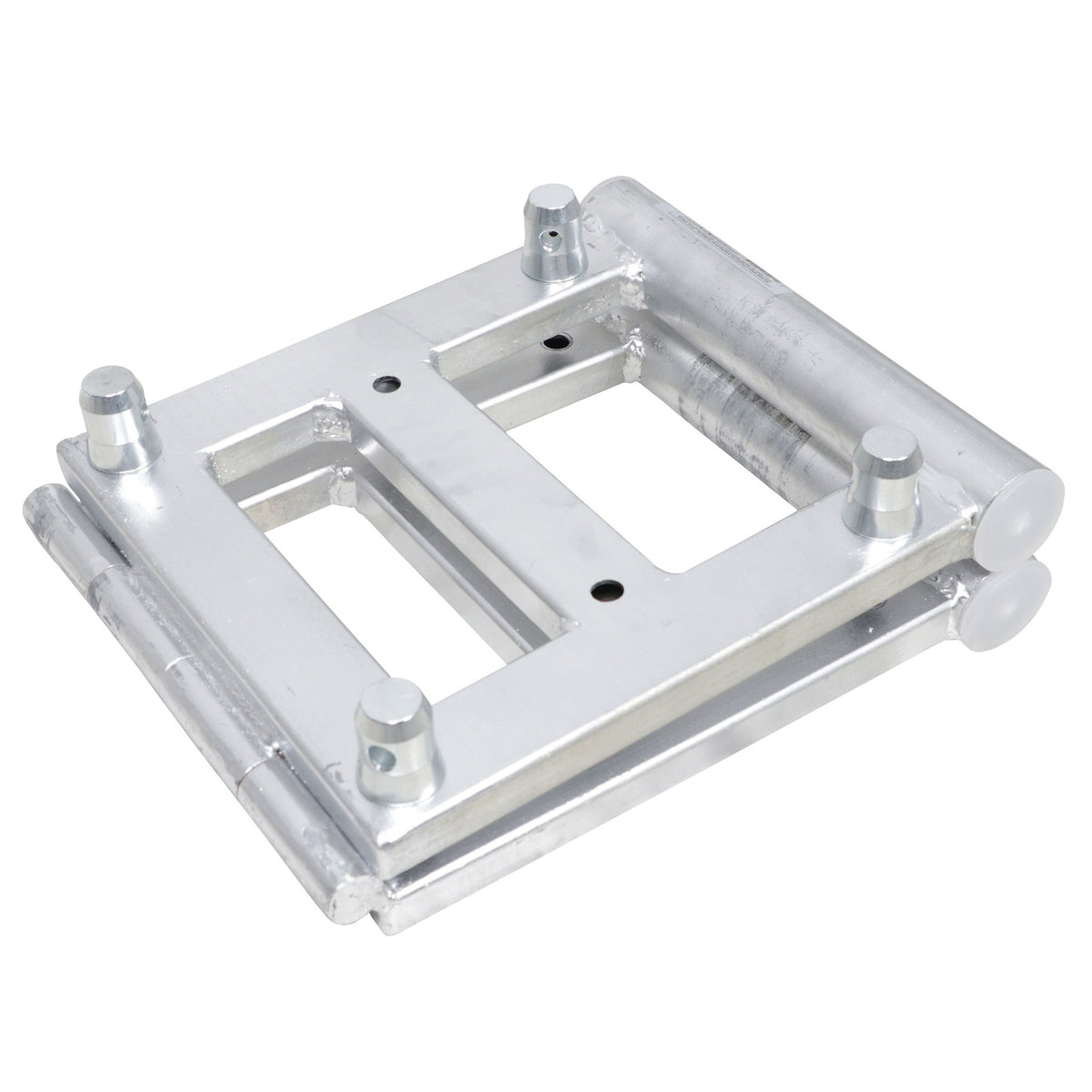

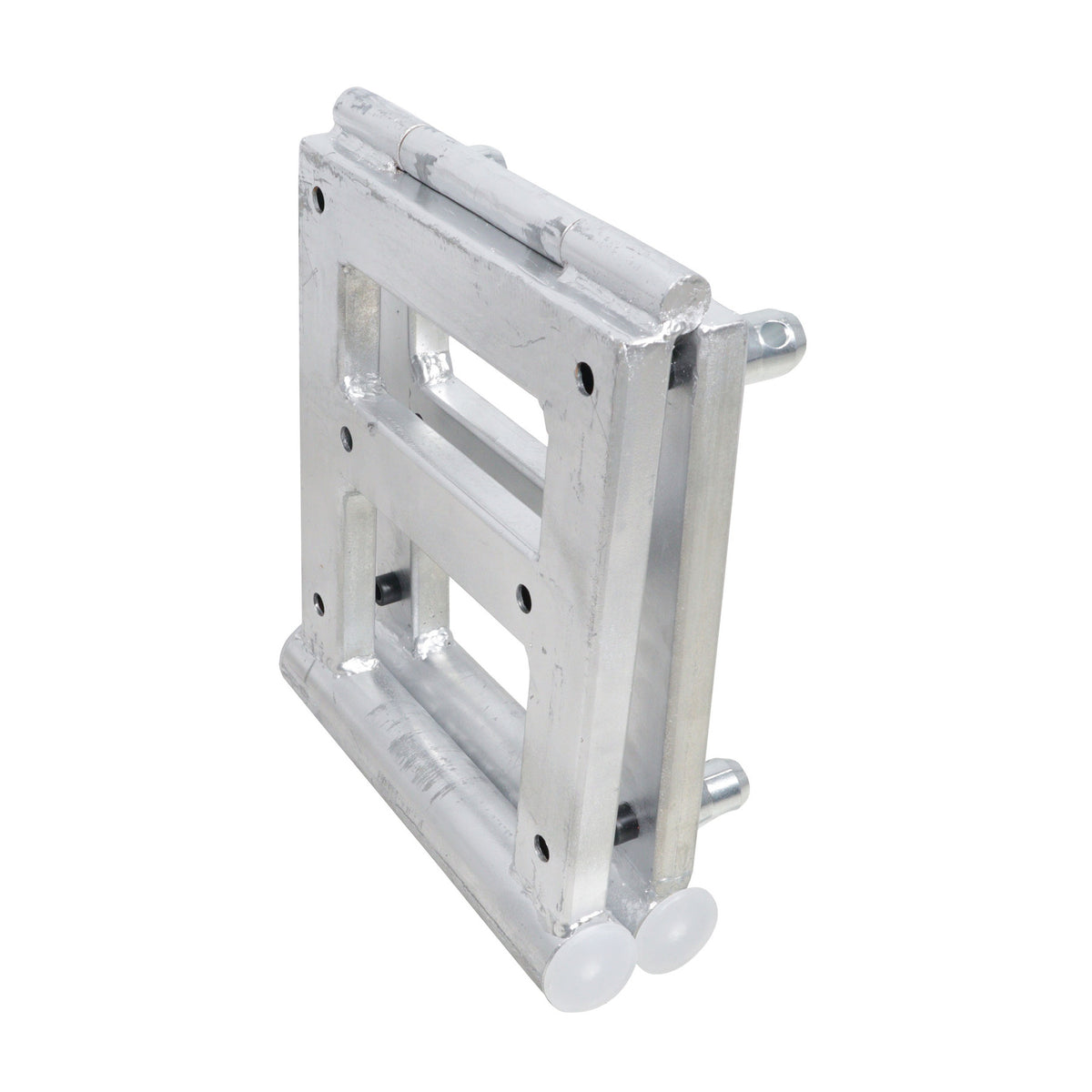

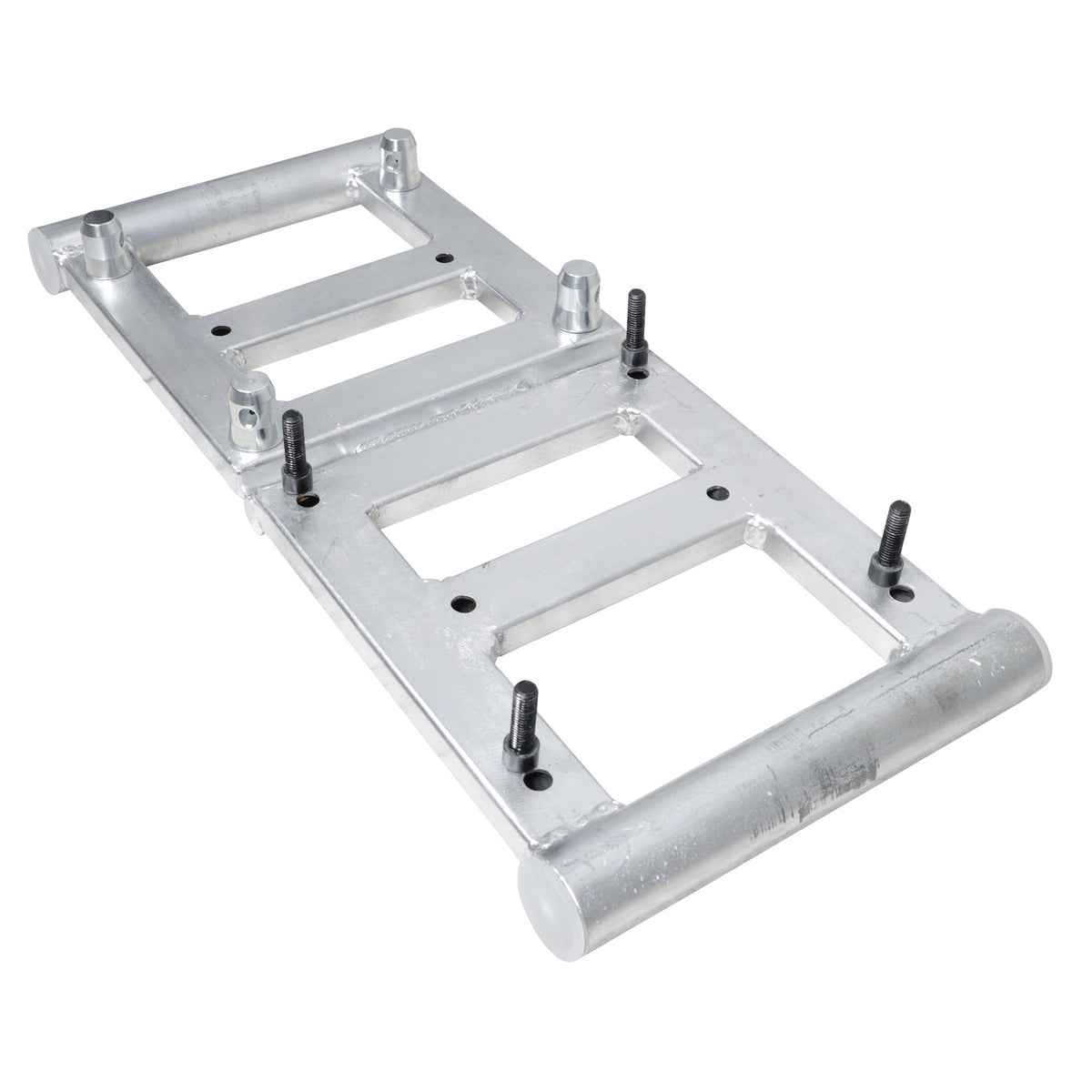

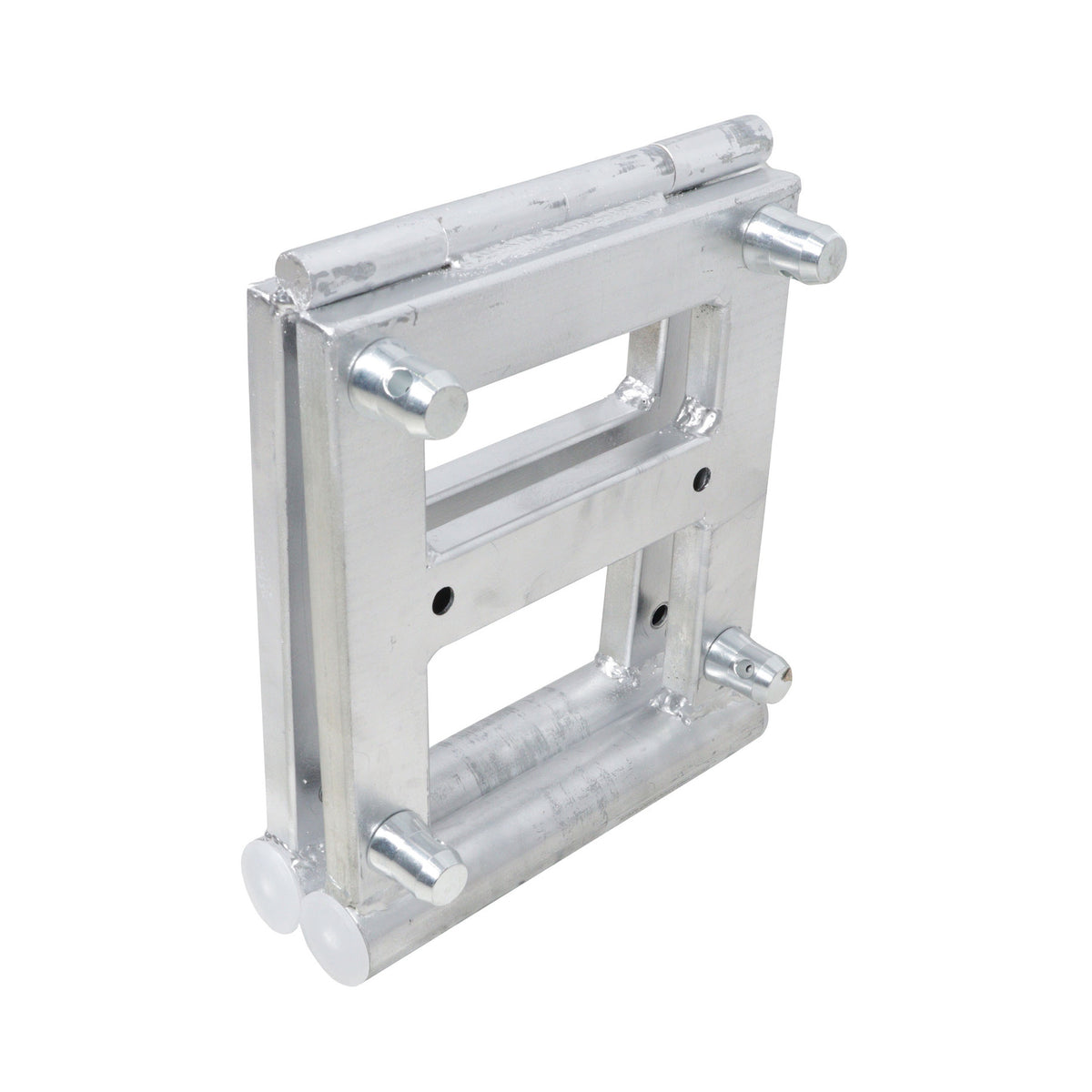

The ProX XT-BH180 is an adjustable plate hinge for ProX 12" SQ F34 conical trussing that opens anywhere from 0 to 180 degrees, so you can build angles that fixed corner blocks cannot give you. A built-in adjustable arm locks the chosen angle between truss sections and junction boxes and holds it, which keeps a raked header or an angled wing exactly where the design calls for it. It is made from 10mm EN-AWT6 6061 aluminum with TUV certified welding, so it is lightweight enough to lift into position and strong enough for repeated builds. Conical couplers are included on one side. The XT-SQ system uses a standard conical connector, so it mates with same-size trussing of the same connector style and works alongside ProX corners, base plates, and accessories. That makes the hinge useful for mobile DJs, bands, outdoor productions, nightclubs, and permanent installs where the room does not offer a right angle. Always know the load weight of your equipment and design within the rating of the full system.
