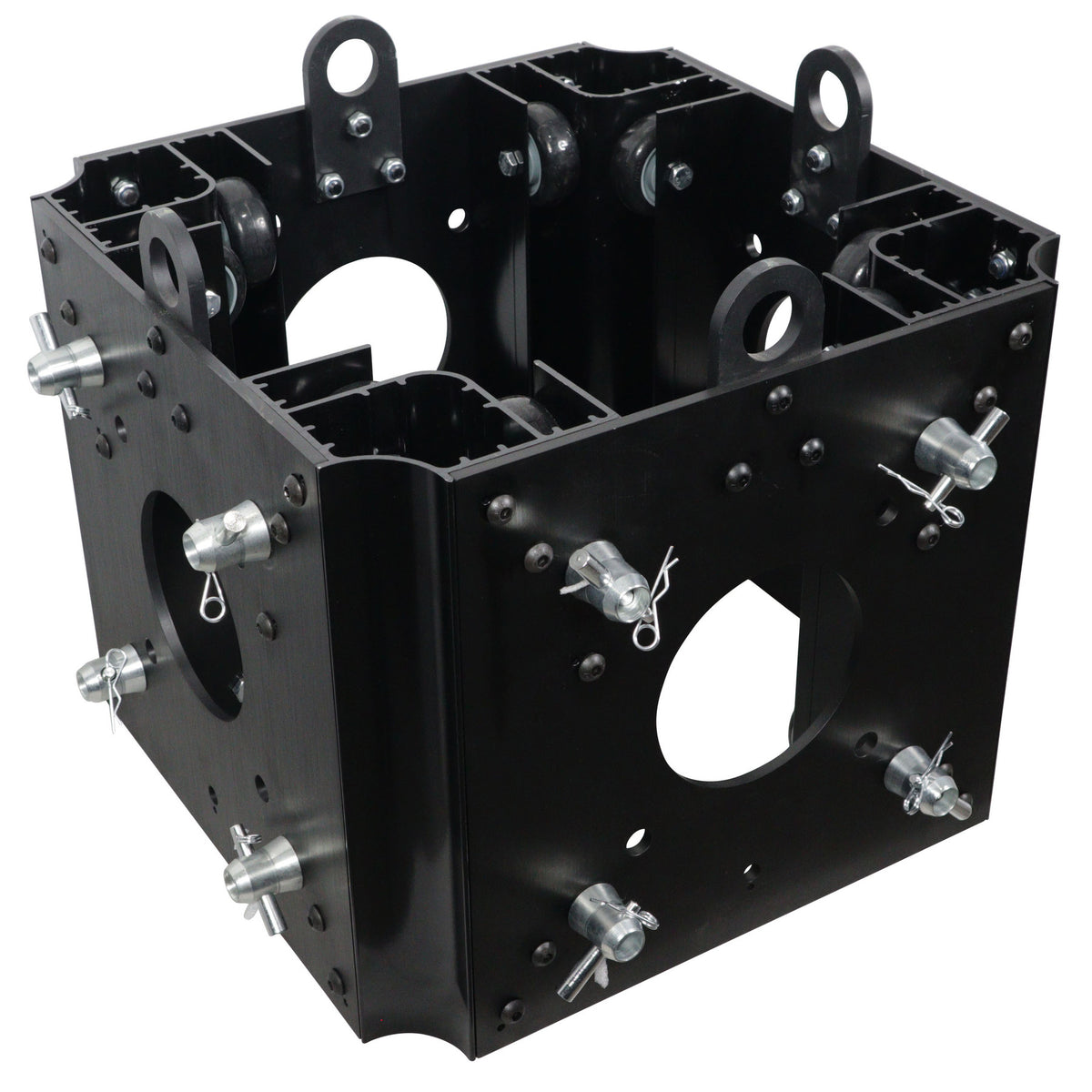

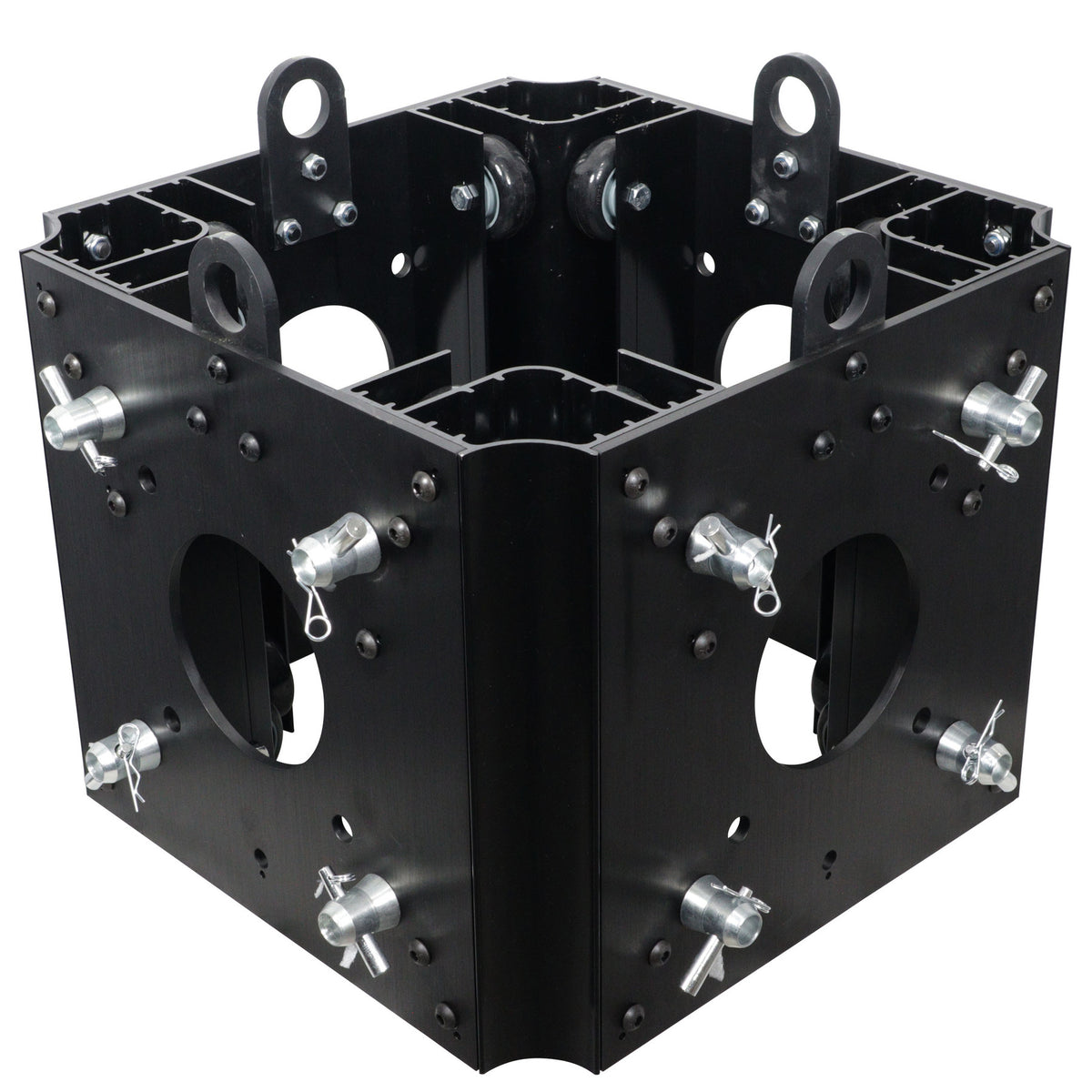

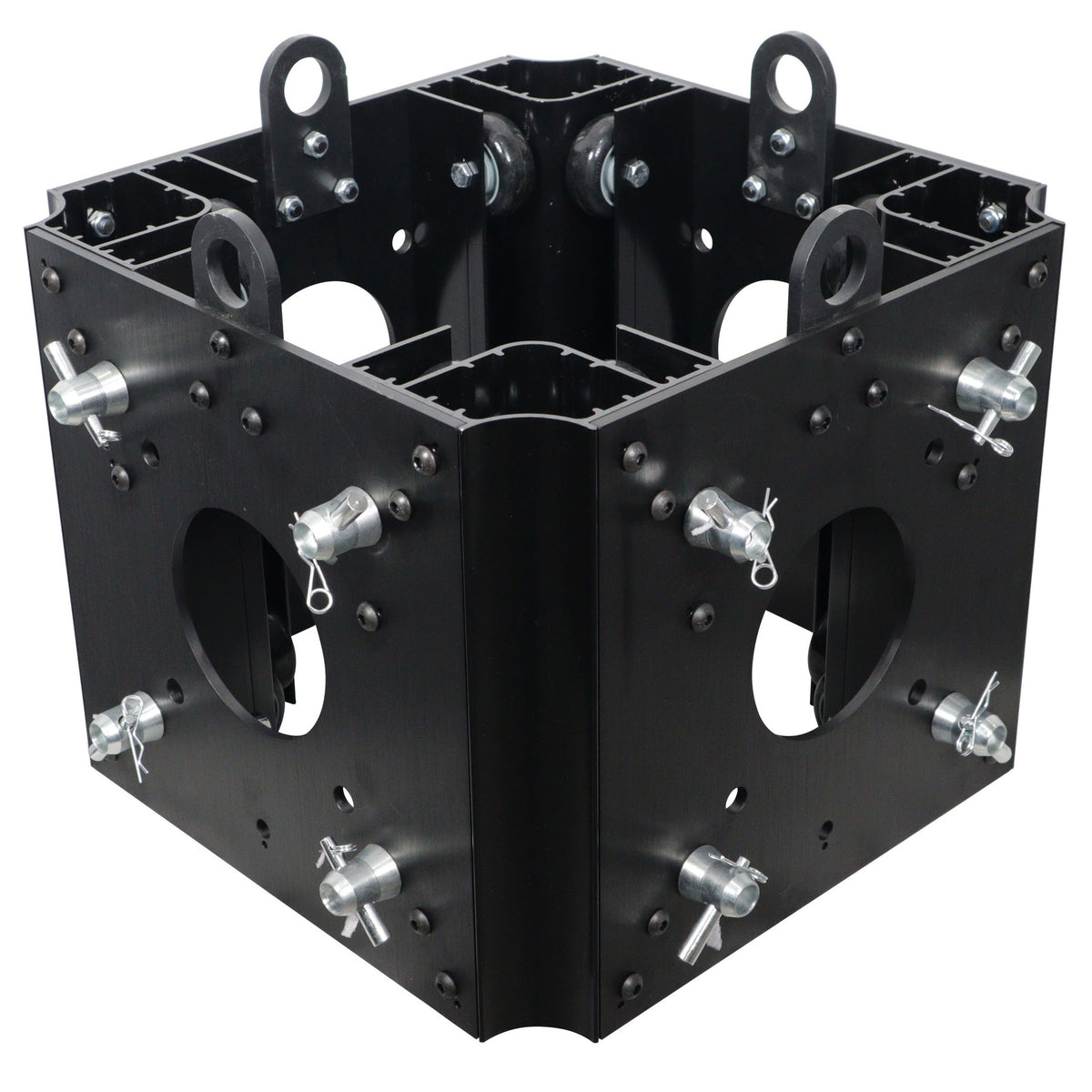

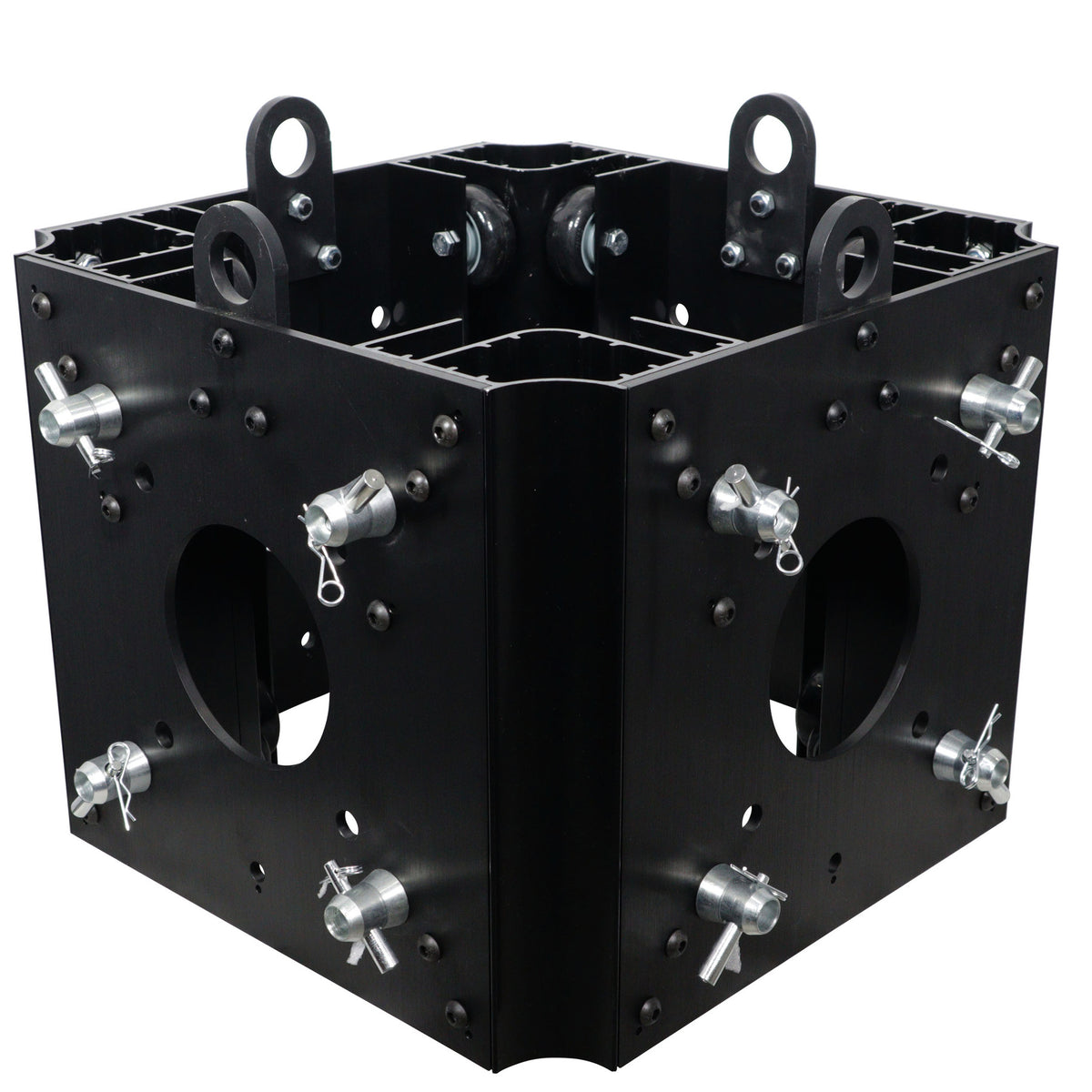

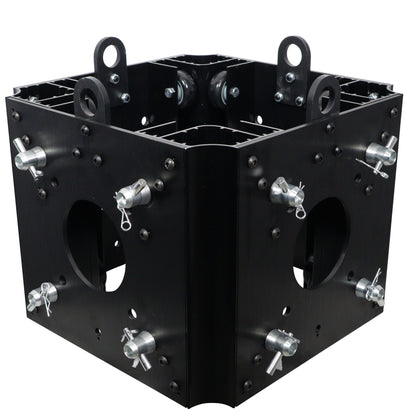

XT-BLOCK-BLK

The ProX XT-BLOCK-BLK is the sliding sleeve that turns 12" F34 square truss into a vertical ground support tower. It rides over the upright and gives you four connecting sides, so headers, spans, and pick points can attach on any face while the assembly sits at the height your design calls for. Tapered shear pins with clips are included, so the block locks to your truss using the same hardware pattern your F34 sections already use.

Construction is EN-AWT6 6082 aluminum with TUV certified welding, built in the ProX factory to the same standards as the XT truss line. The black finish keeps the block visually quiet in front of an audience and under front light.

Because the XT F34 series uses a standard conical connector system, this block also works with 12" F34 truss of the same size and connector type from other manufacturers. That makes it practical for outdoor festival stages, nightclub installs, houses of worship, corporate ballroom sets, and permanent installations where a tower carries lighting headers, LED panels, or speaker hangs. Pair it with ProX base plates, corners, and connectors to build goal post and multi-tower layouts. Always confirm the rated capacity of your complete system and rigging before lifting a load.
