XT-BOOKHINGE

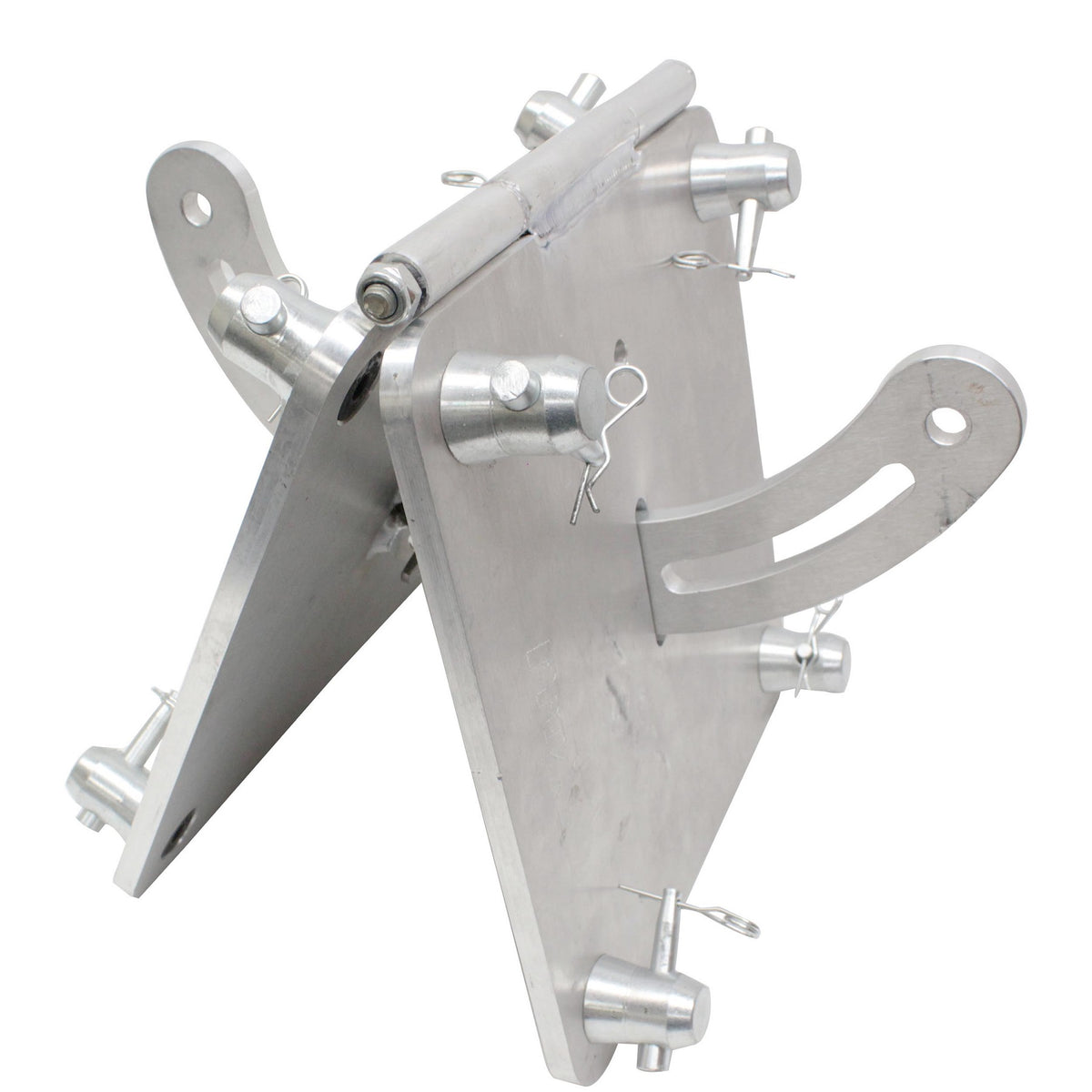

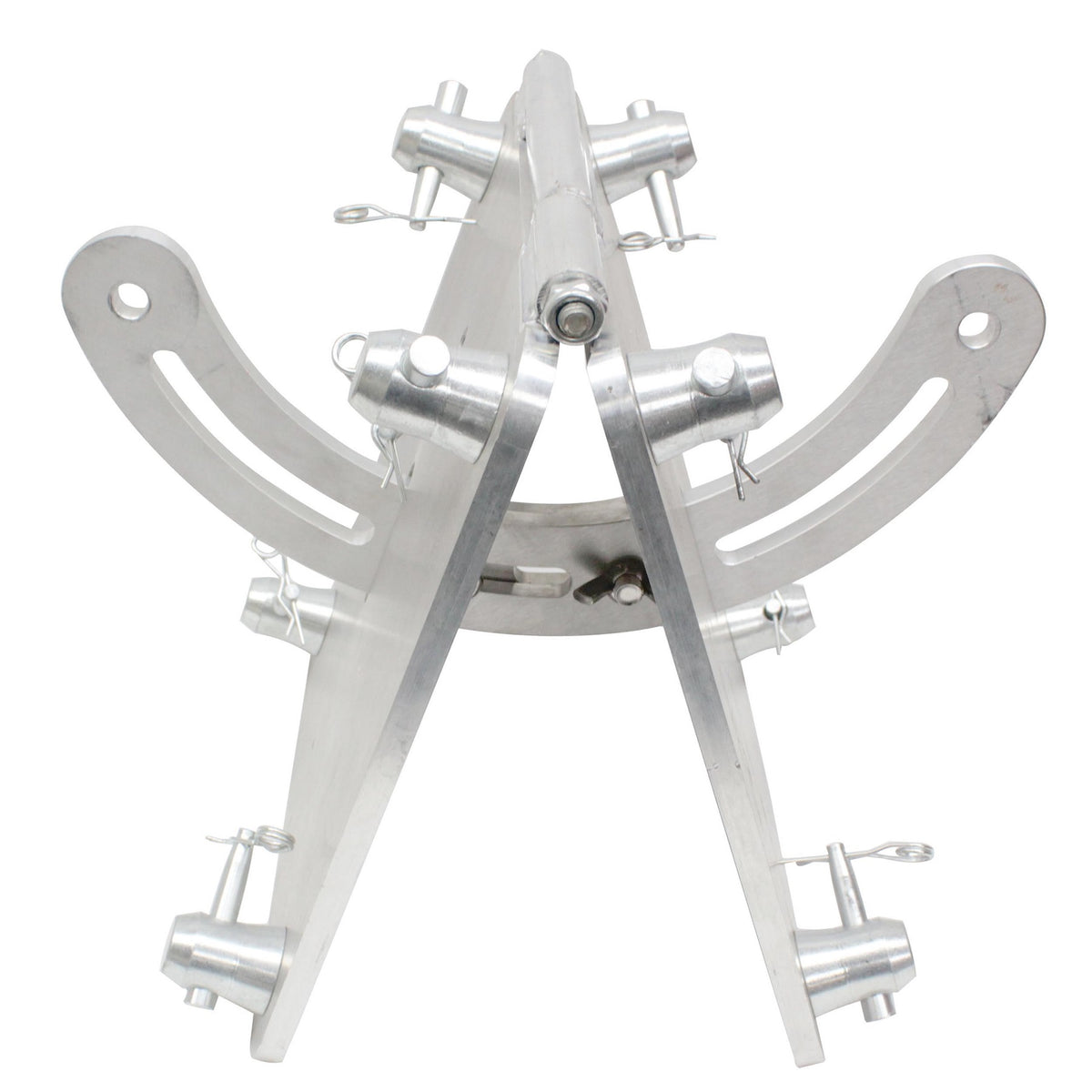

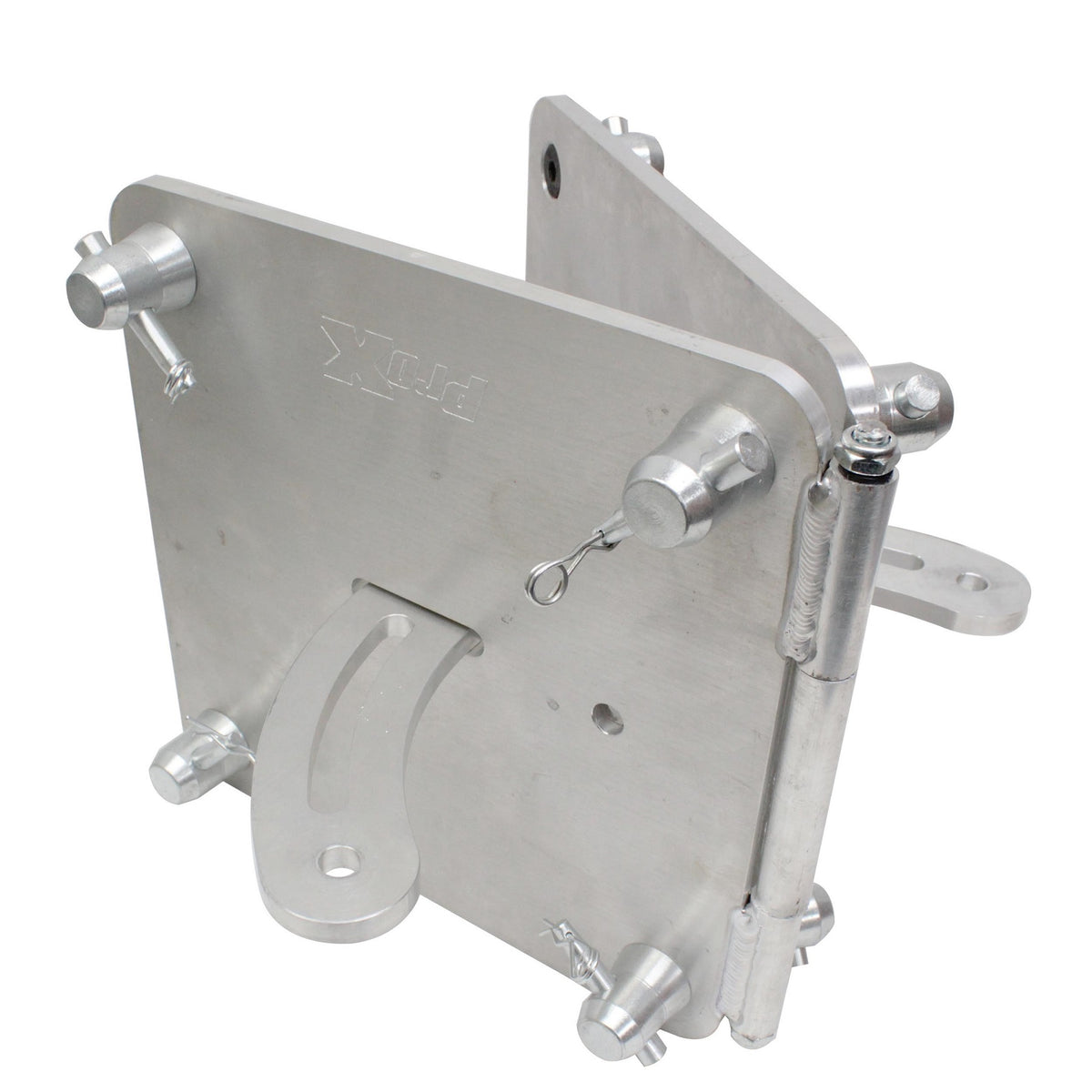

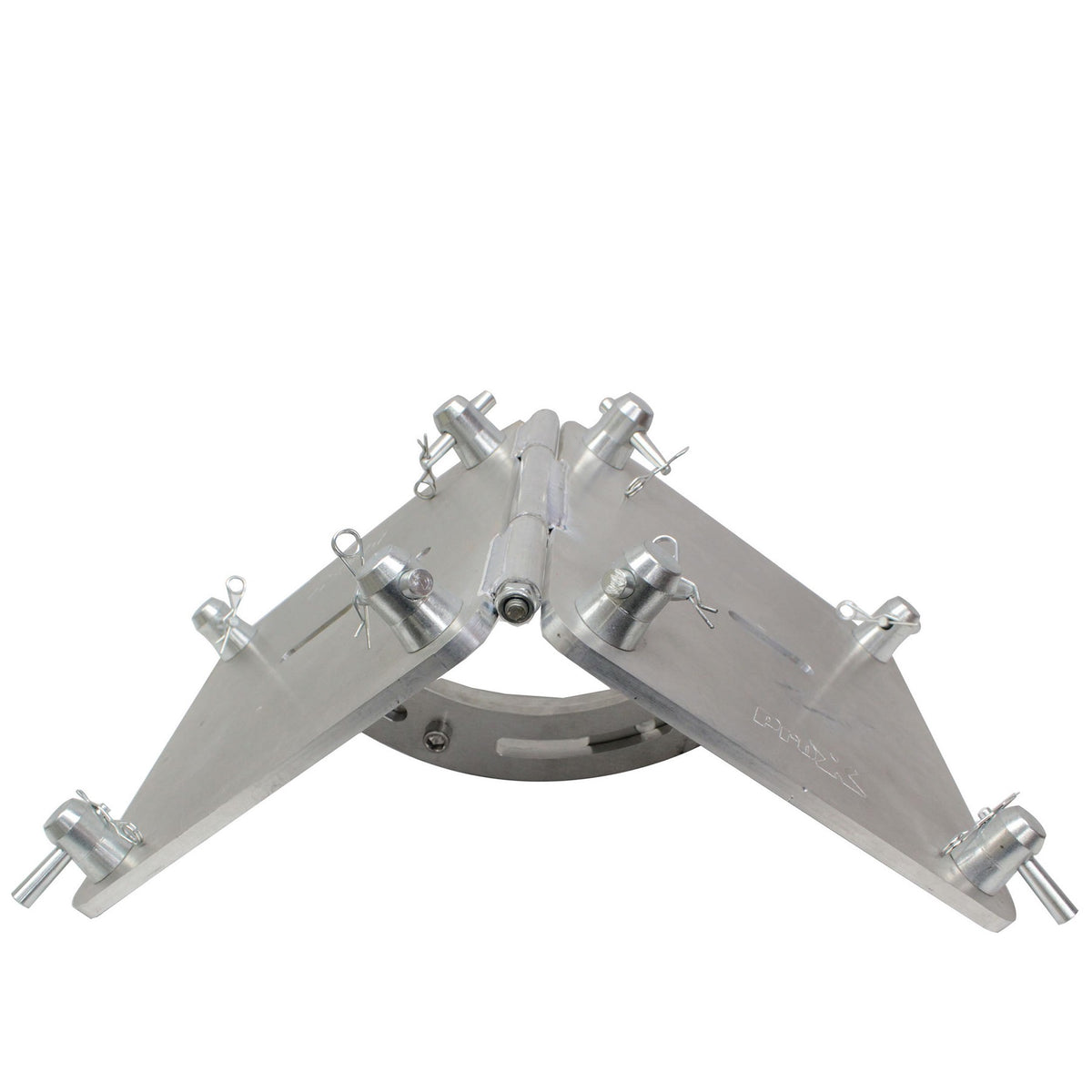

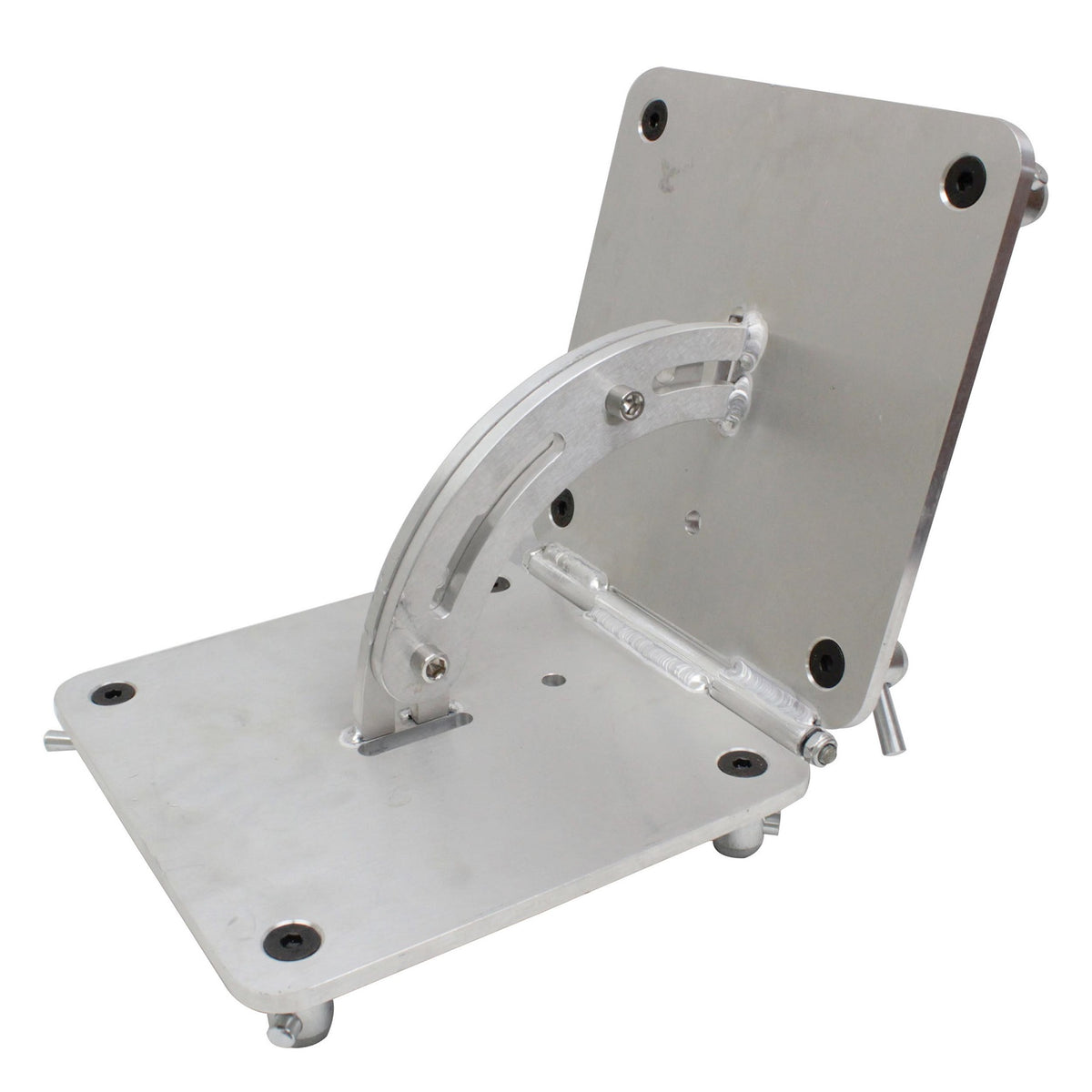

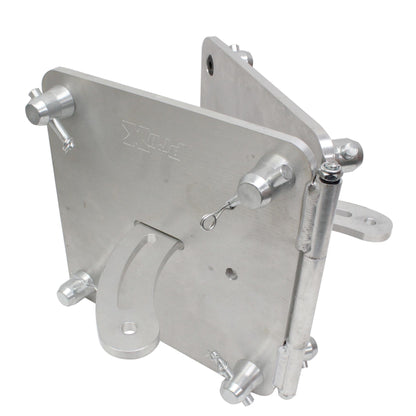

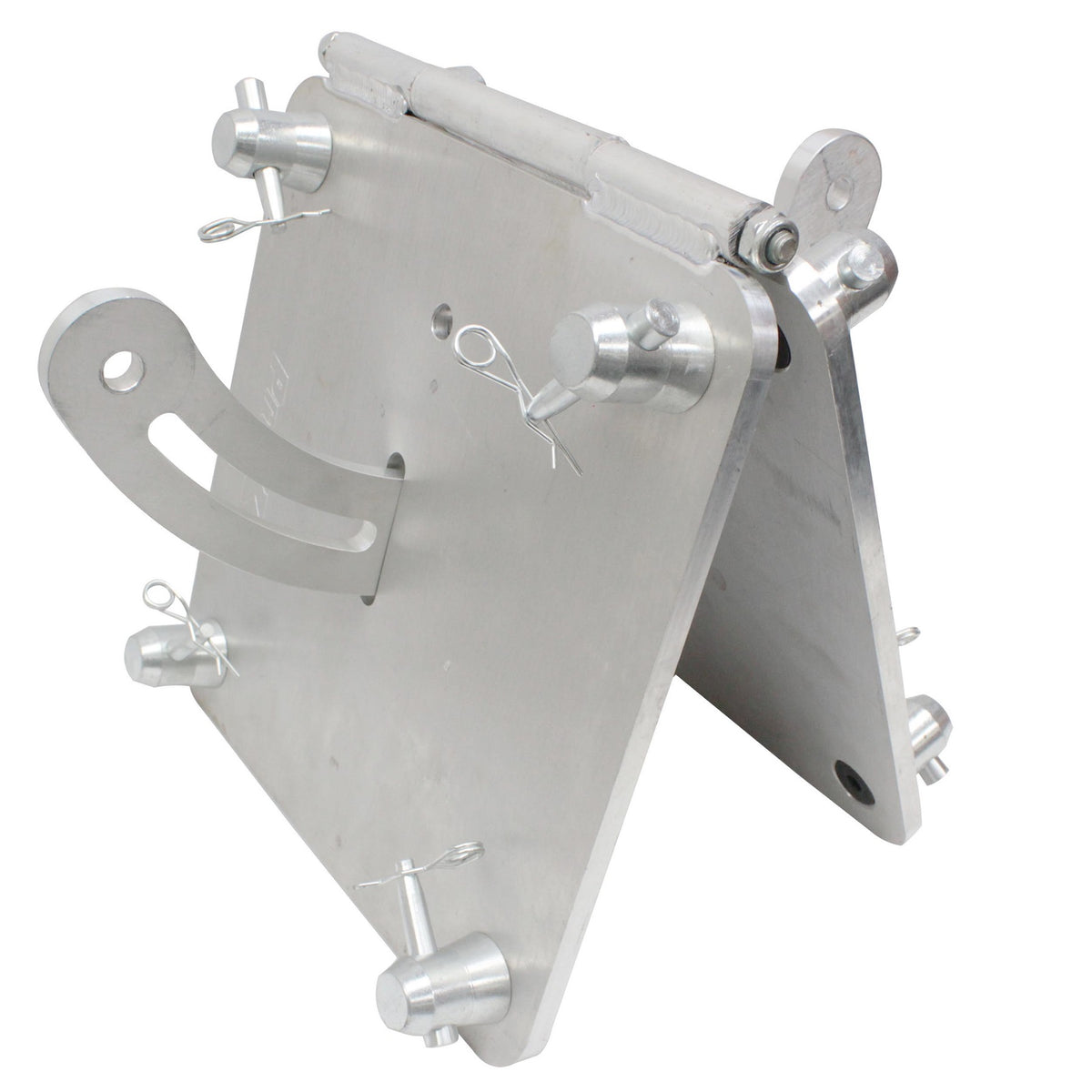

The ProX XT-BOOKHINGE is an adjustable truss corner that opens anywhere from 0 to 180 degrees, so you can build angles a fixed corner block cannot make. A built-in adjustable arm locks the hinge at the angle you set, and the run holds that shape once the build is standing.

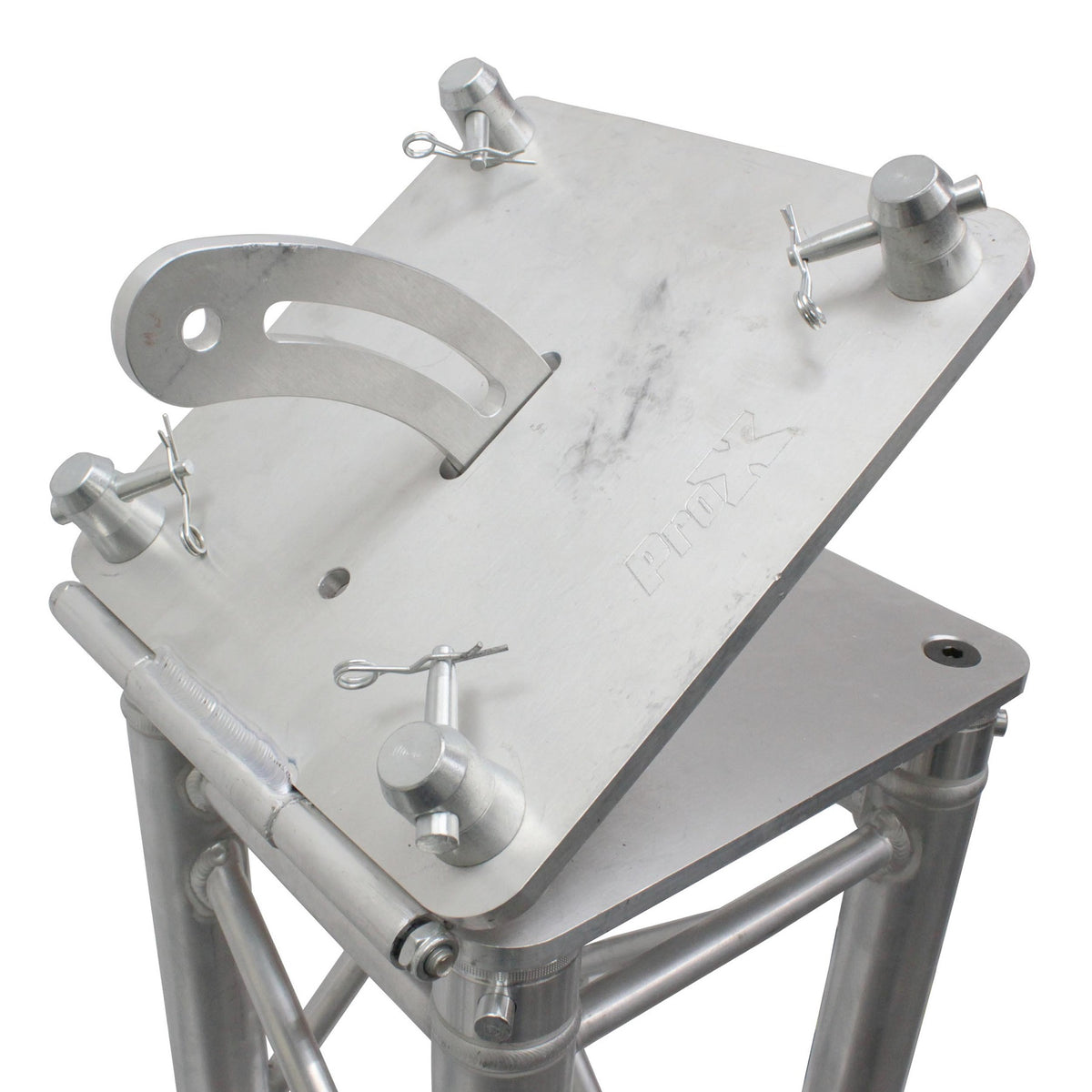

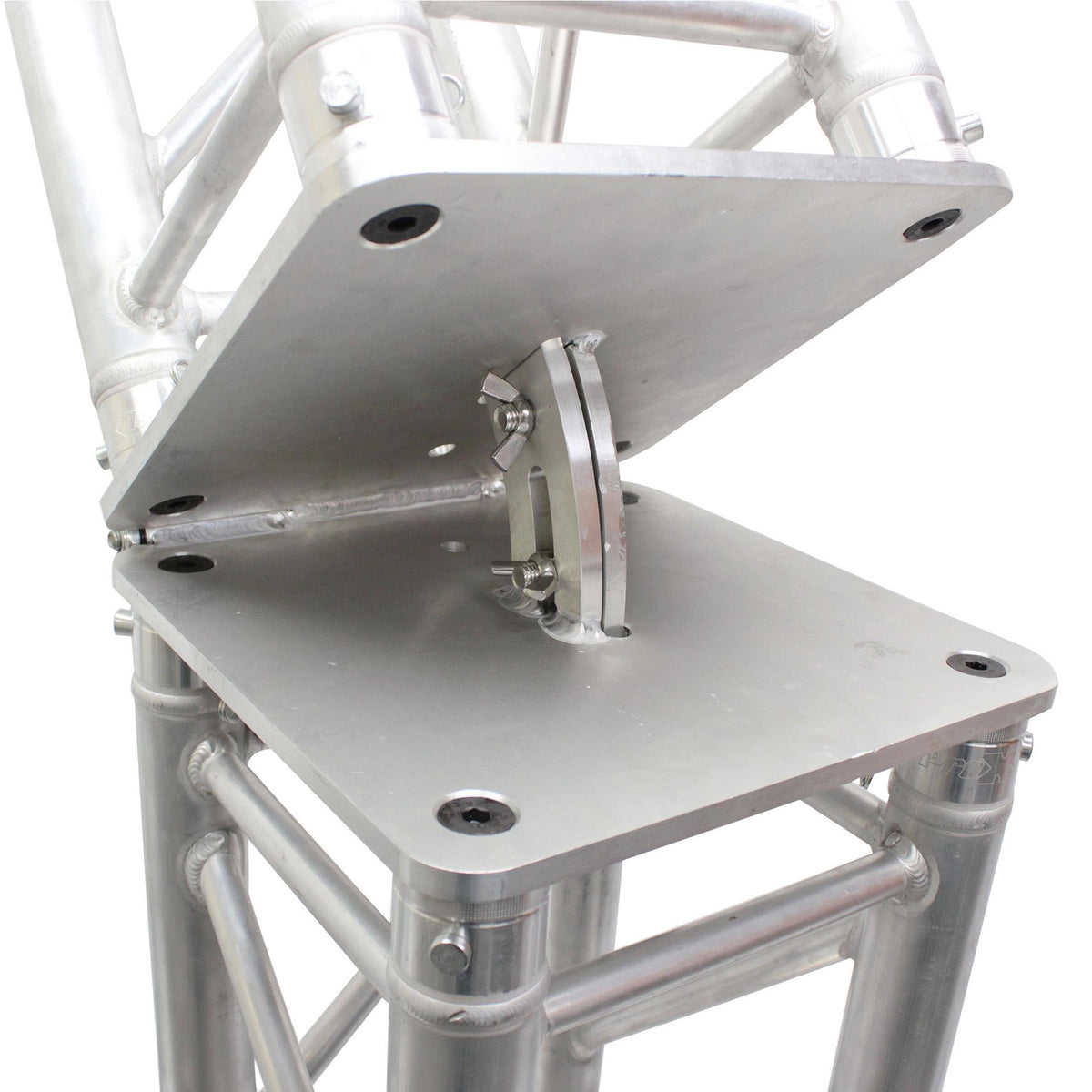

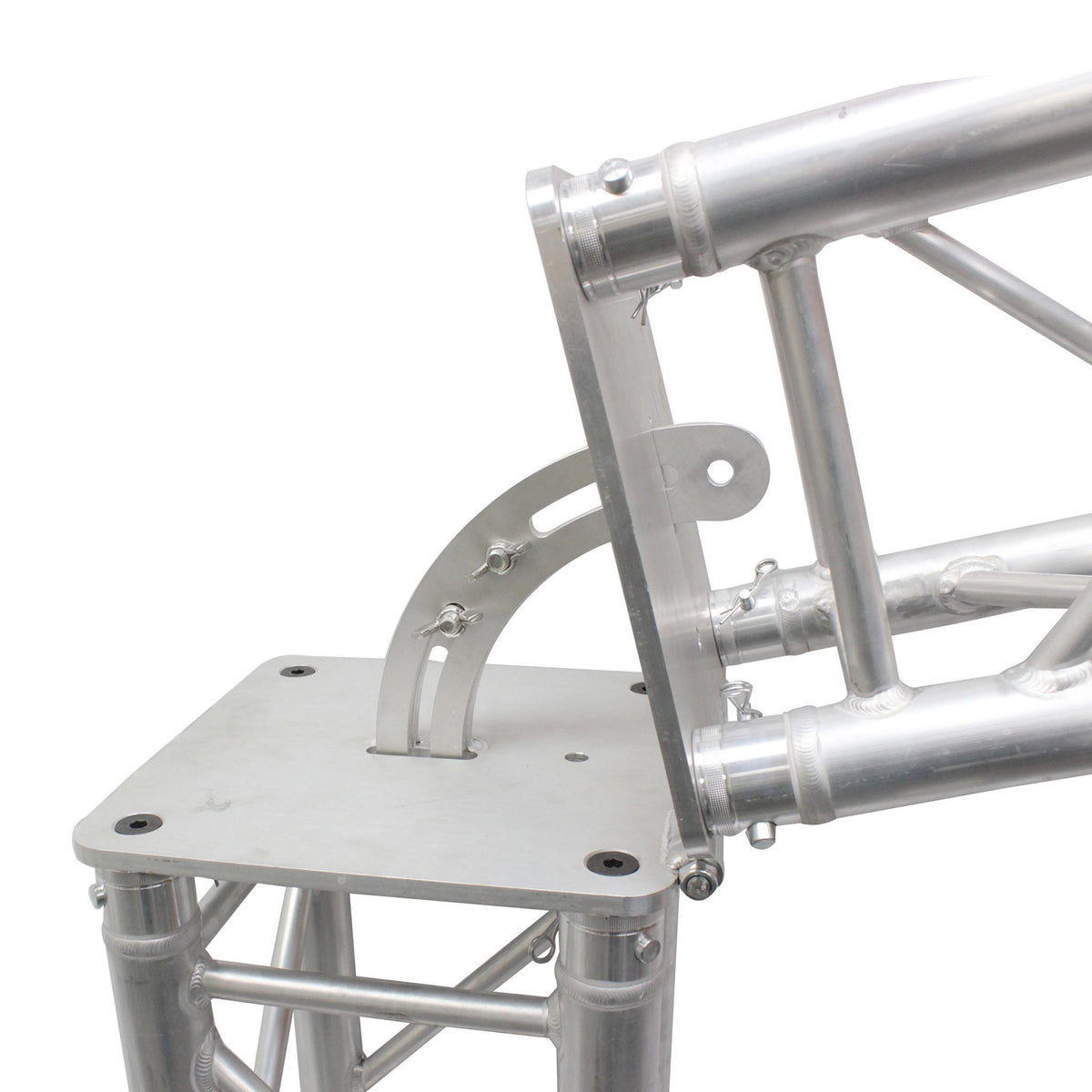

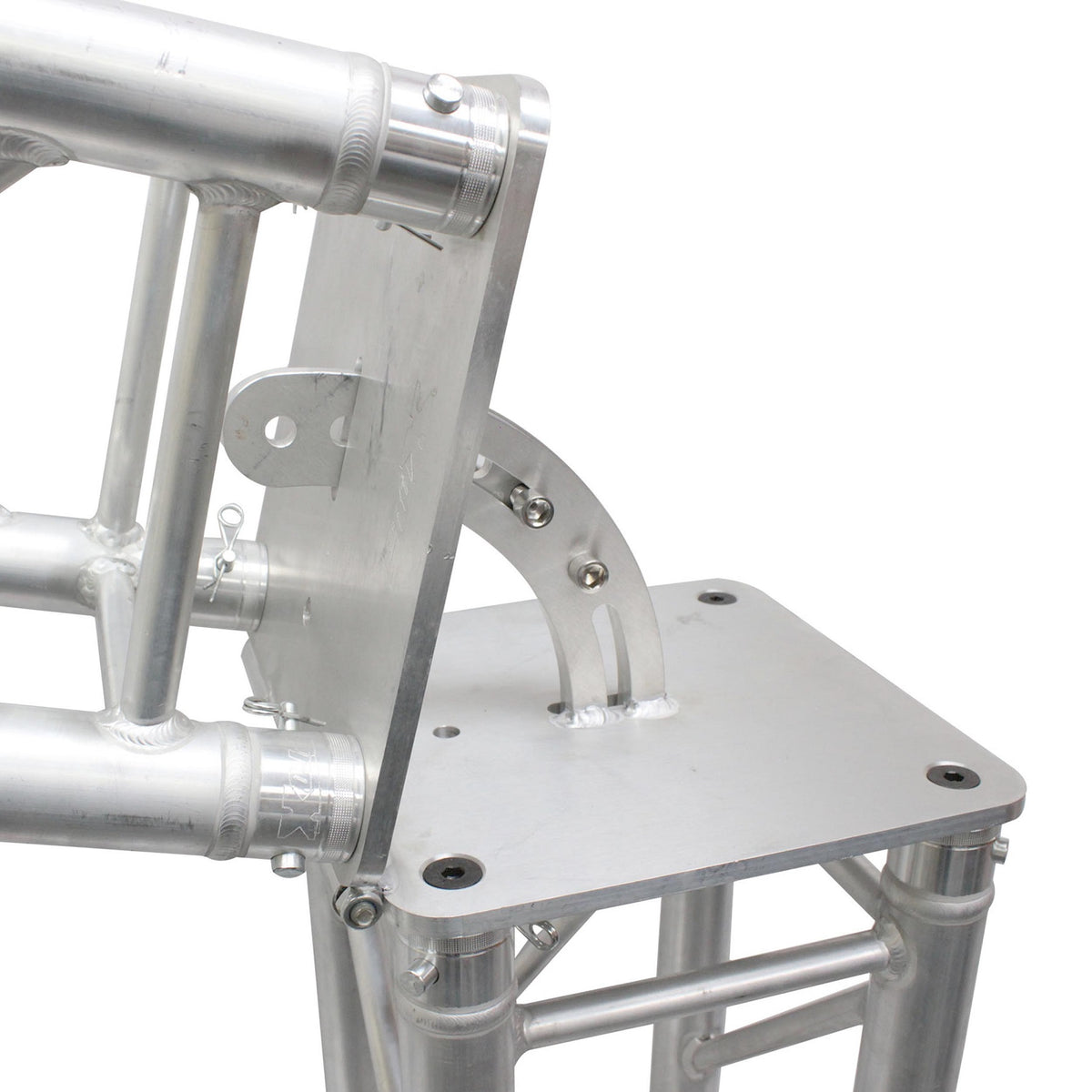

It fits ProX 12" SQ F34 conical trussing and other F34 products using the same conical connector style, and conical couplers are included so it ties in with the hardware your sections already use. The body is 10mm EN-AWT6 6061 aluminum with TUV certified welding, light enough at 19 lb to carry up a ladder and hold in position while pins go in.

Use it for angled headers over a DJ booth, swept front truss for a band, wrapped corners in a nightclub install, trade show arches, and permanent installations where the room dictates the geometry. One hinge covers the angles that would otherwise take a shelf of fixed corners, and the locking arm makes the same angle repeatable show after show. Always confirm your total load and rigging before lifting.
