XT-BP1248A

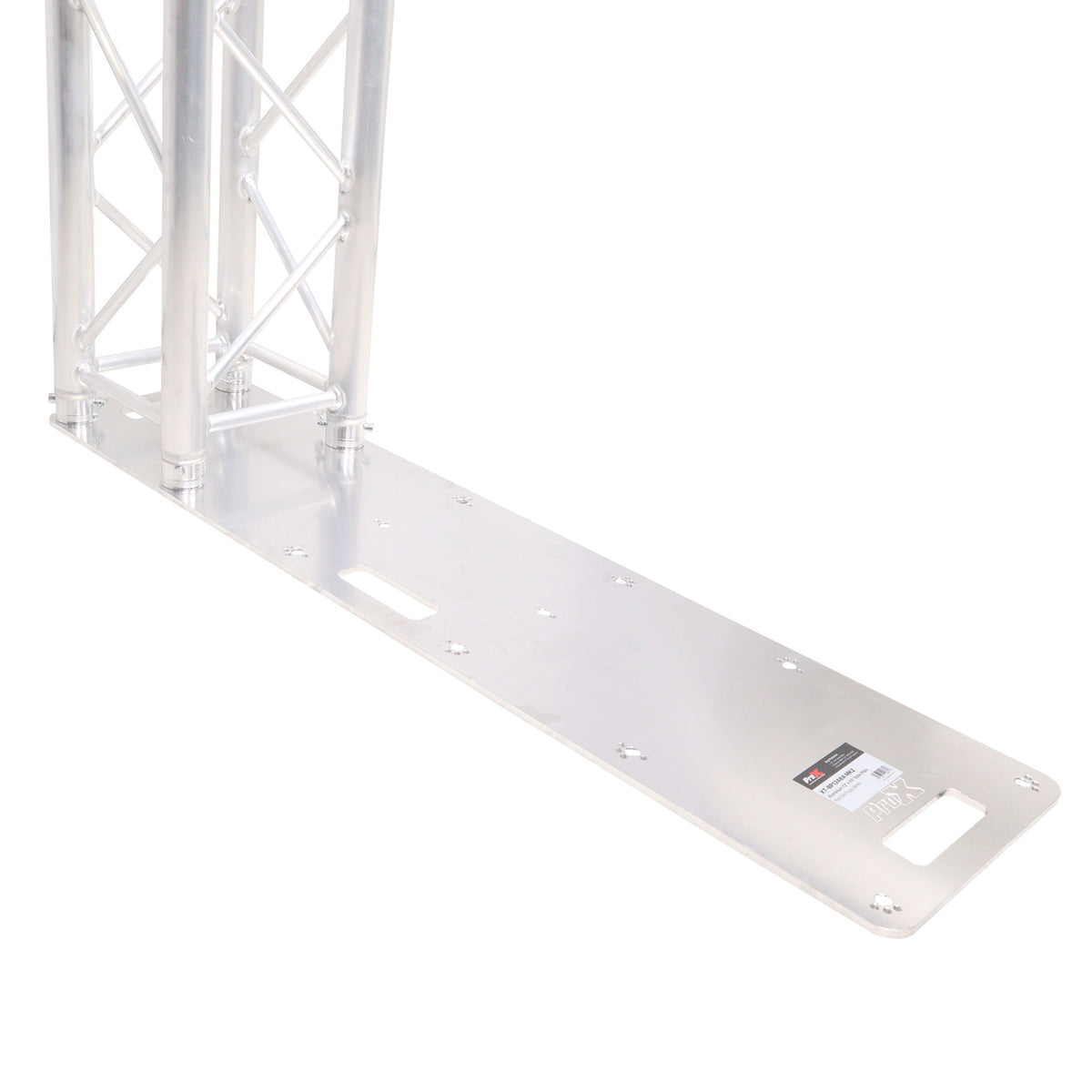

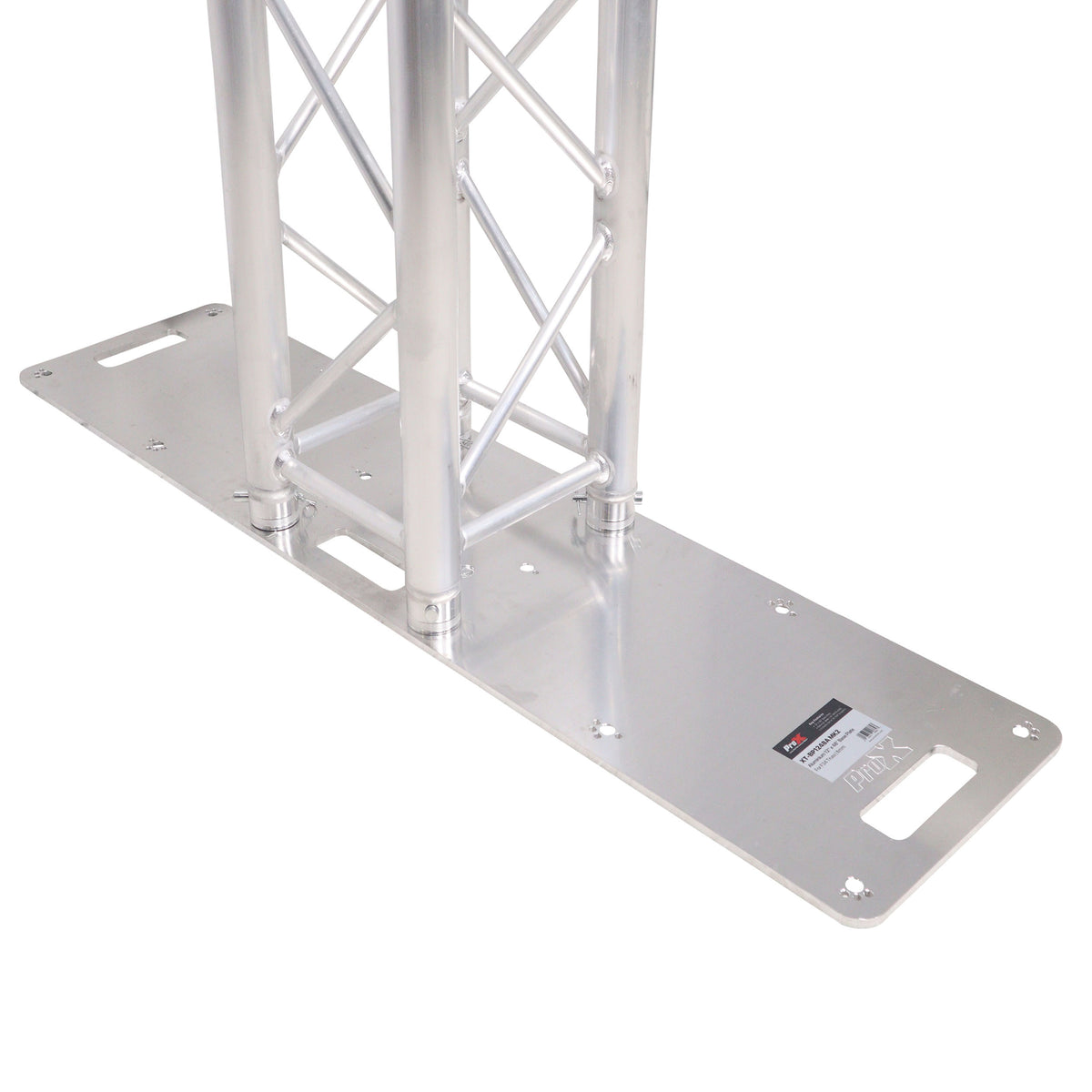

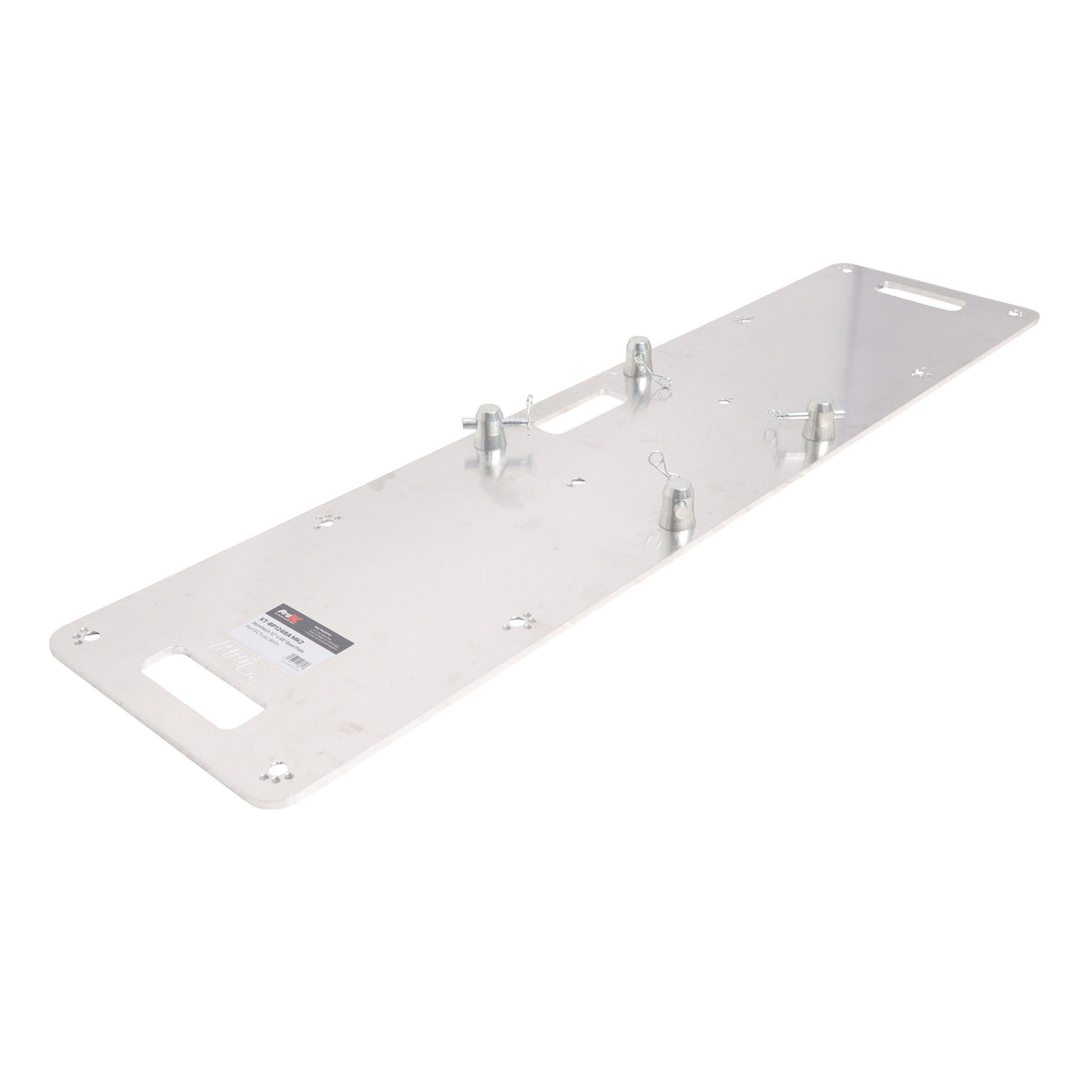

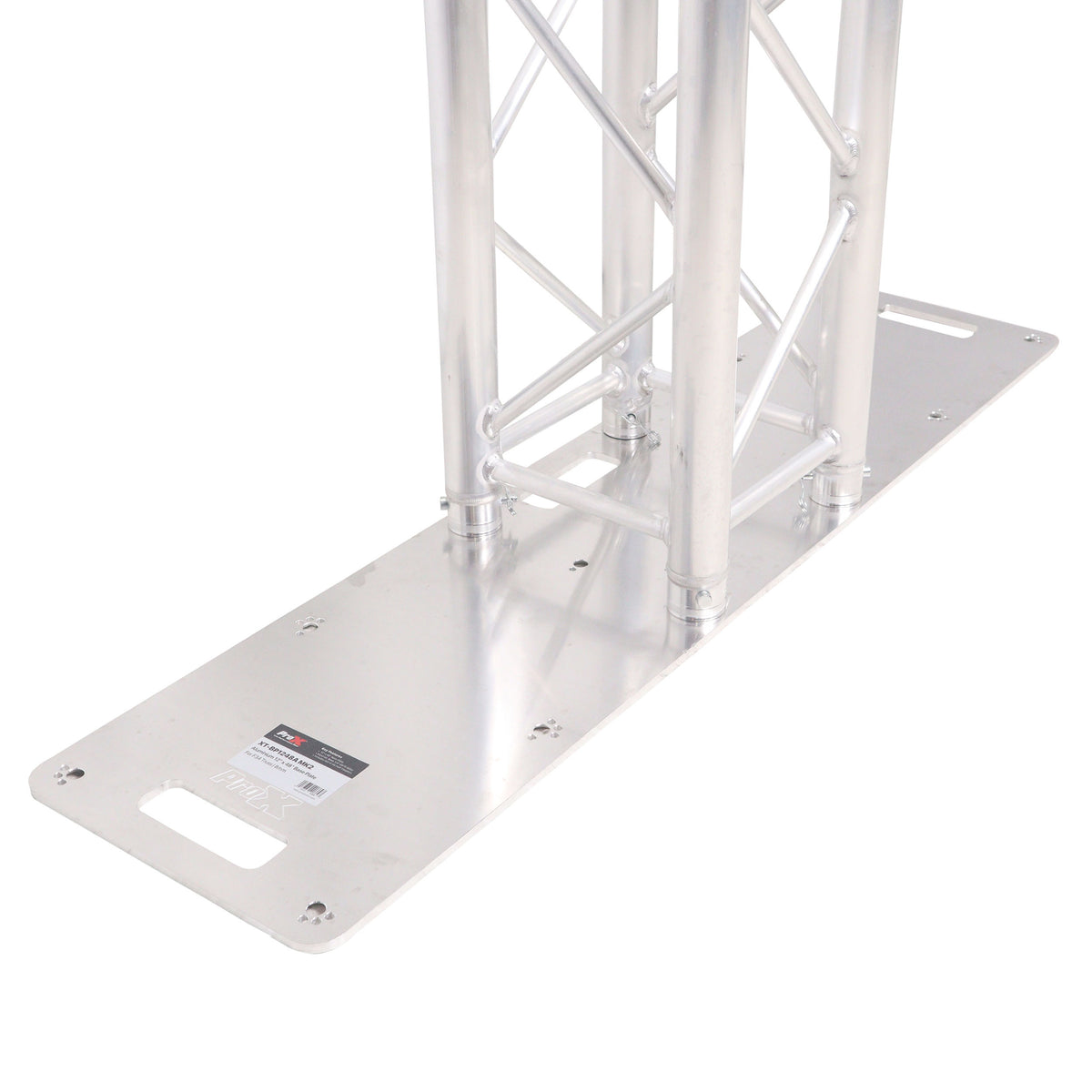

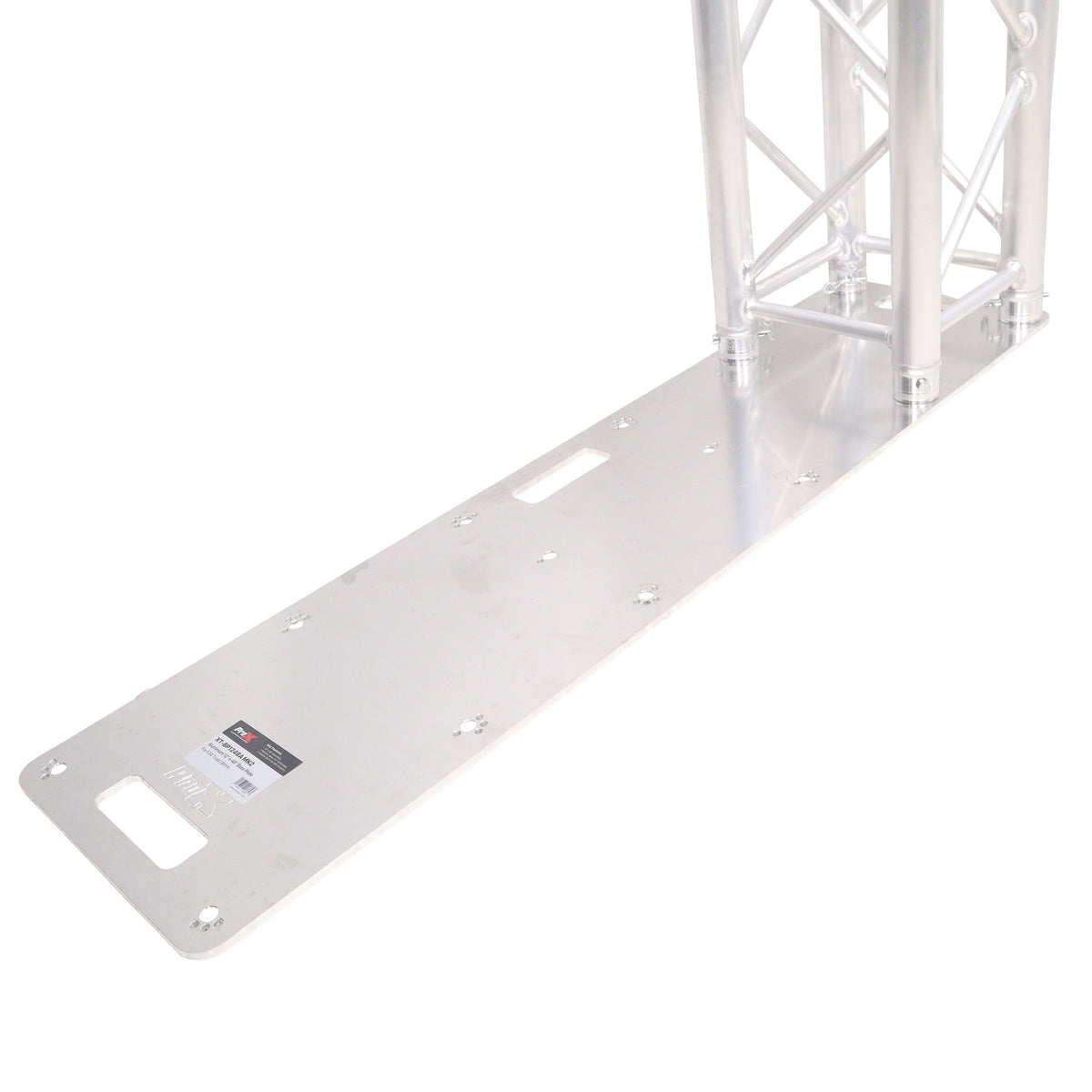

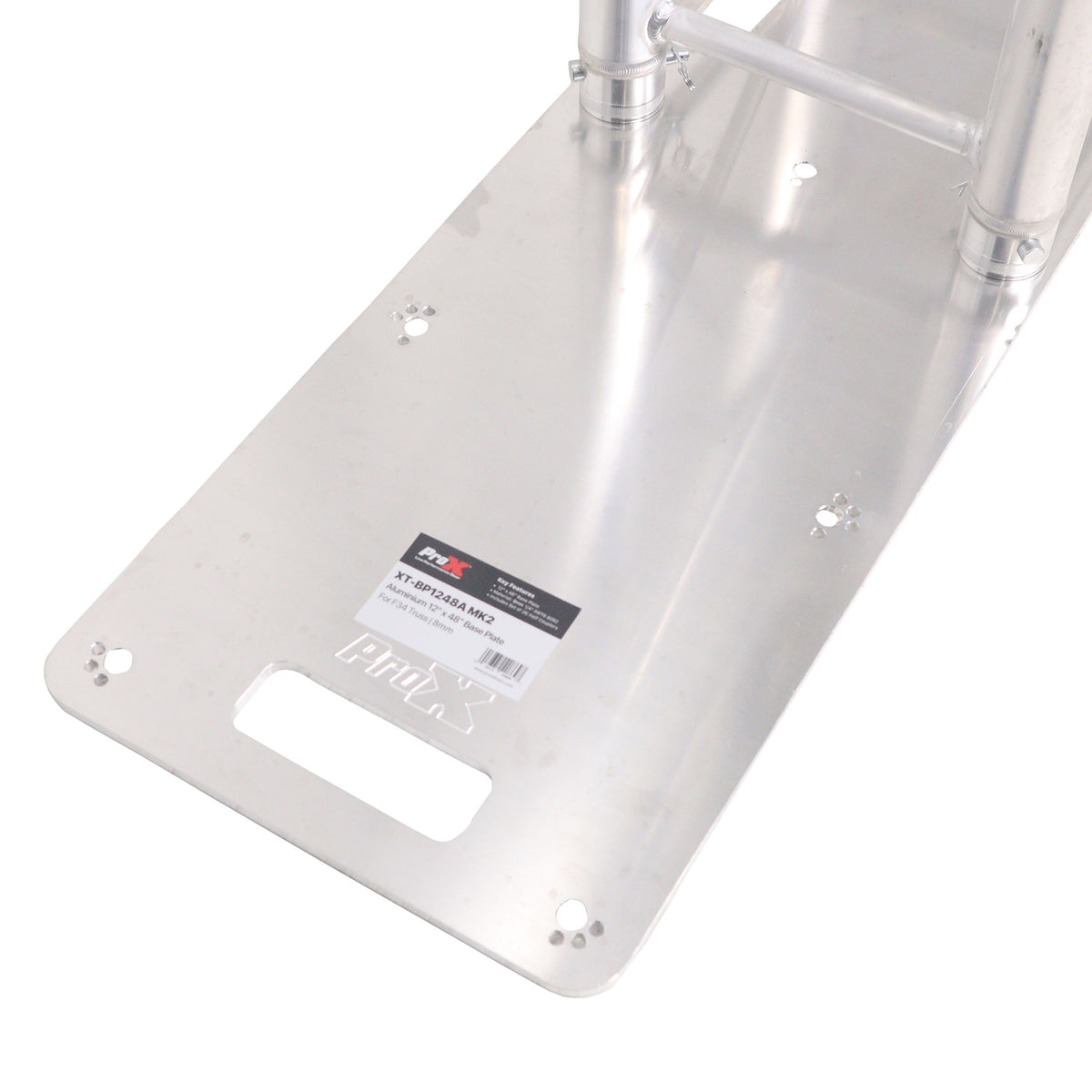

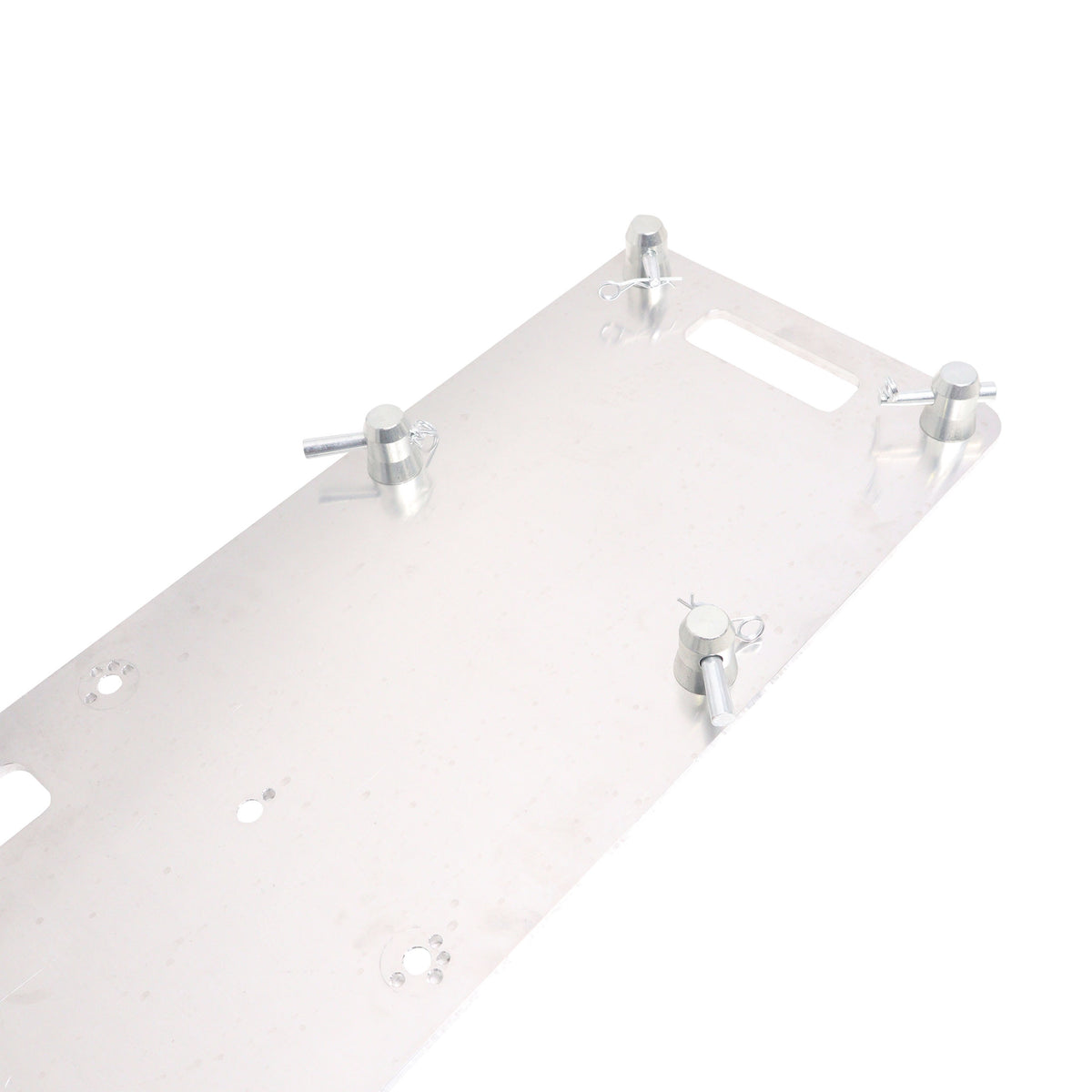

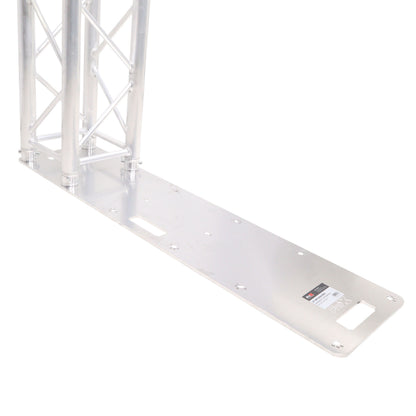

The ProX XT-BP1248A is a 12" x 48" aluminum base plate that anchors F34 conical truss to the floor. The long rectangular footprint is built for goal post systems, where two uprights carry a header and the plate has to resist tipping along the span rather than in every direction equally.

The plate is cut from 8mm EN-AWT6 6082 aluminum and manufactured under TUV certified processes, so it stays flat under a loaded upright instead of dishing over time. It fits most manufacturers using F34 conical couplers, which means it works with the truss inventory you already have.

Goal post layouts show up everywhere: banner and backdrop headers at trade shows, entrance arches for runs and festivals, lighting headers over a DJ booth, photo walls, and sponsor bridges at sporting events. Indoors on level flooring or outdoors with proper ballast, the 1' x 4' footprint gives a stable base for a single upright and gives you a mounting surface long enough to shift the truss position off center when a room forces the layout.

Always use a base plate large enough for the load placed on it. Undersized plates allow tipping, which can damage your trussing and void your warranty.
