XT-BP16A [Used]

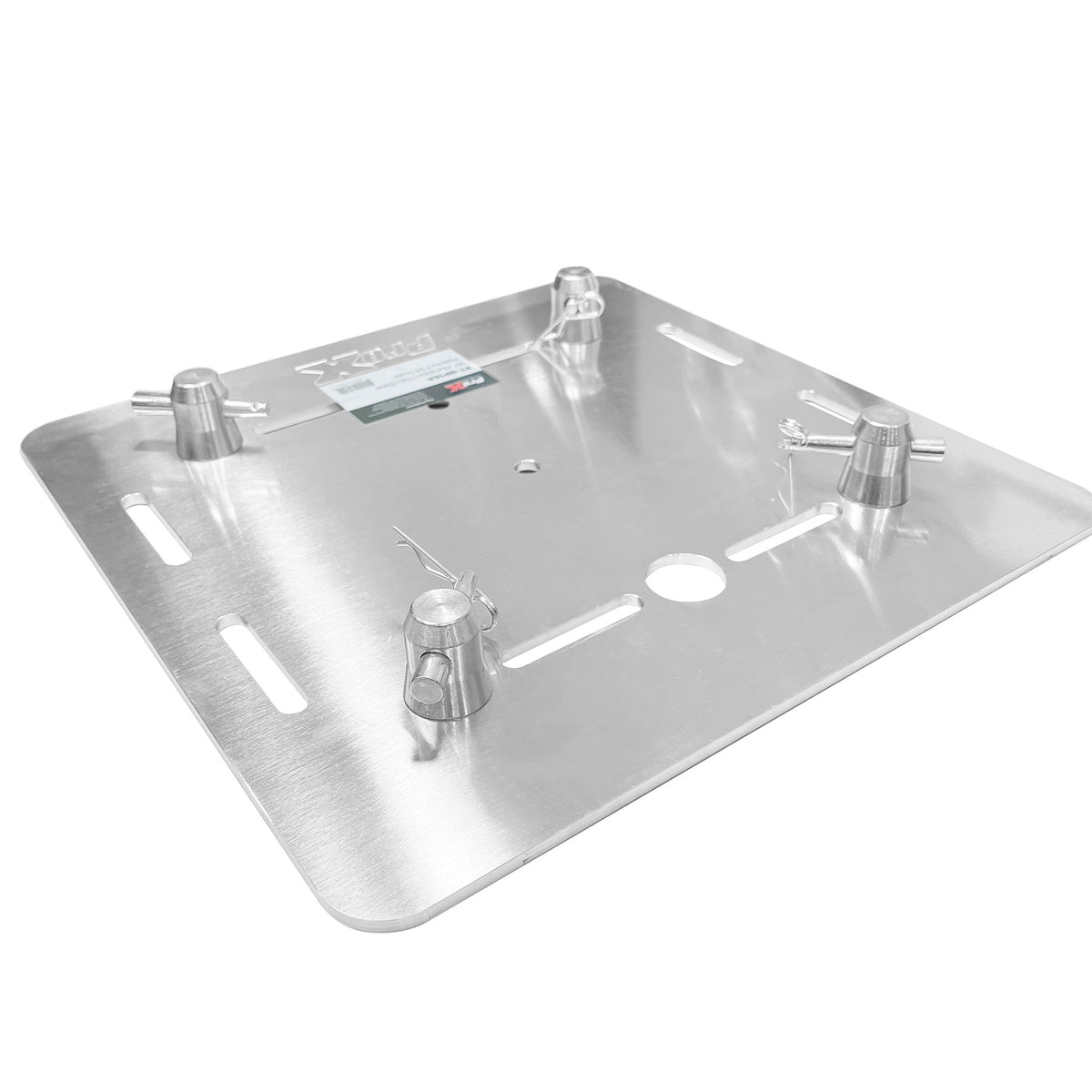

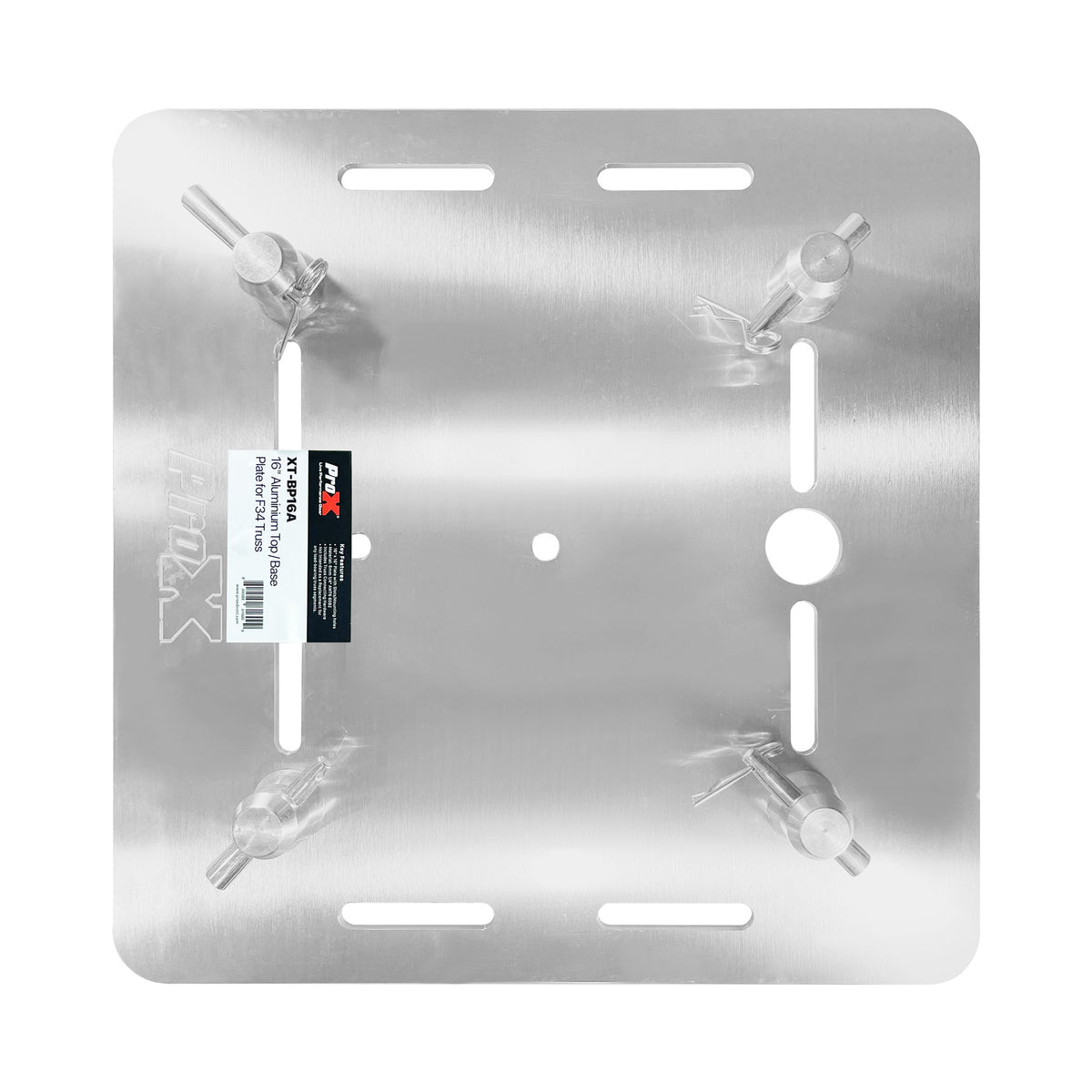

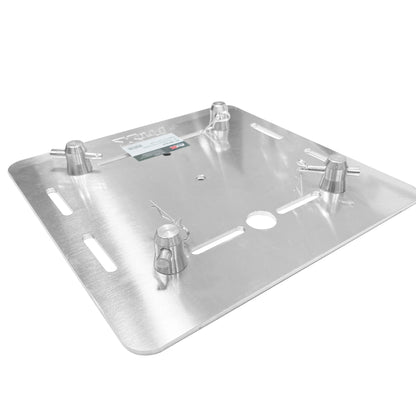

The ProX XT-BP16A is a 16" x 16" aluminum base plate for F34, F32, and F31 conical square truss, supplied with a connecting hardware set. The 6mm plate is forged from EN-AWT6 5052 aluminum and weighs 16 lb, so it puts real mass on the floor while still being a one-hand carry during load-in.

Stepping up from a 12" plate gives you a wider footprint and more resistance to tipping, which matters as soon as a totem gets taller or carries a fixture with any wind load or swing. Edges are rounded for easier handling and less risk of marking finished flooring.

Dimensions follow industry standards and the conical connector style is compatible with most other truss brands, so the plate works with the sections already in your inventory.

Typical uses include lighting totems and uplight positions, truss-built speaker stands, DJ facades, trade show and retail displays, goal post uprights on level flooring, and permanent installs in clubs and houses of worship. Always use a base plate large enough for the load placed on it, and add ballast or bracing as builds get taller.
