Home / Lighting /

XT-BP2430W

Product Description Specifications

XT-BP2430W

  • XT-BP2430W
  • XT-BP2430W
  • XT-BP2430W
  • XT-BP2430W
  • XT-BP2430W
1 5

PRO X CASES

XT-BP2430W

XT-BP2430W

24" x 30" Module Base Plate With Four 3" Locking Casters, For XT-GRU Rapid Grid Systems, Hardware Set Included

Free Shipping

$418.39
$418.39 $1,119.99
Save 62%
Shipping calculated at checkout.
Features
    • 24" x 30" module base plate for XT-GRU3024 Rapid Grid units
    • Four 3" locking casters roll loaded grids from truck to stage
    • 10mm AWT6 6061 aluminum plate with TUV certified fabrication
    • Handle cutouts and multiple drilled stud mounting holes
    • Also configurable for use with F34 trussing products
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later
    • 24" x 30" Module Base Plate With Casters
    • Hardware Set

SKU: XT-BP2430W

View full details

Product Description

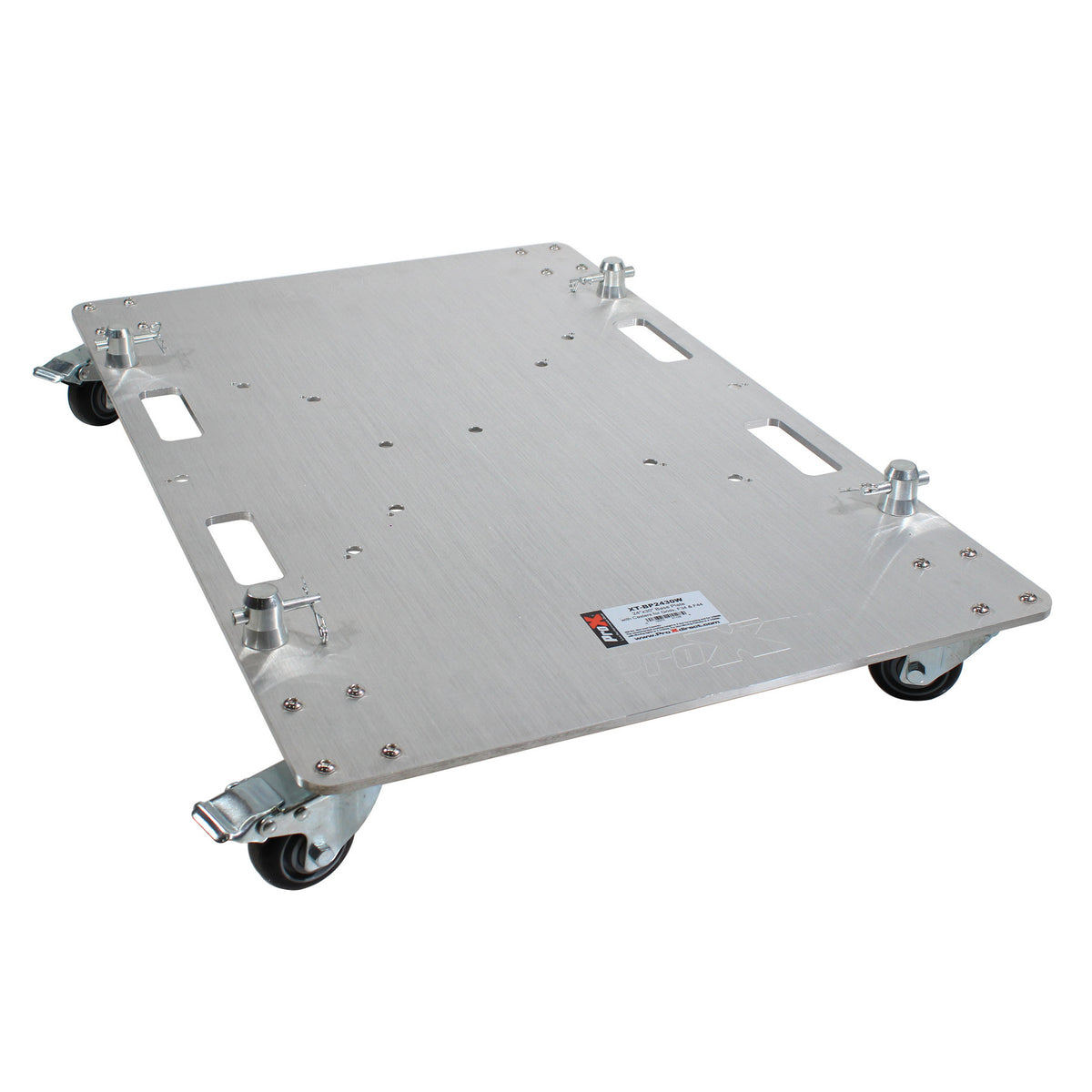

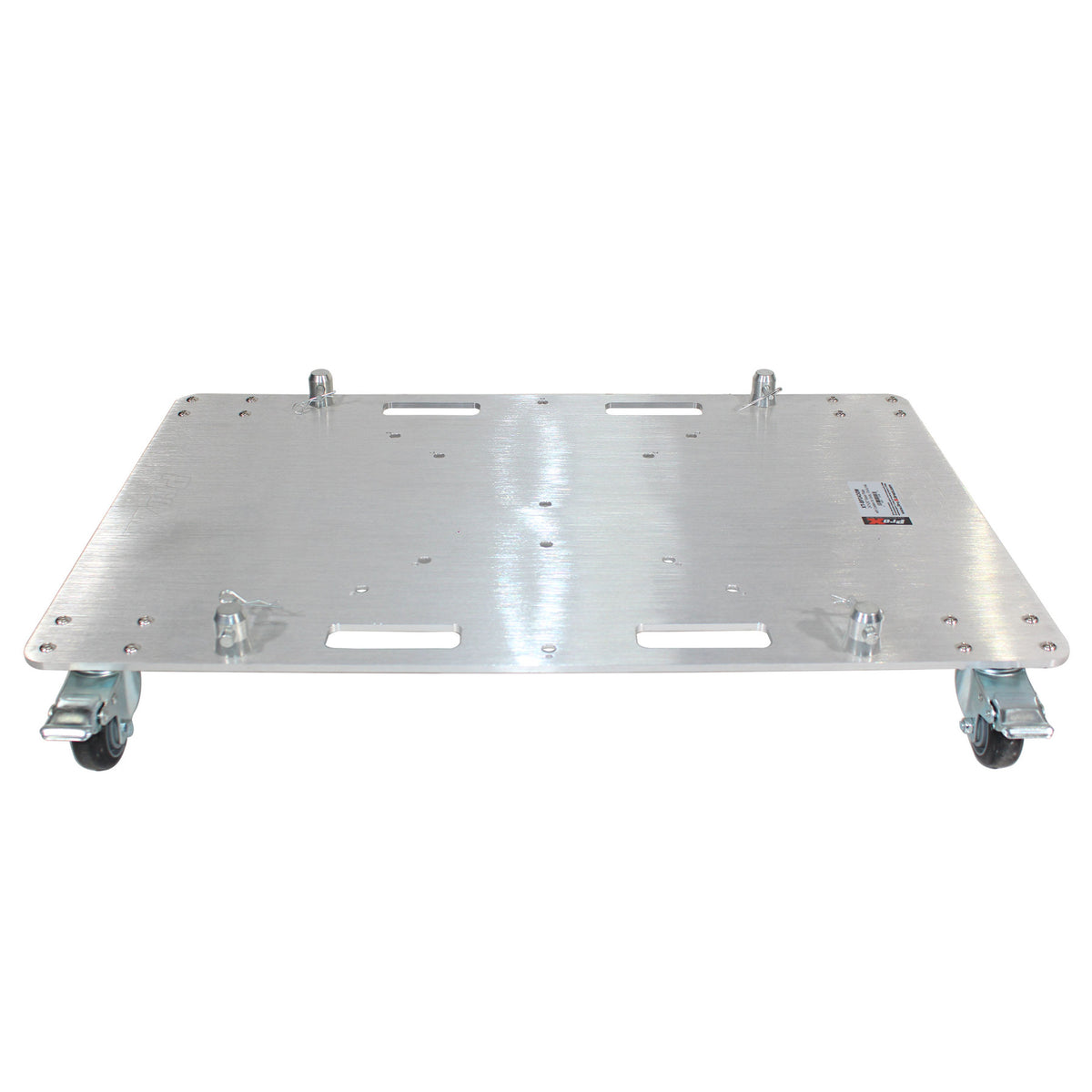

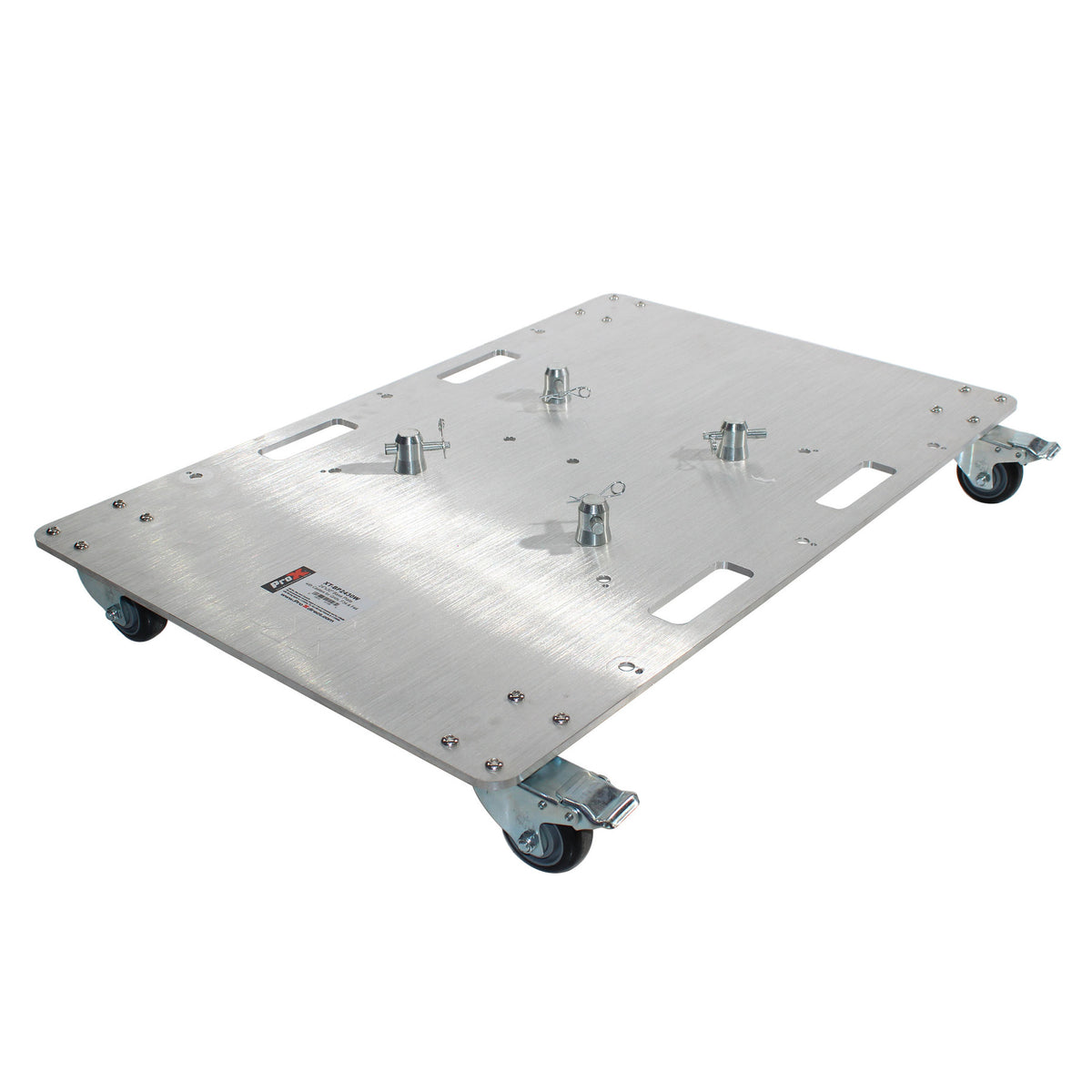

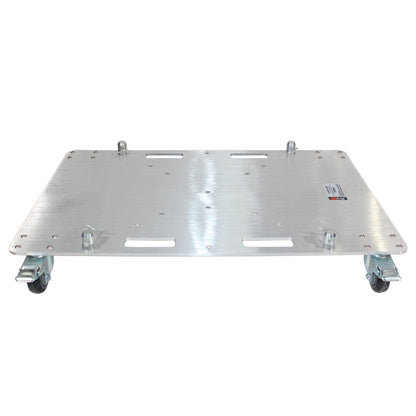

The ProX XT-BP2430W is a 24" x 30" rolling module base plate for the ProX XT-GRU Rapid Grid modular system. It is built from 10mm AWT6 6061 aluminum plate with handle cutouts and multiple drilled stud mounting holes, and it rides on four 3" locking casters.

The casters are the point. A grid unit loaded with fixtures can be wheeled from truck to venue to stage in one piece, then locked in position, instead of being torn down and rebuilt at every stop. That saves crew time and keeps fixtures cabled and focused between shows.

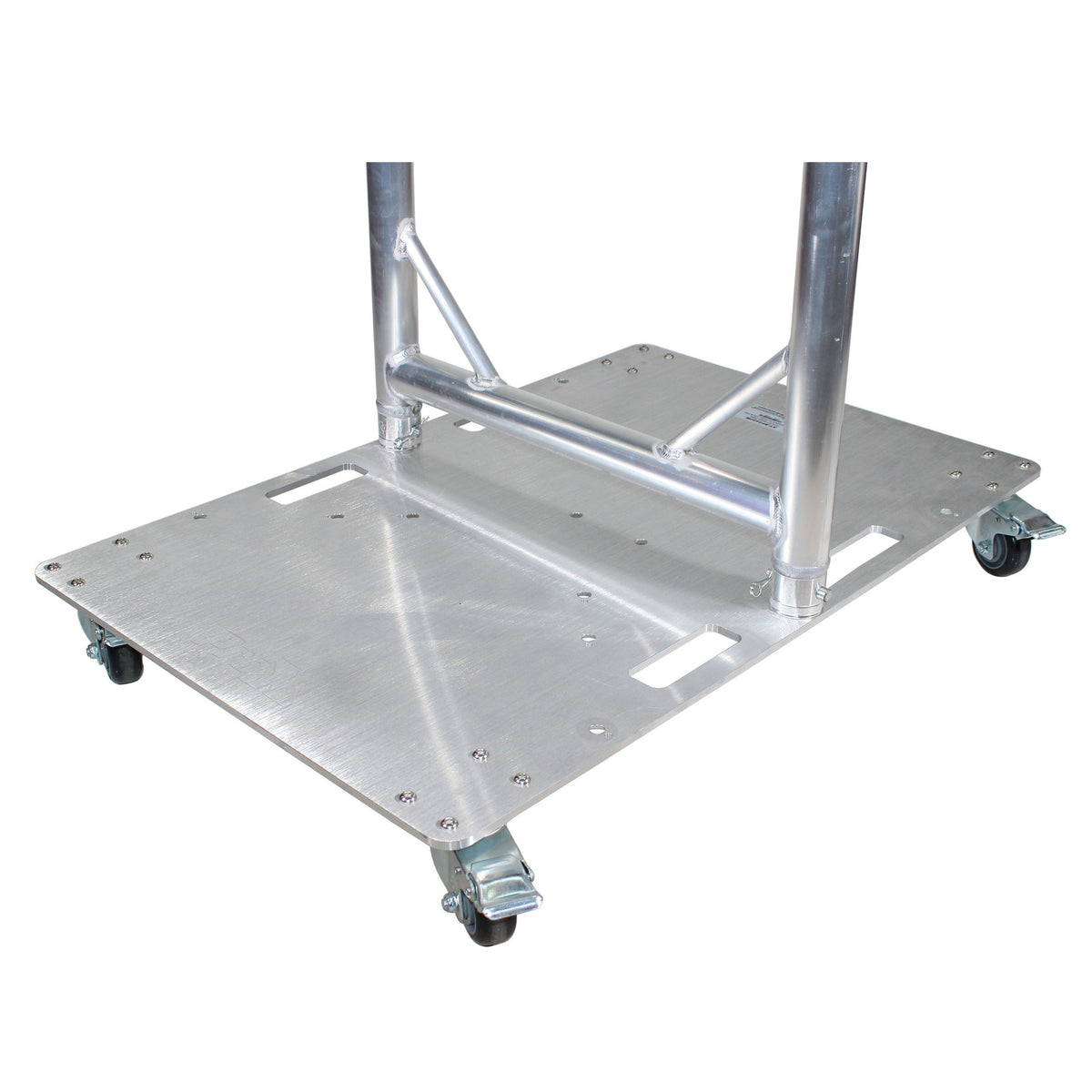

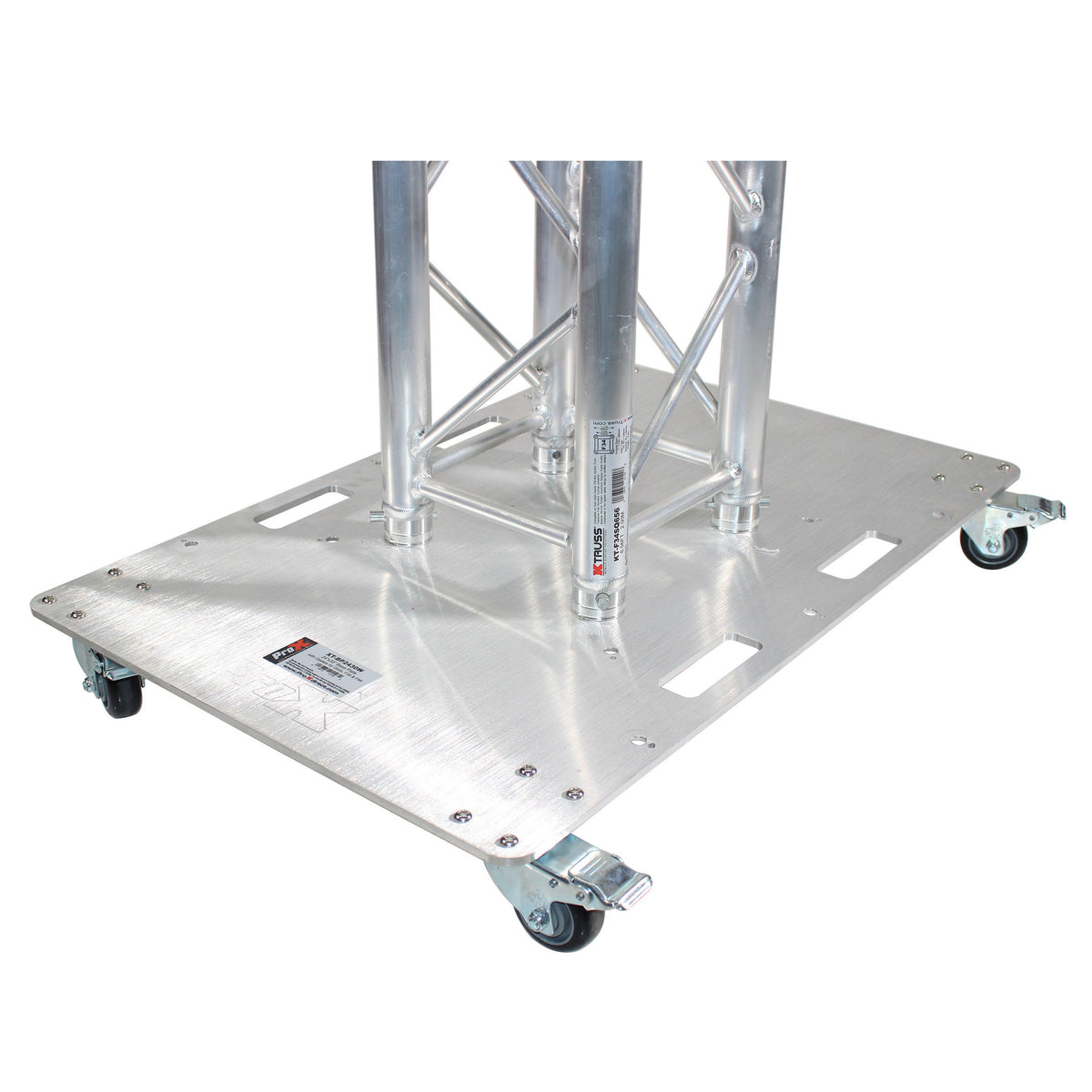

The plate is designed for XT-GRU3024 grid units and can also be configured to work with F34 trussing products. The XT-GRU3024 Rapid Grid modular system supports single fixtures, double hangs, or ladders of multiple fixtures, and modules can be combined into a wall of hanging positions. Each U module has two safety point attachments, one per side, for use with different fixture styles. Construction is lightweight aluminum, reinforced for added stability, with TUV certified fabrication and connecting hardware included.

Use it for touring lighting packages, rehearsal rooms, houses of worship, corporate ballroom sets, and rental stock that gets rolled in and out weekly.

Features

    • Roll It In Loaded

      Four 3" locking casters let a grid full of fixtures move from truck to venue to stage in one piece, then lock down where you want it.

    • Fewer Rebuilds Between Shows

      Because the grid travels assembled, fixtures stay cabled and focused, which cuts crew hours on repeat rooms and weekly rental turnarounds.

    • Thick Aluminum Base

      10mm AWT6 6061 aluminum with TUV certified fabrication carries the load of a fully populated grid while keeping the plate light enough to handle.

    • Multiple Mounting Options

      Drilled stud mounting holes and handle cutouts give you several attachment positions, and the plate can also be configured with F34 trussing.

    • Grid Flexibility

      XT-GRU3024 modules support single fixtures, double hangs, ladders, or a full wall of positions, with two safety point attachments on every module.

Technical Specifications

  • Product Type Rolling Module Base Plate
  • Designed For ProX XT-GRU3024 Rapid Grid modular system
  • Also Compatible With F34 trussing products
  • Material 10mm EN-AWT6 6061 Aluminum
  • Fabrication TUV Certified
  • Casters Four 3" locking casters
  • Finish Black
