XT-BPC328

XT-BPC328

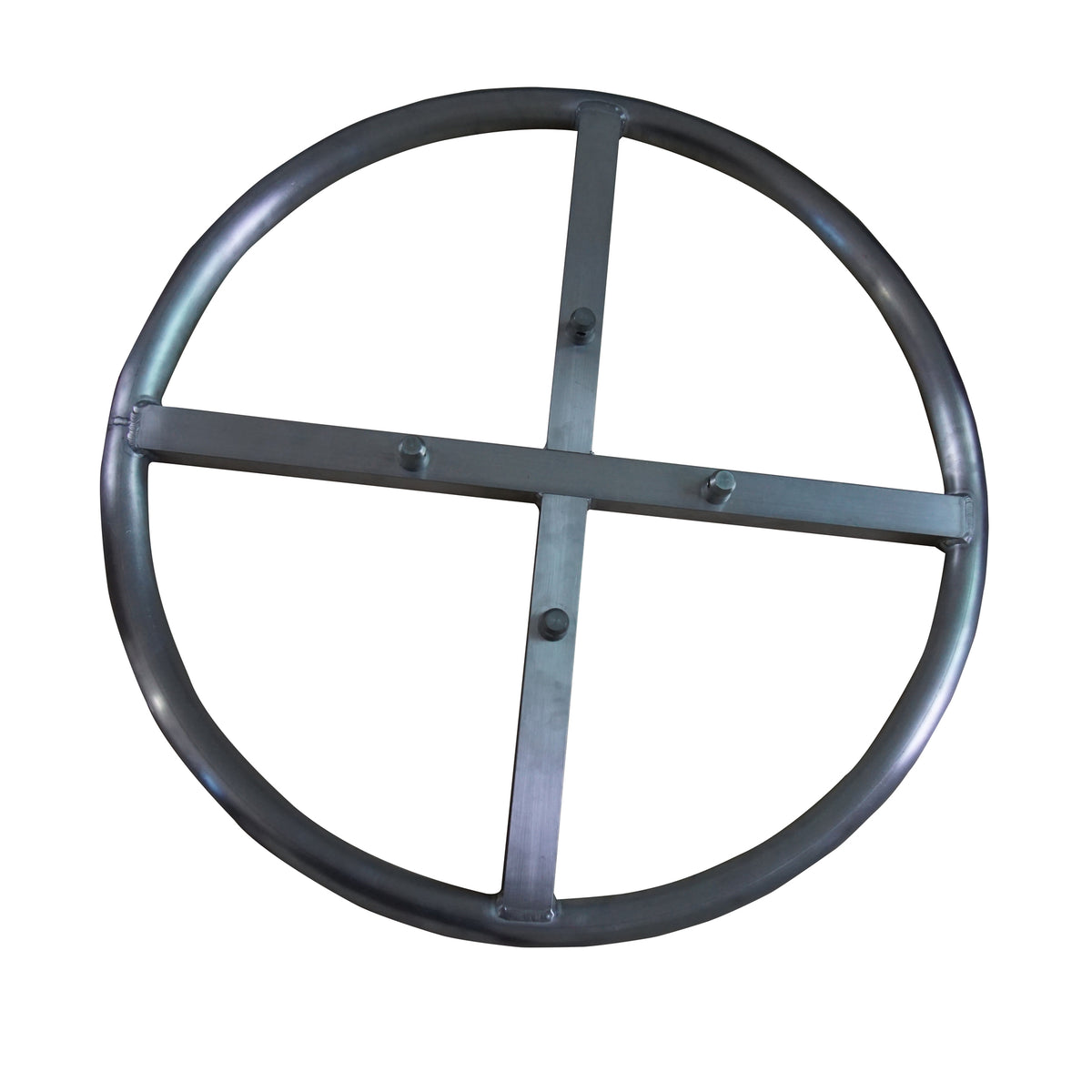

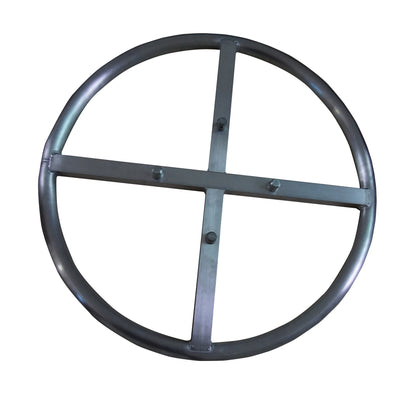

3.28' / 1 Meter Circle Truss For Base Or Top Mounting, F34 Conical Connector, Aluminum Construction

Free Shipping

$298.94
$298.94 $639.99
Save 53%
Shipping calculated at checkout.
Features
    • 3.28' / 1 meter circle truss component for base or top mounting
    • Gives a 360-degree ring of hanging positions on a totem
    • Built around the XT-F32JBOX junction as its center section
    • Tolerance-free standard conical connector for attaching truss
    • EN-AWT6 6082 aluminum with TUV certified welding
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later
    • Circle Truss Mount

SKU: XT-BPC328

View full details

Product Description

The ProX XT-BPC328 MK2 is a 3.28 ft, one meter circle truss component that works as either a truss topper or a base. This second-generation design uses the XT-F32JBOX junction as its center section, with a tolerance-free standard conical connector for attaching to your truss.

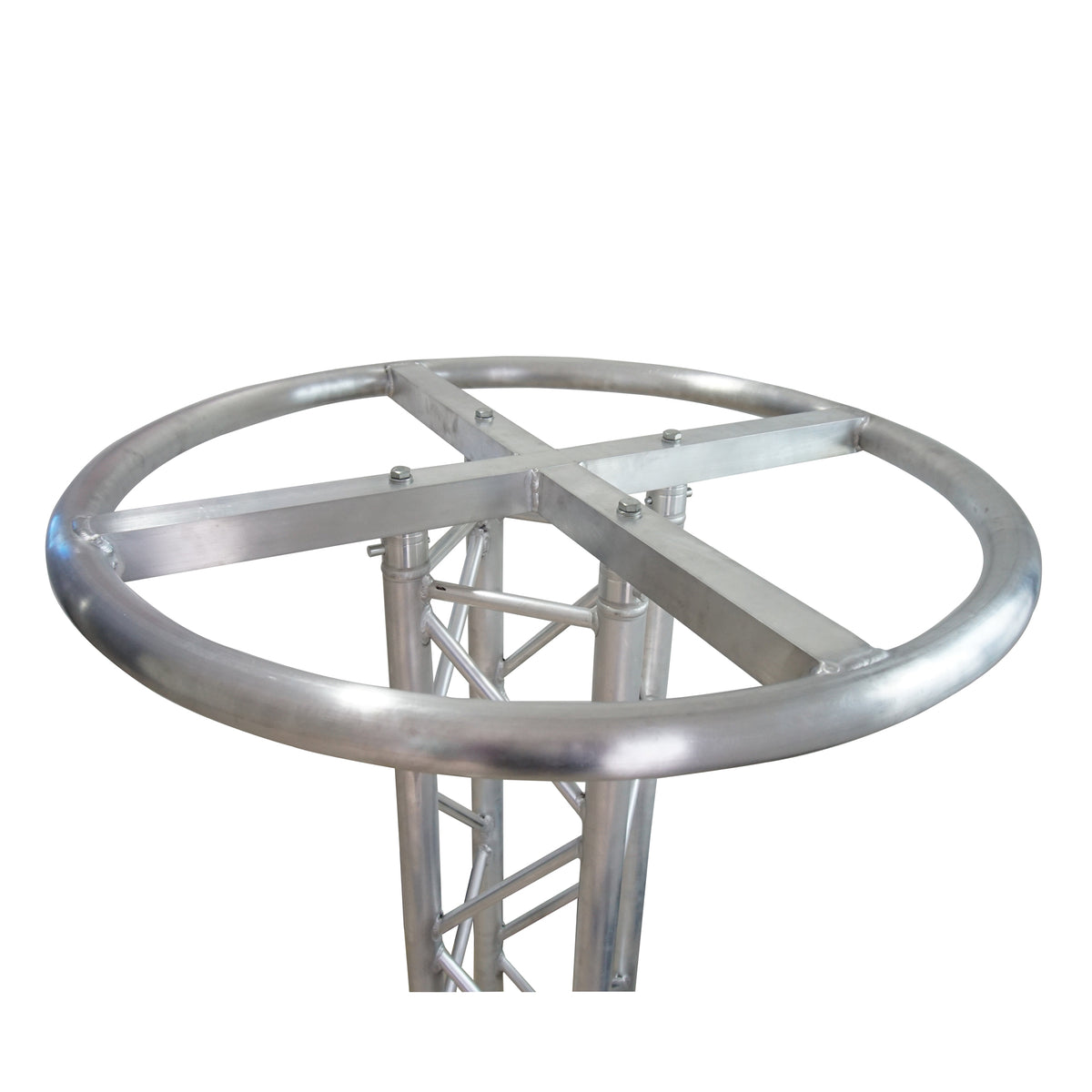

Mounted on top of a truss segment or totem, the circle gives you a 360-degree ring of hanging positions for lights, effects, and small gear, so a single upright covers a full spread instead of one direction. Flipped to the floor, the same part becomes a wide circular base for truss totems, spreading contact across a larger area than a square plate of similar reach.

Construction is EN-AWT6 6082 aluminum with TUV certified aluminum welding, matching the XT series profile: 11.42 in / 290mm truss height and width, 2 in / 50mm main tube with .08 in / 2mm wall, and .75 in / 20mm braces.

It suits mobile DJ rigs, stage sets, sound arrangements, dance floor centerpieces, wedding and event decor, and retail displays. Note that the 38 lb shipping figure is an oversized dimensional weight applied by UPS and FedEx. Always confirm load and rigging before lifting.

Features

    • Hang In Every Direction

      Mounted on top of a totem, the circle gives a 360-degree ring of positions, so one upright covers a full spread of lights and effects.

    • Doubles As A Base

      Turn it over and the same component becomes a wide circular bottom for truss totems, spreading floor contact across a large area.

    • Junction-Based Design

      The MK2 uses the XT-F32JBOX junction as its center section, a proven part that carries the load path into the truss below or above.

    • Tolerance-Free Connection

      A standard conical connector mates tightly with XT series truss, so the circle lines up without fighting the pins during setup.

    • Certified Aluminum Welding

      EN-AWT6 6082 aluminum with TUV certified welding gives predictable strength for mobile DJ rigs, stage sets, and event decor builds.

Technical Specifications

  • Product Type Circle Truss Base And Top Mount Component
  • Diameter 3.28 ft / 1 meter
  • Connector Standard conical connector
  • Center Section Based on XT-F32JBOX junction design
  • Material EN-AWT6 6082 Aluminum
  • Welding TUV Certified
  • Truss Profile Height 11.42 in / 290mm
