XT-BTBP24A

XT-BTBP24A

24" Aluminum Truss Base Plate for 12" Bolted Box Truss and F34, Includes Four 5/8" Bolts, Nuts, Washers

Free Shipping

$403.40
$403.40 $999.99
Save 59%
Shipping calculated at checkout.
Features
    • Mates to 12" H x 12" W bolted box truss with a 6 3/4" bolt pattern
    • Also drilled for F34 trussing (conical connectors not included)
    • 1/2" aluminum plate welded to 1" x 1.5" solid aluminum extrusions
    • Four hand holes make lifting and carrying a two-person job
    • Includes four 5/8"-11 x 2.5" NC bolts, nuts, flat and lock washers
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later
    • 24" BoltX Truss Base Plate
    • (4) 5/8"-11 x 2.5" NC Attachment Bolts
    • (4) Hex Nuts
    • (4) Flat Washers
    • (4) Lock Washers

SKU: XT-BTBP24A

View full details

Product Description

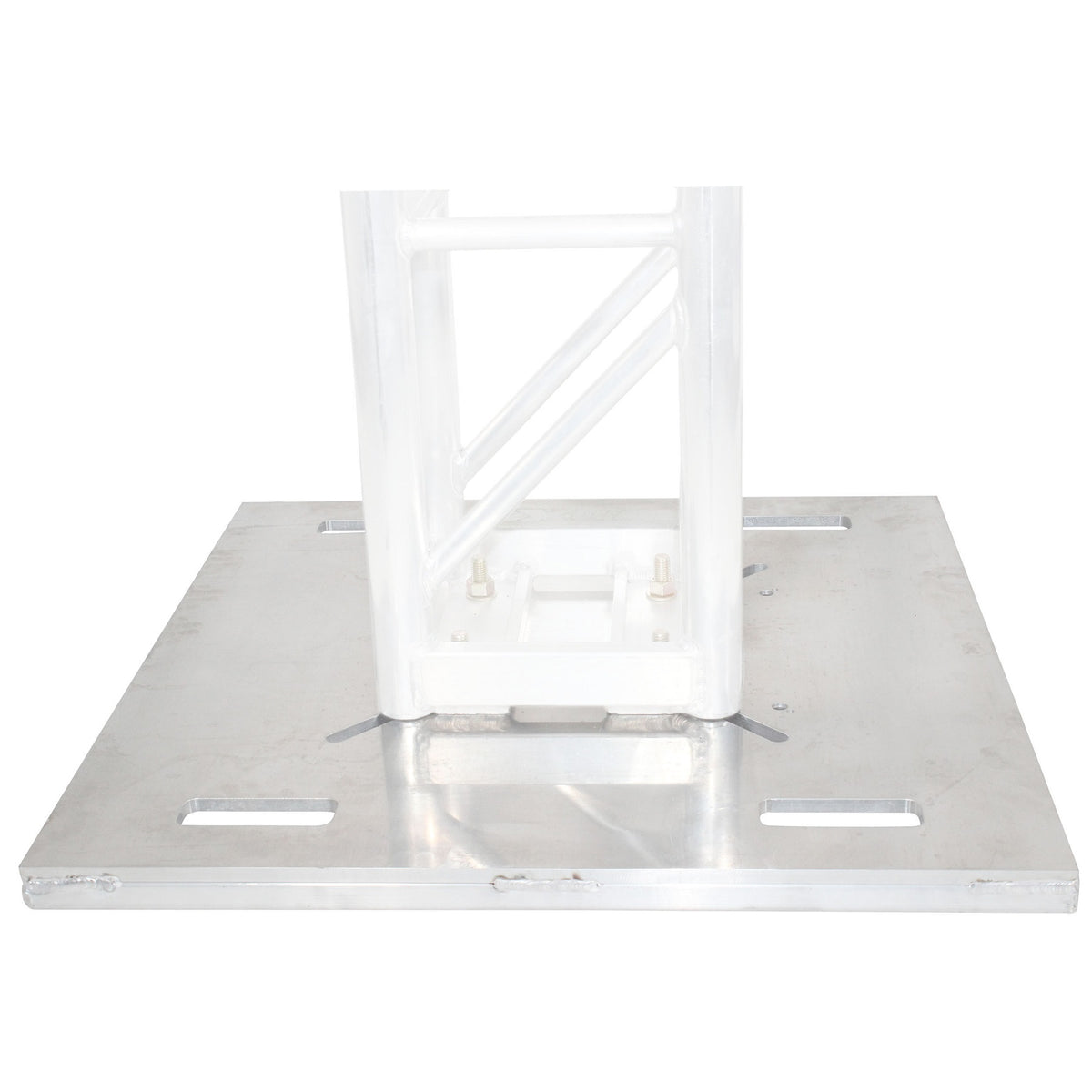

The ProX XT-BTBP24A BoltX base plate anchors 12 in. bolted box truss to the floor, giving vertical towers, goalposts, and totems a stable footprint for stage lighting, concerts, and Ninja obstacle course construction. The plate spans 25 in. and uses the industry standard 6 3/4 in. x 6 3/4 in. bolt pattern with 5/8 in. holes, so it mates with BoltX truss sections and most other 12 in. bolted box truss brands. It is also drilled to fit F34 trussing, though conical connectors are sold separately.

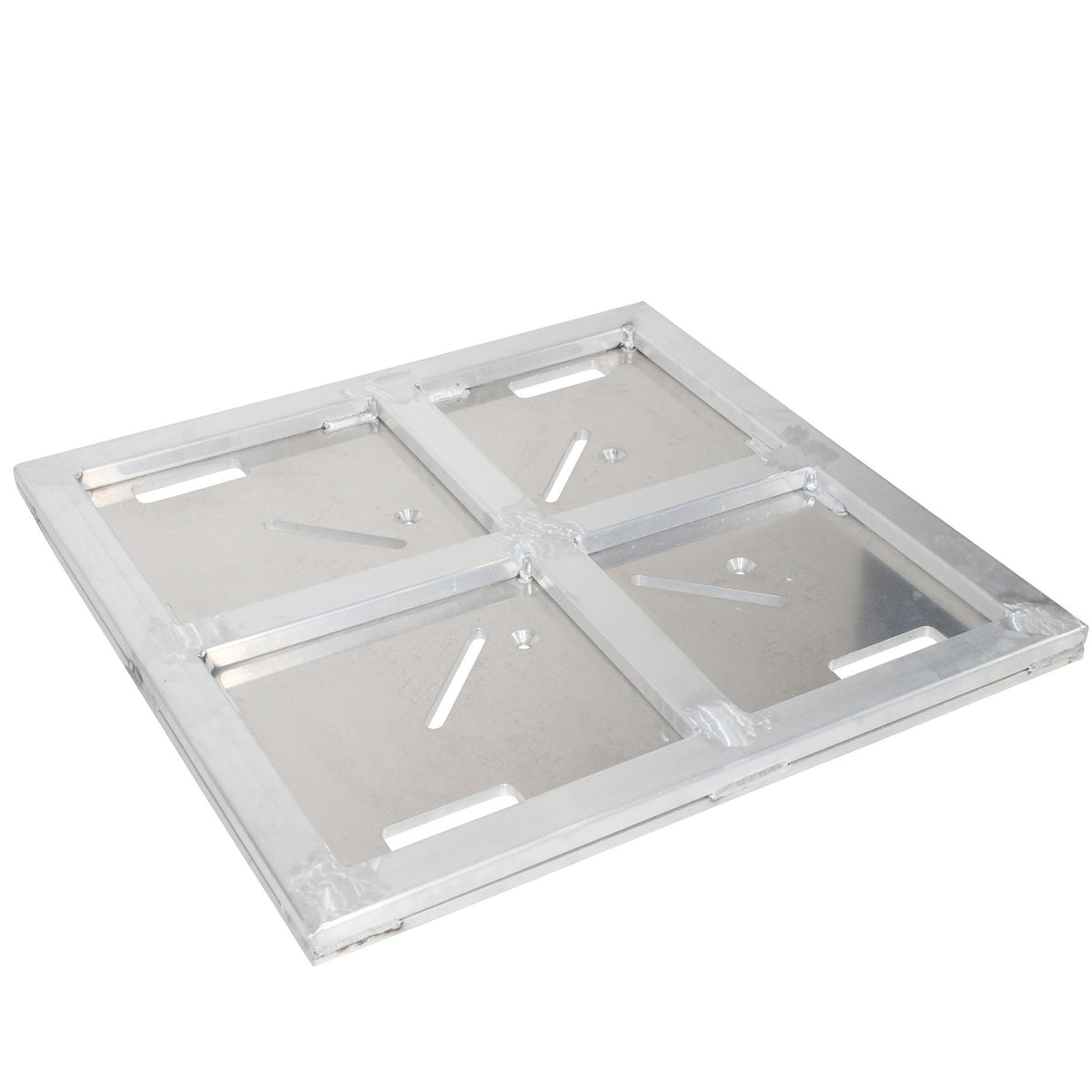

Construction is a 1/2 in. aluminum plate welded to 1 in. x 1.5 in. solid aluminum extrusions, fabricated from 6082-T6 alloy by GSI SLV-certified welders to TUV standards. Every plate is load tested and inspected during manufacturing, and the natural aluminum finish holds up to outdoor and touring use.

Four hand holes let two people lift and carry the plate without fighting for a grip during load-in. The plate is drilled for an offset position and slotted in an X for quick center mounting, so you can shift tower placement on site without drilling anything new. One set of four 5/8 in.-11 x 2.5 in. (NC) attachment bolts, nuts, flat washers, and lock washers ships with each plate, so it is ready to bolt up out of the box.

For complex loading configurations or conditions, ProX recommends that you engage the services of a licensed engineering professional.

Features

    • Bolts To What You Already Own

      The industry standard 6 3/4 in. bolt pattern with 5/8 in. holes fits BoltX sections and most other 12 in. bolted box truss, so you can extend an existing rig.

    • Two Mounting Positions

      Offset drilling plus a slotted X for center mounting lets you reposition a tower on site without pulling out a drill or shimming the base.

    • Built For Repeat Load-Ins

      A 1/2 in. plate welded to solid aluminum extrusions takes the weight of a loaded tower and shrugs off the drops that come with weekly touring.

    • Certified Welds, Load Tested

      Welds are laid in 6082-T6 alloy to TUV standards by GSI SLV-certified welders, and every plate is inspected and load tested during manufacturing.

    • Four Hand Holes

      Cutouts at all four corners give your crew a real grip on a 40 lb plate, which keeps hands off sharp edges and speeds up carry-in.

Technical Specifications

  • Product Type Truss Base Plate
  • To Fit 12" Bolted Box Truss and F34 Trussing
  • Bolt Pattern 6 3/4" x 6 3/4" with 5/8" Holes
  • Plate Thickness 1/2" Aluminum
  • Extrusions 1" x 1.5" Solid Aluminum
  • Material 6082-T6 Aluminum Alloy
  • Welding TUV Standards, GSI SLV-Certified Welders
