XT-BTBP30A

The ProX XT-BTBP30A BoltX base plate puts a 30 in. x 30 in. aluminum footprint under your truss towers for stage lighting, concerts, Ninja obstacle course construction, and trade show structures. The wider plate spreads load over more floor area than a 24 in. plate, which matters on carpet, turf, and uneven outdoor ground.

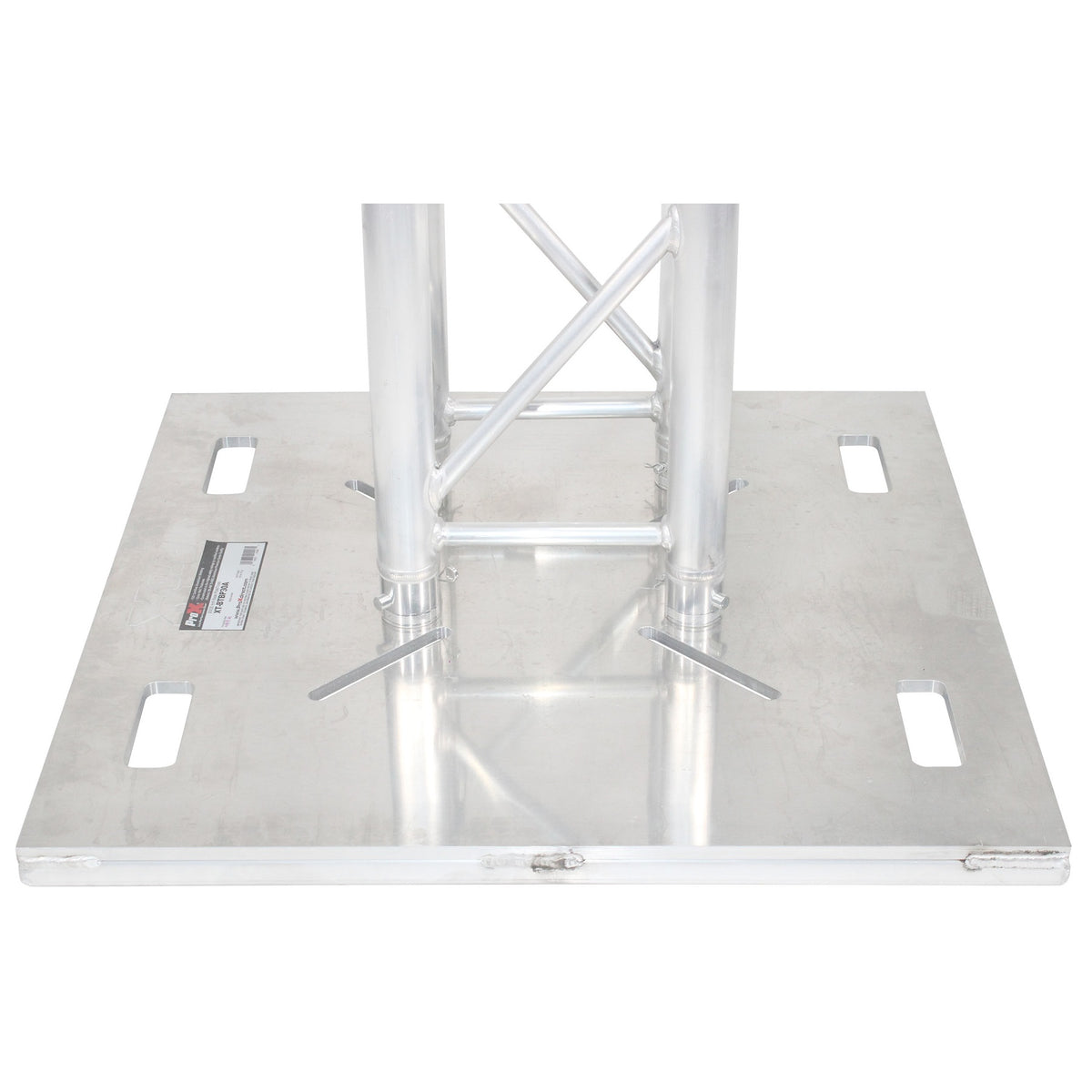

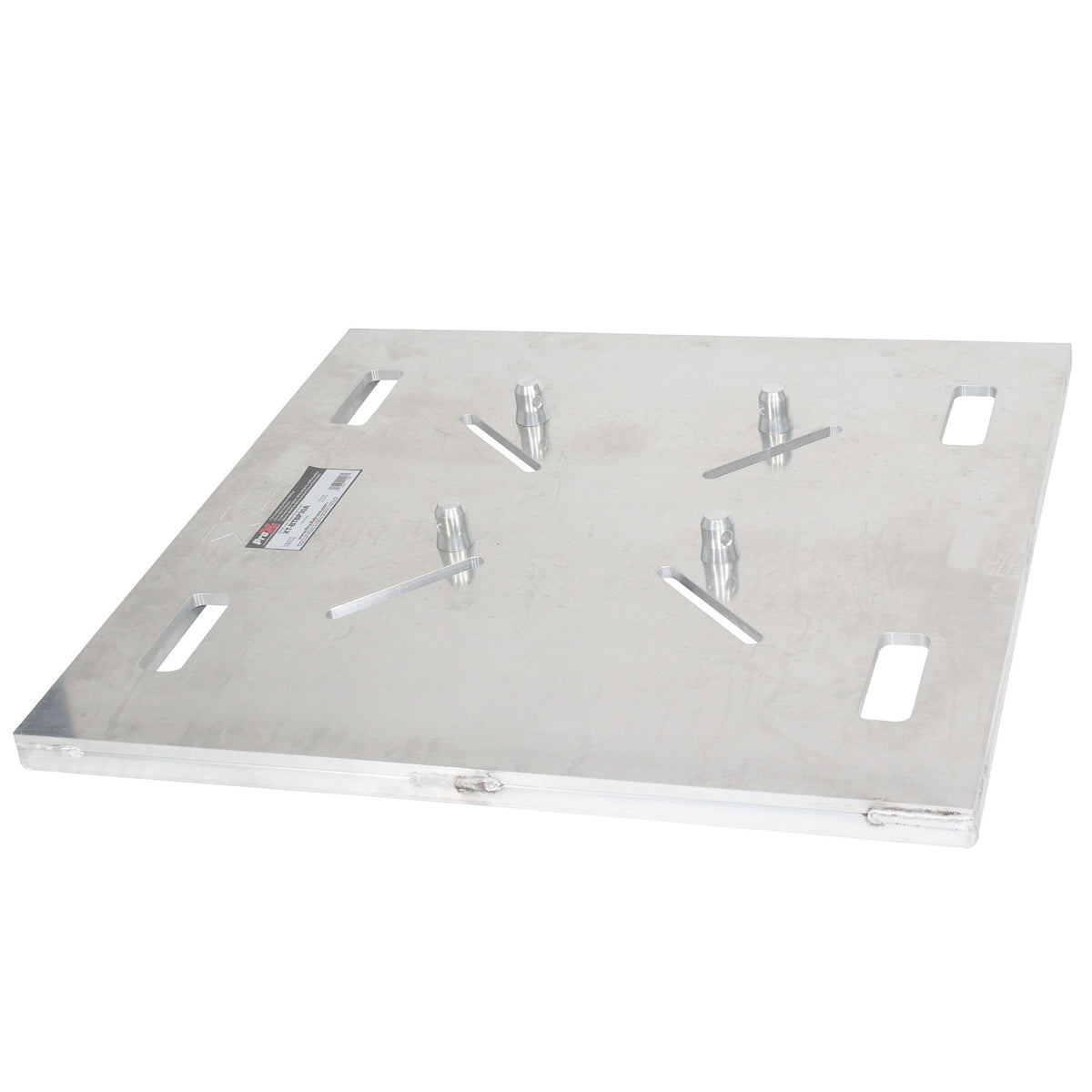

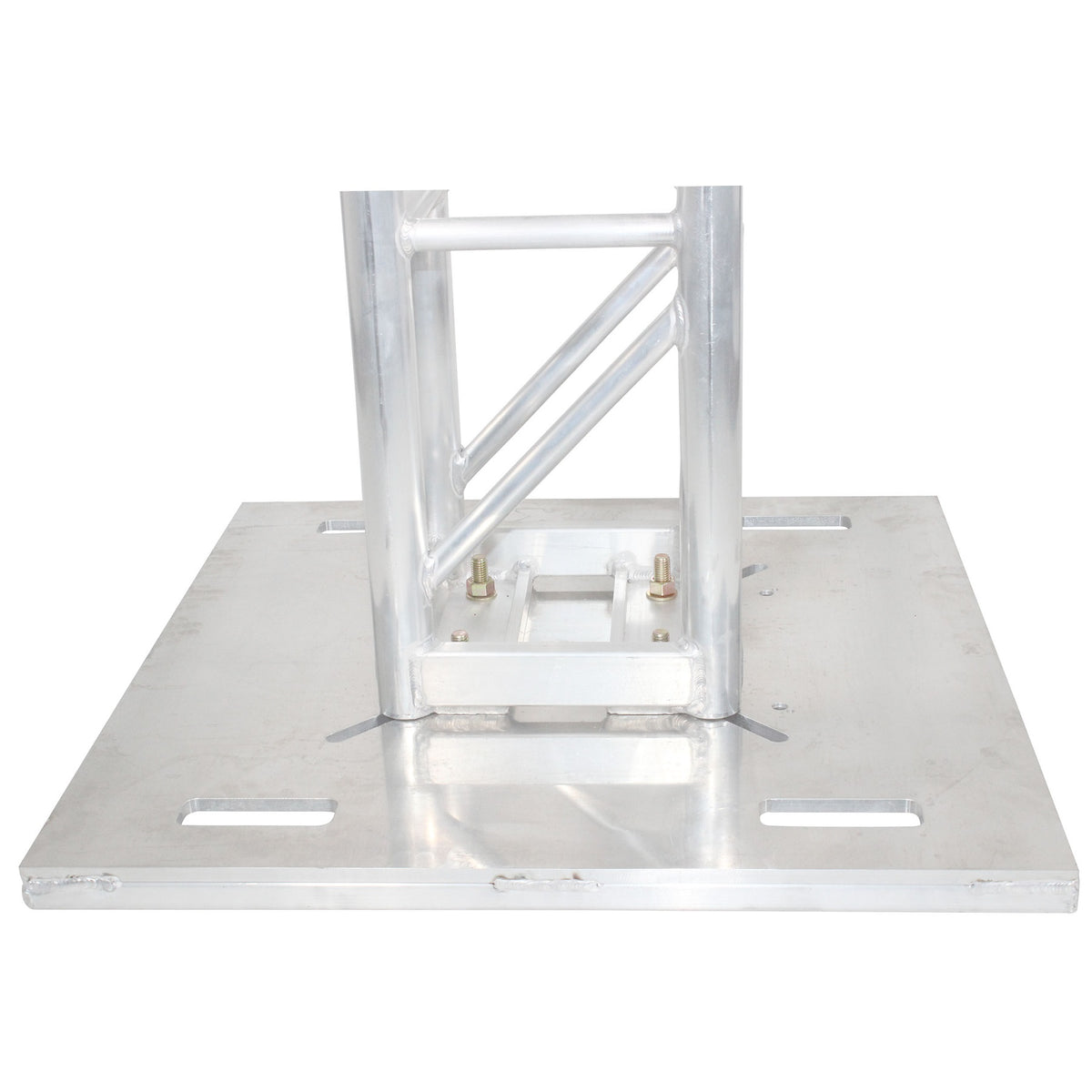

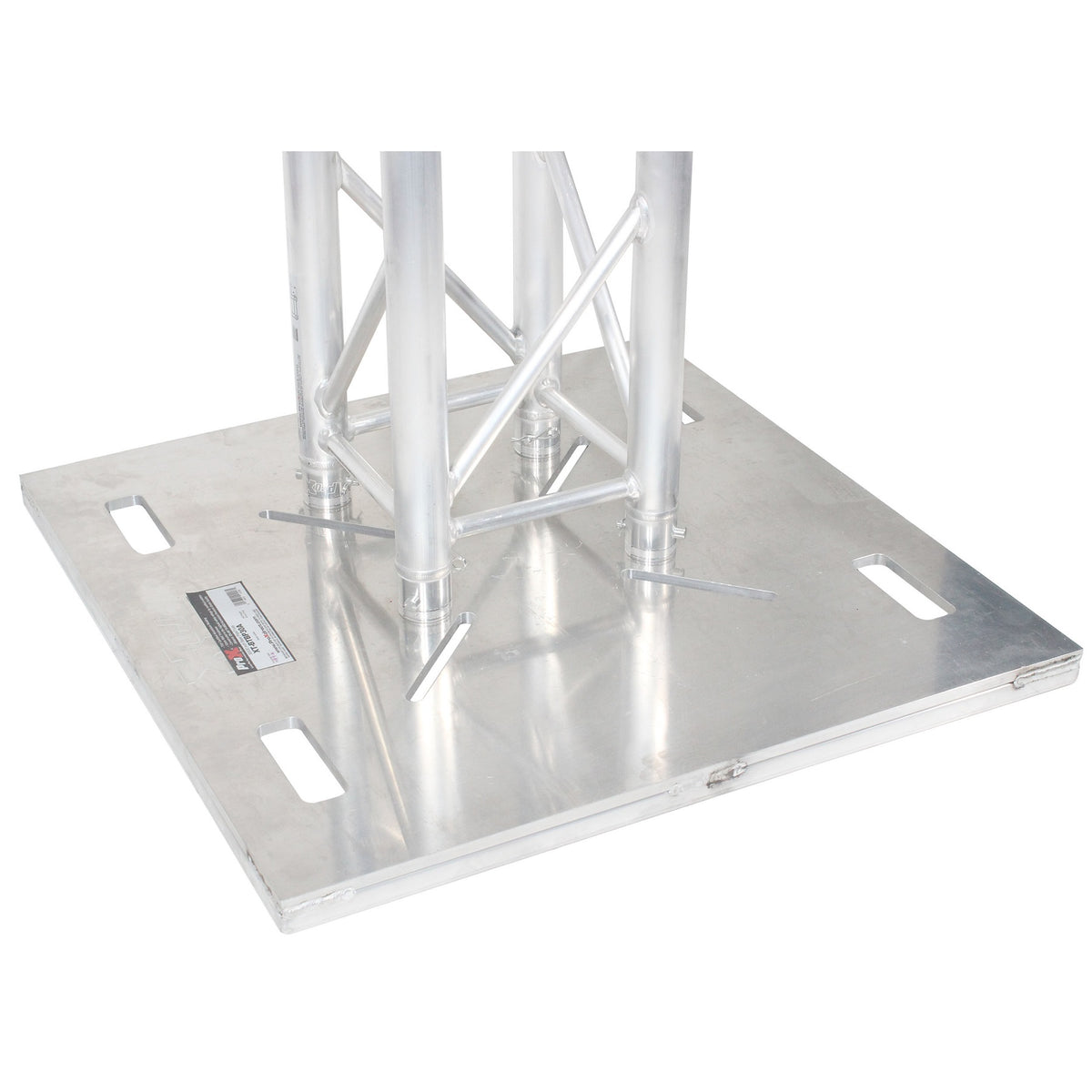

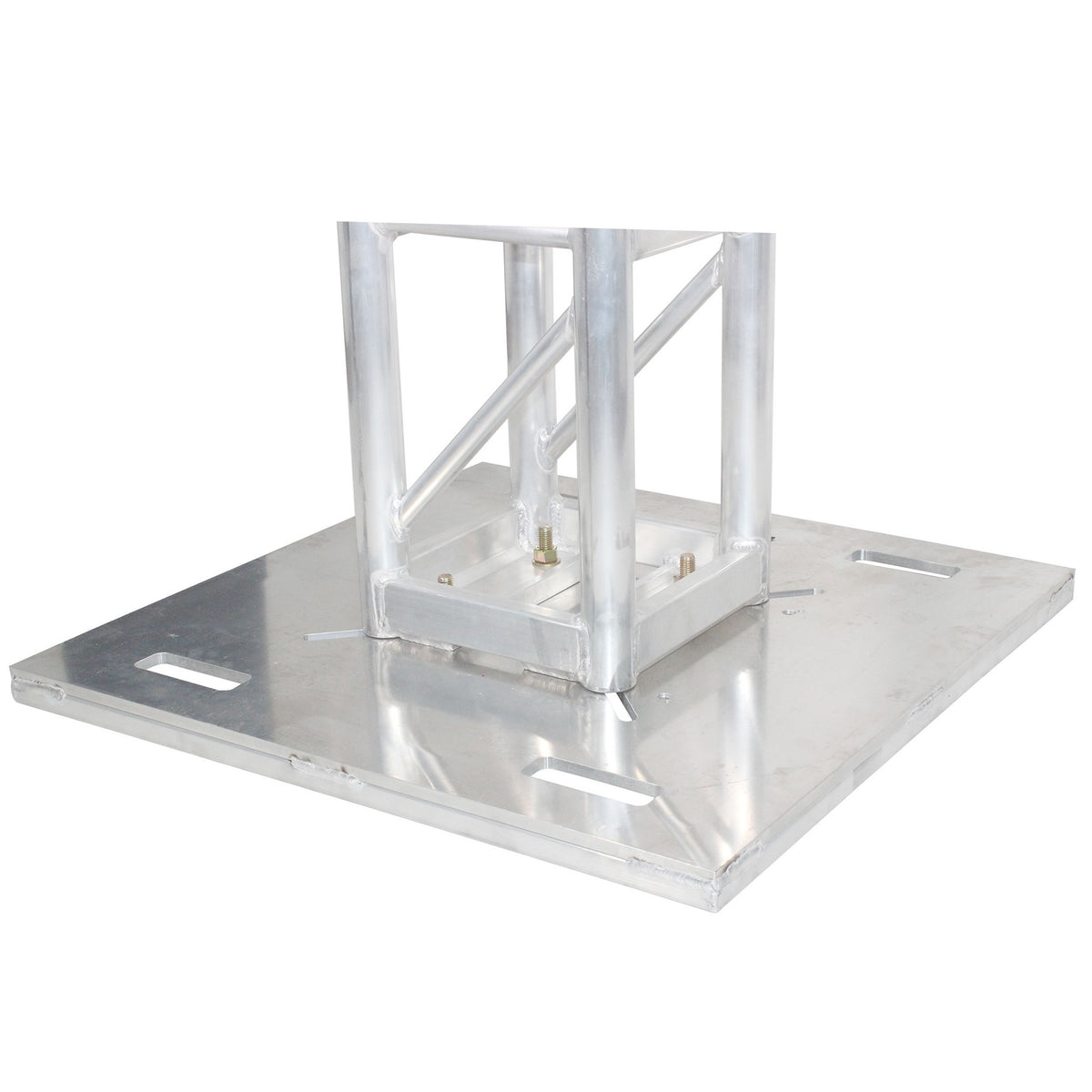

It mates with BoltX truss sections and fits 12 in. and 16 in. bolted box truss using the industry standard 6 3/4 in. x 6 3/4 in. bolt pattern with 5/8 in. holes. The plate is also drilled for F34 trussing, with conical connectors sold separately, so one plate covers most of what is already in your inventory.

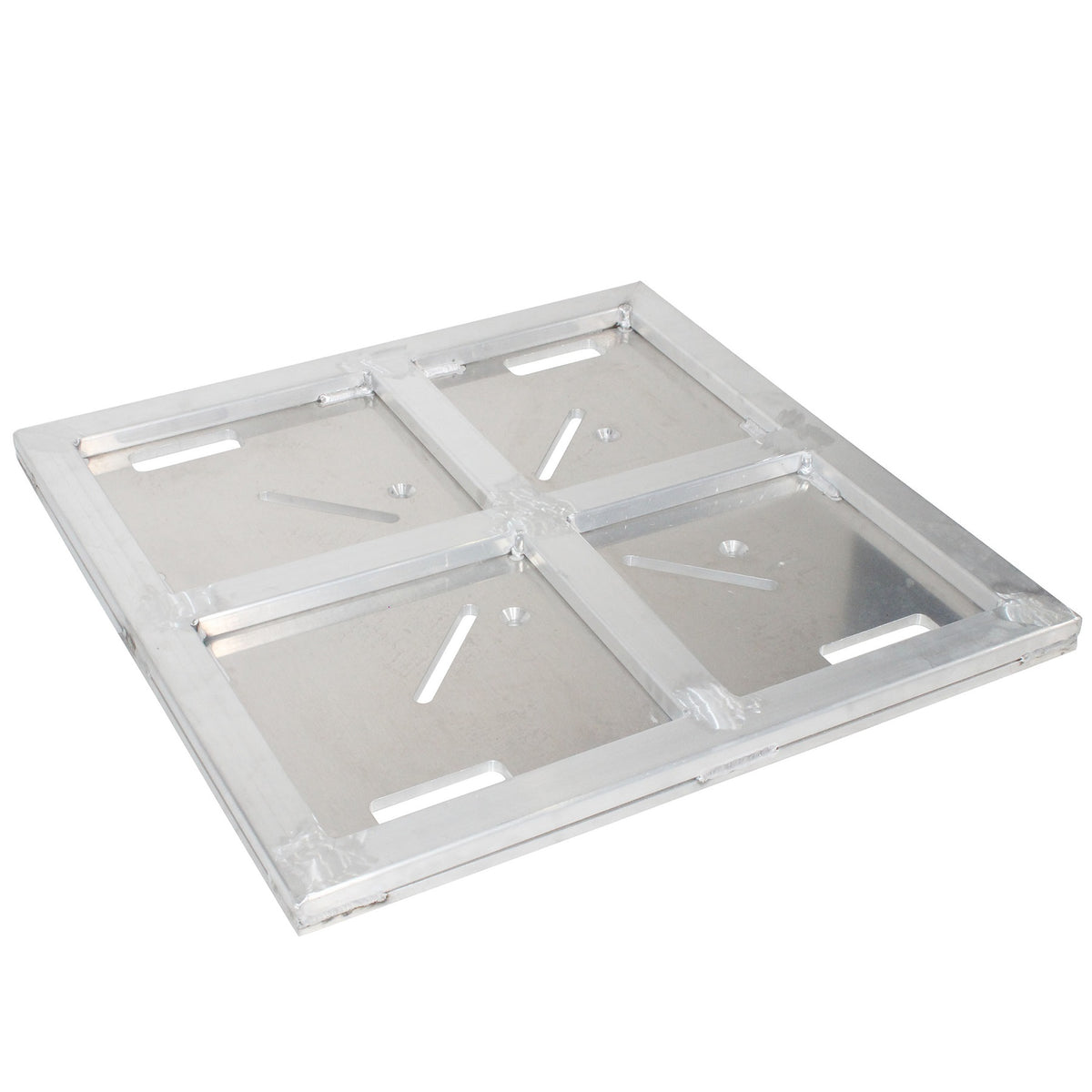

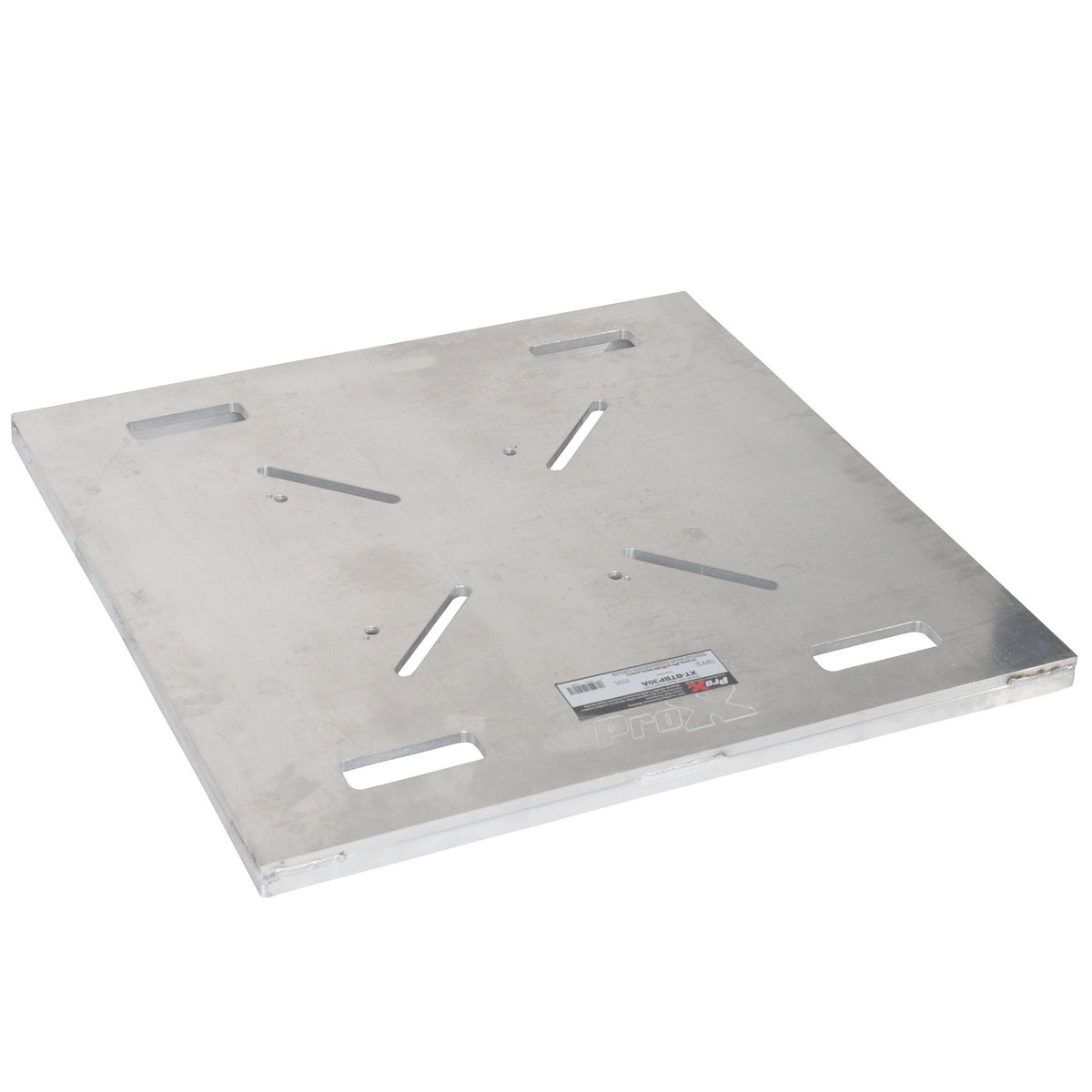

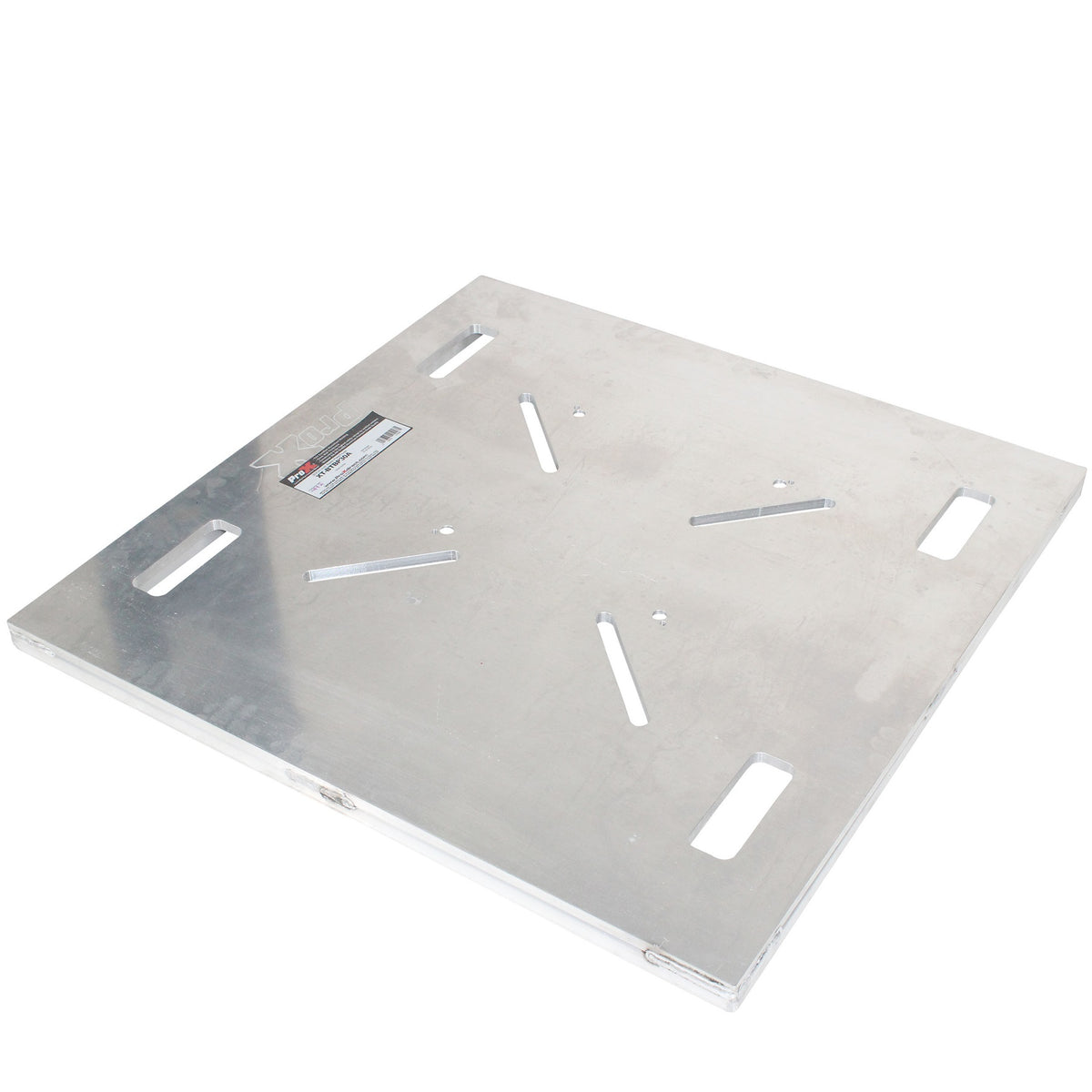

The body is a 1/2 in. aluminum plate welded to 1 in. x 1.5 in. solid aluminum extrusions, welded from 6082-T6 alloy by GSI SLV-certified welders to TUV standards, then load tested and inspected during manufacturing. Four hand holes give your crew a grip on the 52 lb plate during load-in, and the offset drilling plus slotted X pattern lets you mount a tower centered or offset without new holes.

Each plate ships with one set of four 5/8 in.-11 x 2.5 in. (NC) attachment bolts, nuts, flat washers, and lock washers. Finish is natural aluminum. For complex loading configurations or conditions, ProX recommends that you engage the services of a licensed engineering professional.
