XT-F31JBOX

XT-F31JBOX

6-Way Universal Truss Junction Box for F31 I-Beam Truss, 3mm Wall, Includes Conical Couplers

Free Shipping

$94.98
$94.98 $199.99
Save 52%
Shipping calculated at checkout.
Features
    • Branches an F31 I-beam truss run in up to six directions
    • 11.42" (290mm) height with 2" (50mm) main tubes
    • 0.11" (3mm) tube wall with 0.75" (20mm) diagonal braces
    • EN-AW 6082 aluminum with TUV certified welding
    • Standard conical connections mate with same-size truss from other brands
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later
    • XT-F31JBOX F31 Universal Box Junction
    • Conical Couplers

SKU: XT-F31JBOX

View full details

Product Description

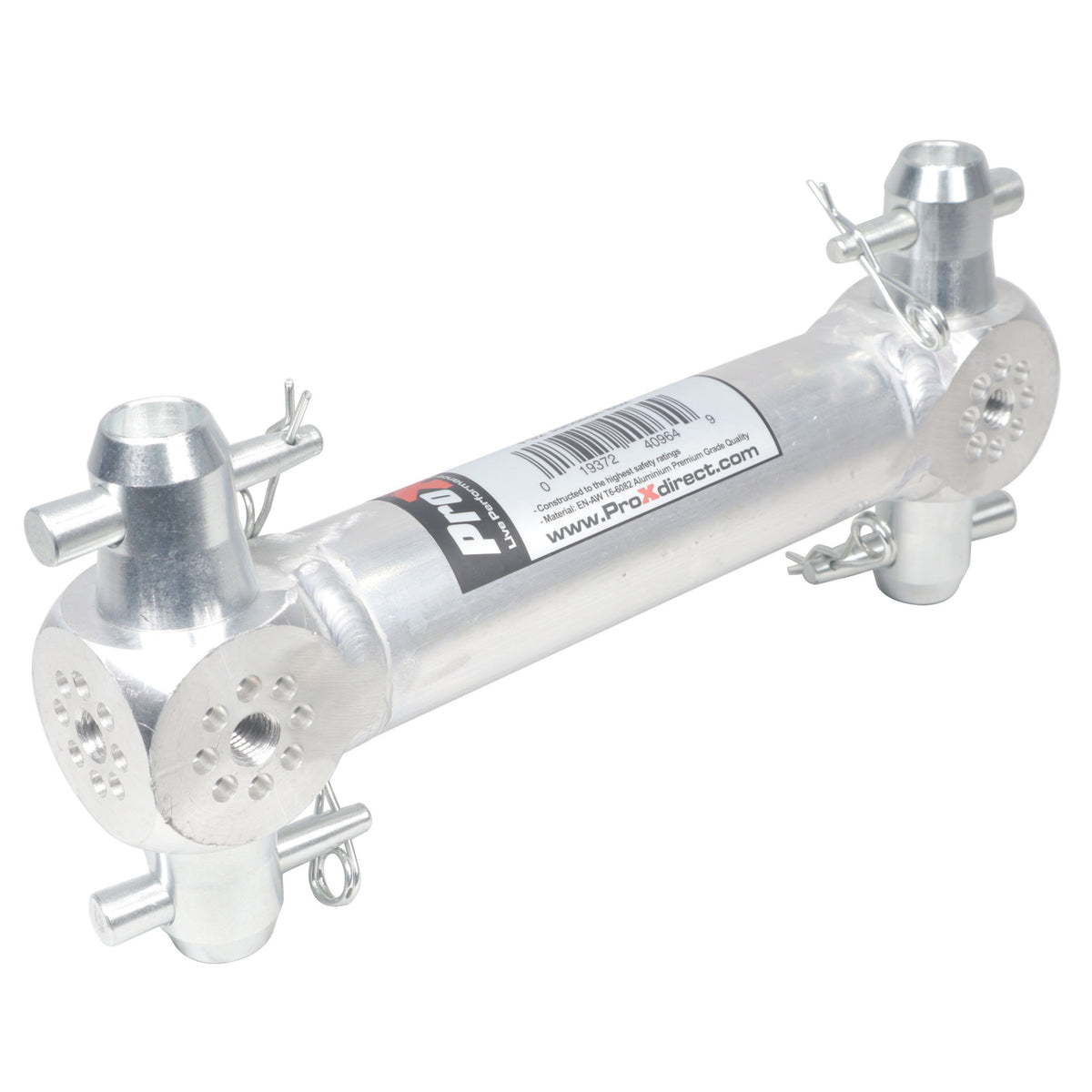

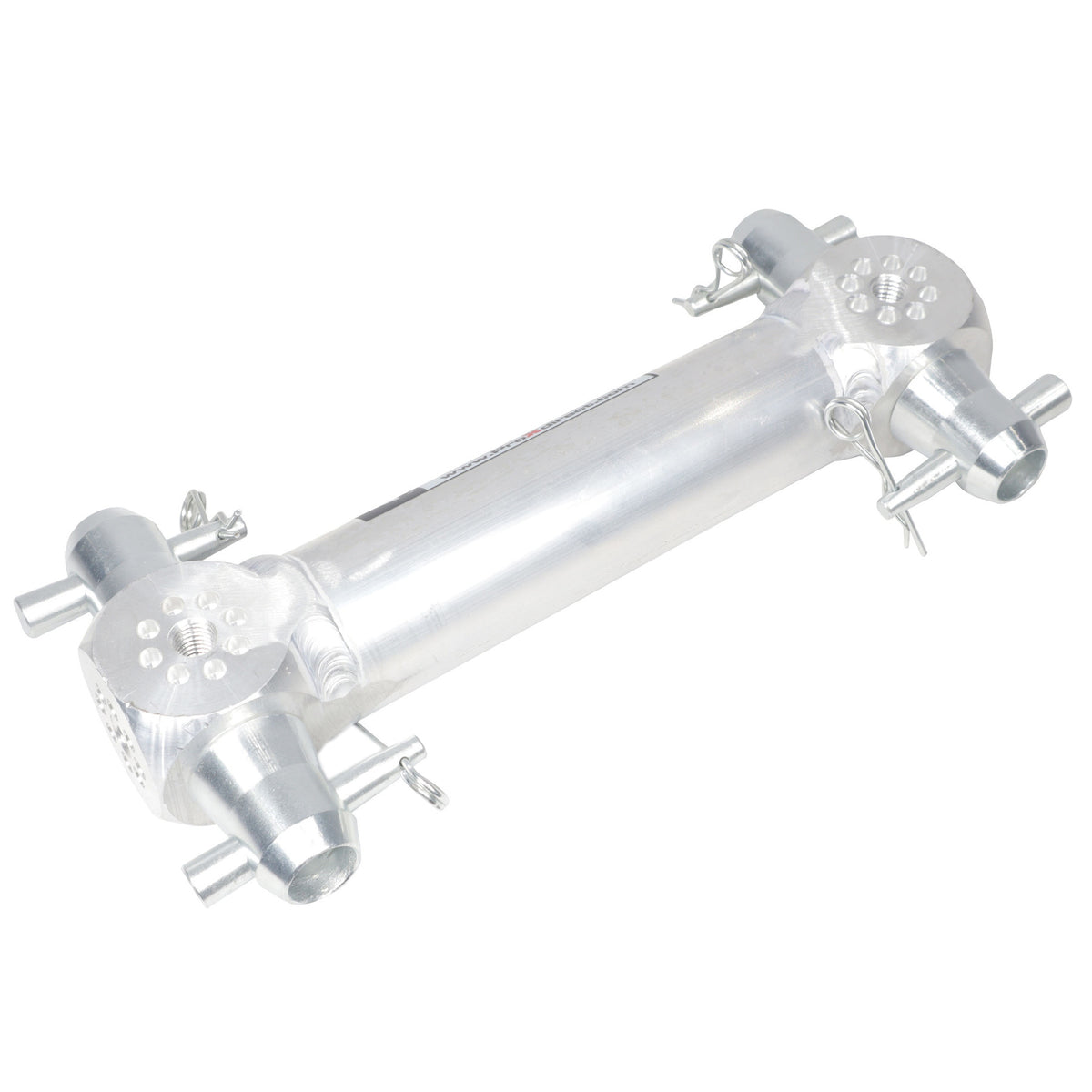

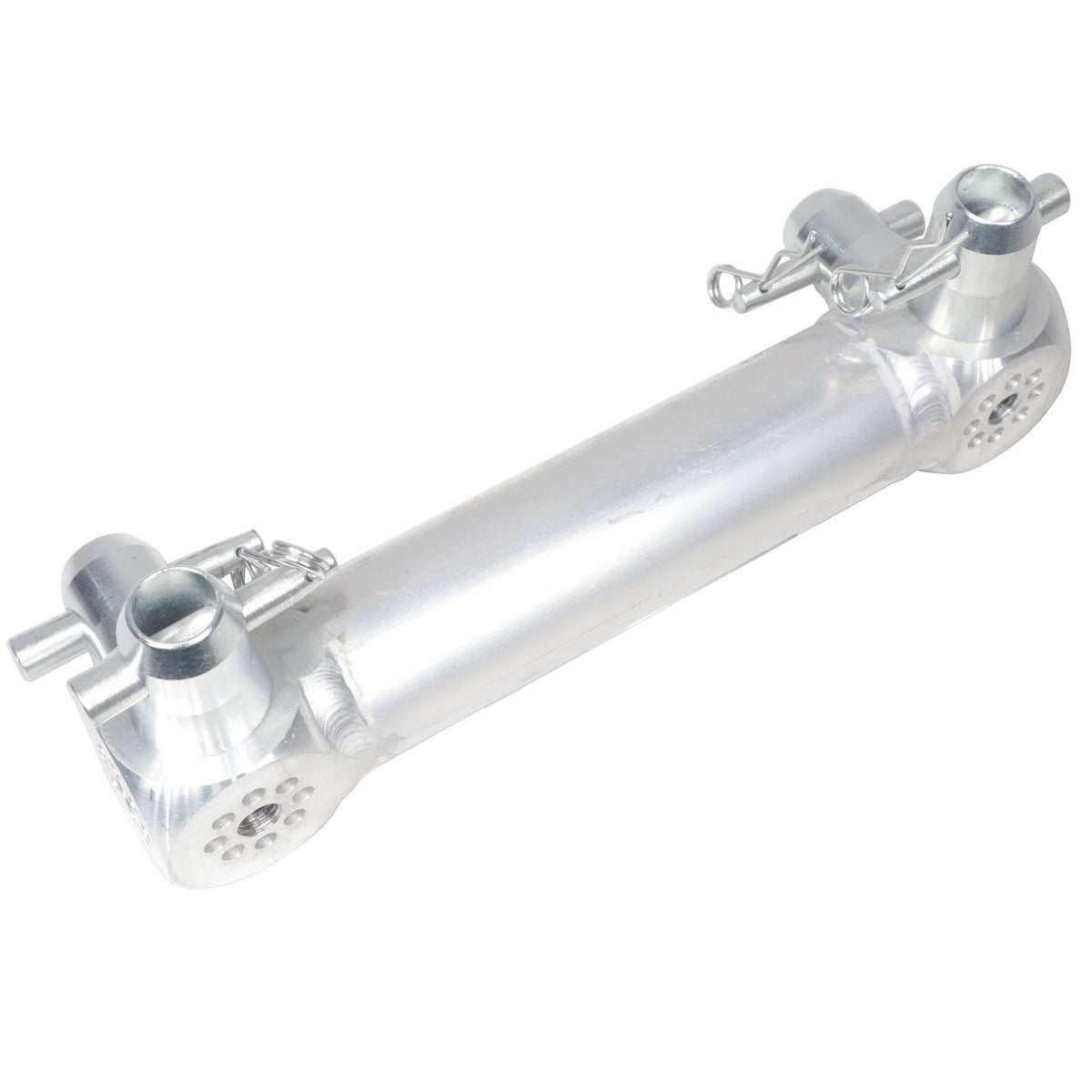

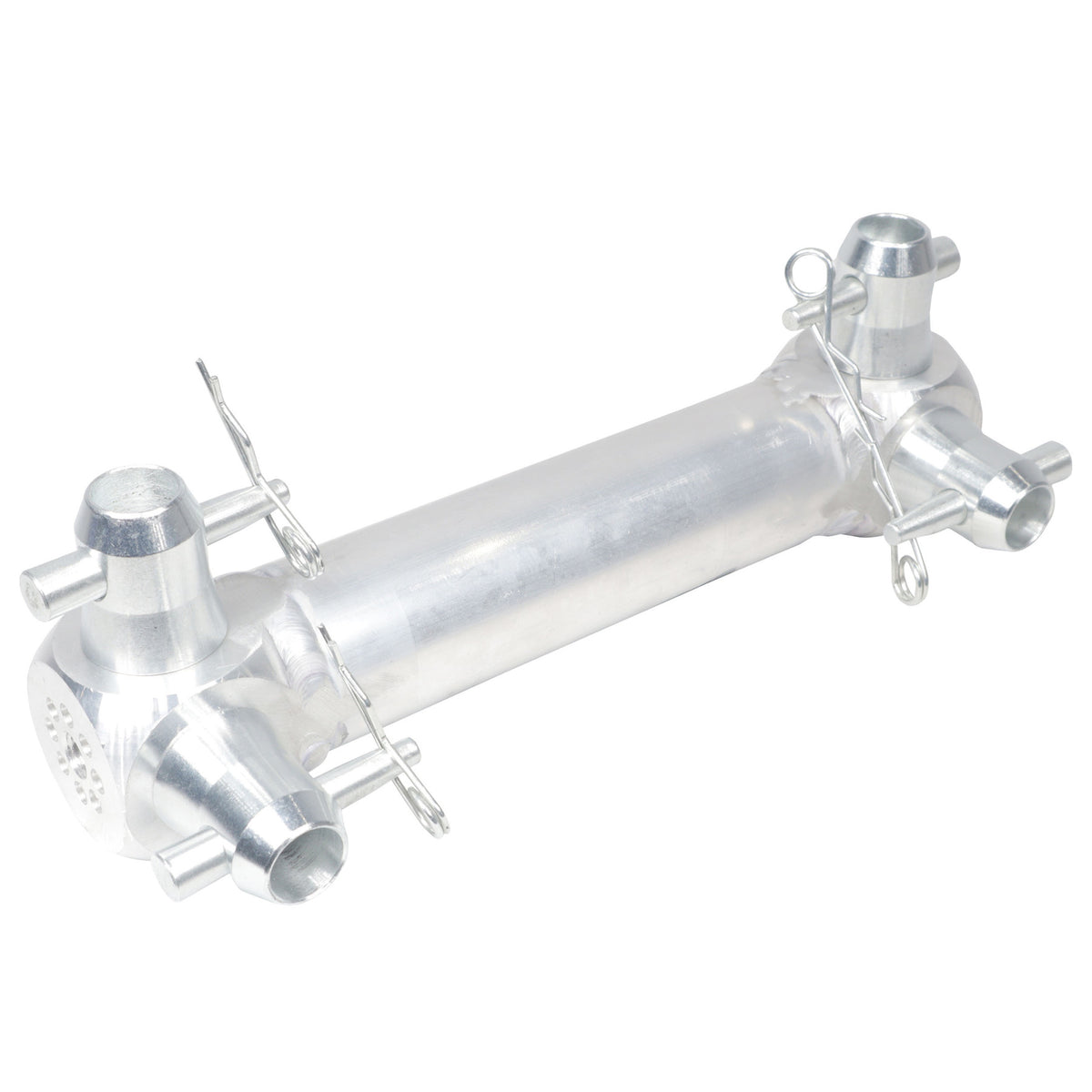

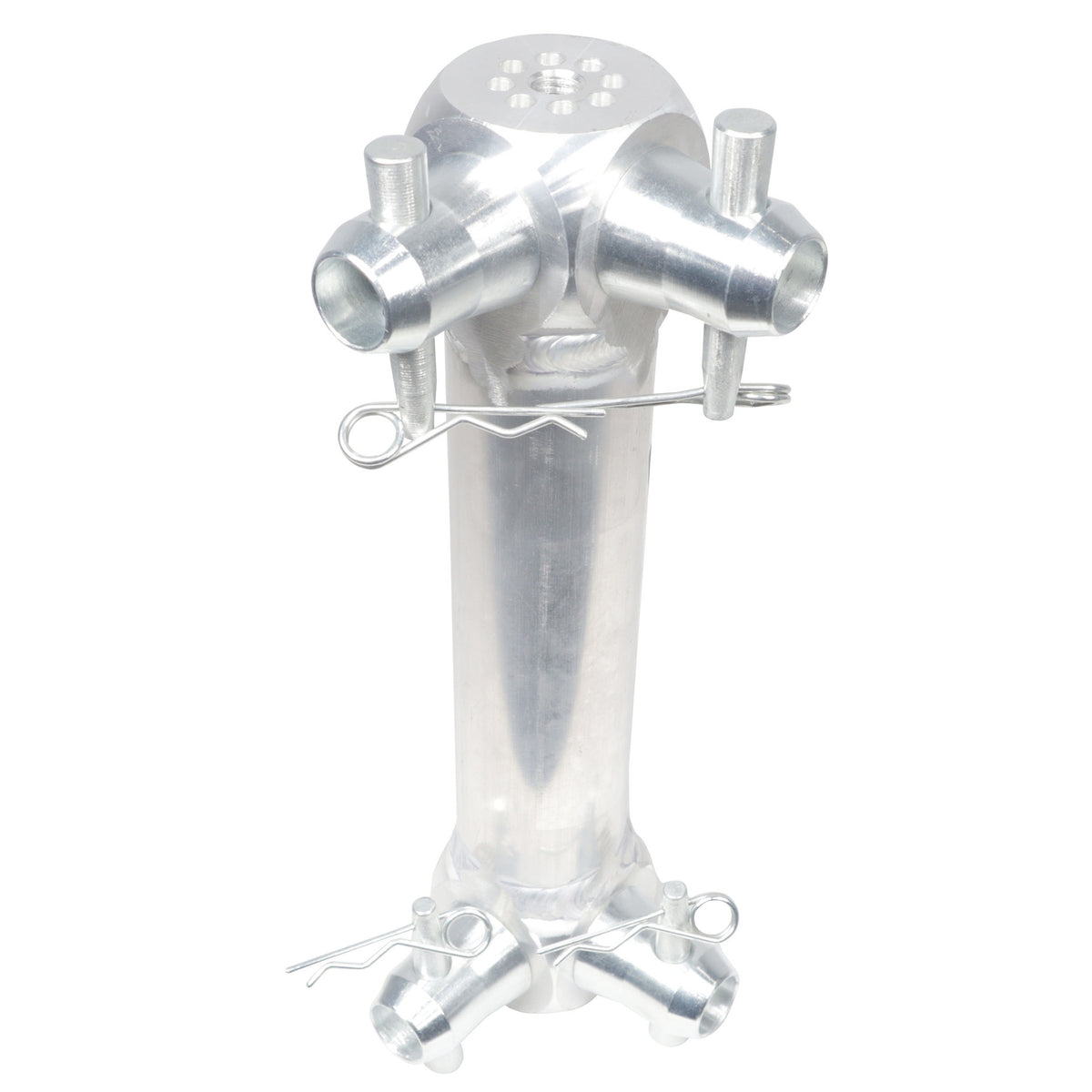

The ProX XT-F31JBOX is the intersection piece for F31 I-beam truss, with connecting faces that let you branch a run in up to six directions from a single block. That is what turns a straight truss line into a grid, a tee, or a multi-level structure for trade show booths, shop fittings, and event rigs.

The box is TUV tested and built on the same 2-point I-beam geometry as the rest of the F31 line, with a 11.42 in. (290mm) height, 2 in. (50mm) main tubes, a 0.11 in. (3mm) wall, and 0.75 in. (20mm) braces. Material is EN-AW 6082 aluminum with TUV certified welding, manufactured in the ProX factory.

F31 flat truss uses a standard conical connector system, so it mates with other brands of truss in the same size and connector style. That means this junction can tie together inventory you have accumulated over years instead of forcing a single-brand rig. Corners, base plates, connectors, and accessories across the ProX Truss line add stability while opening up more configurations.

Always know the load weight of your equipment and check the ProX truss loading chart before building. Have a qualified person inspect hardware before each use, and consult a licensed engineering professional for complex loading conditions.

Features

    • Turn A Line Into A Grid

      Connecting faces on multiple sides let you branch an F31 run into a tee, a cross, or a multi-level structure from one block instead of custom fabrication.

    • TUV Tested Build

      The junction is TUV tested and welded by certified processes in the ProX factory, which is the assurance you want at the busiest load point in a rig.

    • Works With Mixed Inventory

      The standard conical connector system mates with same-size, same-style truss from other manufacturers, so old and new sections build one structure.

    • Sized For Trade Shows And Shops

      Compact 2-point geometry with 2 in. main tubes and a 3mm wall suits exhibition builds, shop construction, and event technology where space is tight.

    • Part Of A Full System

      ProX corners, base plates, connectors, and accessories extend from this block, so the same rig scales from a booth to a complex build.

Technical Specifications

  • Product Type Truss Junction Box
  • To Fit F31 I-Beam Truss
  • Design 2-Point I-Beam, Universal Box Junction
  • Height 11.42" (290mm)
  • Main Tube 2" (50mm)
  • Wall Thickness 0.11" (3mm)
  • Braces 0.75" (20mm)
California Proposition 65 Warning: Cancer and Reproductive harm — www.P65Warnings.ca.gov
