XT-F32-328

Product Description Specifications

XT-F32-328

  • XT-F32-328
1 1

PRO X CASES

XT-F32-328

XT-F32-328

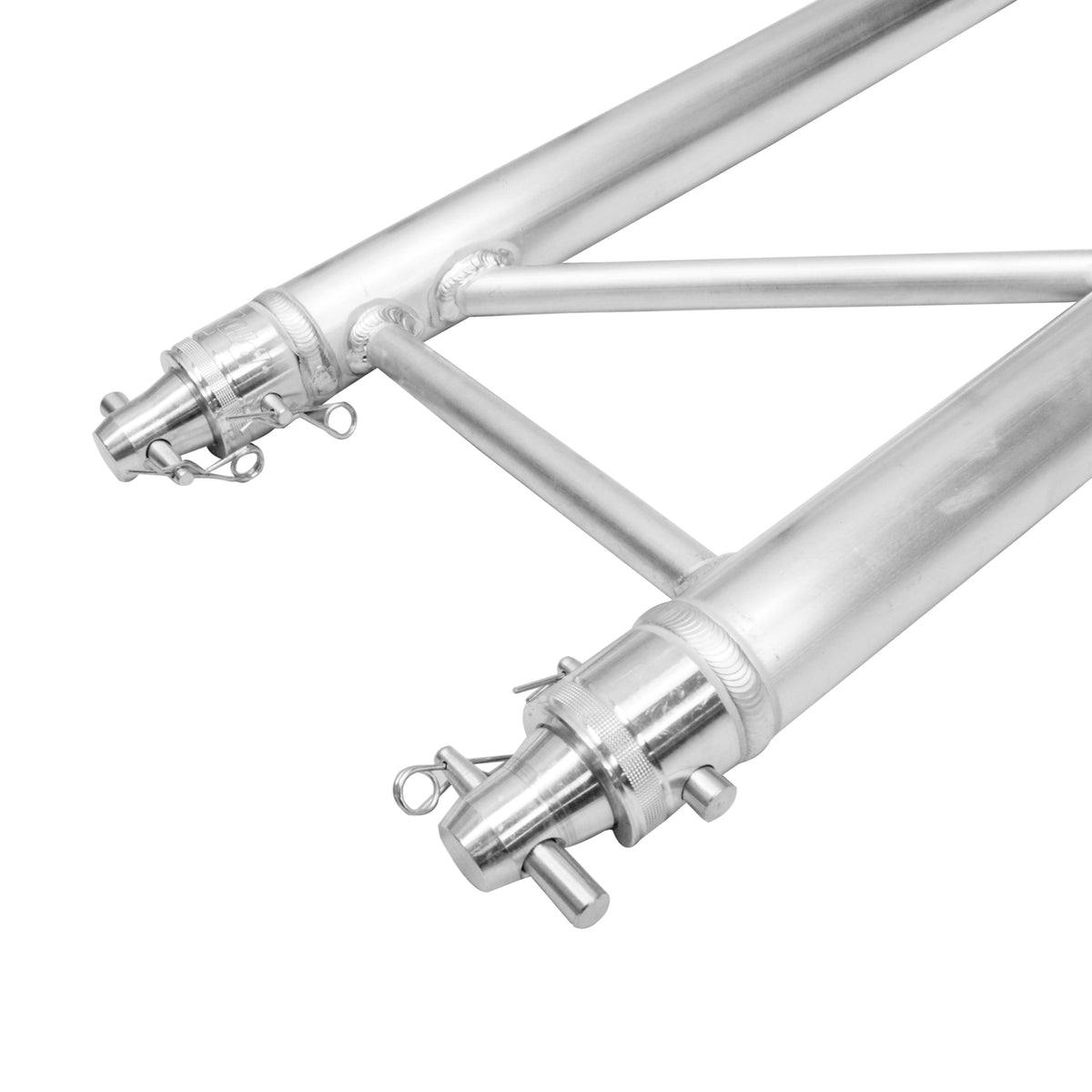

3.28' F32 I-Beam Vertical Truss Segment, 2mm Wall, 2" Main Tube, Includes One Connecting Hardware Set

Free Shipping

$169.98
$169.98 $424.99
Save 60%
Shipping calculated at checkout.
Features
    • 3.28' F32 vertical truss segment in a 2-point I-beam design
    • 2" (50mm) main tubes with a 0.08" (2mm) wall thickness
    • 11.42" (290mm) width with 0.75" (20mm) diagonal braces
    • EN-AW 6082 T6 aluminum with TUV certified welding
    • Includes one set of connecting hardware
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later
    • XT-F32-328 3.28' F32 Truss Segment
    • (1) Connecting Hardware Set

SKU: XT-F32-328

View full details

Product Description

The ProX XT-F32-328 is a 3.28 ft. section of F32 truss in a 2-point I-beam design, sized for trade shows, shop construction, event technology, and as a support run for lighting fixtures. The compact profile carries a high load for its size, which is why the same system covers a simple exhibition stand and a complex rig build.

The segment uses 2 in. (50mm) main tubes with a 0.08 in. (2mm) wall and 0.75 in. (20mm) braces, at 11.42 in. (290mm) width, built from EN-AW 6082 T6 aluminum with TUV certified welding in the ProX factory. It is a rugged but light trussing solution for mobile DJs, bands, outdoor performances, nightclubs, live mobile productions, and permanent installations.

Connections use a tolerance-free standard conical connector, so this section mates with other brands of truss in the same size and connector style. It is available in a range of lengths, and it works with ProX corners, base plates, connectors, and accessories that add stability while opening up more configurations. One set of connecting hardware is included, so the segment is ready to build.

Always know the load weight of your equipment before you build, check the truss loading chart for your configuration, and have a qualified person inspect all hardware before each use.

Features

    • High Load, Compact Profile

      The 2-point design carries substantial load for its size, so one system covers a simple exhibition stand and a complex rig build.

    • Tolerance-Free Conical Connectors

      Standard conical couplers mate with same-size truss from other brands and line chords up precisely, so mixed inventory builds one clean structure.

    • Light Enough To Tour

      EN-AW 6082 T6 aluminum keeps the section rugged but light, which suits mobile DJs, bands, and outdoor productions loading in and out weekly.

    • Certified Welding

      Welds are TUV certified and the segment is built in the ProX factory, so what is holding fixtures over an audience is not an unknown quantity.

    • Hardware Included

      One connecting hardware set ships with the segment, so it bolts into your run on arrival instead of waiting on a separate hardware order.

Technical Specifications

  • Product Type Truss Segment
  • Design F32 2-Point I-Beam, Vertical
  • Length 3.28 ft.
  • Width 11.42" (290mm)
  • Main Tube 2" (50mm)
  • Wall Thickness 0.08" (2mm)
  • Braces 0.75" (20mm)
California Proposition 65 Warning: Cancer and Reproductive harm — www.P65Warnings.ca.gov
