XT-JB6W-2W

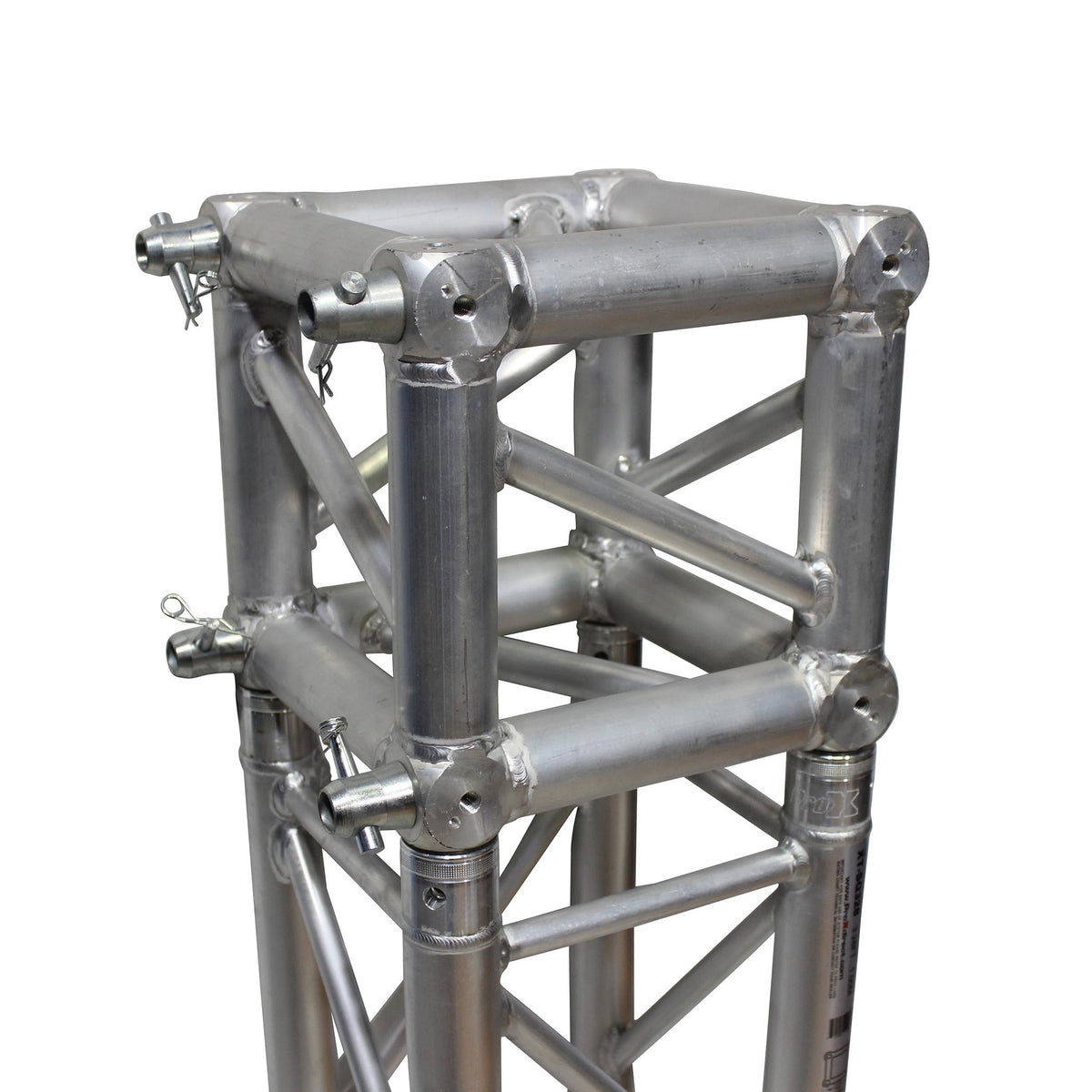

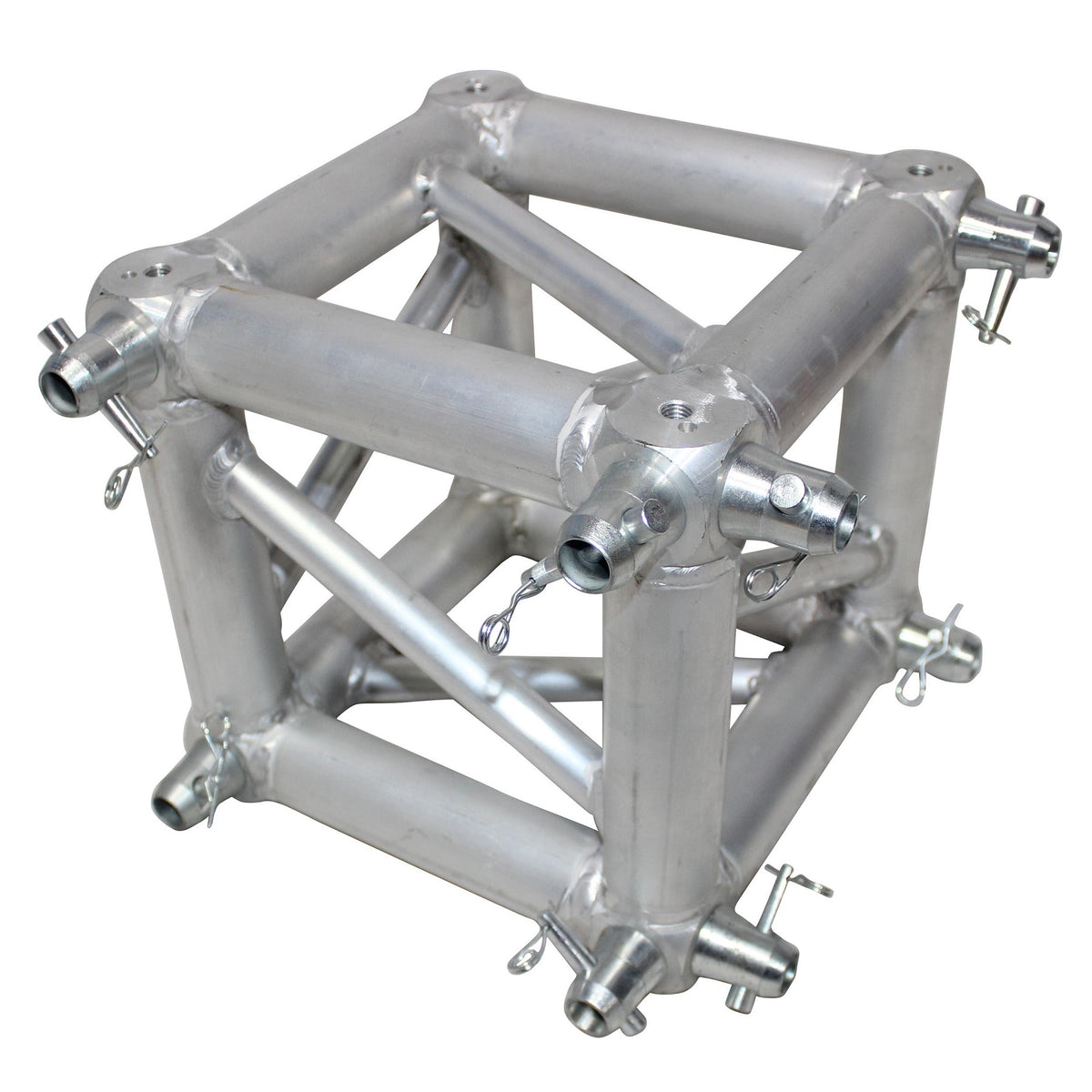

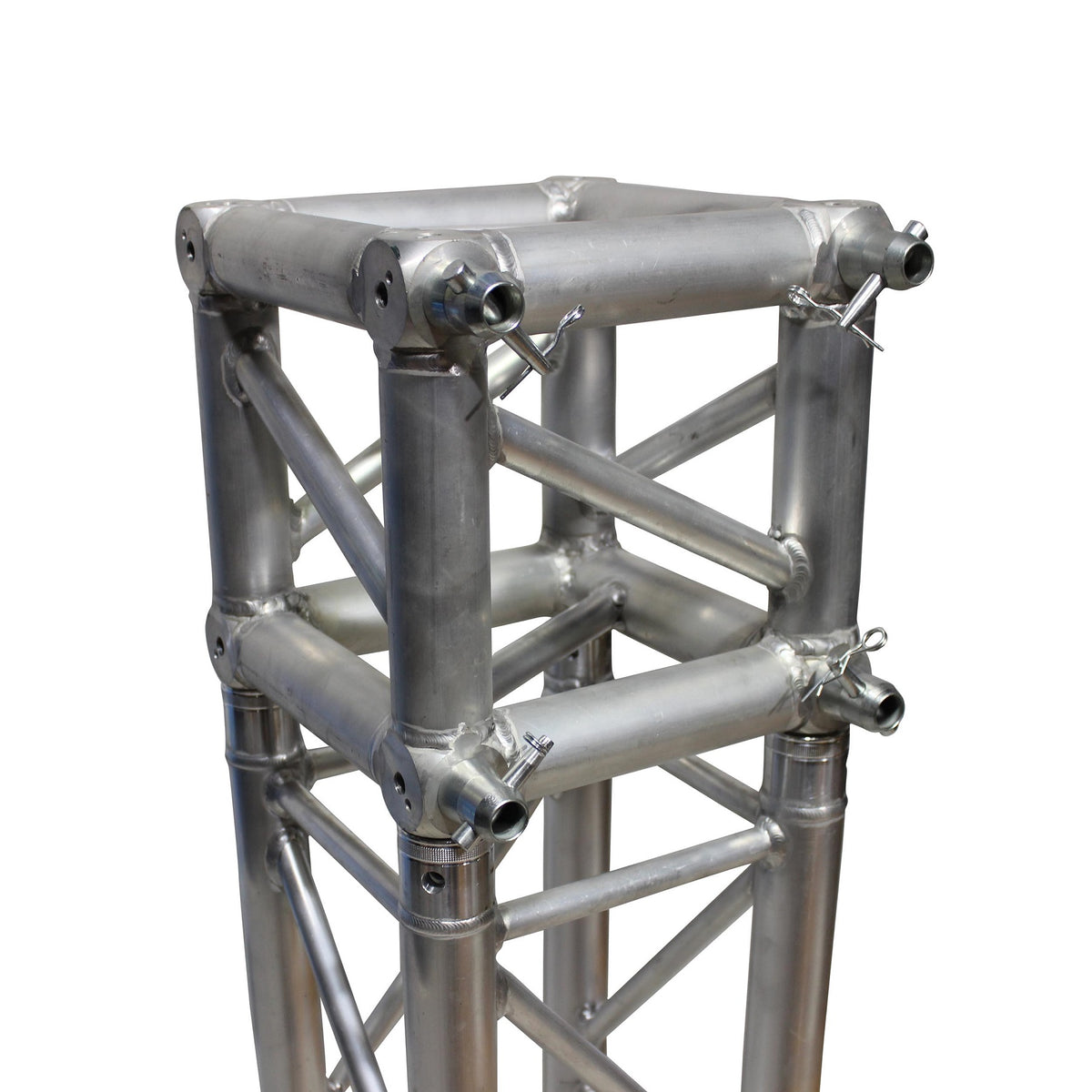

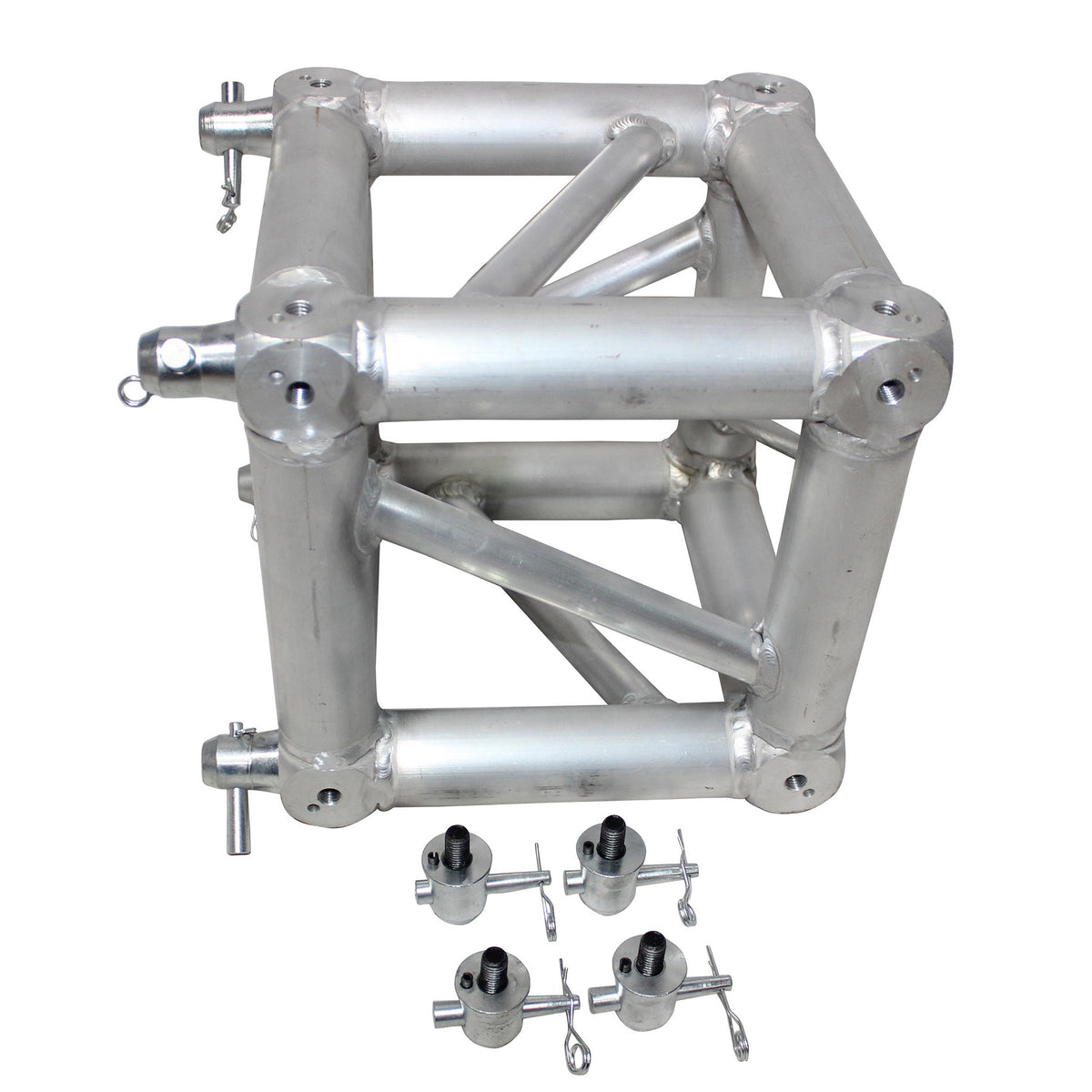

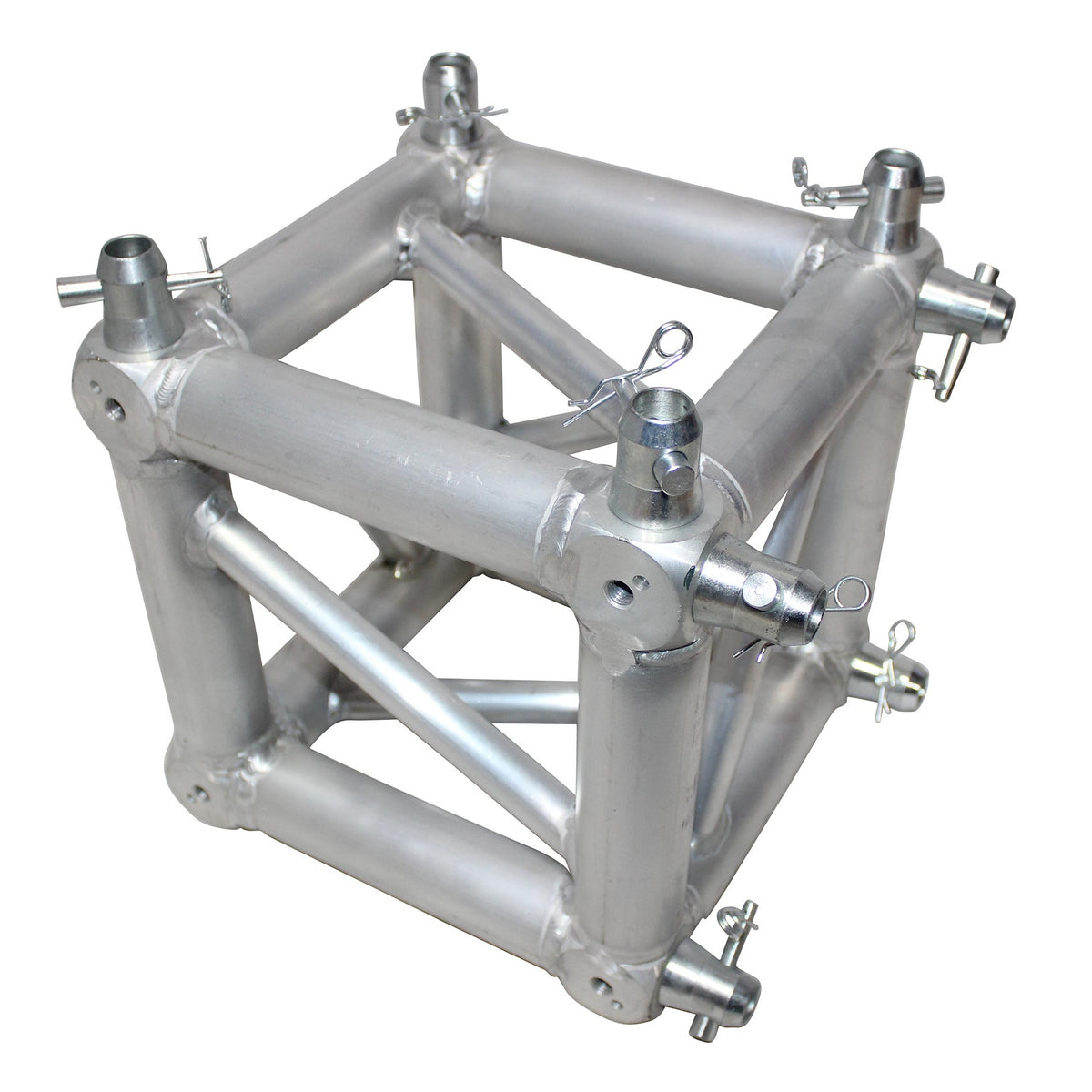

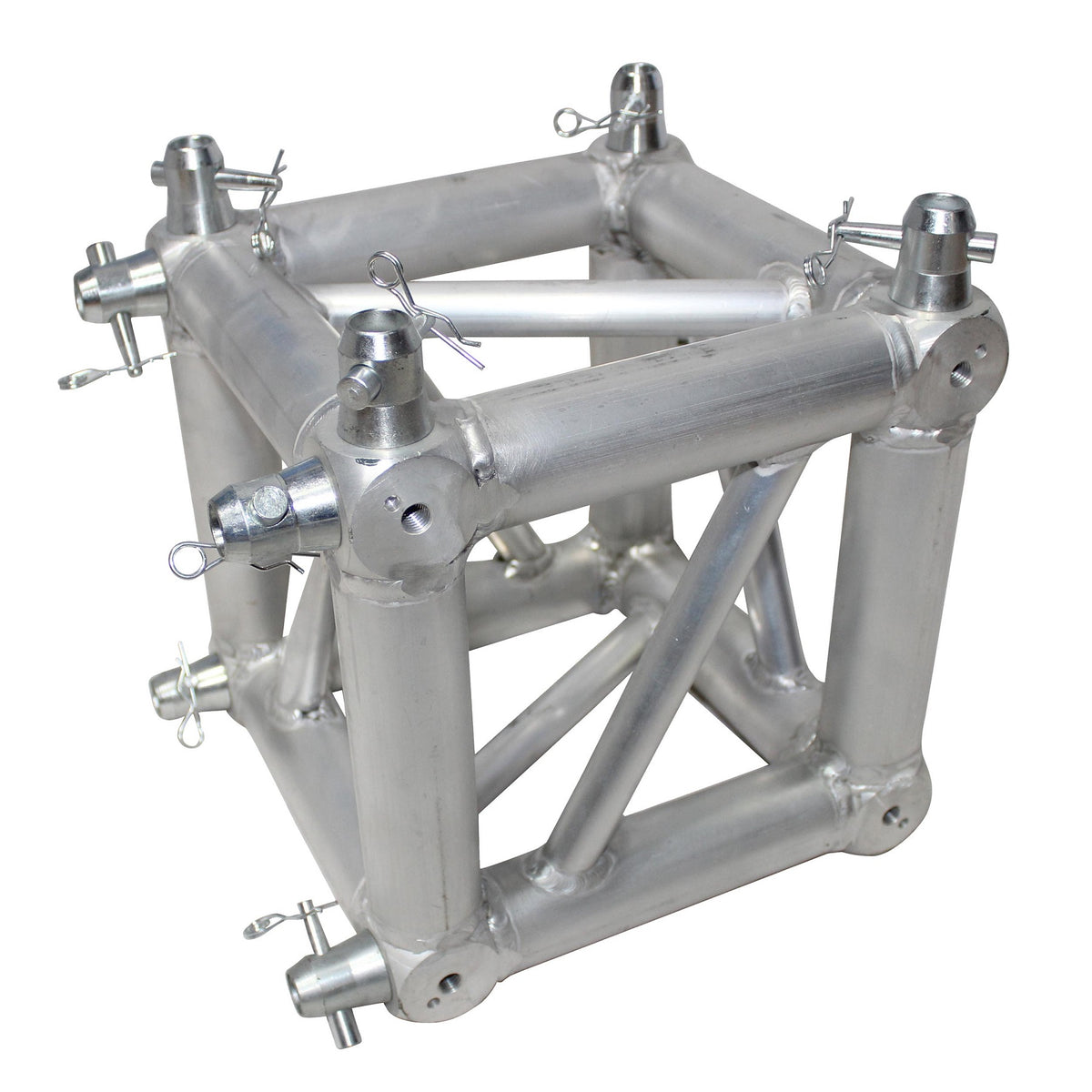

The ProX XT-JB6W-2W is a six-way junction block for F34 square truss, the piece that lets a grid turn, branch, or step in any direction from a single point. Truss connects on all six faces, so the same block builds corner posts, T-intersections, crosses, and multi-level structures out of straight sections. Eight half conical couplers are included for two-way use, and additional couplers can be added as a design calls for more faces. The block matches standard F34 dimensions at 11.45 in on all sides, with 2 in outer diameter tubing, 0.75 in diagonal bracing, and XT Series 2 mm tube walls, built in the ProX factory with TUV certified aluminum welding to high safety and performance standards. Because ProX truss follows industry-standard dimensions and the standard conical connector pattern, the block mates with F34 truss of the same size and connector style, along with corners, base plates, and accessories. Typical uses include exhibition stands, retail displays, nightclub and church installations, DJ rigs, and touring grids. Unit weight is 17 lb with dimensions of 11.45 in on each side. Always confirm the total load at a junction, since weight enters from several directions at once, and consult a qualified engineer for complex designs.
