XT-JB6W-4W-BLK

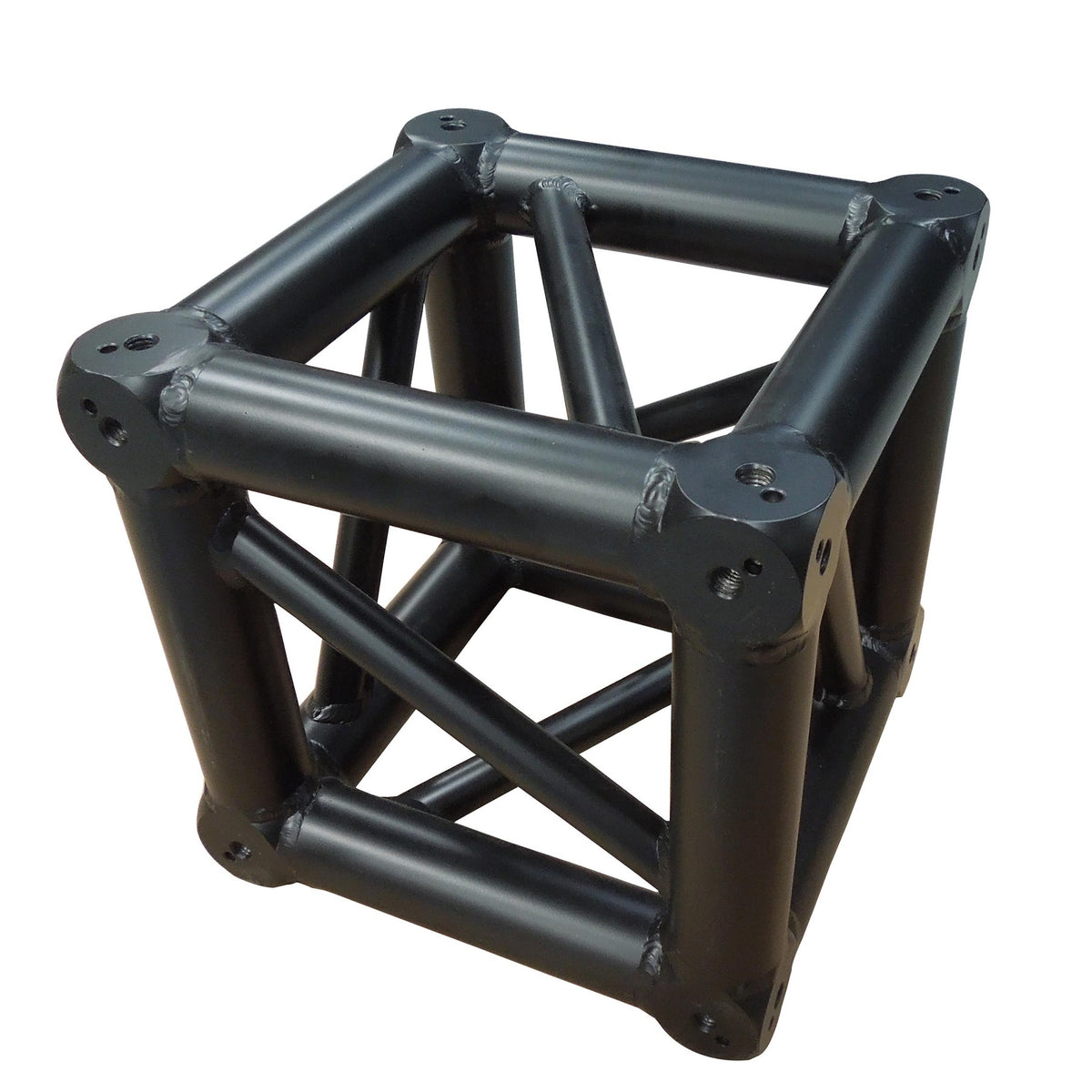

The ProX XT-JB6W-4W-BLK is a six-way junction block for F34 square truss finished in black powder coat. Truss connects on all six faces, so one block builds corner posts, T-intersections, four-way crosses, and multi-level grids from straight sections. Sixteen half conical couplers are included for four-way connections, and more can be added for extra utility (XT-CA-103, sold separately). The black finish does real work on stage: powder coating resists scratches, chipping, abrasion, corrosion, and fading better than liquid paint, and a black grid recedes into a dark room so the audience sees fixtures instead of structure. Powder coating also carries a smaller carbon footprint, with no solvents and little or no VOC release. Dimensions follow the F34 standard: 11.42 in (290 mm) high and wide, 2 in (50 mm) main tubes, 0.75 in (20 mm) braces, and 0.08 in (2 mm) wall thickness, with tolerance-free conical connector sockets built for heavy duty use. Material is EN-AW 6082-T6 aluminum with TUV certified aluminum welding. ProX truss follows industry-standard dimensions, so the block connects to F34 trussing from other manufacturers built to the same pattern. Confirm total load at the junction and consult a qualified engineer for complex designs.
