XT-SQ068

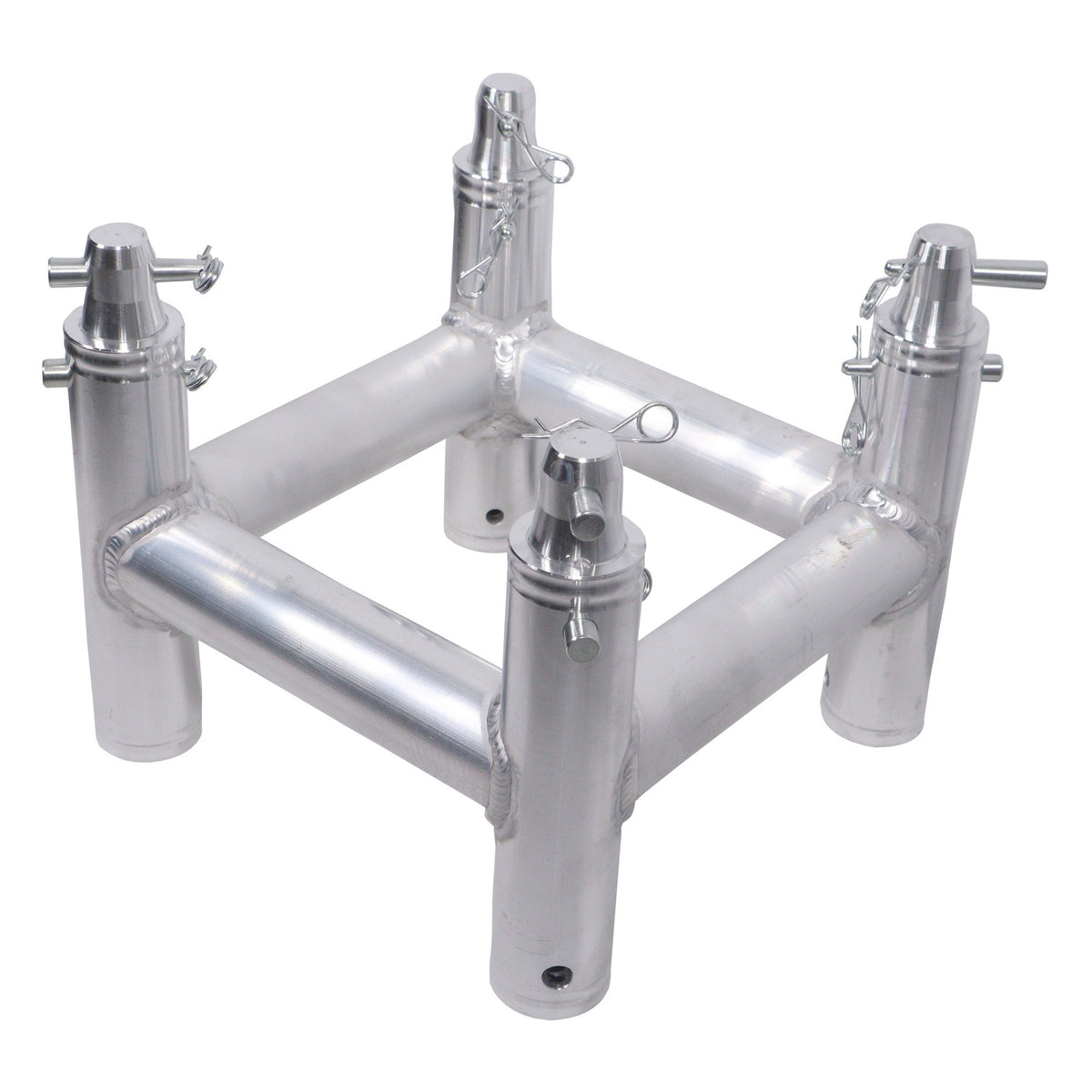

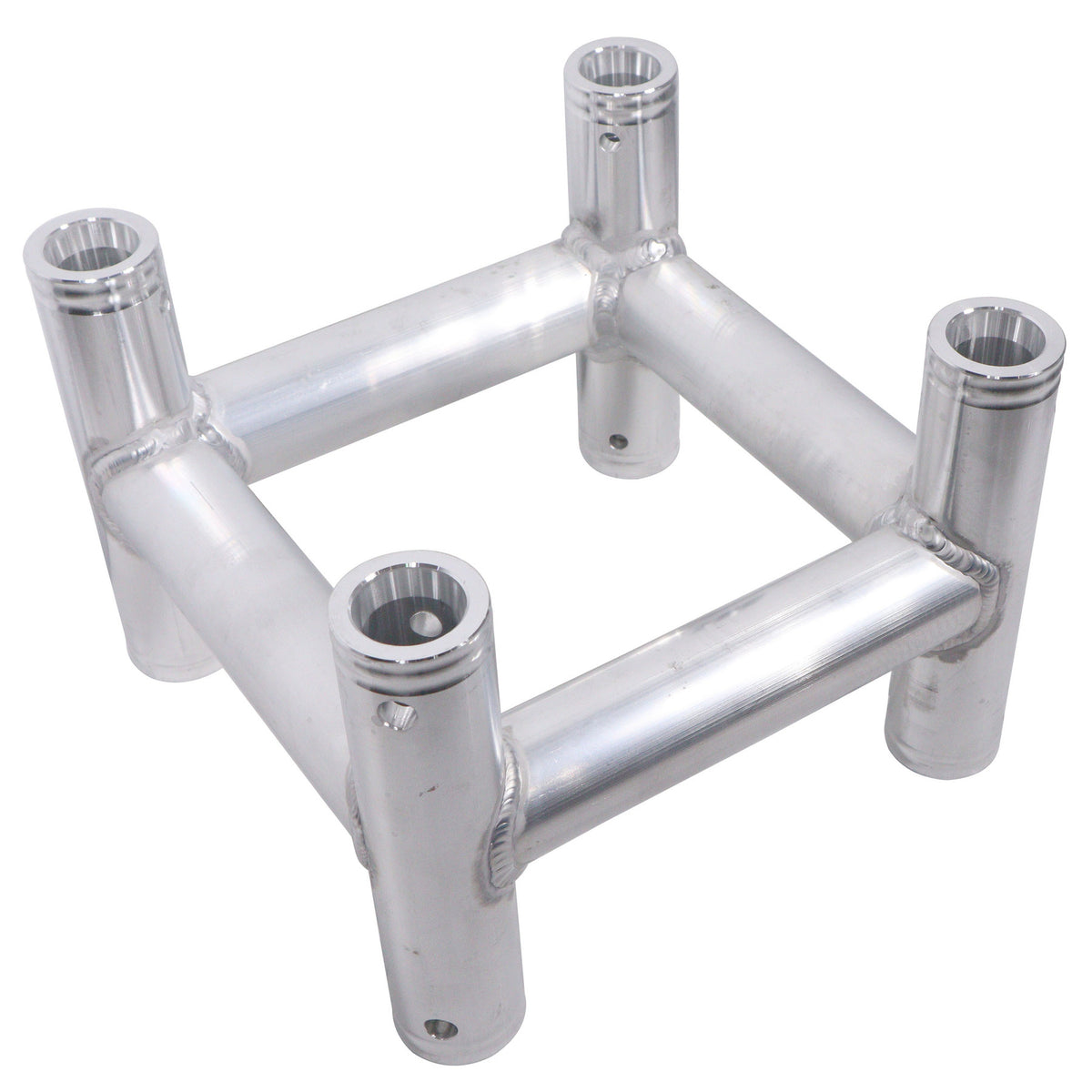

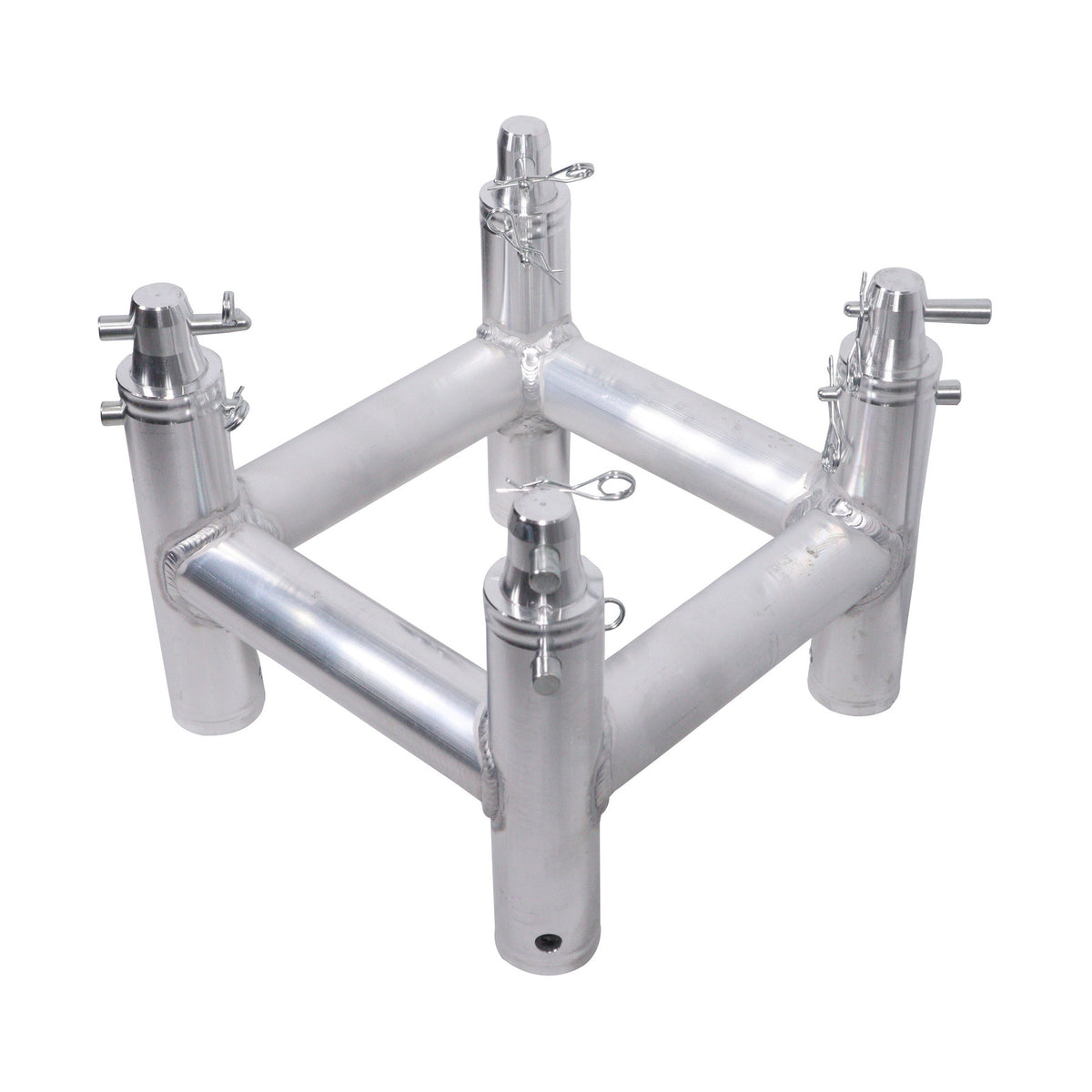

The XT-SQ068 is a 0.68 ft (0.21 m) F34 square truss segment built for the load-in and load-out cycle of touring, rental, and exhibition work. It is made from EN-AW 6082-T6 aluminum with a 2 in (50 mm) main tube and a 0.08 in (2 mm) wall, and it carries an 11.42 in (290 mm) square profile that matches the rest of the XT-SQ series. The conical coupling system is genderless, so chords and fastening points line up precisely and the conical shape holds rigidity at the stress points while making the parts harder to damage. Assembly and breakdown need nothing more than a small brass or aluminum hammer. Because the XT-SQ series follows industry-standard F34 dimensions, it connects to most other conical-connector F34 truss you already own, so you can extend a rig rather than start over. Quality control on every weld and socket keeps fitment consistent from segment to segment, which is what shortens setup on a tight schedule. Build straight runs, goalposts, lighting grids, and full roof structures for live stages, theaters, nightclubs, church installations, trade shows, retail displays, and mobile productions, indoors or out. Pair it with corners, base plates, spacers, clamps, and hanging points from the same series to finish the design. Actual weight is 6 lb. Always consult a qualified engineer for complex or high-load designs.
