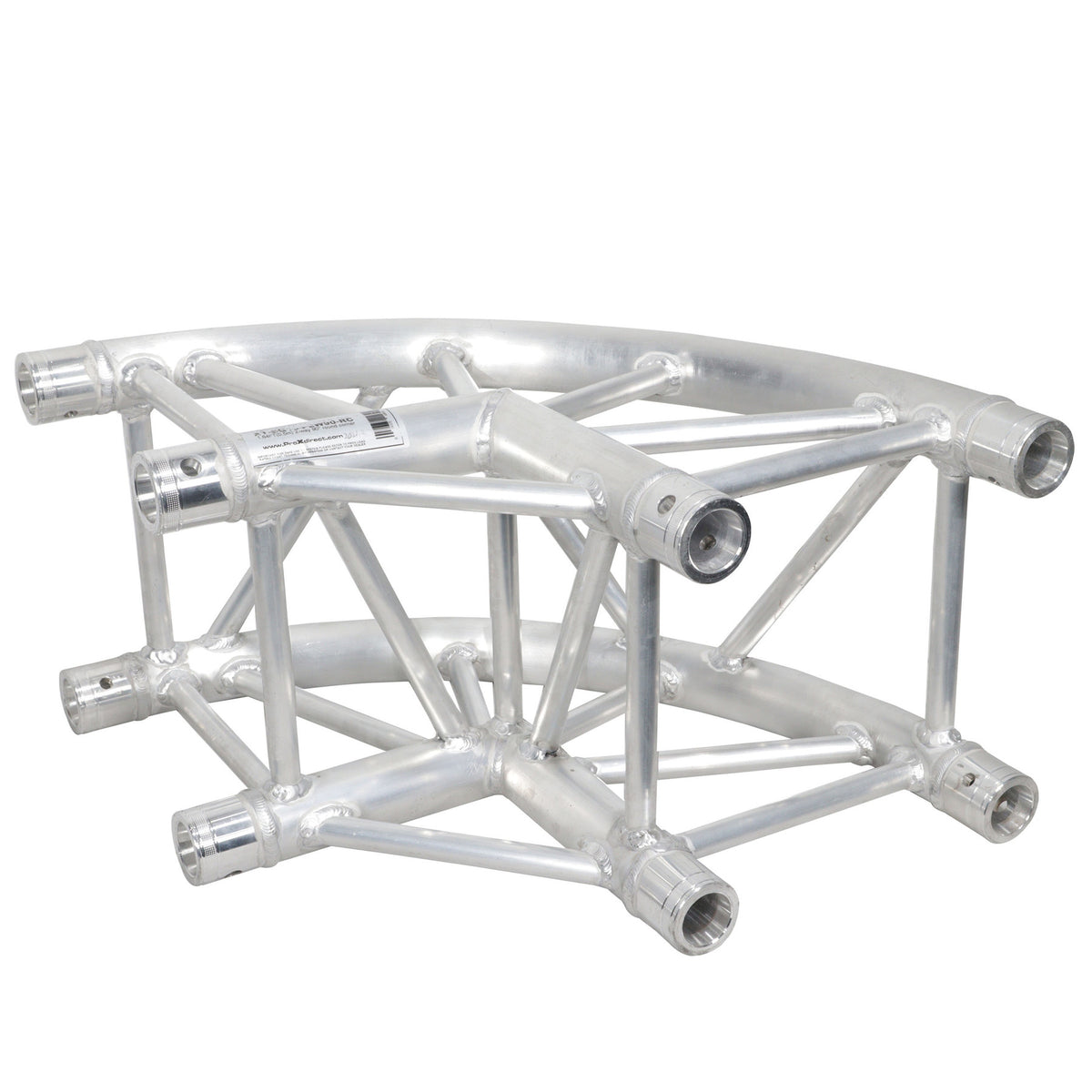

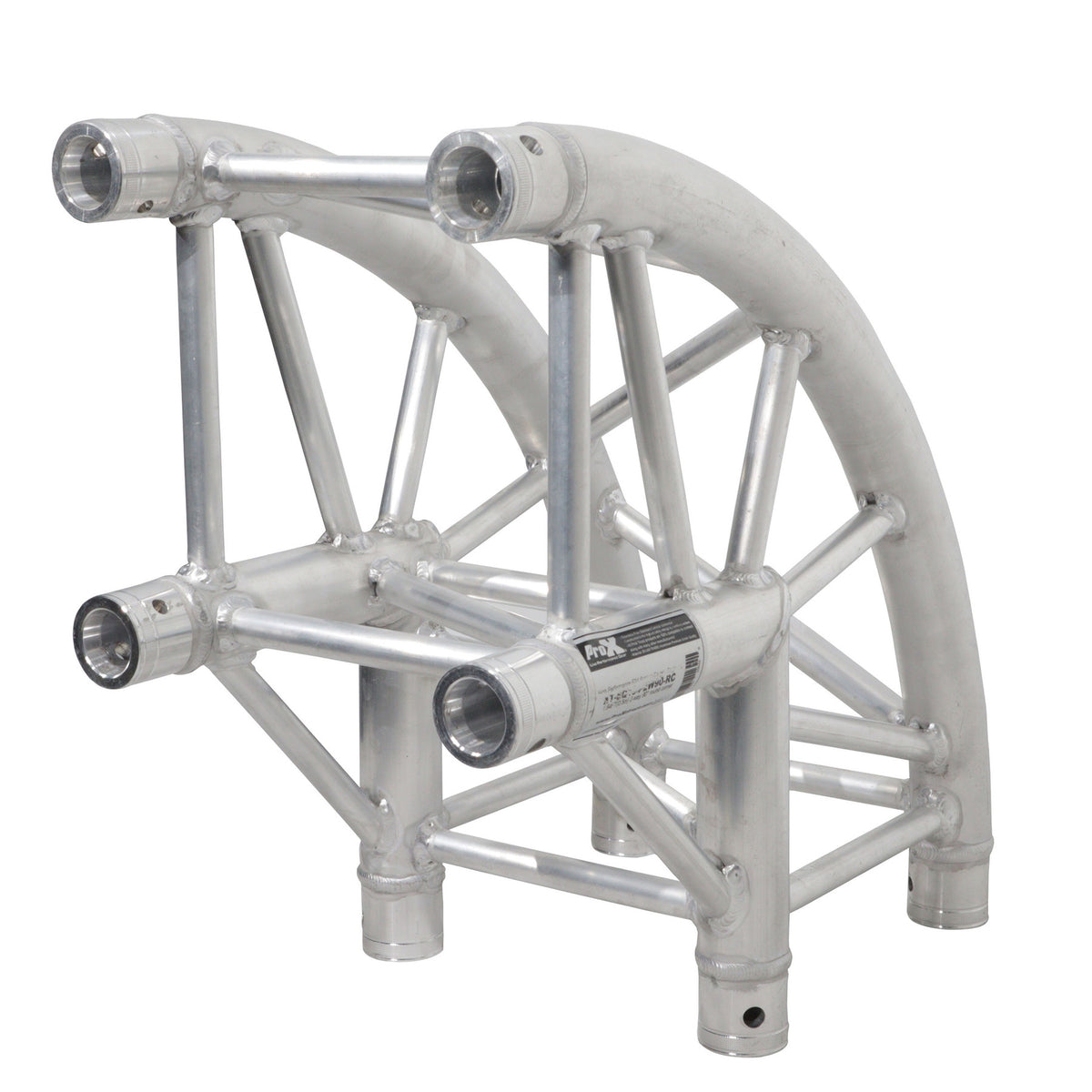

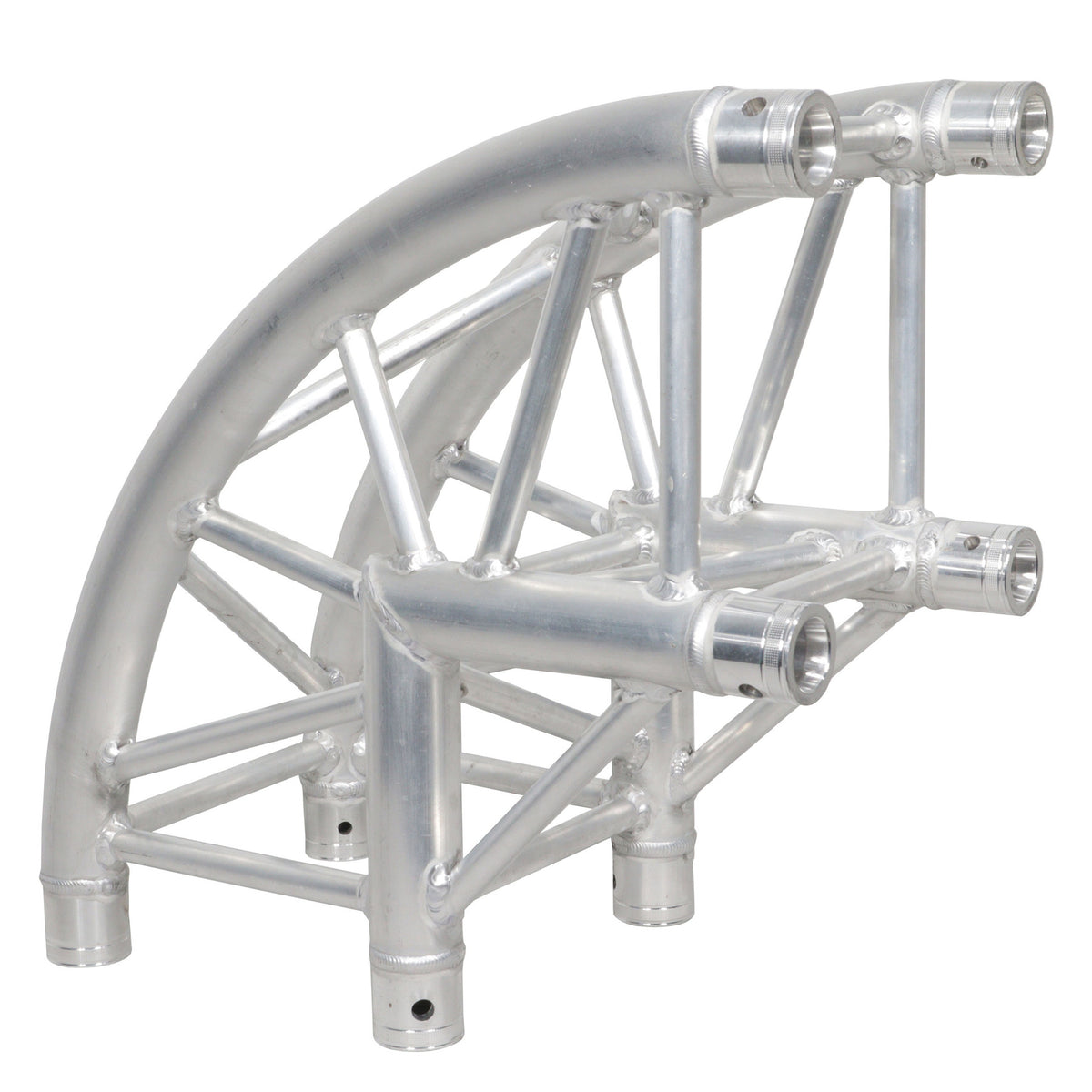

XT-SQ164-2W90-RC

The XT-SQ164-2W90-RC is a two-way 90-degree corner with 1.64 ft (0.5 m) arms, and it is the part that turns straight XT Series box truss into finished squares and rectangles. The rounded outside profile softens the corner visually, which reads better on a DJ facade, a retail display, or a booth that the audience stands close to. It is a rugged yet light structure built to the same safety and performance standards as the rest of the XT-SQ line, with an 11.42 in (290 mm) square profile, 2 in (50 mm) main tubes, a 0.08 in (2 mm) wall, and 0.75 in (20 mm) braces. TUV-certified welding and processes back every joint. The corner runs on the same standard conical connector system as the rest of the series, so it mates with most other brands of truss in the same size and connector style and lines up chords precisely without shims or fighting. Four conical couplings plus tapered shear pins with clips ship in the box, so it is ready to build the moment it lands. Use it for mobile DJ setups, band backline goalposts, outdoor performances, nightclub and church installs, live mobile productions, and permanent architectural runs. Combine it with base plates, connectors, and accessories from the series to expand a design. Always know the load weight of the equipment you are hanging, and consult a qualified engineer for complex designs.
