XT-SQ164-3WT

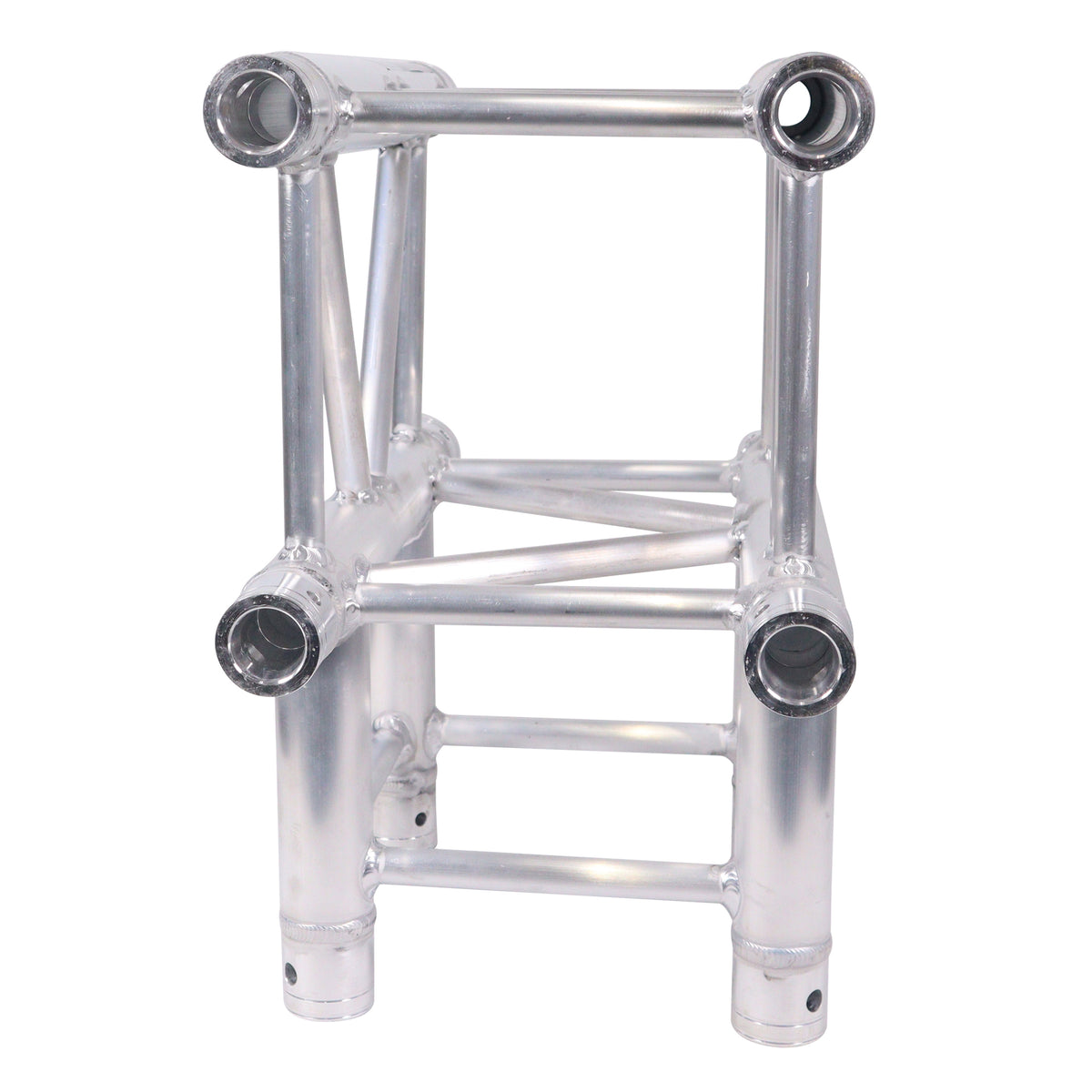

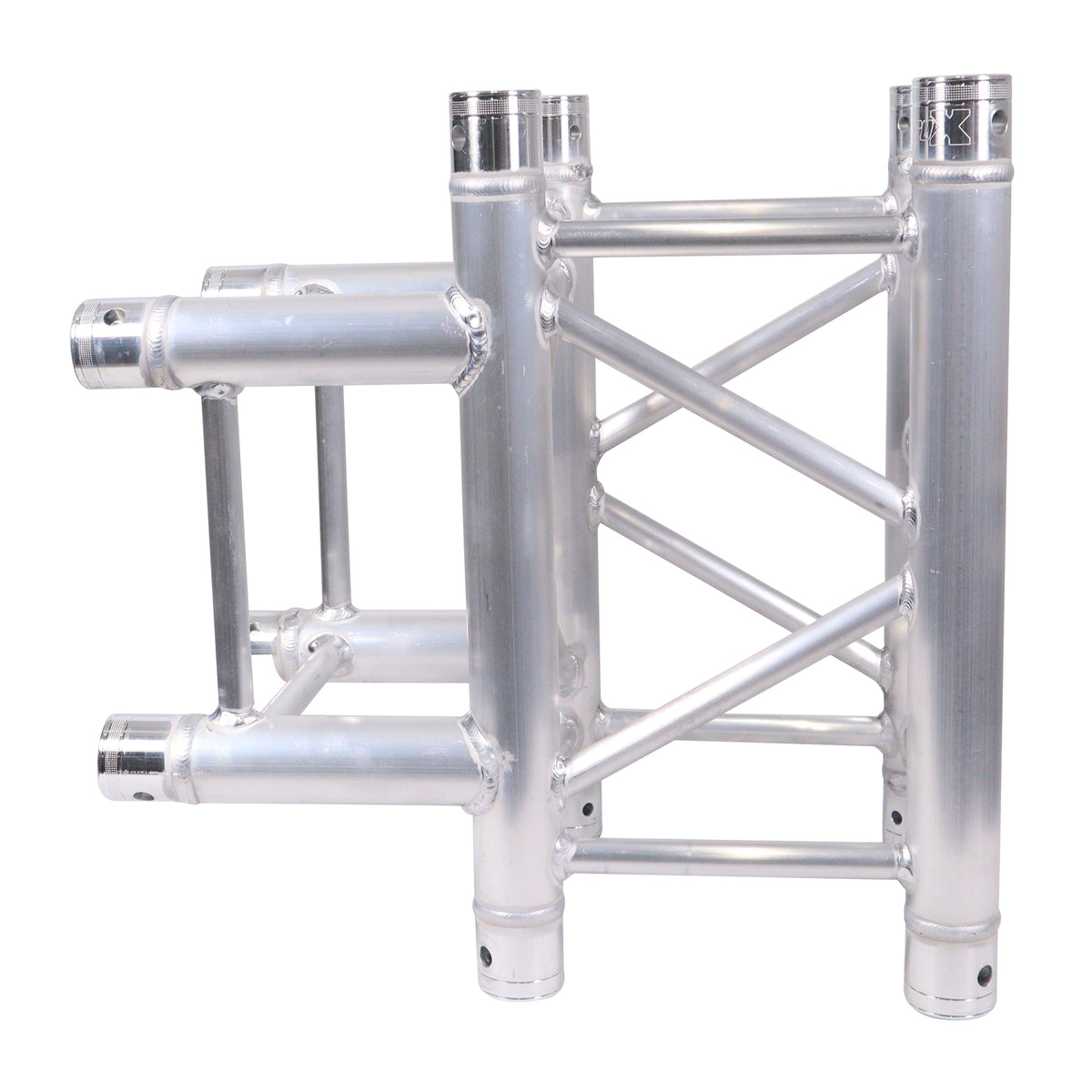

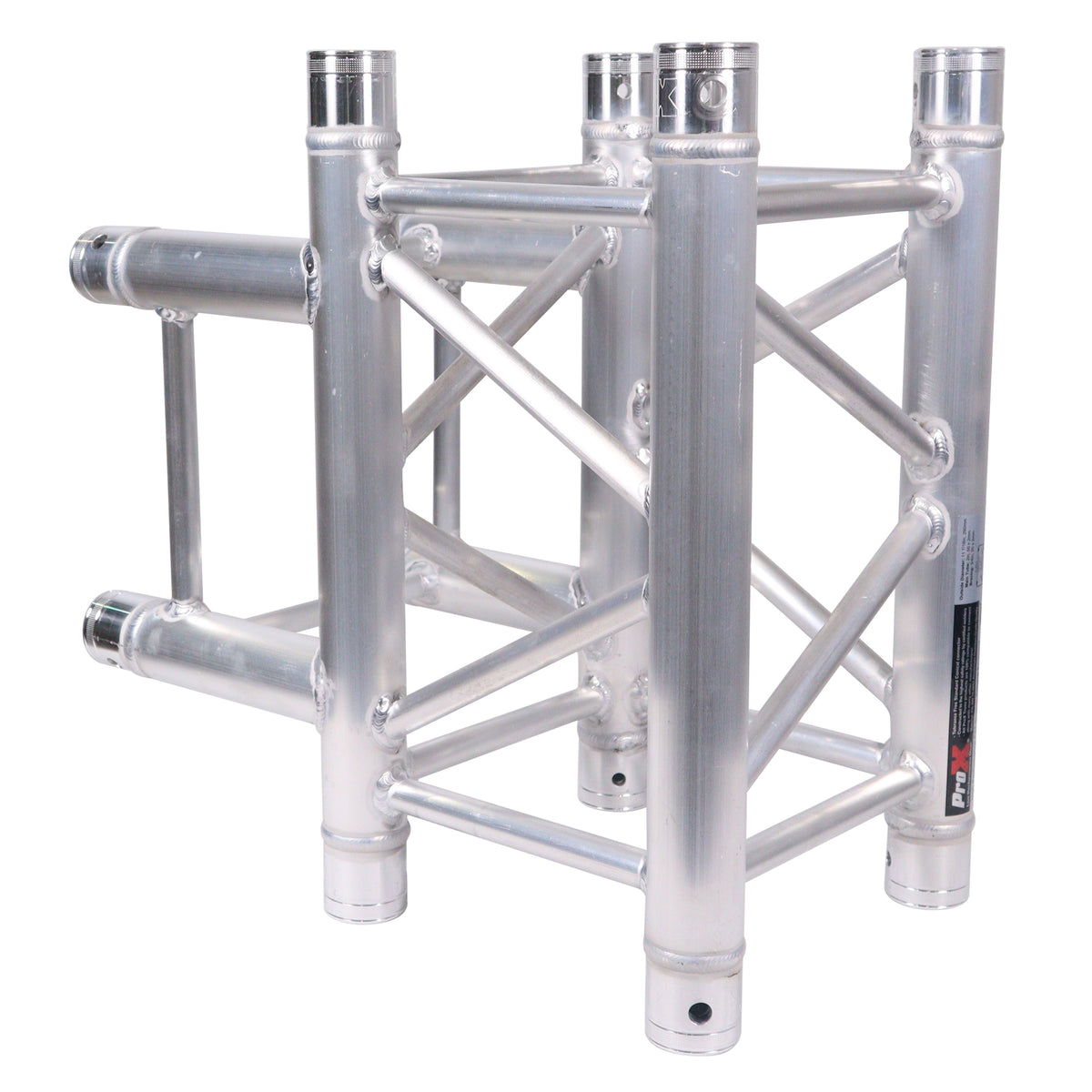

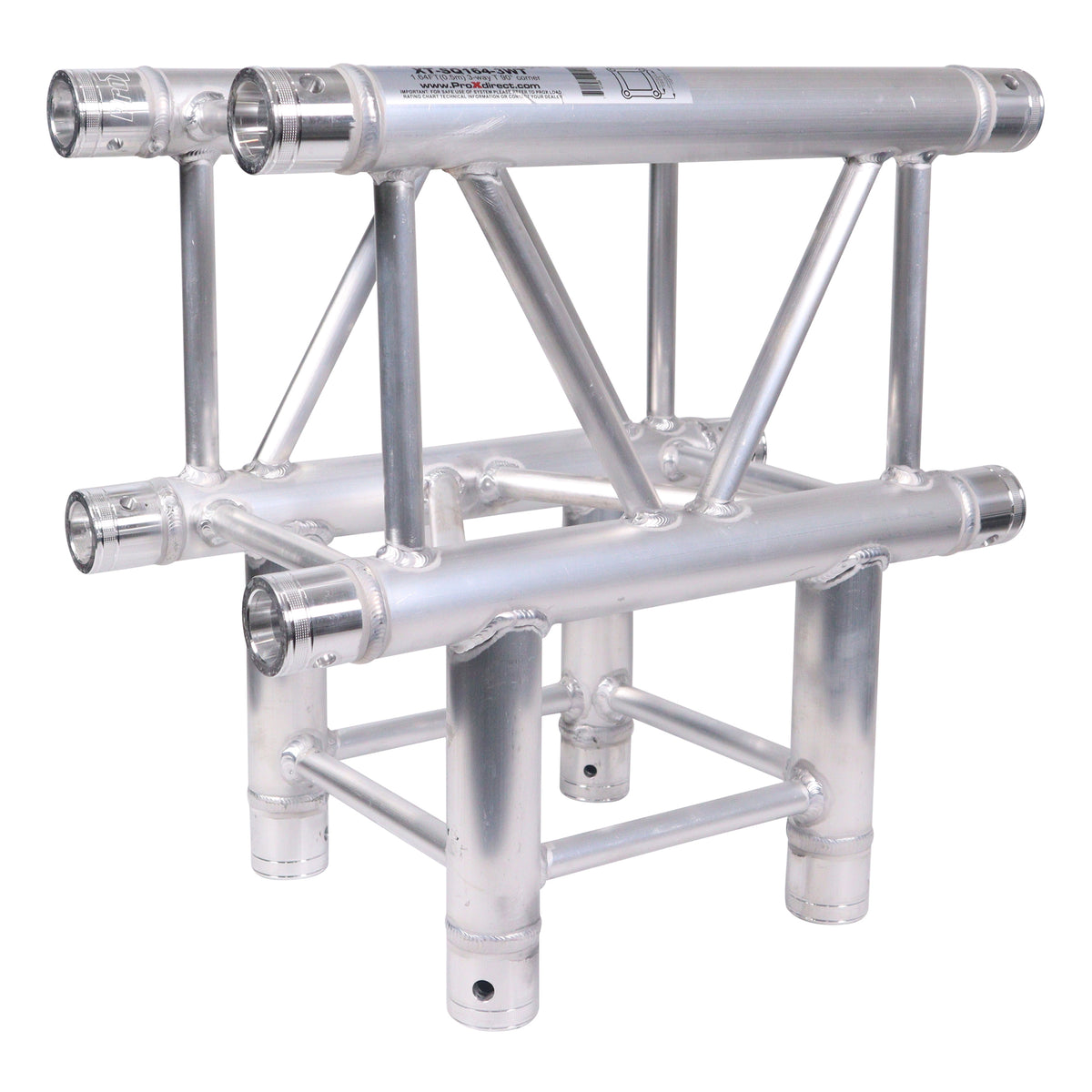

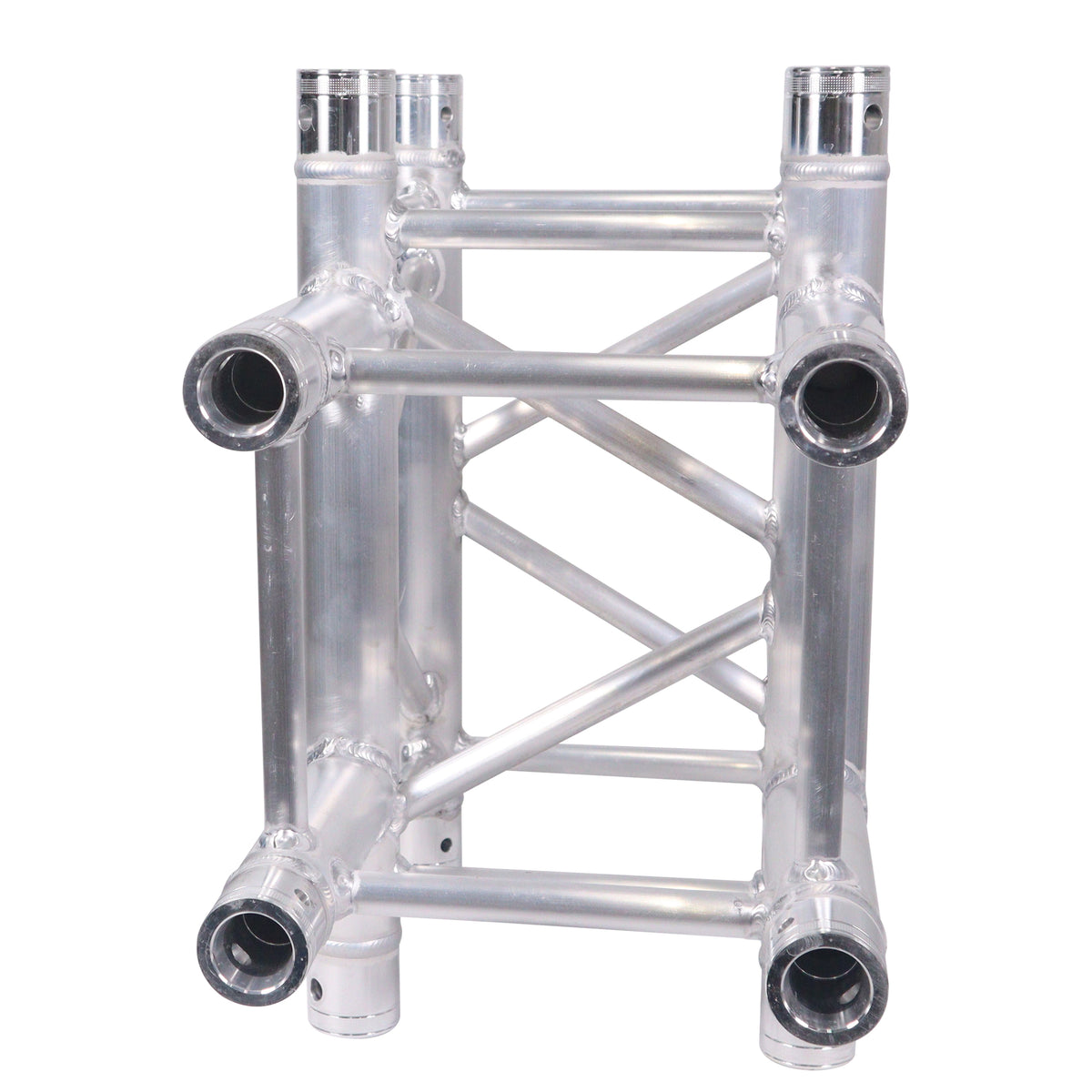

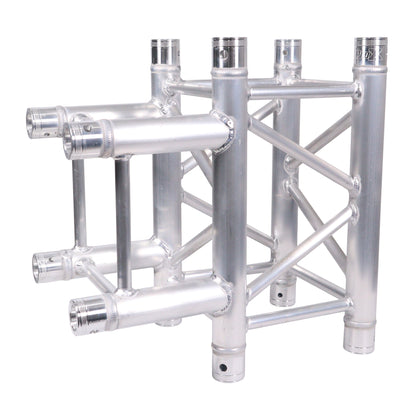

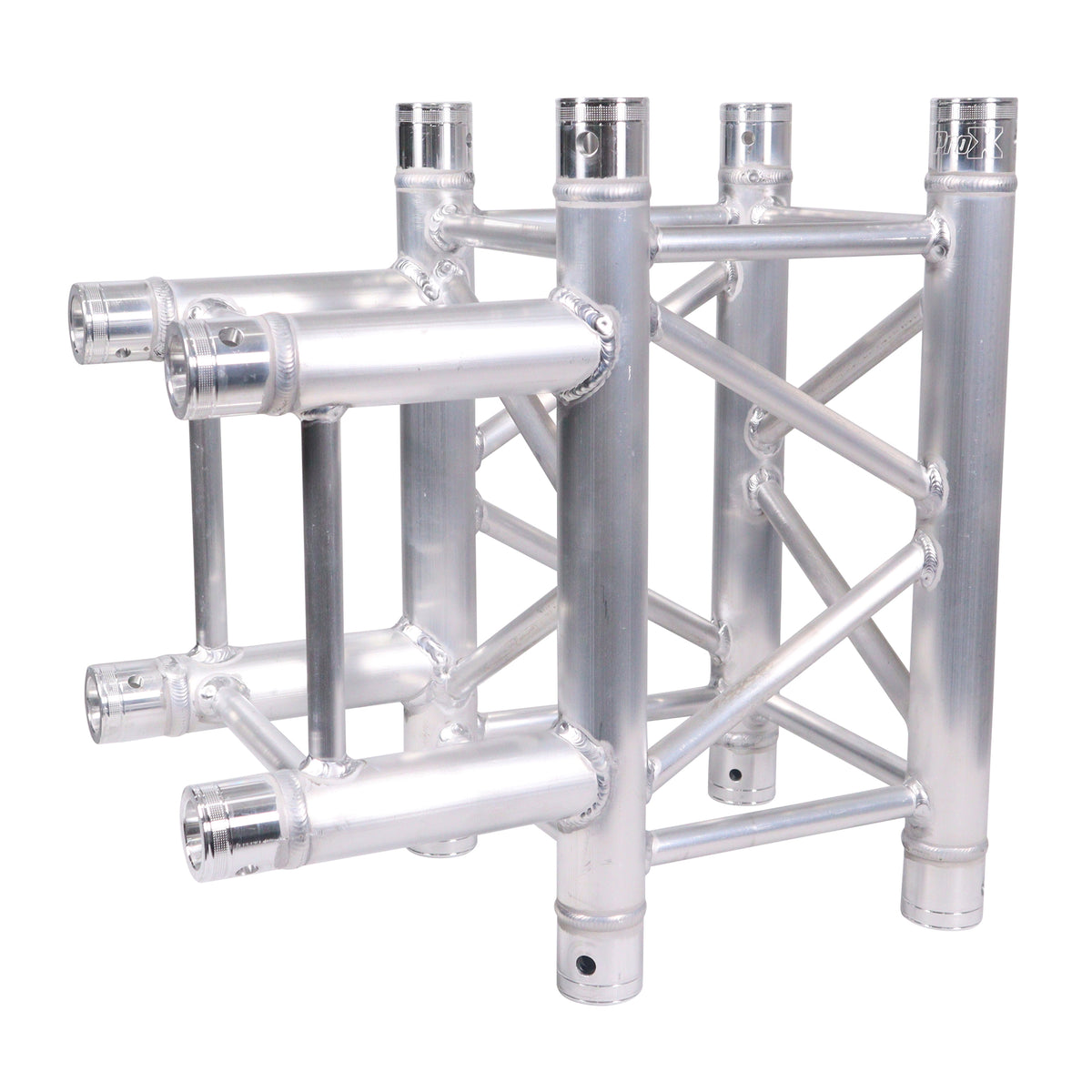

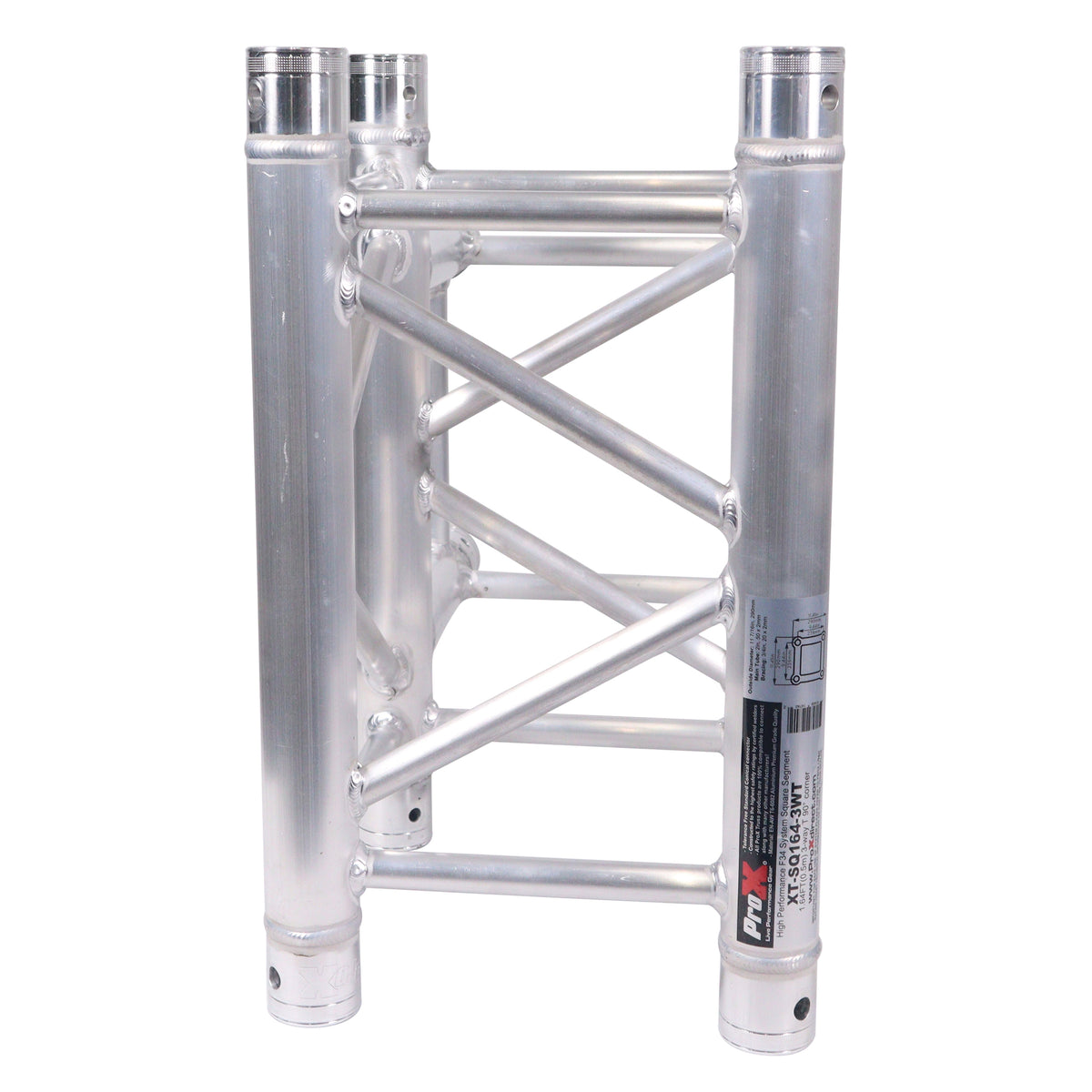

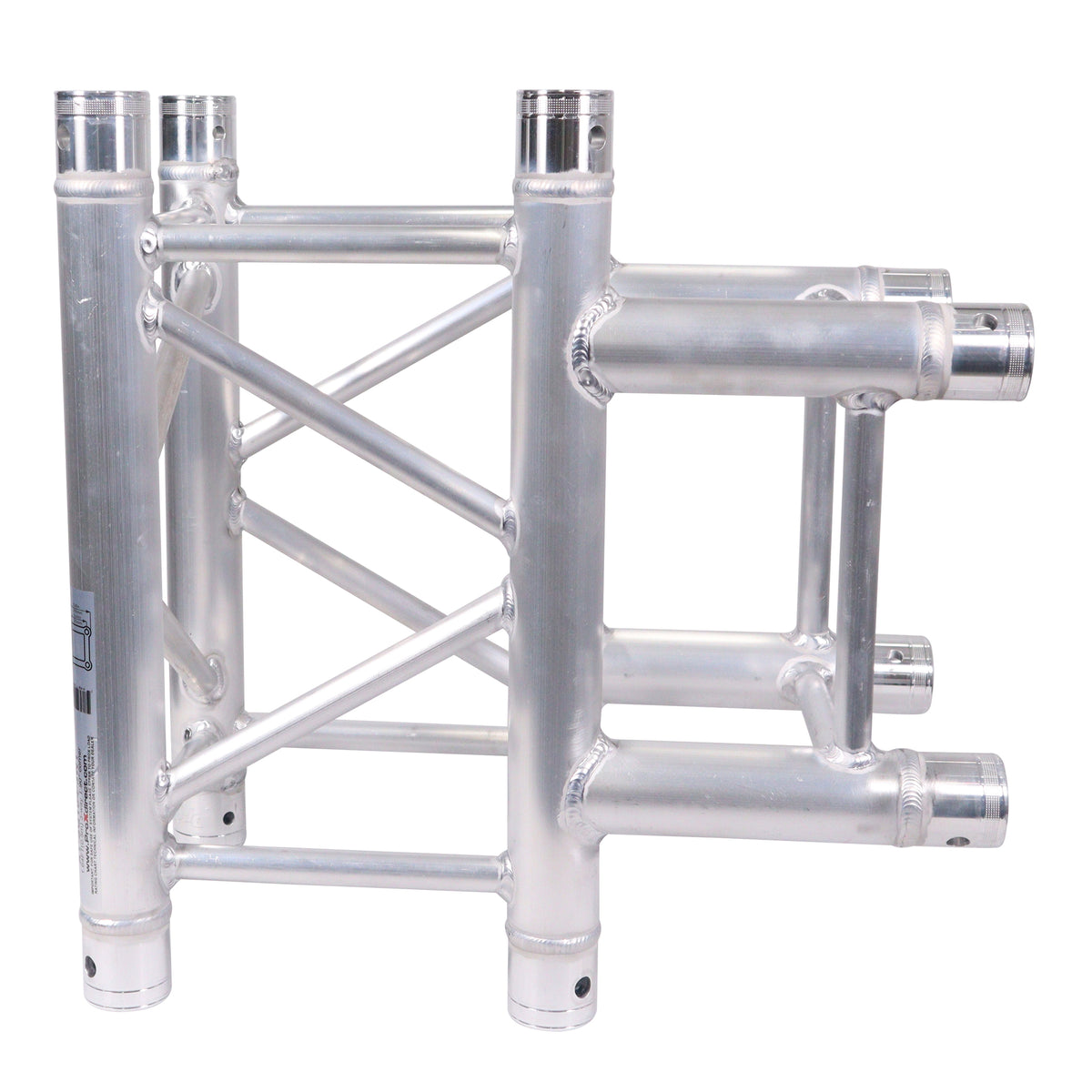

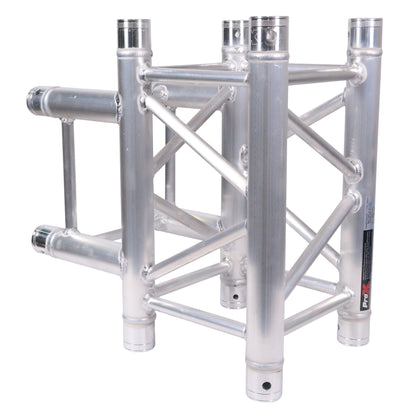

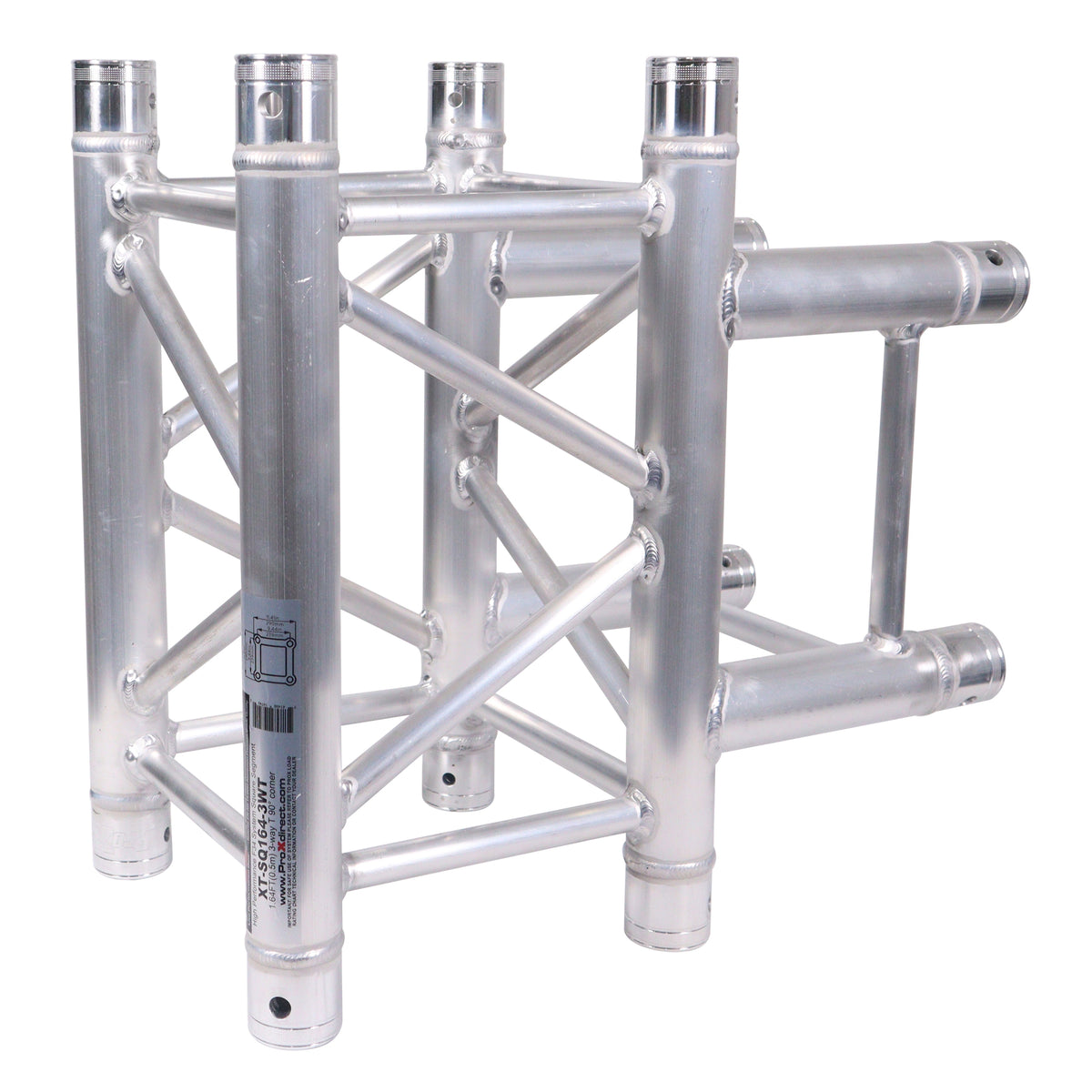

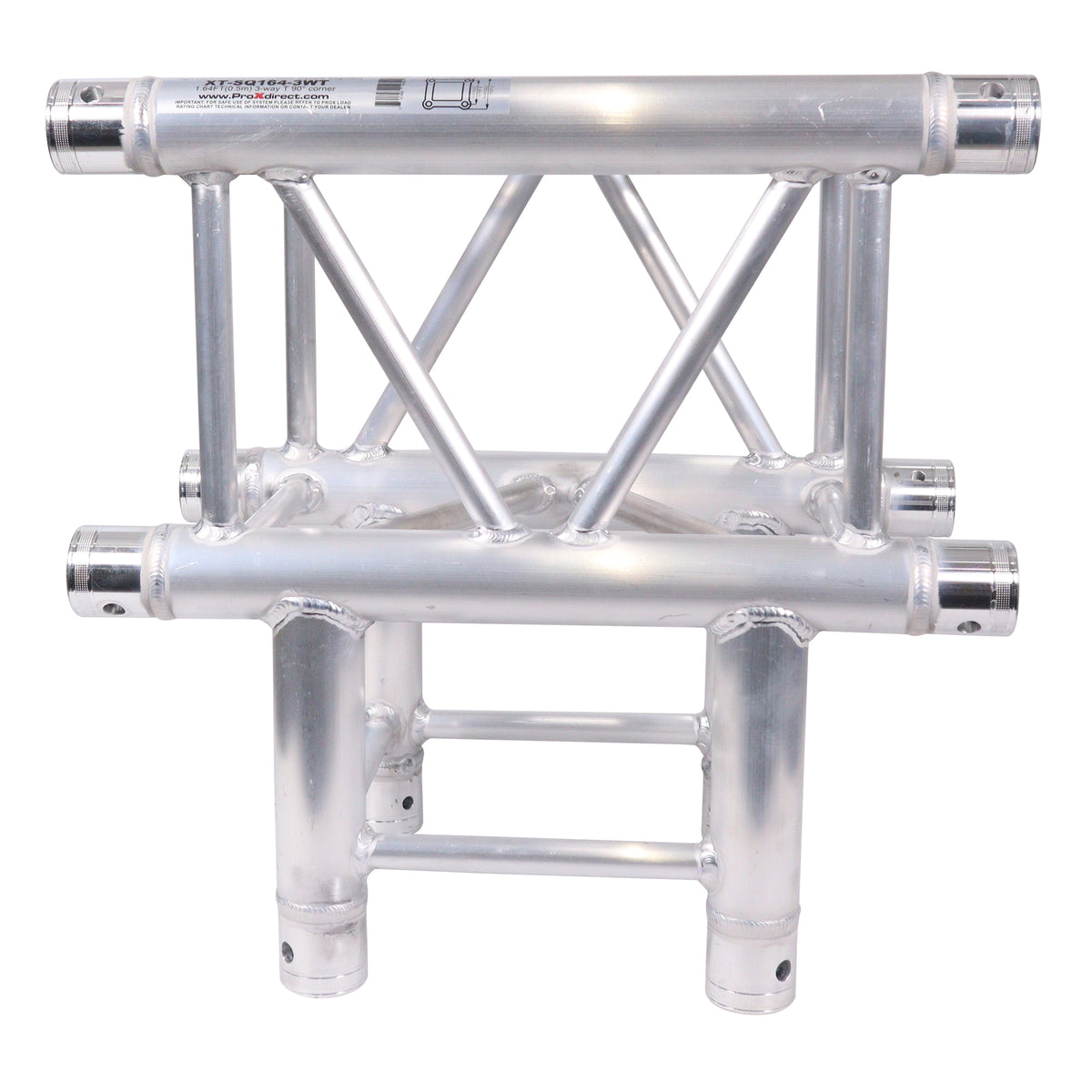

The XT-SQ164-3WT is a 1.64 ft (0.5 m) three-way 90-degree T-section for F34 conical truss, and it replaces the older SQ-4126. It drops into an F34 square system to branch a run in a new direction at a hard 90 degrees, which is how you hang a spur of lighting off a main truss line or tie a header into a vertical leg. Mounted vertically, the same part serves as either the top or the bottom of the configuration, so one item covers more than one position in a design. It is machined from 6082-T6 aluminum alloy and lines up with the rest of the series at an 11.42 in (290 mm) square profile, 2 in (50 mm) main tubes, a 0.08 in (2 mm) wall, and 0.75 in (20 mm) braces, so strength and stability match the truss it connects to. The standard conical connection keeps the system genderless and precise, which means chords align without forcing and breakdown stays quick. A connecting hardware set is included. Suited to live stages, DJ and band rigs, nightclub and church installations, exhibition booths, and retail displays, indoors or out. Always know the load weight of your equipment, and consult a qualified engineer for complex designs.
