XT-SQPL492

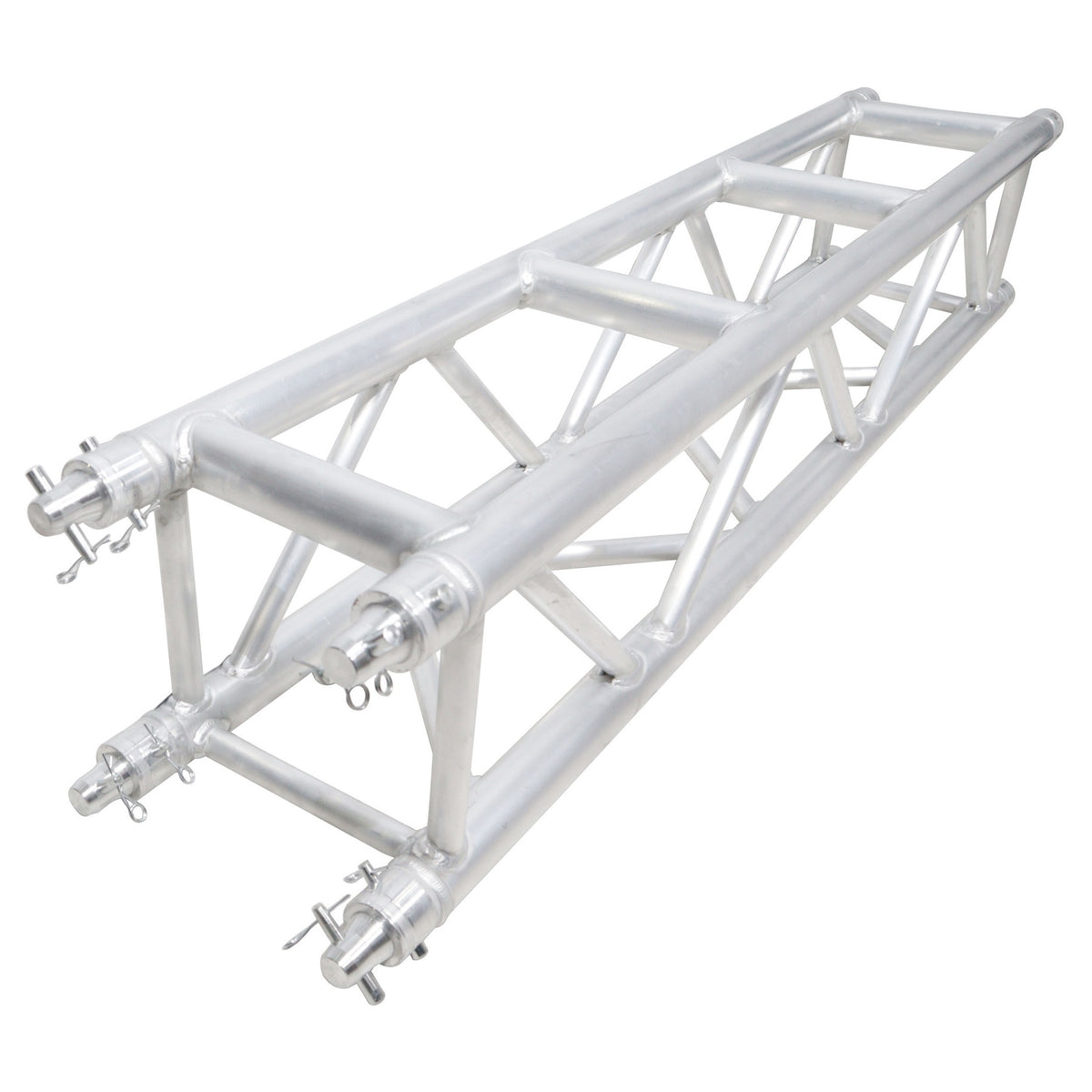

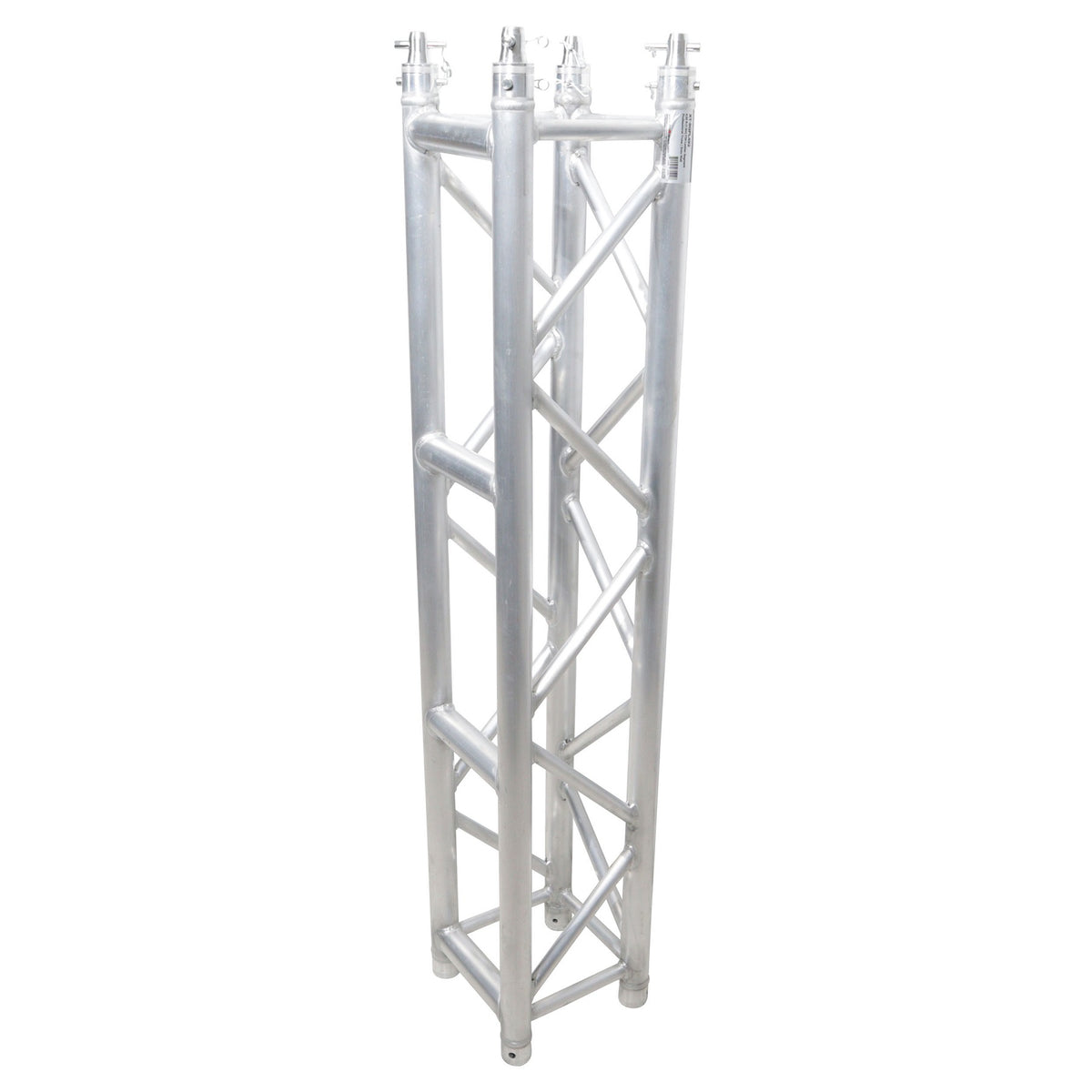

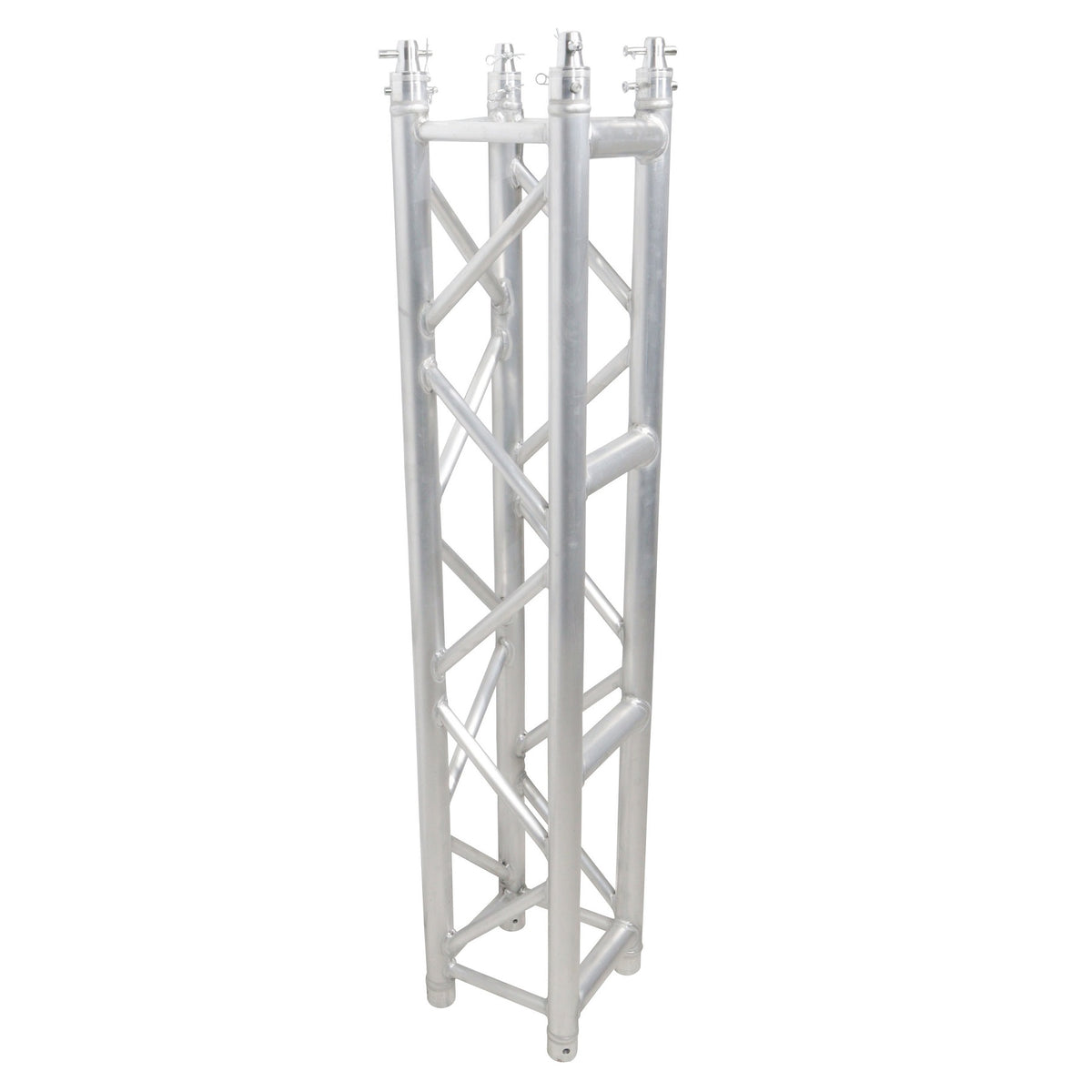

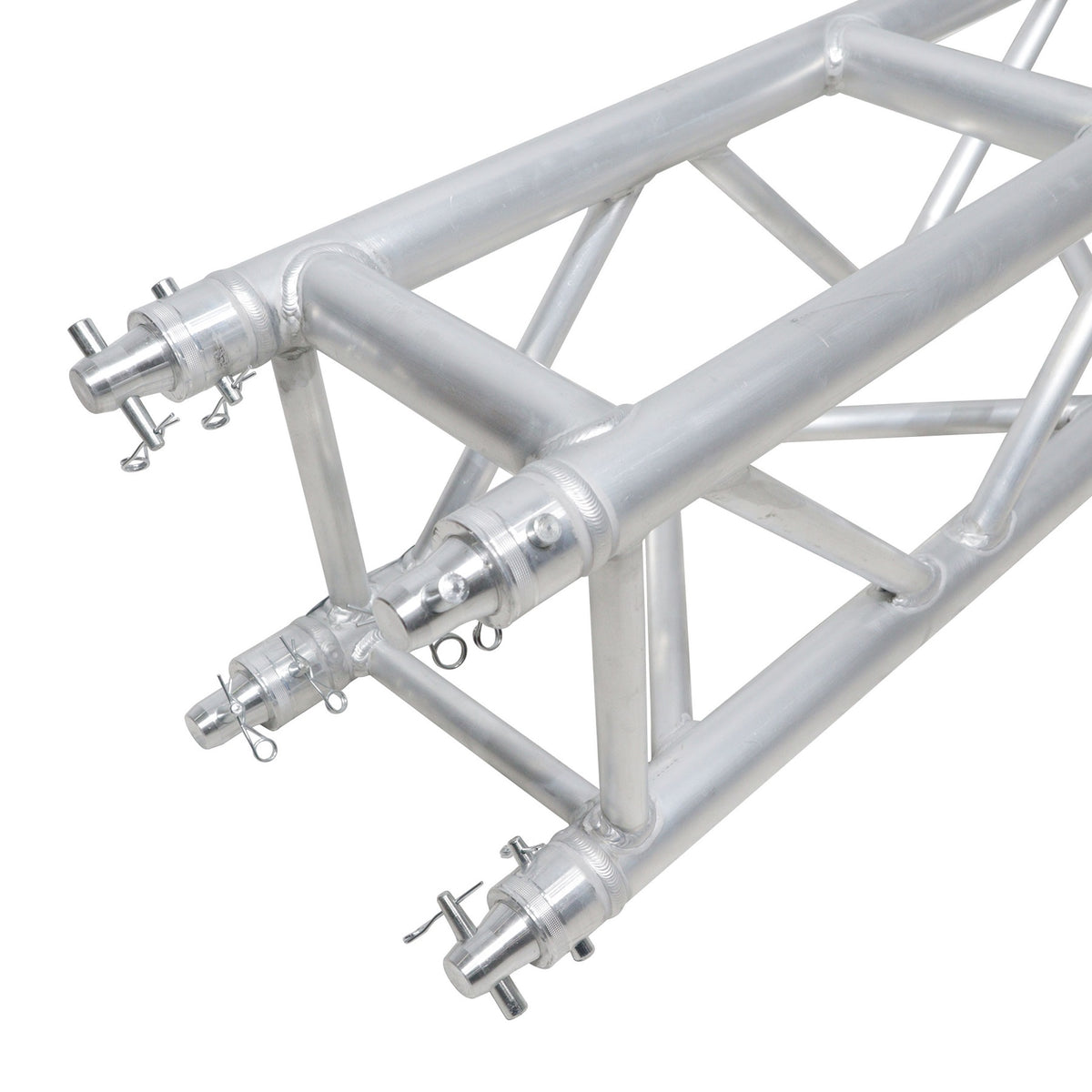

The XT-SQPL492 is a 4.92 ft (1.5 m) F34 truss ladder segment with a 1/8 in (3 mm) wall. It matches standard F34 truss dimensions but replaces the diagonal bracing on one side with 2 in (50 mm) ladder steps spaced 9.84 in (250 mm) apart, so a tech can climb the tower instead of hauling a lift into position. The thicker 3 mm tube wall adds vertical load capacity where it counts, at the lift and support points of a roof system or an indoor truss structure. Install it vertically: that is what the segment is designed for, and it is normally used at the legs rather than in a horizontal span. Because the tubes are 3 mm, it is at least as strong as standard 2 mm XT-SQ truss, and the XT-SQ loading chart applies. If it ever has to run horizontally, orient the ladder side down, since that side carries no diagonal bracing. The segment uses the same standard conical connector system as the rest of the line, so it mates with other brands of truss in the same size and connector style and works with the corners, base plates, and accessories you already own. Built from EN-AW 6082-T6 aluminum with TUV-certified welding, it suits mobile DJs, bands, outdoor performances, nightclub and church installs, and permanent structures. Always consult a qualified engineer for complex designs.
