RZR-14-THUNDER3 + UT65B Off-Road Audio System

Name: RZR-14-THUNDER3 + UT65B Off-Road Audio System
Brand: MTX
SKU: RZR-14-THUNDER3+UT65B
Price: 1419.95 USD
Availability: InStock

Off-Road Audio System, Receiver, RGB Speaker Pods, 10-Inch Subwoofer, Two Amplifiers, 6.5-Inch Roll-Bar Speaker Pair

$1,419.95

$1,419.95 ~~$2,149.94~~

Save 33%

Shipping calculated at checkout.

Features

Receiver combines wireless streaming, AM/FM/weather-band radio and USB playback
RGB-lit kick-panel pods fit the specified RZR location without cutting or drilling
10-inch loaded subwoofer enclosure can run ported or sealed
IP66 4-channel amp has fixed 80 Hz crossovers; mono amp adds a variable low-pass filter
Two 6.5-inch IPX6 speakers swivel 360 degrees and fit 1.5 to 2-inch bars

30-Day Money-Back Guarantee

Fast & Free Shipping

Buy Now, Pay Later

What's Included in the box

RZR-14-THUNDER3 receiver, front speaker pods and subwoofer system
MUD100.4 4-channel amplifier

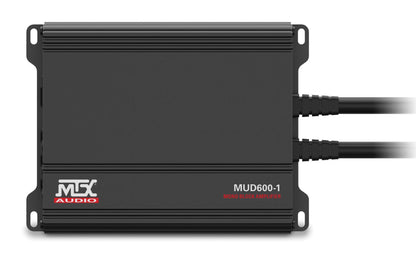

Mono amplifier

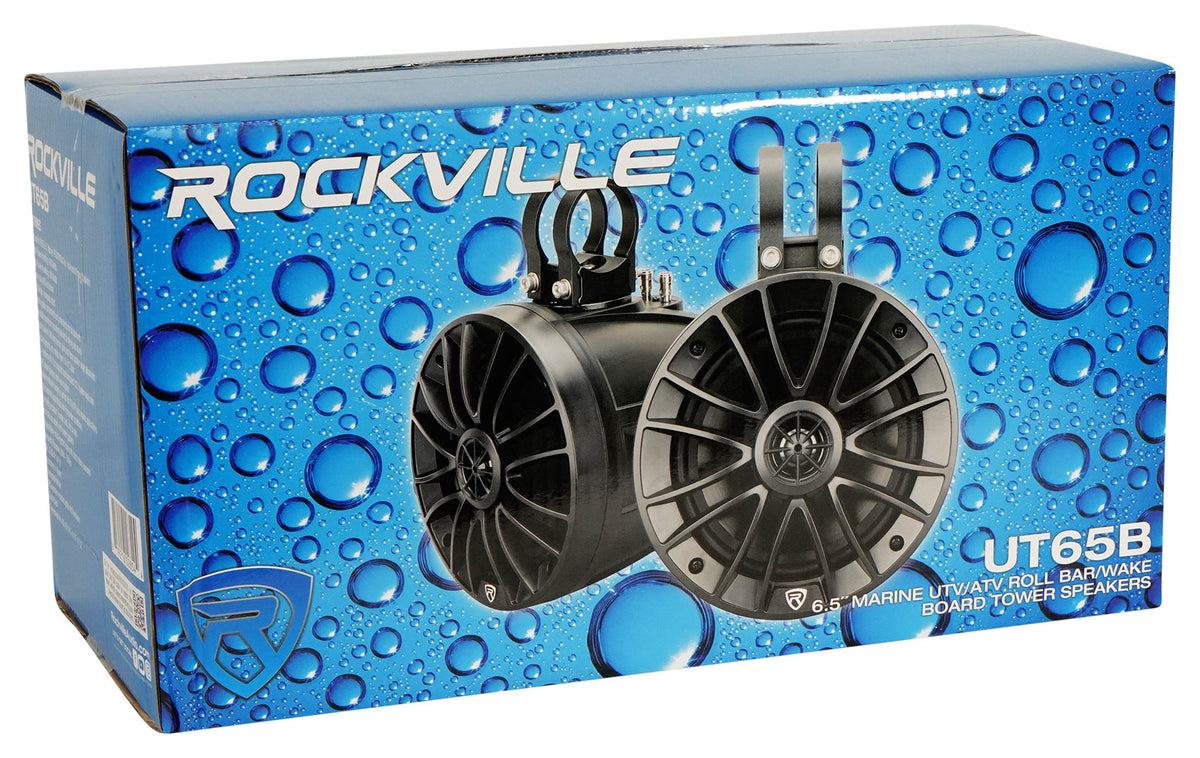

(2) UT65B 6.5-inch swivel-mount speakers
Swivel mounting brackets and hardware for 1.5-, 1.75-, 1.875- or 2-inch bars
Installation hardware

SKU: SKU: RZR-14-THUNDER3+UT65B

View full details

Product Description

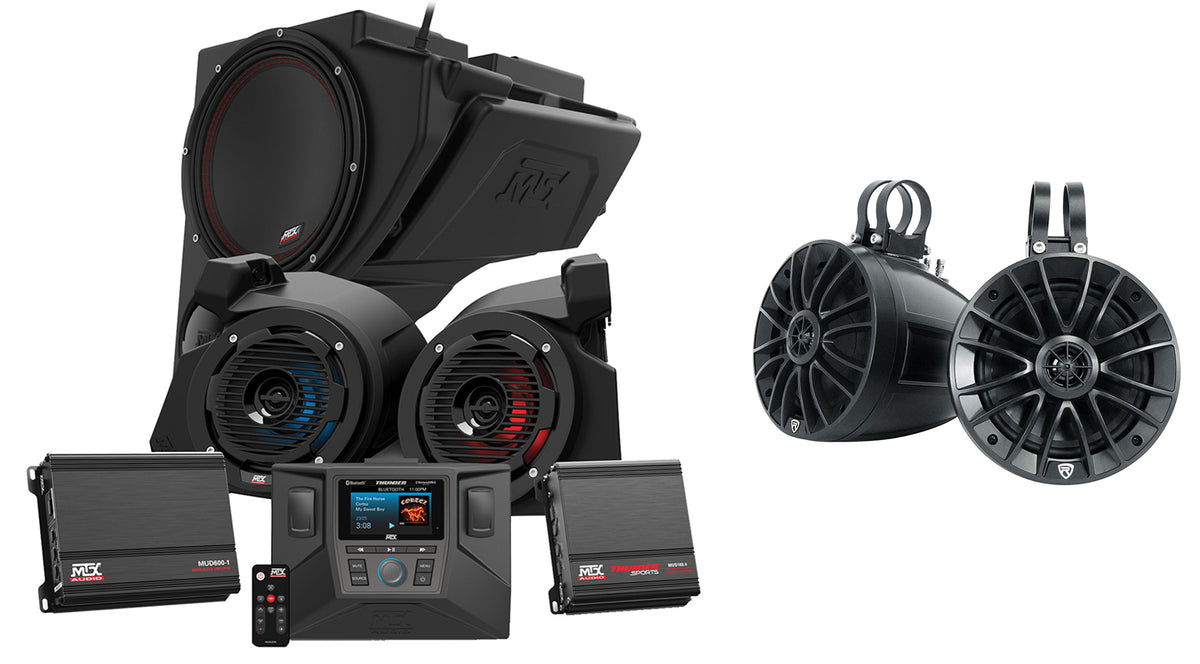

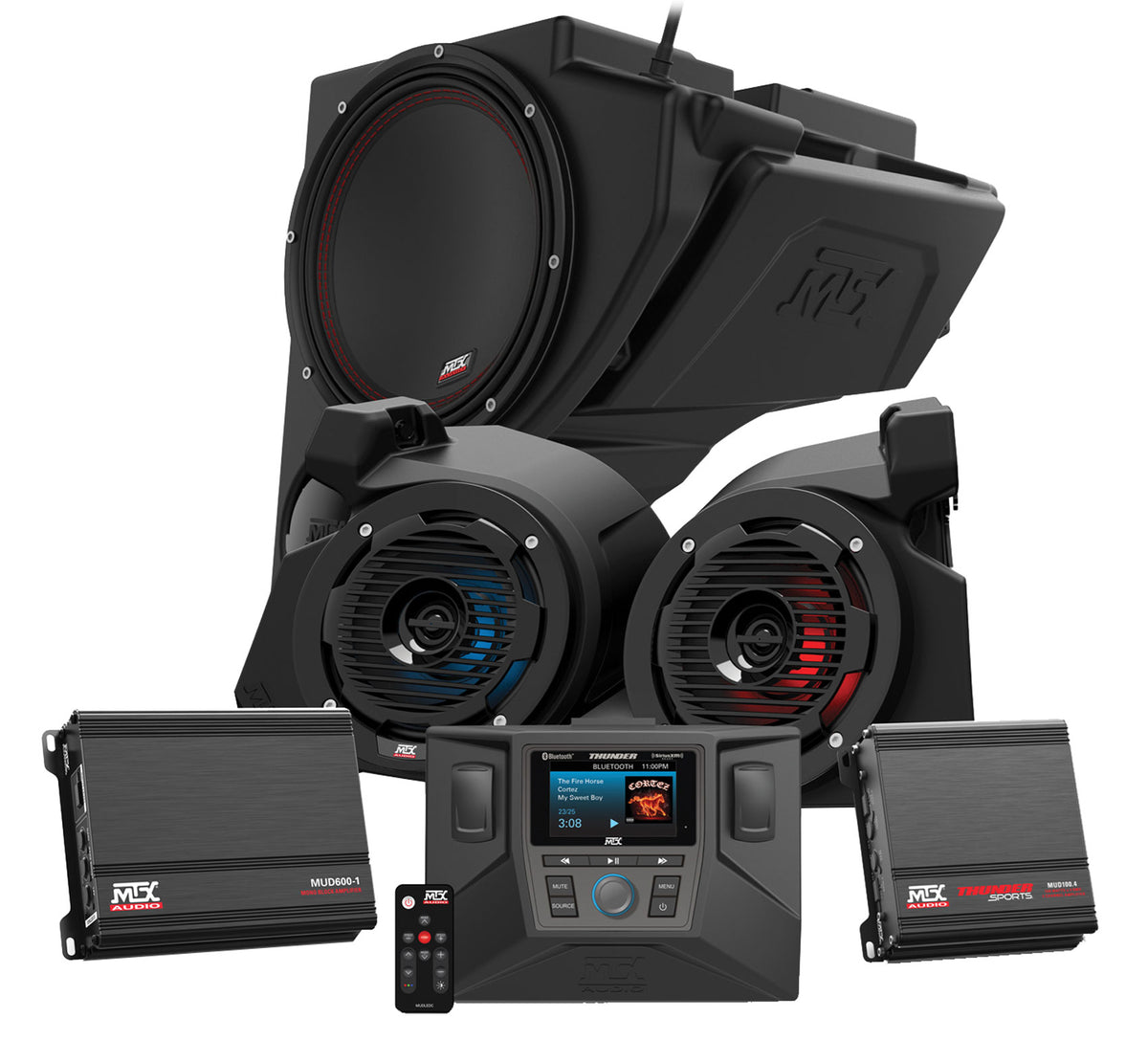

Build a full off-road audio setup with the RZR-14-THUNDER3 receiver, RGB-lit kick-panel speaker pods, a loaded 10-inch subwoofer enclosure, two amplifiers and a pair of 6.5-inch roll-bar speakers. The receiver provides wireless audio streaming, AM/FM/weather-band radio, auxiliary input, USB charging, USB memory-stick playback and a 3-inch color display. Direct-fit speaker pods install without cutting or drilling. The subwoofer enclosure can run ported or sealed, while the 4-channel amplifier has an IP66 rating and fixed 80 Hz crossovers. The mono amplifier adds a variable 40 Hz to 250 Hz low-pass filter for subwoofer tuning. The roll-bar pair uses IPX6-rated housings and 360-degree swivel brackets; included hardware fits bars from 1.5 to 2 inches. Check the fit guide against your vehicle year and configuration before installation.

Features

Multiple Audio Sources
Wireless streaming, AM/FM/weather-band tuning, auxiliary input and USB memory-stick playback give the receiver several ways to play audio on the trail.

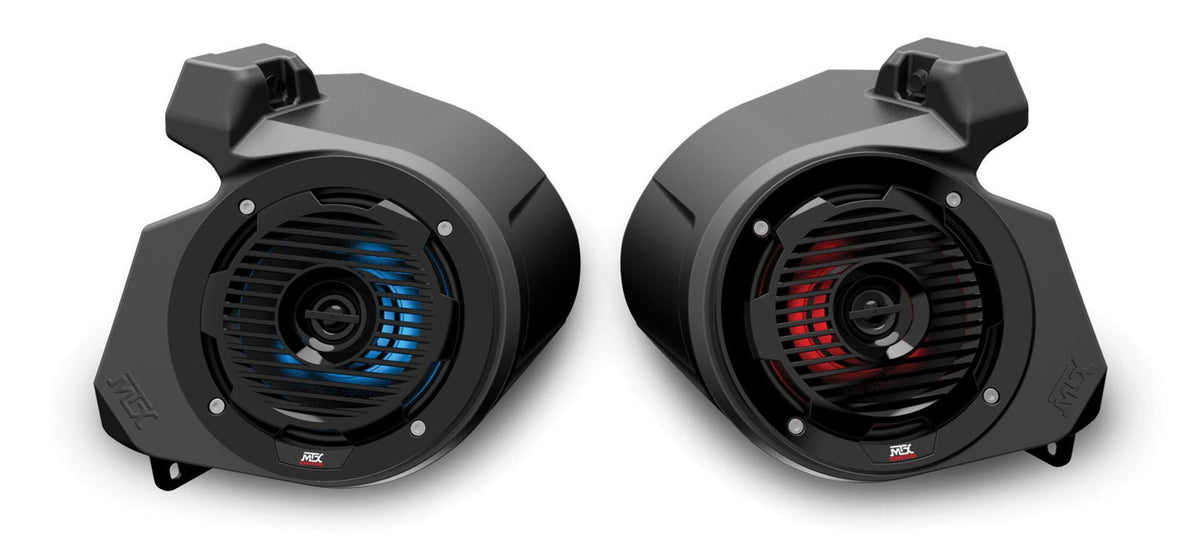

Direct-Fit Speaker Pods
Custom-fit kick-panel pods pair RGB lighting with sealed enclosures, polypropylene woofers and dome tweeters, installing directly without cutting or drilling.

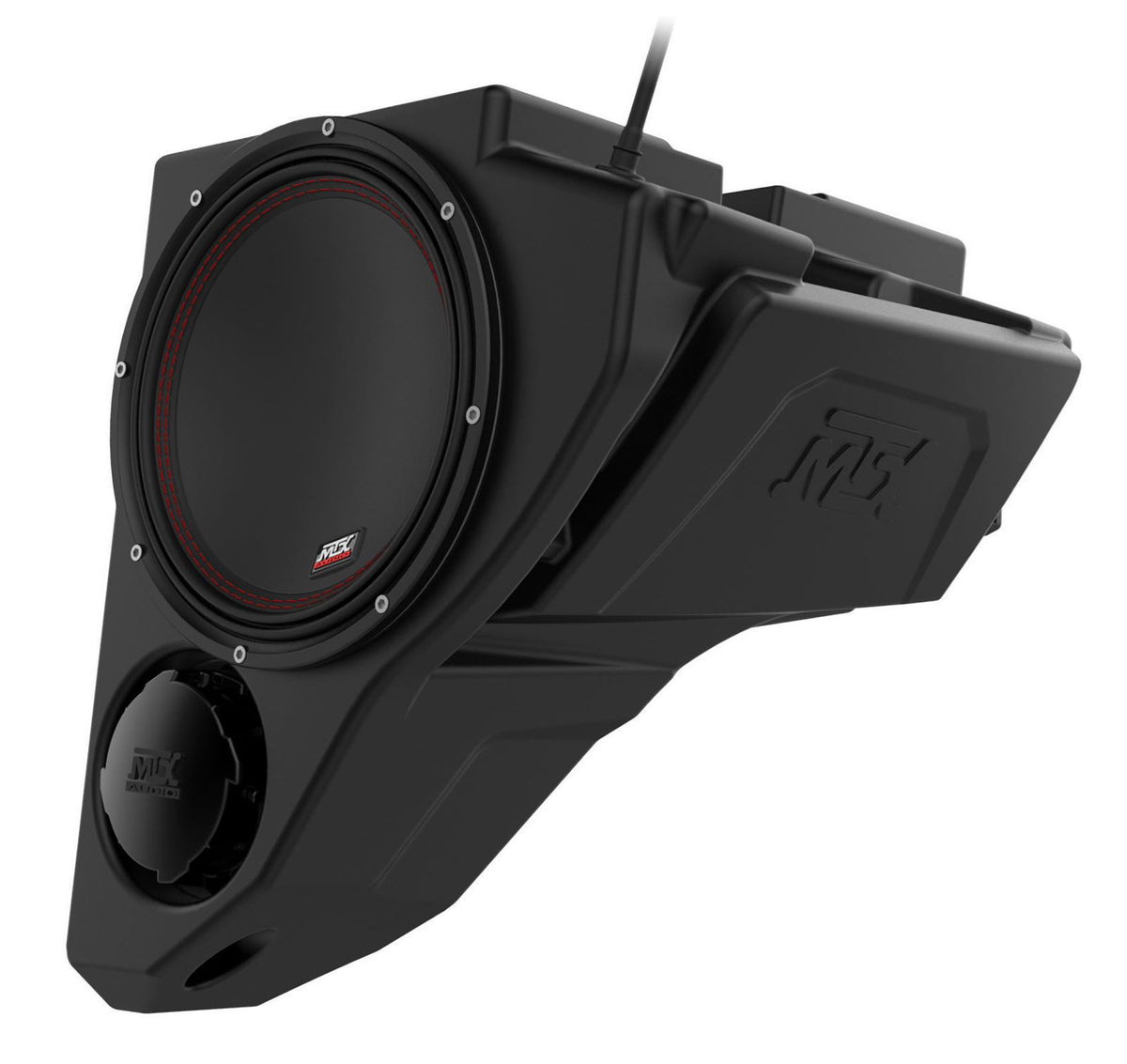

Configurable Low-End
The loaded 10-inch subwoofer enclosure mounts behind the dashboard and works in ported or sealed form, letting the installer select the enclosure response.
Separate Amplifier Roles
The IP66 four-channel amplifier supplies 50 W x 4 at 4 ohms, while the mono amplifier adds a variable 40 Hz to 250 Hz low-pass filter.

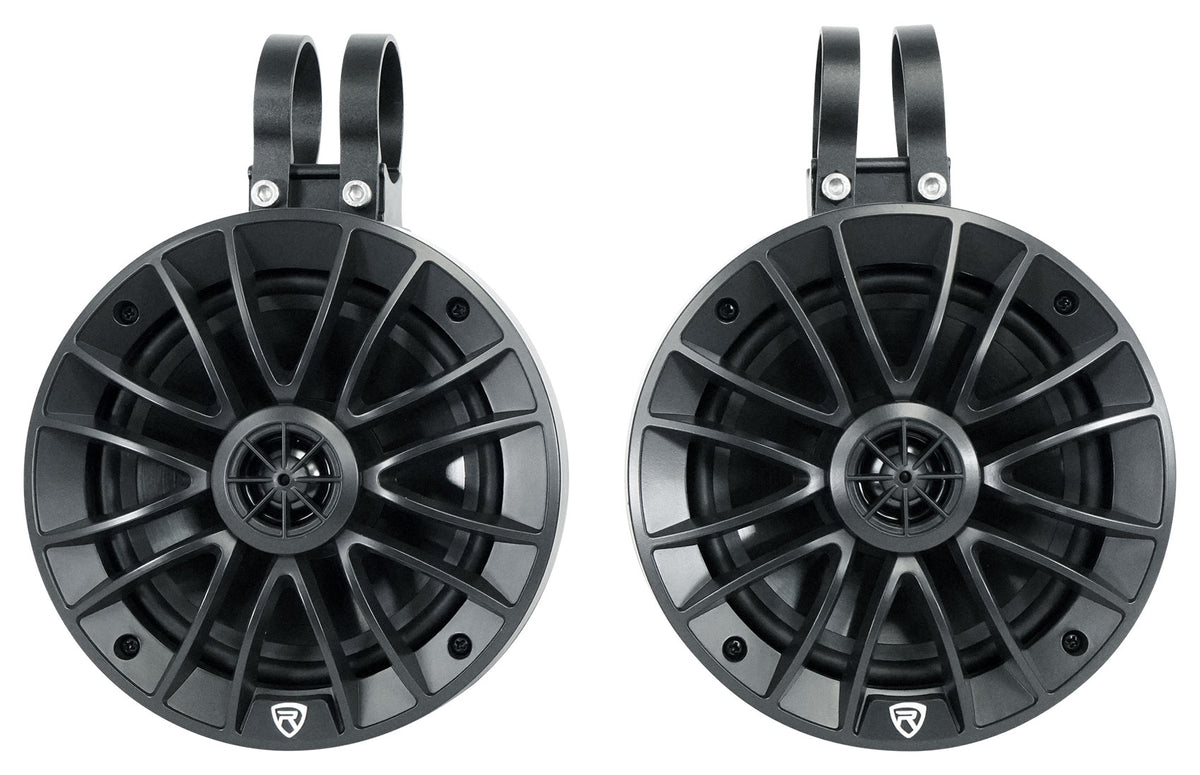

Roll-Bar Audio in Reach
Two 6.5-inch speakers carry an IPX6 rating, and included swivel brackets fit bars from 1.5 to 2 inches and rotate 360 degrees.

Technical Specifications

Product Type Off-road audio system bundle
Receiver Model AWMC3
Receiver RMS Output at 2 Ohms 50 W x 4 channels
Receiver Line Output 2 V
Receiver Line Output Impedance 10 kOhms
Receiver Cutout Size 3 inches
Receiver Display 3-inch full-color TFT
Receiver Audio Sources Wireless streaming; AM/FM; weather band; auxiliary input; USB
USB Playback MP3 files from memory stick; album artwork display
Receiver Weather Resistance IP66
Receiver Pre-Outs 2 sets, front and rear
Front Speaker Model RZR-14-FS
Front Speaker Enclosure Sealed, rotationally molded
Front Speaker Drivers Polypropylene woofer; dome tweeter
Front Speaker RMS Power Handling 50 W
Front Speaker Peak Power Handling 100 W
Front Speaker Sensitivity (2.83 V/1 m) 89.9 dB
Front Speaker Sensitivity (1 W/1 m) 85.6 dB
Front Speaker Frequency Response 70 Hz to 20 kHz
Front Speaker Impedance 4 ohms
Subwoofer Model RZR-14-SW
Subwoofer Size 10-inch loaded enclosure
Subwoofer Enclosure Type Ported or sealed
Subwoofer RMS Power Handling 400 W
Subwoofer Peak Power Handling 800 W
Subwoofer Sensitivity (2.83 V/1 m) 90.2 dB
Subwoofer Sensitivity (1 W/1 m) 83.5 dB
Subwoofer Frequency Response 28 Hz to 130 Hz
Subwoofer Impedance Dual 4 ohms

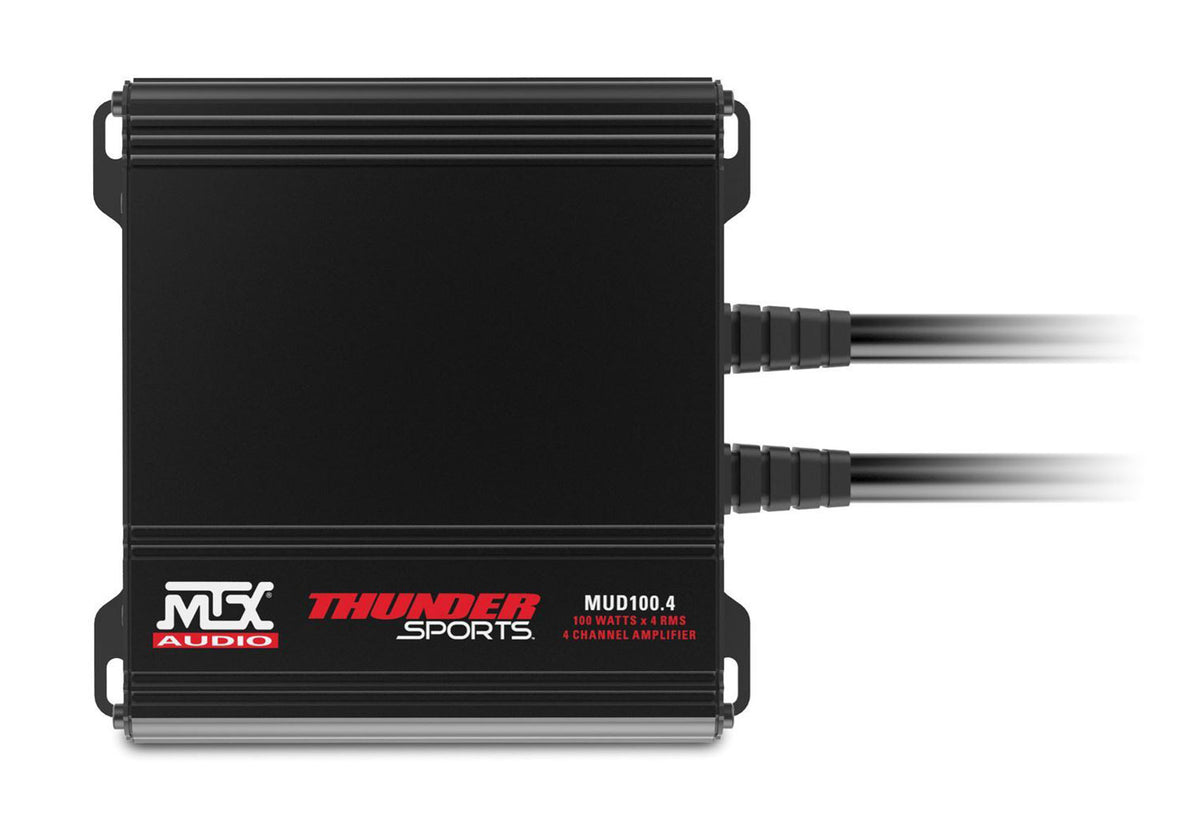

4-Channel Amplifier Model MUD100.4
4-Channel Amplifier RMS Output at 4 Ohms 50 W x 4 channels
4-Channel Amplifier RMS Output at 2 Ohms 100 W x 4 channels
4-Channel Amplifier Bridged RMS Output at 4 Ohms 200 W x 2 channels
4-Channel Amplifier Peak Power Handling 400 W
4-Channel Amplifier Topology Full-range Class D
4-Channel Amplifier Weather Resistance IP66
4-Channel Amplifier THD Less than 0.2%
4-Channel Amplifier Frequency Response 10 Hz to 32 kHz
4-Channel Amplifier Crossover Fixed HPF/LPF at 80 Hz, 12 dB/octave
4-Channel Amplifier Maximum Sensitivity 200 mV
4-Channel Amplifier Maximum Input Signal 5 V

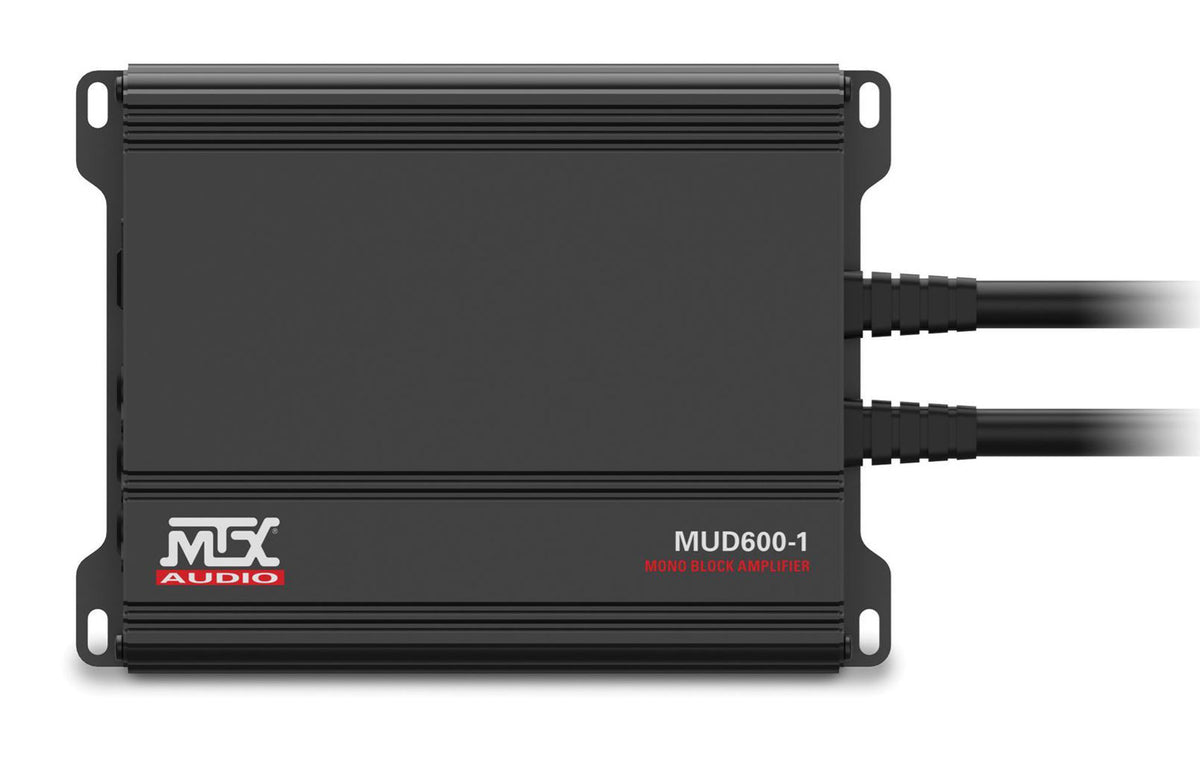

Mono Amplifier Frequency Response 10 Hz to 250 Hz
Mono Amplifier Low-Pass Filter Variable, 40 Hz to 250 Hz
Mono Amplifier Minimum Load 2 ohms
Mono Amplifier Low-Voltage Protection Protects below 8.5 V
Mono Amplifier Input Level 0.2 to 5 V low level; 0.4 to 10 V high level
Mono Amplifier Signal-to-Noise Ratio 85 dBA

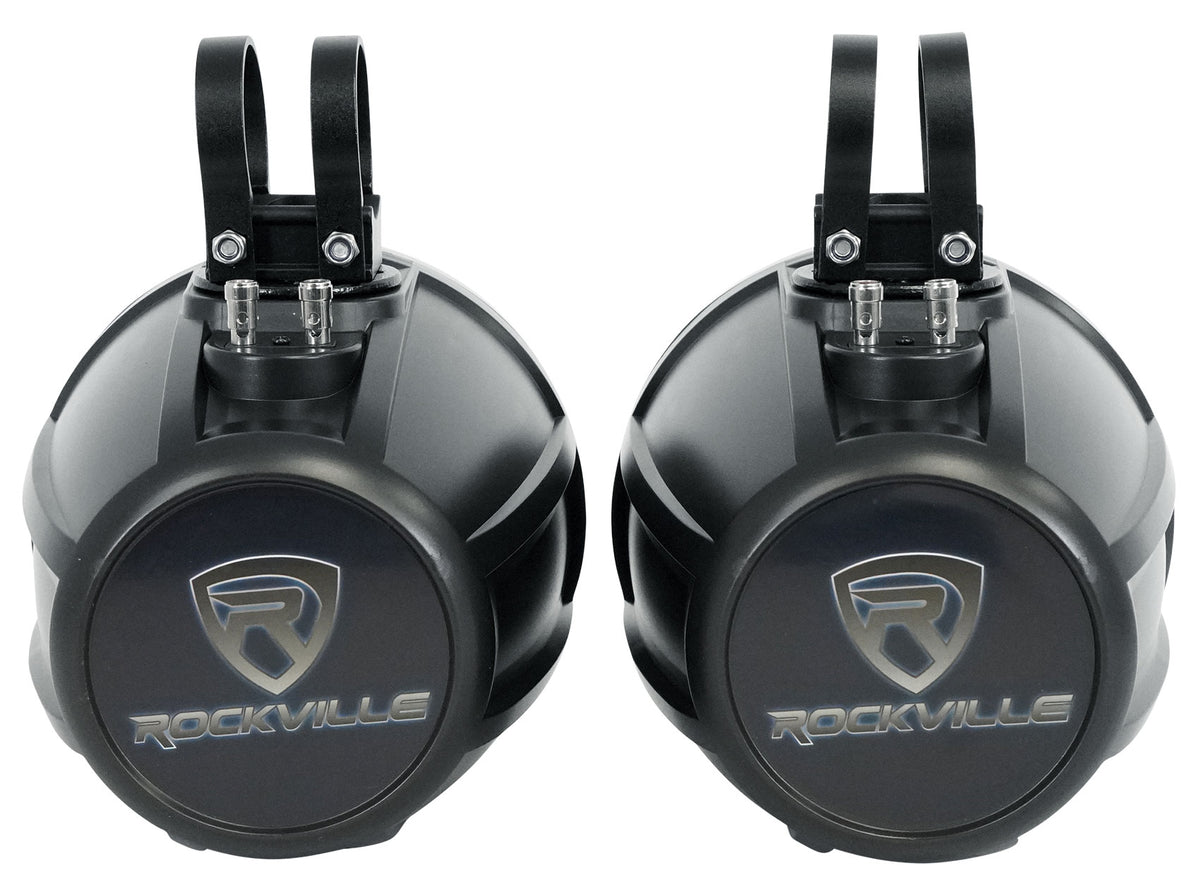

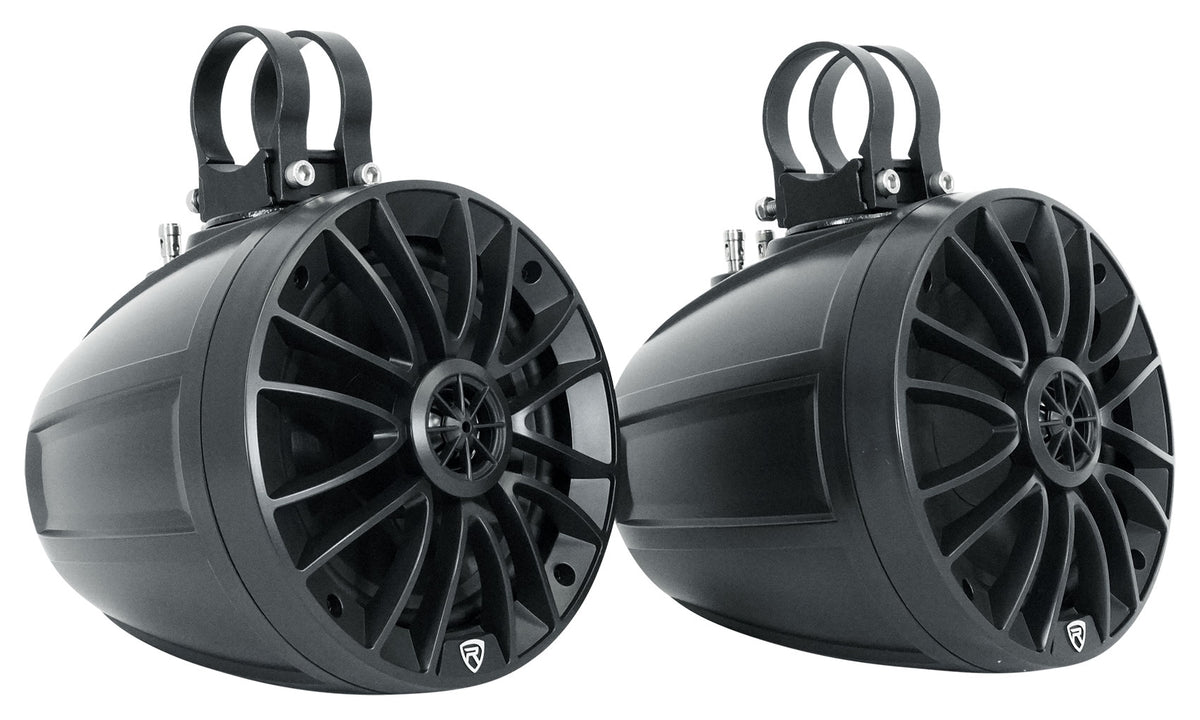

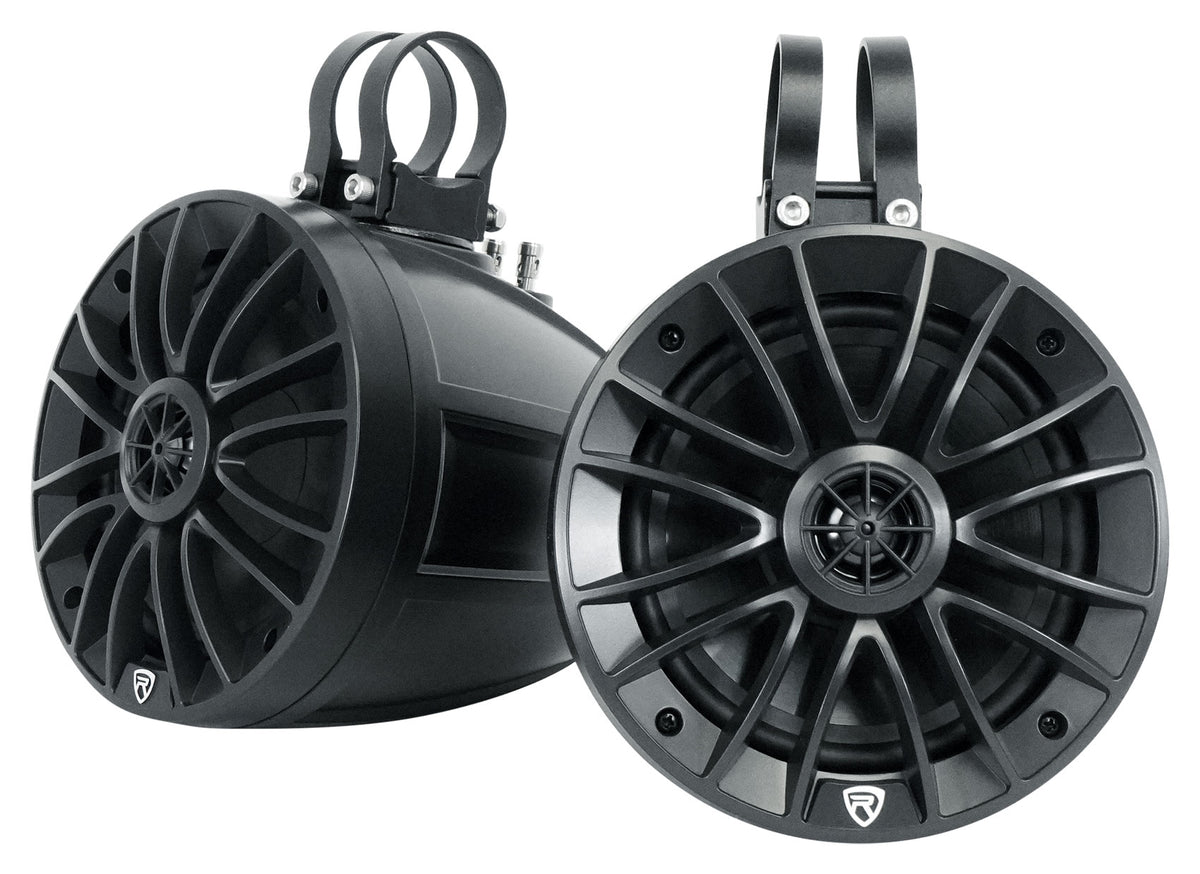

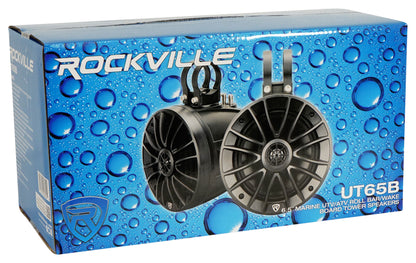

Roll-Bar Speaker Model UT65B
Roll-Bar Speaker Type 6.5-inch marine UTV / roll-bar speakers
Roll-Bar Speaker Peak Power Handling 400 W
Roll-Bar Speaker RMS Power Handling 100 W
Roll-Bar Speaker Frequency Response 60 Hz to 20 kHz
Roll-Bar Speaker Sensitivity 87 dB at 1 W/1 m
Roll-Bar Speaker Impedance 4 ohms
Roll-Bar Speaker Water Resistance IPX6
Roll-Bar Speaker Mounting Range 1.5 to 2 inches
Roll-Bar Speaker Color Black
Receiver Dimensions (H x W x D) 4.31 in x 4.31 in x 4.25 in
4-Channel Amplifier Dimensions (H x W x D) 6.52 in x 5.51 in x 1.86 in
Mono Amplifier Dimensions (H x W x L) 1.85 in x 5.51 in x 7.36 in
Roll-Bar Speaker Dimensions (H x W x D) 9.84 in x 7.17 in x 7.32 in
