RZR Audio System with RWB70B Speakers and MUD100.4 Amplifier
RZR Audio System with RWB70B Speakers and MUD100.4 Amplifier
RZR Audio System, Bluetooth Receiver, 4-Channel Amplifier, Pair Of 6.5-Inch Tower Speakers
Free Shipping
Features
- AWMC3 receiver adds Bluetooth, AM/FM/WB tuning and a 3-inch color display
- RZRPOD65 dash speaker pods and direct-fit kit install without cutting or drilling
- MUD100.4 provides 50 W RMS x 4 at 4 ohms or 100 W x 4 at 2 ohms
- Two RWB70B 6.5-inch speakers handle 150 W RMS each
- 360-degree swivel brackets fit bars from 1.26 to 2.87 inches
Couldn't load pickup availability

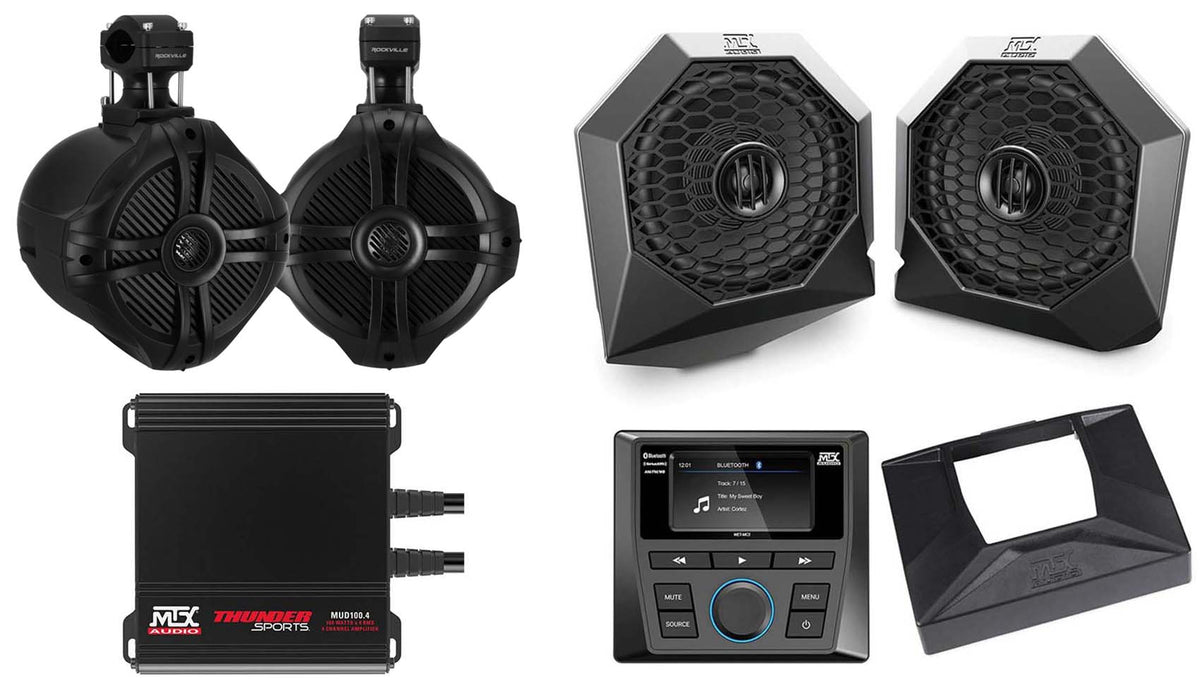

What's Included in the box

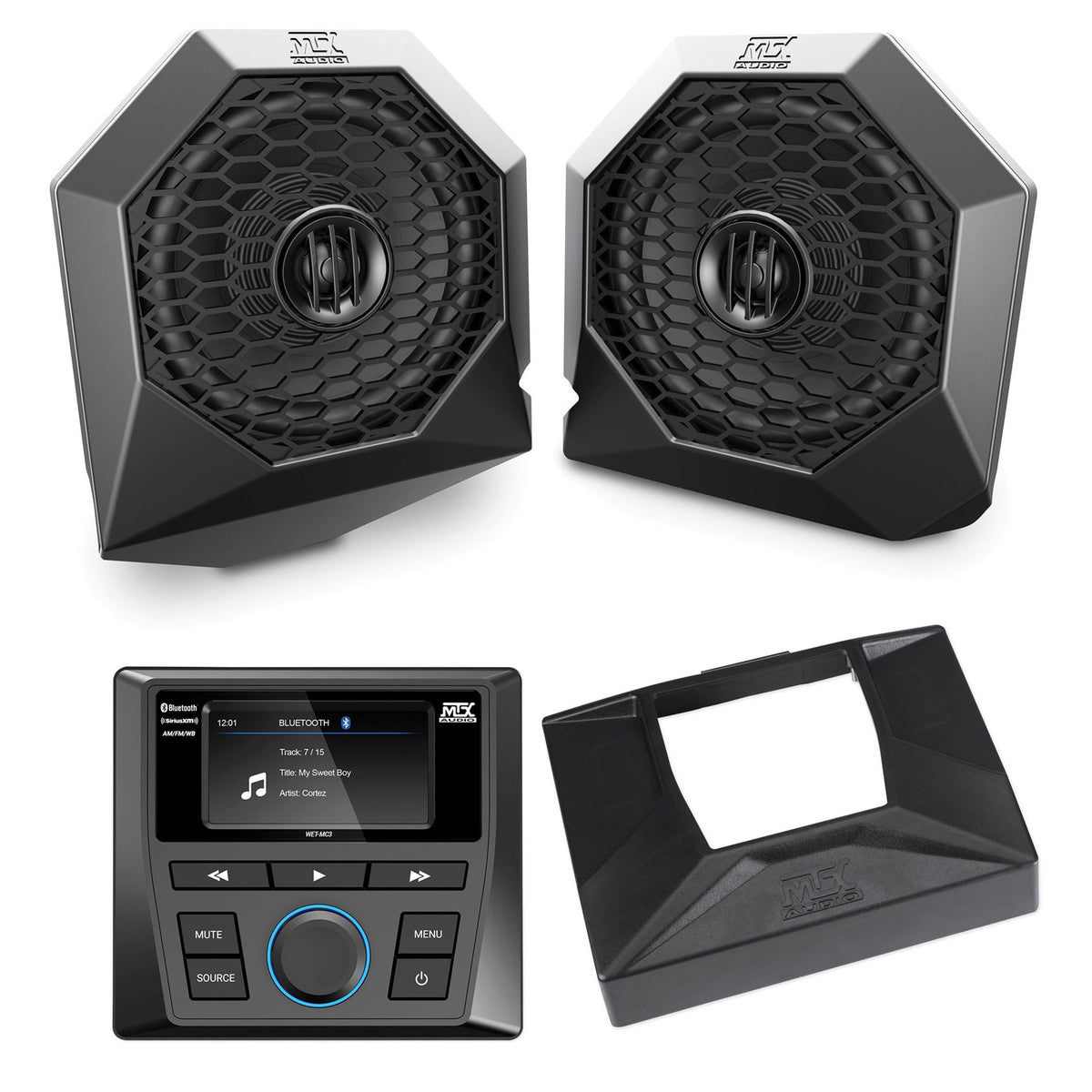

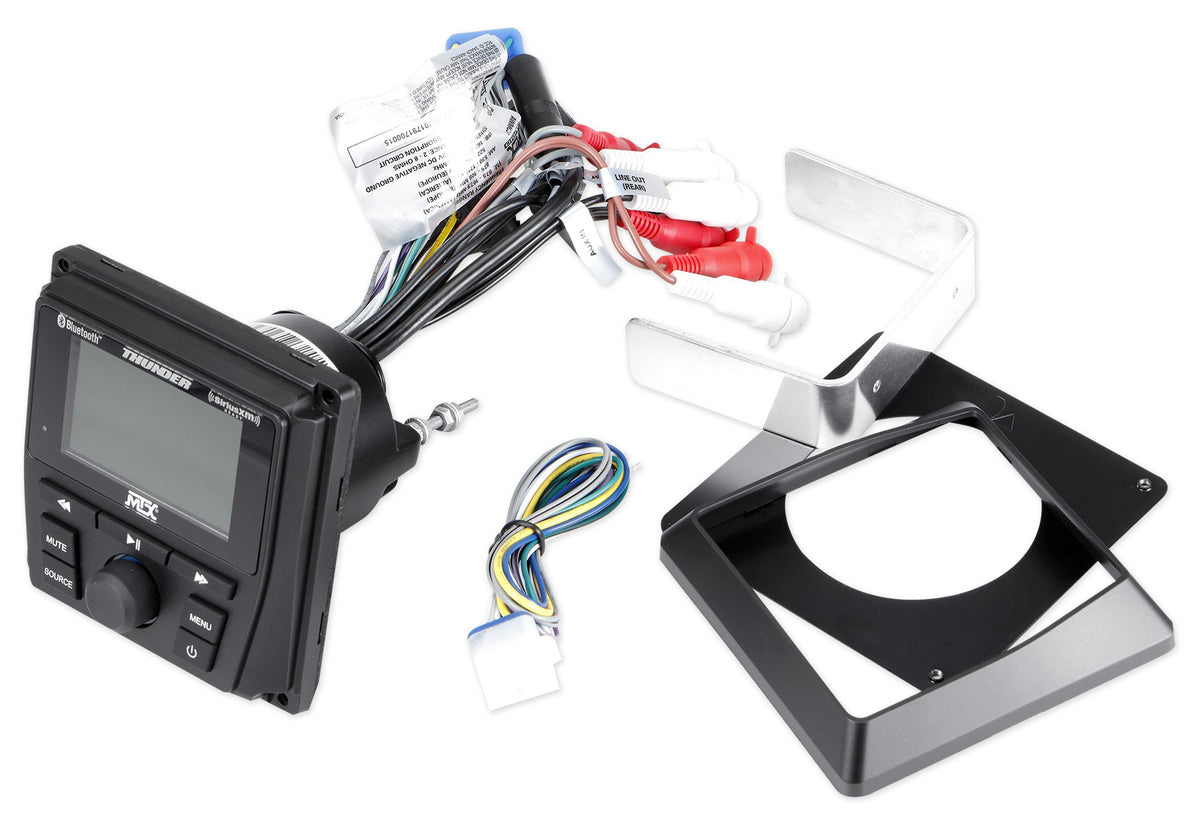

- AWMC3 all-weather receiver with integrated amplifier
- MUDRZRDK direct-fit dash kit
- RZRPOD65 all-weather speaker pods with 6.0-inch speakers
- SCP1850BL 18-gauge speaker wire spool

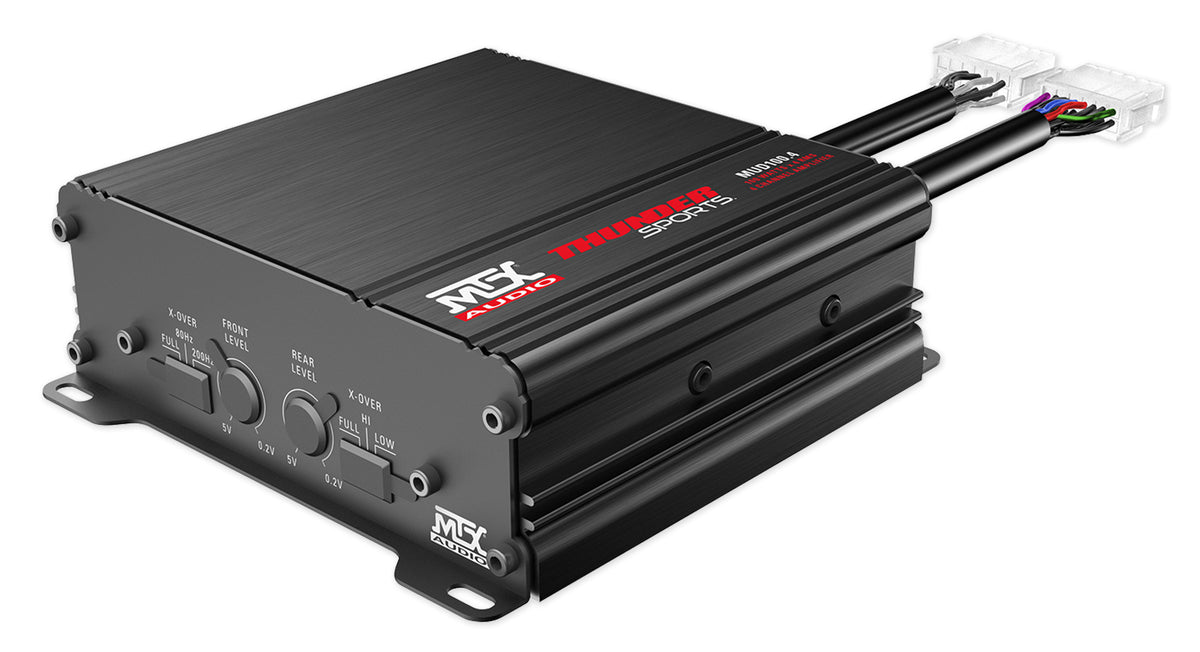

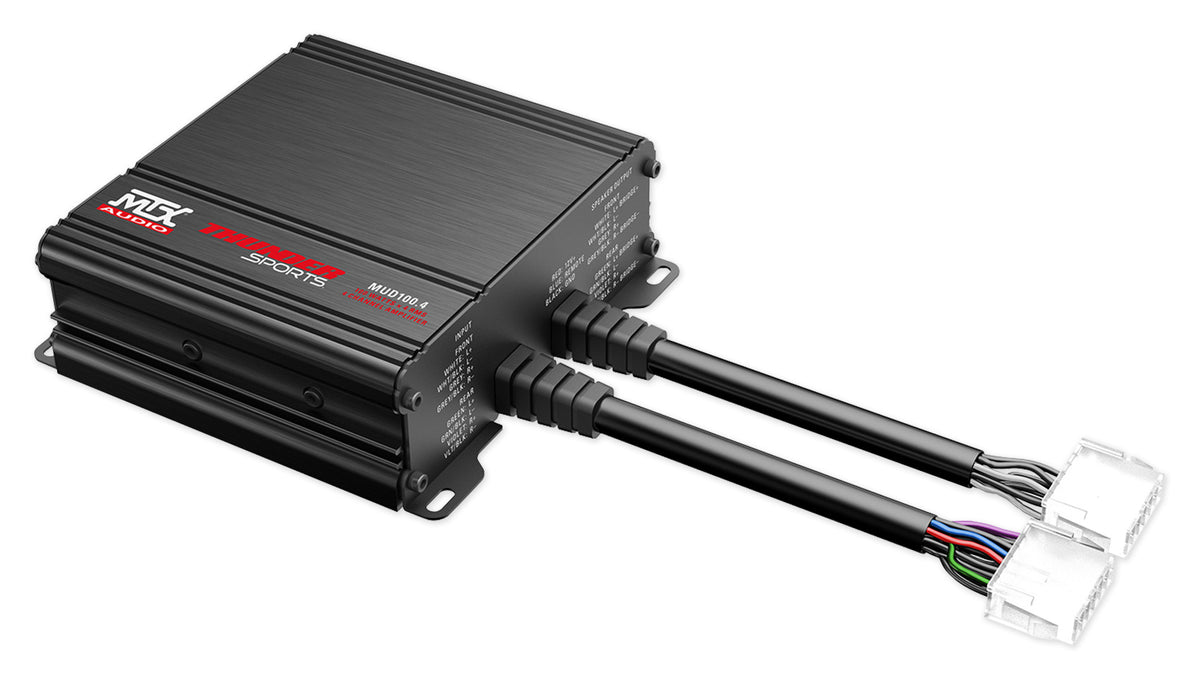

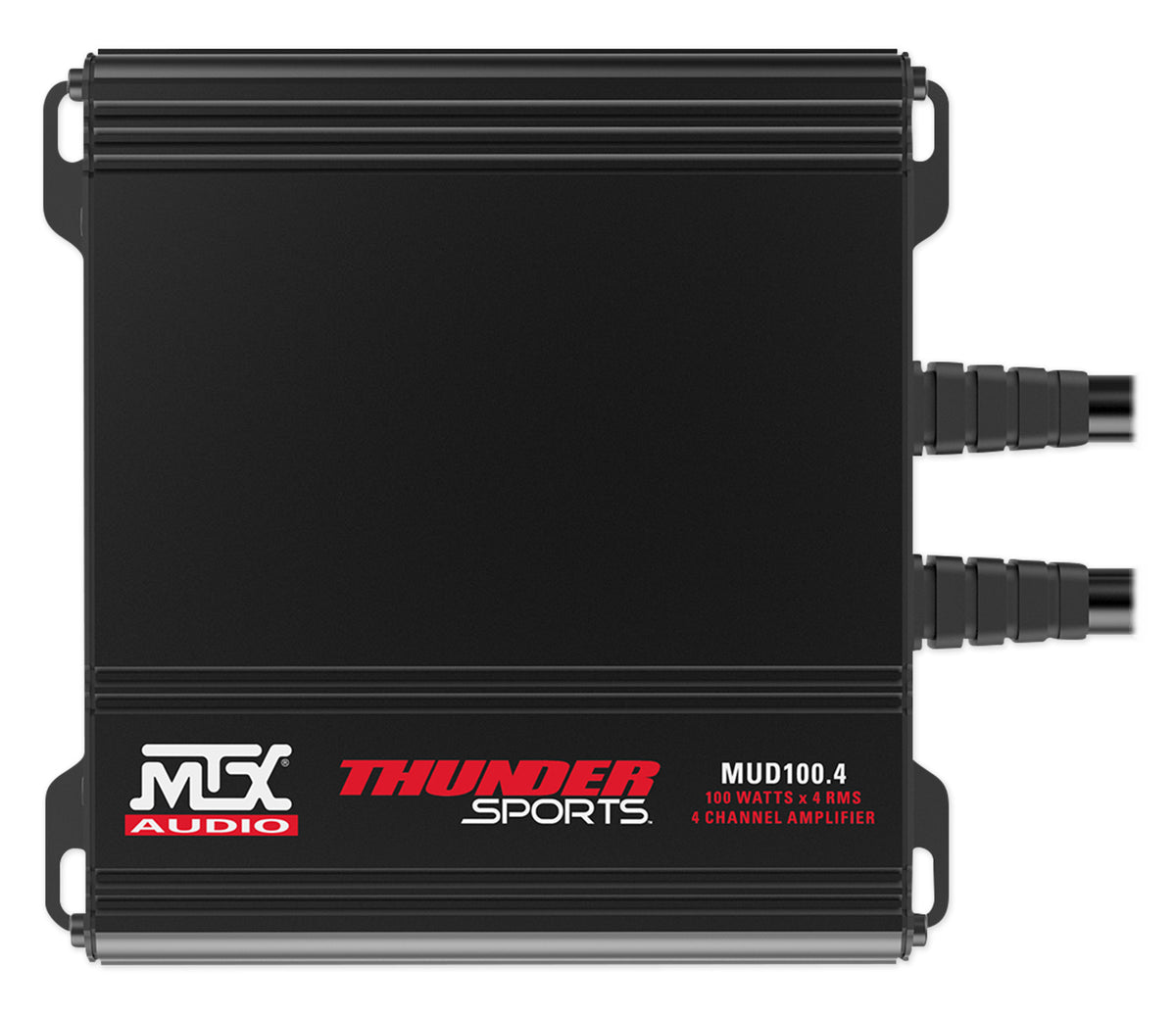

- MUD100.4 4-channel amplifier

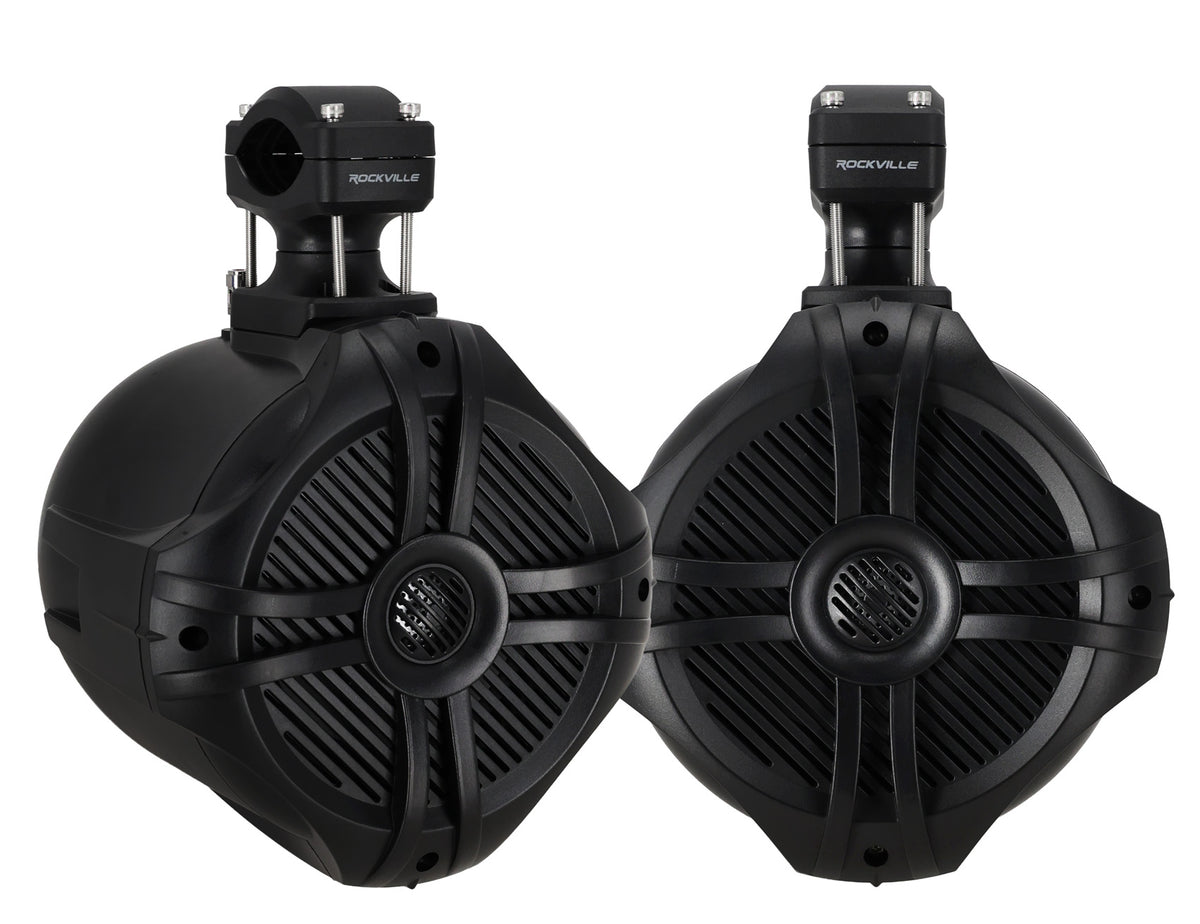

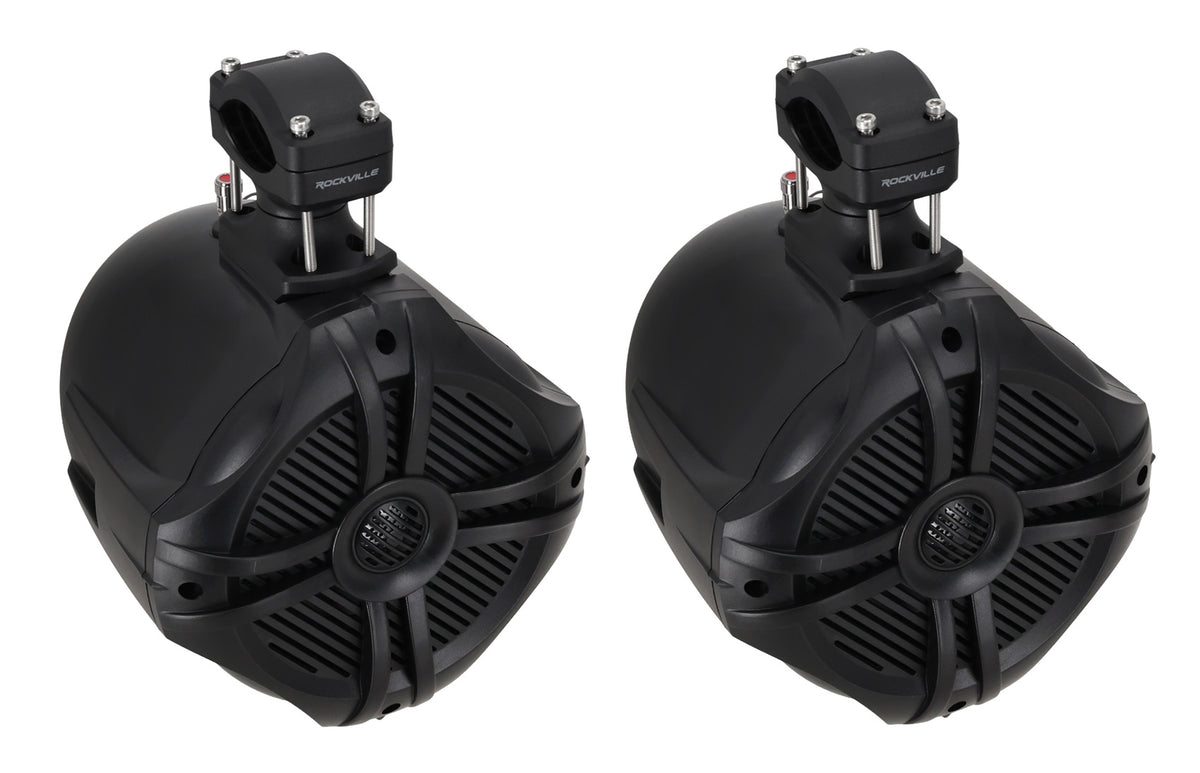

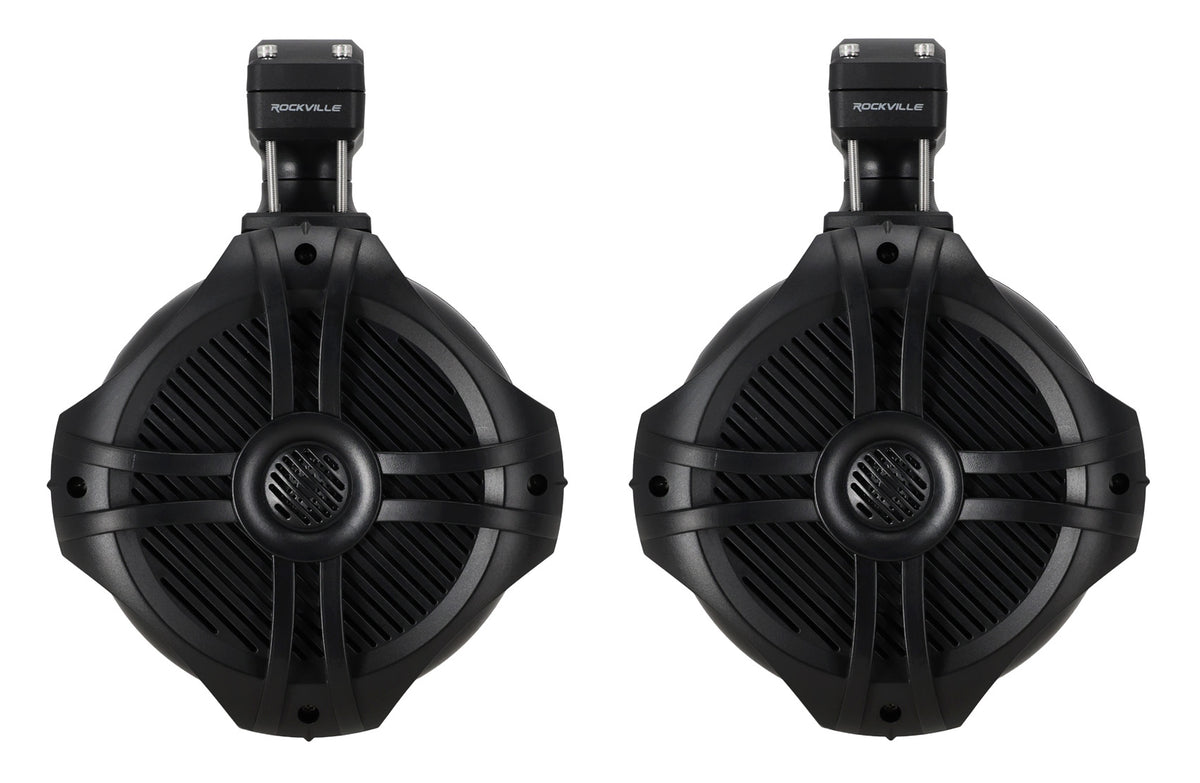

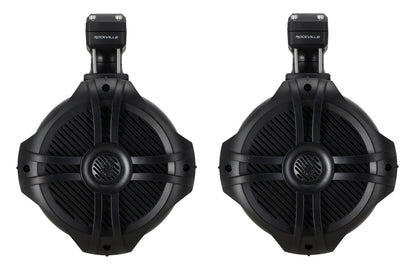

- (2) RWB70B 6.5-inch wakeboard speakers

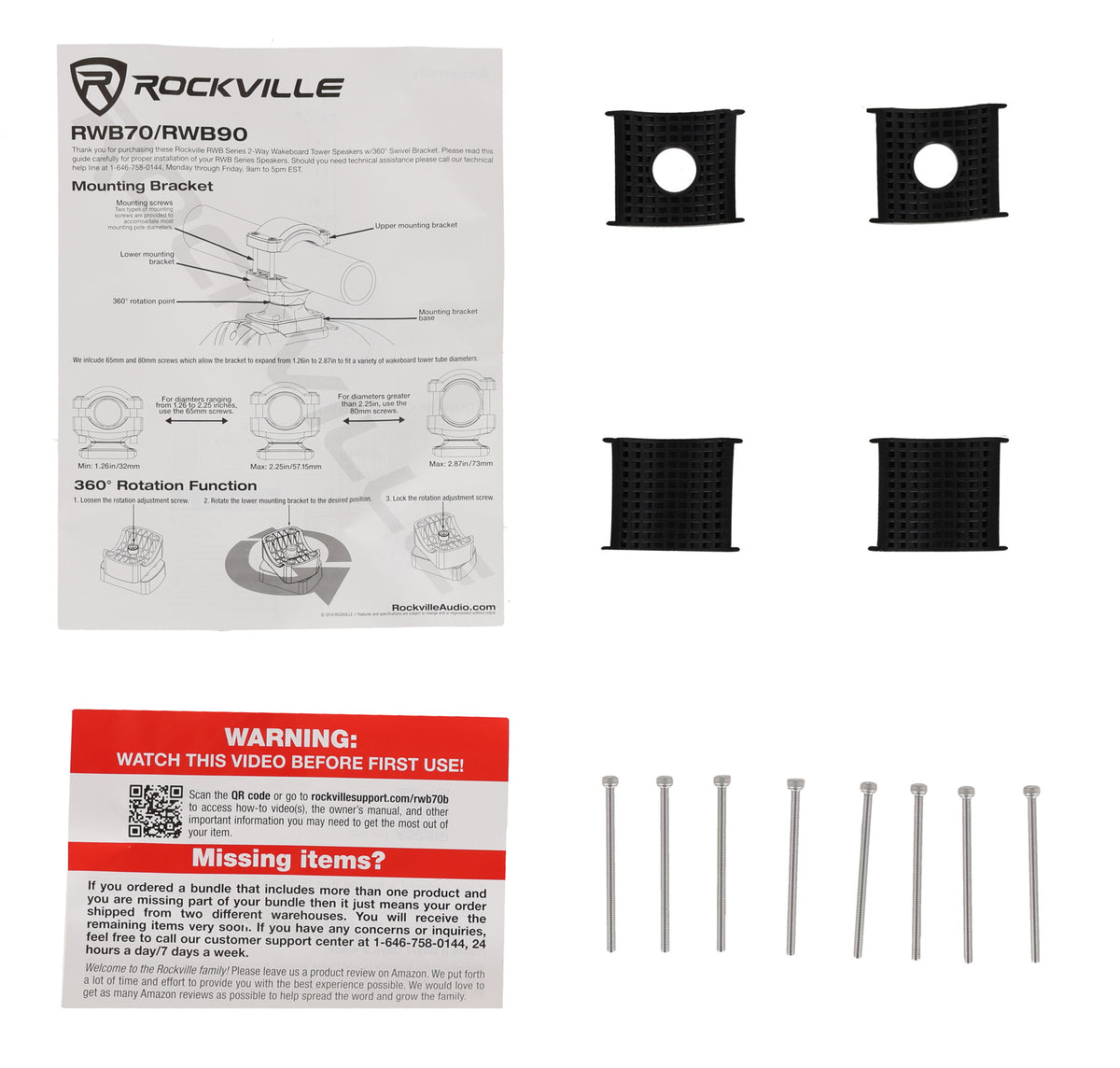

- (2) 360-degree swivel mounting brackets
- Integrated speaker grilles and mounting hardware
SKU: SKU: RZRSYSTEM1+RWB65B+MUD100.4
View full details











Product Description
Features
Neat Dash Installation
AWMC3 receiver fits the dash with the direct-fit kit, while the molded speaker pods mount without cutting or drilling into the vehicle.
Easy On-Dash Control
Bluetooth streaming, AM/FM/WB tuning and a 3-inch color display put playback and radio controls at the dash, with backlit buttons for low-light rides.
Extra Amplification
MUD100.4 supplies 50 W RMS per channel at 4 ohms or 100 W at 2 ohms, using a class D design in a compact chassis.
Adjustable Speaker Aim
Two 6.5-inch RWB70B speakers handle 150 W RMS each; 360-degree brackets fit bars from 1.26 to 2.87 inches and let riders aim sound.
Outdoor-Ready Construction
IP66-rated receiver and amplifier, marine-ready speaker materials and stainless-steel terminals suit rides where spray, dust and weather exposure are part of the trip.
Technical Specifications
- Product Type RZR Audio System Bundle
- Vehicle Fitment 2014-2018 RZR XP1000/900
- Receiver Model AWMC3
- Display 3 in full-color TFT
- Tuner AM/FM/WB
- Audio Streaming Bluetooth
- Receiver Amplifier 4 x 50 W
- Preouts 2 sets, front/rear
- Receiver Weather Resistance IP66
- Dash Speaker Pod Model RZRPOD65
- Dash Speaker Size 6.0 in
- Amplifier Model MUD100.4
- Amplifier Power at 4 Ohms 50 W x 4 channels RMS
- Amplifier Power at 2 Ohms 100 W x 4 channels RMS
- Bridged Power at 4 Ohms 200 W x 2 channels RMS
- Peak Power Handling 400 W
- Amplifier Topology Full-range Class D
- Amplifier Weather Resistance IP66
- THD Under 0.2%
- Amplifier Frequency Response 10 Hz to 32 kHz
- Crossover Fixed HPF/LPF at 80 Hz, 12 dB/octave
- Maximum Sensitivity 200 mV
- Maximum Input Signal 5 V
- Speaker Model RWB70B
- Speaker Quantity 2
- Speaker System 6.5 in two-way
- Speaker RMS Power Handling 150 W each, 300 W pair
- Speaker Peak Power Handling 250 W each, 500 W pair
- Speaker Frequency Response 70 to 20,000 Hz
- Sound Pressure Level 96 dB at 1 W/1 m
- Speaker Impedance 4 ohms
- Speaker Mounting Depth 9 in
- Compatible Bar Diameter 1.26 to 2.87 in
- Speaker Brackets 360-degree swivel, nylon with embedded steel
- Mounting Hardware Stainless steel
- Dimensions MUD100.4 amplifier: 6.52 x 5.51 x 1.86 in (H x W x D)
