MTX

S6510-44 10-Inch 500W RMS Subwoofer System Bundle

Name: S6510-44 10-Inch 500W RMS Subwoofer System Bundle
Brand: MTX
SKU: S6510-44+db12+RWK41+RSVK10+K1
Price: 472.85 USD
Availability: OutOfStock

10" 500W RMS Square Subwoofer, 500W RMS Mono Amp, Vented Enclosure, 4-Gauge Wiring Kit

Free Shipping

$472.85

$472.85 ~~$714.92~~

Save 33%

Shipping calculated at checkout.

Features

500W RMS sub and mono amp are matched within the sub's recommended power range
10-inch square cone with dual 4-ohm voice coils
26Hz to 130Hz frequency response and 84.5 dB sensitivity
Vented 1.10 cu ft enclosure tuned to 37Hz
4-gauge wiring kit, 14 AWG speaker wire, screws, and spade terminals included

30-Day Money-Back Guarantee

Fast & Free Shipping

Buy Now, Pay Later

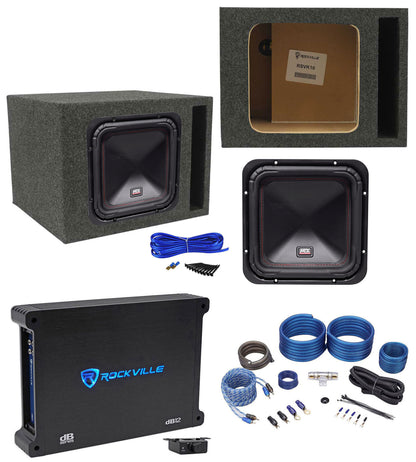

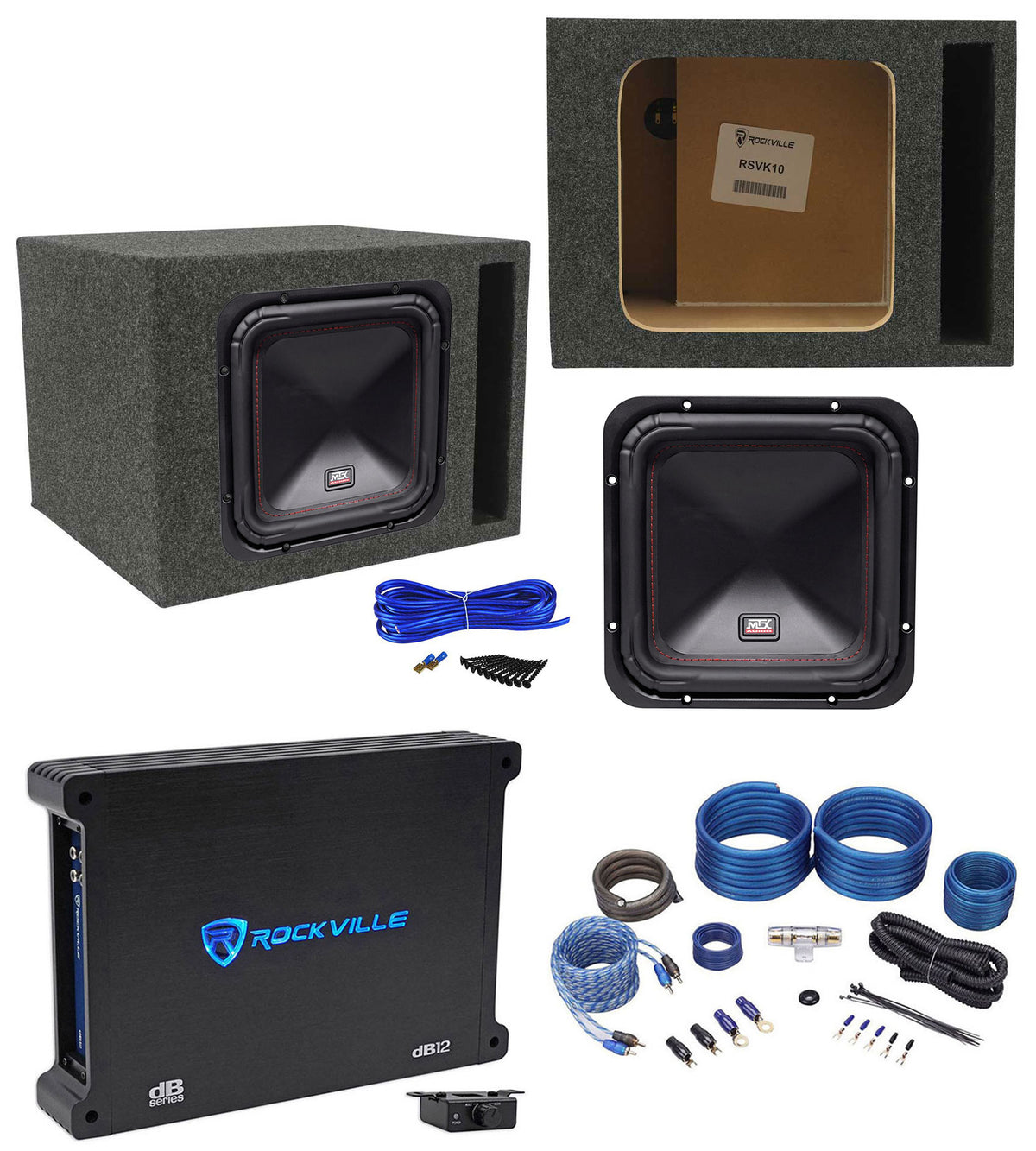

What's Included in the box

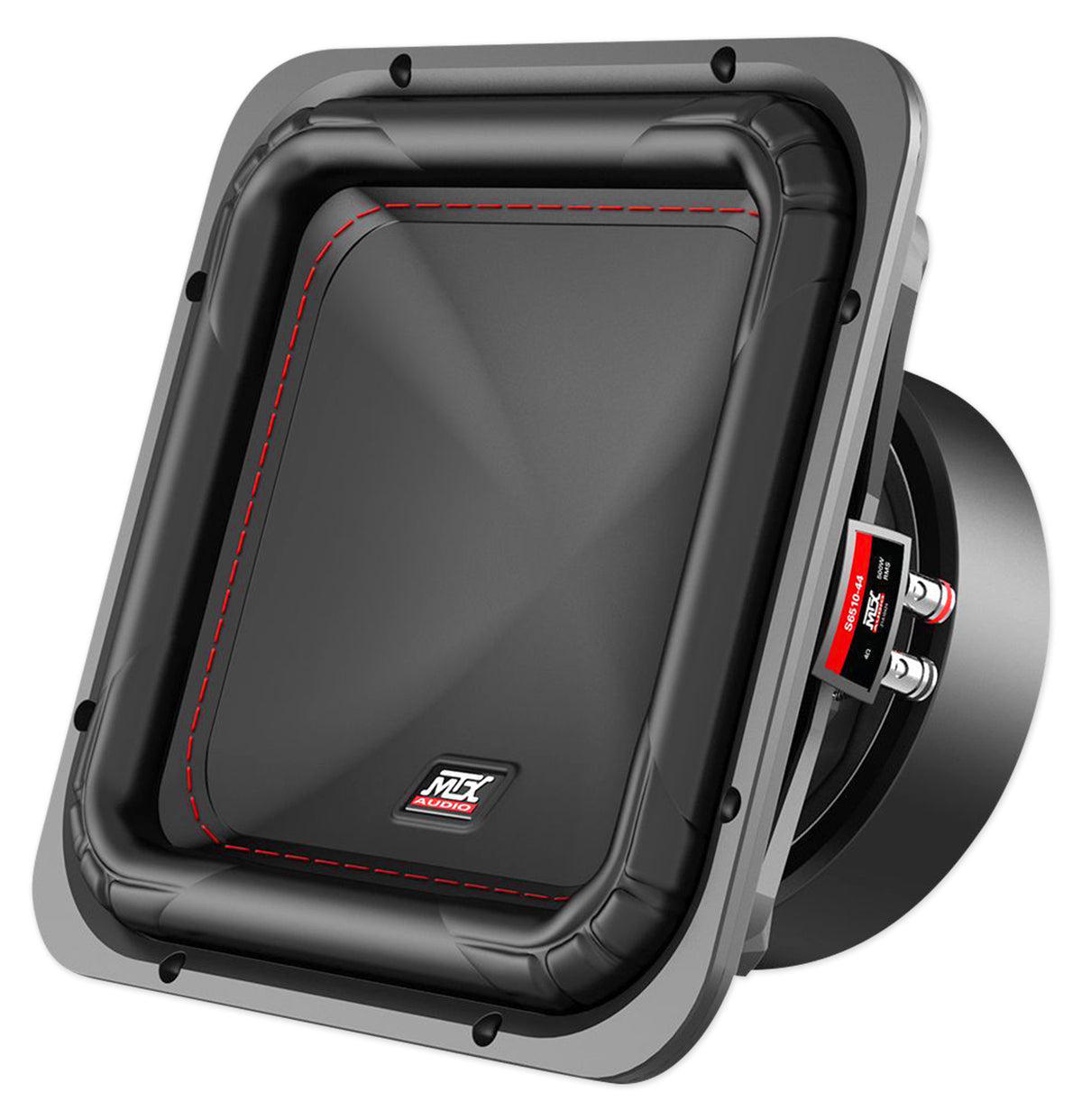

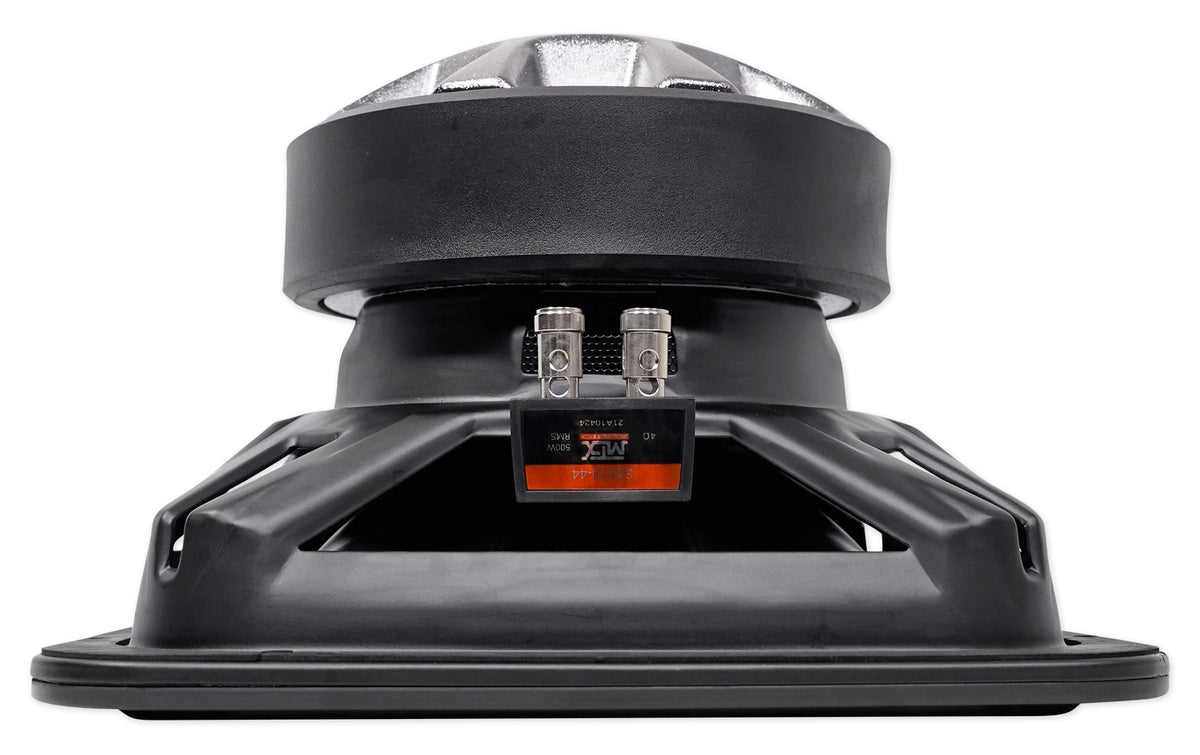

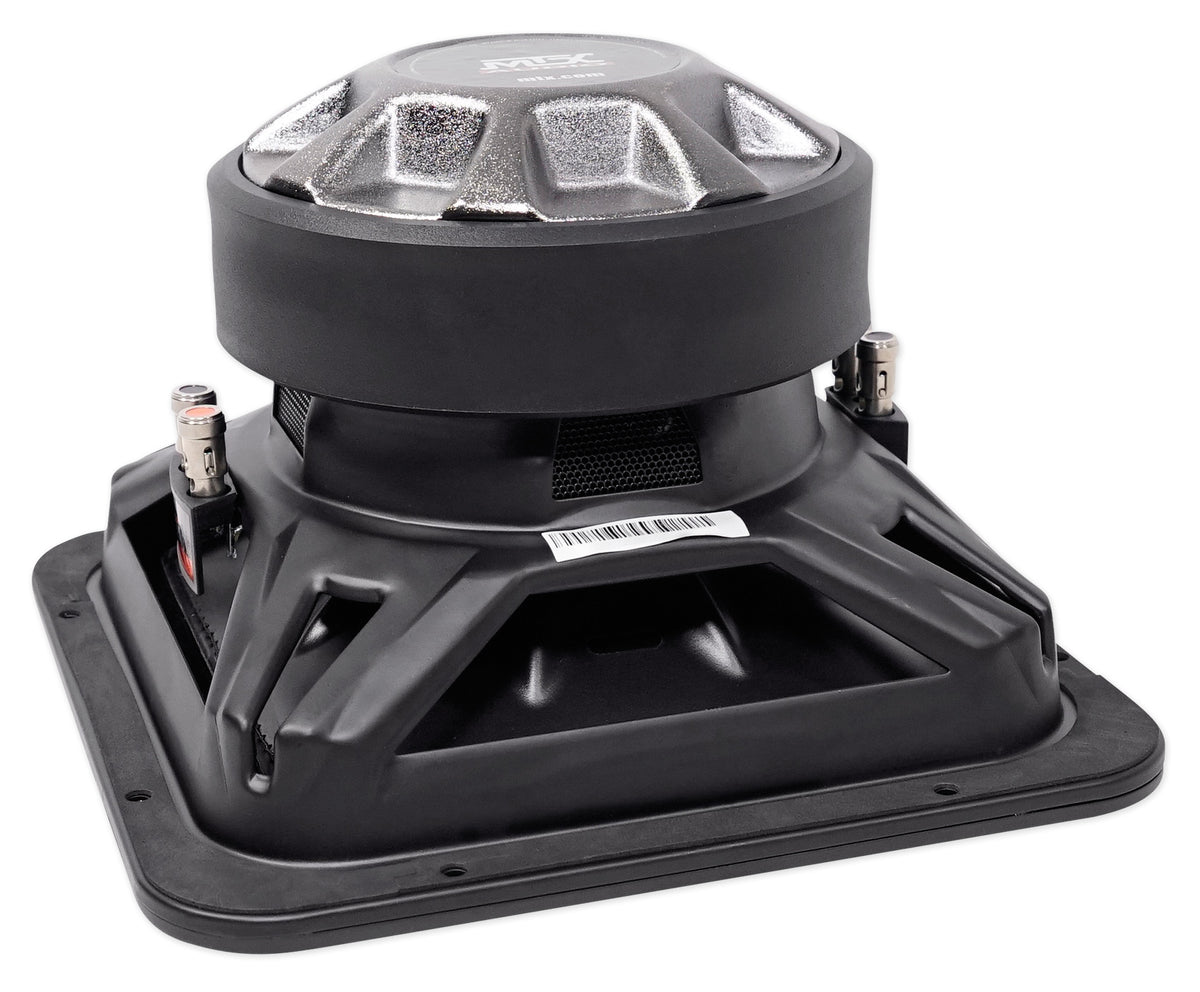

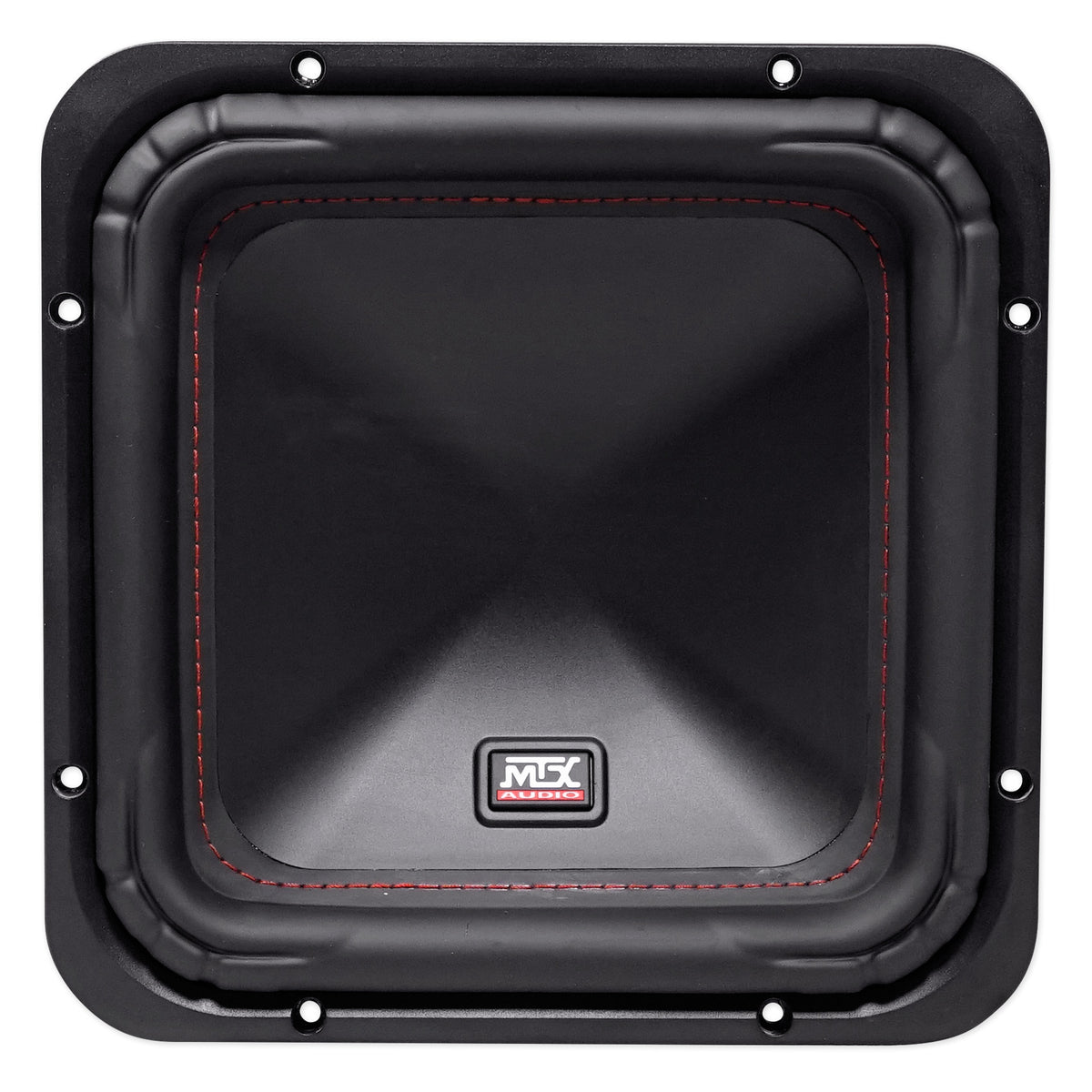

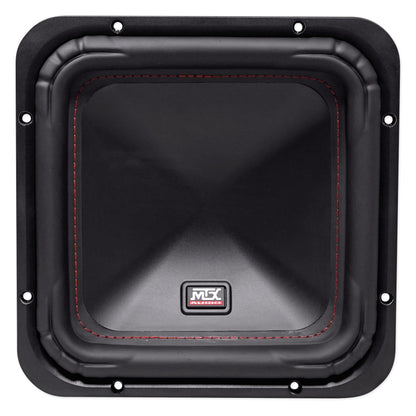

(1) S6510-44 10-inch dual 4-ohm square subwoofer

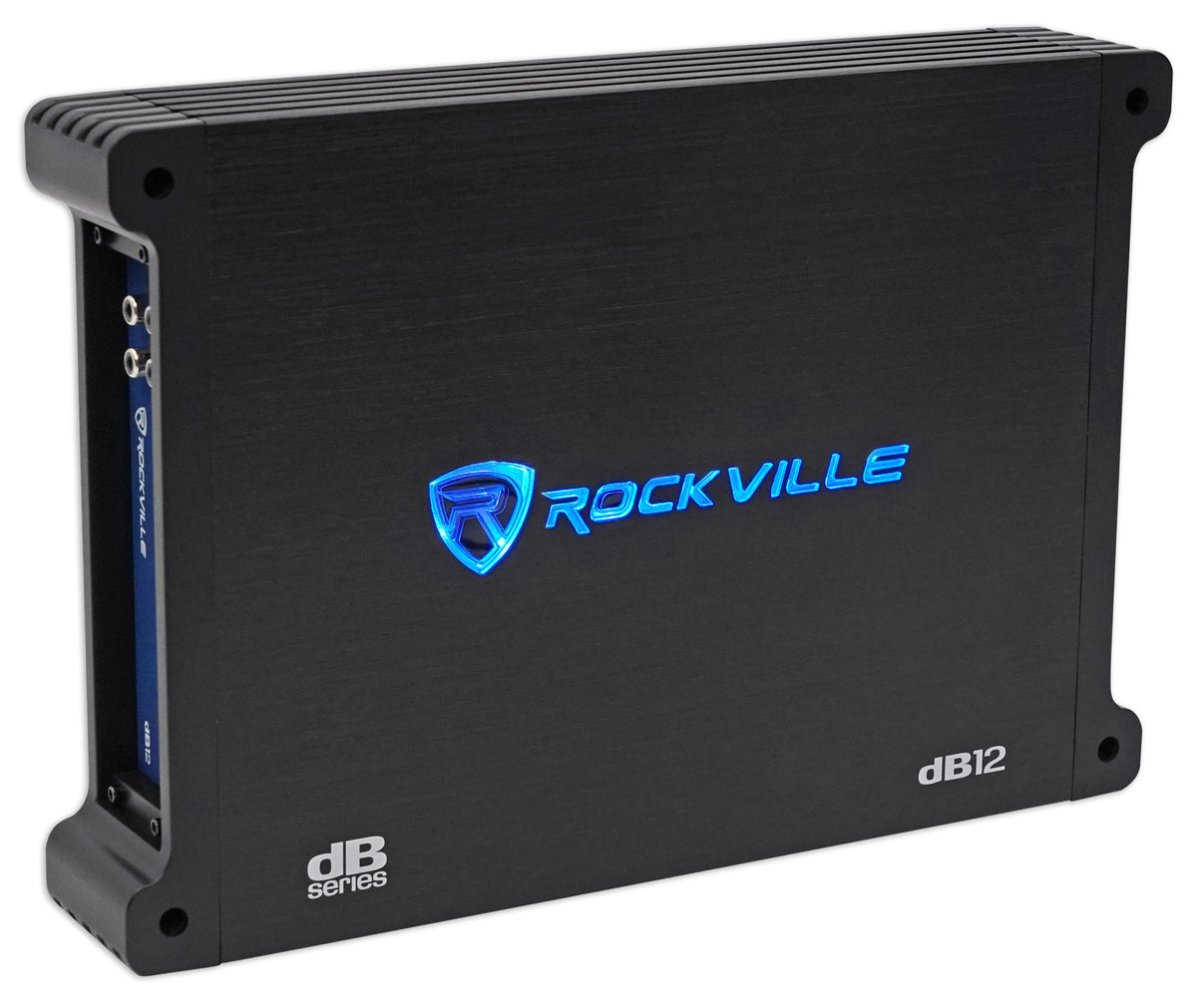

(1) dB12 500W RMS mono amplifier, 2-ohm

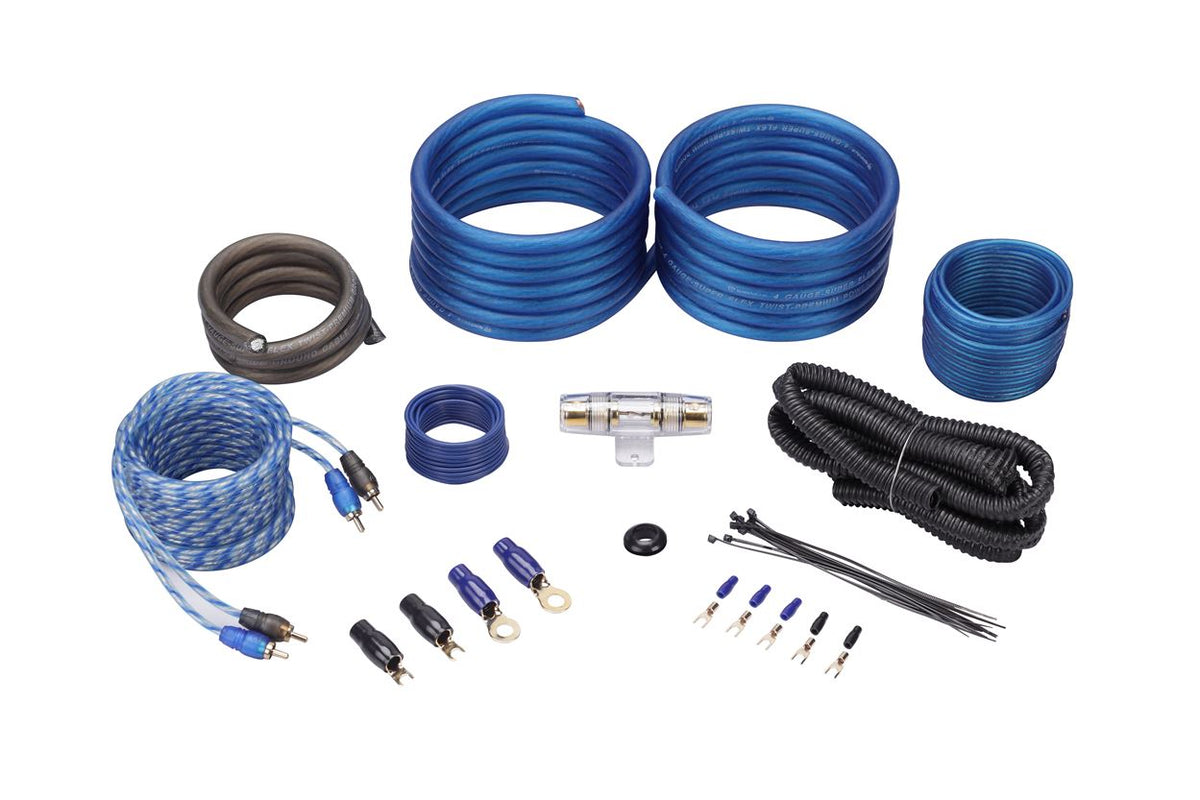

(1) RWK41 4-gauge amp wiring kit: 17 ft 4-gauge blue power cable, 3 ft 4-gauge black ground cable, 17 ft 18-gauge remote cable, 17 ft 16-gauge blue cable, 17 ft 100% copper twisted-pair RCA cable, fuse holder, AGU fuse, 7 ft split loom, wire ties, ring terminals, butt connectors, spades, and grommets

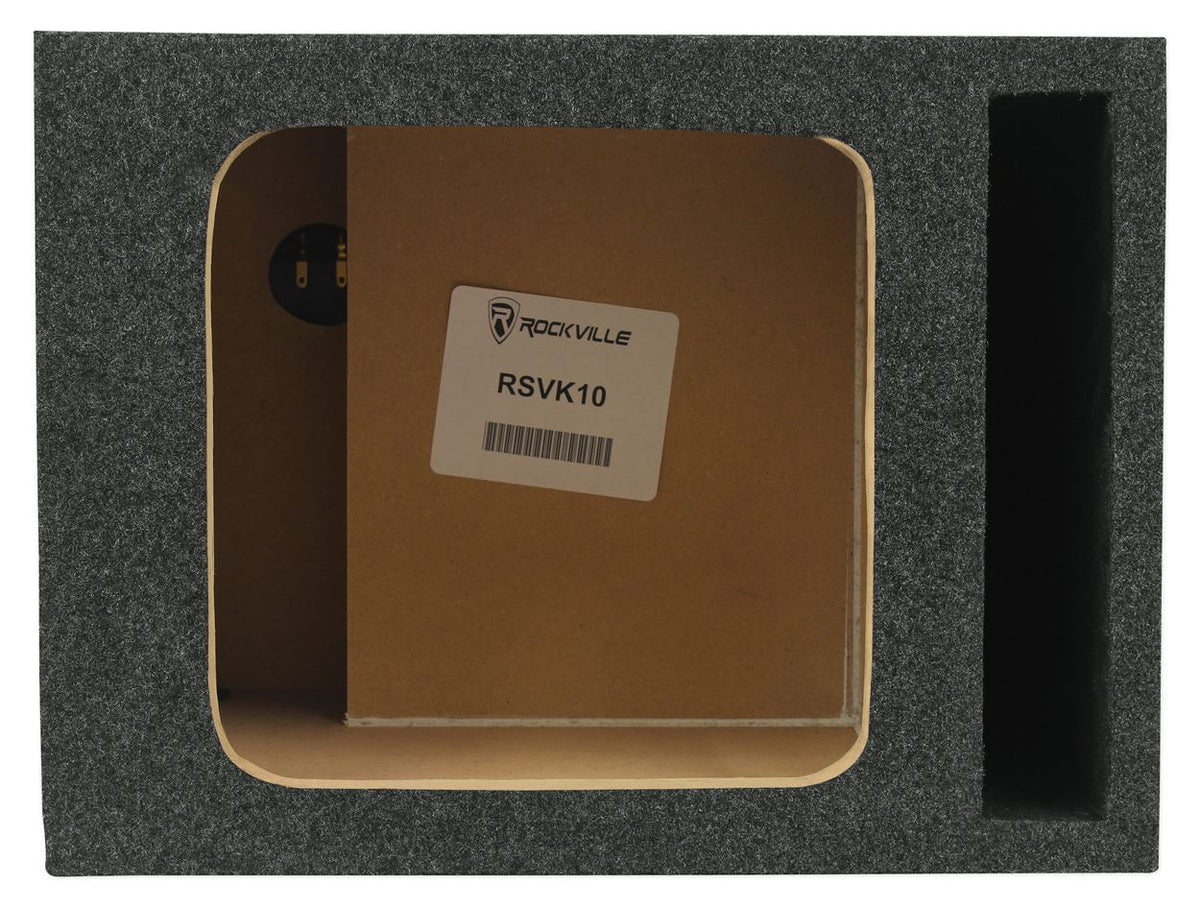

(1) RSVK10 10-inch ported enclosure

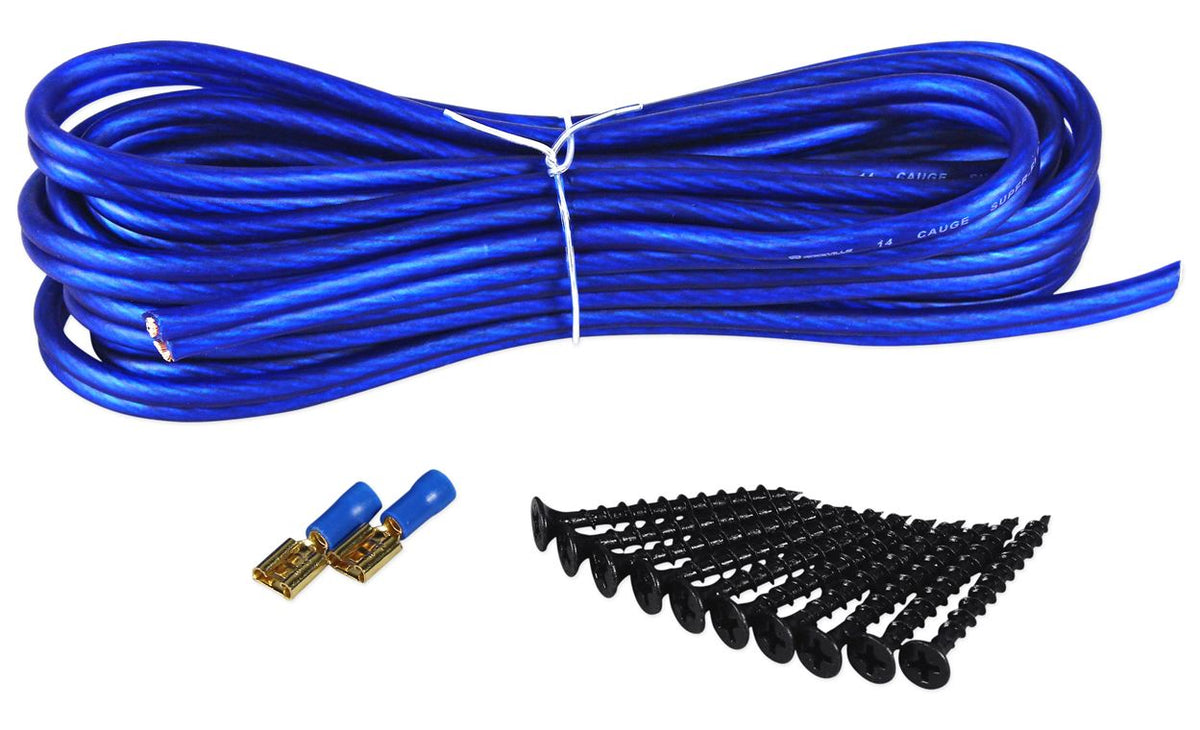

(10) Metal drywall screws
(12 ft) 14 AWG blue speaker wire
(2) Spade terminals

SKU: SKU: S6510-44+db12+RWK41+RSVK10+K1

View full details

Product Description

Build a complete in-car bass system around the S6510-44 10-inch square subwoofer, paired with a 500W RMS mono amplifier, vented enclosure, and installation wiring. The sub handles 500W RMS, has dual 4-ohm voice coils, and covers 26Hz to 130Hz. Its square design provides more surface area than a standard round subwoofer, while patented corner geometry increases Xmax and volume displacement. Spider Plateau Venting directs cool air toward the voice coil, and the radial ribbed T-yoke releases heat through the back plate. The 500W RMS amplifier is rated at 2 ohms, matching the subwoofer's recommended 250W to 500W RMS amp range when its dual coils are wired in parallel for a 2-ohm load. The included 4-gauge wiring kit, 10-inch ported enclosure tuned to 37Hz, 14 AWG speaker wire, and terminals cover key installation components for a custom car-audio setup.

Features

Power Range Match
At a 2-ohm load, the 500W RMS mono amp sits within the subwoofer's recommended 250W to 500W RMS range for matched low-frequency power.
More Cone Area
A square cone provides greater surface area than a standard round subwoofer, and corner geometry increases Xmax and volume displacement for higher output.
Coil Cooling Features

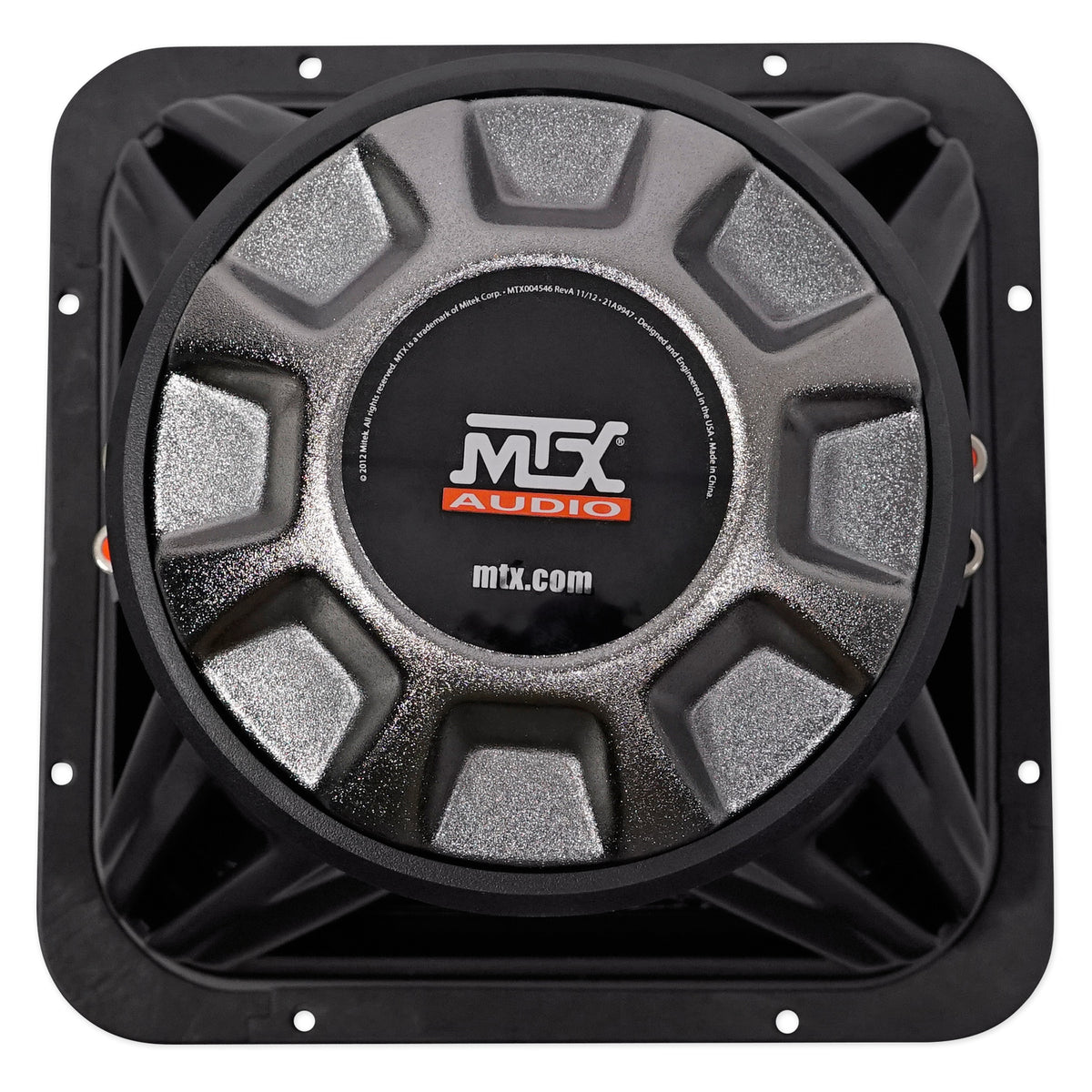

Spider Plateau Venting targets cool air at the voice coil, while the radial ribbed T-yoke carries heat through the back plate to reduce thermal stress during loud playback.
Cables And Hardware In The Kit
The included 4-gauge kit has 100% copper twisted-pair RCA cable, power and ground leads, remote wire, a fuse, and split loom for a tidy vehicle install.
Vented Box For Low Bass
The single-10-inch ported MDF enclosure offers 1.10 cu ft net volume and 37Hz tuning, giving the sub a specified cabinet for low-frequency playback.

Technical Specifications

Product Type 10 in car subwoofer system bundle
Subwoofer RMS Power Handling 500W
Subwoofer Peak Power Handling 1,000W
Subwoofer Recommended Amplifier Power 250W to 500W RMS
Amplifier RMS Power 500W at 2 ohms
Amplifier Peak Power 2,000W
Subwoofer Impedance Dual 4 ohms
Frequency Response 26Hz to 130Hz
Sensitivity 84.5 dB
Voice Coil Diameter 2 in
Mounting Depth 6.625 in
Cutout Diameter 9.313 in
Volume Displacement 45.65 cu in
Enclosure Type Ported/vented
Enclosure Net Volume 1.10 cu ft
Enclosure Gross Volume 1.6 cu ft
Enclosure Tuning Frequency 37Hz
Enclosure Subwoofer Size Single 10 in
Weight 31 lb (subwoofer only)
Dimensions 16 x 14.25 x 12 in (enclosure only)
