S6510-44 10-Inch Square Subwoofer + 50-25 Sound Deadening Kit
MTX
S6510-44 10-Inch Square Subwoofer + 50-25 Sound Deadening Kit
S6510-44 10-Inch Square Subwoofer + 50-25 Sound Deadening Kit
10-Inch Square Car Subwoofer, 500W RMS, 50 Sq Ft Sound Deadening Kit Included
Free Shipping
Features
- 10-inch square cone design provides added surface area for high-output bass
- 500W RMS handling pairs with amplifiers rated from 250W to 500W RMS

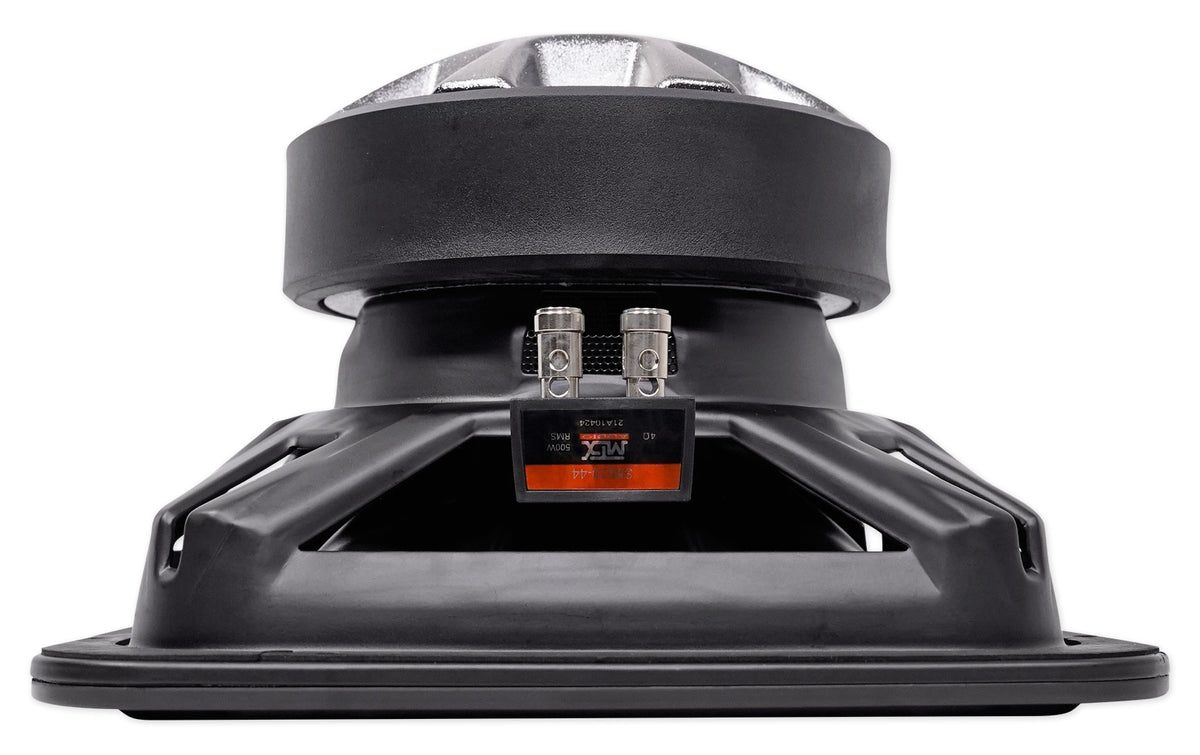

- Dual 4-ohm voice coils offer wiring options for system planning

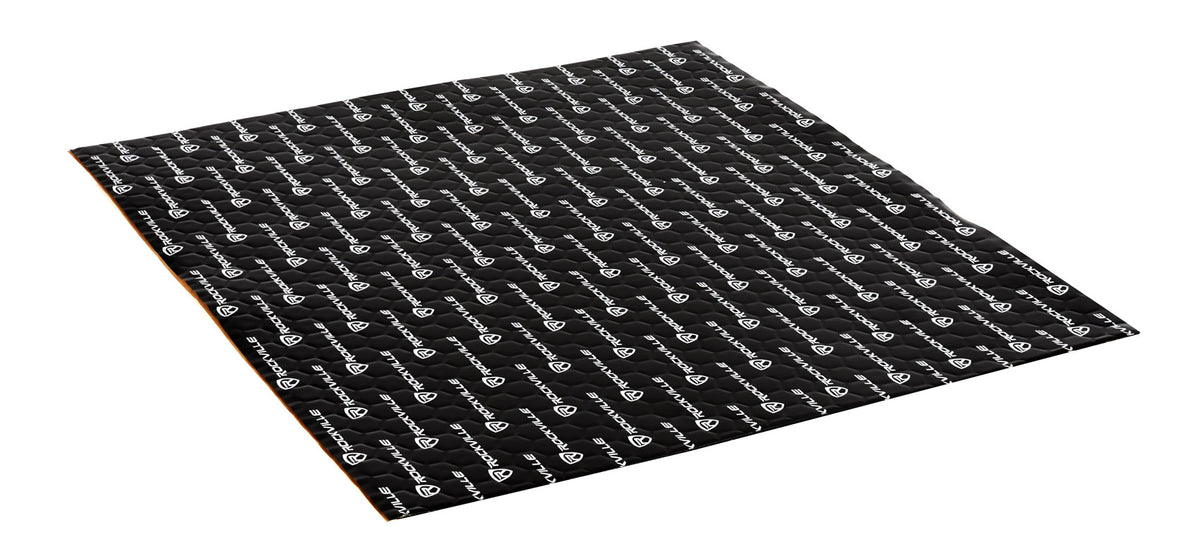

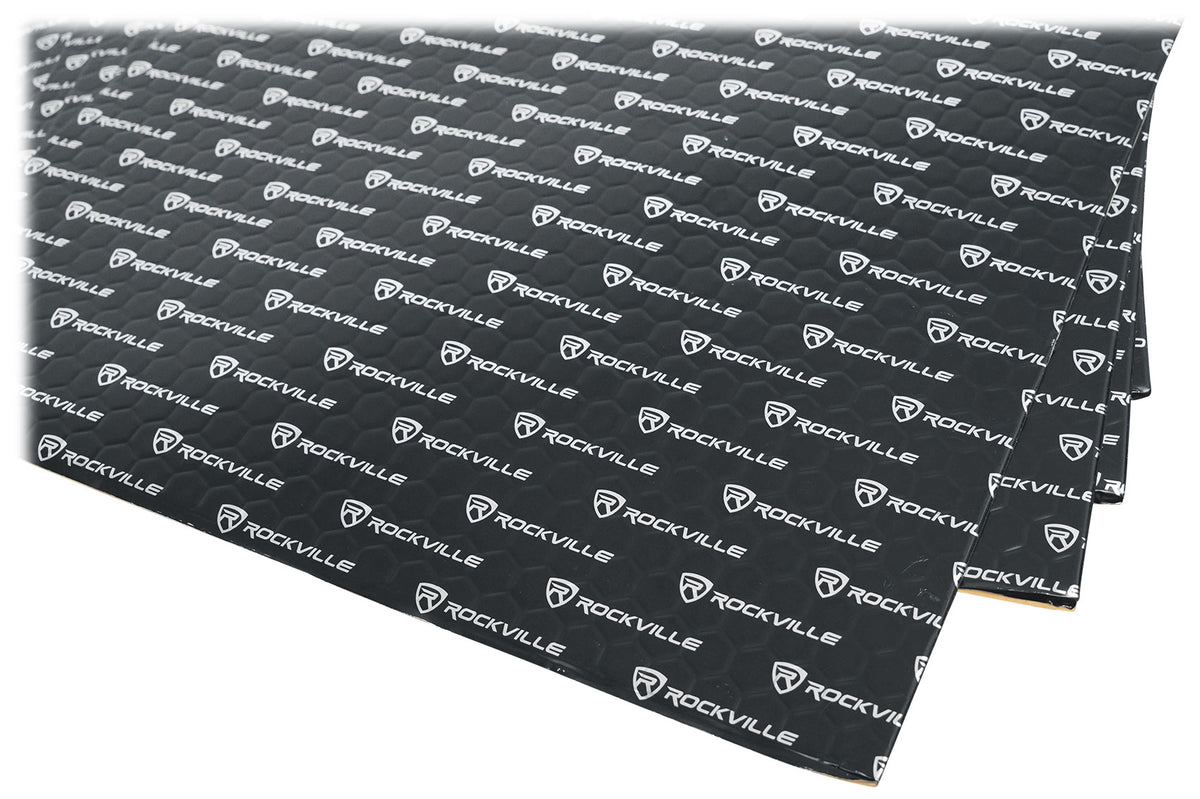

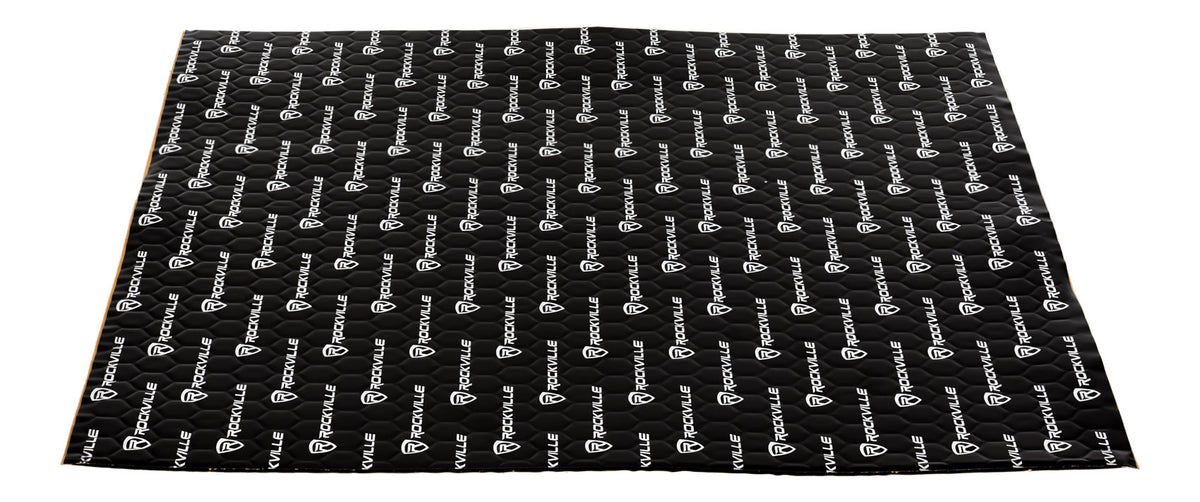

- 50 sq ft of 100-mil sound deadening material comes as twenty sheets

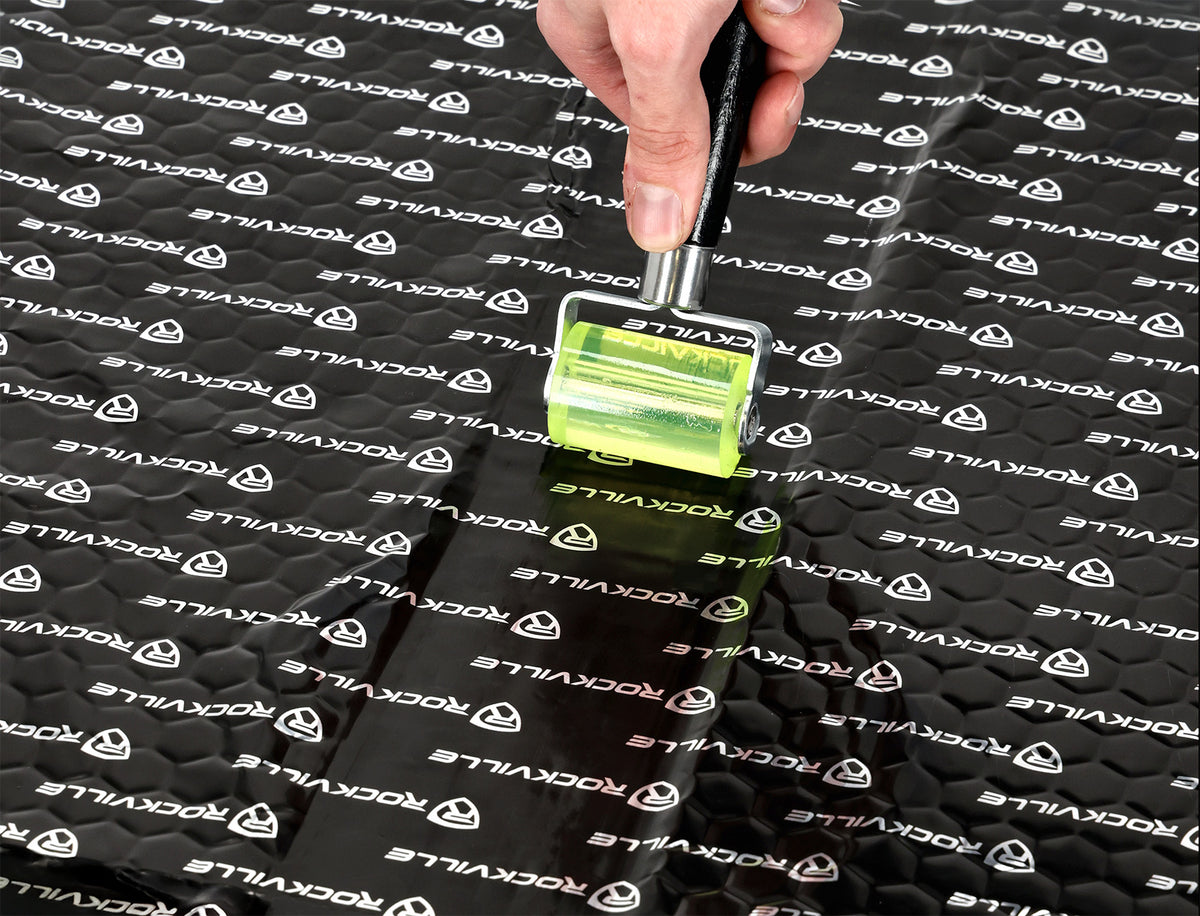

- A wood-and-steel roller is included for pressing the deadener into place
Couldn't load pickup availability

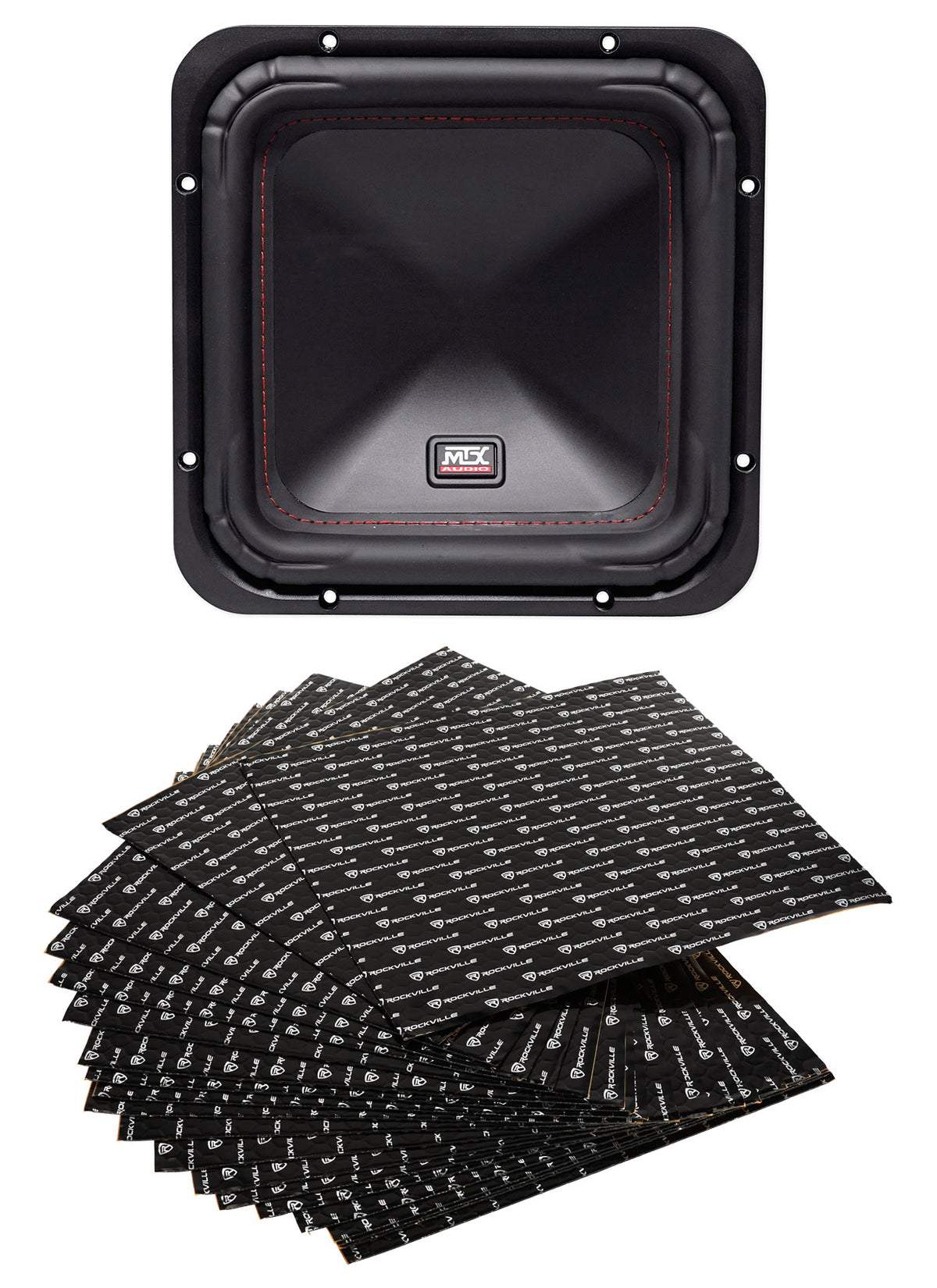

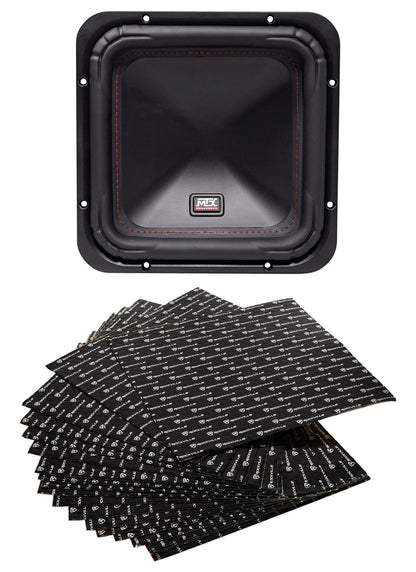

What's Included in the box

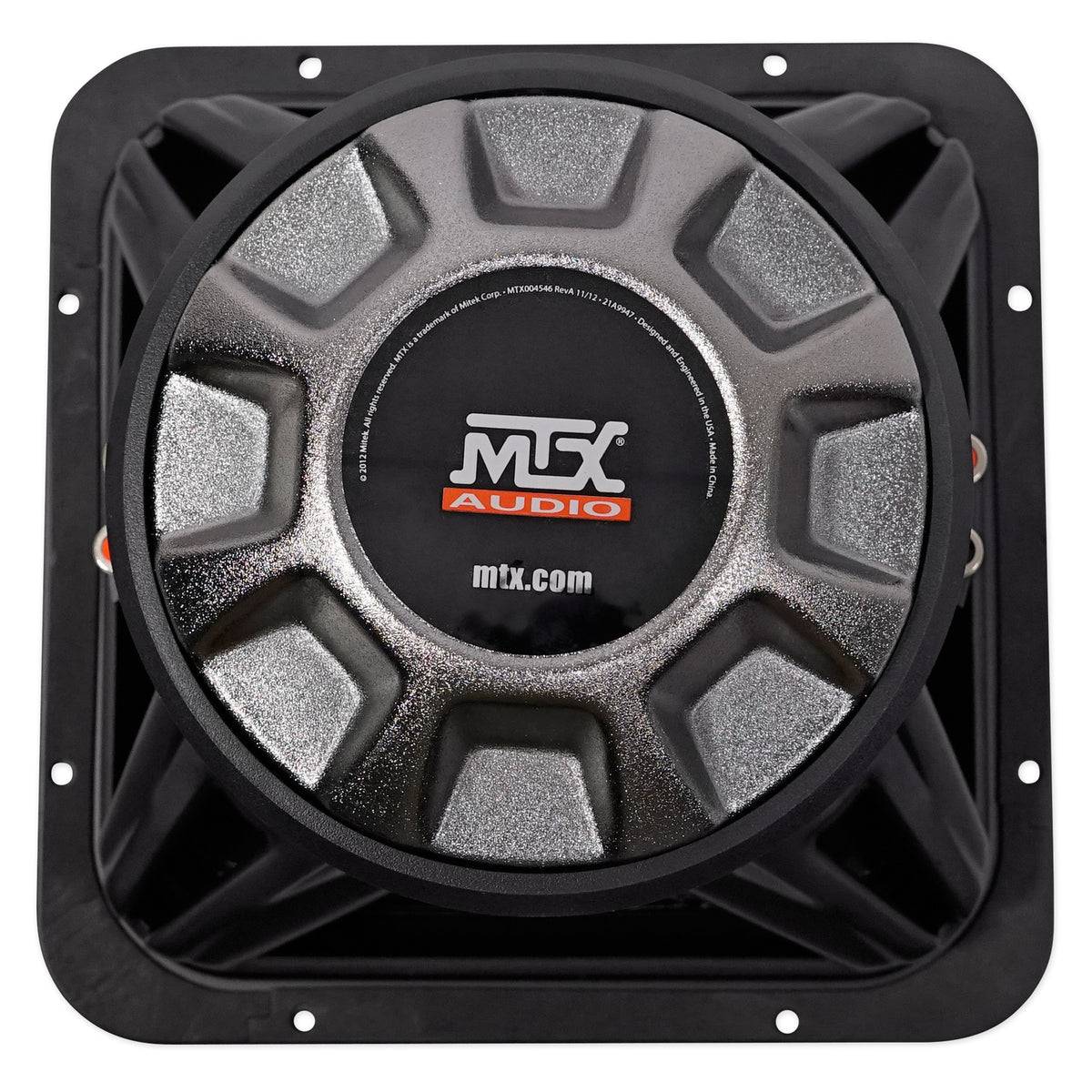

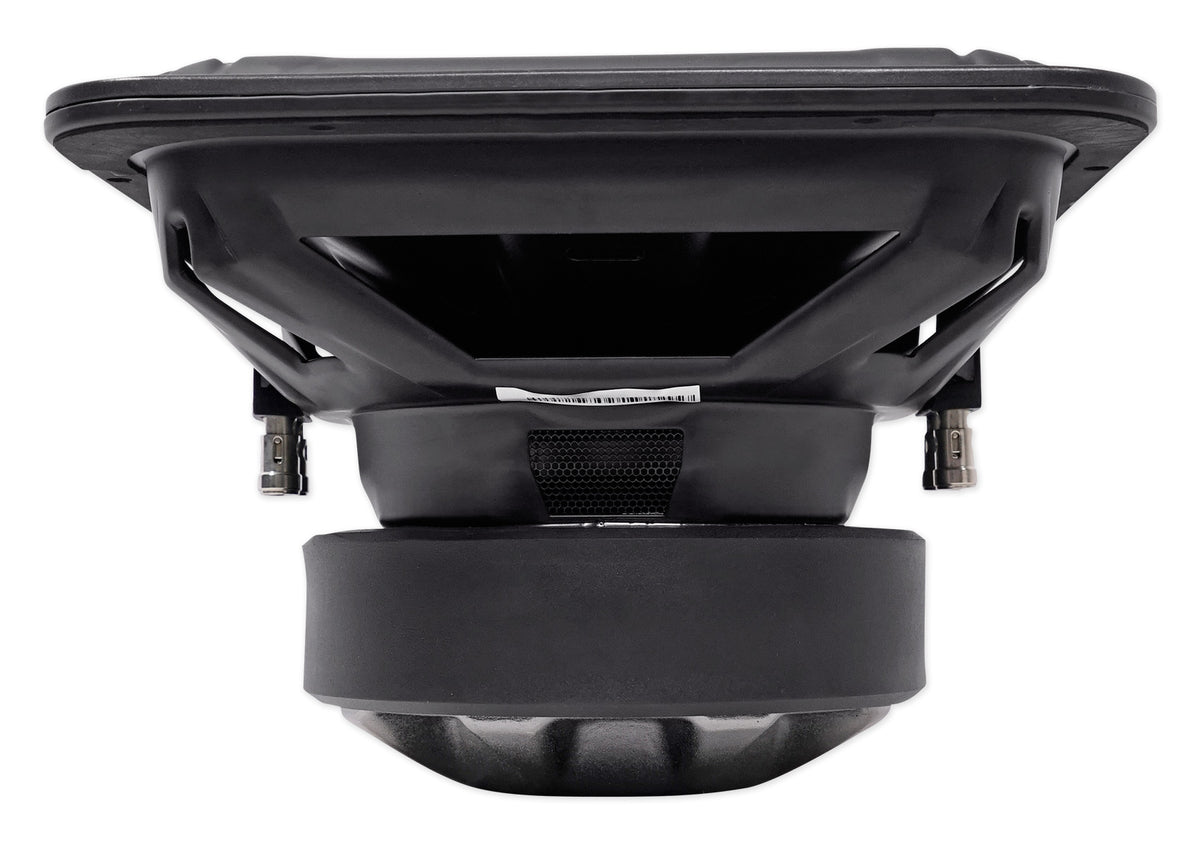

- (1) S6510-44 10-Inch Square Car Subwoofer

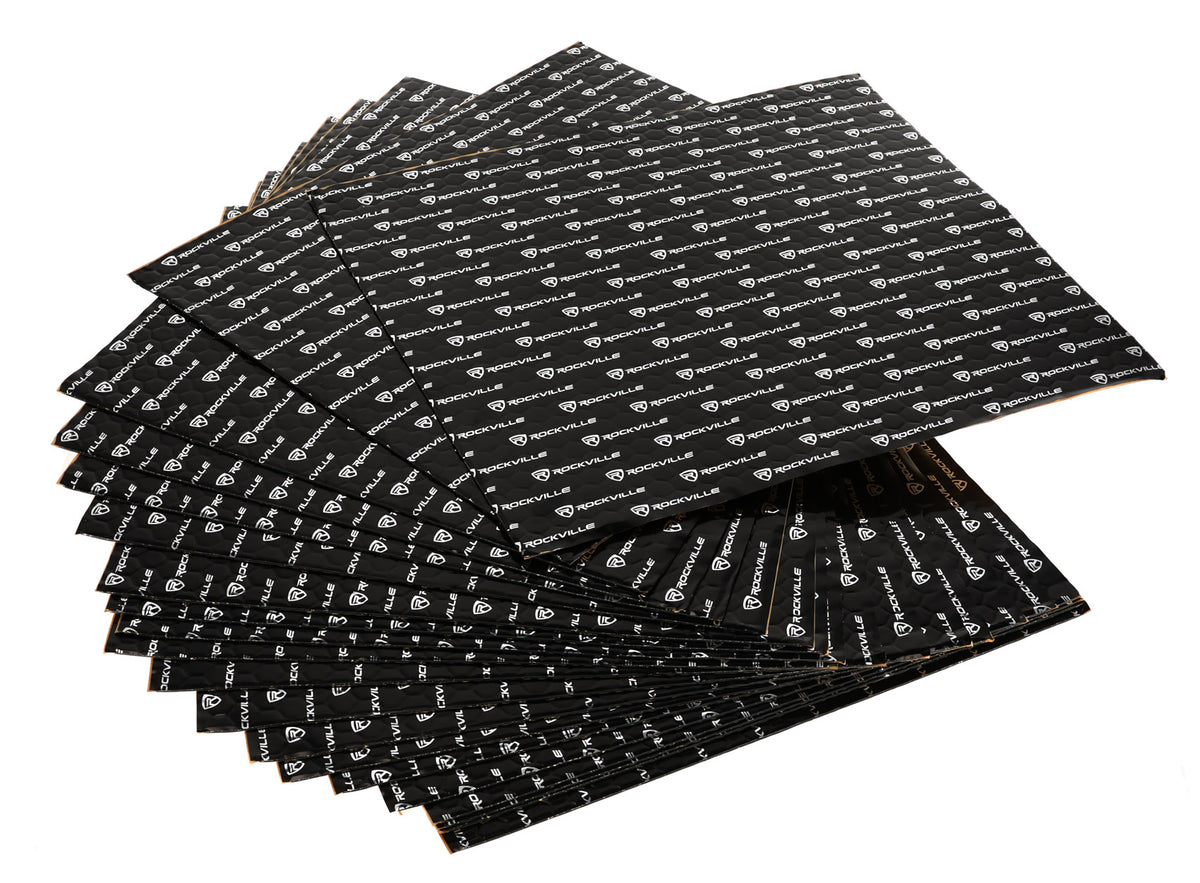

- (1) 50-25 Sound Deadening Kit, 20 Sheets, 50 Sq Ft
- (1) Wood-and-Steel Installation Roller
SKU: SKU: S6510-44+ROCKMAT 50-25
View full details

















Product Description
Features
Deep Bass for Car Audio
With 500W RMS handling and a 26Hz to 130Hz response, the 10-inch square subwoofer covers deep bass for custom car-audio systems.
Flexible System Wiring
Dual 4-ohm voice coils give installers wiring options when matching the subwoofer to an amplifier and planning a vehicle audio system.

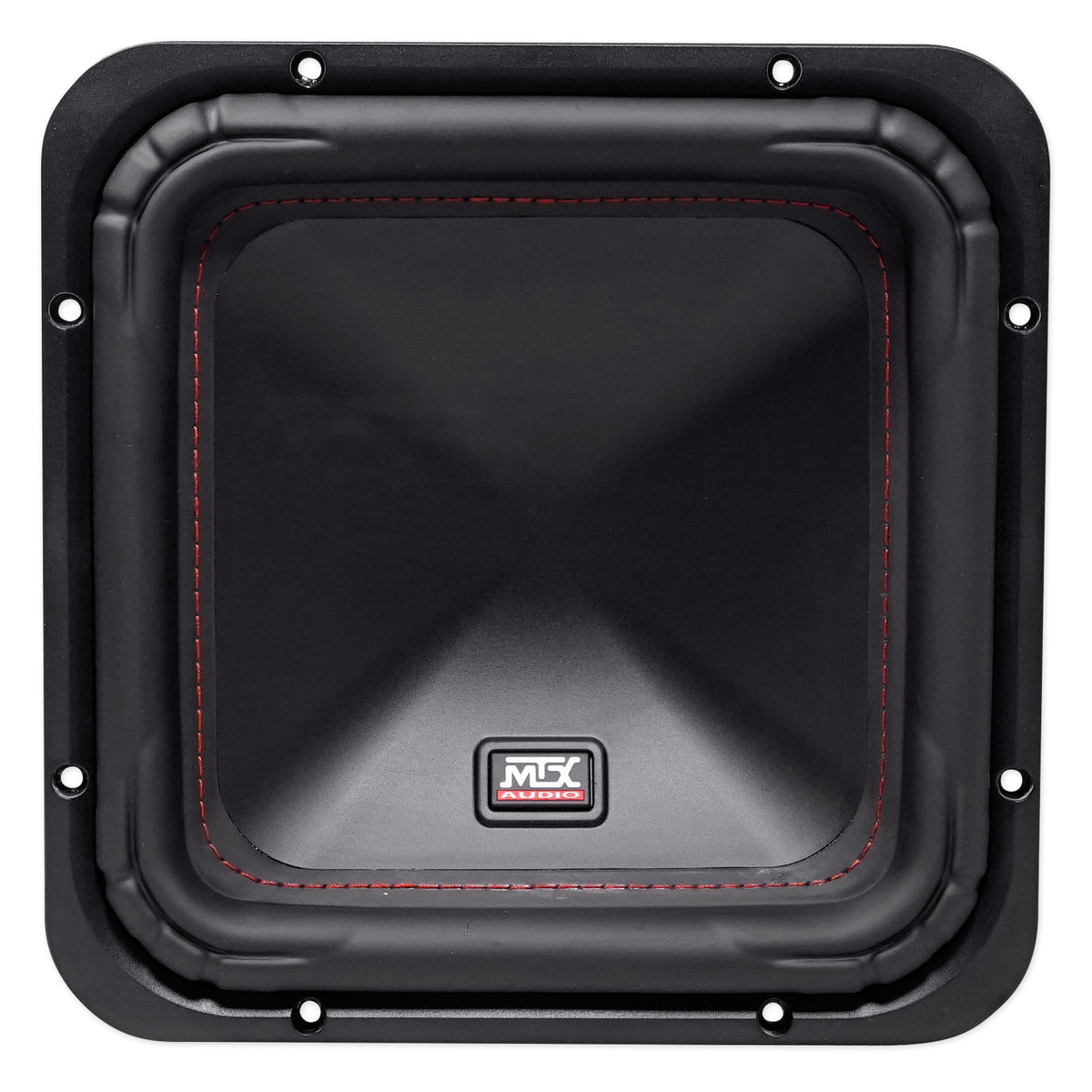

More Cone Area

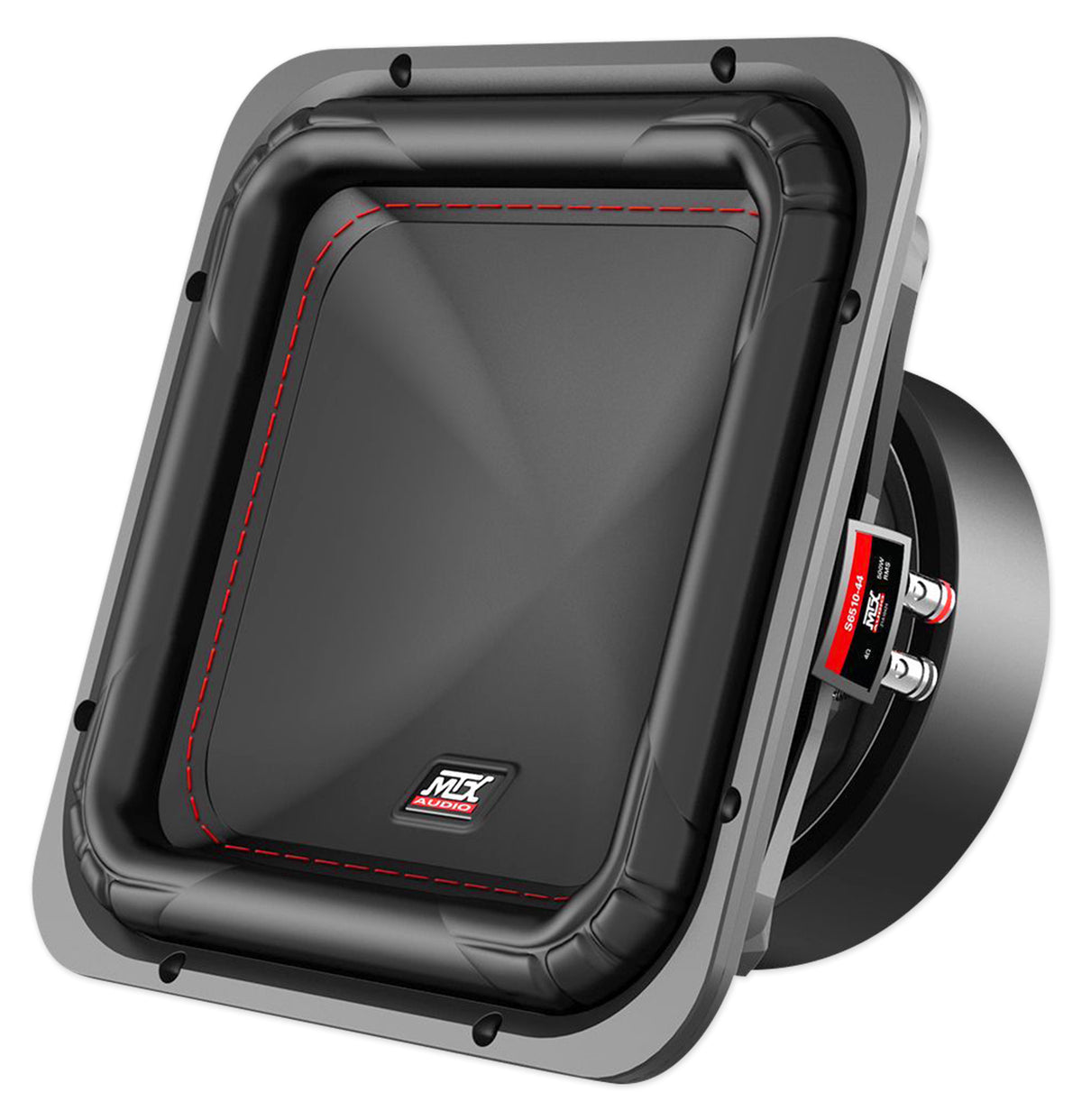

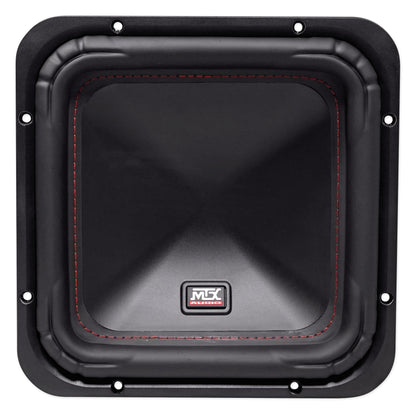

The square cone offers more surface area than a standard round design, while patented surround geometry increases excursion and volume displacement.

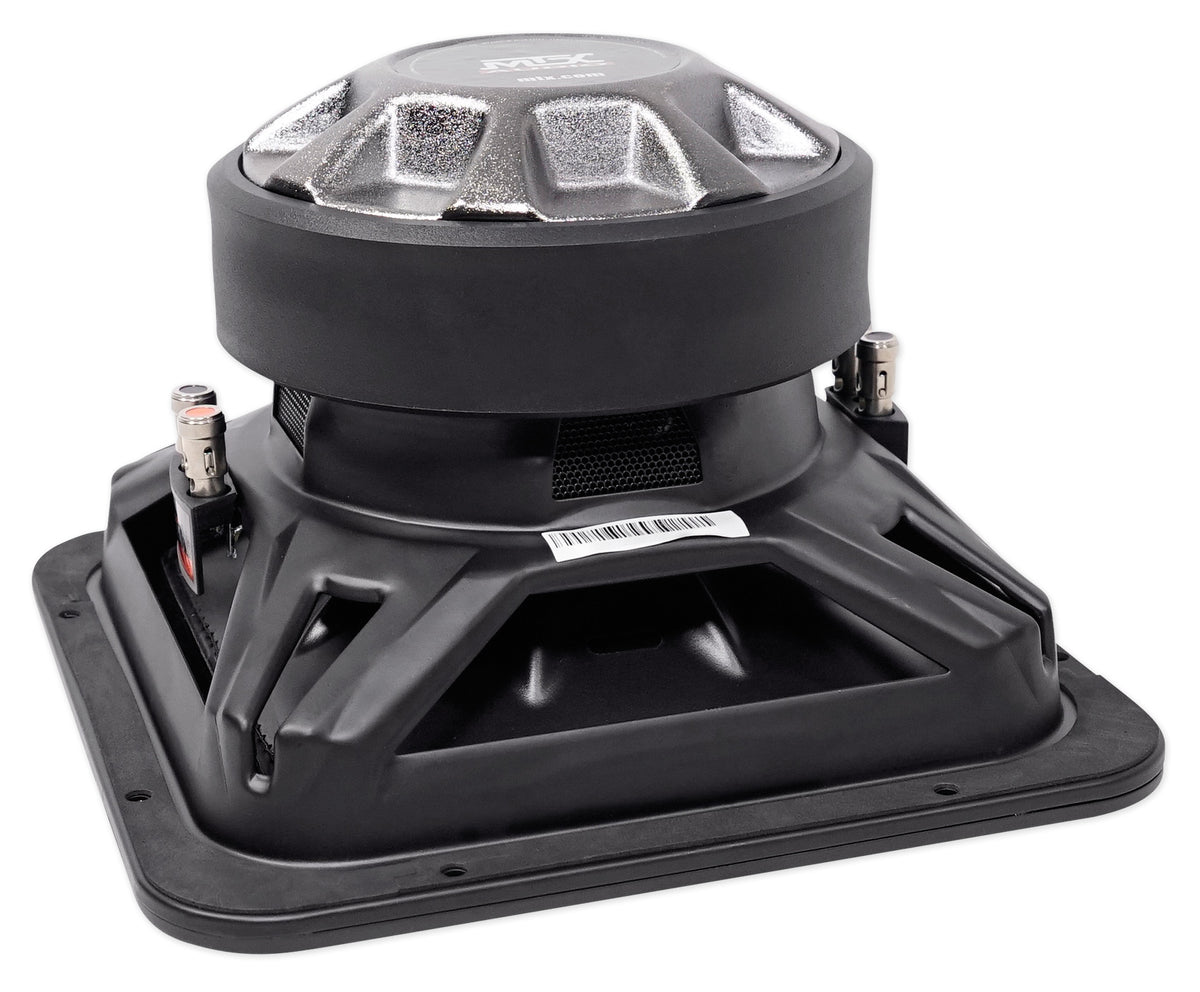

Heat Management for Playback

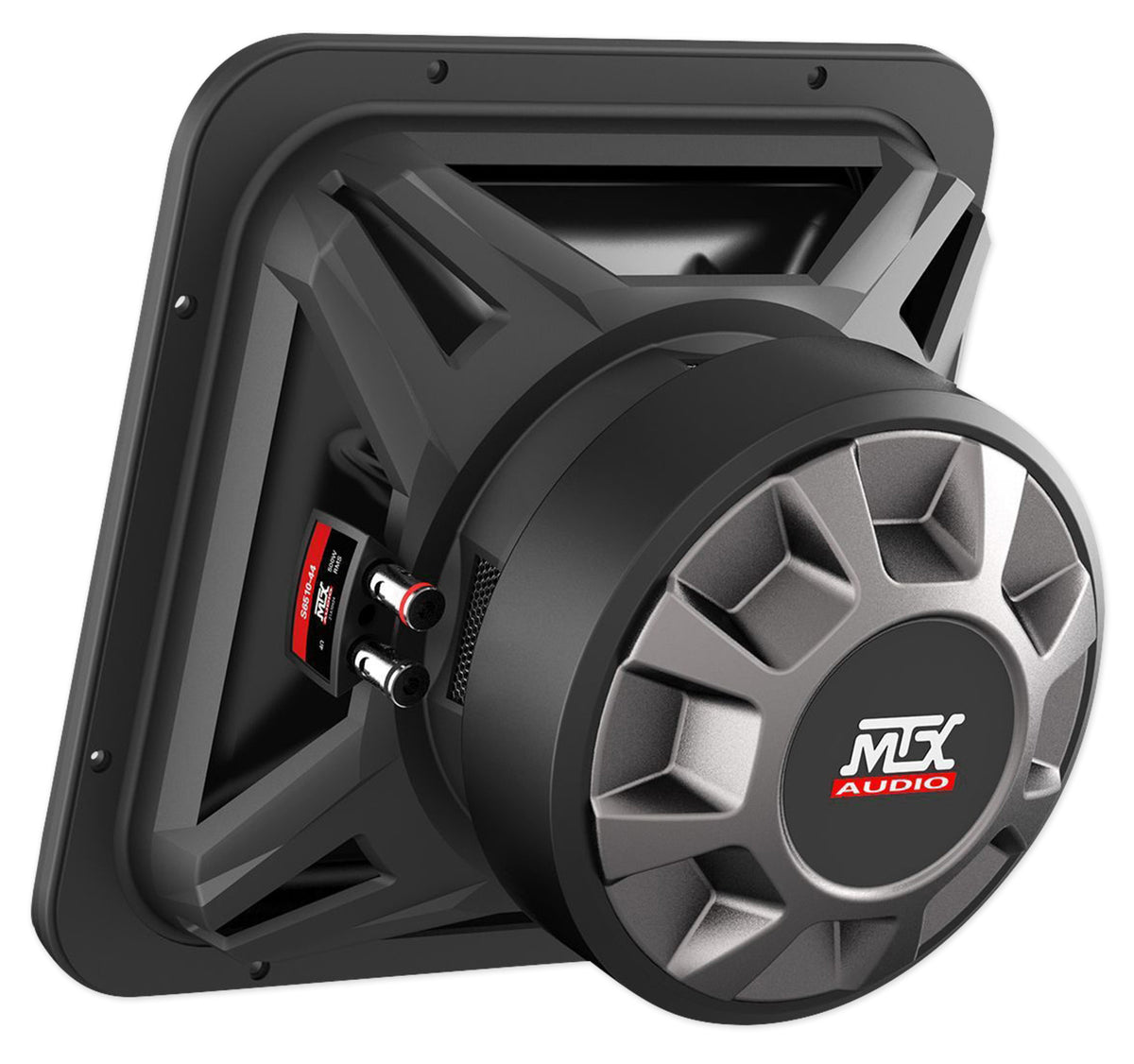

Spider Plateau Venting targets cool air at the voice coil, and a radial-ribbed T-yoke carries heat away during demanding listening sessions.

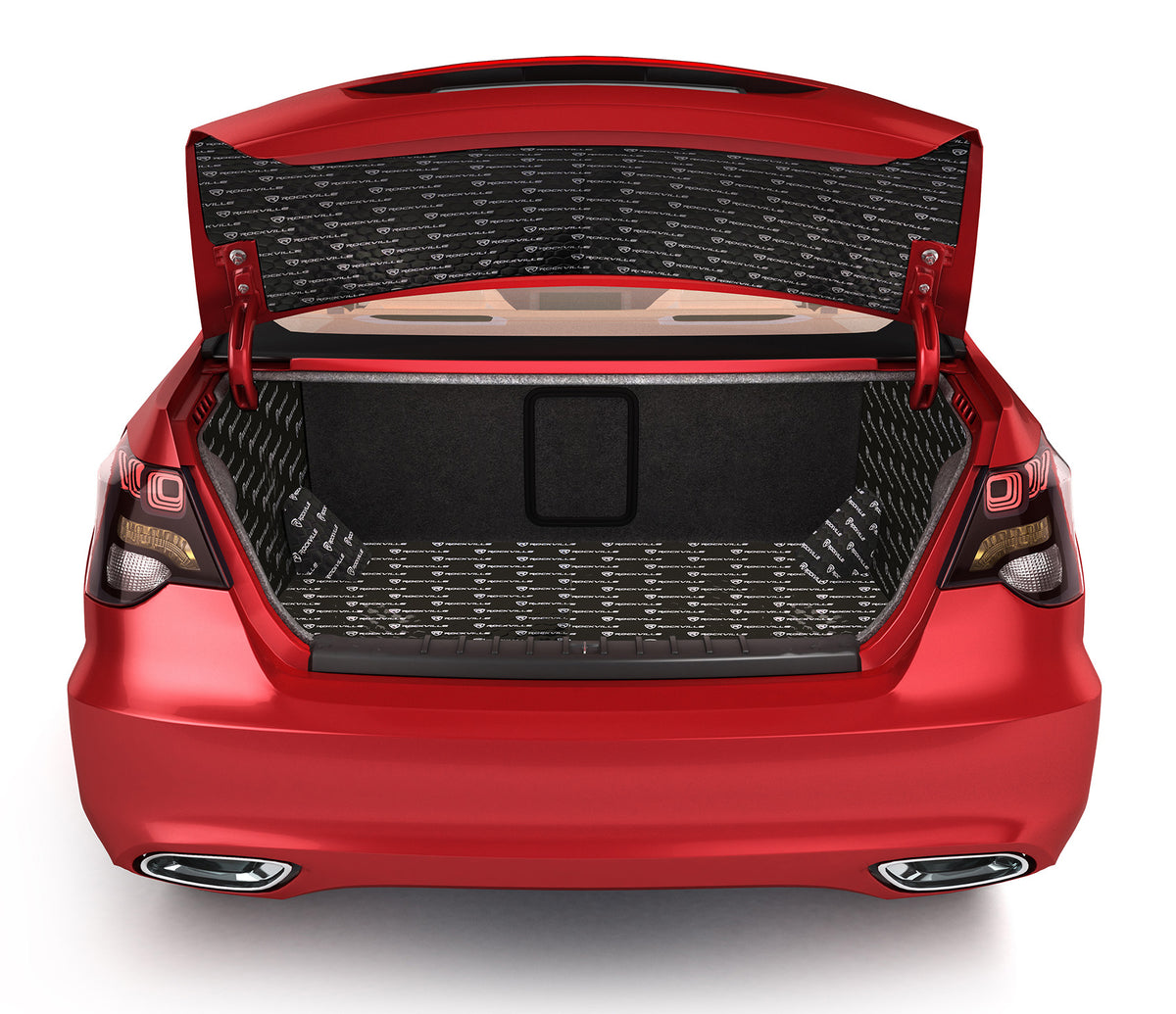

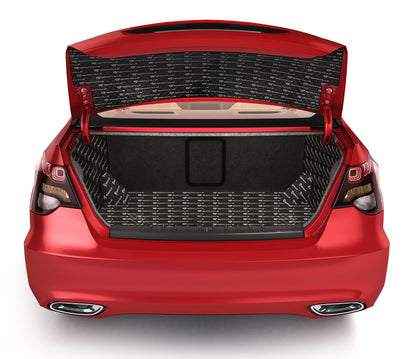

Quieter Vehicle Panels

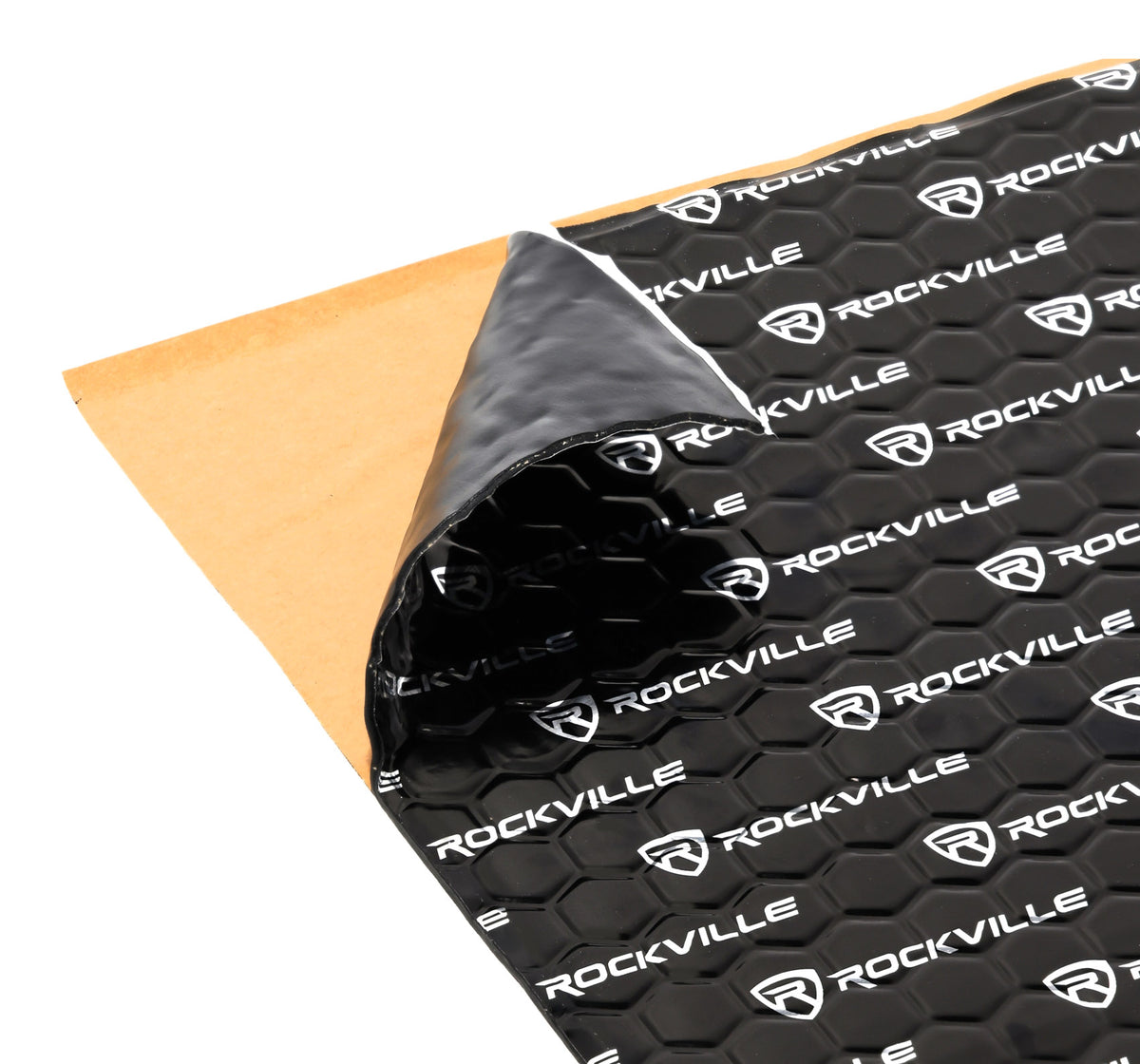

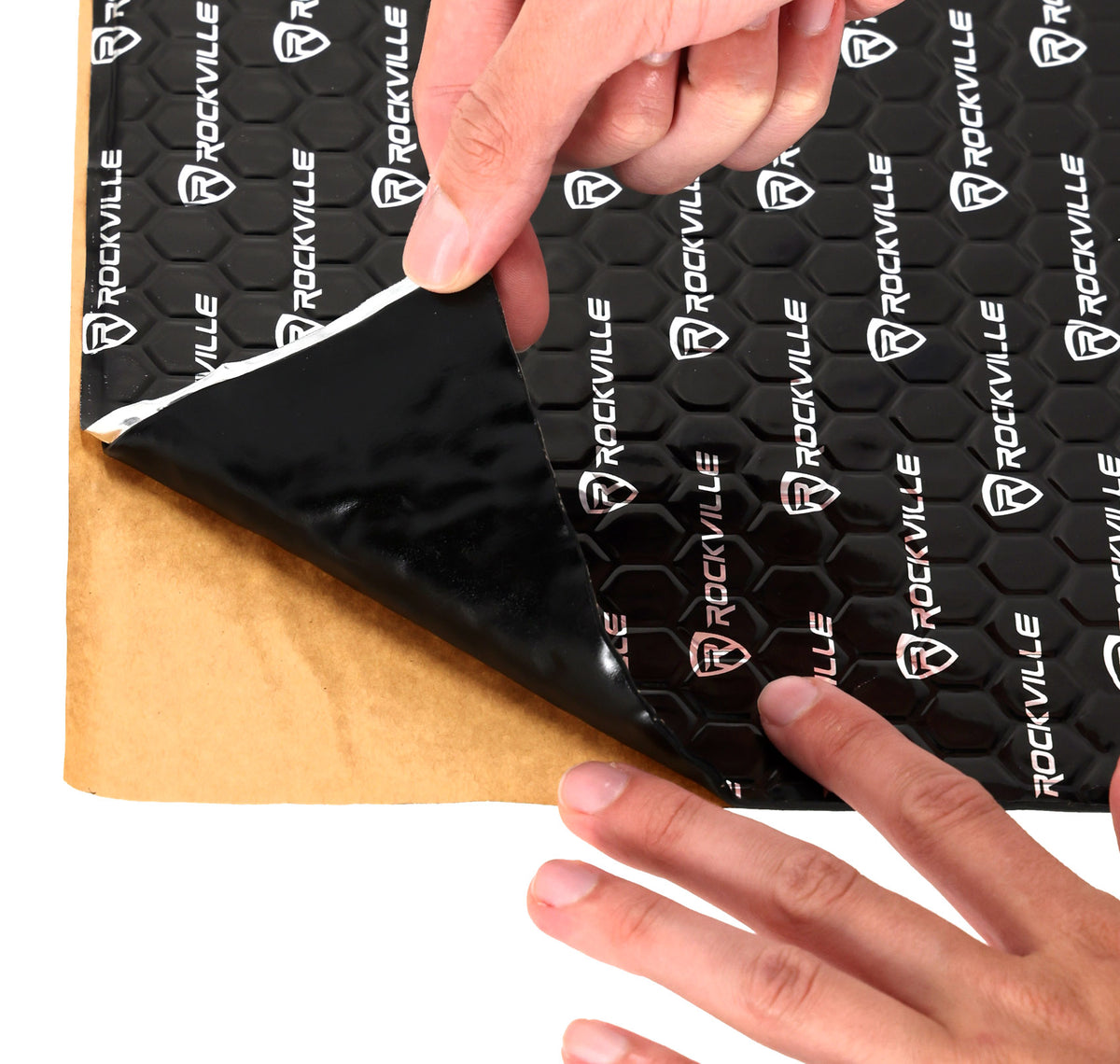

The included 50 sq ft, 100-mil kit supplies twenty sheets and a roller to reduce panel rattles and unwanted vehicle noise.
Technical Specifications
- Product Type 10-Inch Square Car Subwoofer with 50 Sq Ft Sound Deadening Kit
- Subwoofer Model S6510-44
- Sound Deadening Kit Model 50-25
- RMS Power Handling 500W
- Peak Power Handling 1000W
- Recommended Amplifier Power 250W to 500W RMS
- Impedance Dual 4-ohm voice coils
- Frequency Response 26Hz to 130Hz
- Sensitivity 84.5 dB
- Volume Displacement 45.65 cu in
- Voice Coil Diameter 2 in
- Mounting Depth 6.625 in
- Cutout Diameter 9.313 in
- Sound Deadening Quantity 20 sheets, 50 sq ft total
- Sound Deadening Sheet Size 20 x 18 in
- Sound Deadening Thickness 2.5 mm (100 mil)
- Adhesive Temperature Range 14°F to 320°F
- Roller Length 6.69 in
- Roller Handle Length 5 in
- Roller Diameter 1.38 in
- Subwoofer Weight 31 lb
- Sound Deadening Kit Weight 44.2 lb (20 sheets)
- Installation Roller Weight 0.33 lb
