sE7 sideFire
SE Electronics
sE7 sideFire
sE7 sideFire
Side-Fire Small-Diaphragm Condenser Mic, 90-Degree Capsule, 1/2" Back-Electret, Includes Mic Clip, Wind Screen
Free Shipping
Features
- Side-firing capsule rotated 90 degrees for miking tight spaces
- 1/2" back-electret condenser capsule with clear, natural cardioid response
- Discrete Class-A circuitry with a transformerless output
- Switchable -20 dB pad takes max SPL handling to 156 dB
- Switchable 80 Hz low-cut filter cuts stage rumble and kick bleed
Couldn't load pickup availability

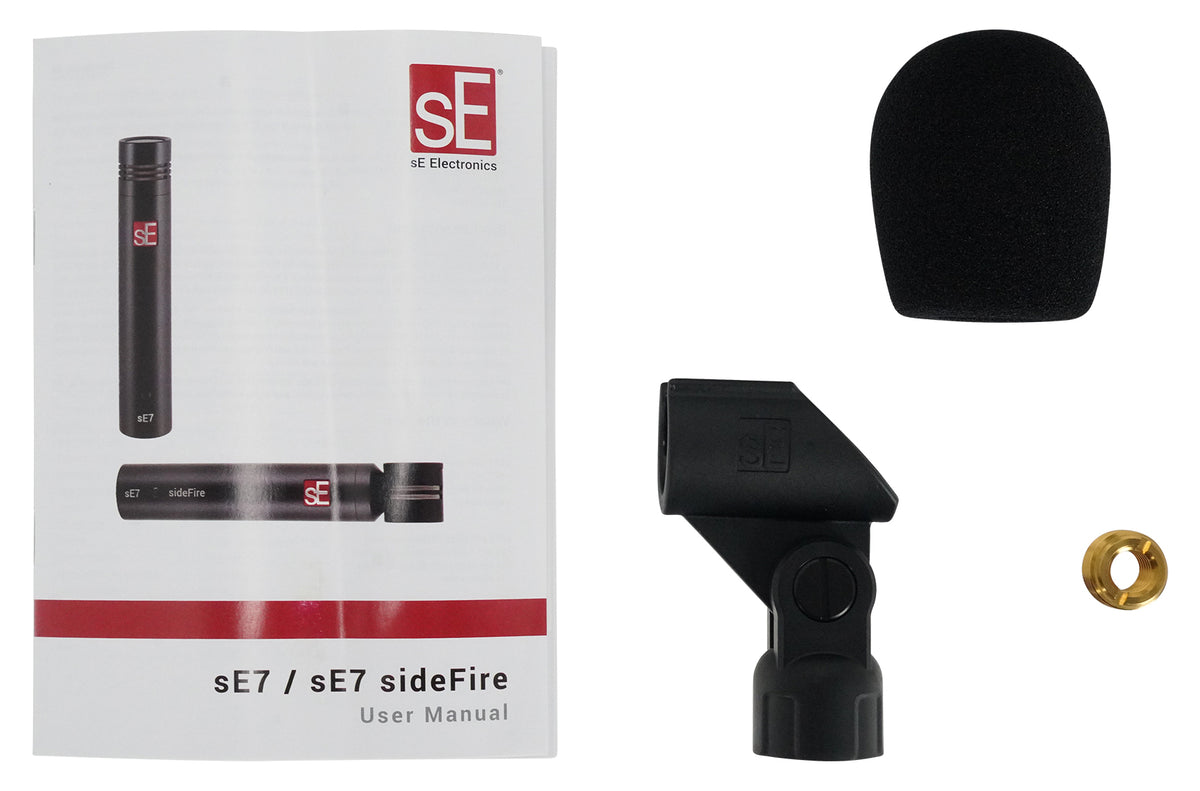

What's Included in the box
- sE7 sideFire Microphone
- Mic Clip (with thread adapter)

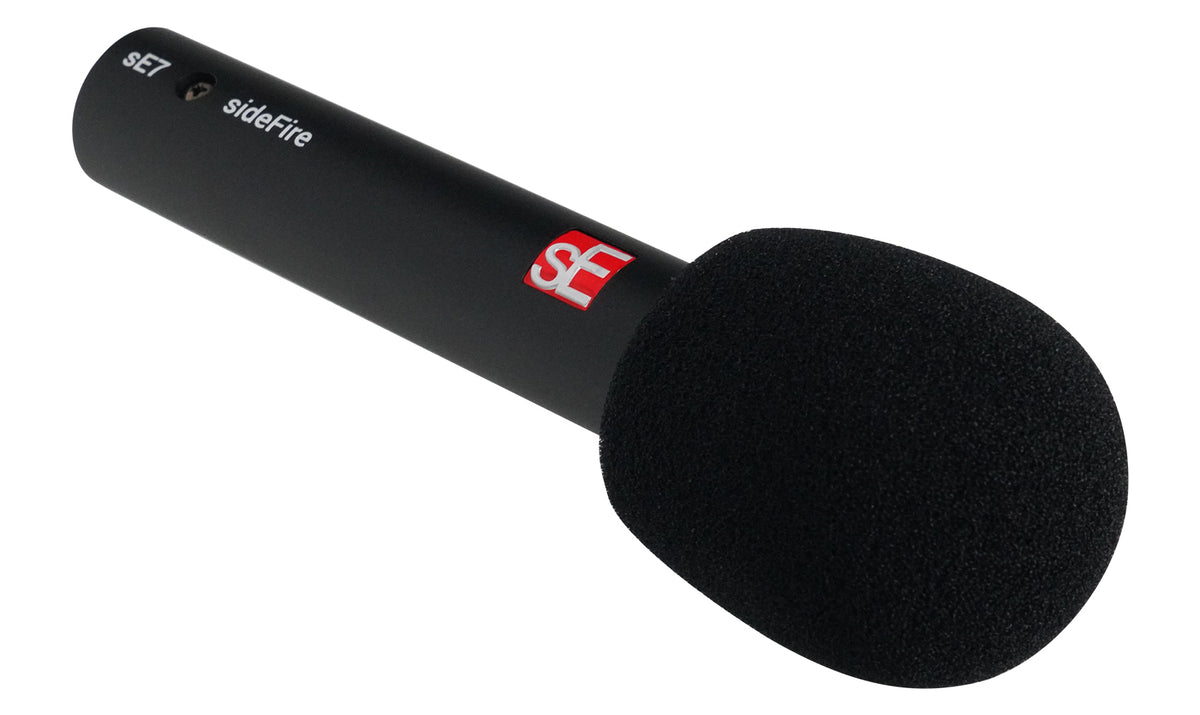

- Wind Screen
SKU: SKU: sE7sF
View full details





Product Description
Everything behind the capsule matches the sE7. A 1/2" back-electret condenser element with optimized acoustics, discrete Class-A circuitry and a transformerless output keeps response clear and natural from 20 Hz to 20 kHz. Ultra low-noise components hold self-noise to 16 dB with a 78 dB signal-to-noise ratio.
The switchable -20 dB pad takes max SPL to 156 dB for close placement on loud sources, and the switchable 80 Hz low-cut filter removes stage rumble and nearby kick bleed.
The body measures 23 mm across and 130 mm long and weighs 163 g. Recommended for acoustic guitar, choir, orchestral strings, piano, woodwinds, drums, percussion and overheads. A mic clip with thread adapter and wind screen are included.
Features
-
Reaches Where Others Cannot

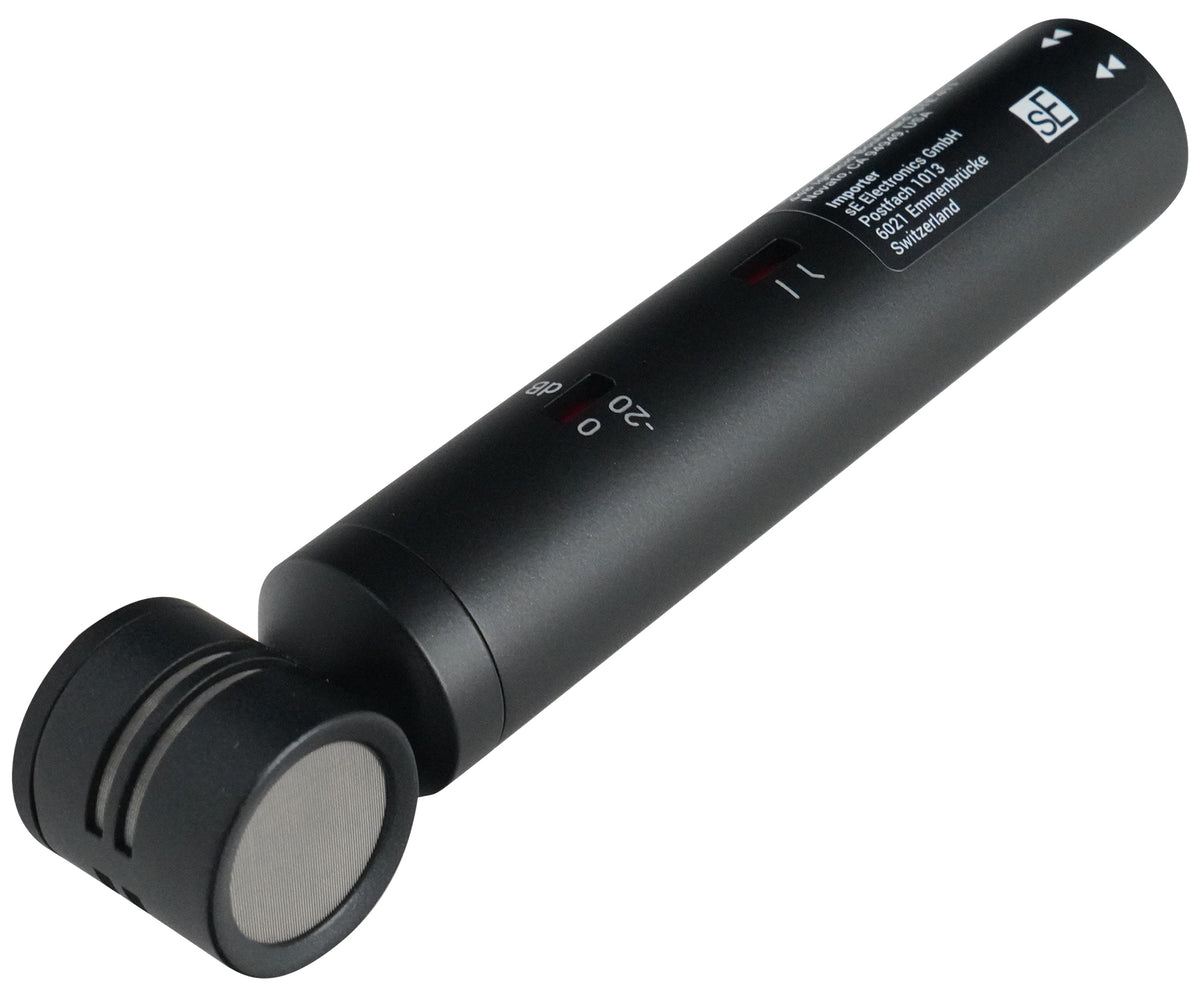

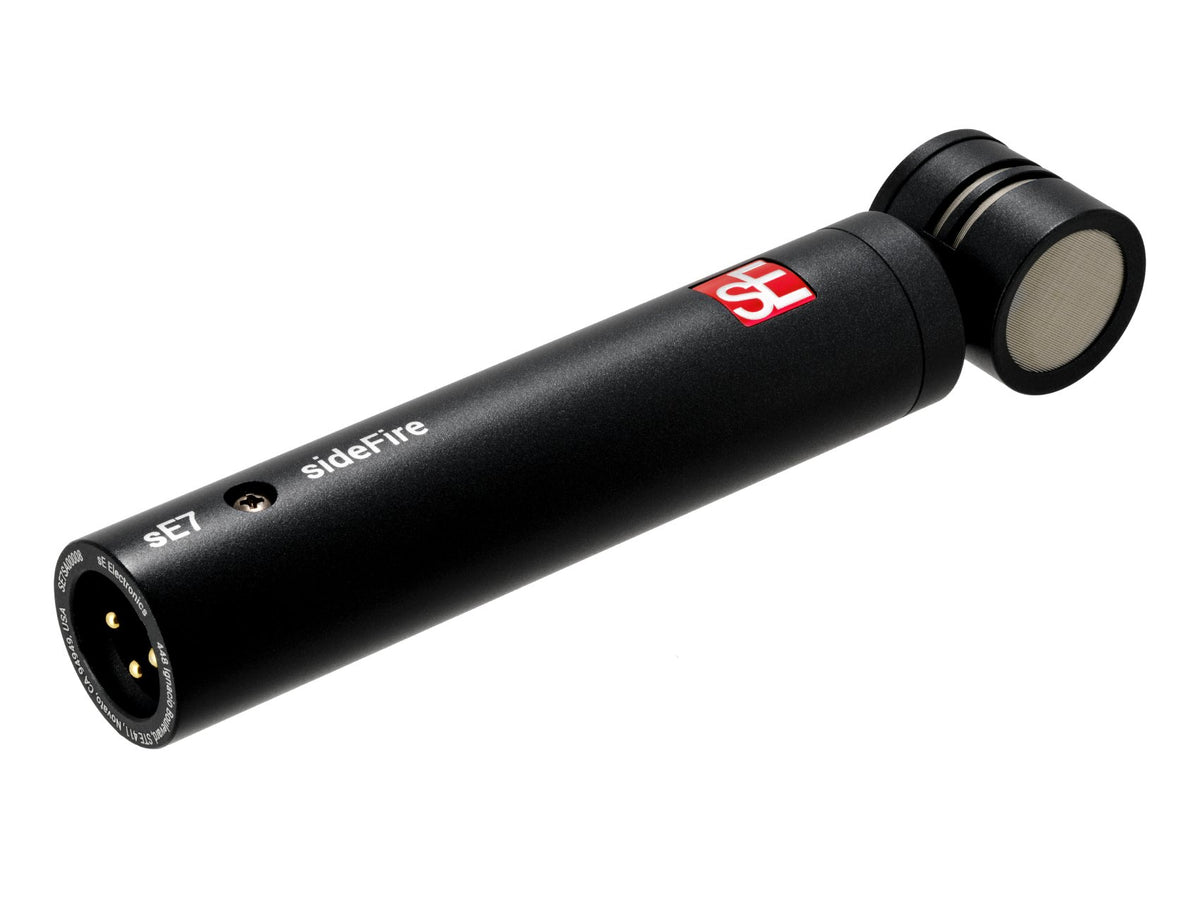

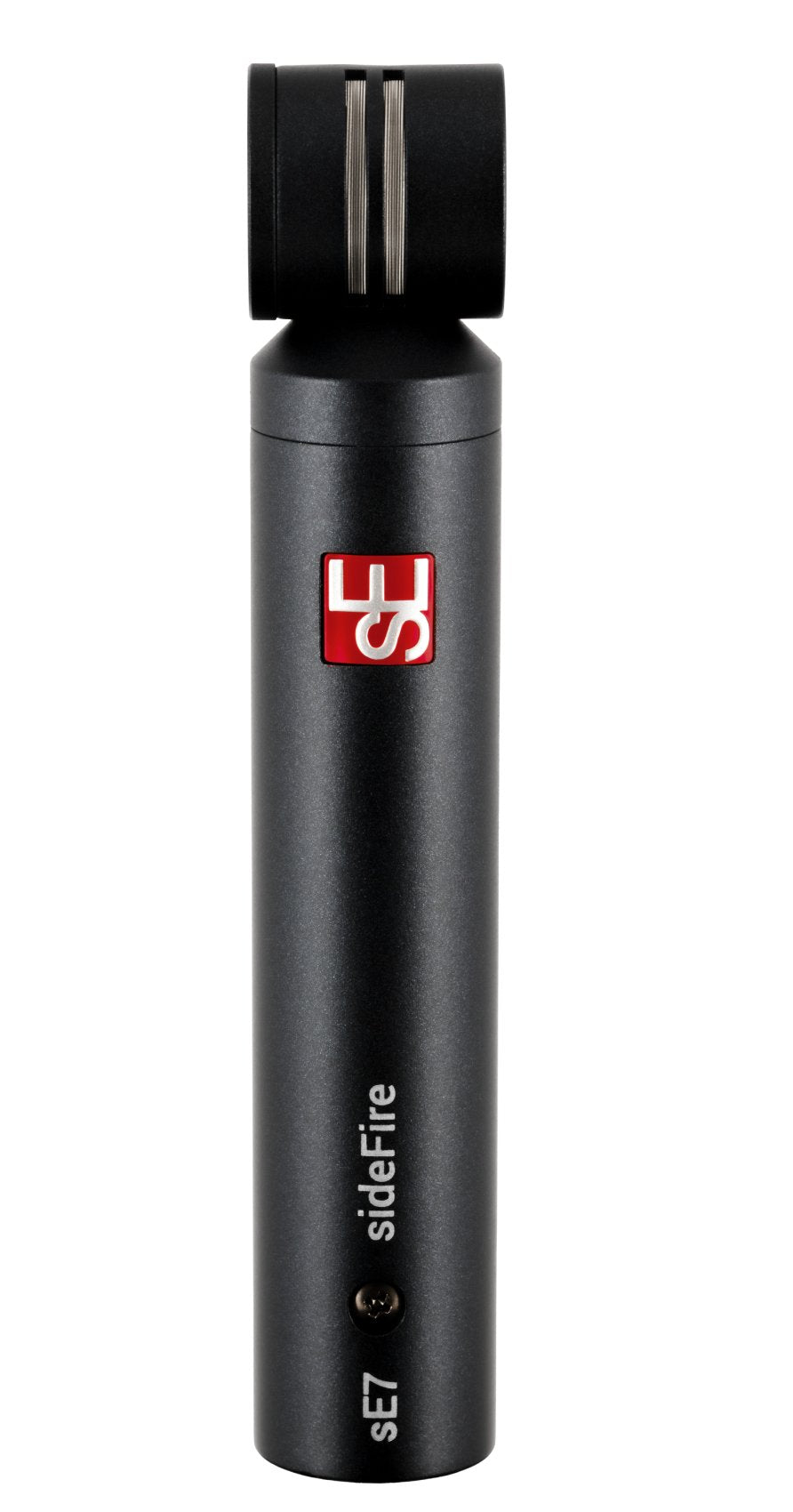

The capsule sits at 90 degrees to the body, so you can mike under a hi-hat, inside a kit or beneath a piano lid with room to spare.
-
Natural Across The Range
A 1/2-inch back-electret capsule with Class-A circuitry and transformerless output keeps response clear from 20 Hz to 20 kHz on any source.
-
Quiet On Soft Sources
Self-noise of 16 dB and a 78 dB signal-to-noise ratio keep acoustic guitar, choir and orchestral takes clean at working gain levels.
-
Handles Loud Placement
The switchable -20 dB pad raises max SPL to 156 dB, so close positions on snare, hi-hat and percussion stay clean and undistorted.
-
Cut Rumble At The Source
The switchable 80 Hz low-cut filter removes stage rumble and kick bleed before it reaches your preamp, keeping close tracks tidy.
Technical Specifications
- Product Type Side-Firing Small-Diaphragm Back-Electret Condenser Microphone
- Sensitivity 19 mV/Pa (-34.5 dBV)
- Capsule 1/2" back-electret condenser
- Polar Pattern Cardioid
- Frequency Range 20 Hz - 20 kHz
- Max SPL 136 / 156 dB (0 / 20 dB pad)
- Equivalent Noise Level 16 dB
- Dynamic Range 120 / 140 dB (0 / 20 dB pad)
- Signal to Noise Ratio 78 dB
- Low-Cut Filter 80 Hz, 6 dB / Oct, switchable
- Attenuation Pad -20 dB, switchable
- Electrical Impedance Less than 200 Ohms
- Recommended Load Impedance Greater than 1k Ohms

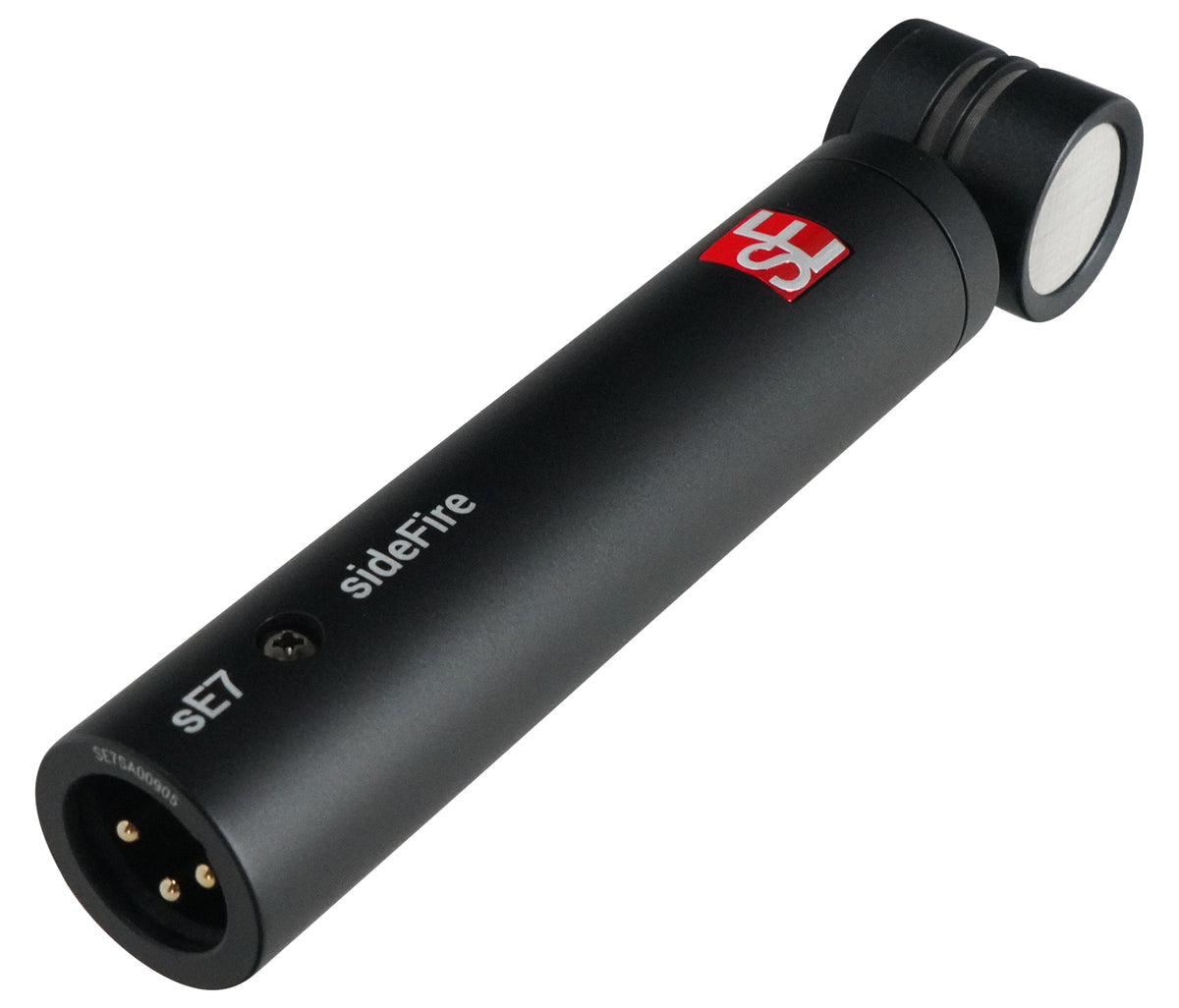

- Connectivity 3-pin male XLR connector
- Powering 48V phantom power (P48 according to IEC 61938)
- Current Consumption 3.0 mA
- Weight 163 g (5.75 oz.)
- Dimensions 23 mm diameter x 130 mm length (0.91 x 5.12 in.)
