Sundown Audio SA-15 D4 Classic 15" 1000w RMS Car Subwoofer DVC 4-Ohm SW-SACL15D4
Sundown Audio SA-15 D4 Classic 15" 1000w RMS Car Subwoofer DVC 4-Ohm SW-SACL15D4
SUNDOWN AUDIO
Sundown Audio SA-15 D4 Classic 15" 1000w RMS Car Subwoofer DVC 4-Ohm SW-SACL15D4
Sundown Audio SA-15 D4 Classic 15" 1000w RMS Car Subwoofer DVC 4-Ohm SW-SACL15D4
15" Car Subwoofer, 1000W RMS, Dual 4-Ohm Voice Coils, 19mm Xmax, Cast Aluminum Frame
Free Shipping
Features
- 1000W RMS and 2000W peak from a custom 2.5" voice coil
- 15" cone with 19mm excursion reaches deep into the low bass
- Dual 4-ohm coils wire to 2 ohm or 8 ohm for multi-sub builds
- Cast aluminum frame with a double-layered Nomex spider
- Works in ported, sealed, and band-pass enclosures
Couldn't load pickup availability
What's Included in the box
- Sundown Audio SA-15 D4 Classic 15" Subwoofer
SKU: SKU: SA-15 D4 Classic U
View full details






Product Description

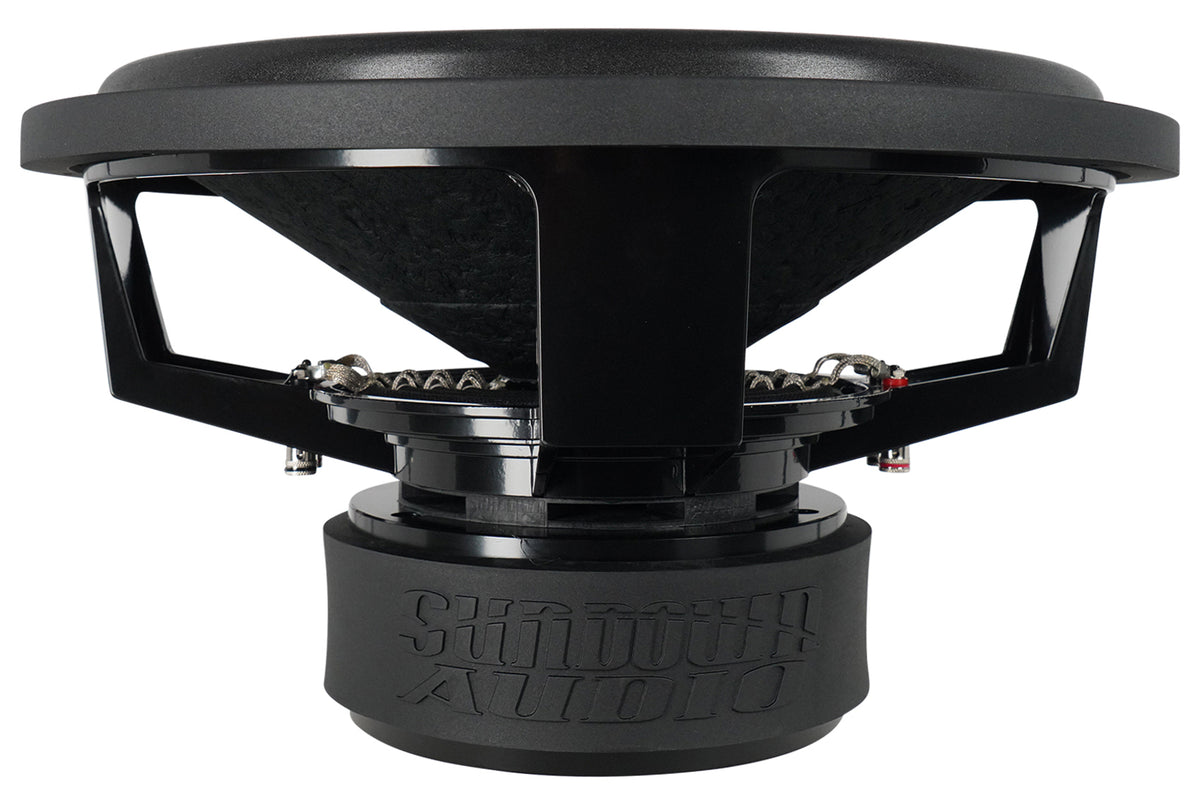

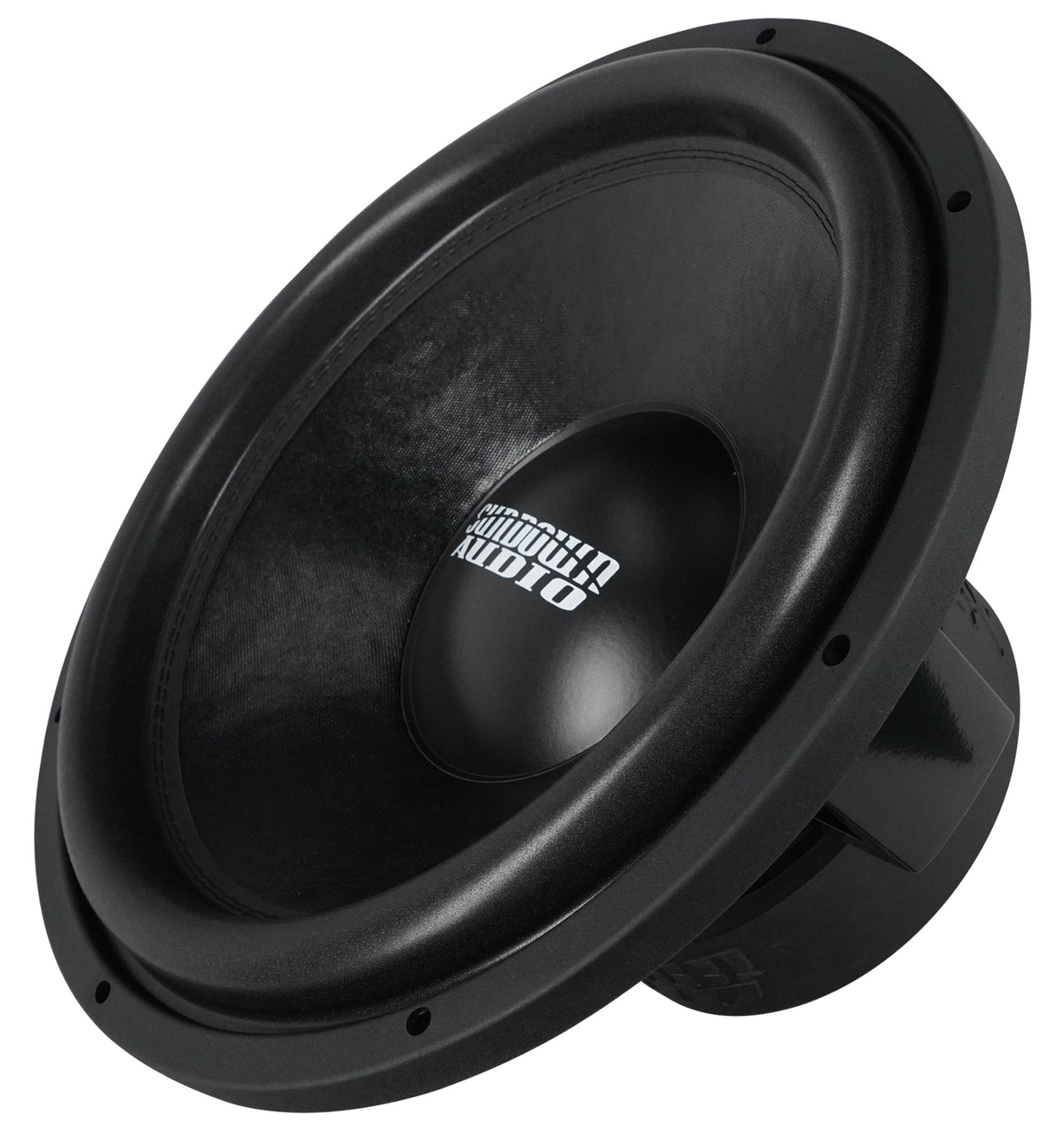

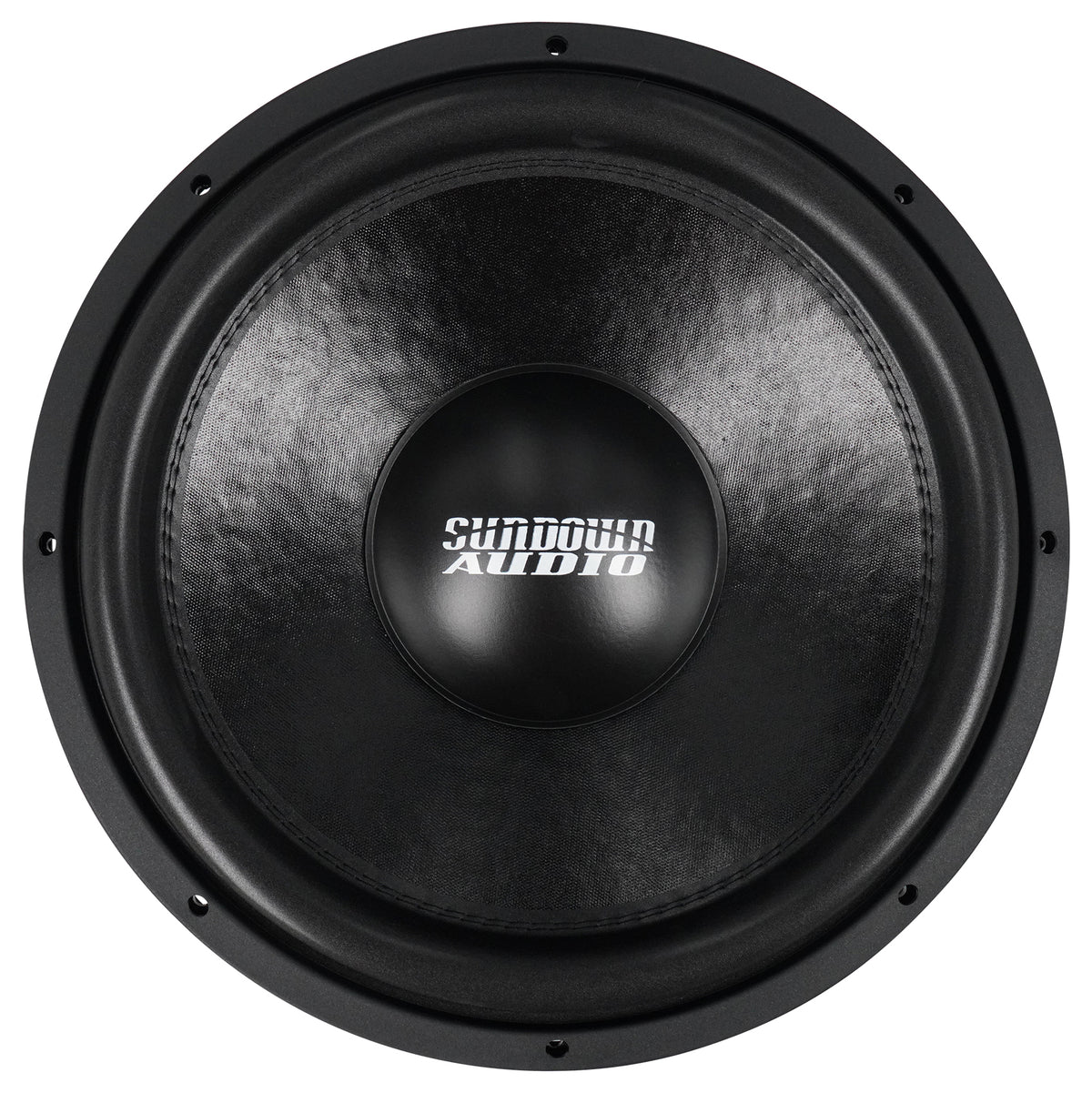

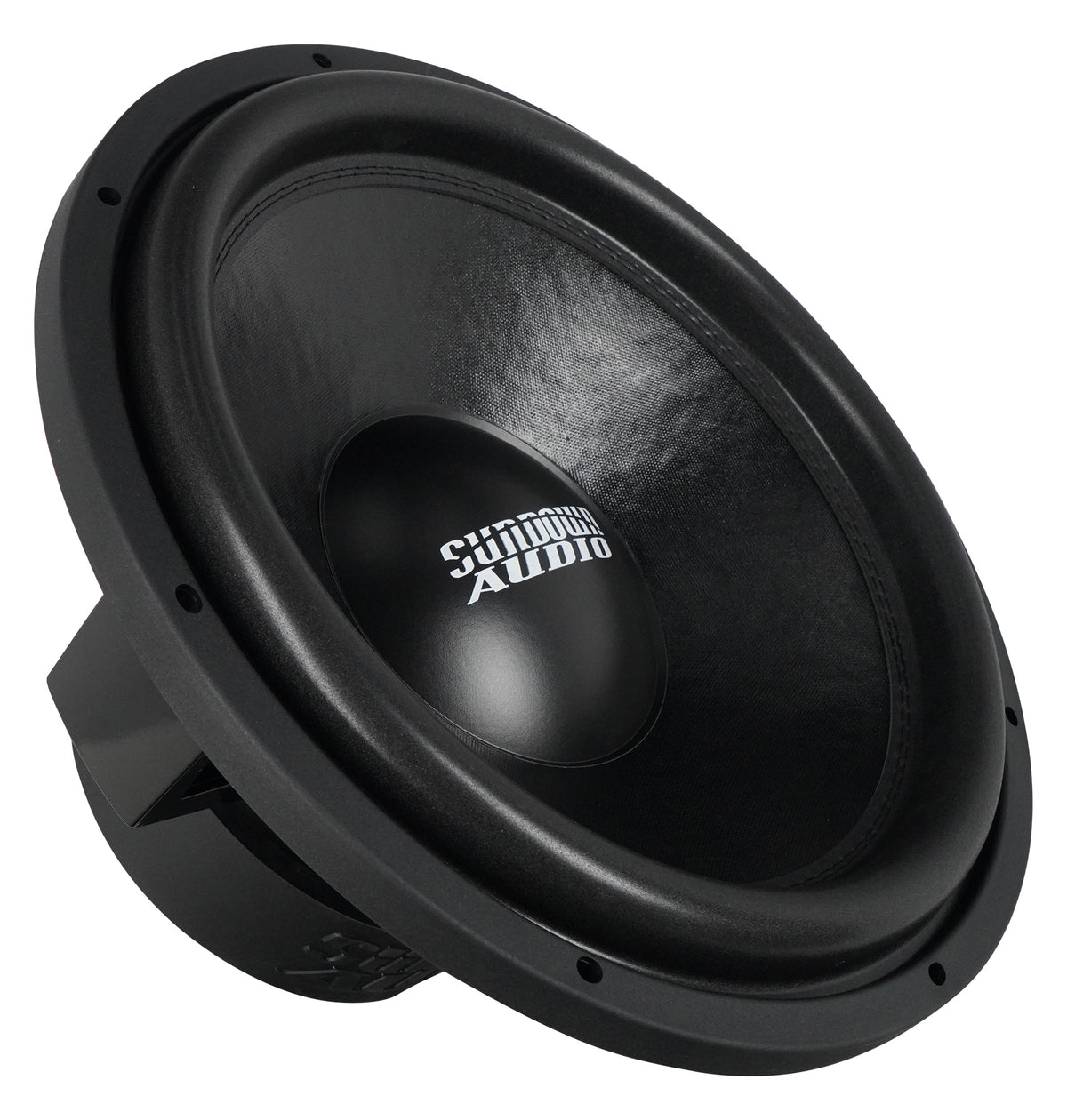

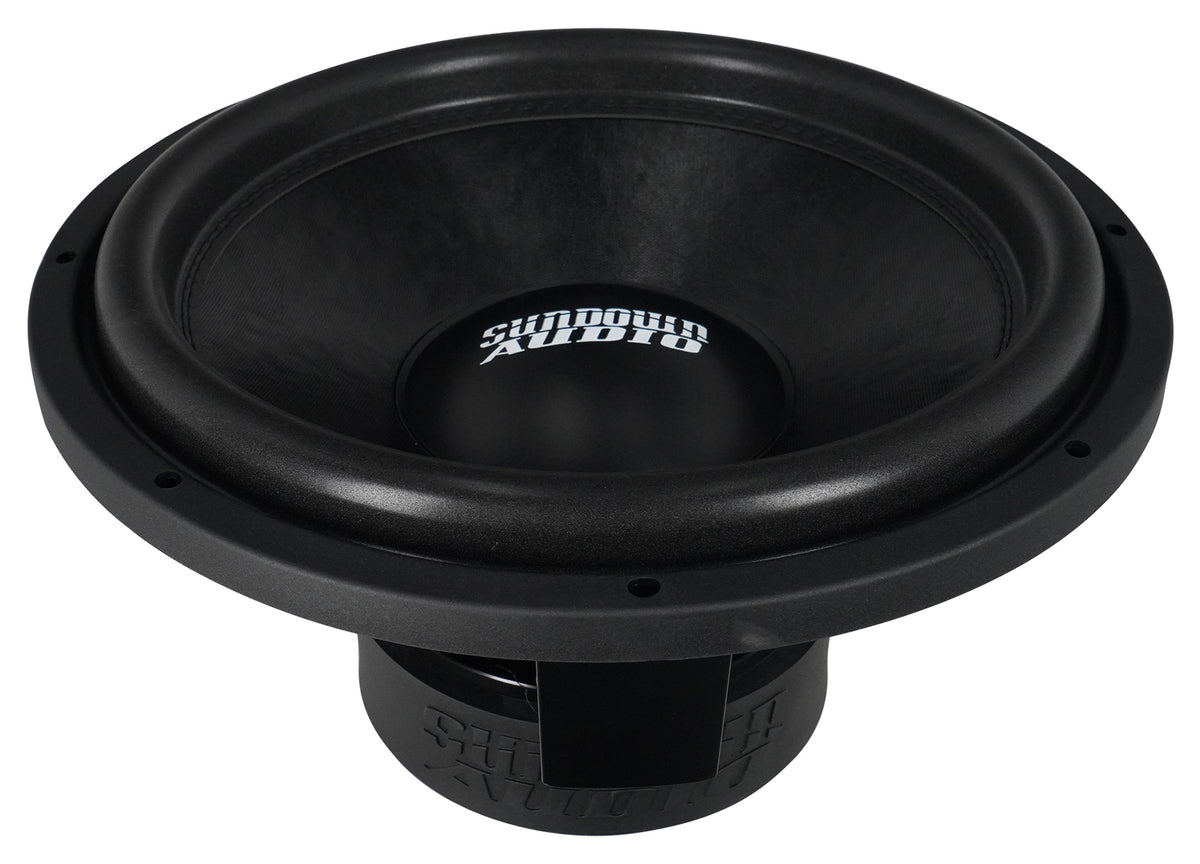

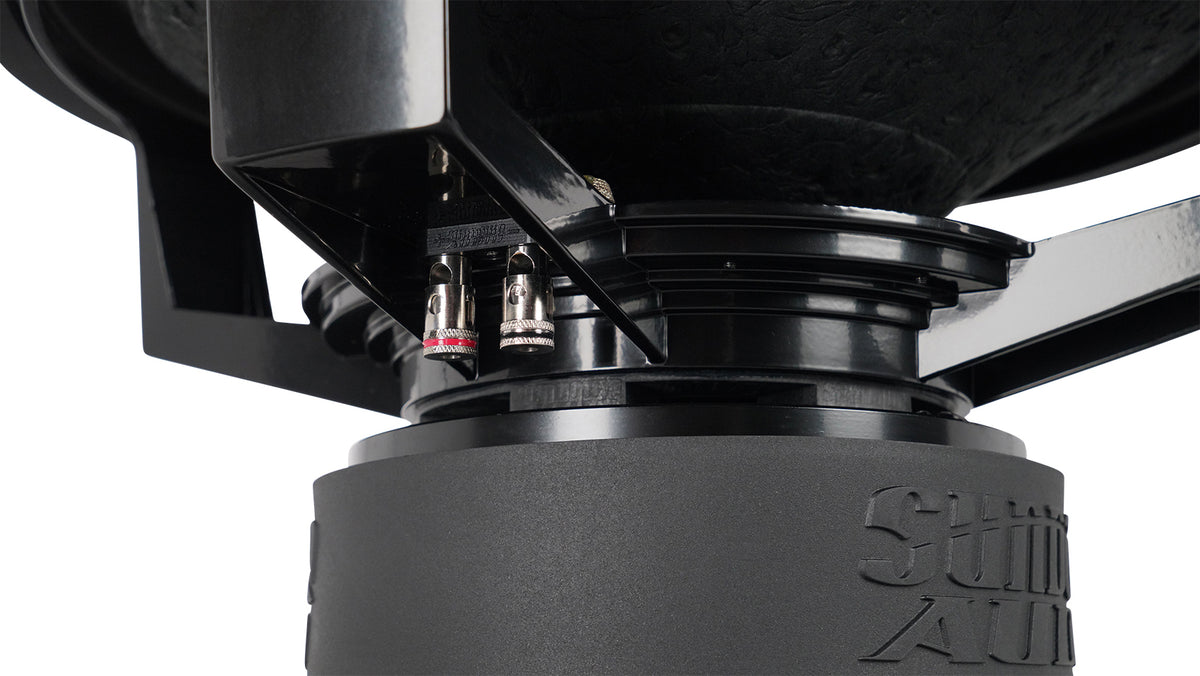

A cast aluminum frame houses a custom 2.5-inch voice coil, a double-layered Nomex spider, and an SPL competition-grade paper cone. A large aluminum Faraday ring in the motor cuts distortion and keeps response even as excursion rises, while high-temperature coil wire handles the thermal side of sustained power. Spring-loaded terminals speed the install, and stitched-on XL tinsel leads stay tied down at full stroke.
Dual 4-ohm coils wire to 2 ohm or 8 ohm, the pick for a pair of 15s or an amplifier that makes rated power at a higher load. Enclosure options stay open: 3.5 cu ft ported with 35 sq in of port tuned to 35 Hz, 2.5 cu ft sealed for a tighter, more compact build, or a 4th-order bandpass with a 1.5 cu ft sealed side and 4.5 cu ft ported side. Mounting takes 7.69 inches of depth behind a 14-inch cutout, which fits trunk builds, truck boxes, and van installs.
Features
-
Reaches The Low Notes
A 15-inch cone with 19mm of one-way excursion moves enough air to reproduce low-30s bass that smaller woofers only hint at.
-
Wiring For Two Or More
Dual 4-ohm coils wire to 2 ohm or 8 ohm, making it straightforward to run a pair of 15s at a load your amplifier is rated for.
-
Fits The Box You Have
It performs in 3.5 cu ft ported, 2.5 cu ft sealed, or a 4th-order bandpass, so the enclosure can follow the space in your vehicle.
-
Lower Distortion At Full Stroke
A large aluminum Faraday ring in the motor keeps response even as the cone travels, so bass notes stay defined instead of turning muddy.
-
Built To Take Abuse
A cast aluminum frame, double-layered Nomex spider, and SPL competition-grade paper cone hold alignment through hard, repeated excursion.
Technical Specifications
- Product Type 15" Car Subwoofer
- RMS Power 1000W
- Peak Power 2000W
- Voice Coil Configuration Dual 4 Ohm
- Voice Coil Custom 2.5" with high-temperature wire
- Frame Cast aluminum
- Spider Double-layered Nomex
- Re 7.00 Ohms
- Fs 36.4 Hz
- Vas 55.4 L
- Qes 0.62
- Qms 2.94
- Qts 0.51
- Le 4.71 mH
- BL 26.94
- Mms 284 g
- Cms 67.2 uM/N
- Sensitivity 98 dB (1W/1m)
- Xmax 19mm
- Cone Displacement 0.17 cu ft
- Recommended Ported Enclosure 3.5 cu ft, 35 sq in port, tuned to 35 Hz
- Recommended Sealed Enclosure 2.5 cu ft
- 4th Order Enclosure 1.5 cu ft sealed side, 4.5 cu ft ported side, 90 sq in port, 6" port length

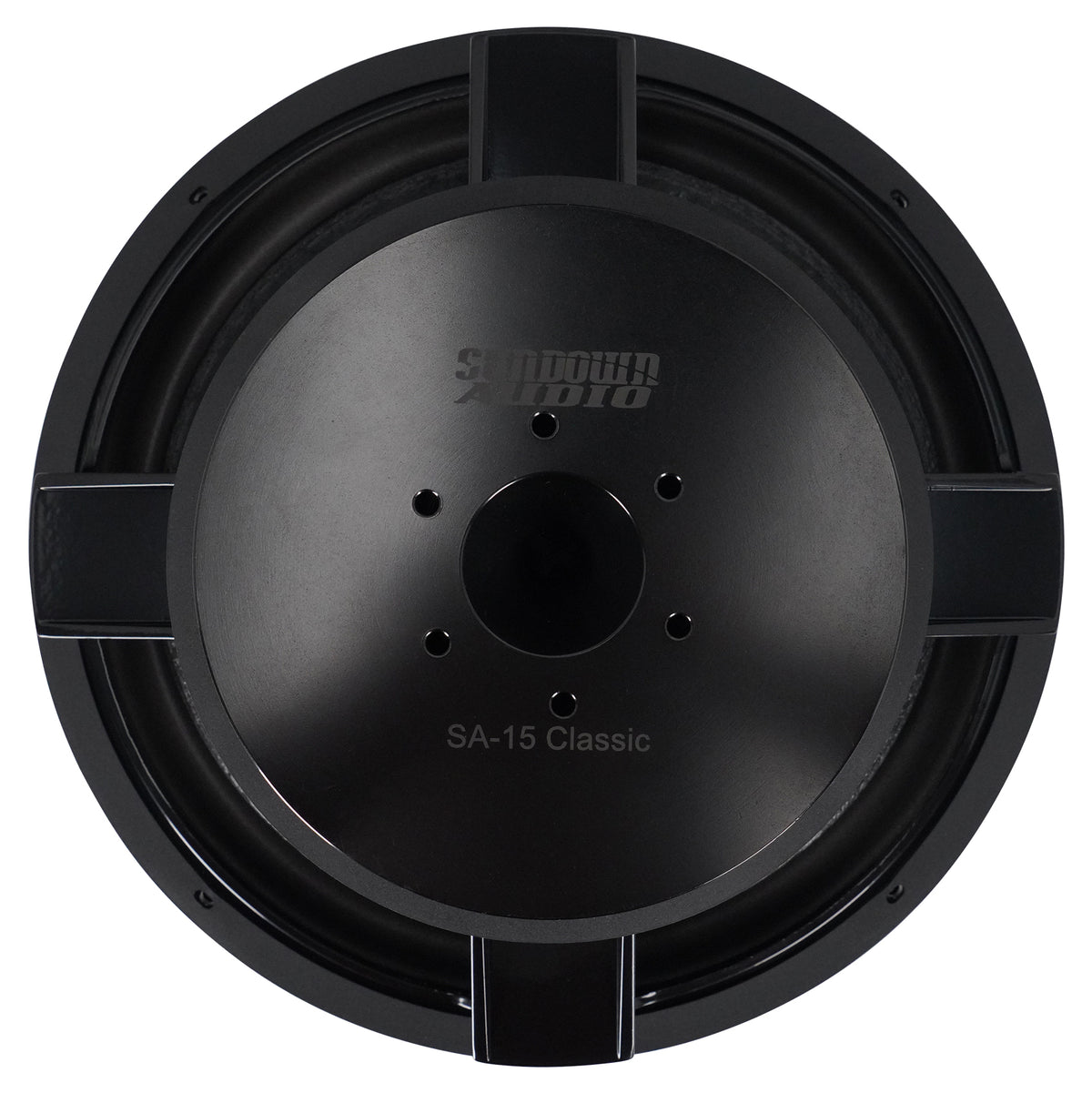

- Motor Diameter 7.79"
- Mounting Depth 7.69"
- Cutout Diameter 14"
