SDX-100.4

Product Description Specifications

SDX-100.4

  • SDX-100.4
  • SDX-100.4
  • SDX-100.4
  • SDX-100.4
  • SDX-100.4
  • SDX-100.4
  • SDX-100.4
1 7

SUNDOWN AUDIO

SDX-100.4

SDX-100.4

4-Channel Weatherproof Amplifier, 100W RMS Per Channel, Sealed Control Cover, Cast Aluminum

Free Shipping

$169.95
$169.95 $169.95
Shipping calculated at checkout.
Features
    • 100W x 4 at 4 ohms, 135W x 4 at 2 ohms, 270W x 2 bridged
    • Water-resistant design with a removable sealed control cover
    • Heavy cast aluminum heat sink sheds heat and blocks the elements
    • Variable 12dB high and low pass filters with x1/x20 multipliers
    • DC auto-sensing turn on removes the need for a remote wire
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later
    • SDX-100.4 4-Channel Weatherproof Car Amplifier

SKU: SDX 100.4

View full details

Product Description

The SDX-100.4 is a water-resistant four-channel Class D amplifier for vehicles that live outdoors. It produces 100W x 4 at 4 ohms, 135W x 4 at 2 ohms, and 270W x 2 at 4 ohms bridged, in a chassis measuring 8.875 by 7 by 2.125 inches.

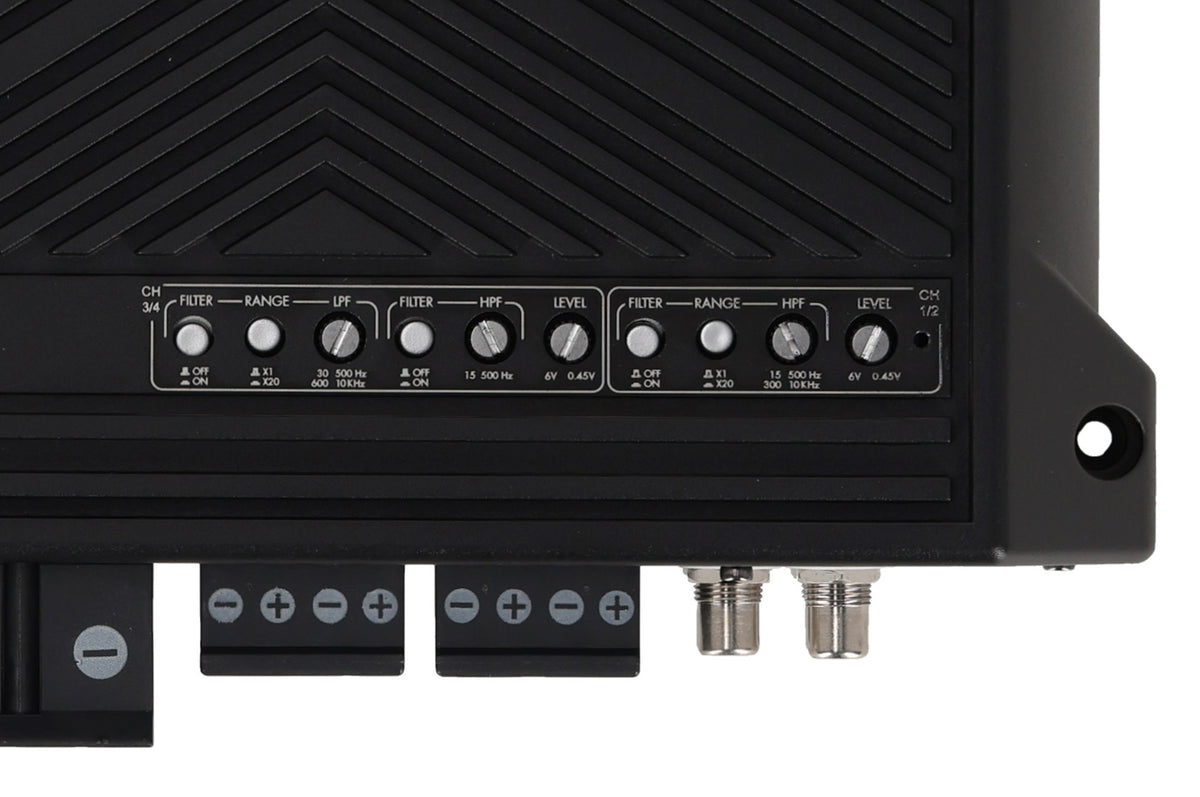

The water resistance is not a marketing claim bolted onto a car amp. A heavy cast aluminum casing sheds heat and shields the electronics, and the full set of audio controls sits beneath a sealed, removable cover, so rain, dust, and spray stay out of the adjustment pots. Unscrew the badge with an allen key when you need to make changes.

That makes it a match for side-by-sides, UTVs, ATVs, boats, Jeeps with the top off, golf carts, and any car where the amp mounts somewhere exposed. It works just as well in a sealed trunk install.

Crossover flexibility is wide. Channels 1-2 have a variable 12dB high pass filter covering 15 Hz to 500 Hz or 300 Hz to 10 kHz. Channels 3-4 have a variable 12dB high pass from 15 Hz to 500 Hz and a variable 12dB low pass from 30 Hz to 500 Hz or 600 Hz to 10 kHz, with x1/x20 frequency multipliers. Variable 12dB bass boost at 50 Hz is on board.

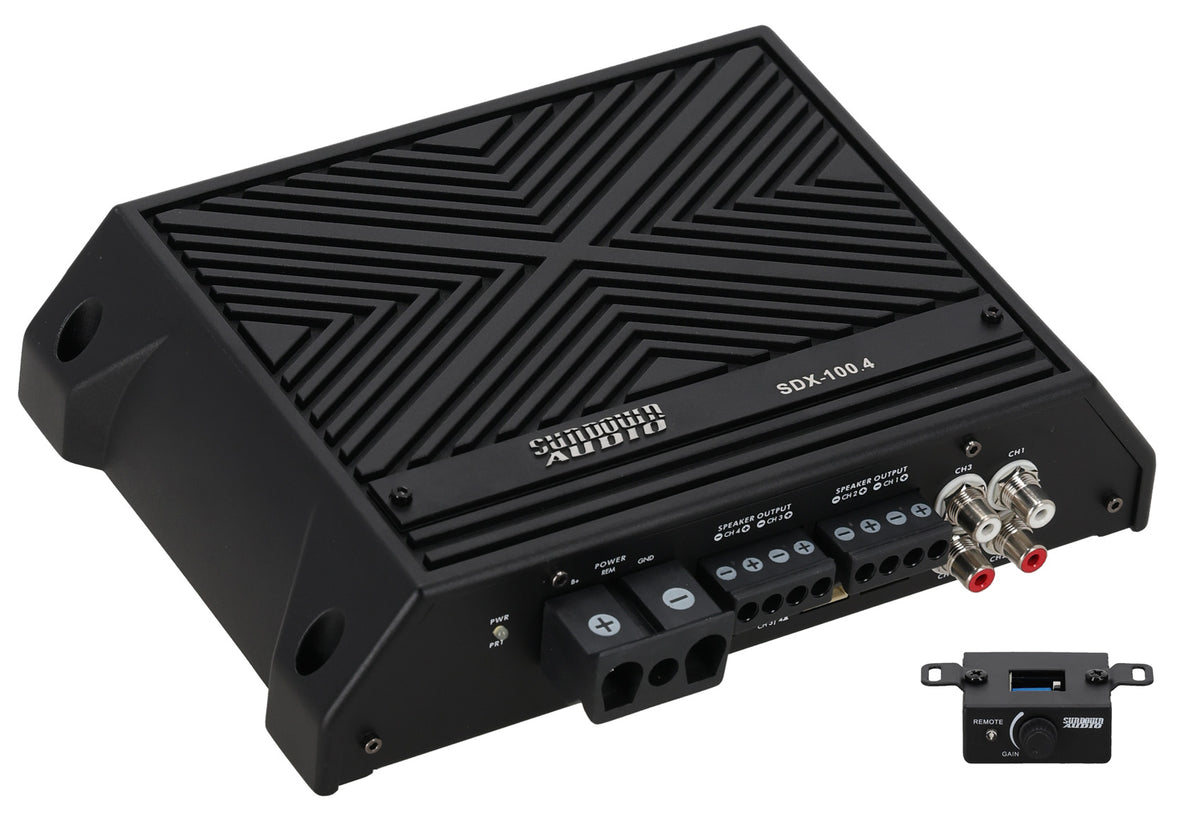

DC auto-sensing turn on removes the need for a remote wire, and protection circuitry covers thermal, voltage, speaker short, and DC-offset faults. A 50A fuse is recommended. An optional wired remote is available.

Features

    • Built For Open-Air Vehicles

      Water-resistant construction and a sealed control cover keep rain, dust, and spray out of the adjustment pots on UTVs, boats, and open Jeeps.

    • Power For Four Speakers

      Rated 100W x 4 at 4 ohms and 135W x 4 at 2 ohms, it has the headroom to run a full set of speakers over engine and wind noise.

    • Crossovers For Any Setup

      Variable high and low pass filters with x1/x20 multipliers reach from 15 Hz up to 10 kHz, covering subs, midbass, and horns from one amp.

    • Heat Handled By The Chassis

      A heavy cast aluminum heat sink moves heat out of the amplifier, so long sessions in direct sun do not end in thermal shutdown.

    • Simpler Wiring

      DC auto-sensing turn on means no remote turn-on lead to run, which cuts one wire out of a powersports or marine install.

Technical Specifications

  • Product Type 4-Channel Weatherproof Car Amplifier
  • Amplifier Type 4 Channel Weatherproof Class D
  • 4 Ohm RMS Power 100 x 4; 270 x 2 Bridged
  • 2 Ohm RMS Power 135 x 4
  • Variable 12dB High Pass Filters 15 Hz - 500 Hz or 300 Hz - 10 kHz (Ch. 1-2); 15 Hz - 500 Hz (Ch. 3-4)
  • Variable 12dB Low Pass Filters 30 Hz - 500 Hz or 600 Hz - 10 kHz (Ch. 3-4)
  • Crossover Multipliers x1/x20
