TN12-02+RBS12+K1+dB11+RWK81

Name: TN12-02+RBS12+K1+dB11+RWK81
Brand: MTX
SKU: TN12-02+RBS12+K1+dB11+RWK81
Price: 267.85 USD
Availability: InStock

12-Inch Car Audio Subwoofer Bundle, 2.6 Cu Ft Vented Enclosure, 2-Ohm Amplifier, 8-Gauge Wiring Kit

Free Shipping

Retail ~~Retail price $484.87~~ Save 44.76%

$267.85

Shipping calculated at checkout.

Features

12-inch subwoofer rated for 200 W RMS and 400 W peak
Single 12-inch vented enclosure with 2.6 cu ft net volume
Mono amplifier rated for 350 W RMS at 2 ohms
8 AWG wiring kit with 100% copper RCA cable and 60 A fuse

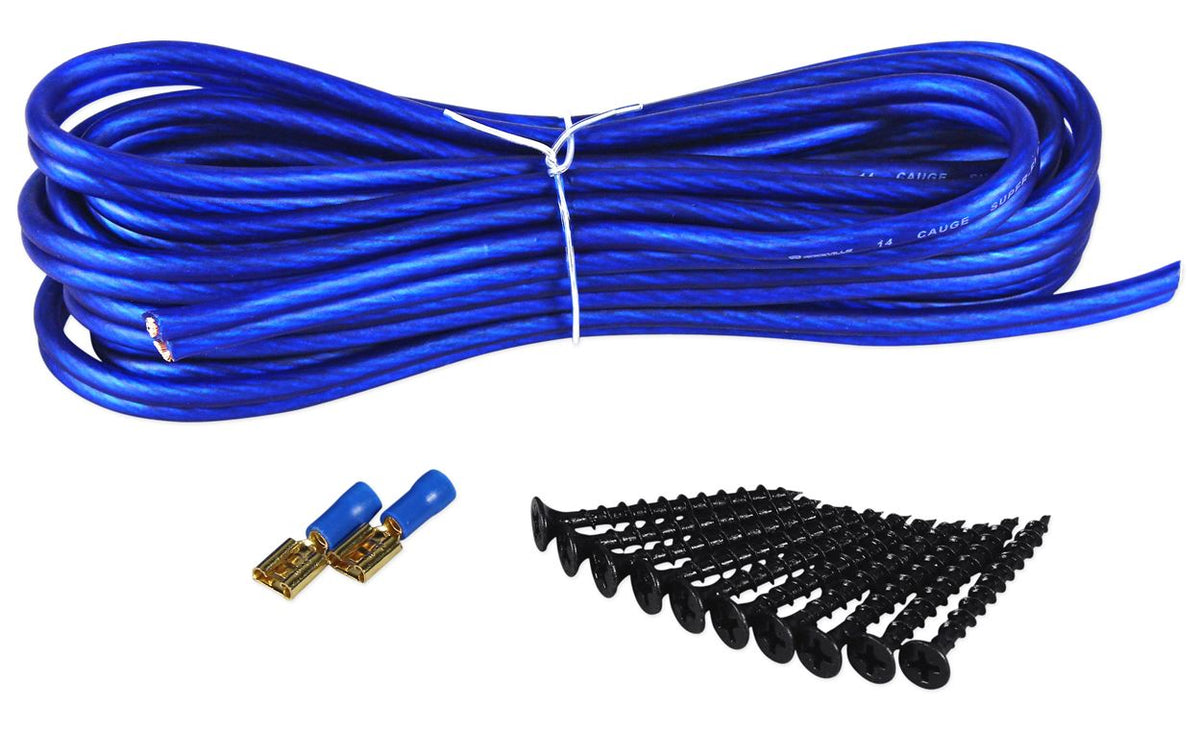

Includes 10 metal screws, 12 feet of speaker wire and two spade terminals

30-Day Money-Back Guarantee

Fast & Free Shipping

Buy Now, Pay Later

Member-Exclusive Prices

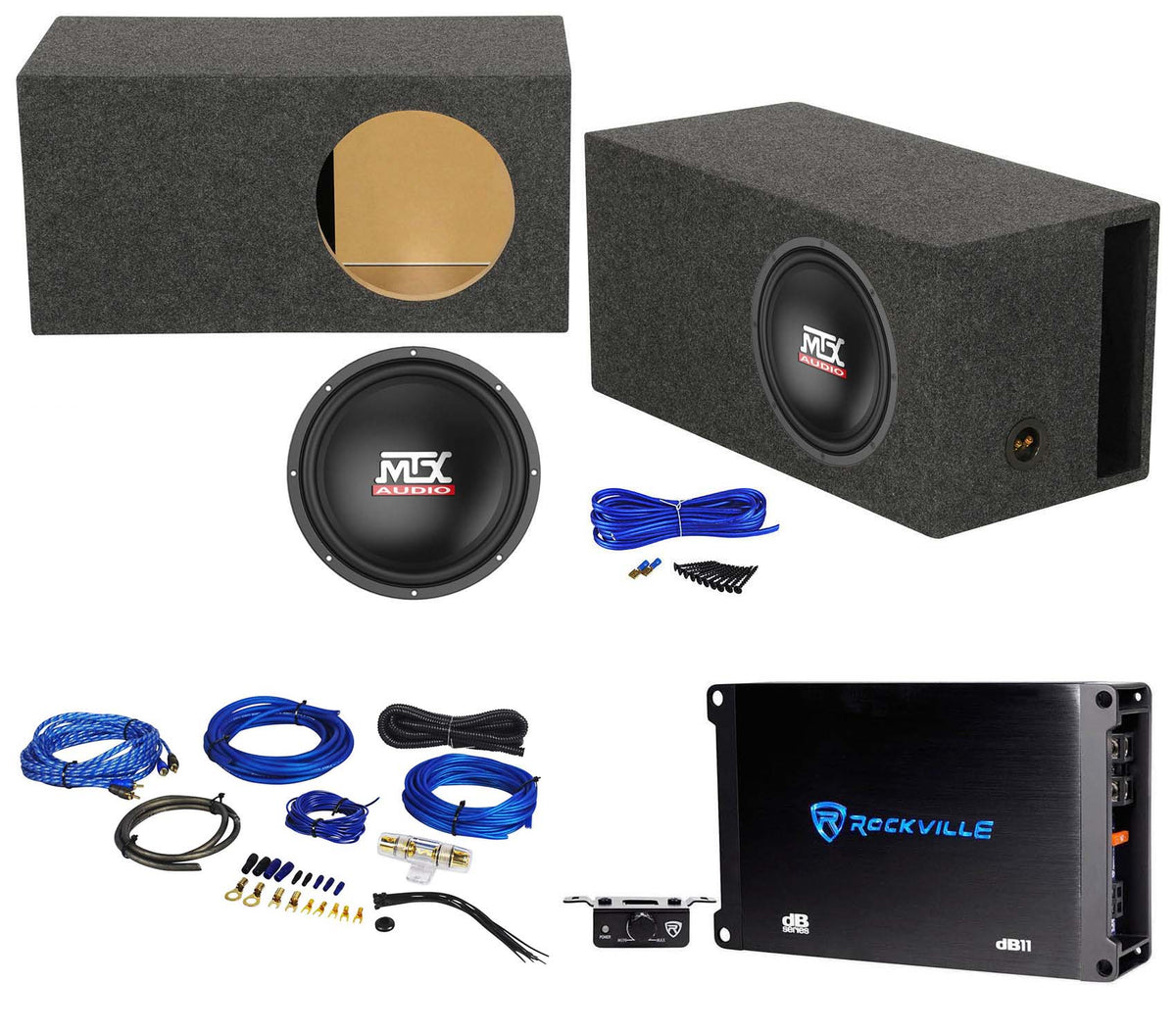

What's Included in the box

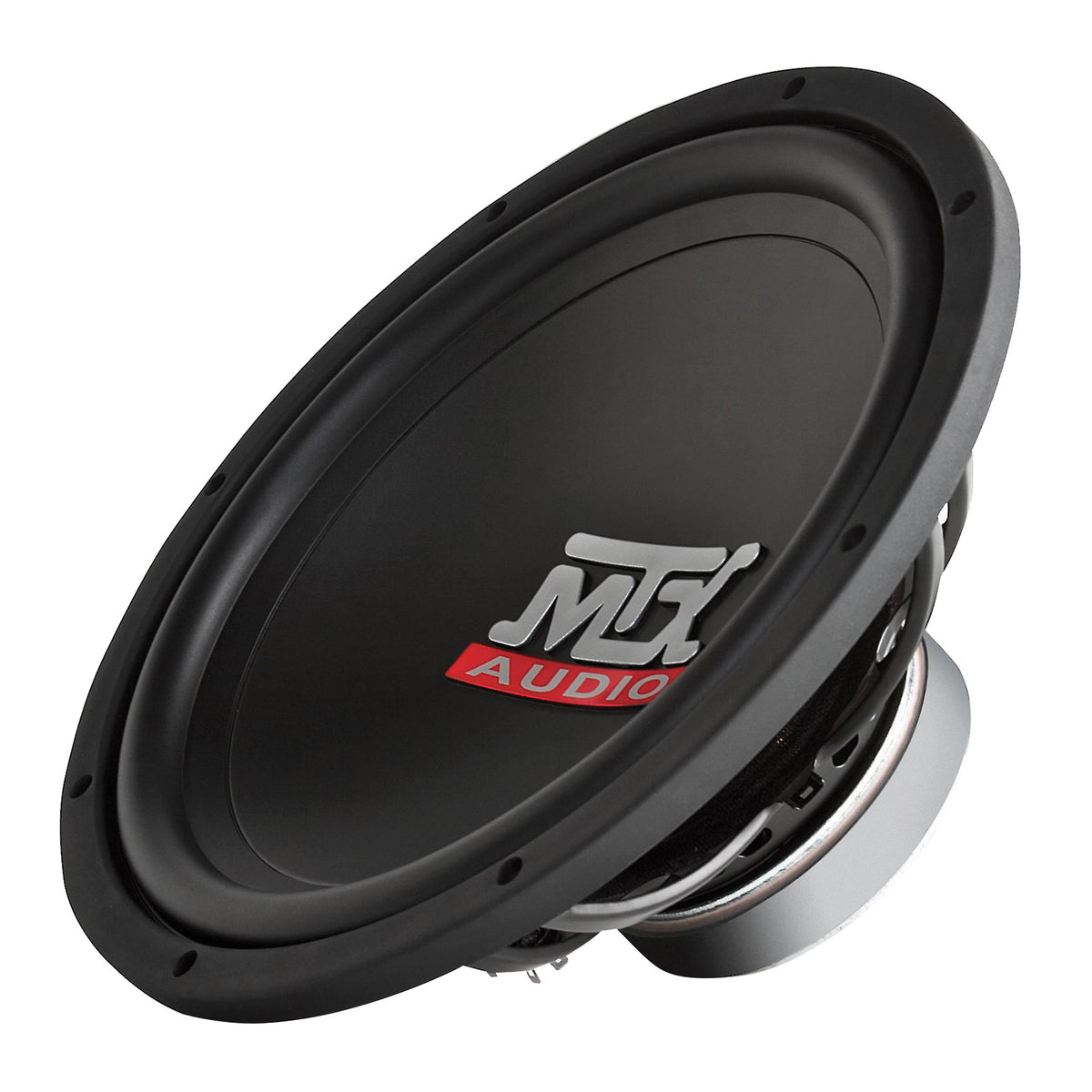

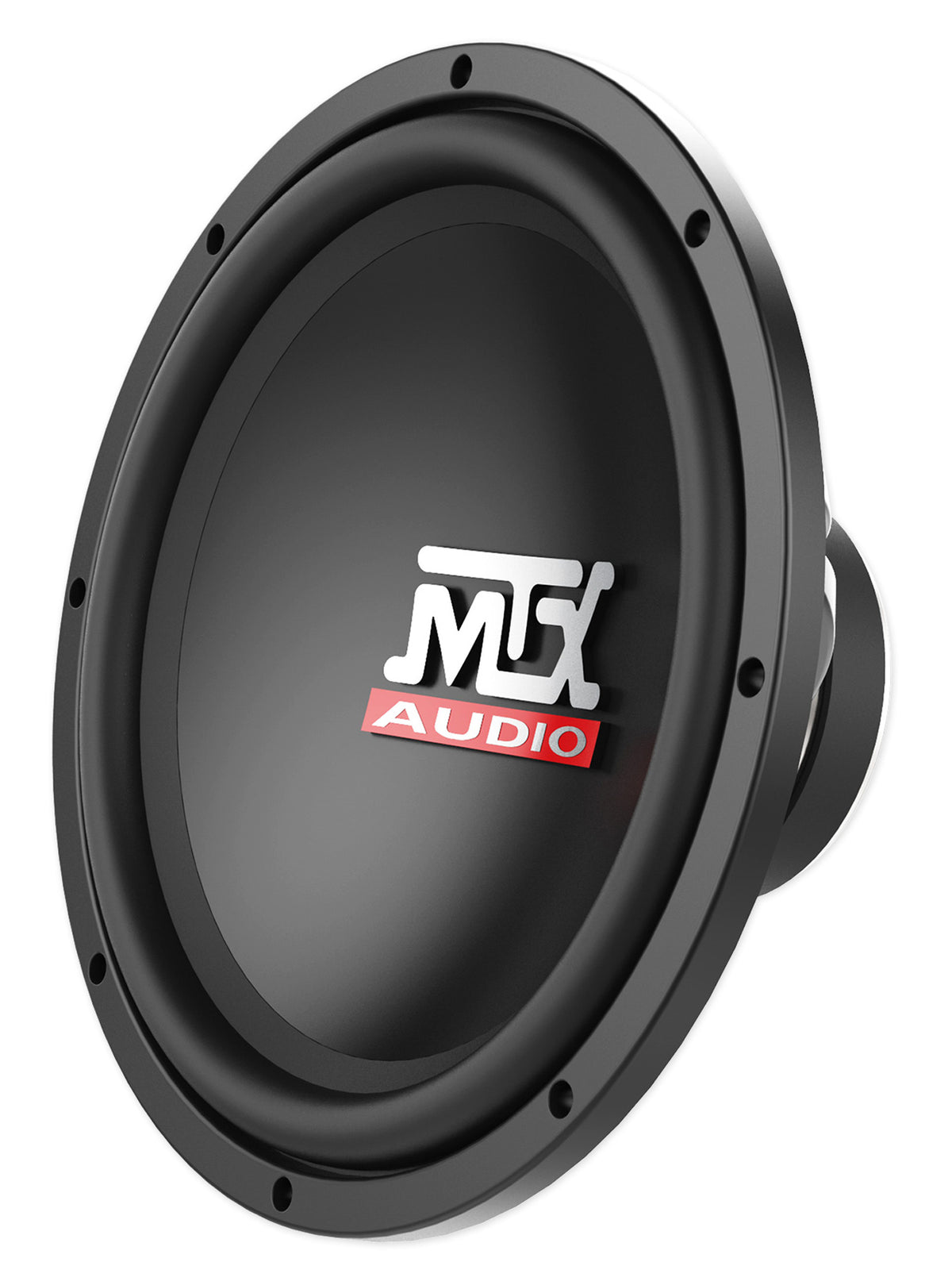

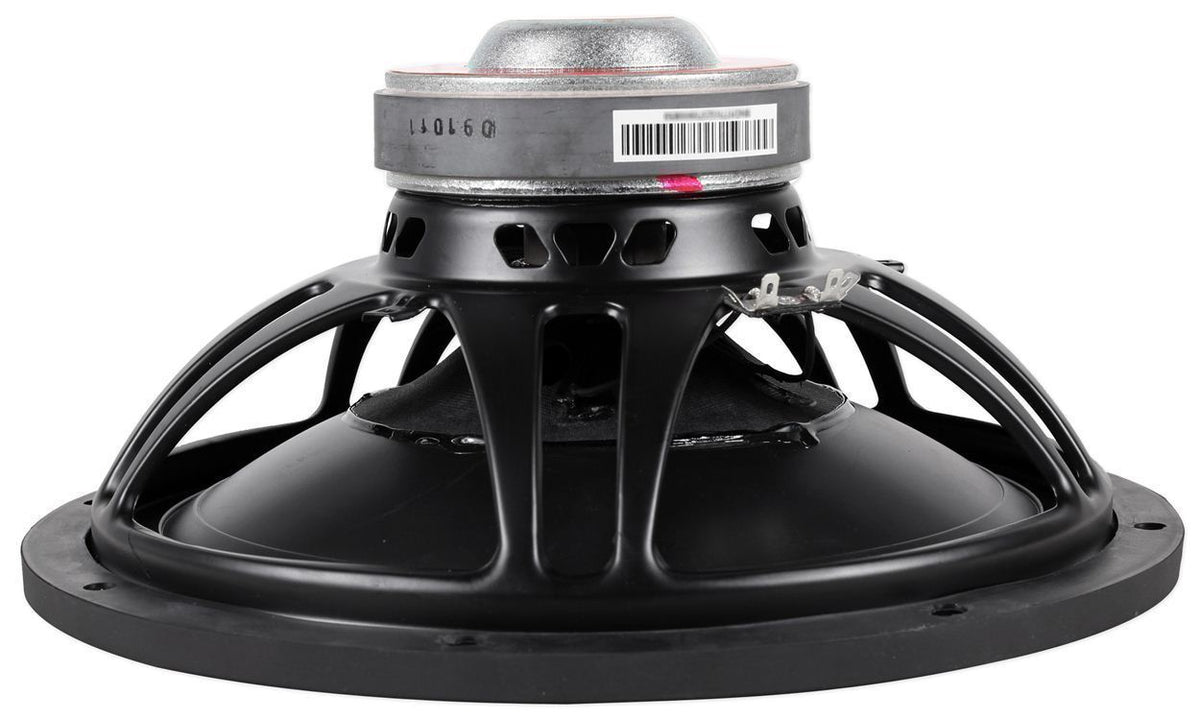

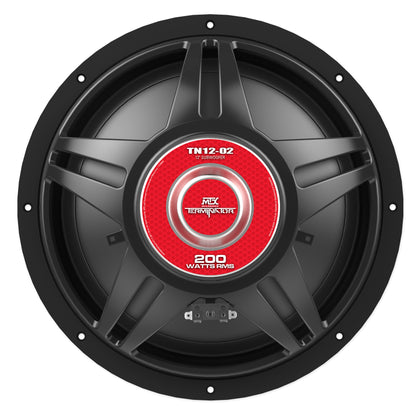

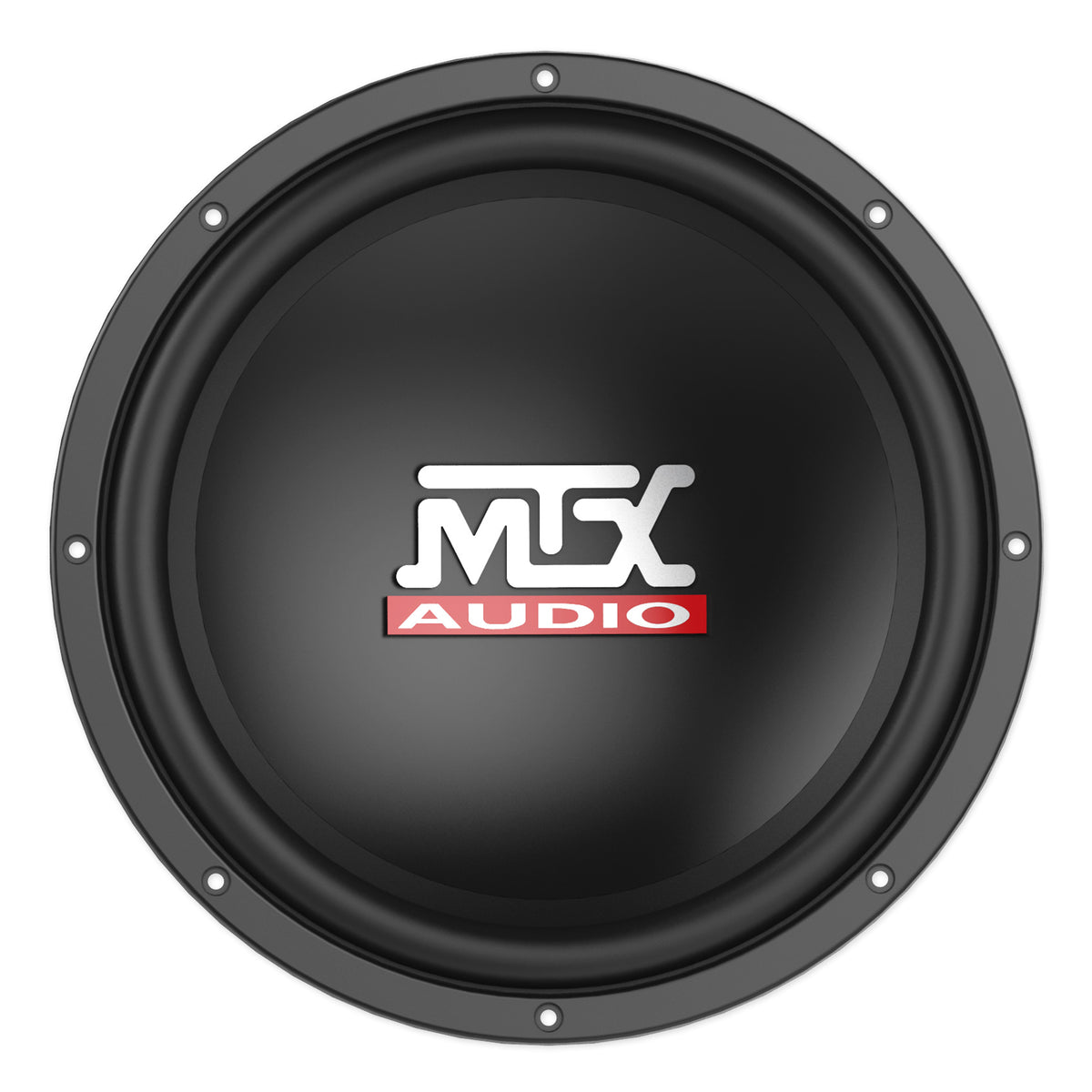

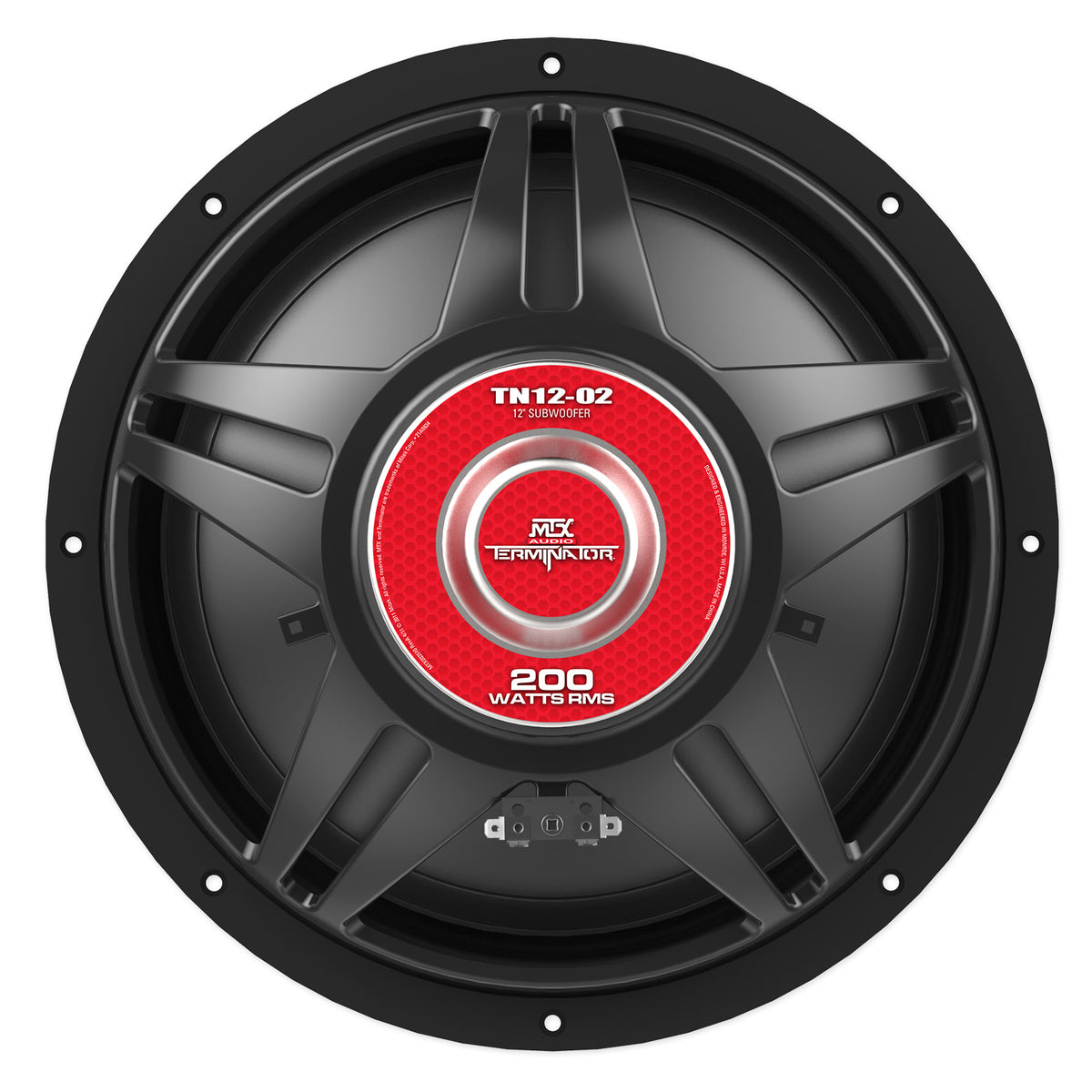

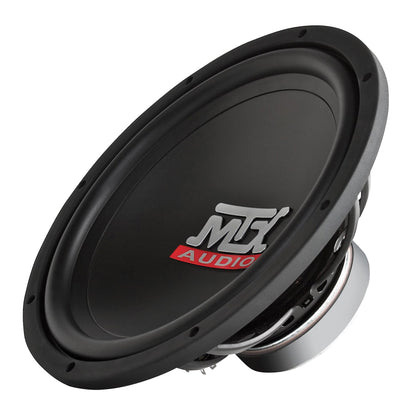

(1) TN12-02 12-inch subwoofer

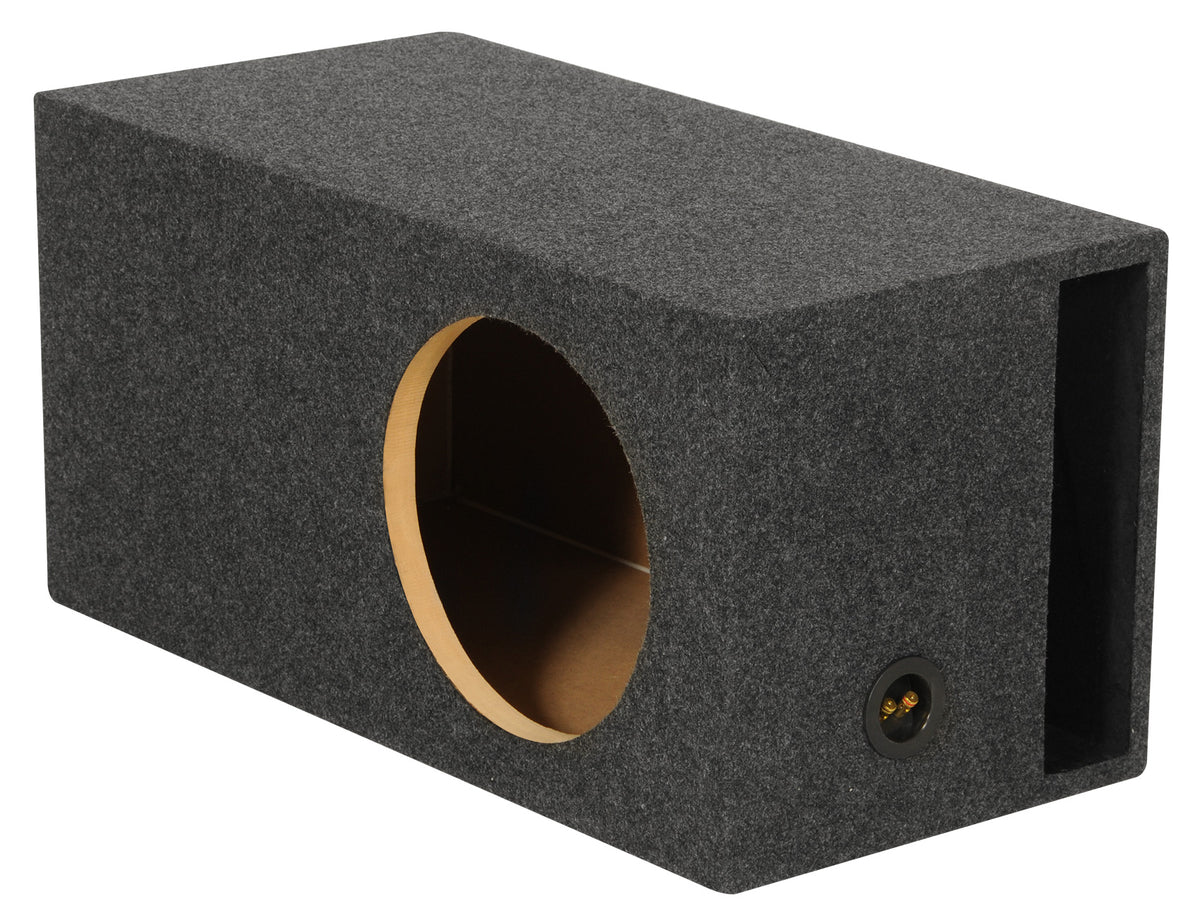

(1) RBS12 single 12-inch vented enclosure

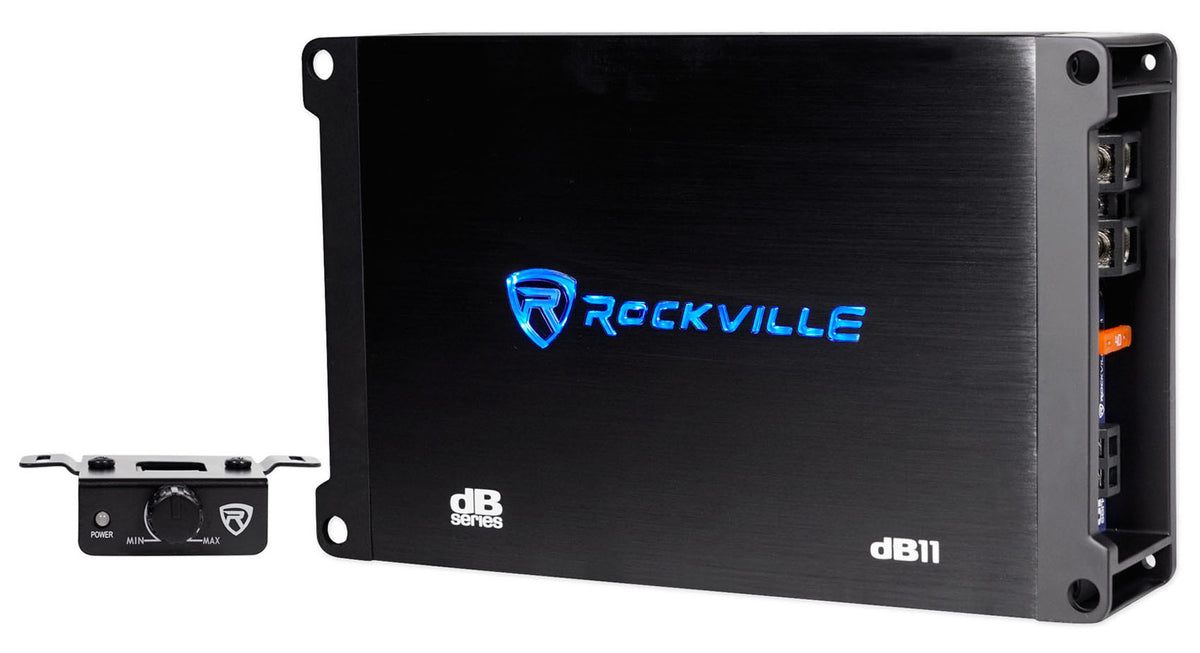

(1) dB11 mono 2-ohm amplifier
(1) Bass remote
(1) Birth sheet with tested power
Amplifier mounting hardware

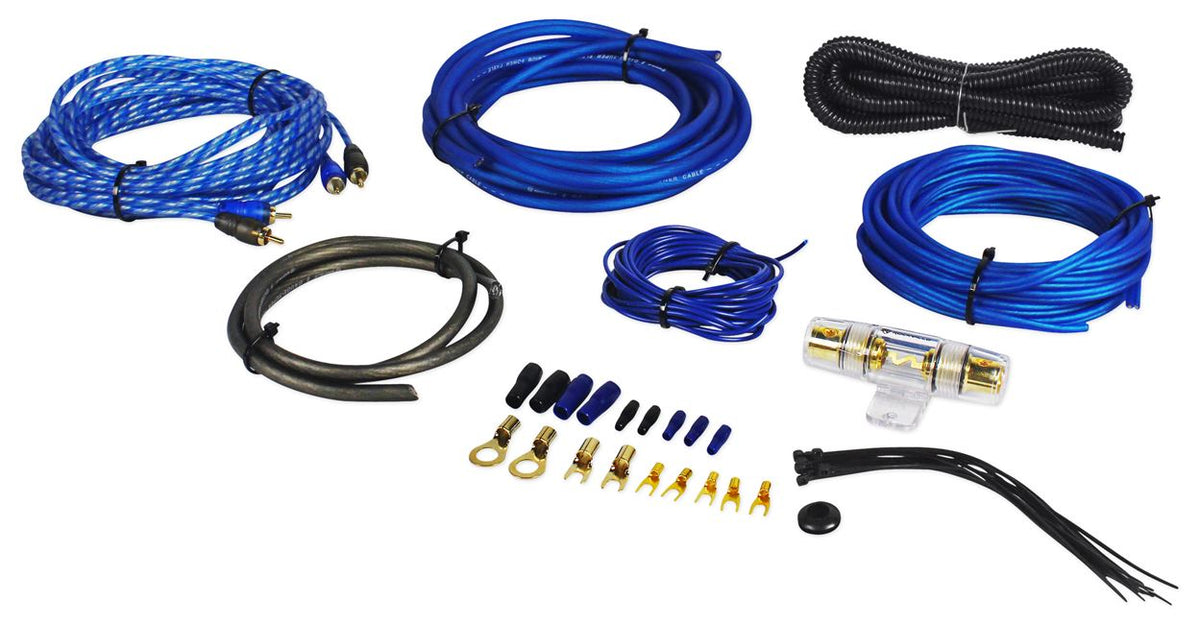

(1) RWK81 8 AWG 2-channel amplifier wiring kit
17-foot 100% copper twisted-pair RCA cable set
17-foot 8 AWG translucent blue power cable
17-foot 18 AWG blue remote cable
17-foot 16 AWG translucent blue speaker wire
3-foot 8 AWG translucent black ground cable
(1) AGU heat-resistant fuse holder
(1) 60 A AGU gold-plated fuse
7-foot split loom tube
Wire ties, ring terminals, butt connectors, spades and grommets
10 metal enclosure screws
12 feet of 14 AWG blue speaker wire
2 spade terminals

SKU: SKU: TN12-02+RBS12+K1+dB11+RWK81

View full details

Product Description

Build a car-audio bass setup with the 12-inch TN12-02 subwoofer, RBS12 vented enclosure, and dB11 mono amplifier. The enclosure is listed at 2.6 cu ft net and tuned to 43 Hz; the subwoofer is rated for 200 W RMS and 400 W peak, with a stated response of 24 Hz to 160 Hz. The included 8 AWG RWK81 wiring kit lists power, ground, remote, RCA and speaker leads, plus a fuse holder, 60 A fuse and installation accessories. For enclosure installation, the package also includes 10 metal screws, 12 feet of 14 AWG blue speaker wire and two spade terminals. The amplifier has adjustable crossover, low-pass and subsonic filters, phase control, bass EQ and a bass remote. Check two listed specification differences before setup: the amplifier's 350 W RMS at 2 ohms exceeds the subwoofer's recommended 100 to 200 W RMS, and the subwoofer's recommended vented volume of 2.00 cu ft differs from the included enclosure's 2.6 cu ft net volume. Dimensions for the enclosure and amplifier are included for fit checks.

Features

Low-Frequency Output
The 12-inch subwoofer handles 200 W RMS and reaches 24 Hz in its stated response range, adding dedicated bass for a car audio system.
Vented Enclosure
The RBS12 is listed at 2.6 cu ft net and 43 Hz tuning, with 3/4-inch MDF construction and gold spring-loaded terminals for enclosure installation.
Amplifier Adjustments
The mono amplifier is rated for 350 W RMS at 2 ohms and provides adjustable crossover, low-pass, subsonic, phase and bass EQ controls.
Wiring for Installation
The 8 AWG kit includes 17-foot power and RCA leads, a 3-foot ground cable, remote lead, fuse holder and 60 A fuse for installation.
Enclosure Installation Parts
Twelve feet of 14 AWG speaker wire, two spade terminals and ten metal screws cover the enclosure wiring and mounting pieces listed in the package.

Technical Specifications

Product Type 12-Inch Car Audio Subwoofer System
Subwoofer Model TN12-02
Subwoofer Size 12 in
Subwoofer Power Handling 200 W RMS, 400 W peak
Subwoofer Recommended Amplifier Power 100 to 200 W RMS
Subwoofer Impedance 2 ohms
Subwoofer Frequency Response 24 Hz to 160 Hz
Subwoofer Sensitivity 86.4 dB (1 W/1 m)
Subwoofer Voice Coil 1.50 in (3.81 cm)
Subwoofer Magnet Weight 27 oz

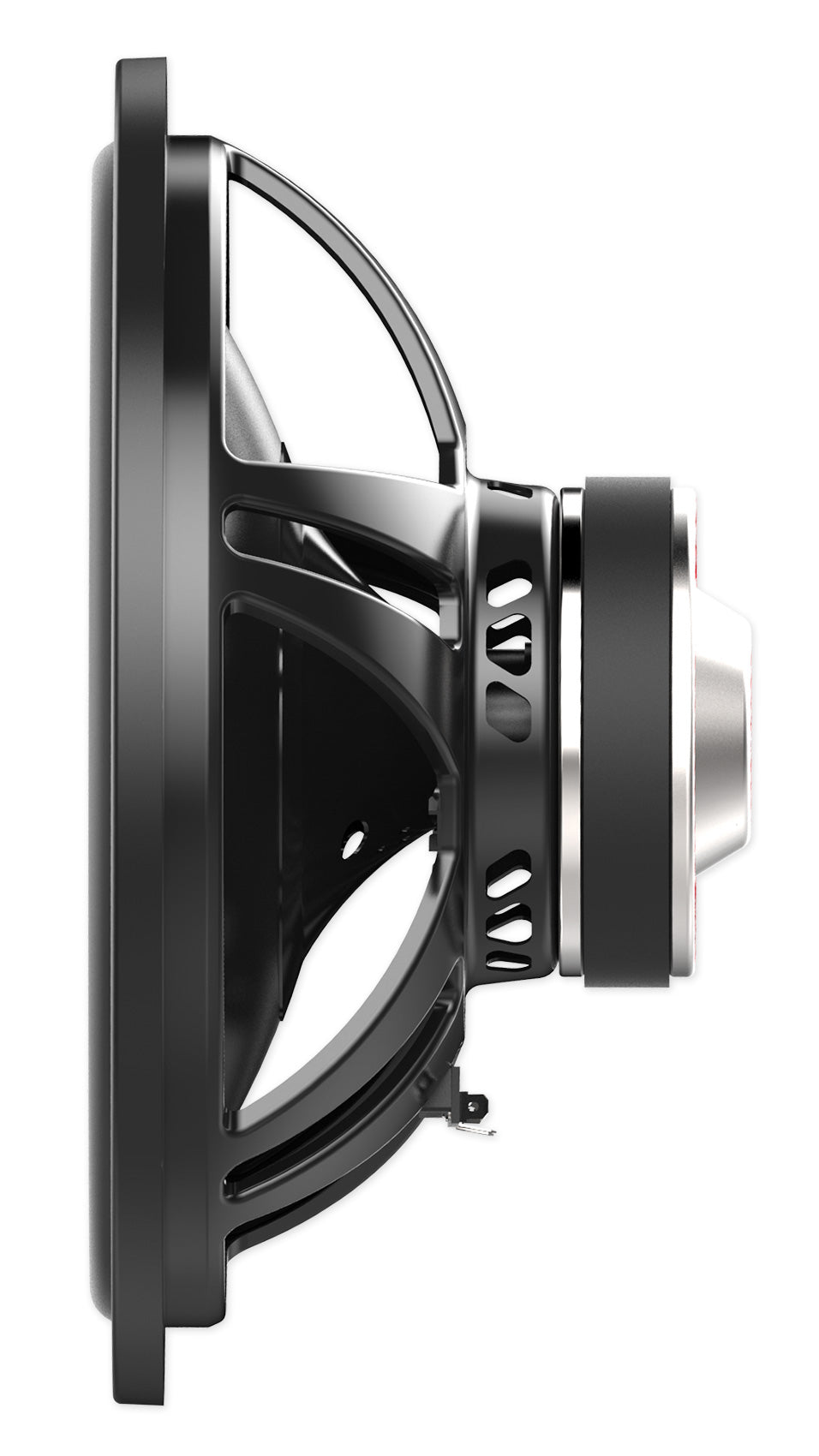

Subwoofer Mounting Depth 5.44 in (13.82 cm)
Subwoofer Cutout Diameter 11.08 in (28.14 cm)
Subwoofer Sealed Enclosure Net Volume 1.25 cu ft
Subwoofer Recommended Vented Enclosure Net Volume 2.00 cu ft
Subwoofer Volume Displacement 30.92 cu in
Enclosure Model RBS12
Enclosure Type Vented
Enclosure Sub Size Single 12 in
Enclosure Net Volume 2.6 cu ft
Enclosure Gross Volume 3.7 cu ft
Enclosure Tuning Frequency 43 Hz
Enclosure Construction 3/4 in MDF
Enclosure Terminal Type Gold spring-loaded terminals
Enclosure Maximum Mounting Depth 10 in
Amplifier Model dB11
Amplifier Channels Mono, 1 channel
Amplifier Impedance 2 ohms
Amplifier RMS Output 350 W x 1 at 2 ohms, less than 1% THD+N; 220 W x 1 at 4 ohms, less than 1% THD+N
Amplifier Peak Output 1400 W x 1 at 2 ohms; 880 W x 1 at 4 ohms
Amplifier Frequency Response 15 Hz to 250 Hz
Amplifier Low-Pass Filter 50 Hz to 250 Hz
Amplifier Subsonic Filter 15 Hz to 55 Hz
Amplifier THD at Rated Power Less than 0.1%
Amplifier Signal-to-Noise Ratio Greater than 90 dB
Amplifier Under-Voltage Protection 10 V
Amplifier Over-Voltage Protection 16 V
Wiring Kit RWK81, 8 AWG, 2-channel
RCA Cable 17 ft, 100% copper, twisted pair
Power Cable 17 ft, 8 AWG, translucent blue
Remote Cable 17 ft, 18 AWG, blue
Speaker Wire (Kit) 17 ft, 16 AWG, translucent blue
Ground Cable 3 ft, 8 AWG, translucent black
Fuse 60 A AGU, gold-plated
Fuse Holder AGU, gold-plated, heat-resistant
Split Loom Tube 7 ft
Enclosure Installation Screws 10, metal
Enclosure Speaker Wire 12 ft, 14 AWG, blue
Spade Terminals 2
Enclosure Dimensions 14.75 in L x 30 in W x 14.75 in H
Amplifier Dimensions 8.9 in W x 2 in H x 5.5 in D
