MTX

TN12-02 + RS12 + K1

Name: TN12-02 + RS12 + K1
Brand: MTX
SKU: TN12-02+RS12+K1
Price: 127.90 USD
Availability: InStock

12-Inch Car Audio Subwoofer, 200 W RMS, Sealed MDF Enclosure, Wiring and Installation Hardware

Free Shipping

$127.90

$127.90 ~~$234.93~~

Save 45%

Shipping calculated at checkout.

Features

12-inch TN12-02 subwoofer rated for 200 W RMS and 400 W peak
RS12 sealed enclosure uses 3/4-inch MDF
Enclosure offers 0.75 cu ft net volume
12 ft of 14 AWG blue speaker wire included
Includes 10 metal screws and two spade terminals

30-Day Money-Back Guarantee

Fast & Free Shipping

Buy Now, Pay Later

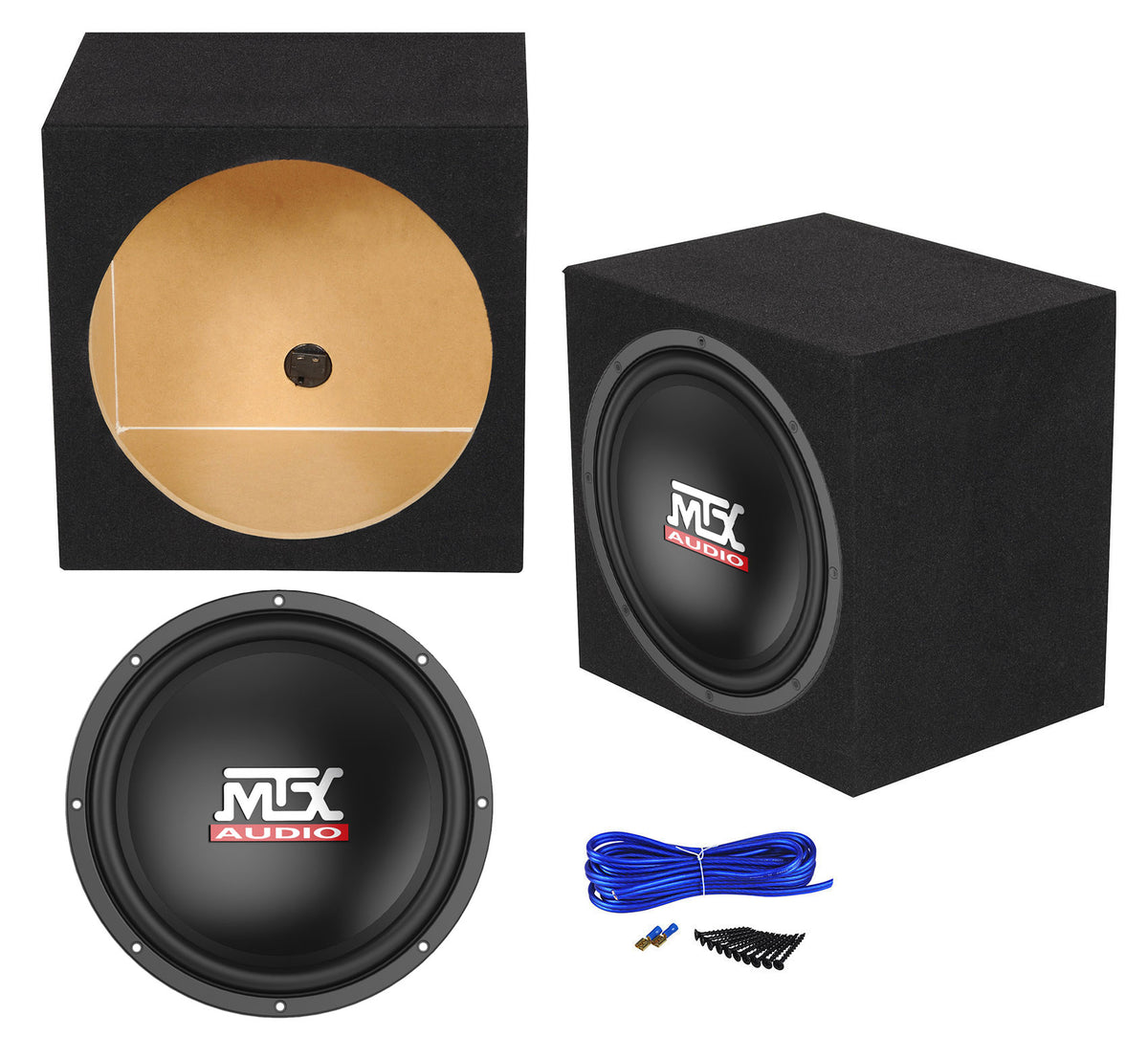

What's Included in the box

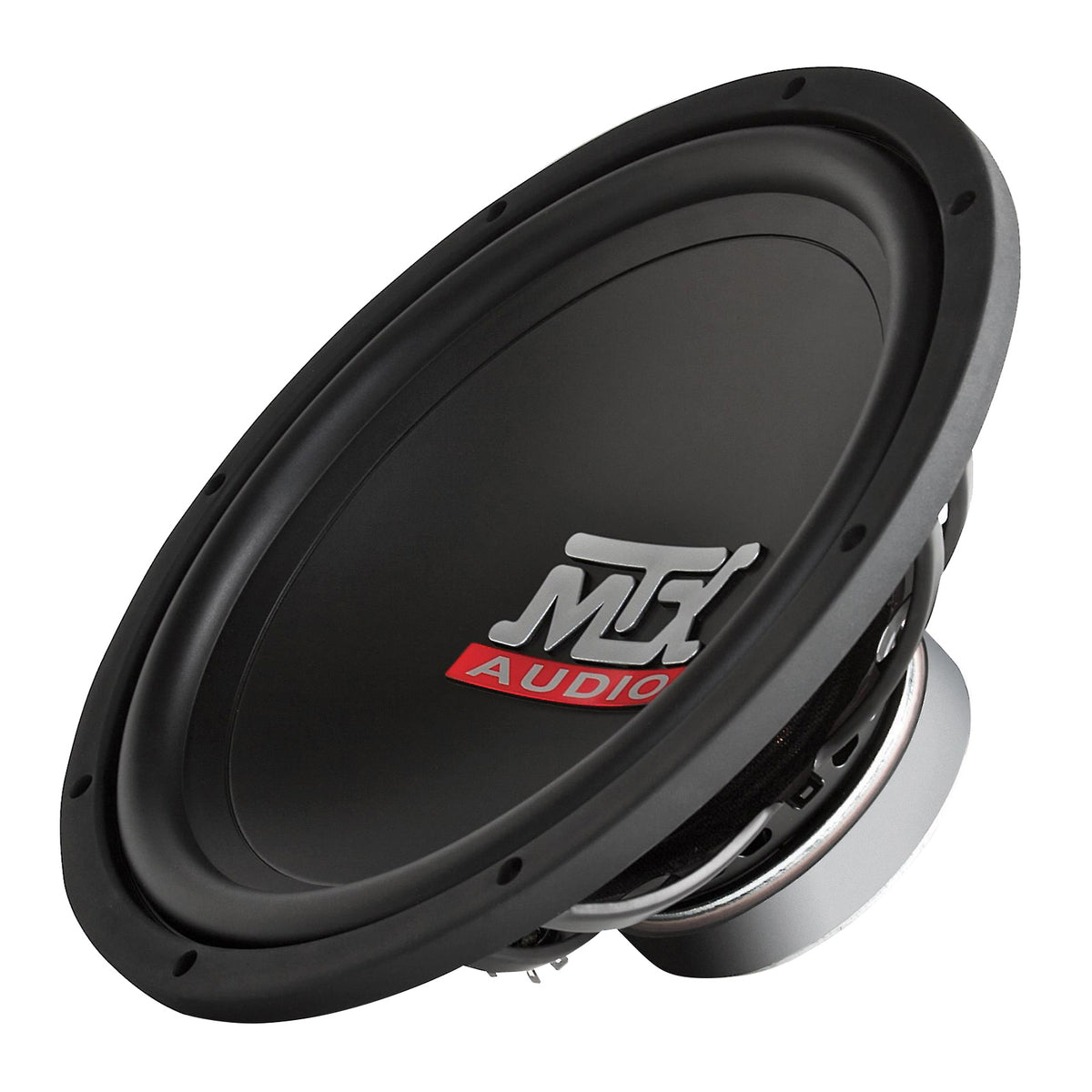

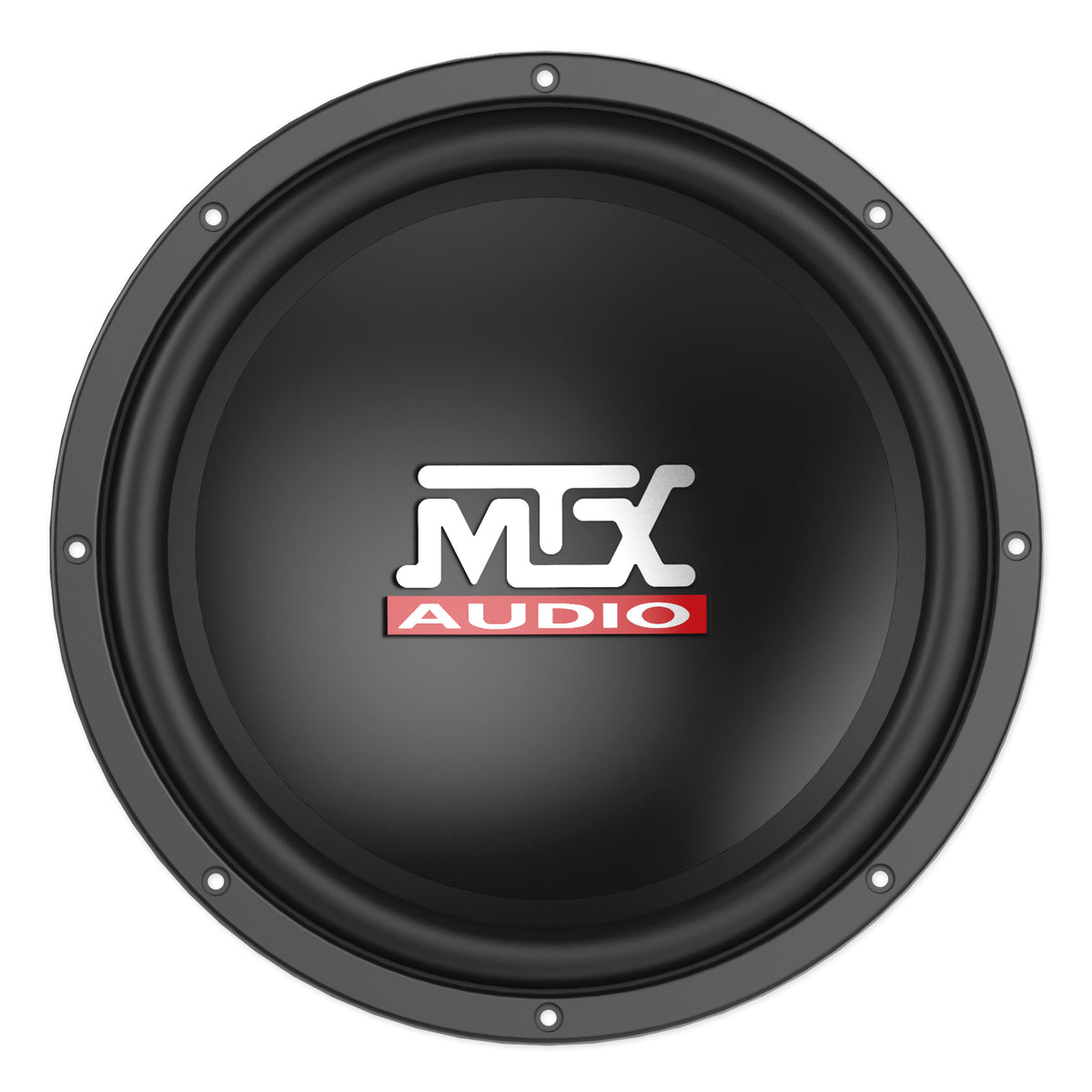

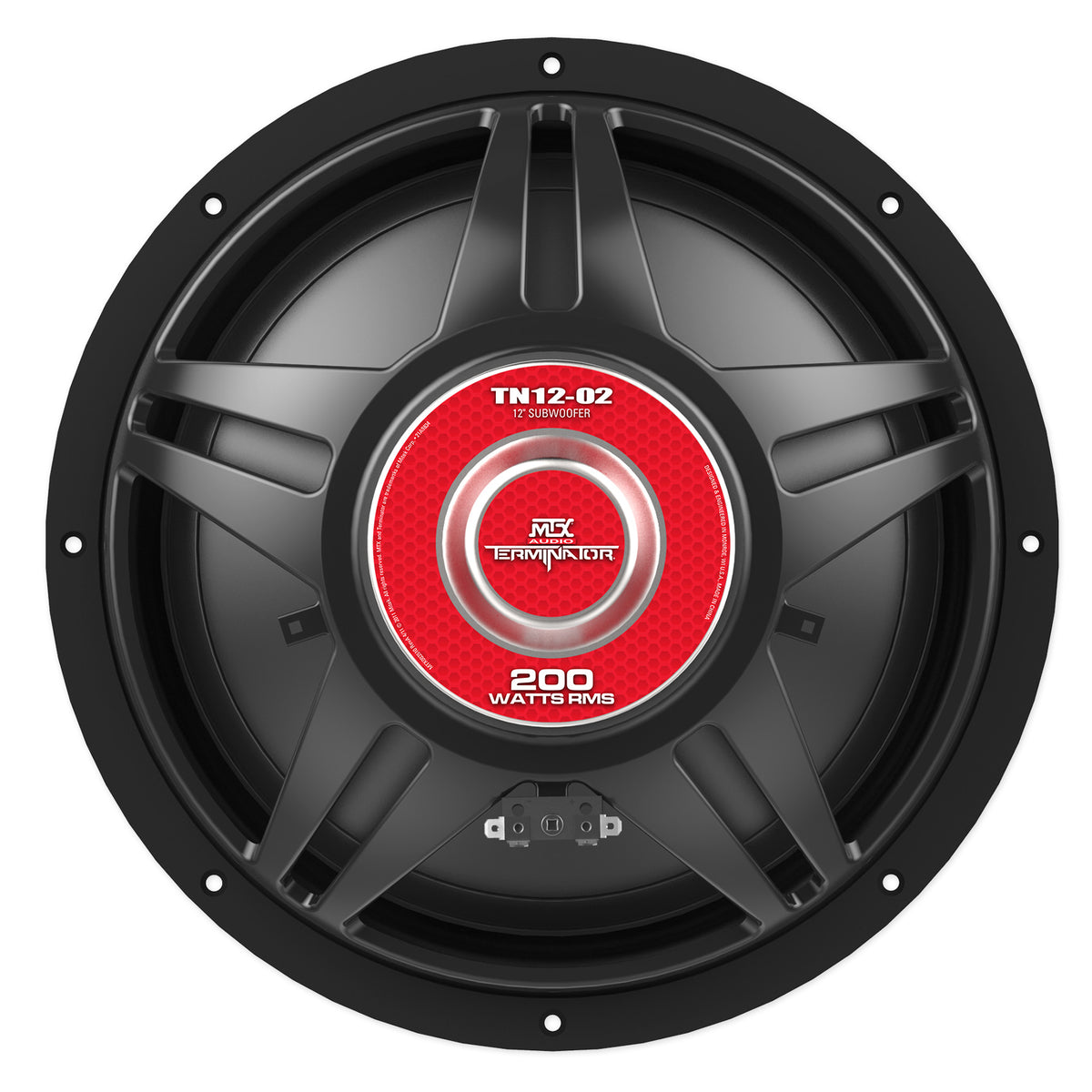

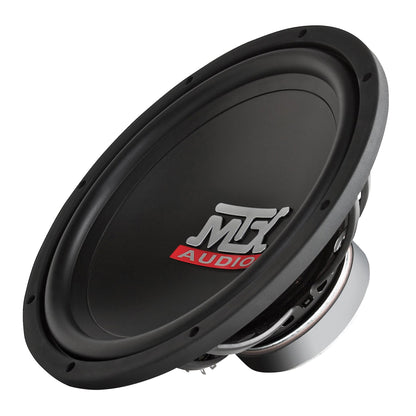

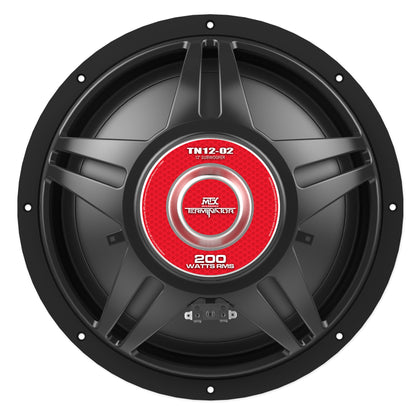

(1) TN12-02 12-inch car audio subwoofer

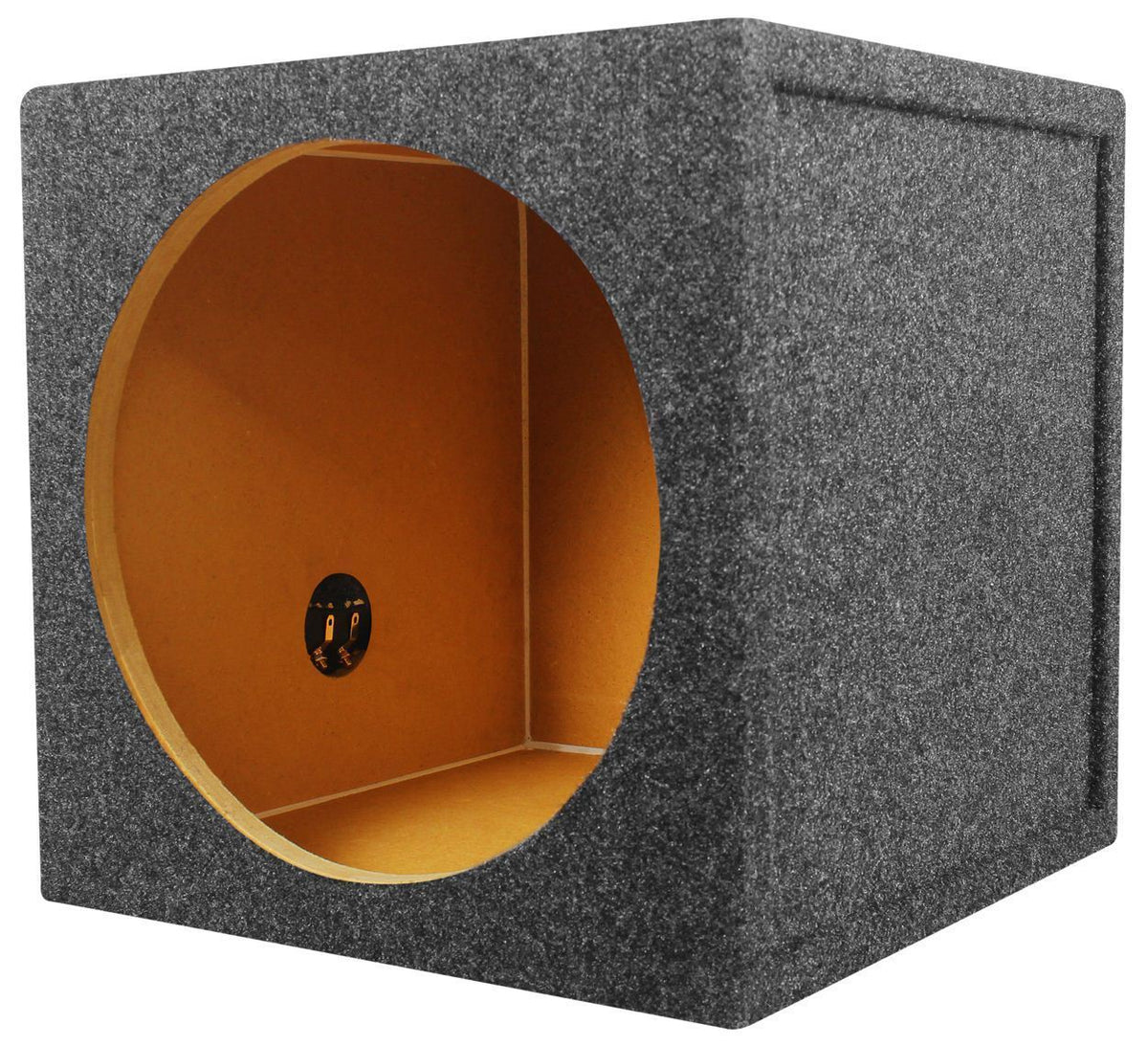

(1) RS12 single 12-inch sealed subwoofer enclosure
(10) metal drywall wood screws

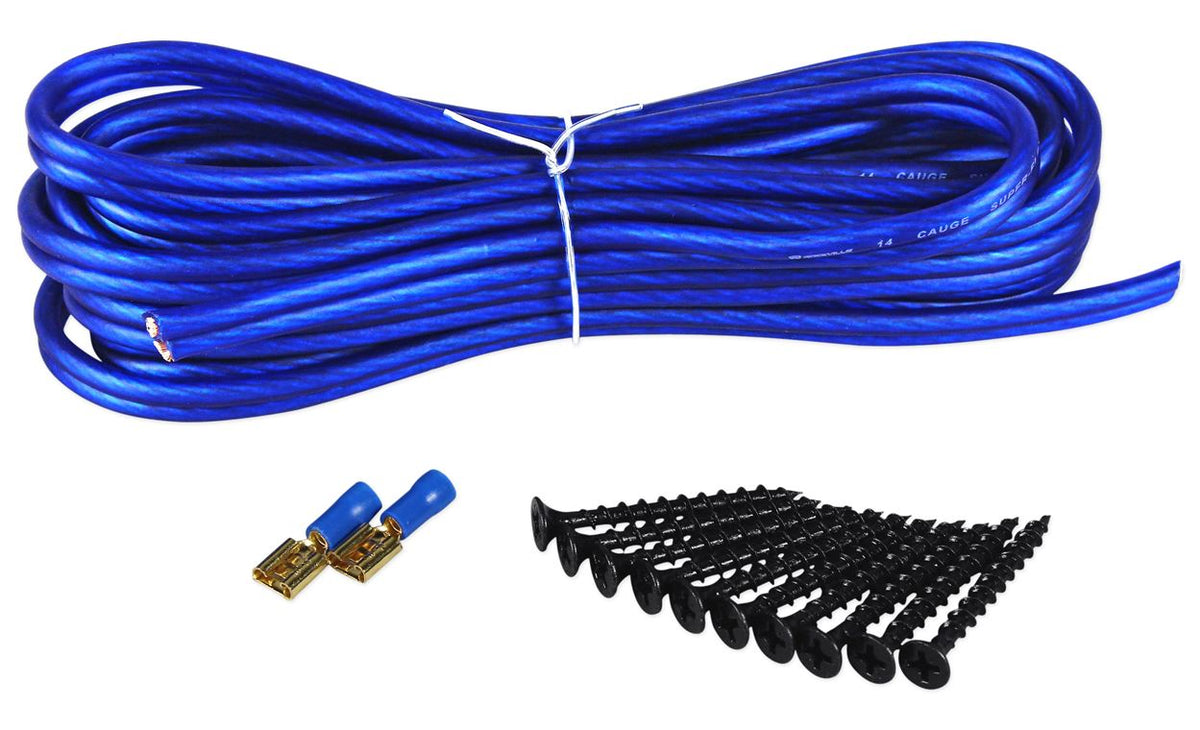

12 ft of 14 AWG blue speaker wire
(2) spade terminals

SKU: SKU: TN12-02+RS12+K1

View full details

Product Description

Put together a single-subwoofer car audio setup with the TN12-02 12-inch subwoofer, RS12 sealed enclosure and installation hardware in one package. The subwoofer is rated for 200 W RMS and 400 W peak, with 2-ohm impedance, a listed 24 Hz to 160 Hz response and 86.4 dB sensitivity. Its polypropylene cone, rubber surround, flat progressive spider and extended pole piece pair with voice-coil venting for low-frequency playback. The single 12-inch RS12 enclosure is made from 3/4-inch MDF and lists 1.0 cu ft gross volume and 0.75 cu ft net volume. Glued and stapled joints, silicone along each seam and spring-loaded gold terminals complete its construction. The package includes 12 feet of 14 AWG blue speaker wire, two spade terminals and 10 metal drywall wood screws for mounting and wiring.

Features

Low-Frequency Output
A polypropylene cone and rubber surround cover the listed 24 Hz to 160 Hz range, adding dedicated low-frequency output to a car audio system.
Power Matching
With 200 W RMS handling, 400 W peak power and a recommended 100 to 200 W RMS amplifier range, the subwoofer gives installers clear power targets.
Voice Coil Cooling

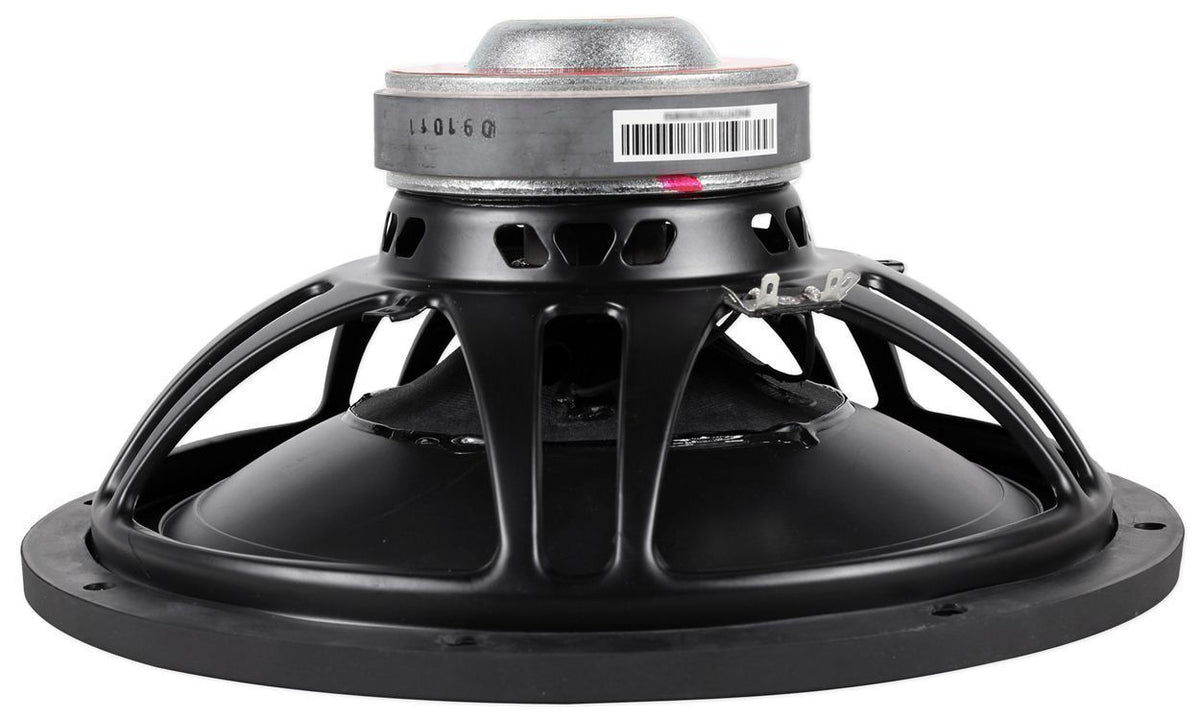

Voice-coil venting helps manage heat, while the flat progressive spider and extended pole piece support linear cone movement during playback.
Sealed Cabinet Build
The single-sub enclosure uses 3/4-inch MDF with glued and stapled joints plus silicone along the seams for a sturdy sealed cabinet.
Installation Hardware
Gold spring-loaded terminals, 12 feet of 14 AWG blue wire, two spade terminals and 10 metal screws cover core connection and mounting needs.

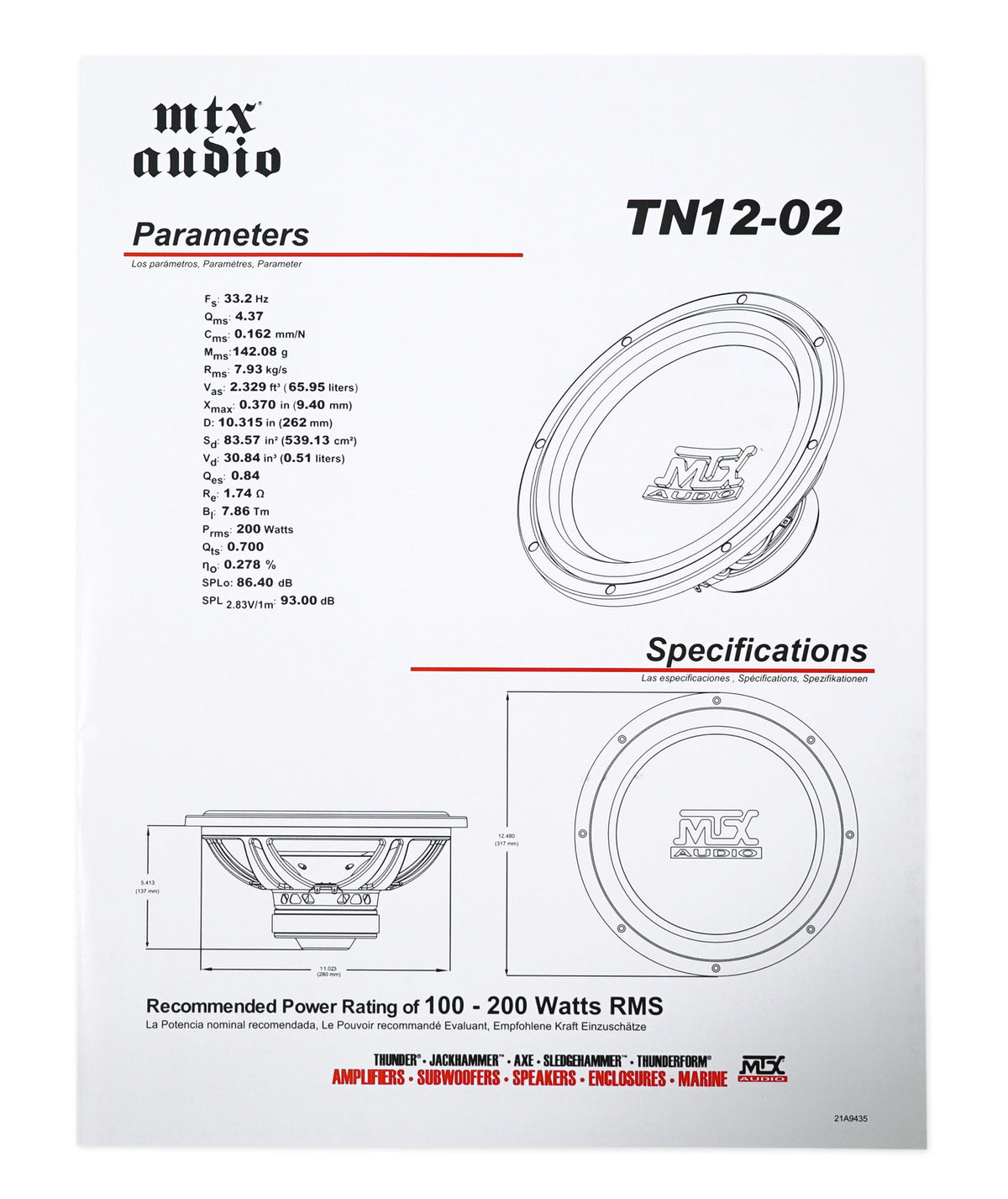

Technical Specifications

Product Type Car Audio Subwoofer Bundle
Subwoofer Model TN12-02
Subwoofer Size 12 in
Peak Power 400 W
RMS Power 200 W
Impedance 2 ohms
Recommended Amplifier Power (RMS) 100 to 200 W
Frequency Response 24 Hz to 160 Hz
Sensitivity 86.4 dB (1 W/1 m)
Voice Coil 1.50 in (3.81 cm)
Magnet Weight 27 oz

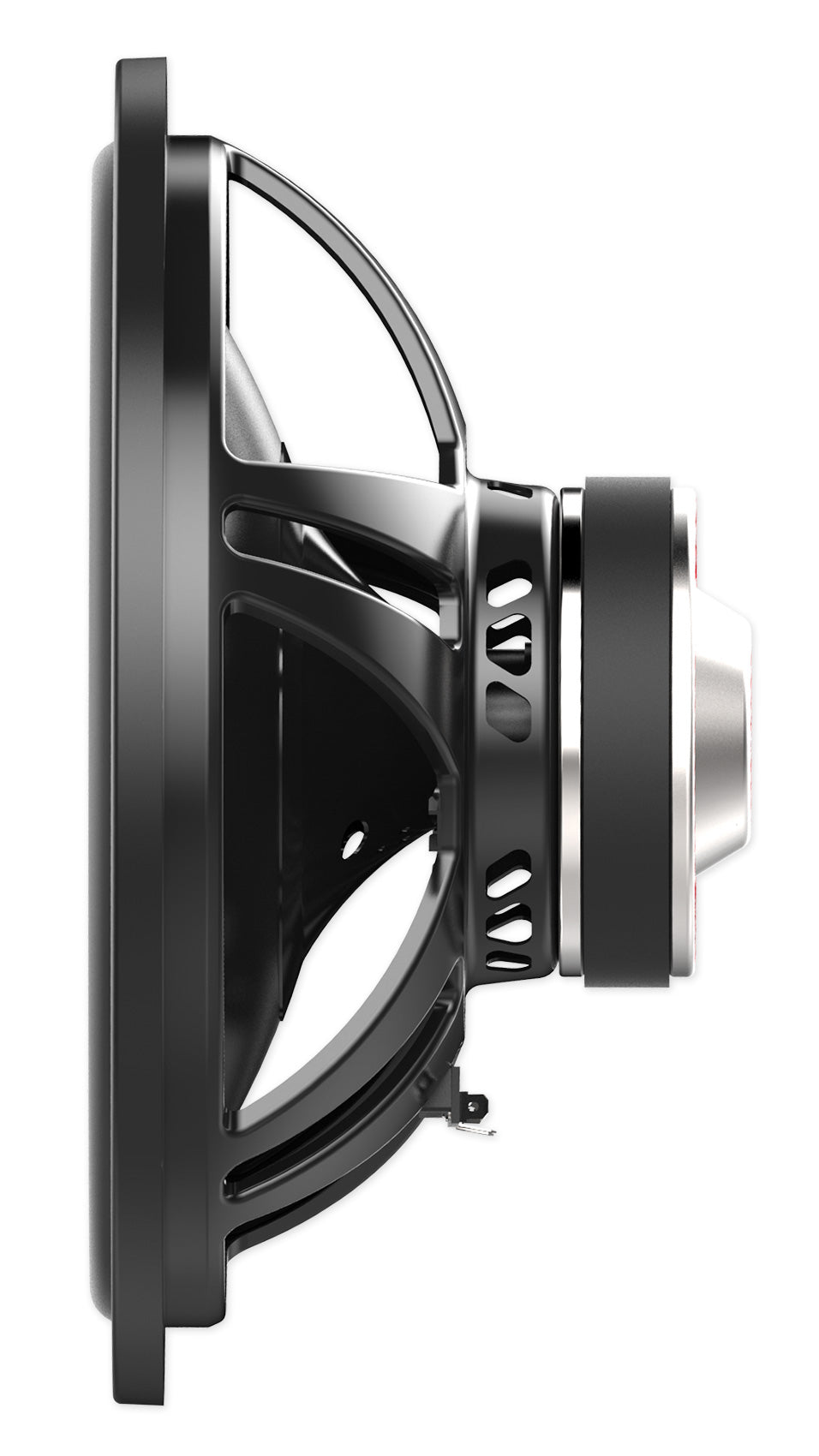

Subwoofer Mounting Depth 5.44 in (13.82 cm)
Subwoofer Cutout Diameter 11.08 in (28.14 cm)
Subwoofer Listed Sealed Enclosure Net Volume 1.25 cu ft
Enclosure Model RS12
Enclosure Type Sealed
Enclosure Sub Size Single 12 in
Enclosure Material 3/4 in MDF
Enclosure Gross Volume 1.0 cu ft
Included Enclosure Net Volume 0.75 cu ft
Enclosure Mounting Depth Up to 12.25 in
Top and Bottom Depth 13.2 in
Enclosure Terminals Gold spring-loaded
Included Speaker Wire 12 ft, 14 AWG, blue
Included Screws 10 metal drywall wood screws
Included Spade Terminals 2
Dimensions 18 in L x 13.2 in W x 13.2 in H
