TNP212D2 Dual 12" Subwoofer Enclosure & Amplifier Package

Name: TNP212D2 Dual 12" Subwoofer Enclosure & Amplifier Package
Brand: MTX
SKU: TNP212D2+RWK41+RXC2D
Price: 345.87 USD
Availability: InStock

Dual 12" Subwoofer And Amplifier Package, 2 Ohm, Wiring Kit, 2 Farad Capacitor

Free Shipping

$345.87

$345.87 ~~$809.98~~

Save 57%

Shipping calculated at checkout.

Features

Dual 12-inch sealed enclosure rated at 1,200 W peak and 400 W RMS
Two 12-inch subwoofers prewired to a 2-ohm load

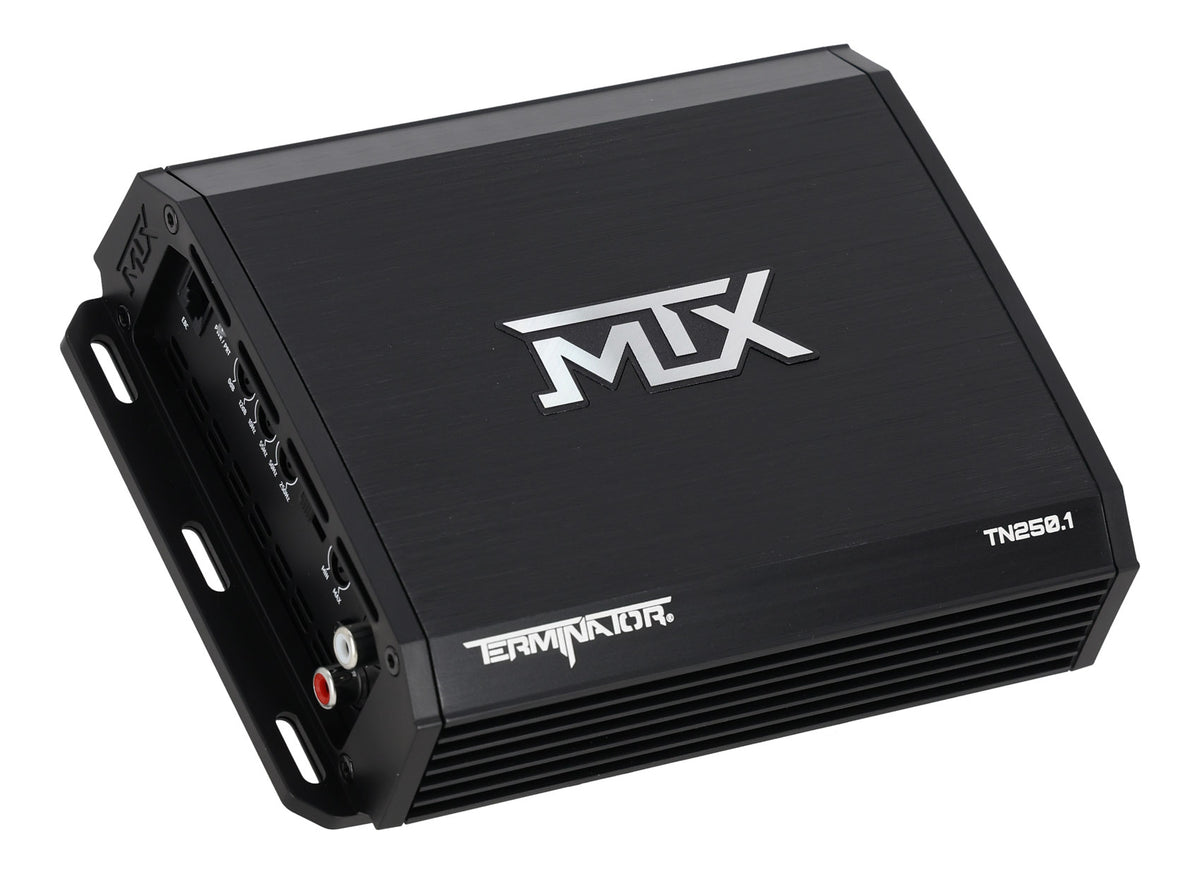

Class D monoblock amplifier rated at 250 W RMS at 2 ohms
Includes four-gauge wiring kit with 17-foot power cable and RCA cable
Includes 2 Farad capacitor with digital voltage meter and 24 V surge capacity

30-Day Money-Back Guarantee

Fast & Free Shipping

Buy Now, Pay Later

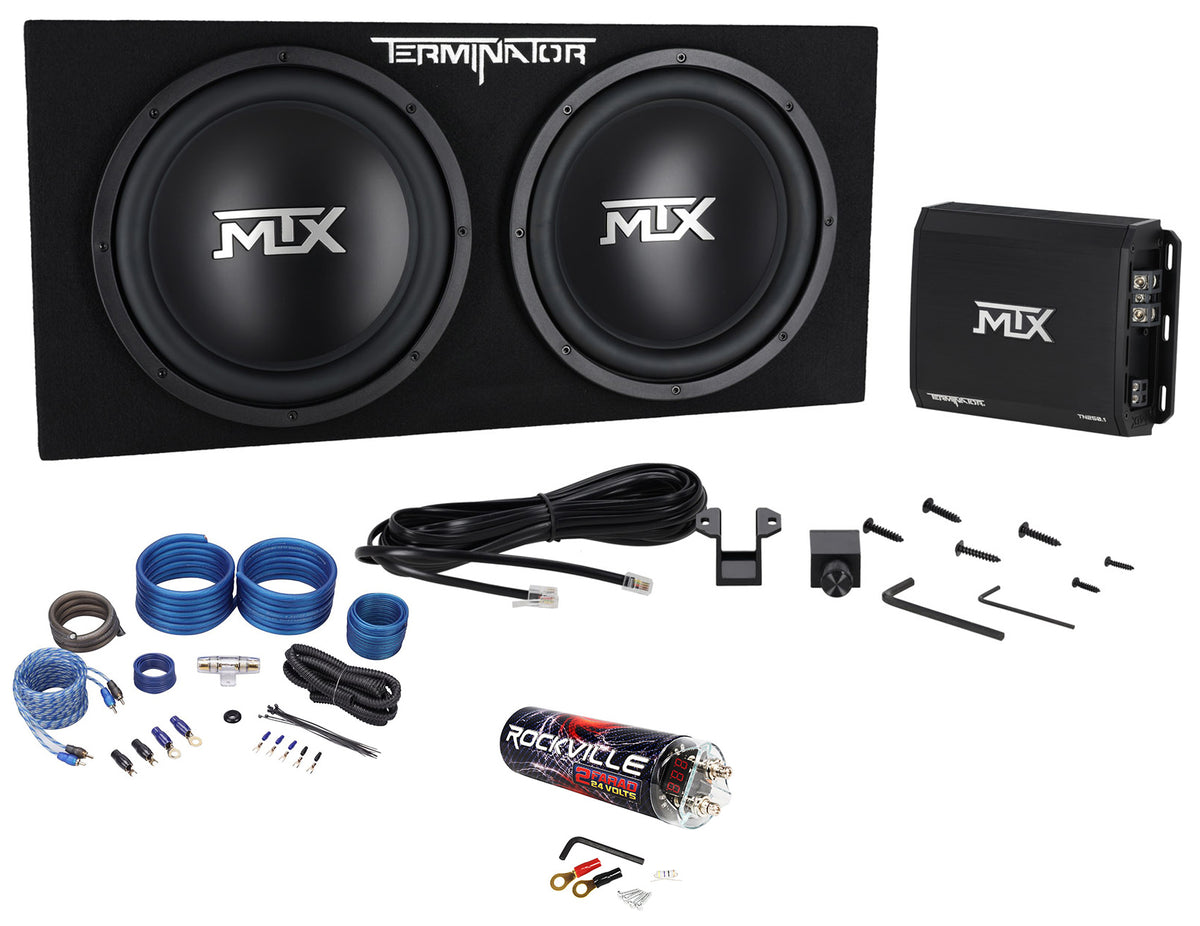

What's Included in the box

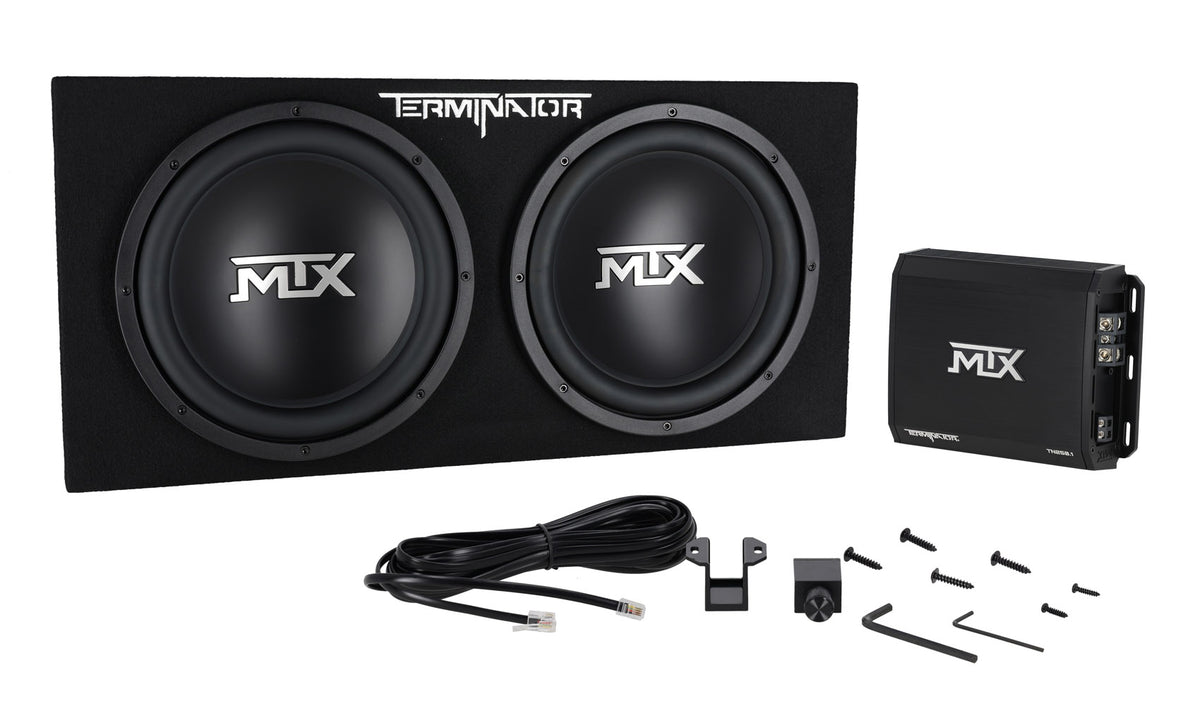

(1) TNP212D2 dual 12-inch sealed subwoofer enclosure and monoblock amplifier package

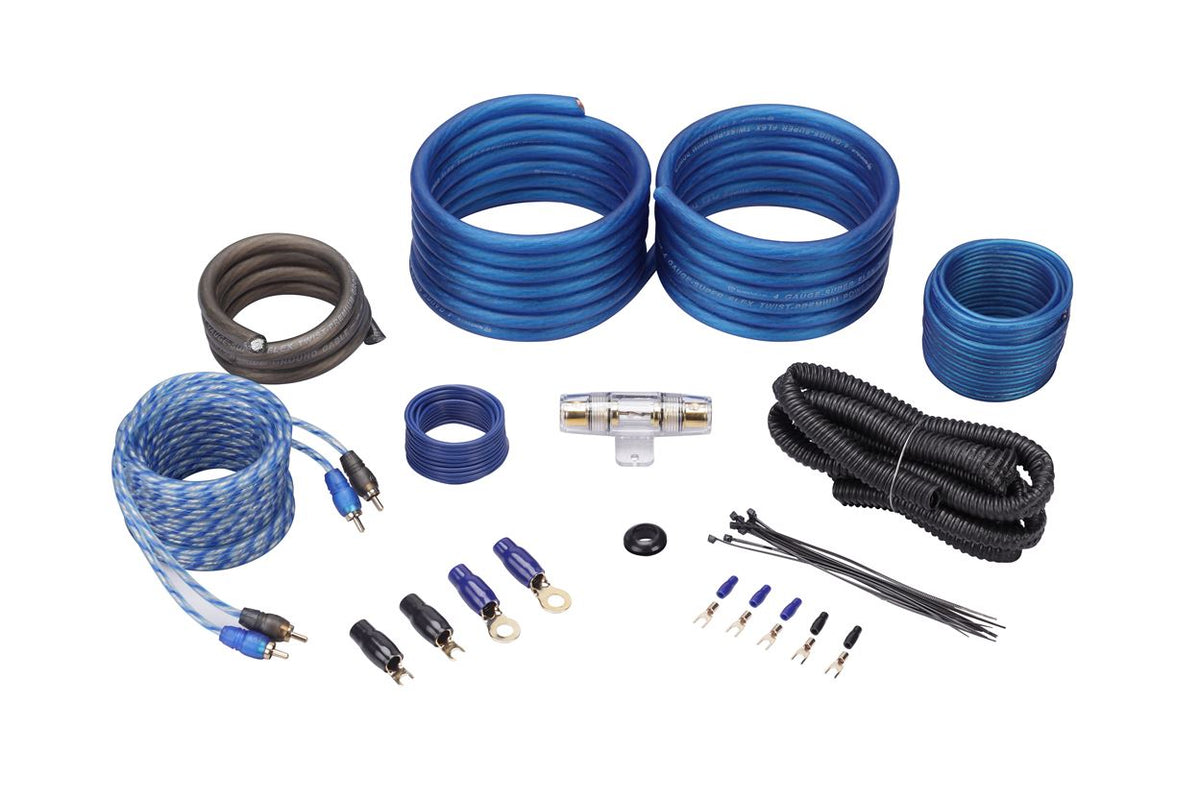

(1) RWK41 4-gauge amplifier wiring kit
(1) 17-foot twisted-pair 100% copper RCA cable
(1) 17-foot 4-gauge power cable
(1) 17-foot 18-gauge remote cable
(1) 3-foot 4-gauge ground cable
AGU fuse holder and AGU fuse
(1) 7-foot split-loom tube
Wire ties, ring terminals, butt connectors, spade terminals, and grommets

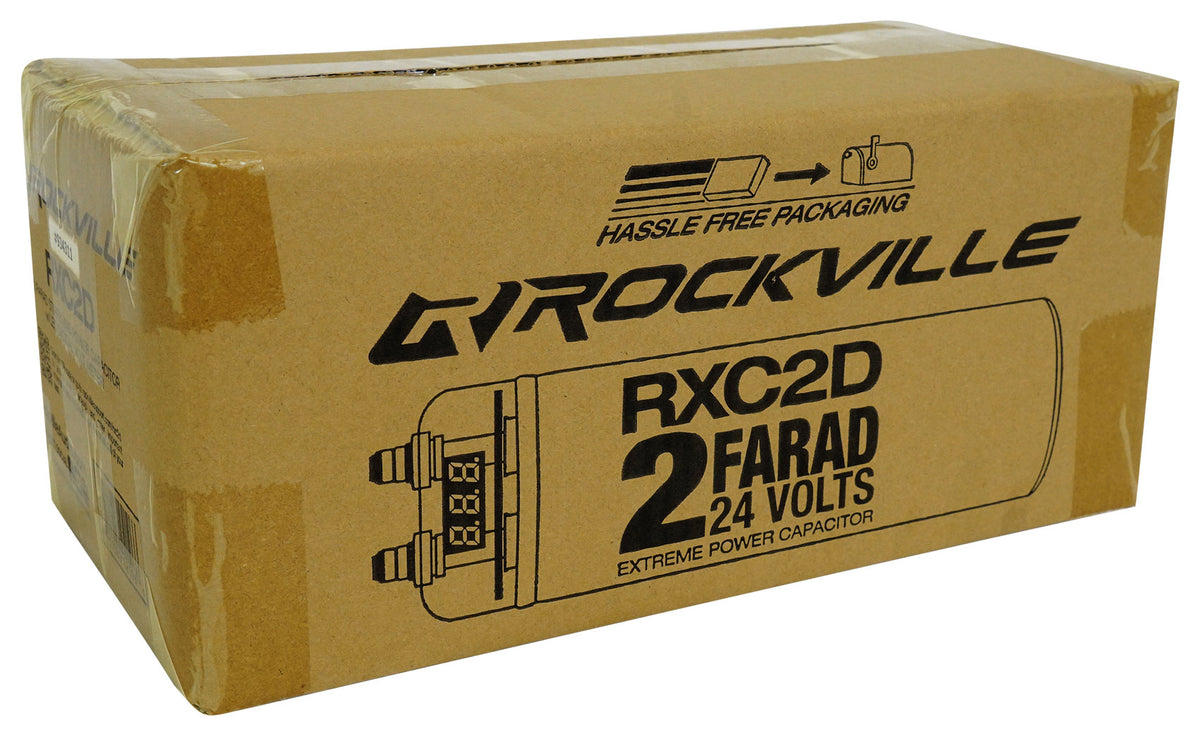

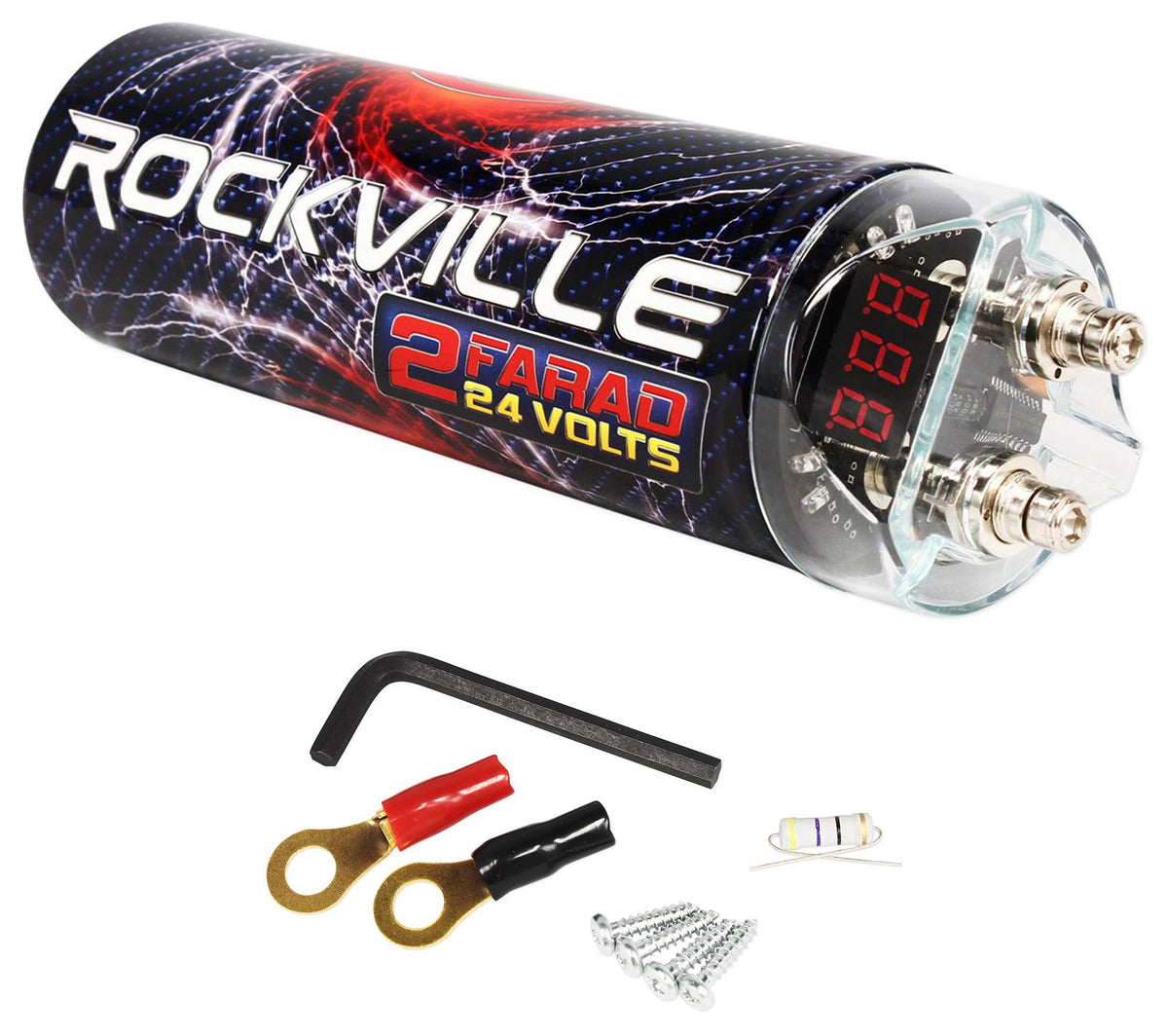

(1) RXC2D 2 Farad stiffening capacitor with LED digital voltage meter
Clear mounting brackets and stainless-steel screws
Allen wrench, charging resistor, and charging instructions

SKU: SKU: TNP212D2+RWK41+RXC2D

View full details

Product Description

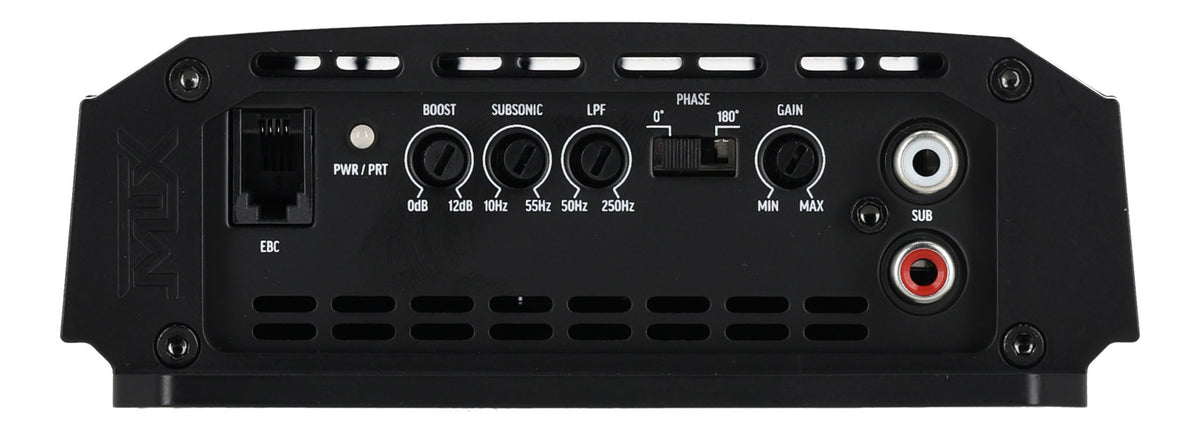

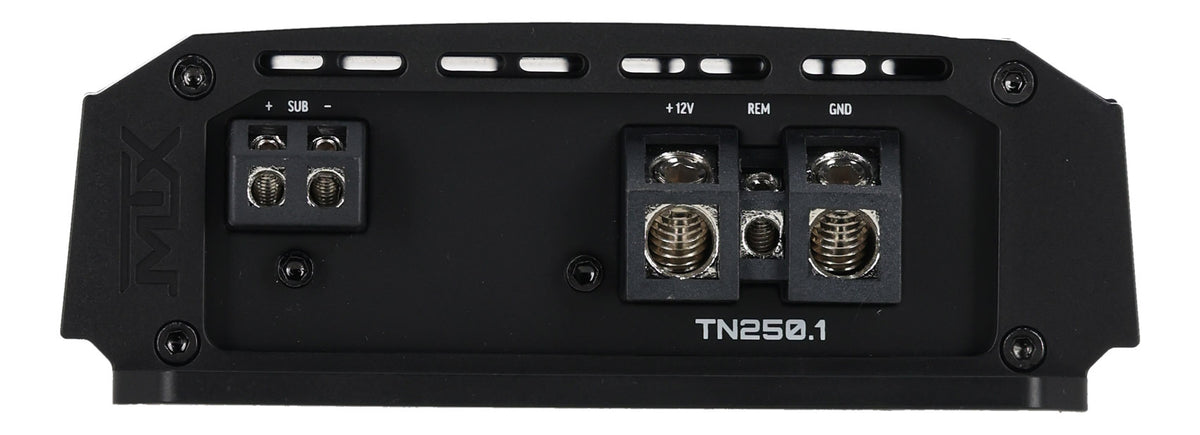

This vehicle bass package pairs the TNP212D2 dual 12-inch subwoofer enclosure with a monoblock amplifier, giving you the core components for a low-frequency upgrade. Two 12-inch drivers sit in a sealed enclosure and are prewired to a 2-ohm load. The subwoofer package is rated at 400 W RMS and 1,200 W peak, while the amplifier is rated at 250 W RMS and 400 W peak at 2 ohms. Selectable bass boost, a low-pass filter, auto turn-on circuitry, and adaptive cooling fans are built into the amplifier. The included RWK41 four-gauge wiring kit adds power, ground, remote, and RCA cables, along with fuse hardware, split loom, and connector accessories. The RXC2D capacitor adds 2 Farads of capacitance, a digital voltage display, blue charge and discharge LEDs, negative-polarity protection, and 24 V surge capacity. The package brings the bass components, installation cables, and voltage monitoring together for compatible vehicle audio systems.

Features

Two-Driver Bass System
Two 12-inch drivers sit in a sealed enclosure and are prewired to 2 ohms, matching the load supported by the included monoblock amplifier.
Defined Power Ratings
The subwoofer package is rated at 400 W RMS and 1,200 W peak; the amplifier is rated at 250 W RMS and 400 W peak at 2 ohms.

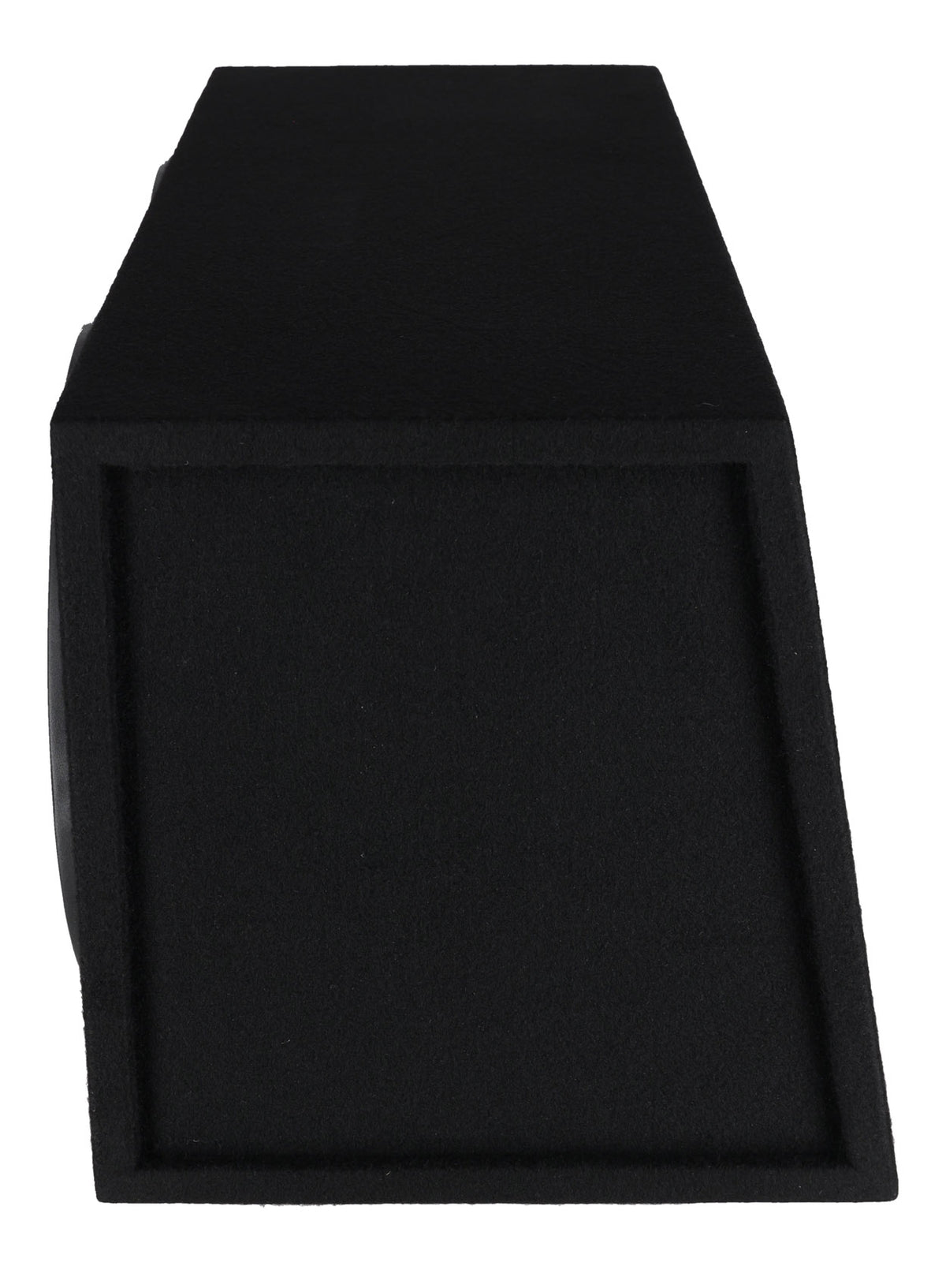

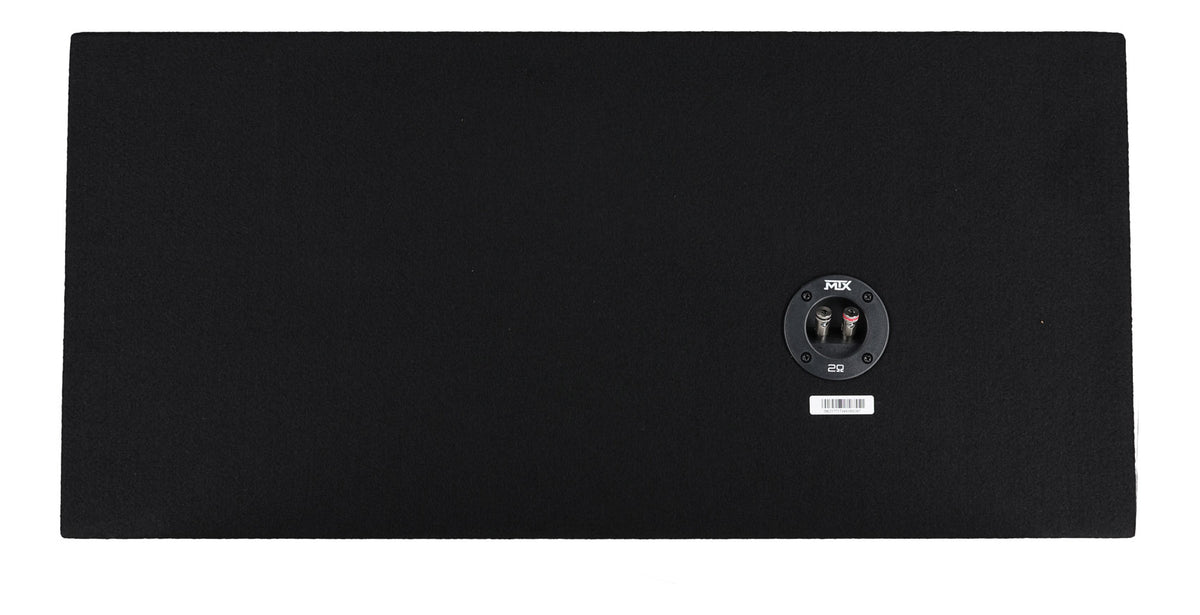

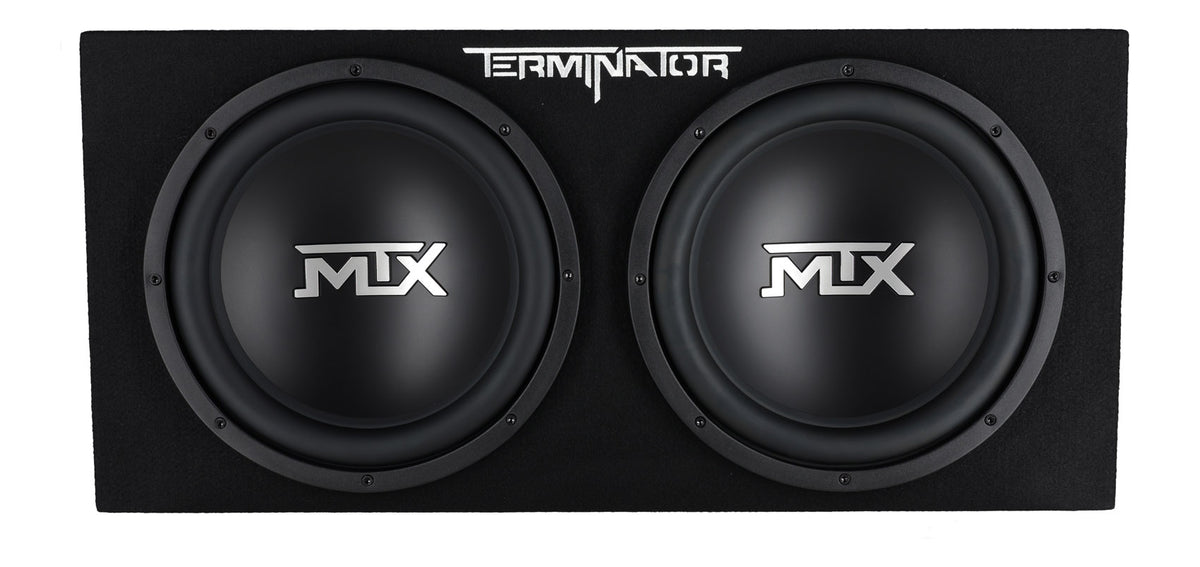

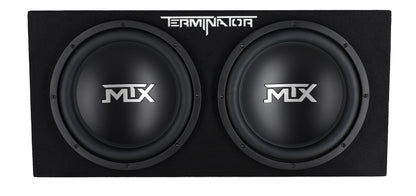

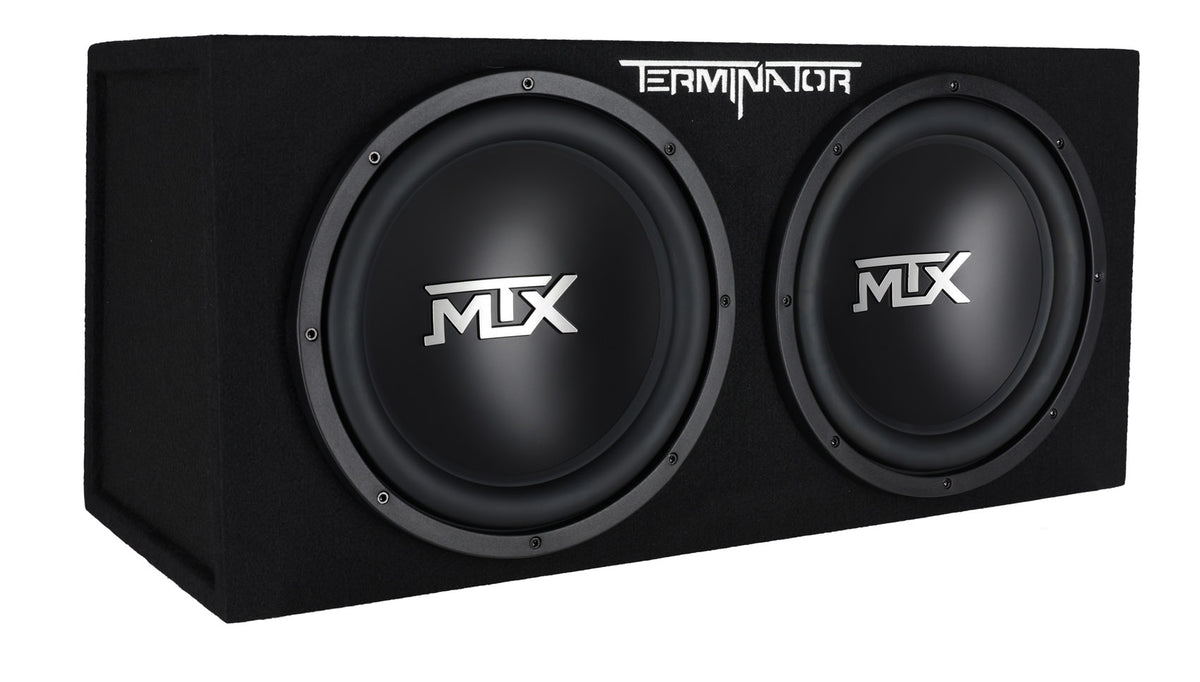

Sealed Enclosure Build
A sealed cabinet made from 5/8-inch MDF and finished in black carpeting houses both 12-inch drivers; its listed dimensions are 13.875 by 29.625 by 13.875 inches.
Wiring For Installation
The wiring kit includes 17-foot power and remote cables, a 17-foot RCA cable, a 3-foot ground cable, fuse hardware, split loom, and connector accessories for vehicle installation.

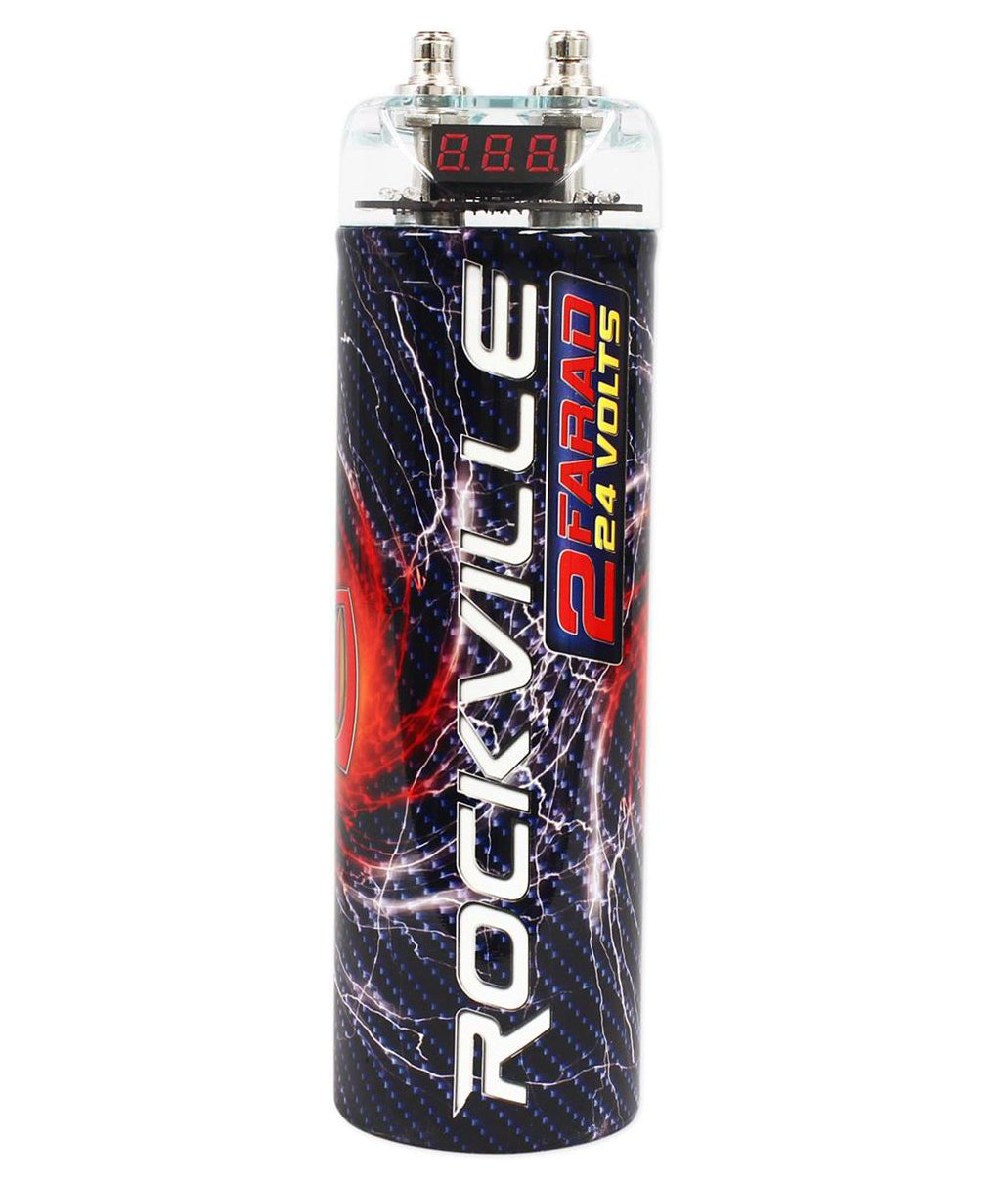

Voltage Monitoring
A 2 Farad, 12 V capacitor has a red digital voltage display, blue charge and discharge LEDs, 24 V surge capacity, and reverse-polarity protection.

Technical Specifications

Product Type Dual 12-inch car subwoofer and amplifier package
Subwoofers Two 12-inch drivers, single 4-ohm voice coils; prewired to a 2-ohm load
Subwoofer Package Power 1,200 W peak; 400 W RMS
Voice Coils 2-inch aluminum
Cone Material Polypropylene
Surround Rubber
Magnet 48 oz
Subwoofer Frequency Response 37-150 Hz
Enclosure Dual 12-inch sealed; 5/8-inch MDF construction, black carpet
Amplifier Class D monoblock
Amplifier Power 400 W peak; 250 W RMS at 2 ohms
Amplifier Frequency Response 20-85 Hz
Bass Boost 0, 6, or 12 dB at 40 Hz
Low-Pass Filter 85 Hz, 18 dB/octave
THD 1% at rated RMS power
Signal-to-Noise Ratio 73 dB
Amplifier Fuse Rating 25 A x 1
Wiring Kit 4 AWG
RCA Cable 17 ft, twisted pair, 100% copper
Power Cable 17 ft, 4 AWG
Remote Cable 17 ft, 18 AWG
Ground Cable 3 ft, 4 AWG
Capacitor 2 Farad, 12 V; 24 V surge capacity
Capacitor Display Red LED digital voltage meter; blue charge/discharge LEDs
Capacitor Protection Negative polarity protection
Enclosure Dimensions 13.875 in H x 29.625 in W x 13.875 in D
Amplifier Dimensions 13-1/16 in L x 10-3/16 in W x 2-1/4 in H
Capacitor Dimensions 10.55 in L x 4.8 in W x 3.2 in H
