VMA1240 + (5) Pair WET-7020B
VMA1240 + (5) Pair WET-7020B

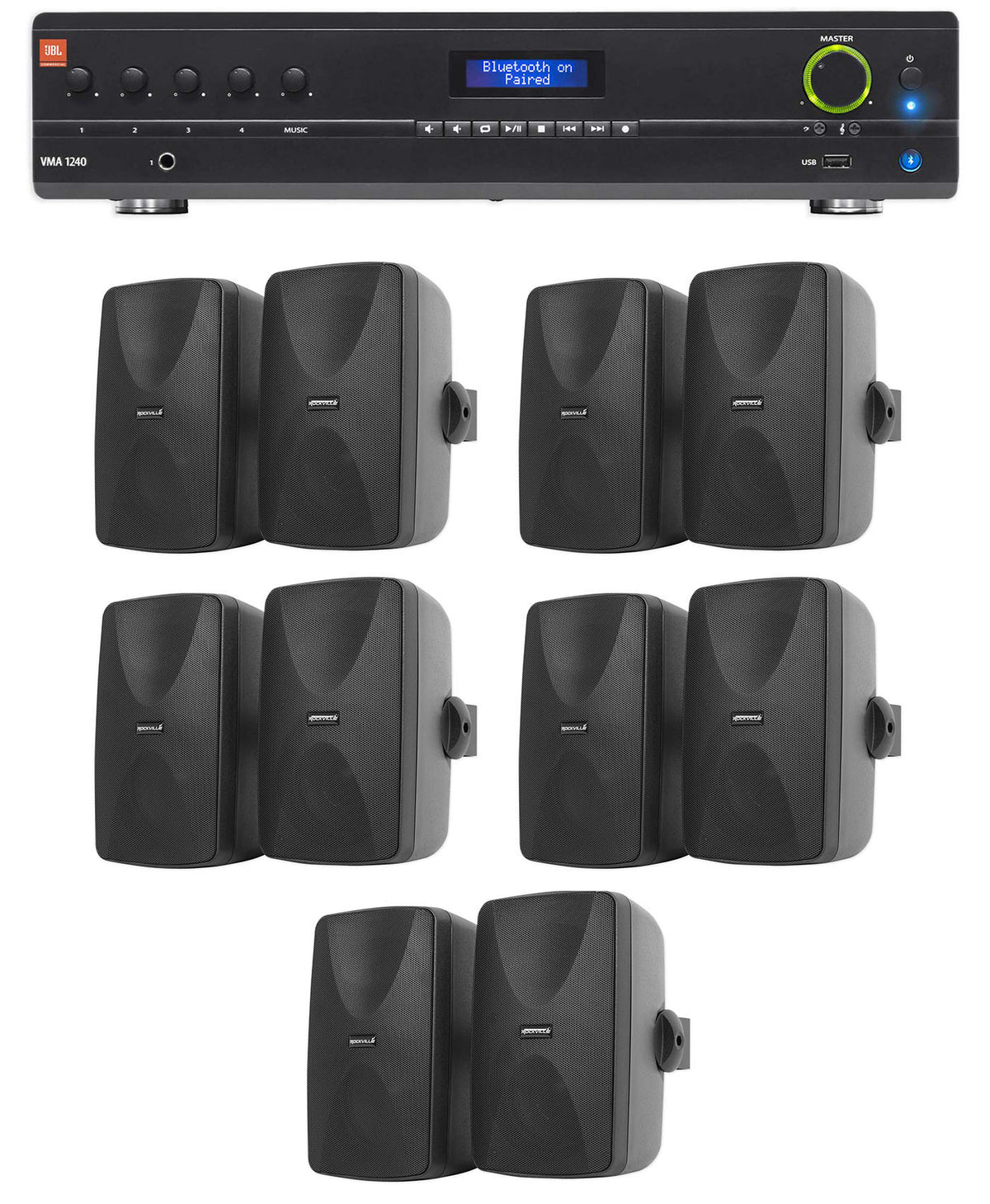

70V Commercial Sound System, 240W 5-Input Bluetooth Mixer Amplifier, (10) 5.25" Indoor/Outdoor Swivel Wall Speakers
Features
- VMA1240 240W mixer amp runs 70V, 100V, or 4/8 ohm speaker loads
- Five-input mixer with Bluetooth, USB, mic, line, and RCA sources
- Voice-activated ducking lowers music automatically during announcements
- (10) WET-7020B 5.25" wall speakers with 20W to 2.5W 70V taps
- IPX55 rated speakers with 4-way swivel brackets for indoor or outdoor use
Couldn't load pickup availability
What's Included in the box
- (1) VMA1240 240W 5-Input 70V Bluetooth Mixer Amplifier
- (1) Rack Mount Kit
- (10) WET-7020B 5.25" 70V Indoor/Outdoor Wall Speakers, Black (5 Pairs)
SKU: SKU: VMA1120+(10) WET-5B
View full details














Product Description

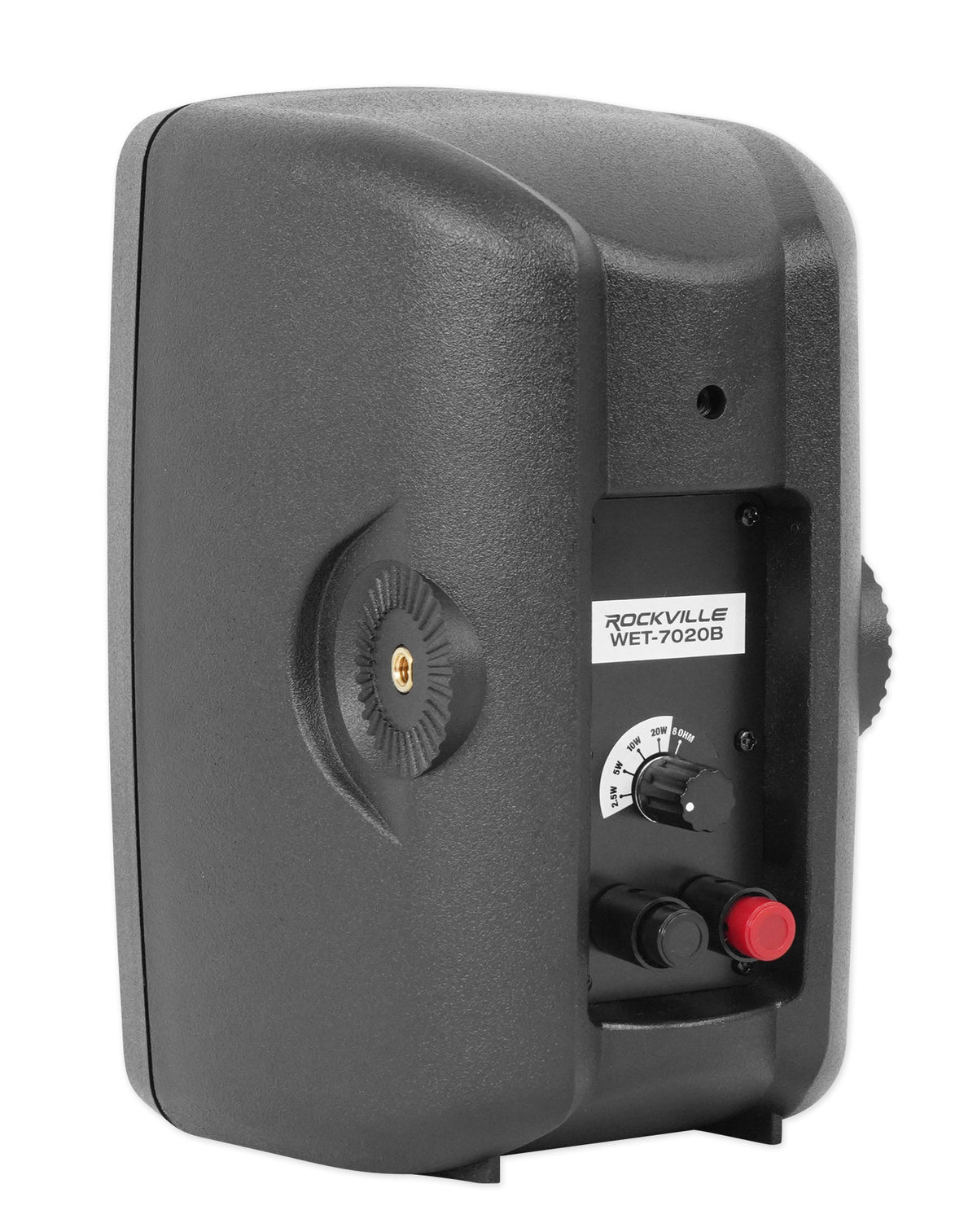

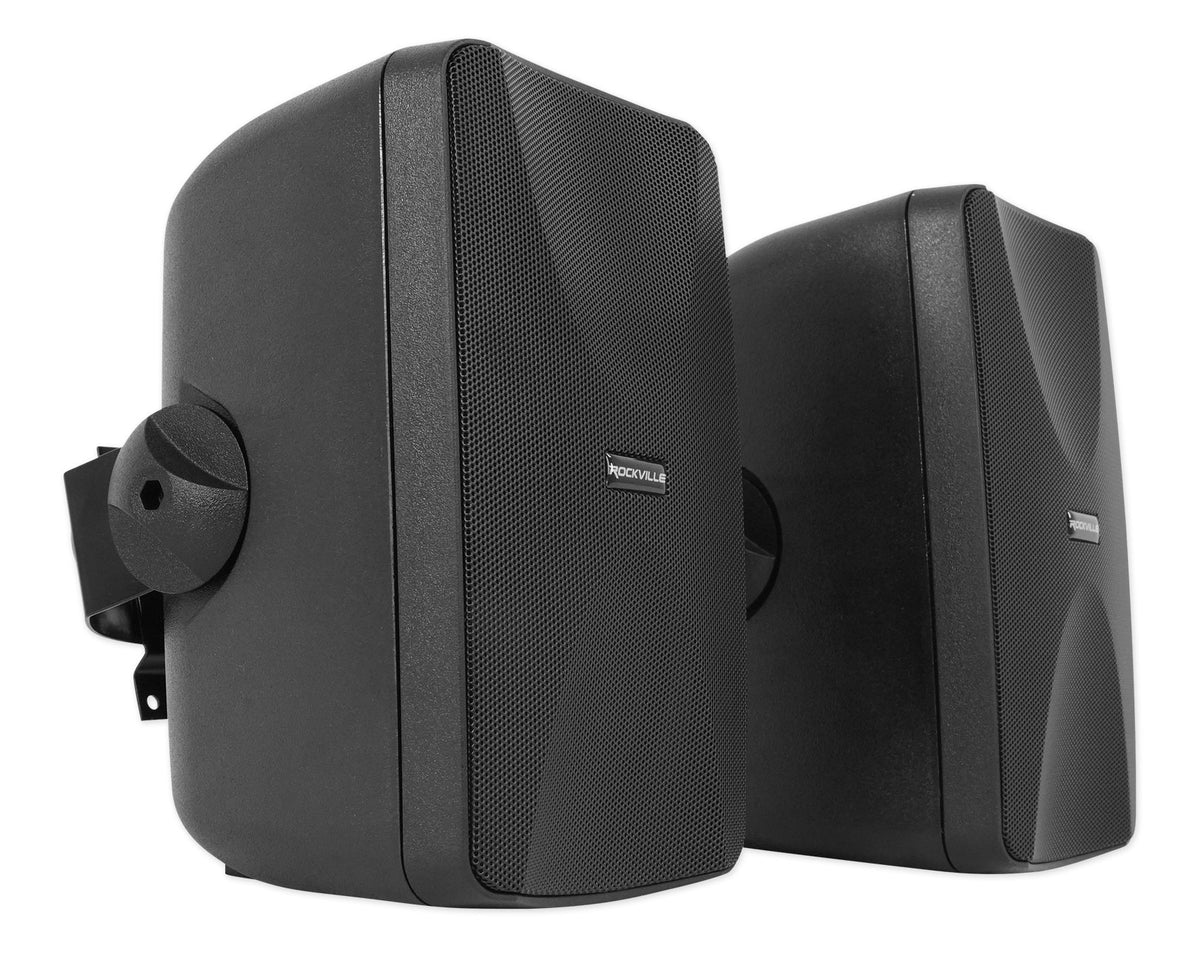

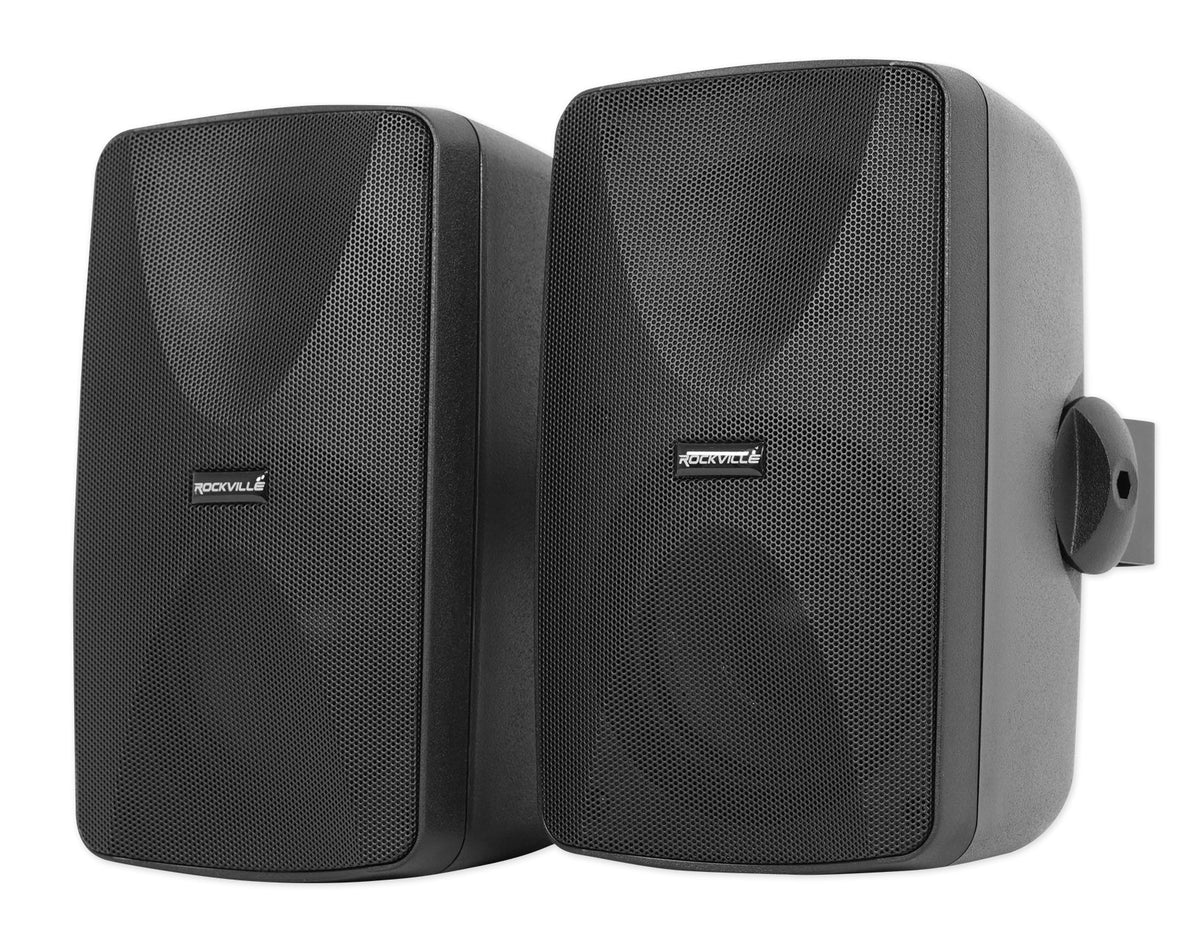

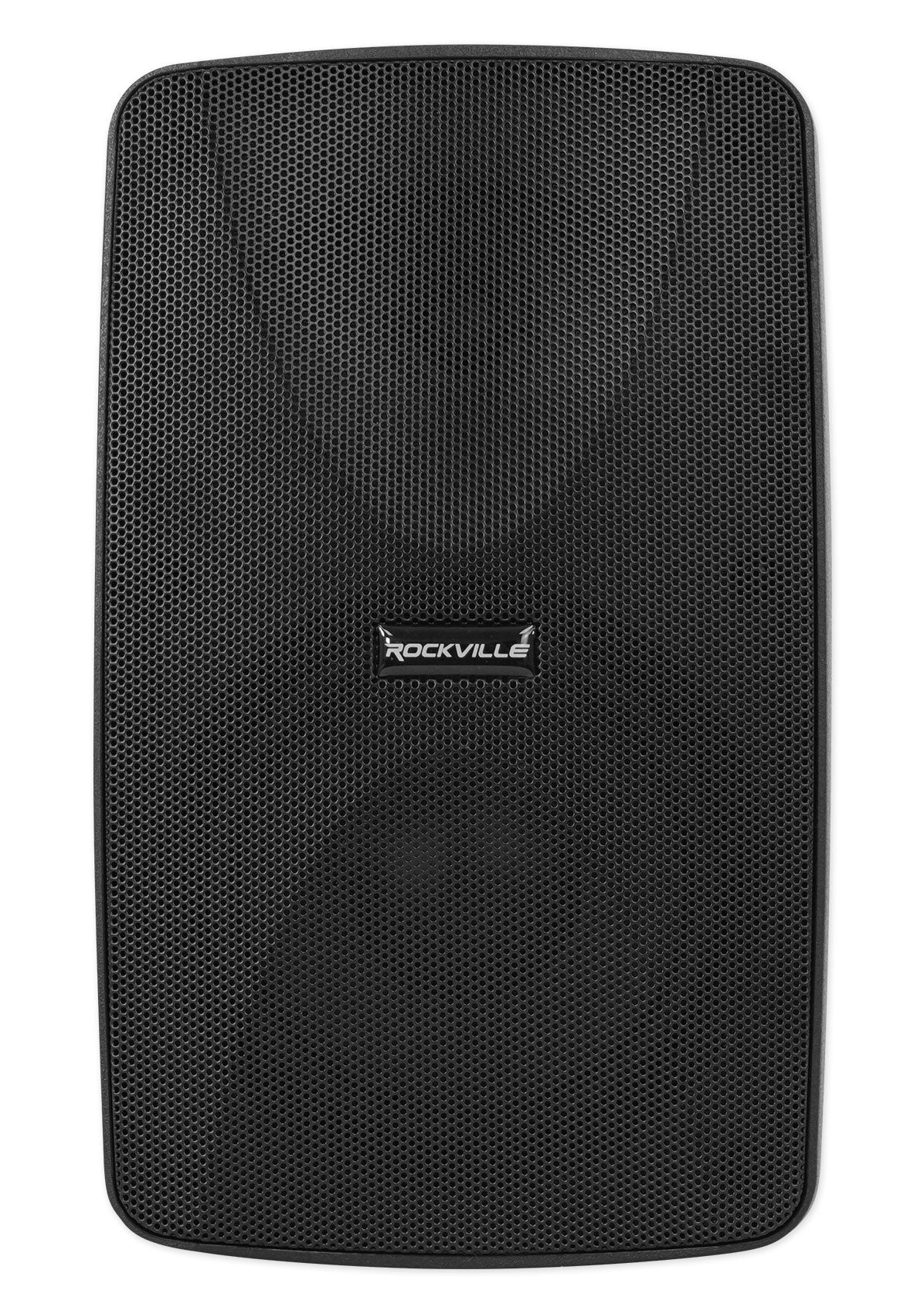

Each WET-7020B pairs a 5.25" polypropylene woofer with a 13mm PEI tweeter in a sealed cabinet tuned for balanced sound from 60Hz to 20kHz. The tap switch on every speaker offers 20W, 15W, 10W, 5W, and 2.5W, so you can set the bar area loud, the dining room moderate, and the hallway low on the same run. Tapping all ten at 20W totals 200W, leaving about 17% headroom on the amp, right in line with the 15 to 20% buffer recommended for 70V systems.

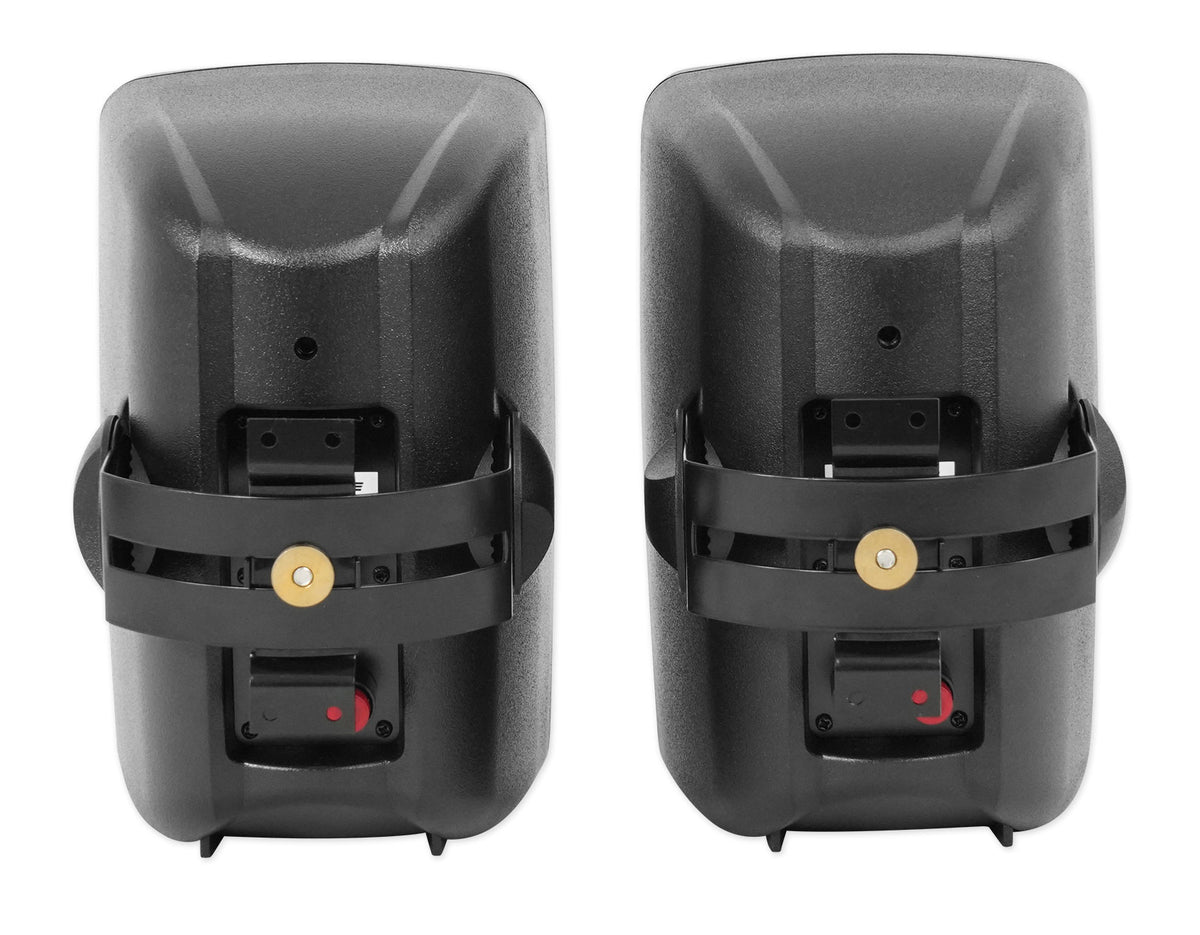

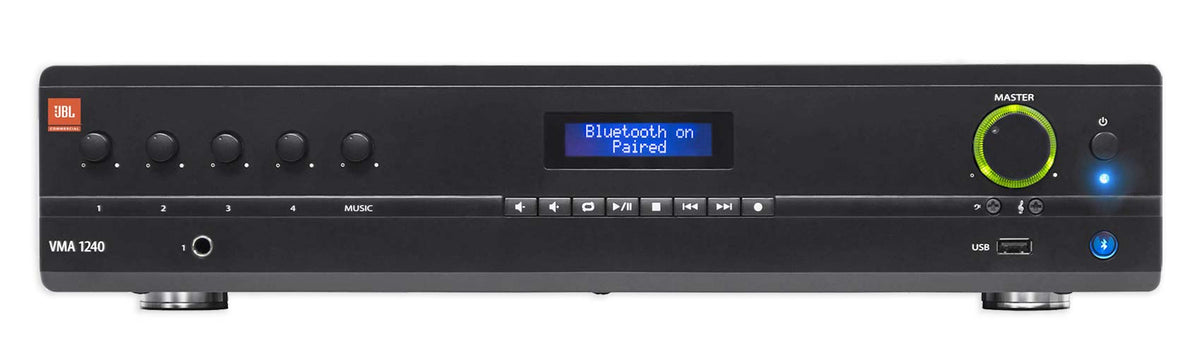

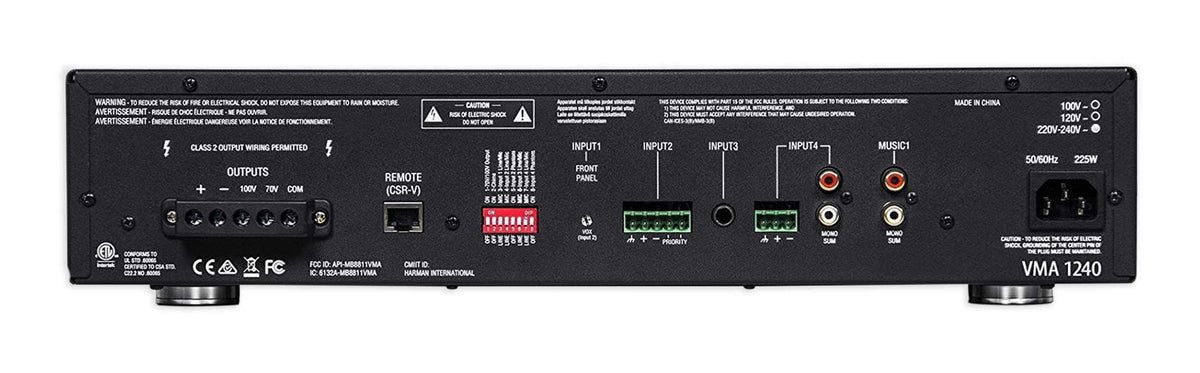

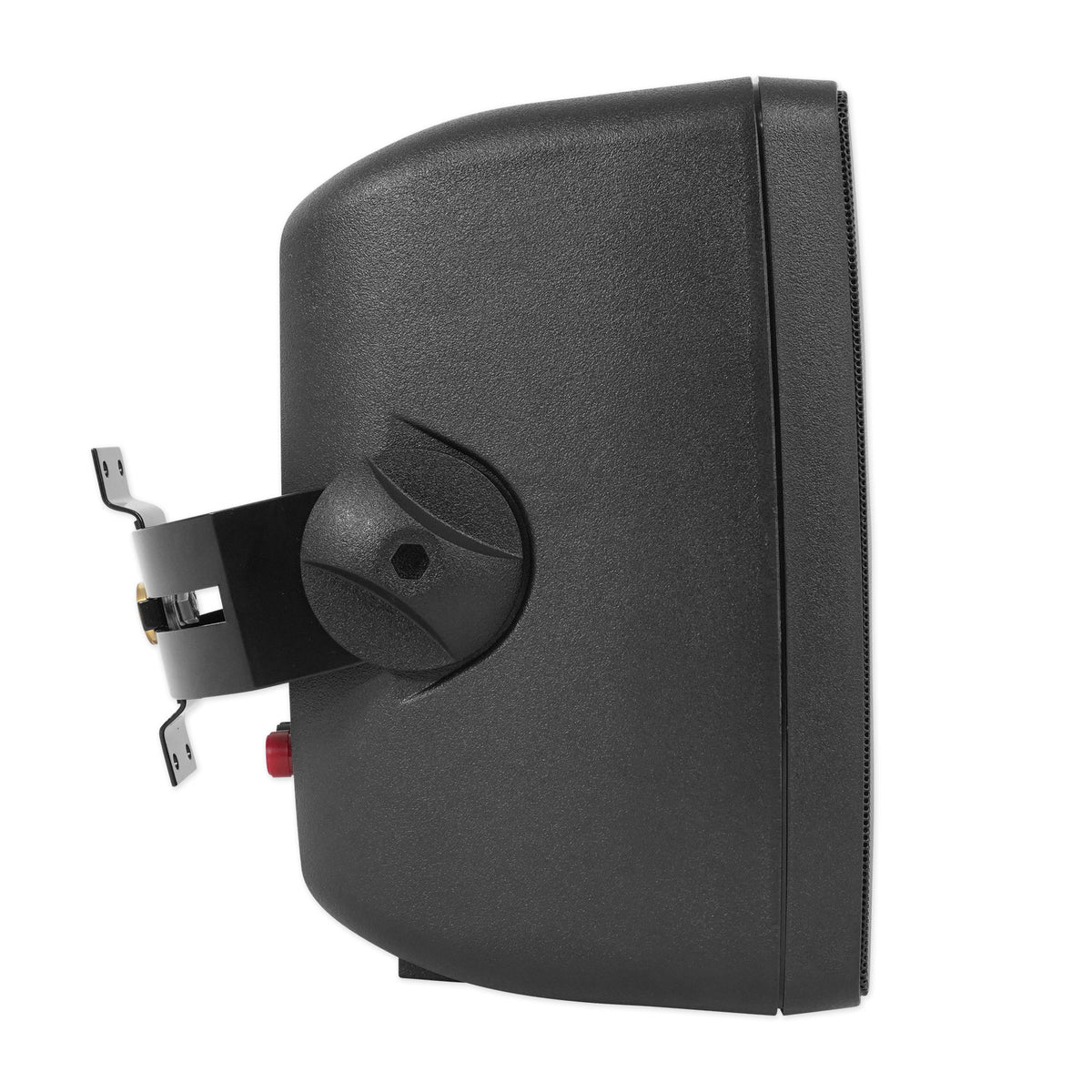

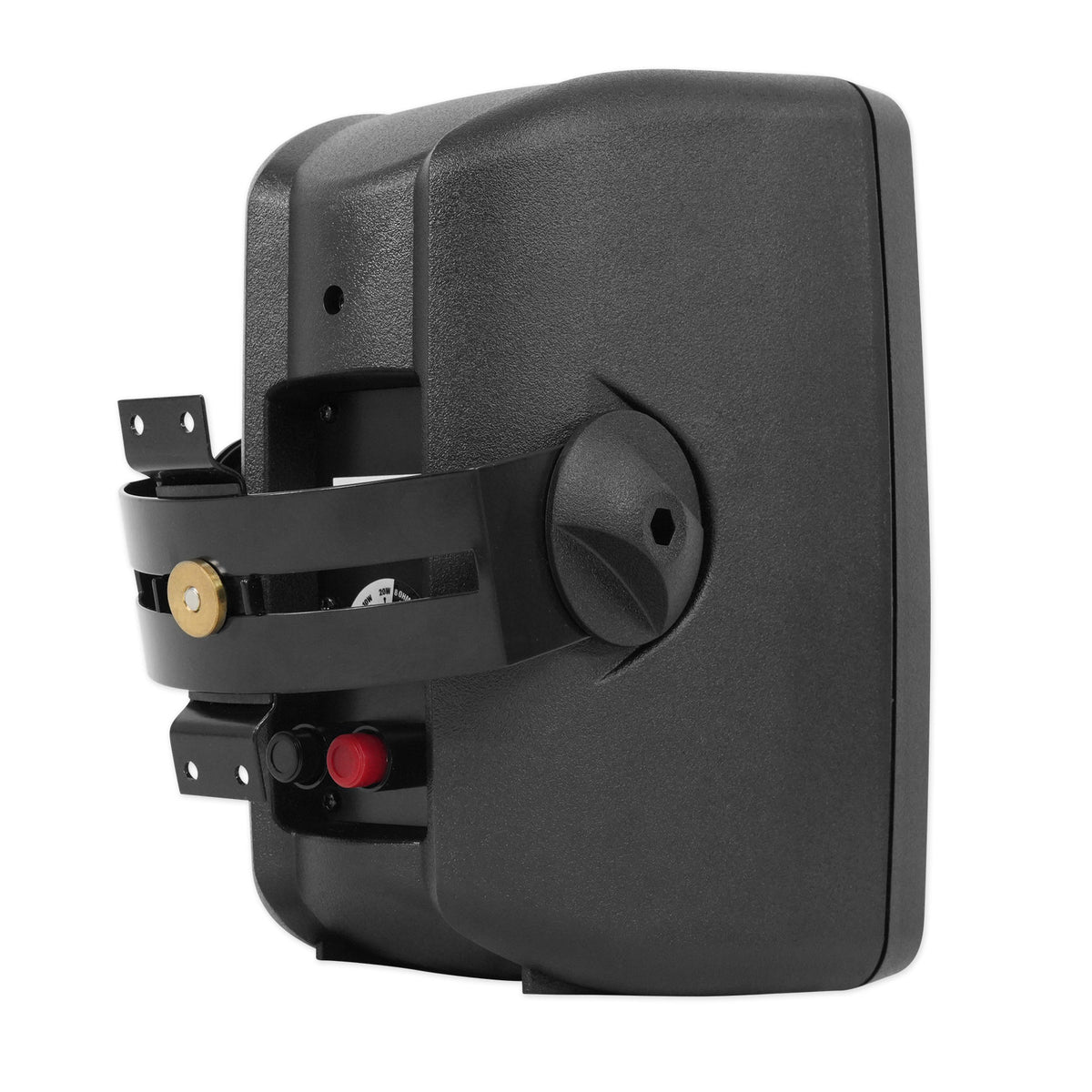

The speakers are IPX55 rated with waterproof ABS cabinets, rustproof aluminum grilles, and powder coated steel brackets that pass a 96 hour salt water spray test, so the same model works on a covered patio, a pool deck, or an indoor dining room. A 4-way swivel bracket angles each one up, down, left, or right to aim sound at seating areas. On the amp side, per-channel bass and treble, a front-panel display, Euroblock, RCA, and 1/4" inputs, 27V phantom power for condenser mics, and an included rack mount kit make for a clean install in an equipment closet or behind the bar.
Features
Complete Commercial Sound System
A 240W mixer amplifier and ten matched 70V wall speakers arrive together, covering dining rooms, bars, sales floors, and patios with music and paging from one order.
Announcements That Cut Through
Voice-activated ducking drops the music level as soon as someone talks into the mic, so specials, last call, and pages come through clearly every time.
Every Source in One Mixer
Five inputs cover mics, line sources, RCA, USB drives, and Bluetooth streaming, with per-channel bass and treble to tune each one for the room.
Set Each Area Its Own Level

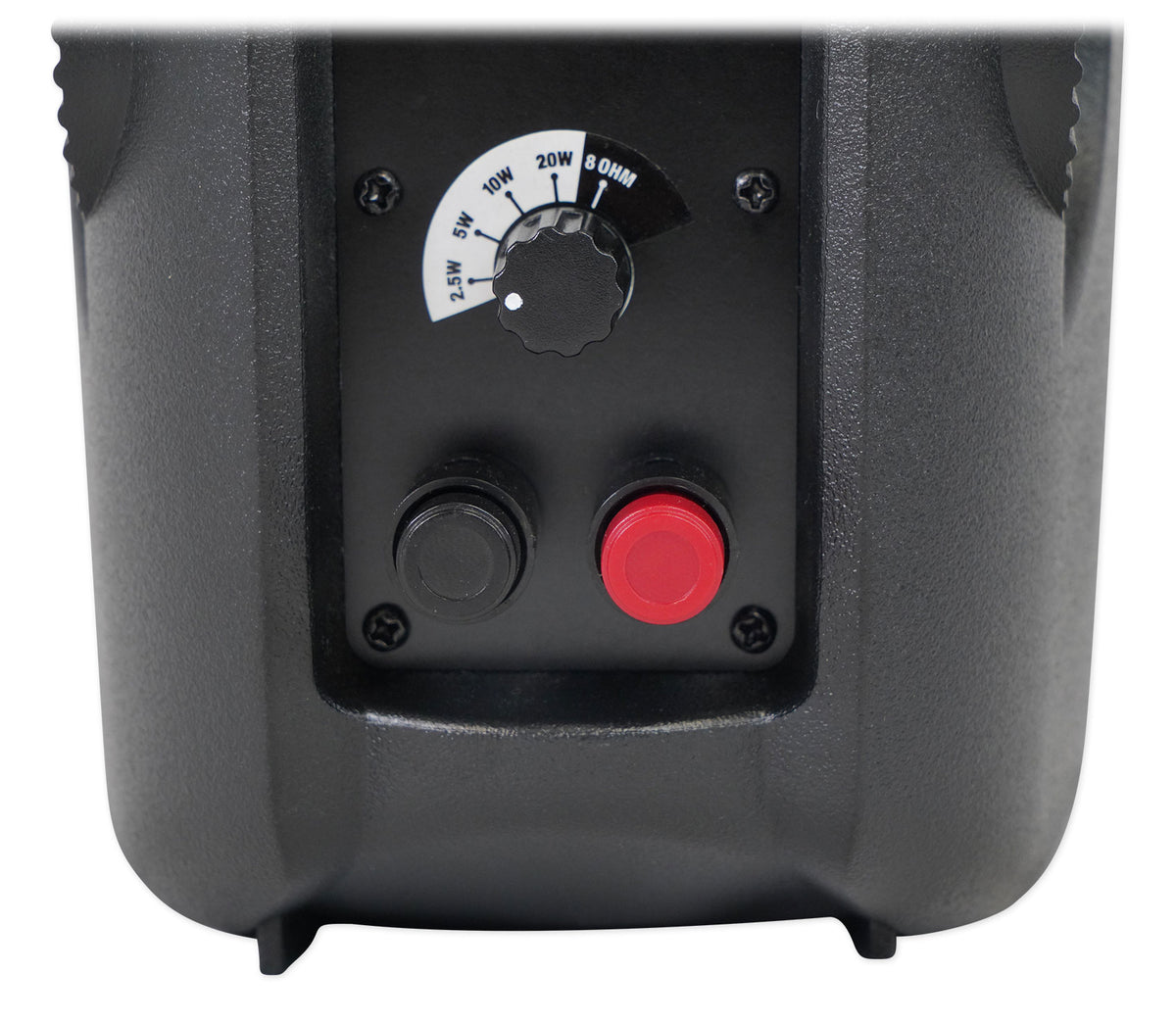

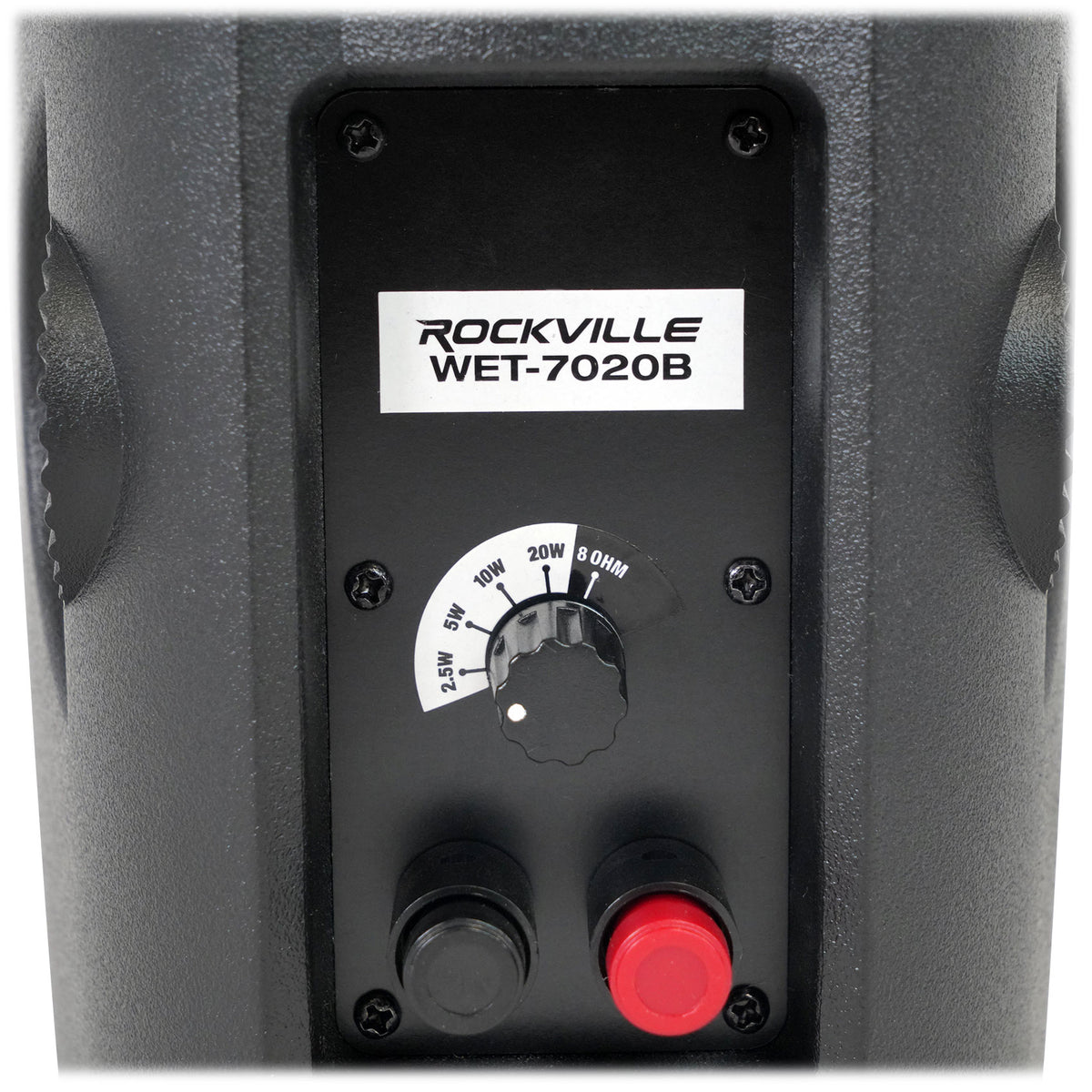

Tap switches on every speaker select 20W, 15W, 10W, 5W, or 2.5W, letting the bar play louder than the hallway on the same 70V run.
Built for Patios and Pool Decks
IPX55 ABS cabinets, rustproof aluminum grilles, and salt spray tested steel brackets hold up outdoors, while 4-way swivel mounts aim sound right at seating.
Technical Specifications
- Product Type 70V Commercial Mixer Amplifier and Wall Speaker System
- Amplifier Model VMA1240
- Amplifier Output Power 240W into 4 or 8 Ohms, 70V, or 100V
- Output Channels 1, Configurable Output Routing
- Input Channels 5
- Input Types Euroblock, RCA, 1/4", USB, Bluetooth
- Output Connectors Euroblock
- Tone Controls Bass ±14 dB @ 50Hz, Treble ±14 dB @ 10kHz, Per Channel
- Ducking Voice-Activated
- Input Sensitivity Mic: 5.5 mVrms; Line: 1.3 Vrms; RCA: 130 mVrms
- Input Impedance Mic: 400 Ohms; Line: 20k Ohms; RCA: 50k Ohms
- Phantom Power 27 VDC
- Amplifier Frequency Response 4/8 Ohm: 20Hz to 20kHz ±2 dB; 70V/100V: 80Hz to 15kHz ±3 dB
- THD Under 0.5%, 20Hz to 20kHz
- Signal to Noise Ratio Over 76 dB
- Crosstalk -70 dB
- Minimum Load Impedance 4 Ohms Low-Z; 20 Ohms 70V; 40 Ohms 100V
- AC Voltage 100, 120, 220 to 240 VAC, 50/60Hz
- Rack Mount Rack Mount Kit Included
- Speaker Model WET-7020B
- Speaker Quantity 10 (5 Pairs)
- Speaker Woofer 5.25" Polypropylene Cone
- Speaker Tweeter 13mm PEI
- Speaker Frequency Response 60Hz to 20kHz
- Speaker Sensitivity 87 dB
- Speaker Power Handling 40W RMS at 8 Ohms
- Speaker Impedance 8 Ohms
- 70V Taps 20W, 15W, 10W, 5W, 2.5W
- Speaker Rating IPX55
- Speaker Cabinet Waterproof ABS, Sealed
- Speaker Grille Aluminum, Rustproof
- Speaker Brackets Powder Coated Steel, 4-Way Swivel
- Speaker Terminals Waterproof Spring Loaded
- Speaker Color Black
- Weight Amplifier: 25.5 lb; Speaker: 4.16 lb each
- Dimensions Amplifier: 17" x 16.3" x 3.5" (W x D x H); Speaker: 9.6" x 7.1" x 7.5"
