VMA1120 + (12) CCL6T Black 70V Ceiling Speakers
JBL
VMA1120 + (12) CCL6T Black 70V Ceiling Speakers
VMA1120 + (12) CCL6T Black 70V Ceiling Speakers

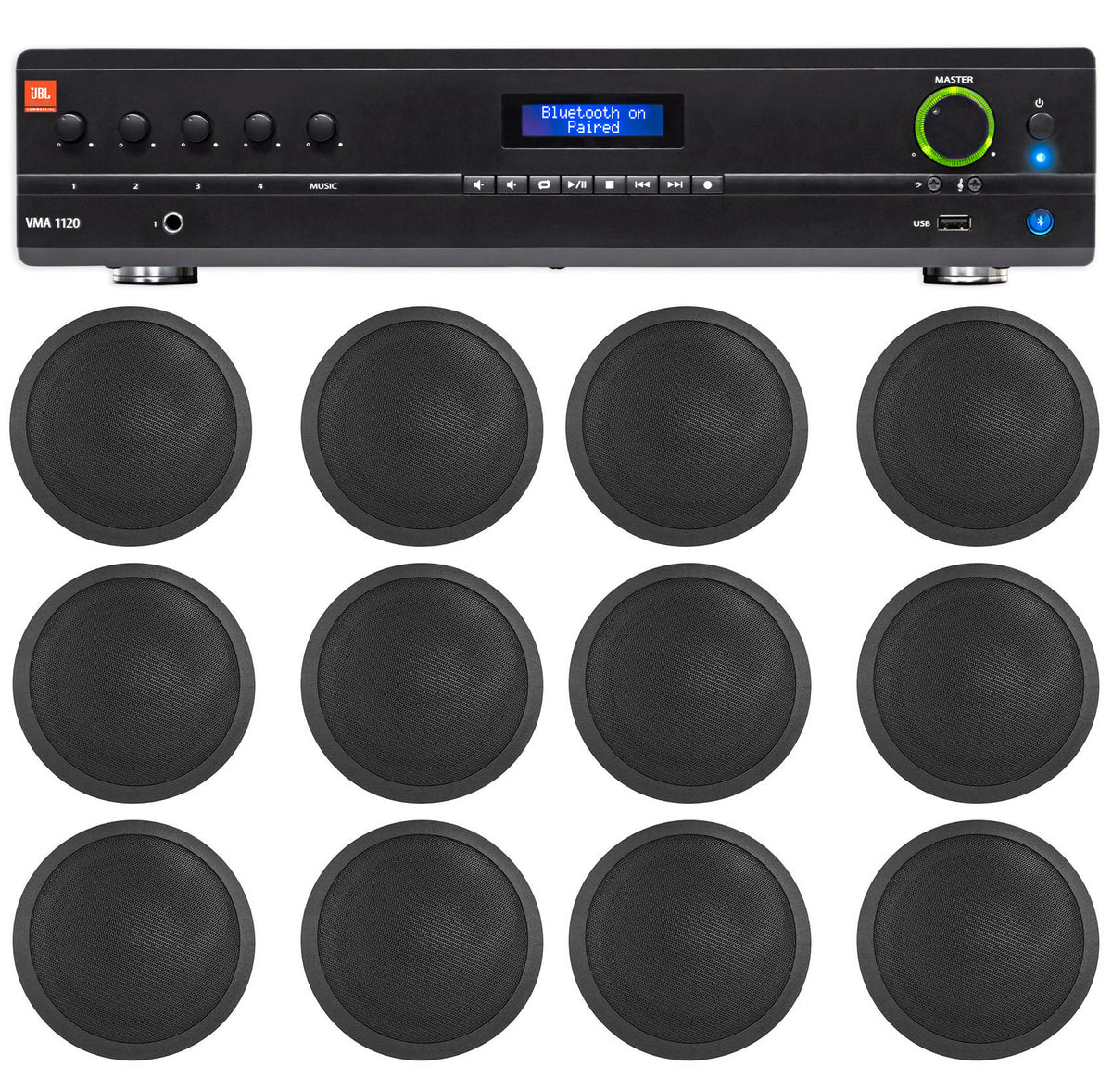

70V Commercial Sound System, 120W Mixer Amplifier, 12 Tappable Ceiling Speakers
Free Shipping
Features
- 120W mixer/amplifier with one output channel
- Bluetooth and USB playback with five input channels
- Twelve 6-inch ceiling speakers with 2.5W, 5W, and 10W taps
- Per-channel bass and treble controls plus voice-activated ducking

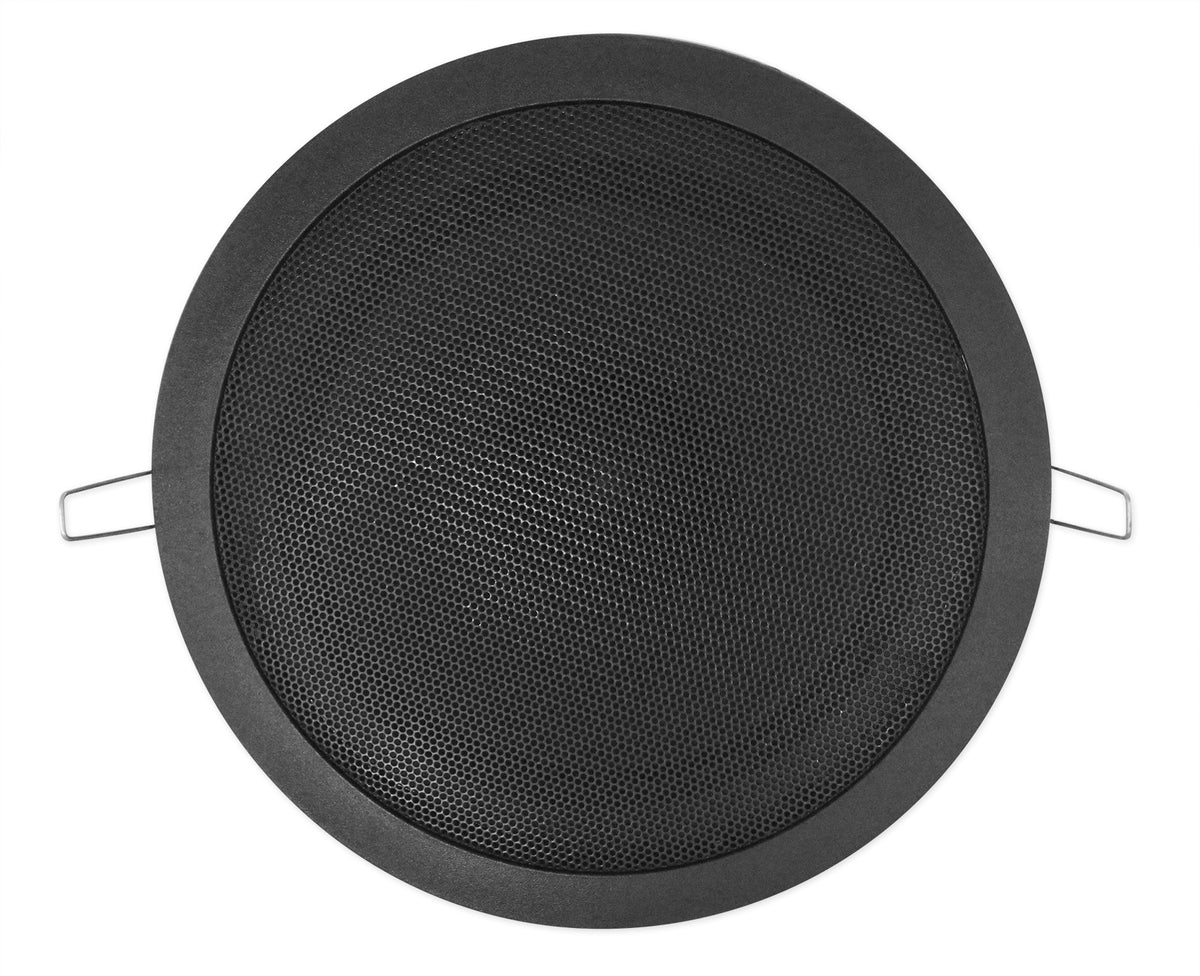

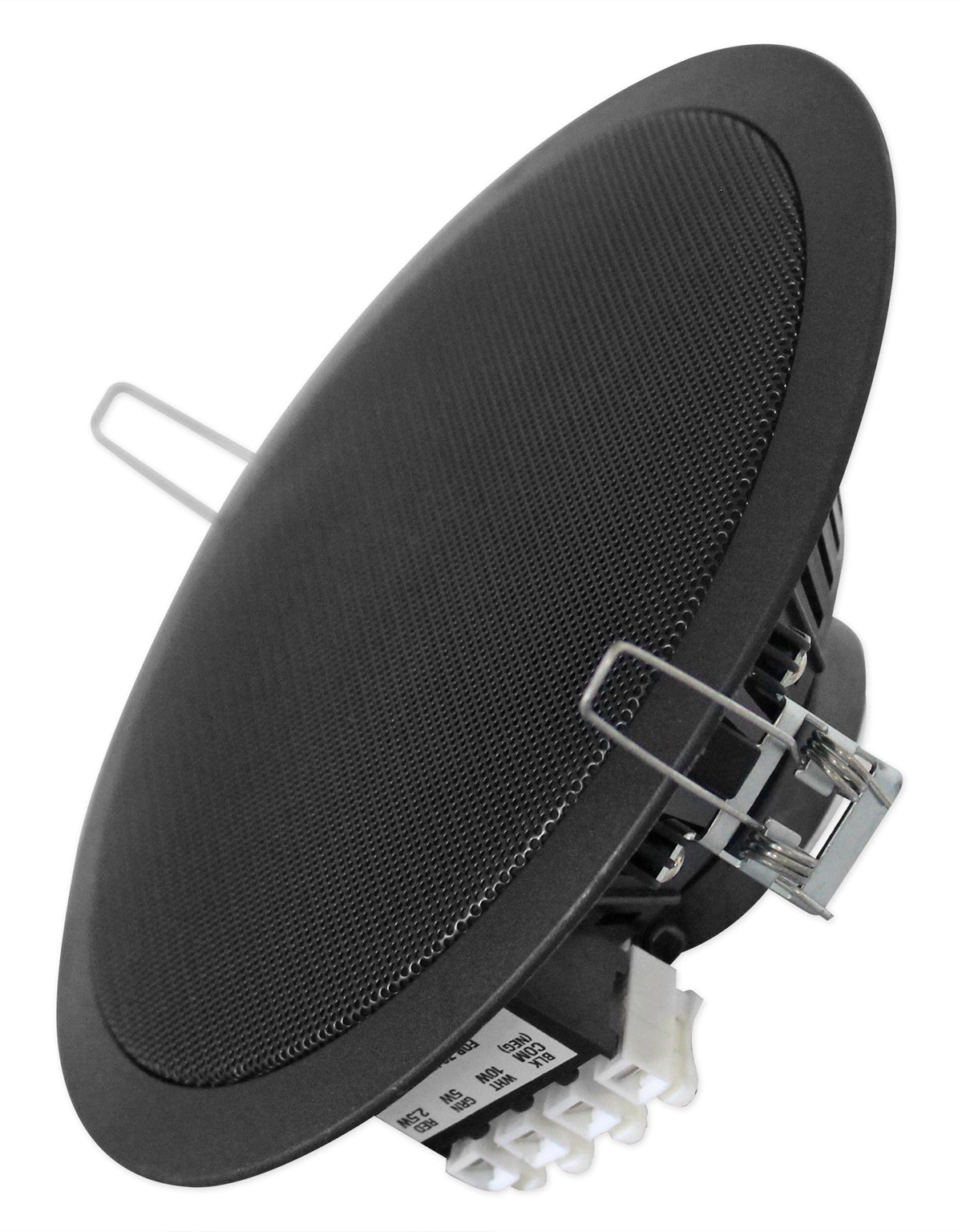

- Paintable flush-mount grilles with spring-loaded push terminals
Couldn't load pickup availability

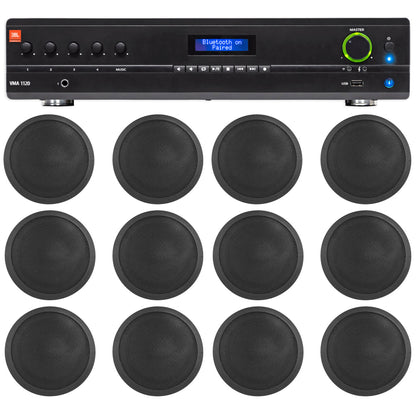

What's Included in the box
- 1 VMA1120 120W 70V mixer/amplifier
- 12 CCL6T Black 6-inch 70V commercial ceiling speakers

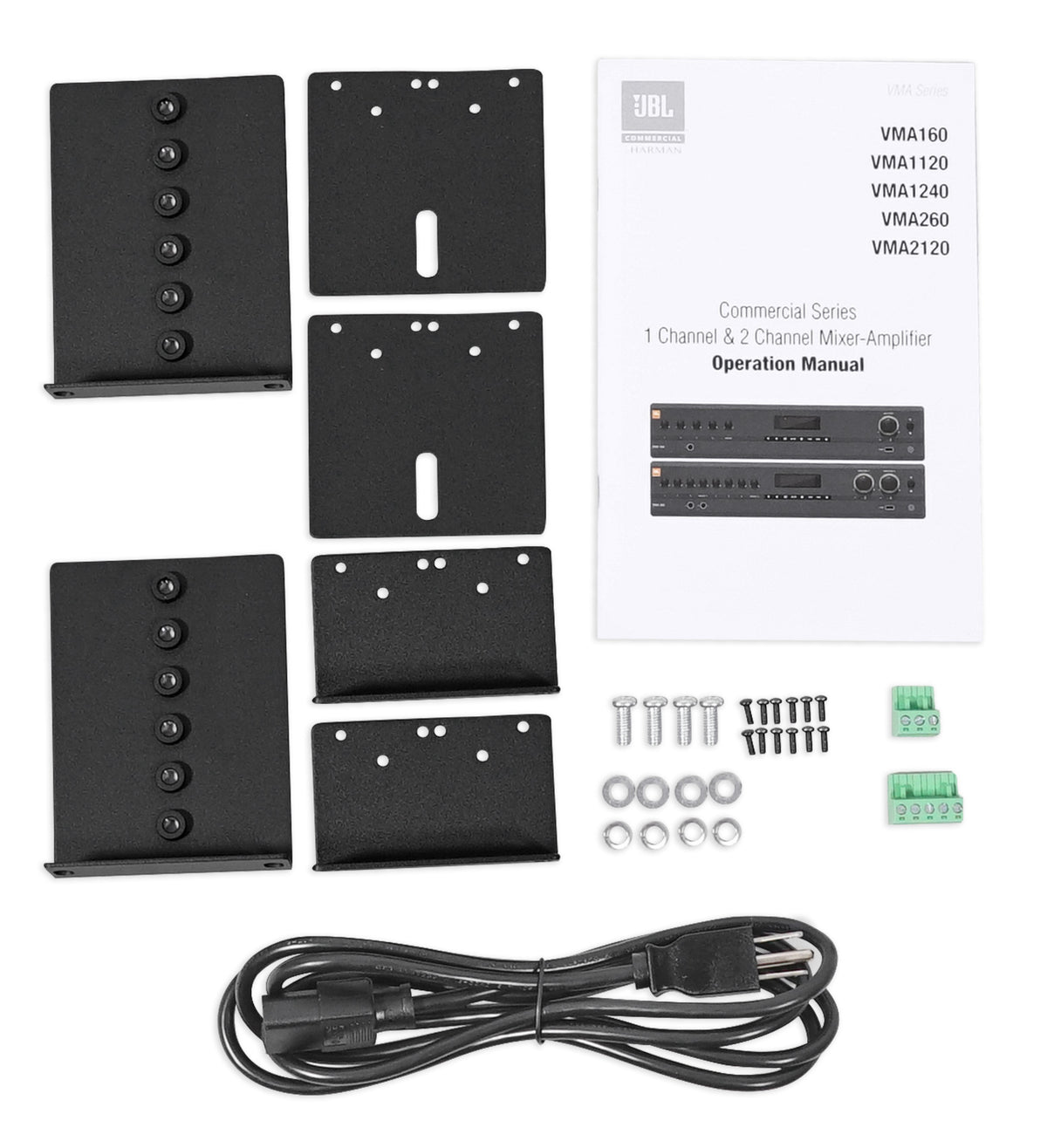

- Rack mount kit
SKU: SKU: VMA1120+(3) CCL6T BLACK
View full details











Product Description
Included in the Bundle
-

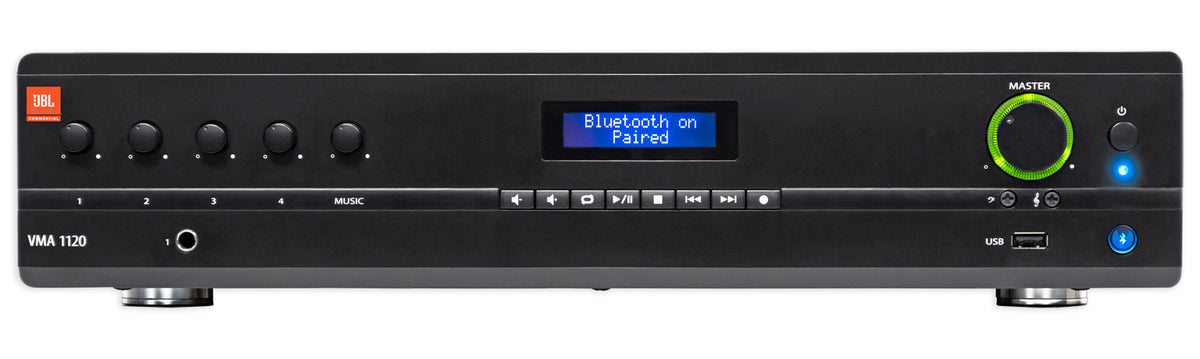

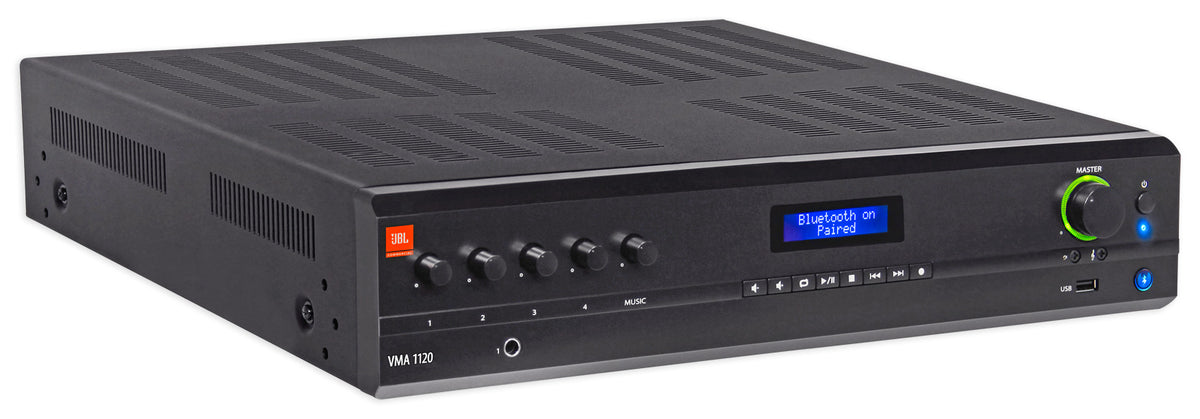

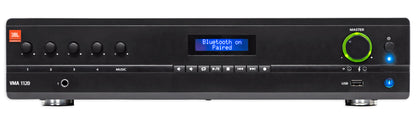

VMA1120
The VMA1120 combines a five-input mixer and a 120W amplifier in a single rack unit, which is usually all a restaurant, retail floor, gym, or small house of worship needs to run background music and paging from one box.
Learn More: VMA1120 -

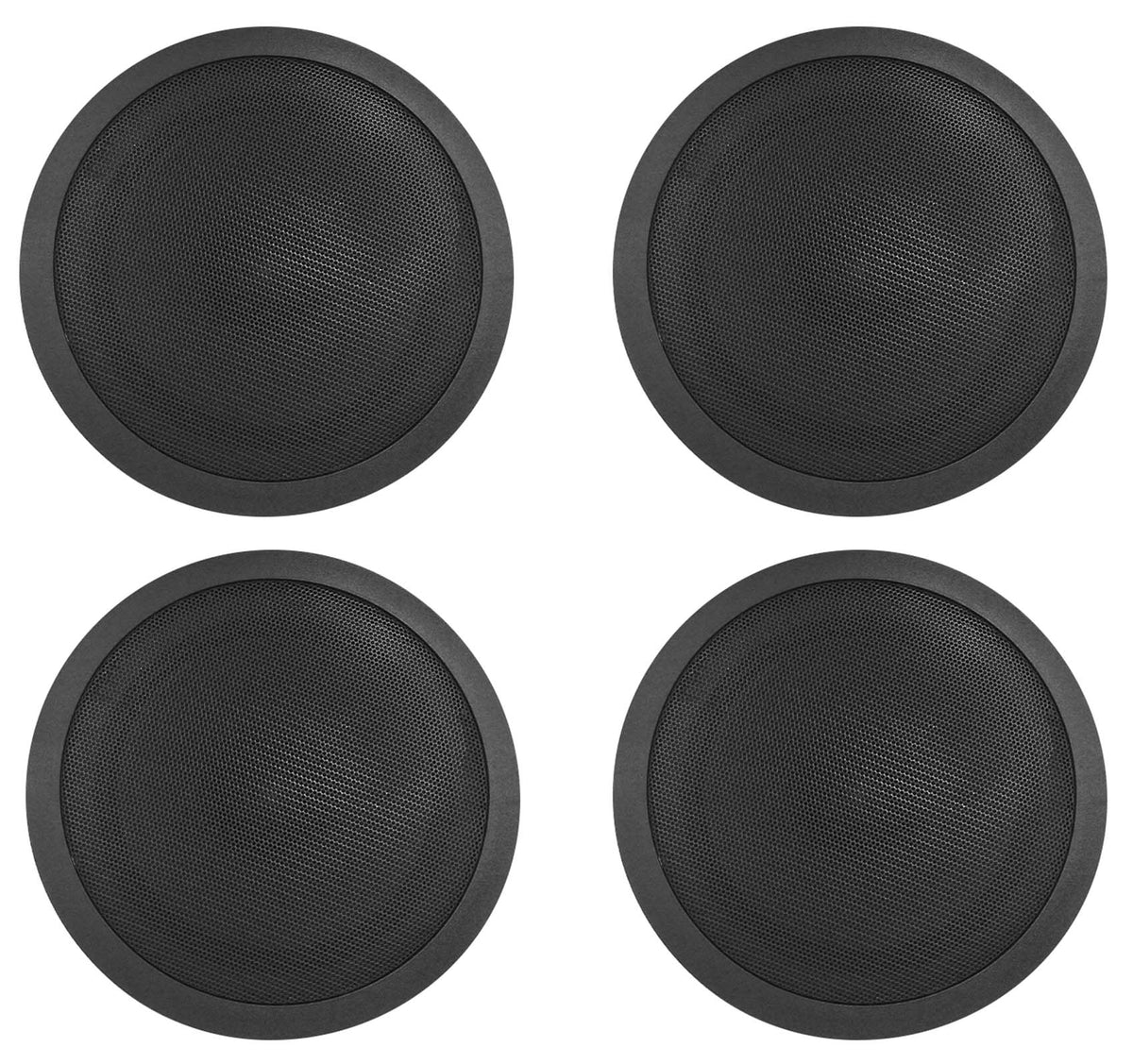

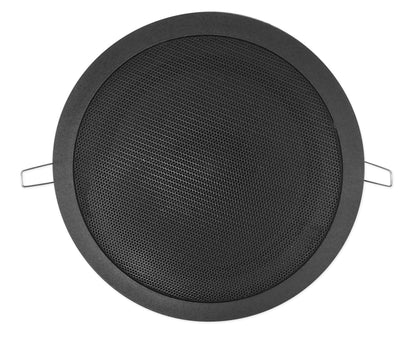

CCL6T Black
The CCL6T delivers exceptional commercial audio performance with selectable power options that adapt to any installation. These 6" ceiling speakers excel in restaurants, offices, schools, and retail environments where background music and PA announcements demand consistent, clear sound distribution.
Learn More: CCL6T Black
Features
Five Source Connections
Bluetooth, USB, Euroblock, RCA, and 1/4-inch inputs give restaurants, offices, and schools practical options for music, microphones, and announcements throughout the system.
Area-Based Volume Control

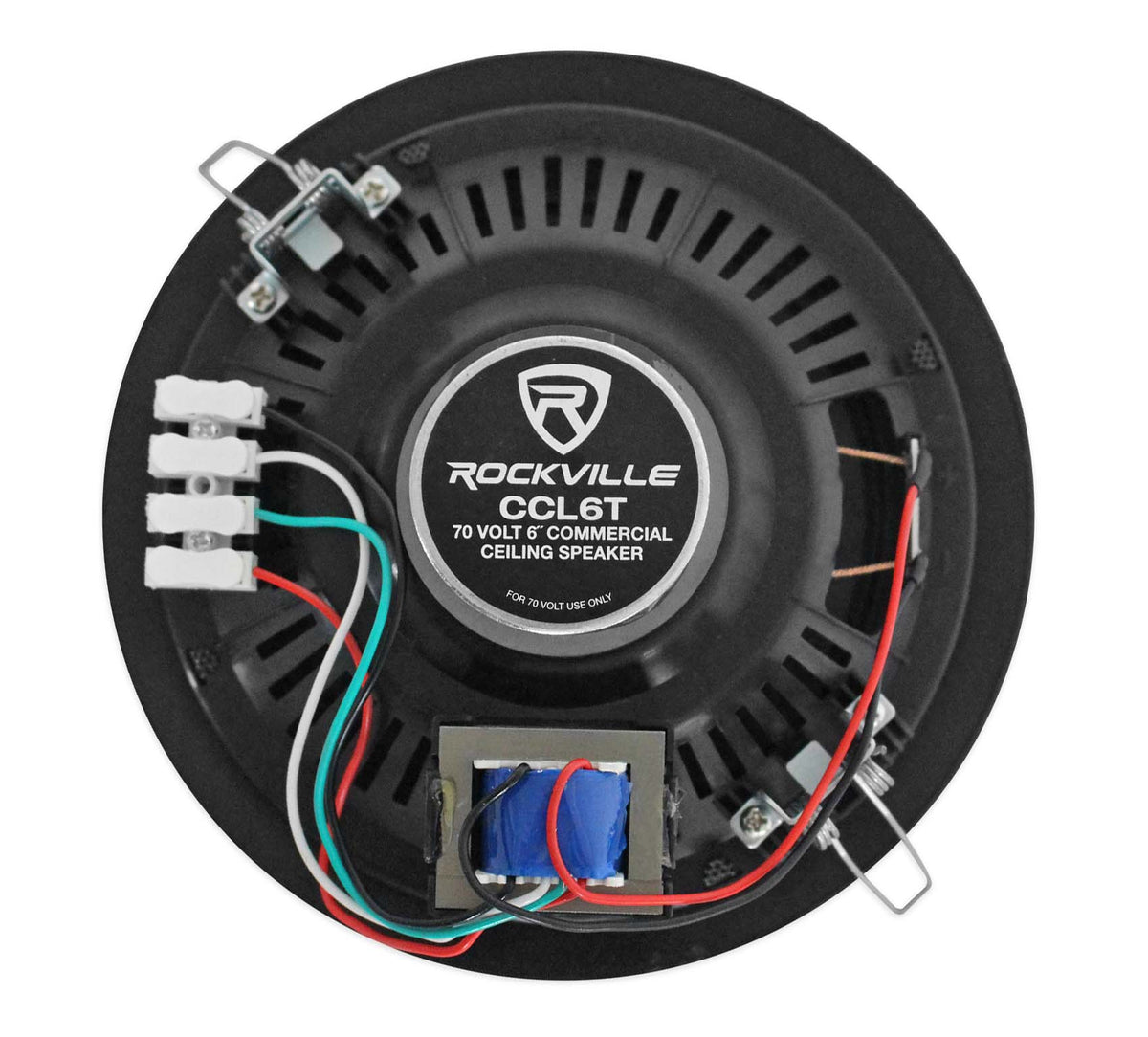

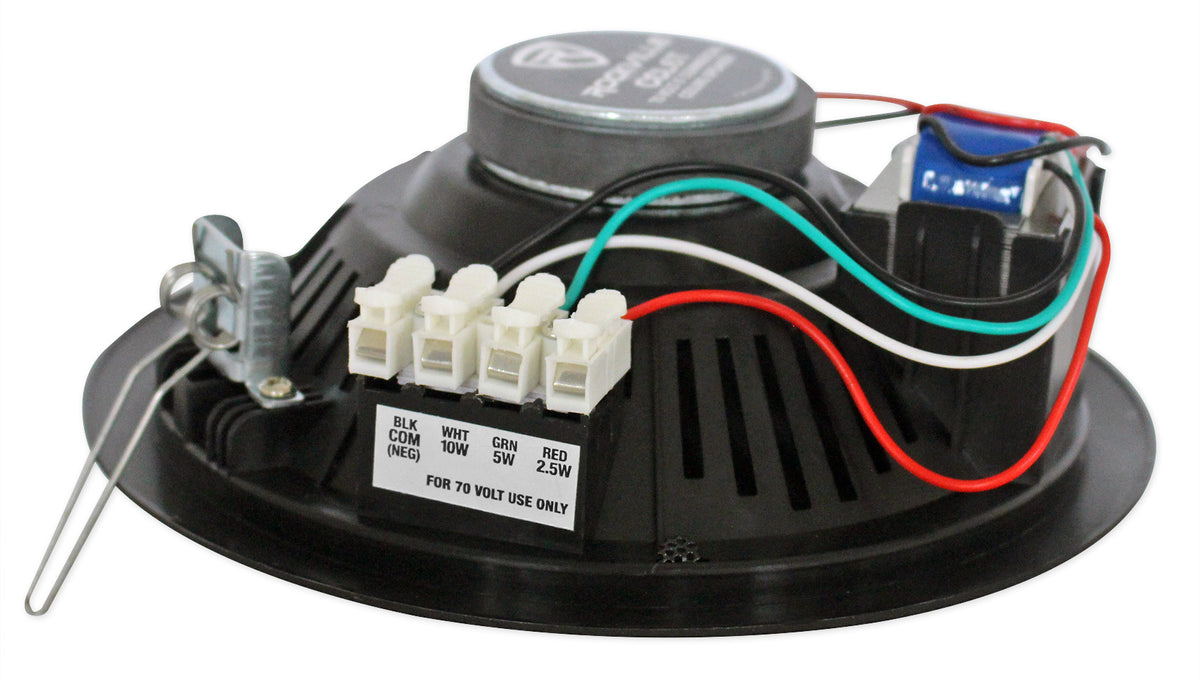

Three transformer taps at 2.5W, 5W, and 10W let installers set speaker levels by room while keeping a distributed 70V layout.
Ample Power Headroom
The 120W amplifier supports a 60W load when all 12 speakers use 5W taps, leaving reserve for dependable commercial coverage.
Tuned Room Coverage
Six-inch speakers with 80Hz to 15kHz response, 88dB sensitivity, and double paper cones reproduce speech and background music with clear presence.
Rack-Ready Installation

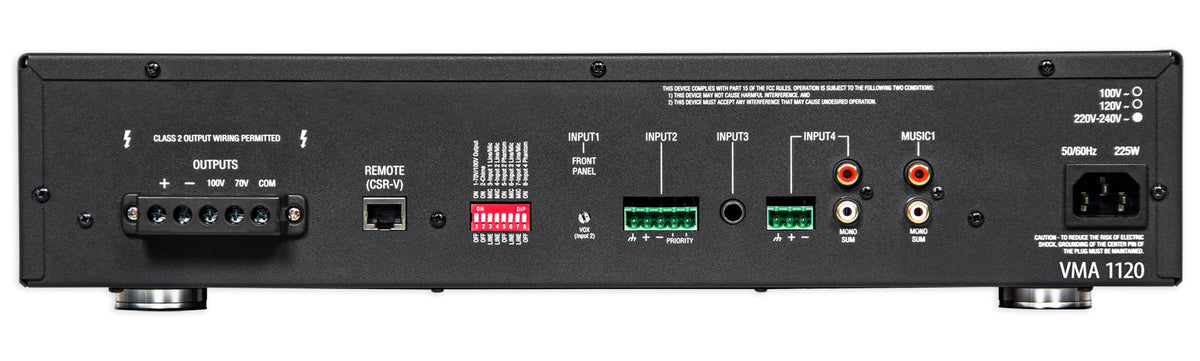

The included rack mount kit, Euroblock outputs, and configurable routing keep the amplifier organized for fixed commercial installations with multiple speaker lines.
Technical Specifications
- Product Type 70V Commercial Sound System
- Models VMA1120 mixer/amplifier; CCL6T Black ceiling speakers
- Amplifier Output 120W, 1 channel, 4 or 8 ohms; 70V and 100V outputs
- Input Channels 5
- Output Channels 1
- Inputs Euroblock, RCA, and 1/4-inch
- Outputs Euroblock
- Playback Bluetooth and USB playback
- Speaker Quantity 12
- Speaker Size 6 in woofer
- Speaker Taps 2.5W, 5W, and 10W
- Speaker Frequency Response 80 Hz to 15 kHz
- Speaker Sensitivity 88 dB @ 1W/1m
- Speaker Impedance 1K, 2K, and 4K ohms
- Speaker Mounting Depth 2.36 in
- Speaker Cut-Out Diameter 6.5 in
- Voice Coil 0.75 in
- Magnet 3.5 oz ferrite
- 4/8 Ohm Frequency Response 20 Hz to 20 kHz, ±2 dB
- 70V/100V Frequency Response 80 Hz to 15 kHz, ±3 dB
- Tone Control Bass ±14 dB @ 50 Hz; Treble ±14 dB @ 10 kHz
- Input Sensitivity Mic 5.5 mVrms; Line 1.3 Vrms; RCA 130 mVrms
- Total Harmonic Distortion Less than 0.5%, 20 Hz to 20 kHz
- Signal-to-Noise Ratio Over 76 dB
- Phantom Power 27 VDC
- Crosstalk -70 dB
- Minimum Load Impedance 4 ohms low impedance; 40 ohms at 70V; 80 ohms at 100V
- Nominal AC Line Voltage 100, 120, 220, or 220 to 240 VAC, 50/60 Hz
- Operating Temperature 32°F to 95°F
- Storage Temperature -4°F to 185°F
- Humidity 95% RH
- Recommended 70V Load Keep combined speaker taps at or below 100W for 20% amplifier reserve
- Weight 20.2 lb
- Dimensions 17 in x 16.3 in x 3.5 in (W x D x H)
