VMA1120 + (12) CCL6T Black + Mini Wi-Fi Player
JBL
VMA1120 + (12) CCL6T Black + Mini Wi-Fi Player
VMA1120 + (12) CCL6T Black + Mini Wi-Fi Player
120W 70V Mixer Amplifier, (12) 6" Black Ceiling Speakers, Mini Wi-Fi Music Player
Free Shipping
Features
- 120W 70V mixer amplifier with five inputs for paging and music
- (12) 6 in ceiling speakers with 10W, 5W, and 2.5W taps
- Paintable flush grilles and 2.36 in mounting depth for clean ceilings
- Voice-activated ducking lowers music when someone speaks
- Mini Wi-Fi player streams up to 192 kHz/24-bit audio
Couldn't load pickup availability

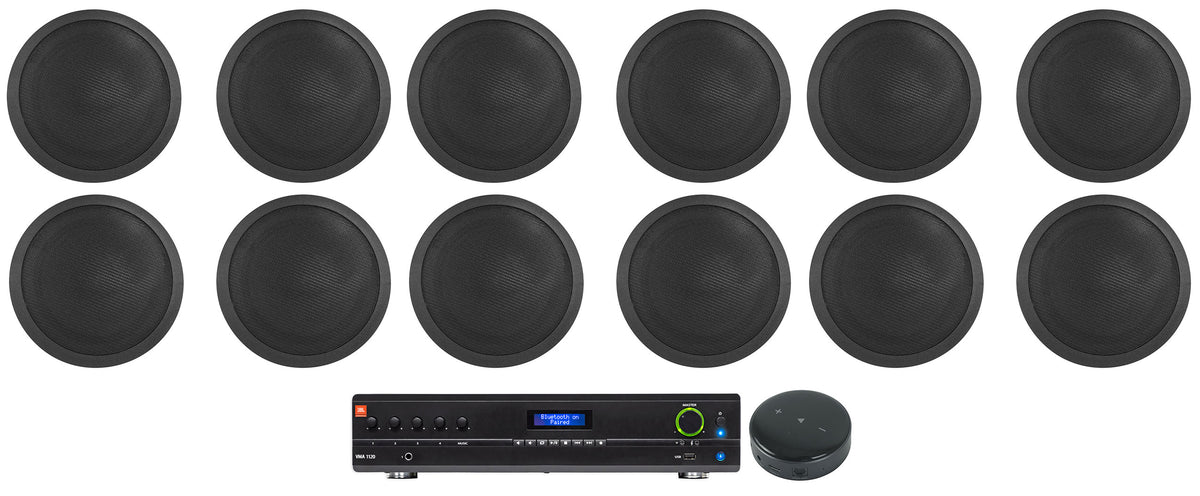

What's Included in the box
- (1) VMA1120 120W 70V mixer amplifier
- (1) Amplifier rack mount kit
- (12) CCL6T black 6 in 70V ceiling speakers (3 four-packs)

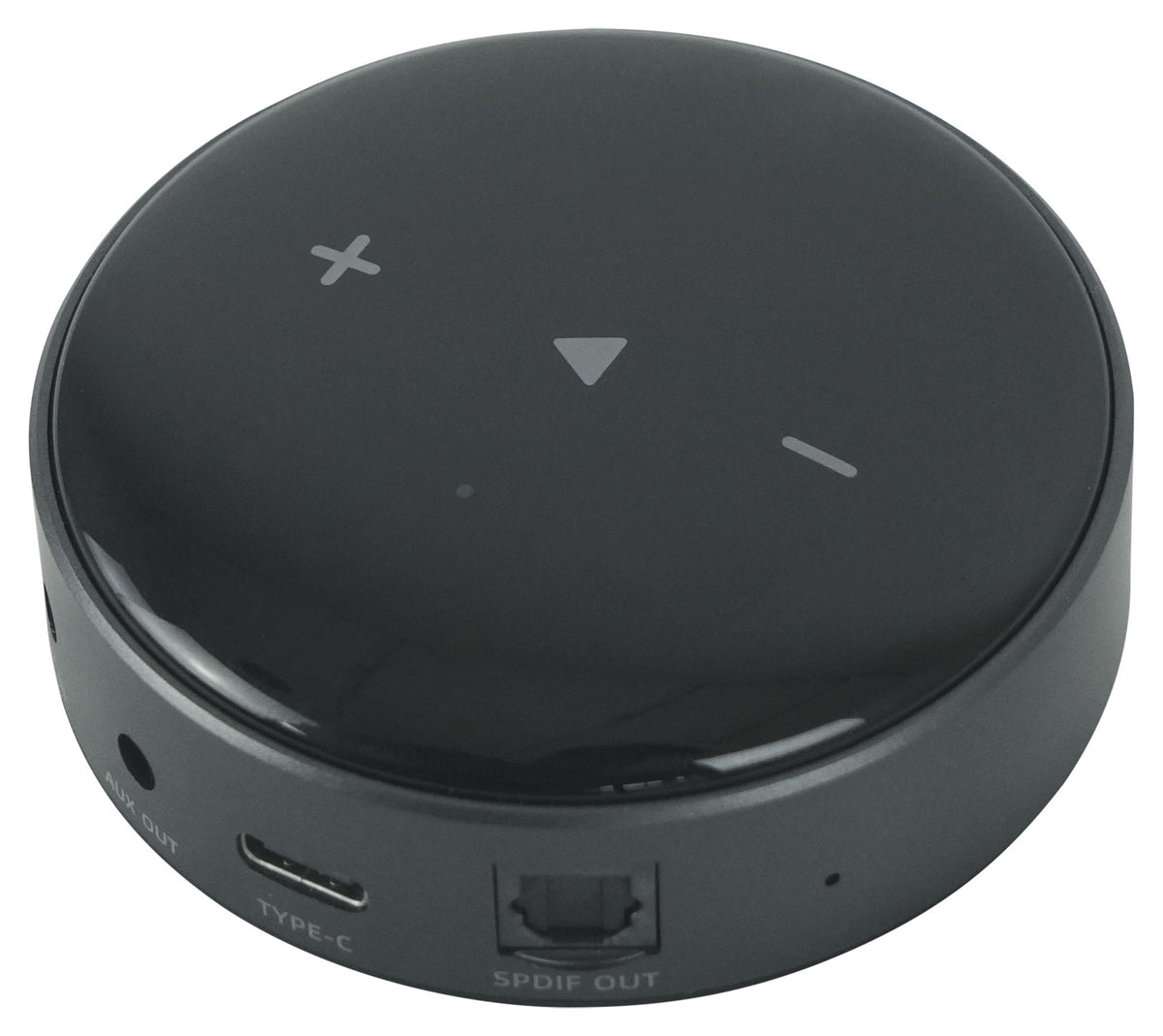

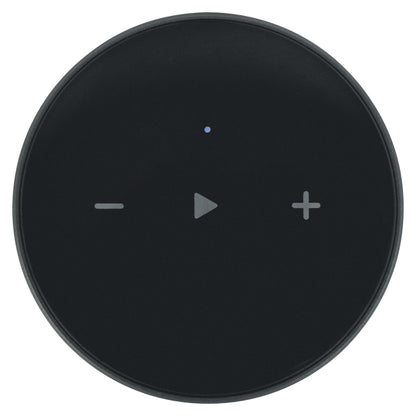

- (1) Mini Wi-Fi music player
SKU: SKU: VMA1120+(3) CCL6T BLACK+Wiim Mini
View full details











Product Description
Built-in transformer taps of 10W, 5W, or 2.5W set each area's level. With 12 speakers, the 10W tap would total 120W, the full rating of the amplifier, so plan on 5W taps (60W total) or a mix that stays at about 100W or less to keep 15 to 20 percent headroom. The Mini Wi-Fi player streams up to 192 kHz/24-bit audio over dual-band Wi-Fi or Bluetooth 5.0, supports multi-room grouping and gapless playback, and feeds the amp from streaming apps or a local music library.
Included in the Bundle
-

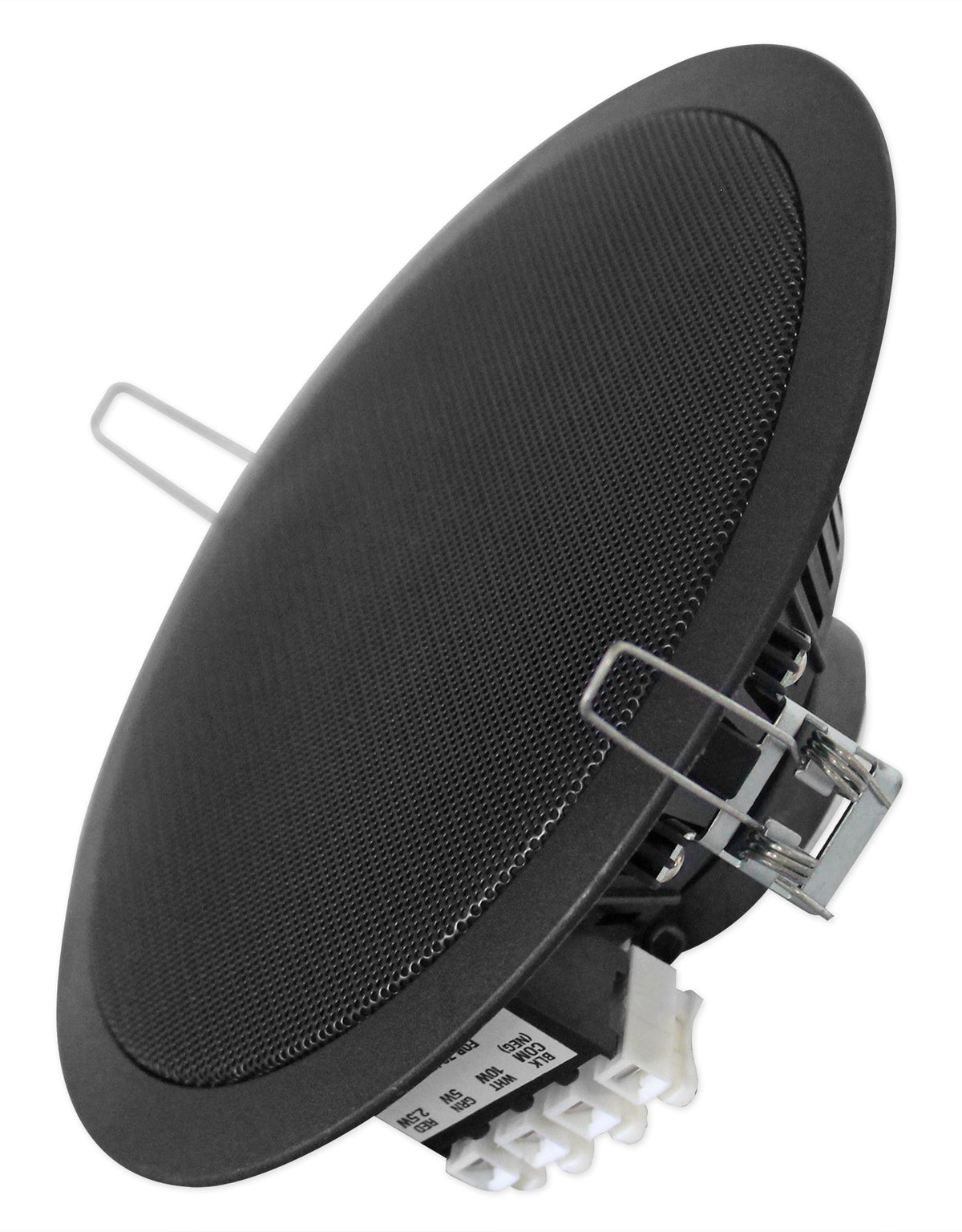

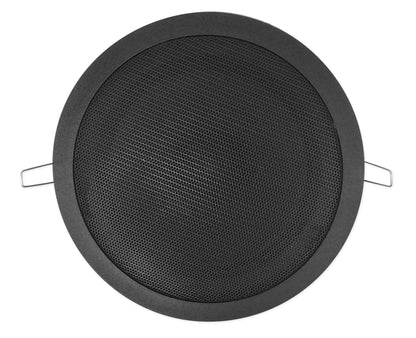

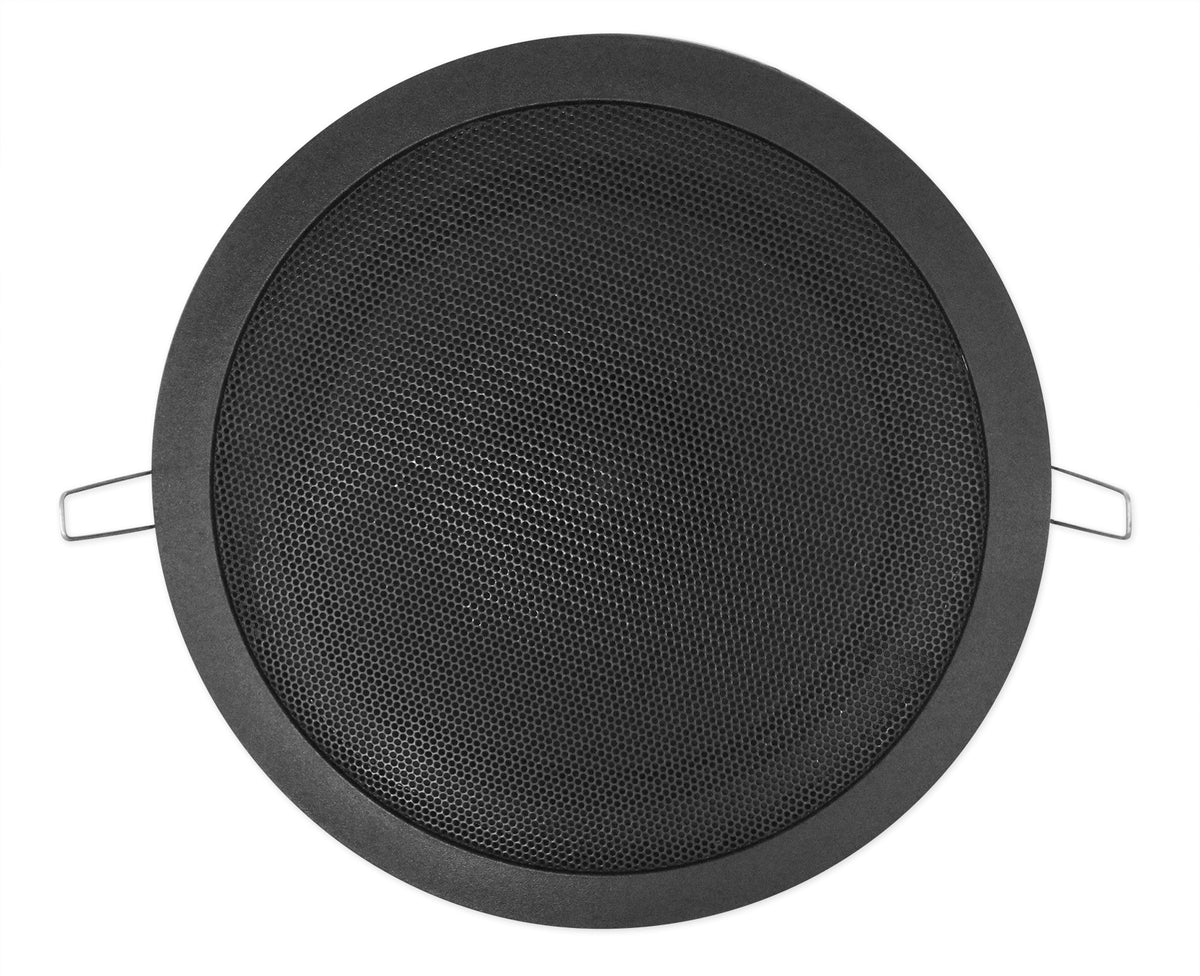

CCL6T Black
The CCL6T delivers exceptional commercial audio performance with selectable power options that adapt to any installation. These 6" ceiling speakers excel in restaurants, offices, schools, and retail environments where background music and PA announcements demand consistent, clear sound distribution.
Learn More: CCL6T Black -

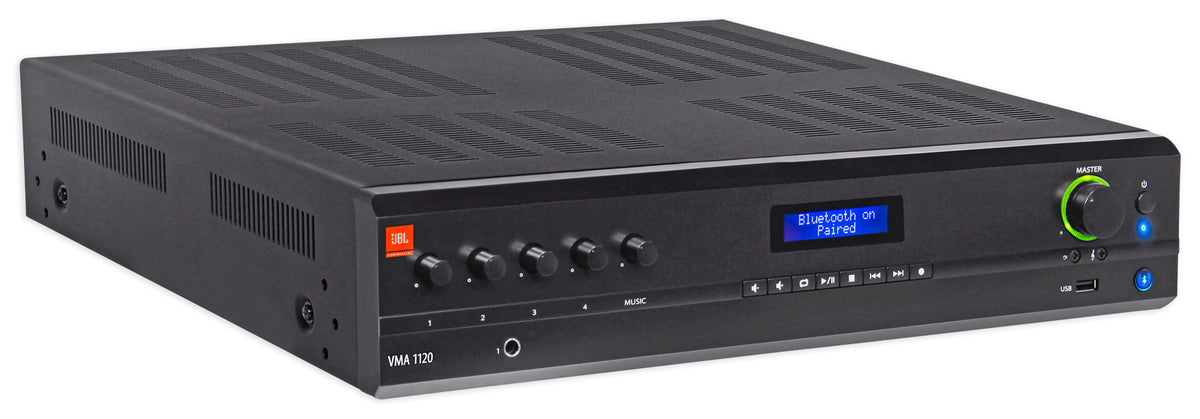

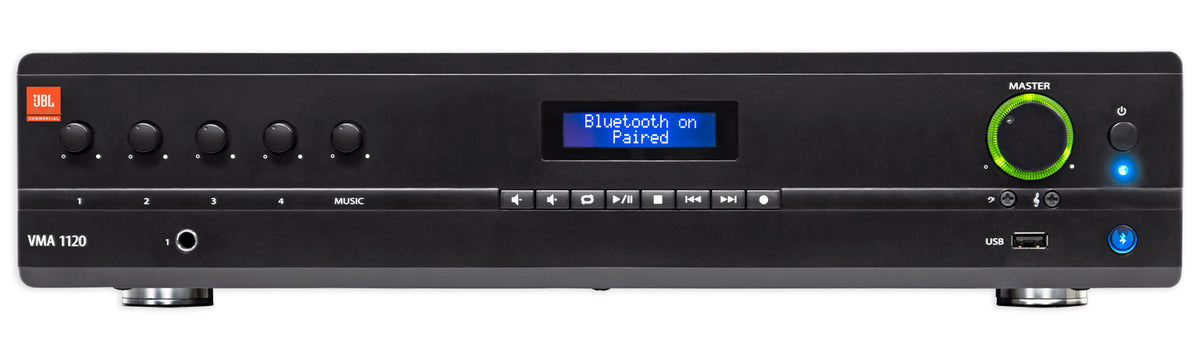

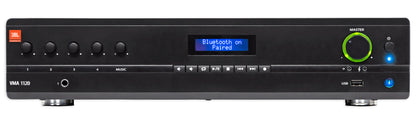

VMA1120
The VMA1120 combines a five-input mixer and a 120W amplifier in a single rack unit, which is usually all a restaurant, retail floor, gym, or small house of worship needs to run background music and paging from one box.
Learn More: VMA1120
Features
Complete Paging and Music System
A 120W mixer amplifier, 12 ceiling speakers, and a Wi-Fi player arrive together, covering announcements and background music without sourcing each part separately.
Clear Announcements
Voice-activated ducking lowers program music when someone speaks into the mic, so paging cuts through in busy dining rooms, stores, and offices.
Even Ceiling Coverage
The 12 6-inch ceiling speakers spread sound across the space, and the 2.36 in mounting depth with paintable grilles keeps installs clean in finished ceilings.
Room by Room Levels
Selectable 10W, 5W, or 2.5W taps set each area's volume, and at 5W per speaker the 12-speaker load totals 60W with comfortable amplifier headroom.

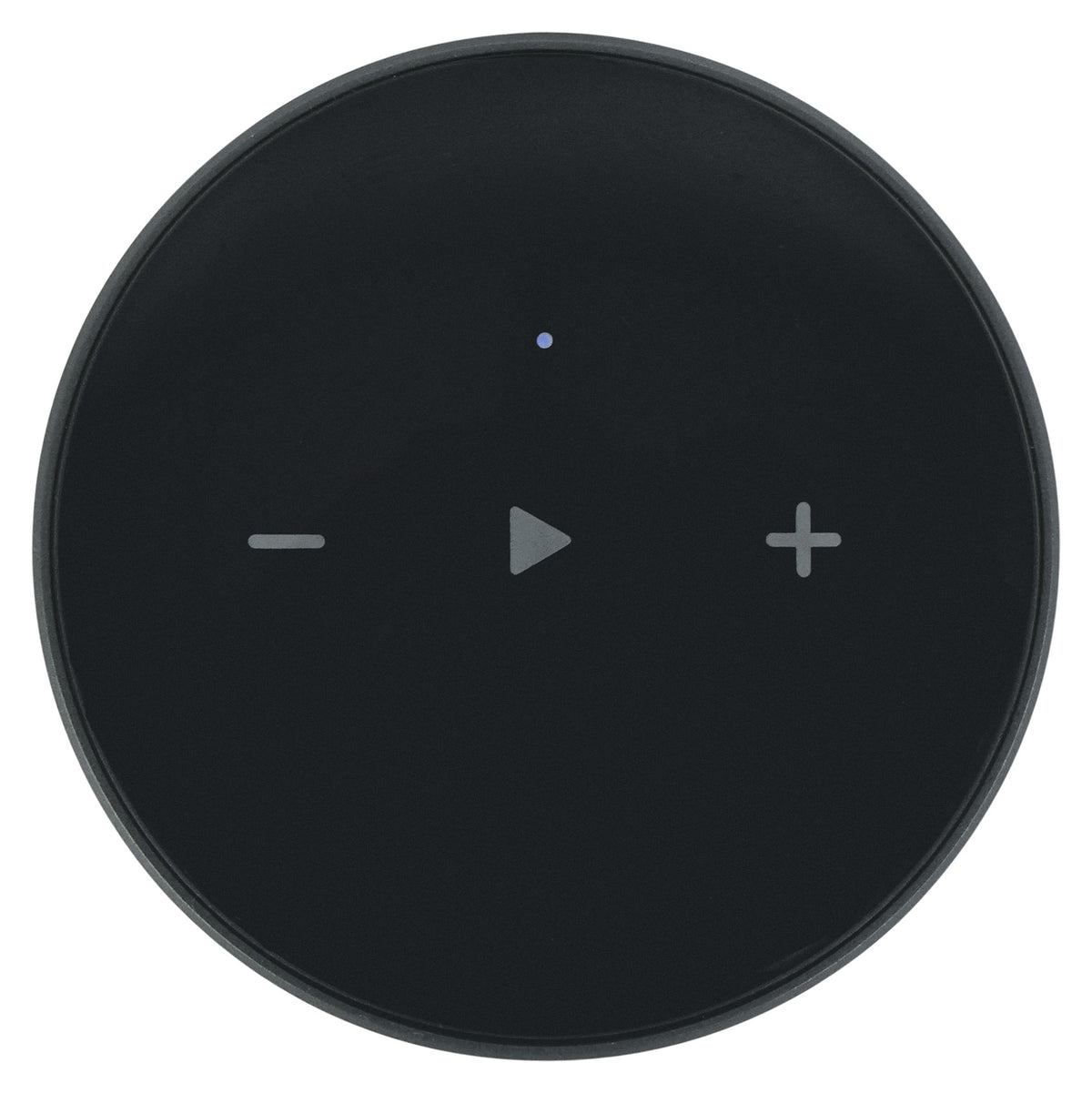

Wireless Music Streaming
The Mini player streams up to 192 kHz/24-bit audio over dual-band Wi-Fi or Bluetooth, with multi-room grouping and gapless playback for steady background music.
Technical Specifications
- Product Type 70V Mixer Amplifier, Ceiling Speaker, and Wi-Fi Streaming Player Bundle
- Amplifier Model VMA1120
- Amplifier Power 120W into 4 or 8 ohms

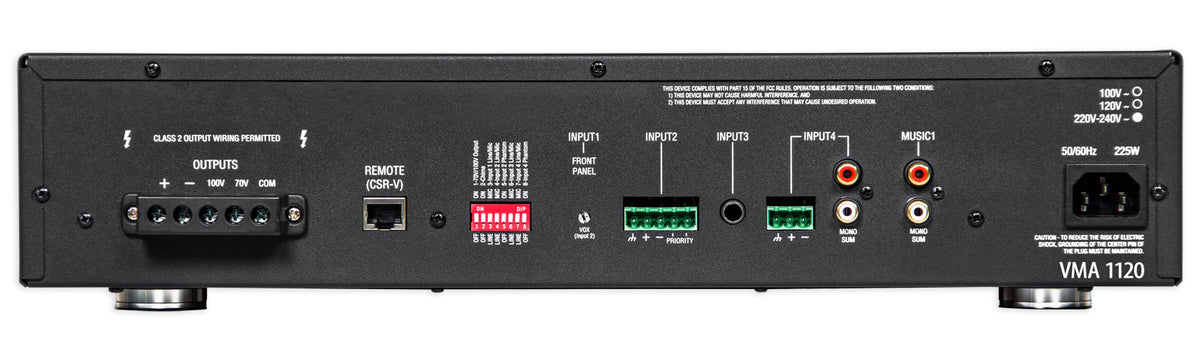

- Amplifier Inputs 5 (Euroblock, RCA, 1/4 in), plus USB and Bluetooth
- Amplifier Outputs 1 output channel; 4 ohm, 8 ohm, 70V, 100V
- Amplifier Controls Per-channel bass and treble, voice-activated ducking, configurable output routing
- Amplifier Frequency Response 20 Hz to 20 kHz ±2 dB (4/8 ohm); 80 Hz to 15 kHz ±3 dB (70V/100V)
- Amplifier THD Less than 0.5%, 20 Hz to 20 kHz
- Amplifier Signal-to-Noise Ratio Greater than 76 dB
- 70V Minimum Load Impedance 40 ohms
- Speaker Model CCL6T
- Speaker Quantity 12 (3 four-packs)
- Speaker Woofer 6 in double paper cone, 0.75 in voice coil, 3.5 oz ferrite magnet
- Speaker Frequency Response 80 Hz to 15 kHz
- Speaker Sensitivity 88 dB (1W/1m)
- Speaker 70V Taps 10W, 5W, 2.5W
- Speaker Impedance 1K, 2K, 4K ohms
- Speaker Mounting Depth 2.36 in
- Speaker Cut-Out Diameter 6.5 in
- Speaker Color Black, paintable
- Recommended Combined Tap Load 100W or less
- Streaming Player Audio Output Up to 192 kHz/24-bit
- Streaming Player Wi-Fi Dual-band 802.11 a/b/g/n/ac, 2.4 GHz and 5 GHz
- Streaming Player Bluetooth 5.0, SBC and AAC
- Streaming Player Codecs MP3, AAC, ALAC, APE, FLAC, WAV, WMA, OGG
- Weight VMA1120: 20.2 lb
- Dimensions VMA1120: 17 in W x 16.3 in D x 3.5 in H
