VMA1120 + 3-Pair WET-7020W 70V Audio System

Name: VMA1120 + 3-Pair WET-7020W 70V Audio System
Brand: JBL
SKU: VMA1120+(3) WET-7020W
Price: 768.85 USD
Availability: InStock

70V Commercial Audio System, 120W Mixer Amp, Six IPX55 Wall Speakers, Bluetooth, USB

Free Shipping

$768.85

$768.85 ~~$1,515.07~~

Save 49%

Shipping calculated at checkout.

Features

120W mixer amplifier with five input channels
Bluetooth and USB playback for easy source selection
Six IPX55 wall speakers handle indoor or outdoor placement
70V taps from 2.5W to 20W set local speaker levels
4-way swivel brackets aim sound up, down, left, or right

30-Day Money-Back Guarantee

Fast & Free Shipping

Buy Now, Pay Later

What's Included in the box

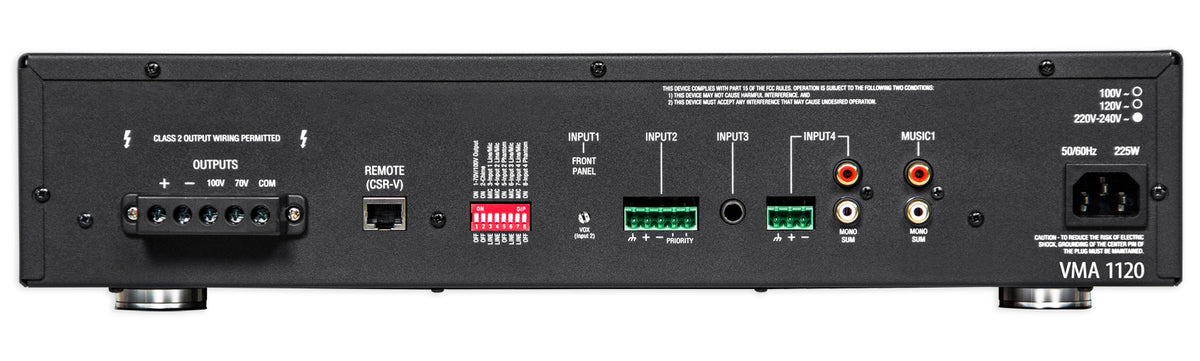

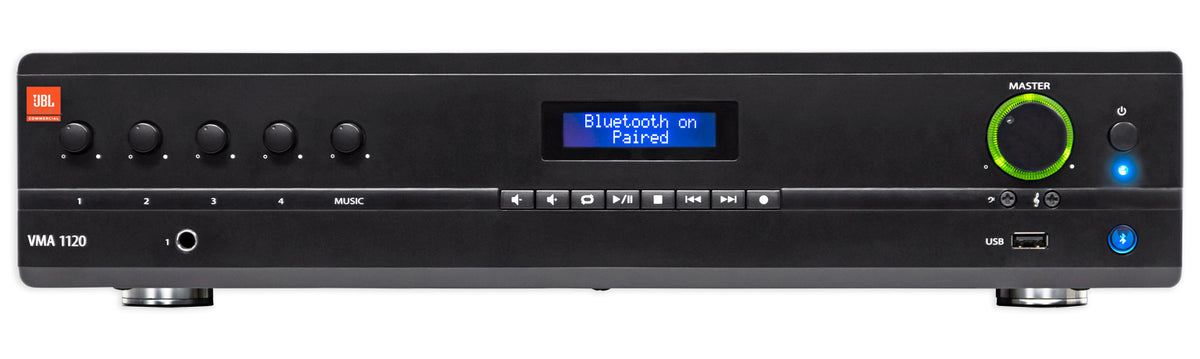

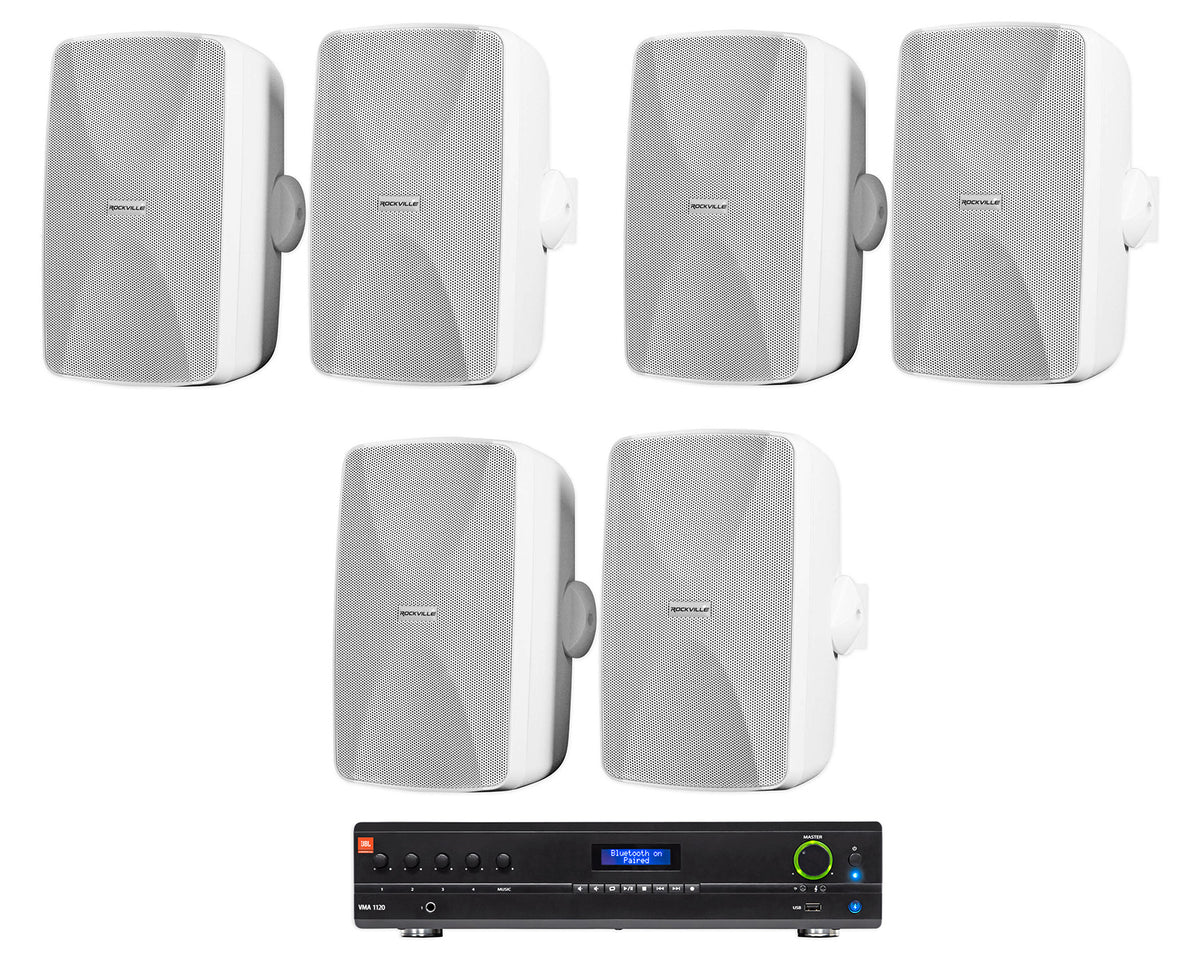

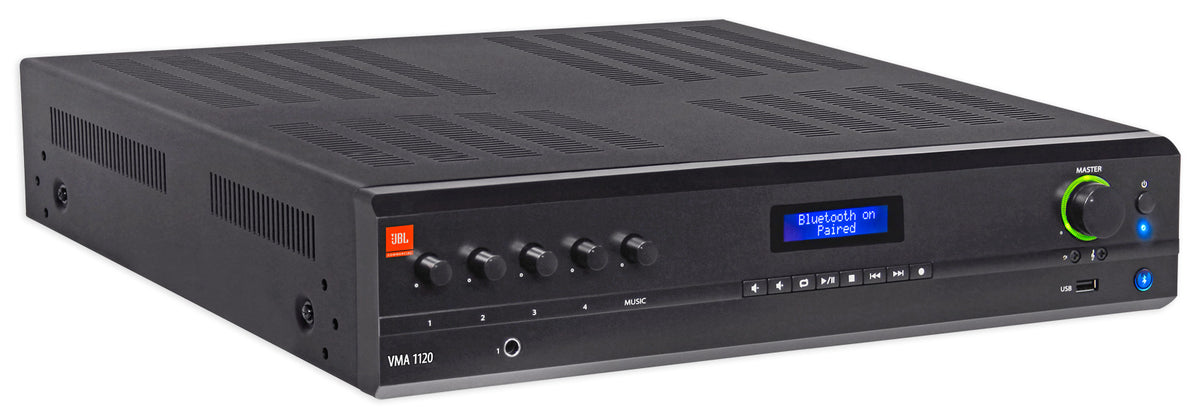

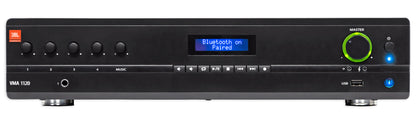

(1) VMA1120 120W 70V Bluetooth mixer/amplifier

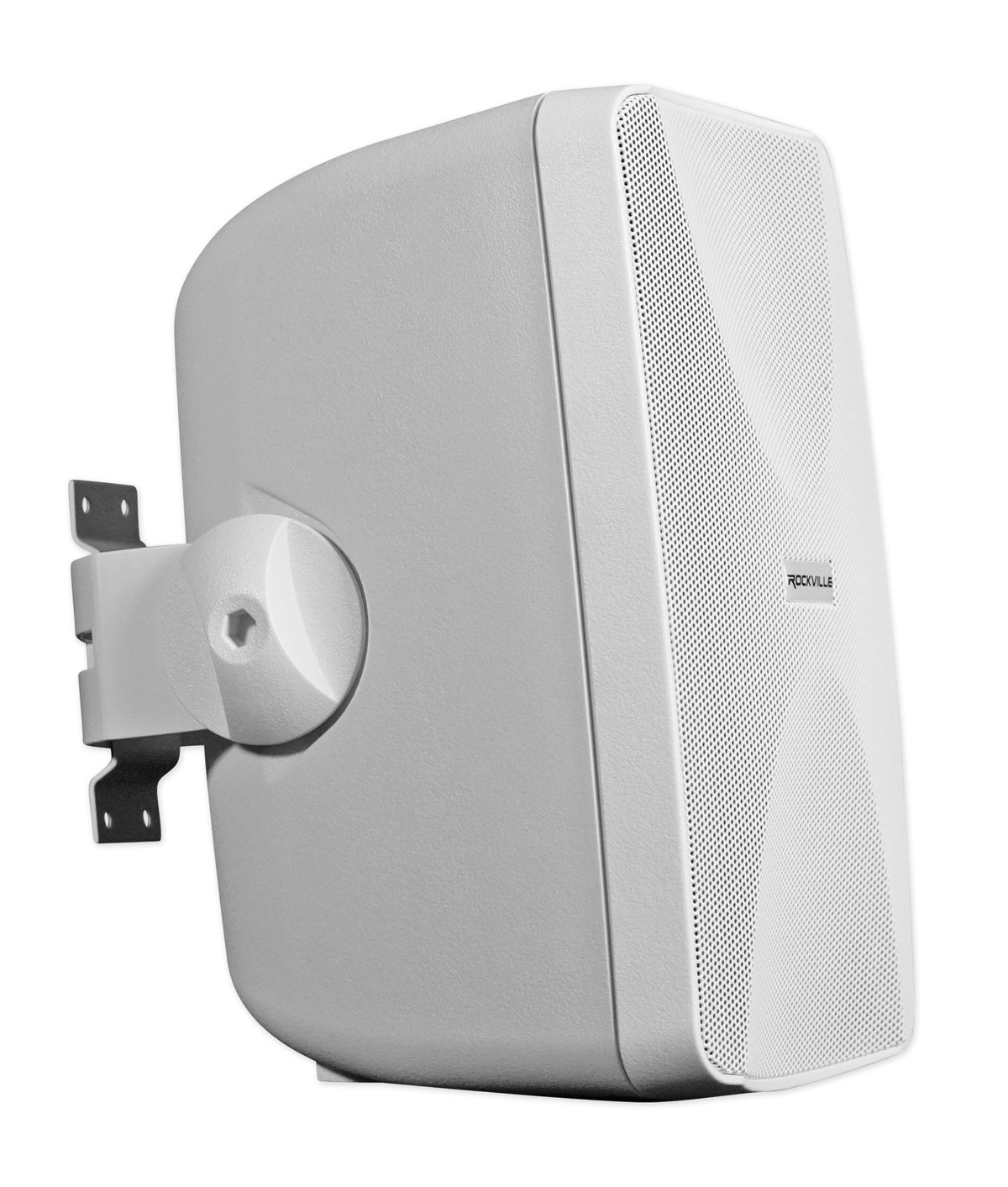

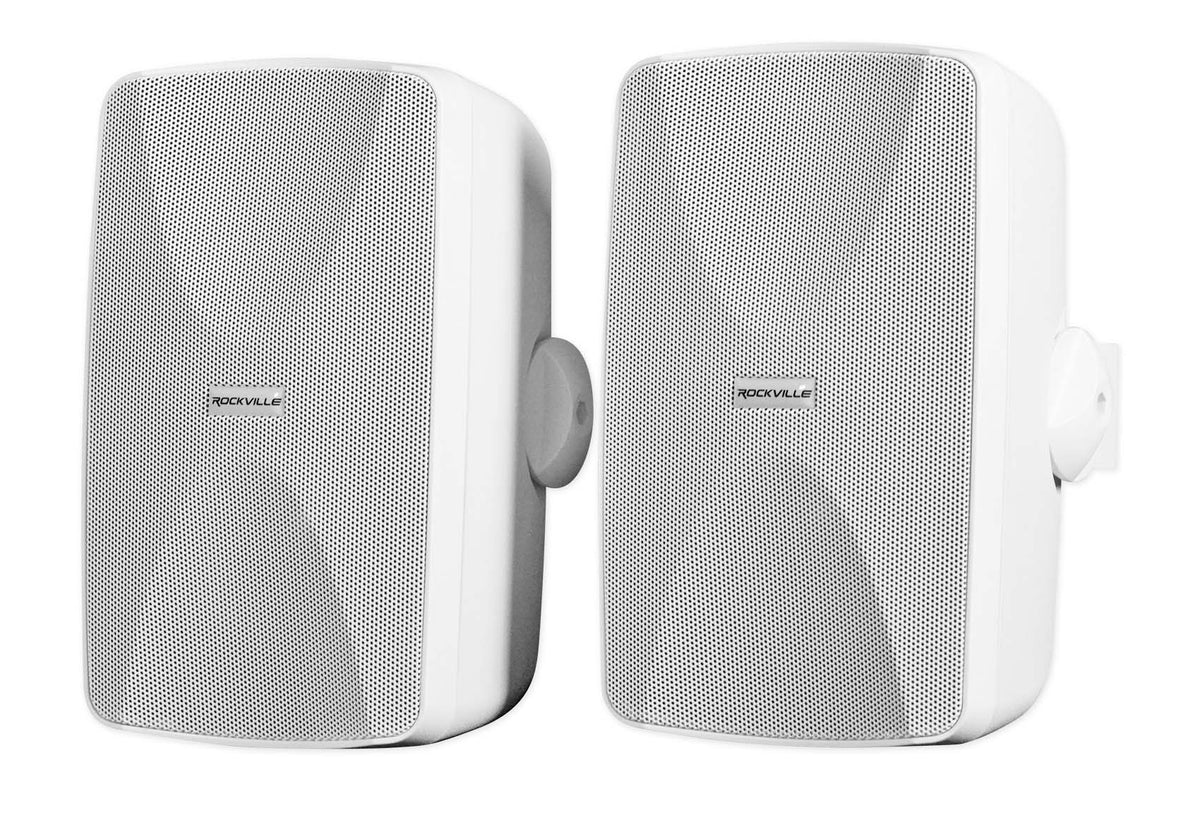

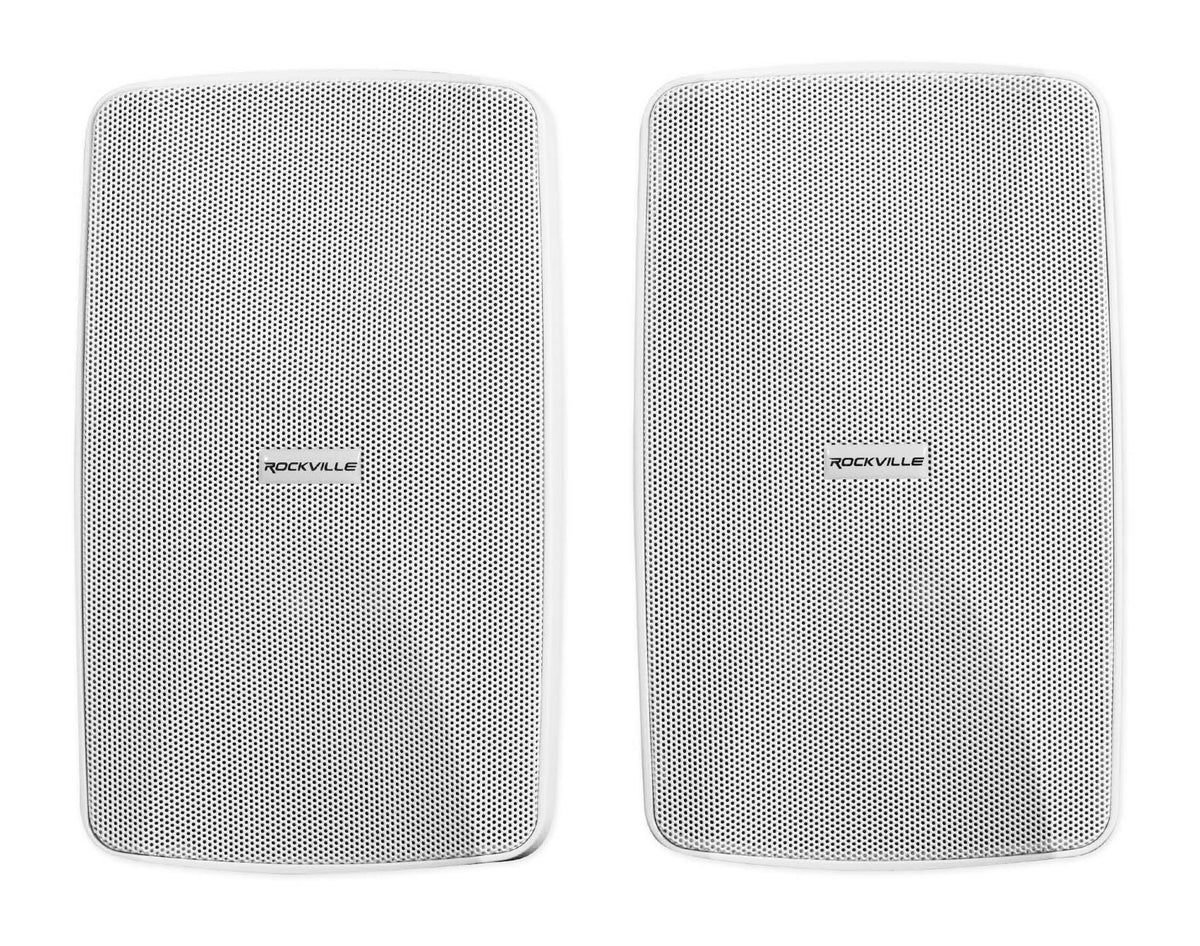

(3) pairs WET-7020W 5.25-inch 70V IPX55 wall speakers in white

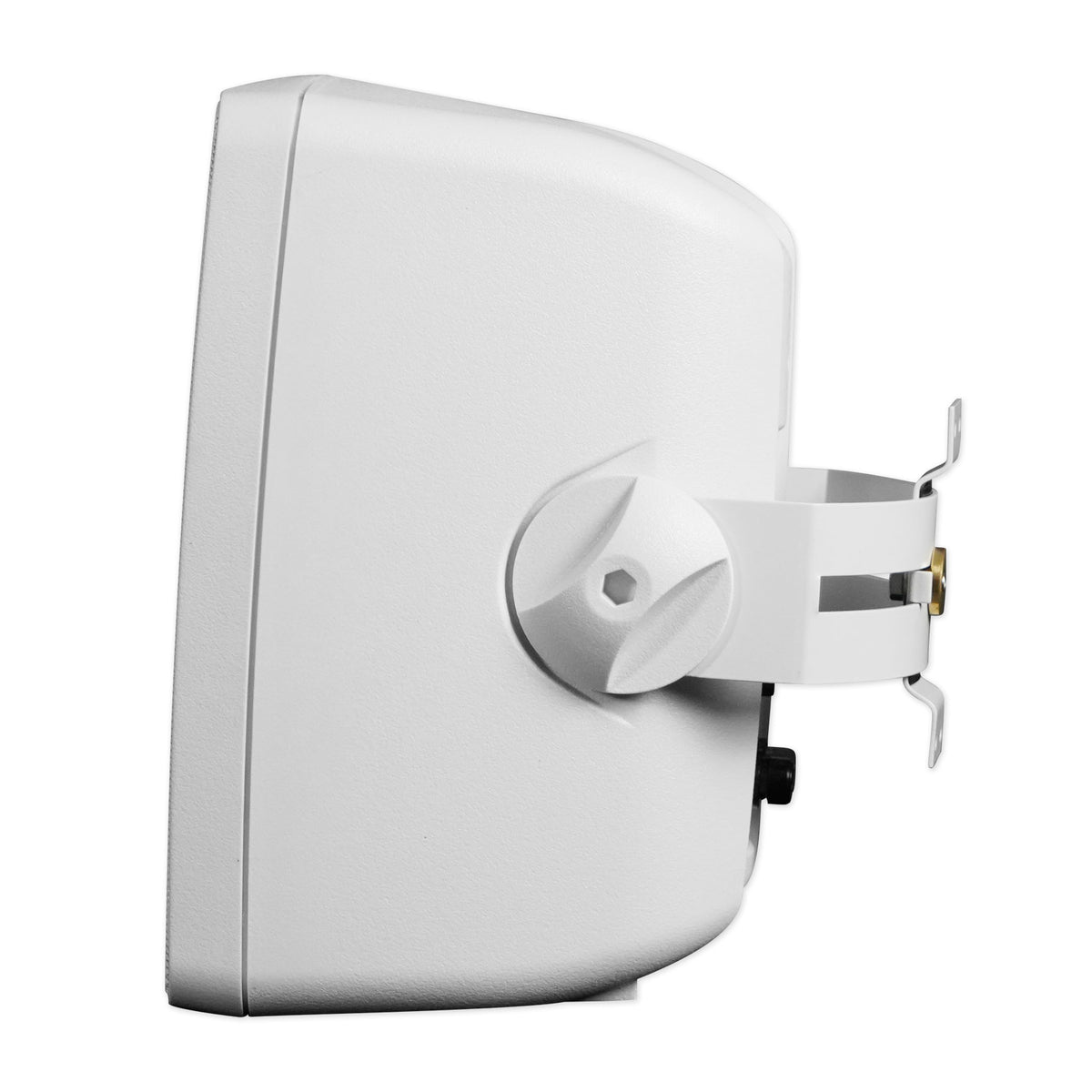

(6) 4-way swivel speaker mounting brackets

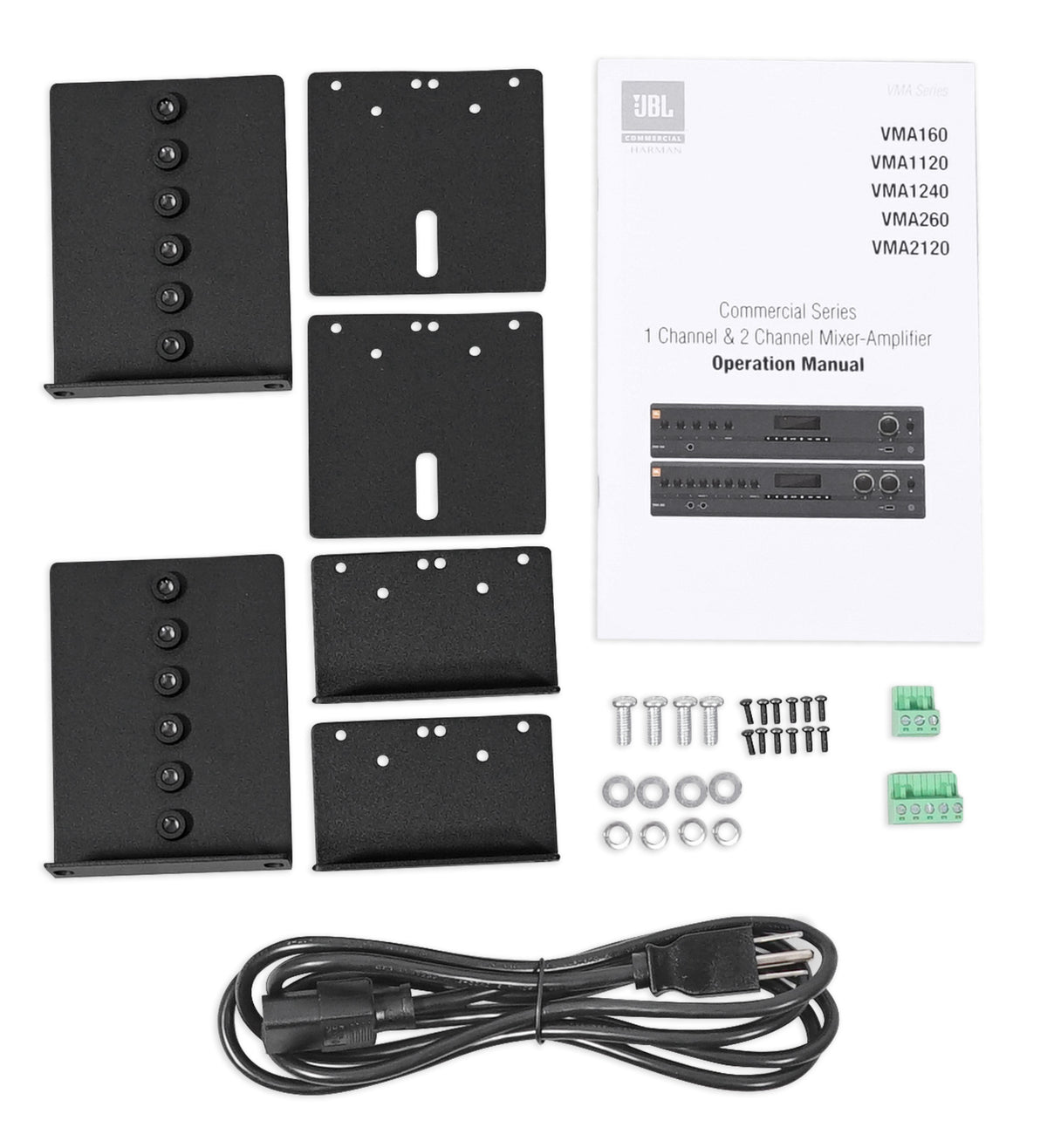

(1) rack mount kit

SKU: SKU: VMA1120+(3) WET-7020W

View full details

Product Description

Build a distributed indoor or outdoor sound system with one 120W 70V mixer/amplifier and six WET-7020W wall speakers. The five-input amplifier accepts microphone, line, RCA, Euroblock, 1/4-inch, USB, and Bluetooth sources, with front-panel controls for quick changes during service, events, or daily background audio. Its single 70V output sends the signal across a shared speaker line, while each speaker's tap selector lets you set 2.5W, 5W, 10W, 15W, or 20W locally. For this six-speaker package, 15W per speaker uses 90W total and leaves 30W of amplifier headroom, while lower taps fit quieter areas. Each speaker combines a 5.25-inch polypropylene woofer, 13mm PEI tweeter, sealed cabinet, waterproof spring terminals, and IPX55 protection for indoor or outdoor placement. Four-way swivel brackets let you aim sound up, down, left, or right. The aluminum grilles and powder-coated steel brackets resist moisture and corrosion, and the included rack mount kit keeps the mixer/amplifier ready for a clean installation.

Features

Shared-Line Coverage
One 70V output feeds all six speakers on a shared line, while individual tap settings help balance levels across the installation.
Flexible Source Control
Five inputs, Bluetooth, USB playback, and front-panel controls make it simple to switch sources for restaurant, retail, patio, or event audio.
Weather Ready Construction
IPX55 cabinets, aluminum grilles, sealed speaker design, and rust-resistant terminals protect the speaker system in damp indoor or outdoor locations.
Adjustable Sound Direction

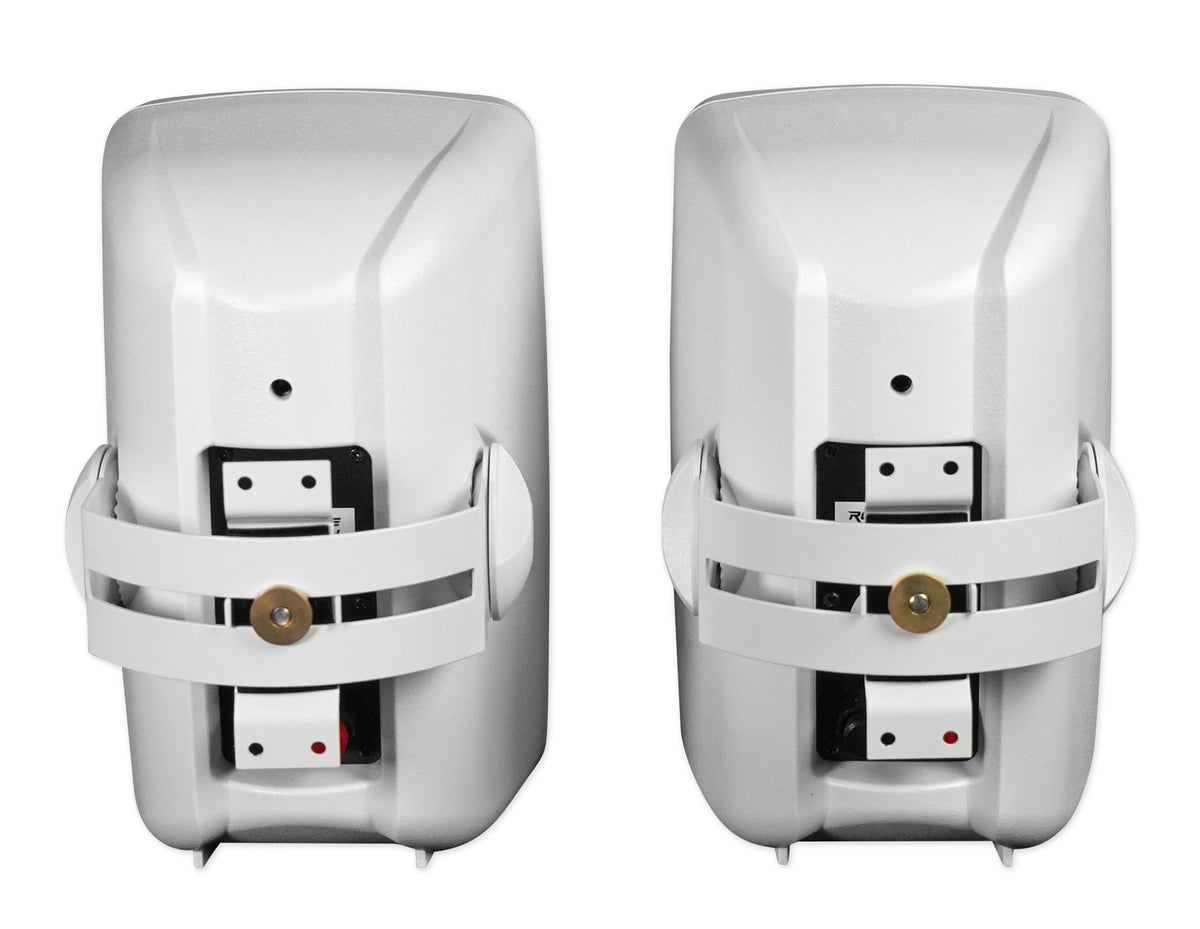

Four-way swivel brackets let each speaker aim up, down, left, or right, helping direct coverage where listeners need it most.
Headroom For Tap Settings
At 15W per speaker, six speakers draw 90W total from the 120W amplifier, leaving 30W of headroom for the shared 70V line.

Technical Specifications

Product Type 70V Commercial Audio System
Amplifier Rating 120 W, 1 output channel
Amplifier Input Channels 5
Amplifier Inputs Euroblock, RCA, and 1/4 in
Amplifier Playback Bluetooth and USB playback
Amplifier Output Types 70 V, 100 V, and low impedance
Frequency Response 4/8 Ohm: 20 Hz to 20 kHz, ±2 dB; 70/100 V: 80 Hz to 15 kHz, ±3 dB
Total Harmonic Distortion Less than 0.5%, 20 Hz to 20 kHz
Signal to Noise Ratio More than 76 dB
Phantom Power 27 VDC
Minimum Load Impedance Low impedance: 4 Ohm; 70 V: 40 Ohm; 100 V: 80 Ohm
Speaker Quantity 6 (three pairs)
Speaker Woofer 5.25 in polypropylene cone
Speaker Tweeter 13 mm PEI
Speaker Frequency Response 60 Hz to 20 kHz
Speaker Sensitivity 87 dB

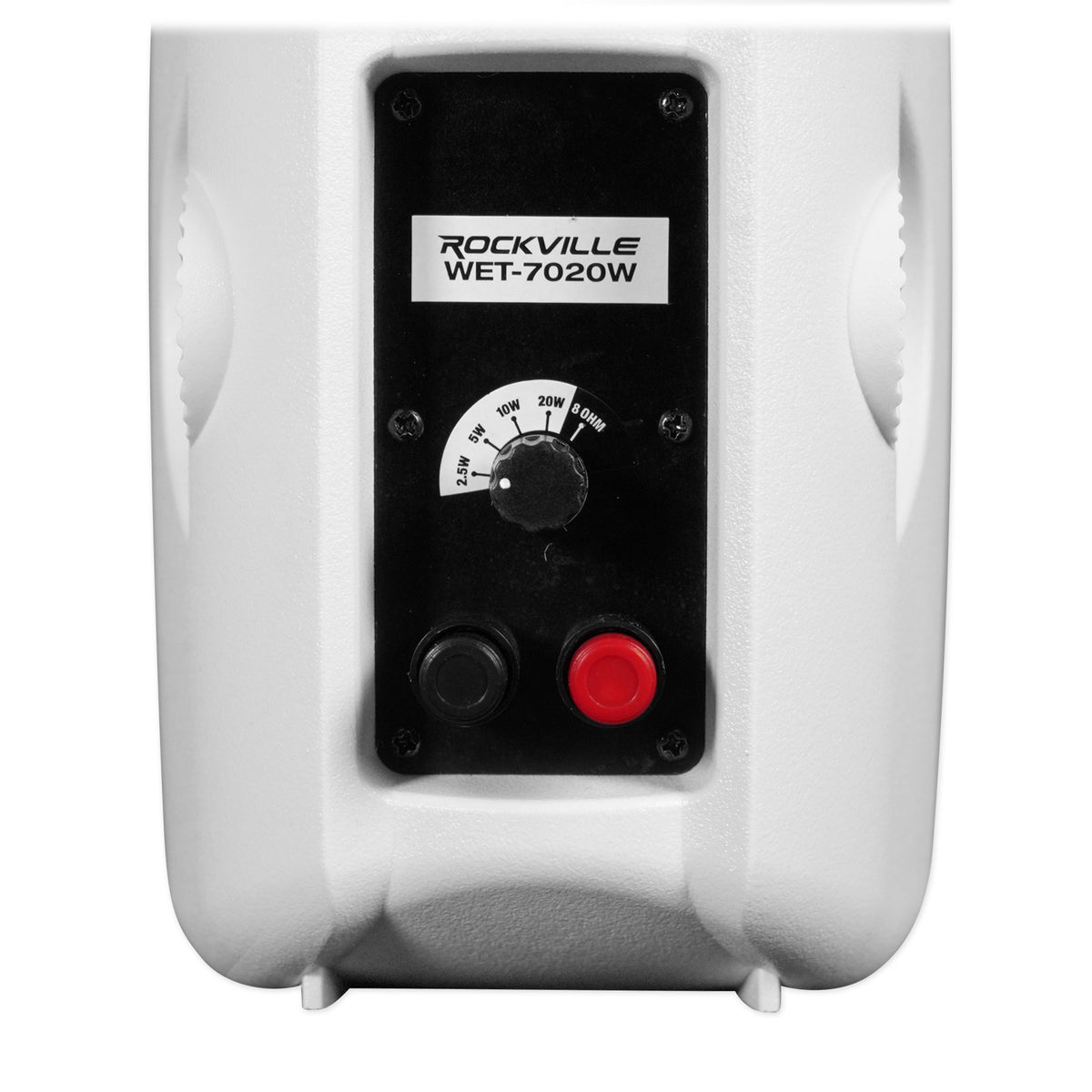

Speaker 70 V Taps 2.5 W, 5 W, 10 W, 15 W, 20 W
Speaker 8 Ohm Power Handling 40 W RMS
Speaker Nominal Impedance 8 Ohm
Weather Rating IPX55
Color White
Weight Amplifier: 20.2 lb; each speaker: 4.16 lb
Dimensions Amplifier: 17 in x 16.3 in x 3.5 in; each speaker cabinet: 9.6 in x 7.1 in x 7.5 in
