VMA1240 + (8) WET-7020B
JBL
VMA1240 + (8) WET-7020B
VMA1240 + (8) WET-7020B
240W 70V Mixer Amplifier, 5 Inputs, Eight IPX55 Wall Speakers
Free Shipping
Features

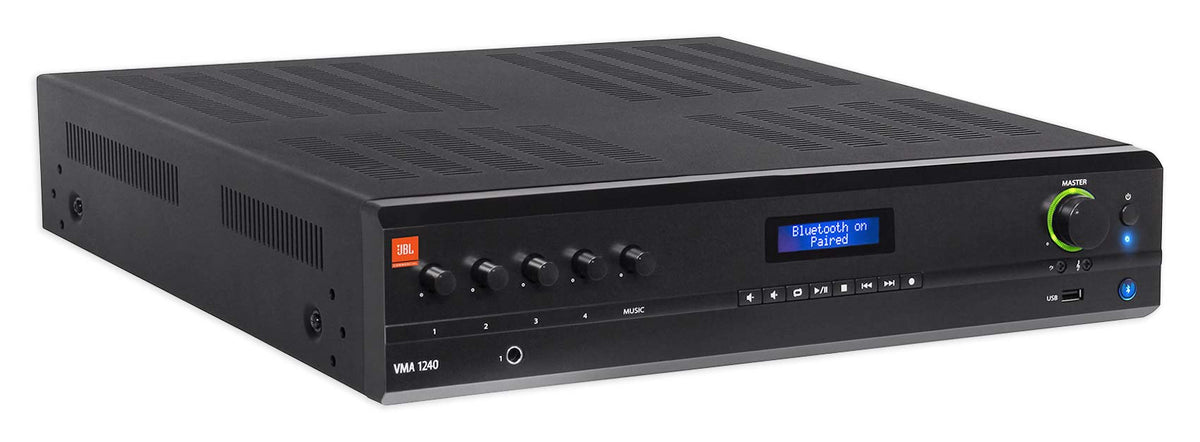

- 240W mixer amplifier with Bluetooth, USB playback, and five input channels
- Eight 5.25-inch IPX55 wall speakers for indoor or outdoor coverage
- Adjustable 70V taps from 2.5W to 20W on every speaker
- Four-way swivel brackets aim sound up, down, left, or right
- 160W maximum combined speaker tap load stays below the amplifier rating
Couldn't load pickup availability

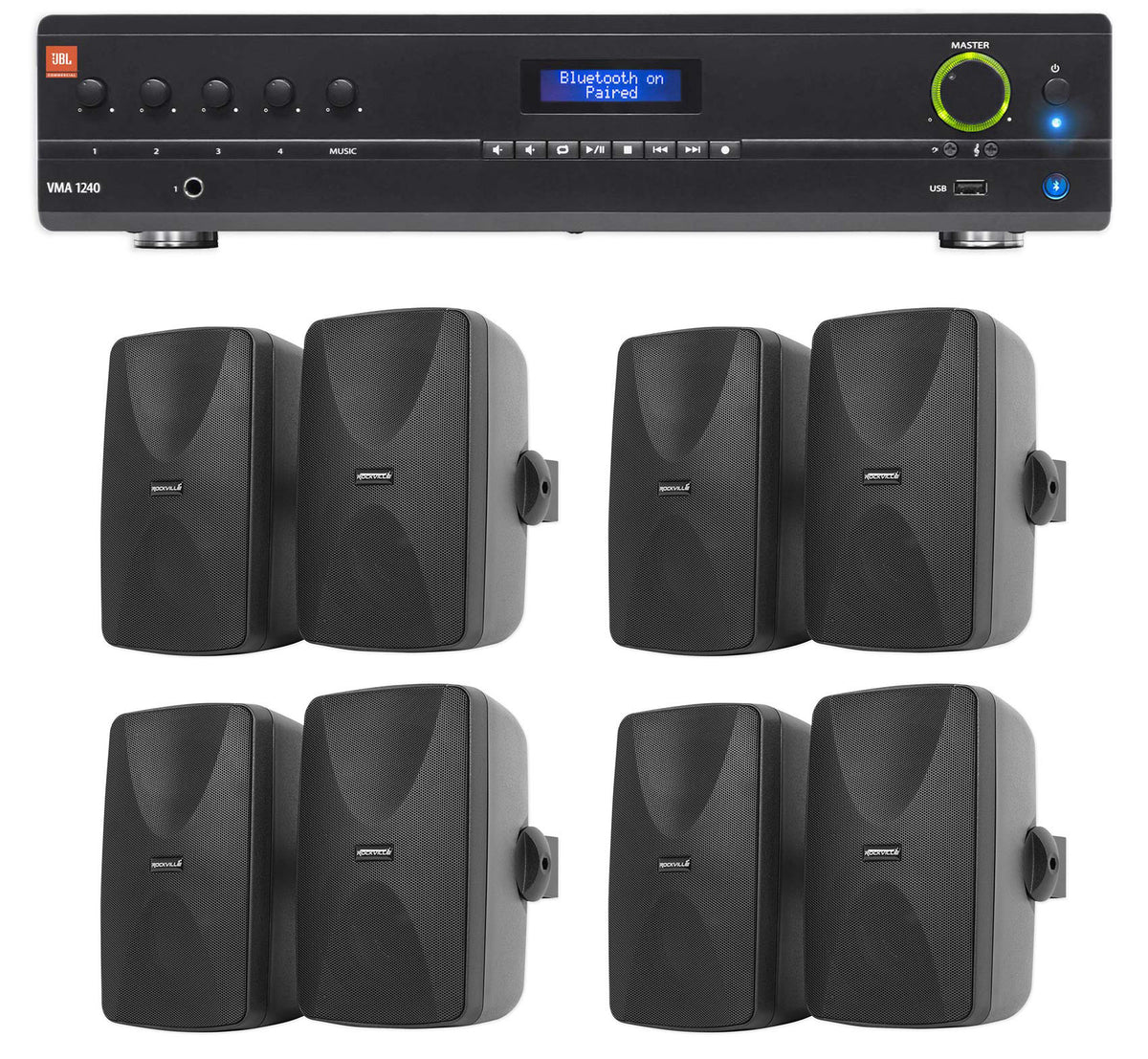

What's Included in the box
- 1 x VMA1240 240W 70V Bluetooth mixer amplifier
- 1 x rack mount kit
- 8 x WET-7020B 5.25-inch 70V IPX55 wall speakers
- 8 x four-way swivel mounting brackets
SKU: SKU: VMA1120+(8) WET-5B
View full details














Product Description
Features
Flexible System Control

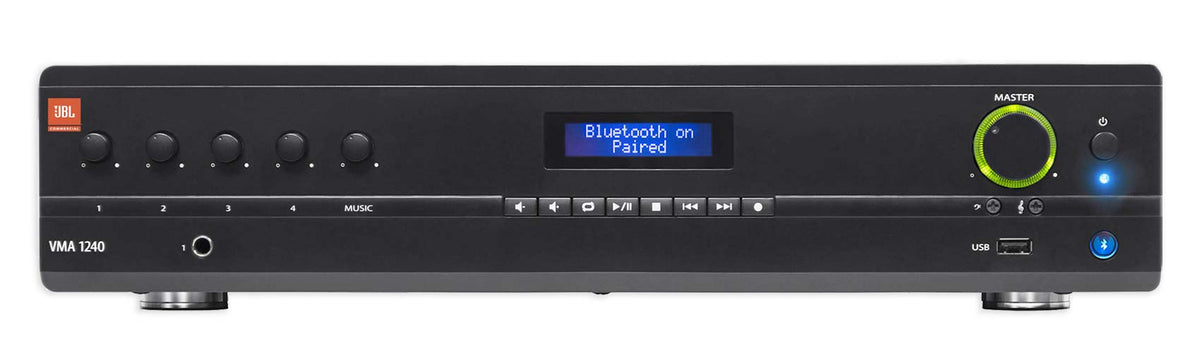

Five inputs, Bluetooth, USB playback, and configurable output routing let one amplifier handle music, announcements, and other program sources from a central location.
Balanced Program Audio
Voice-activated ducking plus per-channel bass and treble controls keep speech clear and background music balanced across changing room conditions.

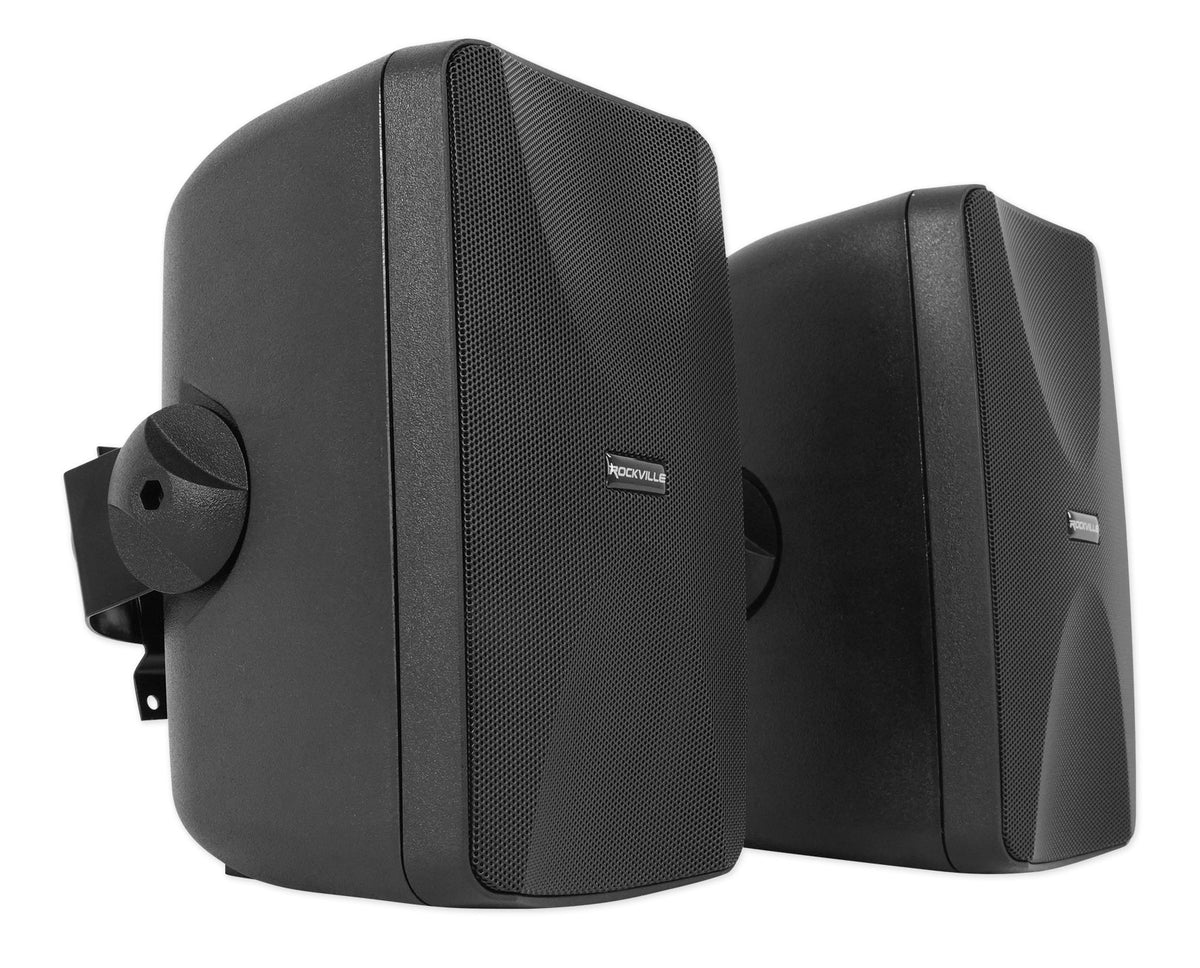

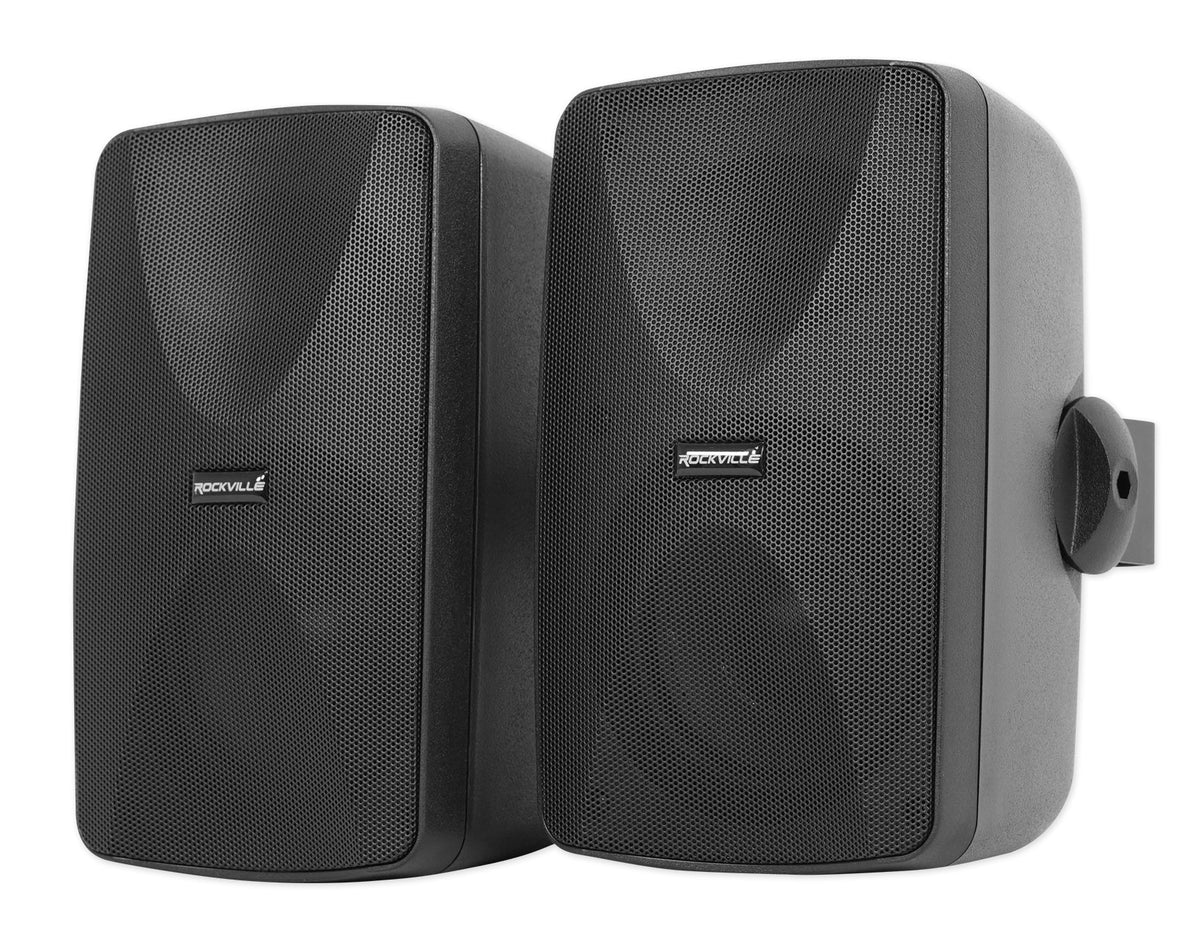

Indoor Outdoor Coverage

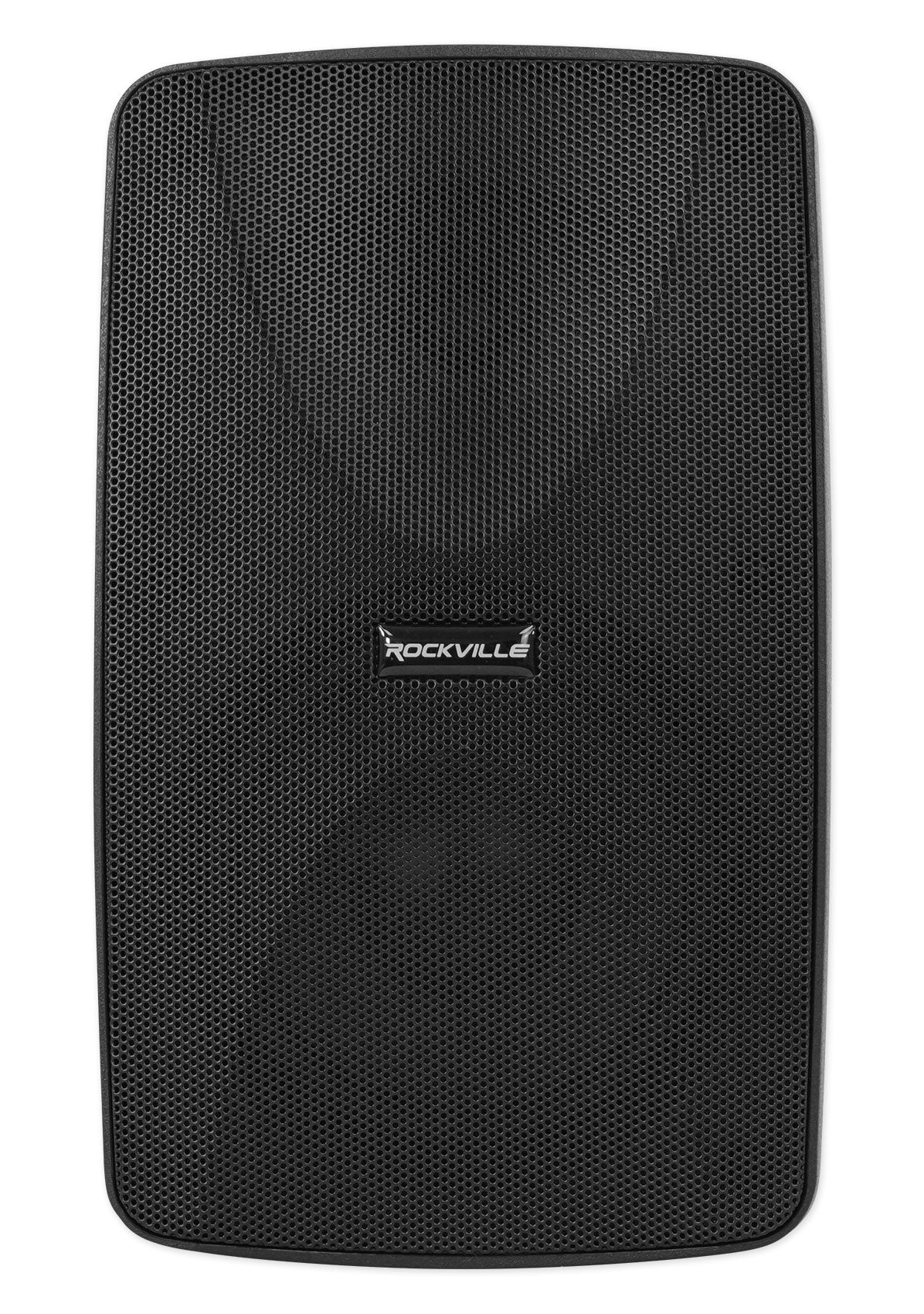

Eight IPX55 speakers use sealed ABS cabinets, aluminum grilles, and weather-resistant construction for dependable coverage in patios, restaurants, retail spaces, and more.

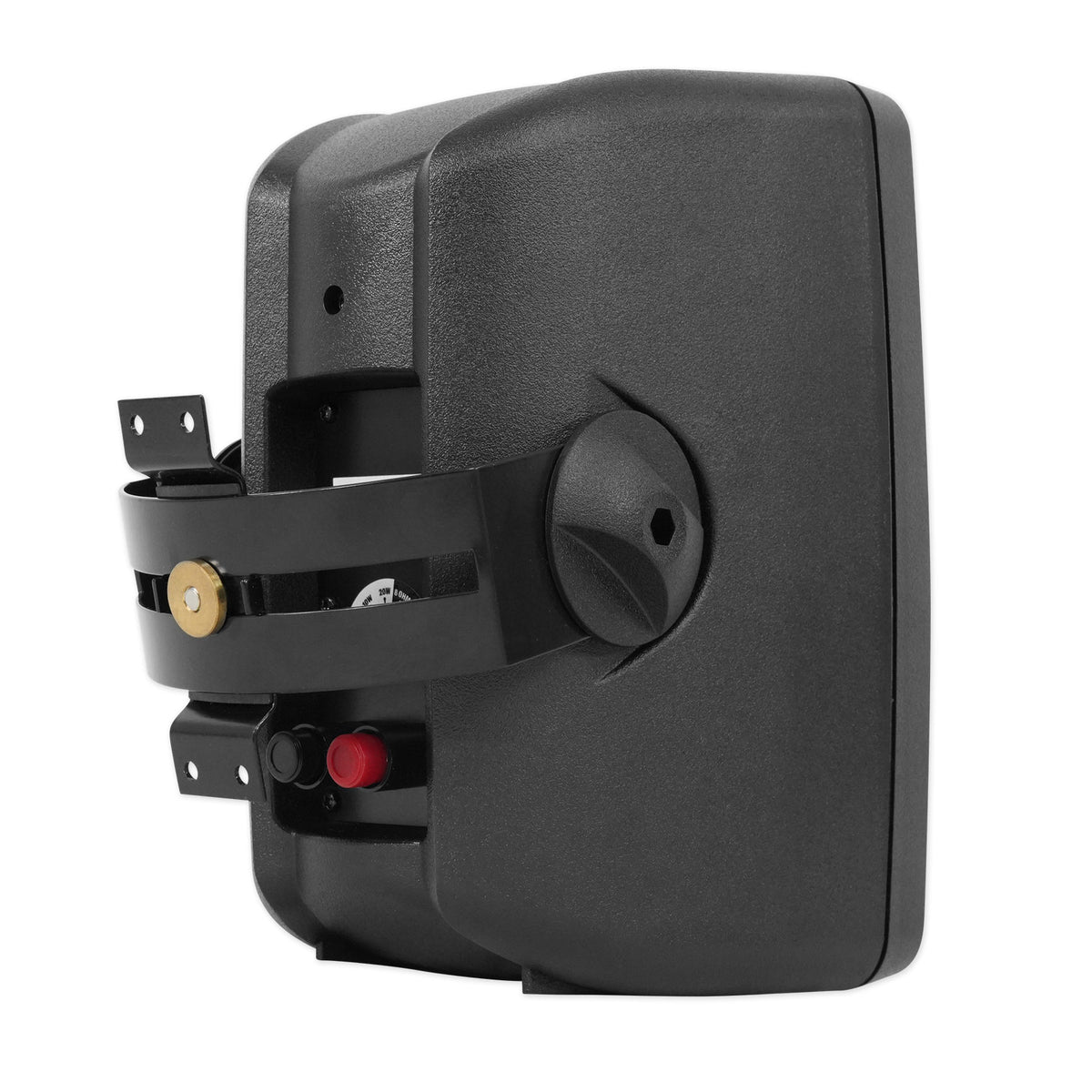

Aim The Sound

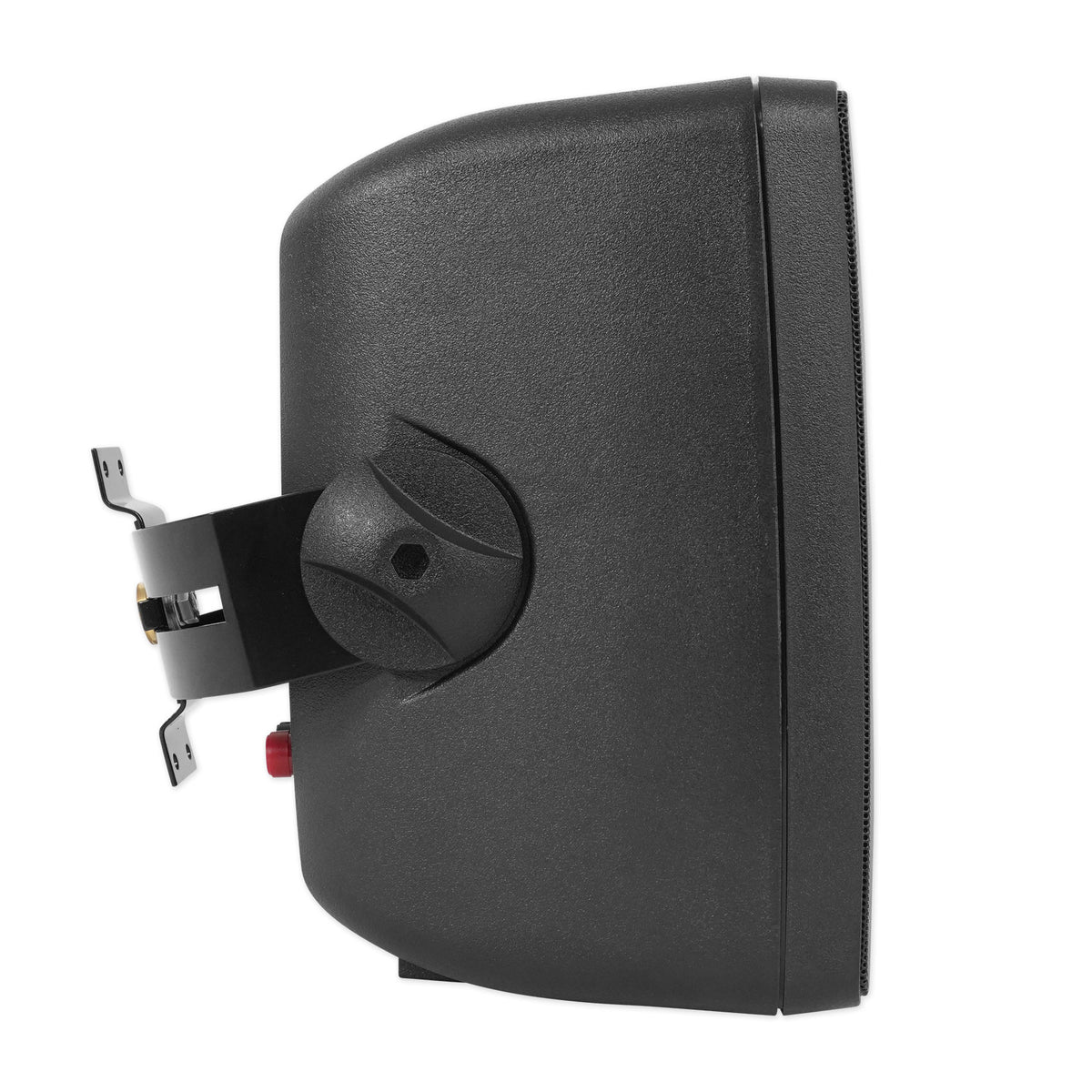

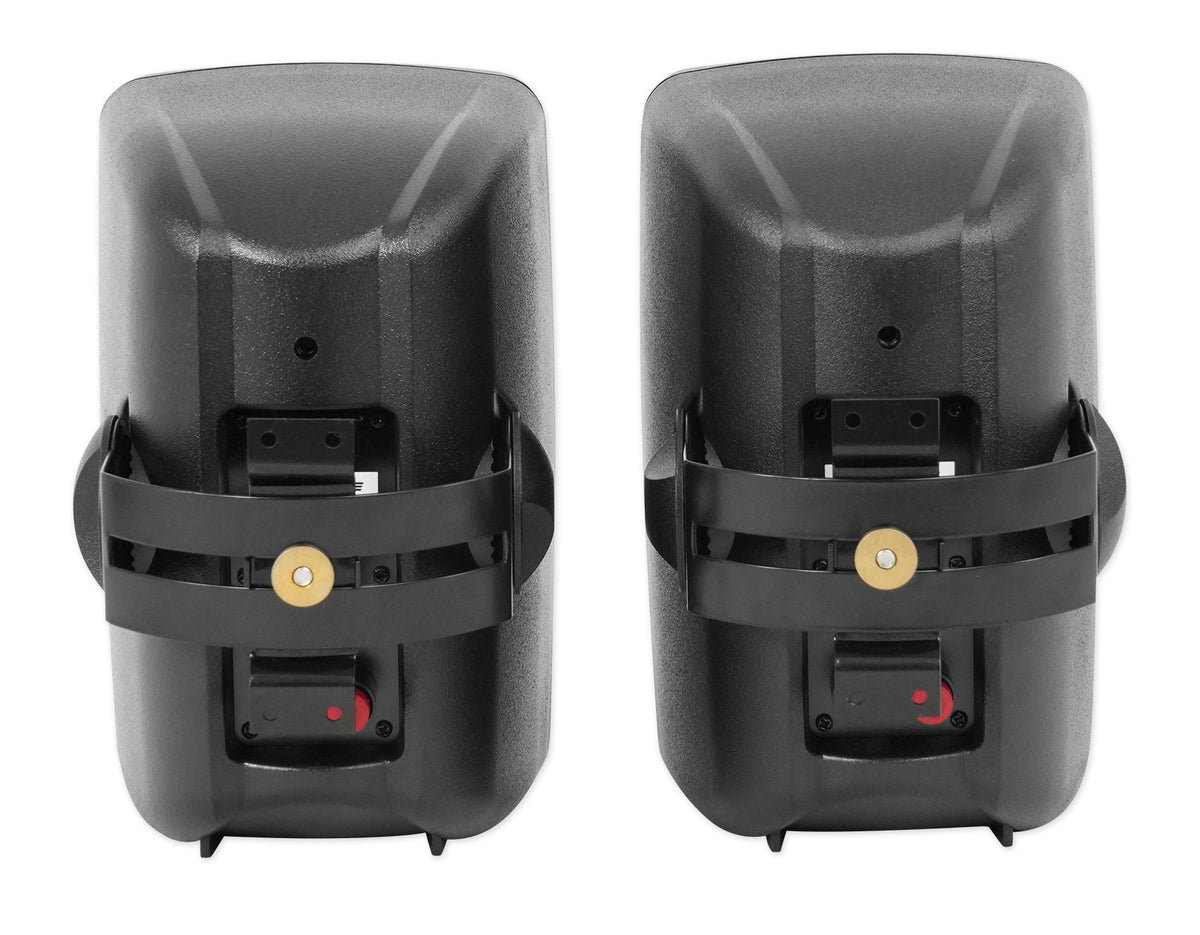

Four-way swivel brackets adjust up, down, left, and right, helping installers direct sound toward seating areas and reduce dead spots.
Set The Load

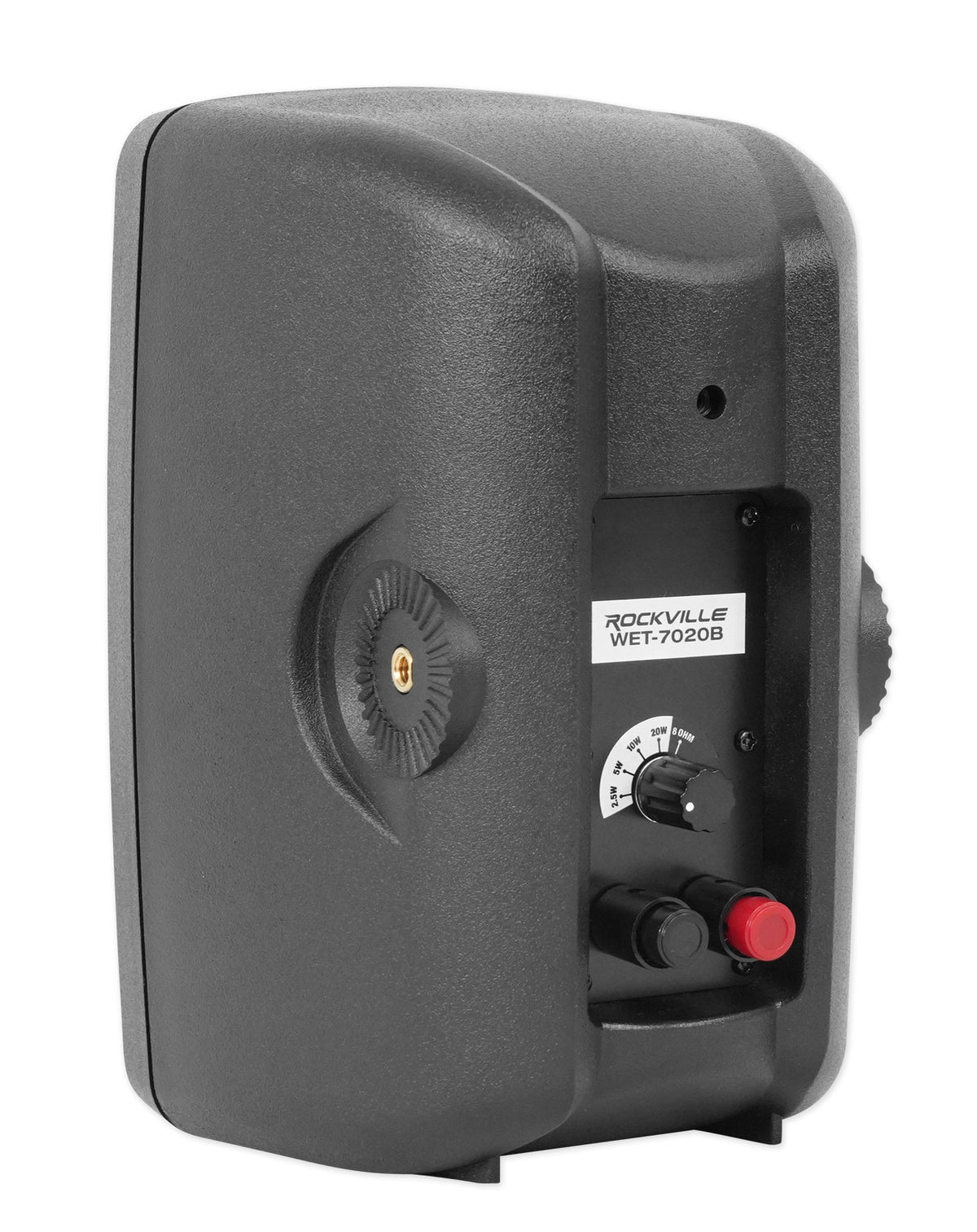

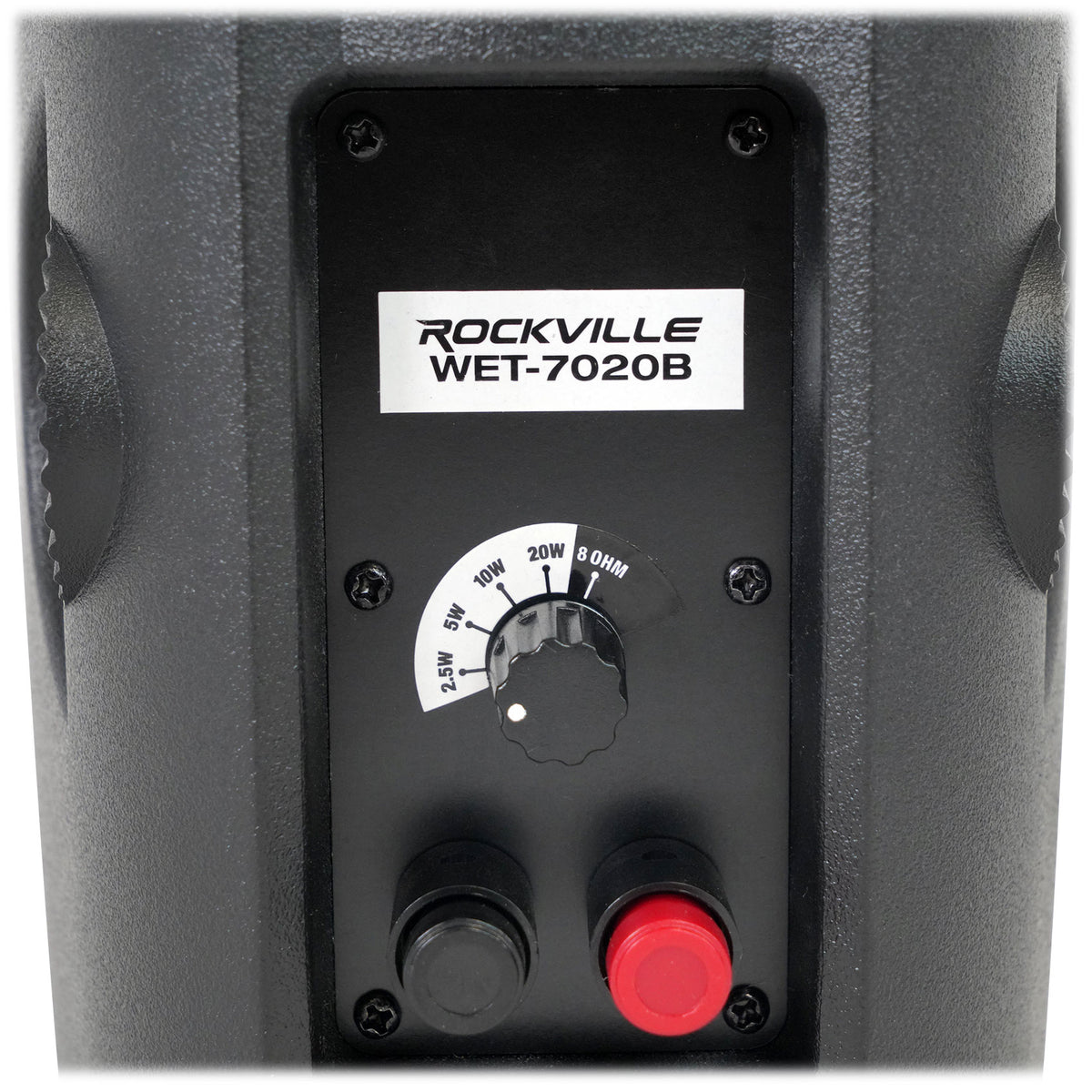

Selectable 2.5W, 5W, 10W, 15W, and 20W taps let eight speakers draw 160W together, below the amplifier's 240W rating from a single output channel.
Technical Specifications
- Product Type 70V mixer amplifier and indoor/outdoor wall speaker bundle
- Amplifier Power 240W, single output channel
- Input Channels 5
- Output Channels 1
- Bluetooth Yes
- USB Playback Supported

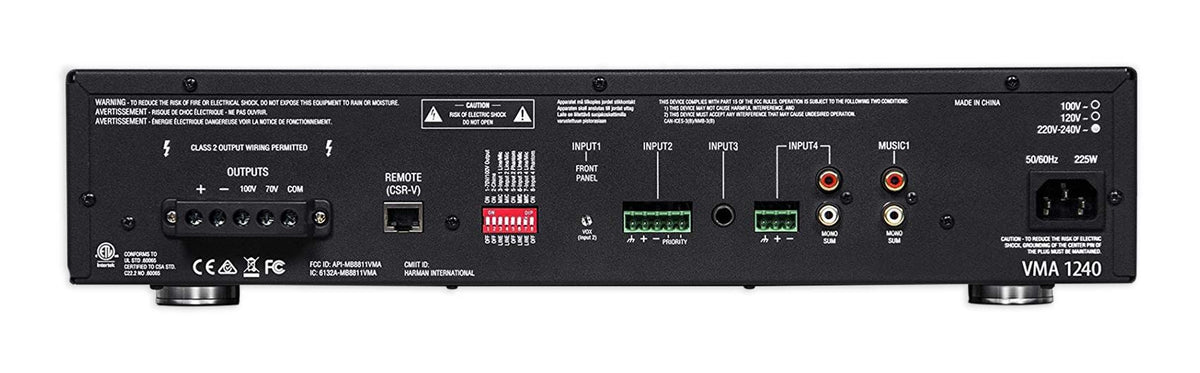

- Inputs Euroblock, RCA, and 1/4-inch
- Outputs Euroblock, 70V, 100V, 4-ohm, and 8-ohm
- 70V Output Frequency Response 80Hz to 15kHz ±3dB
- 4/8 Ohm Output Frequency Response 20Hz to 20kHz ±2dB
- Total Harmonic Distortion Less than 0.5%, 20Hz to 20kHz
- Signal To Noise Ratio More than 76dB
- Input Sensitivity Mic 5.5mVrms, line 1.3Vrms, RCA stereo 130mVrms
- Input Impedance Mic 400 ohms, line 20k ohms, RCA 50k ohms
- Tone Control Bass ±14dB at 50Hz, treble ±14dB at 10kHz
- Phantom Power 27V DC
- Minimum Load Impedance 4 ohms low impedance, 20 ohms at 70V, 40 ohms at 100V
- Operating Temperature 32°F to 95°F
- Storage Temperature -4°F to 185°F
- Humidity 95% RH
- Speaker Size 5.25-inch woofer, 13mm PEI tweeter
- Speaker Frequency Response 60Hz to 20kHz
- Speaker Sensitivity 87dB
- Speaker Power Handling 40W at 8 ohms
- Speaker Impedance 8 ohms

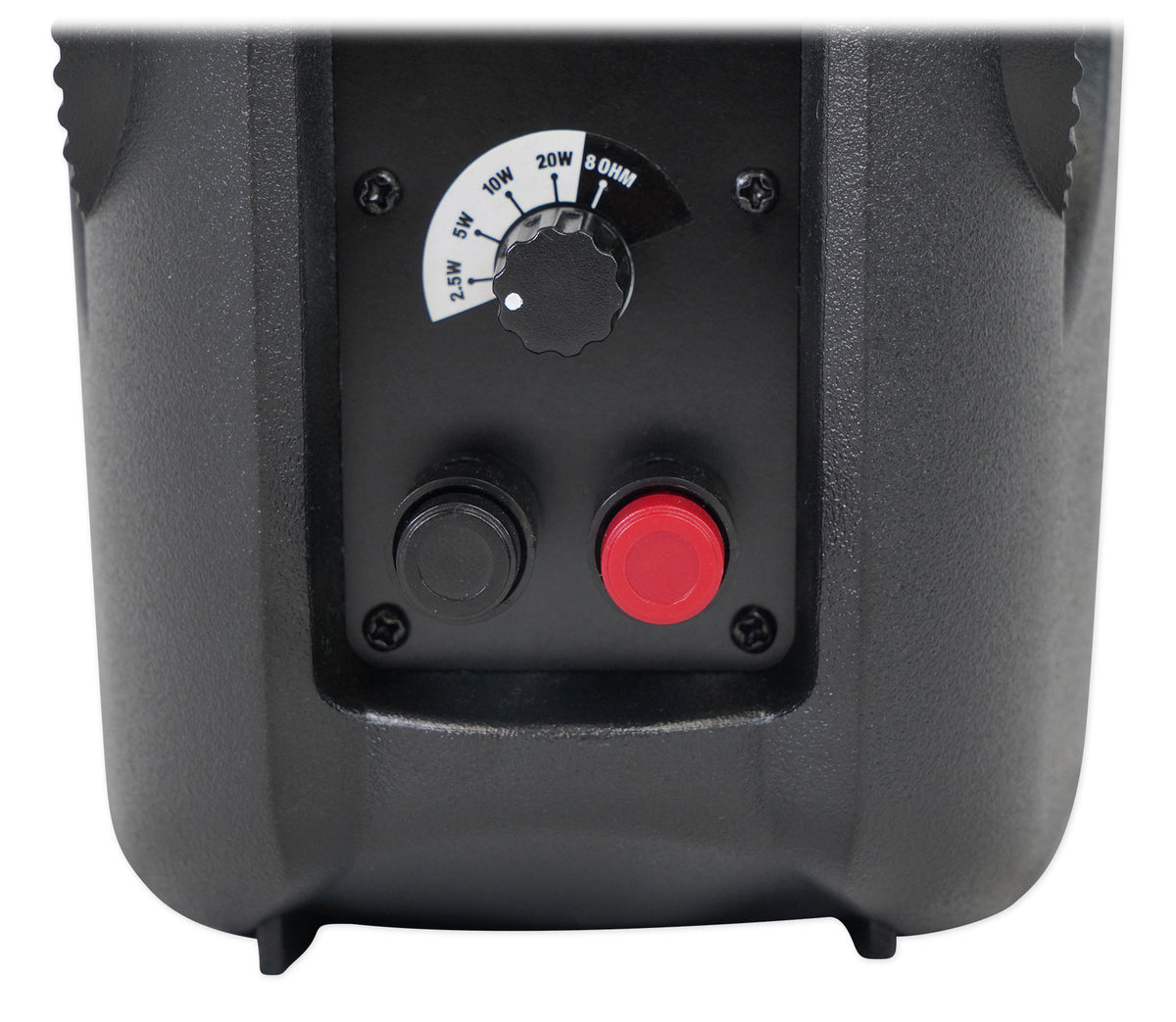

- 70V Tap Options 2.5W, 5W, 10W, 15W, 20W
- Speaker Protection IPX55
- Speaker Cabinet Waterproof ABS
- Speaker Grille Aluminum, rustproof
- Mounting Bracket Four-way swivel, powder-coated steel
- Speaker Color Black
- Weight 25.5 lb amplifier; 4.16 lb per speaker
- Dimensions 17 in x 16.3 in x 3.5 in amplifier; 9.6 in x 7.1 in x 7.5 in per speaker
