VMA1240 + (48) CCL5T White 70V Ceiling Speakers
JBL
VMA1240 + (48) CCL5T White 70V Ceiling Speakers
VMA1240 + (48) CCL5T White 70V Ceiling Speakers

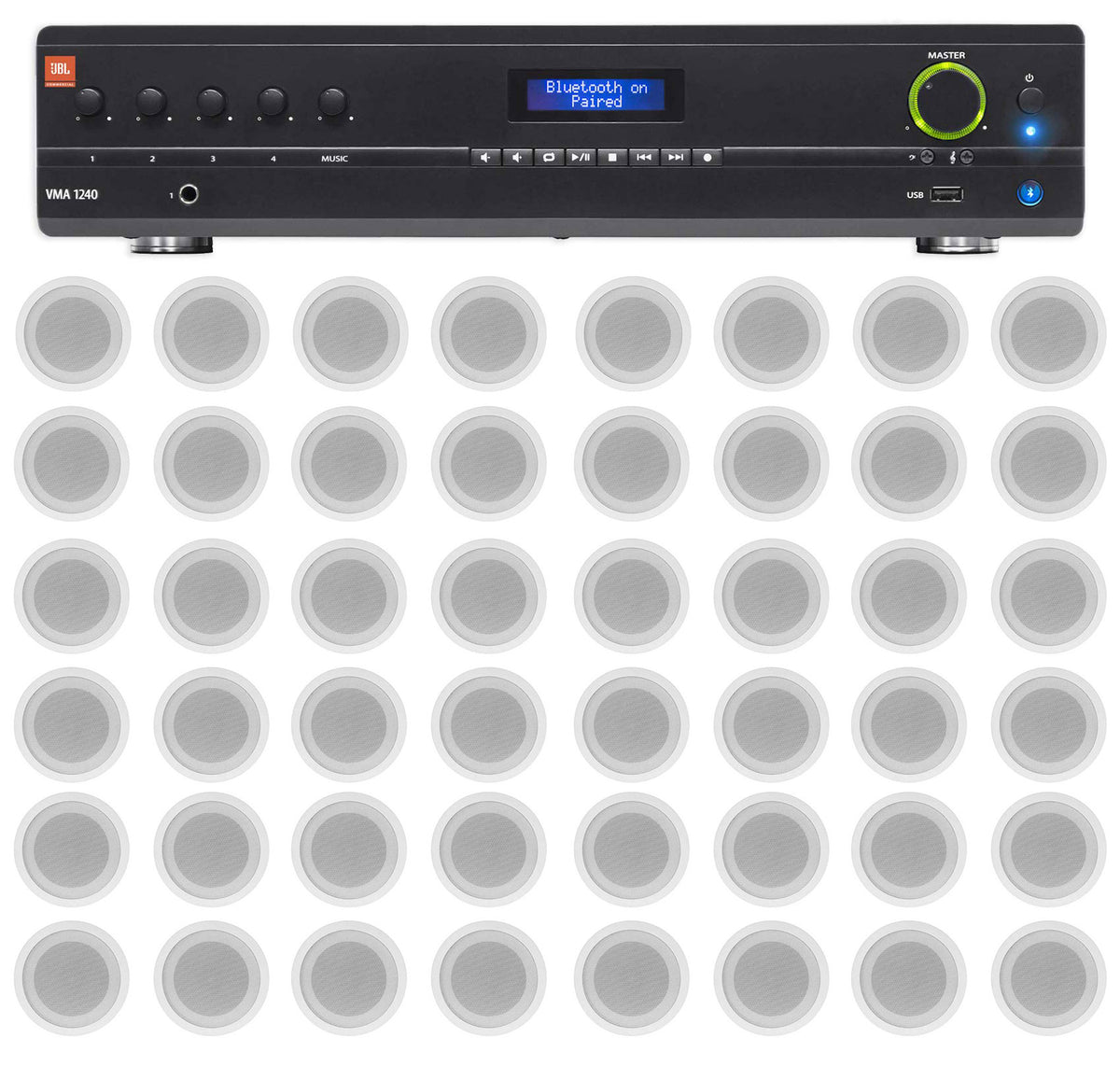

Commercial 70V Audio System, 240W Mixer/Amplifier, 48 5" Ceiling Speakers
Features
- 240W 70V mixer/amplifier with five input channels
- Bluetooth and USB playback for flexible source connections
- 48 5" ceiling speakers for distributed paging and music
- 1.25W, 2.5W, and 5W transformer taps per speaker
- Rack mount kit included for organized equipment installation
Couldn't load pickup availability
What's Included in the box

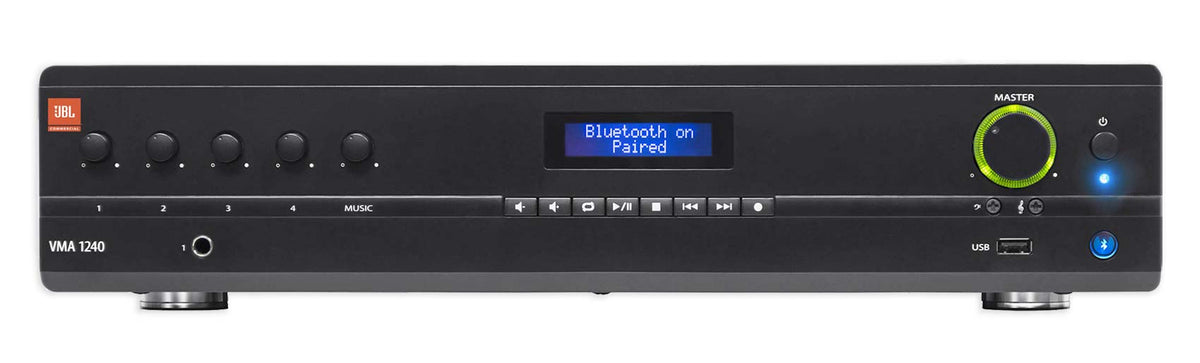

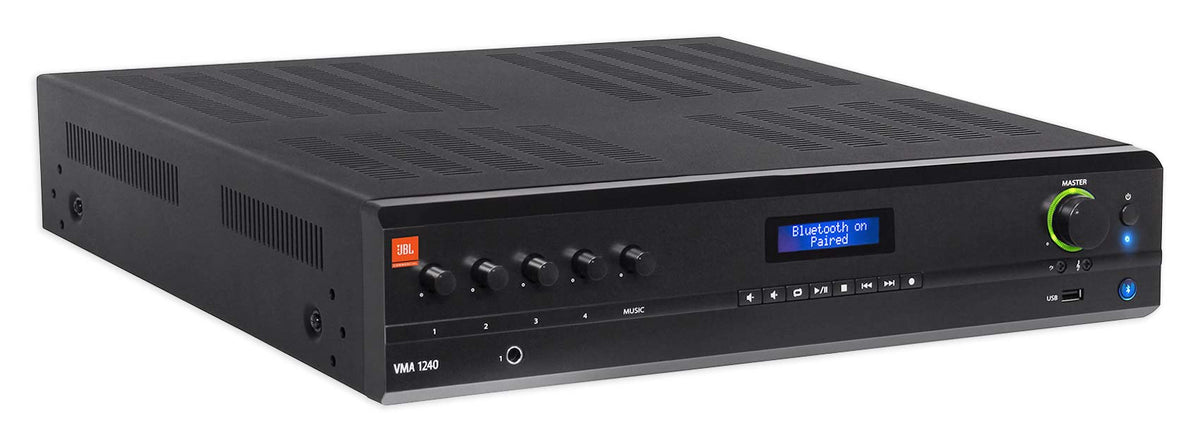

- (1) VMA1240 240W 70V Bluetooth mixer/amplifier
- Rack mount kit

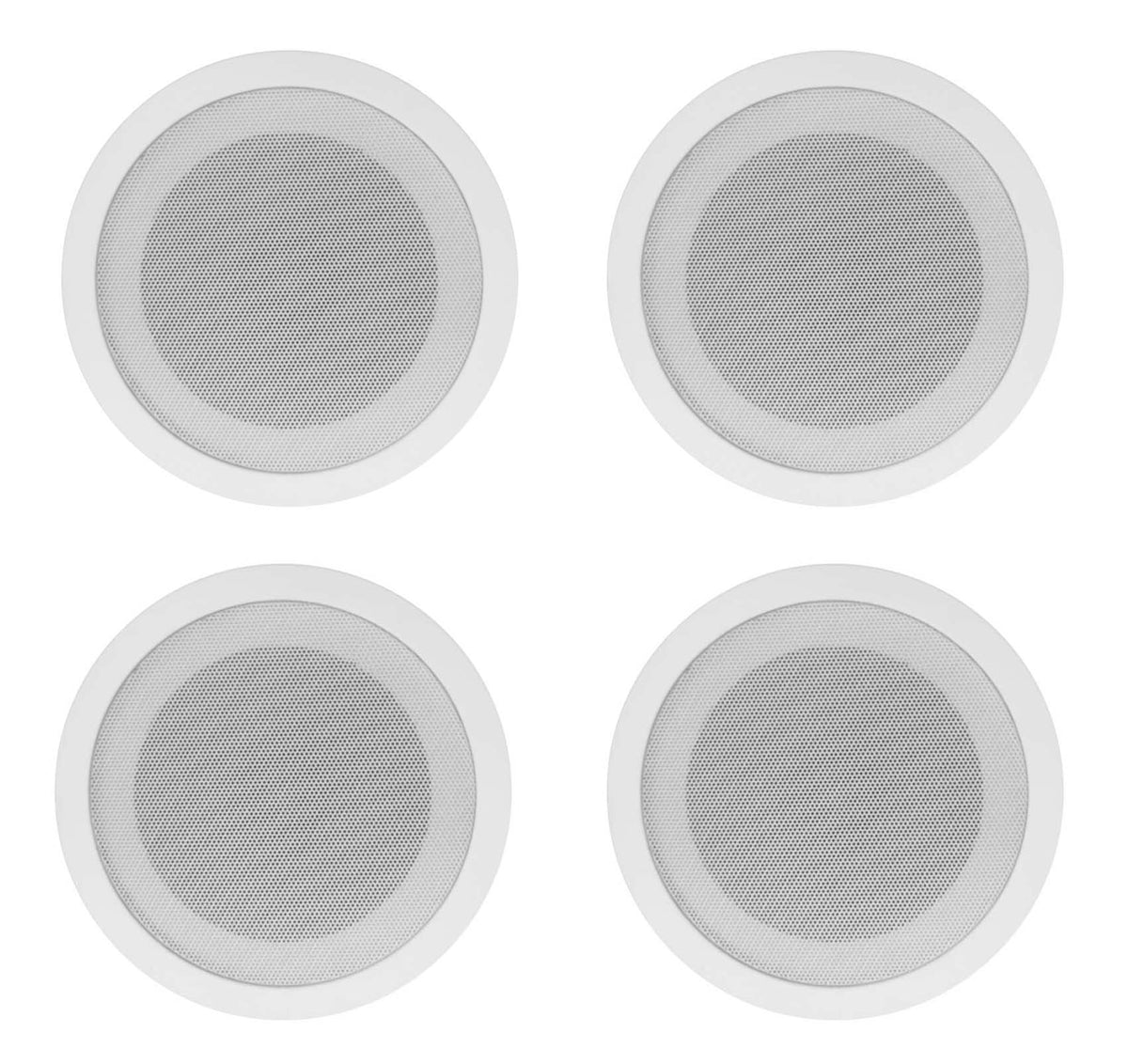

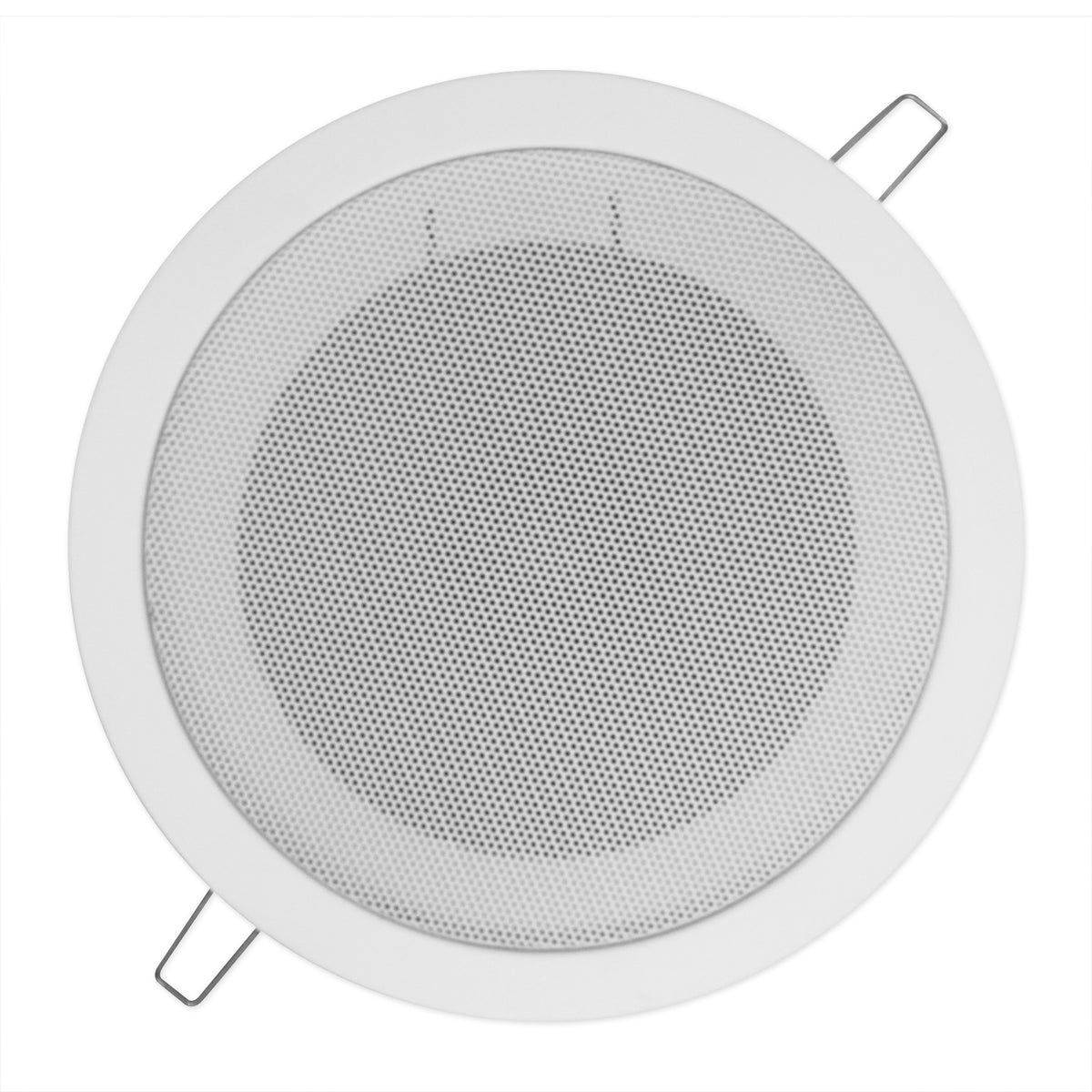

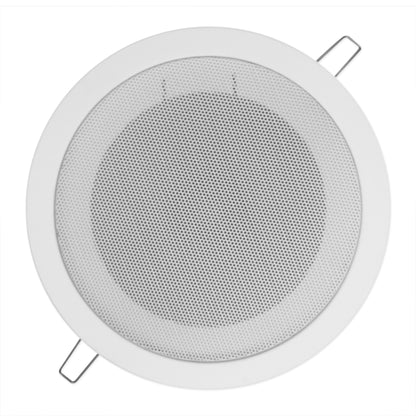

- (48) CCL5T White 5" 70V commercial ceiling speakers
SKU: SKU: VMA1240+(12) CCL5T WHITE
View full details











Product Description
Features
Broad Commercial Coverage
Forty-eight flush-mount ceiling speakers spread paging and background music across restaurants, offices, schools, retail spaces, and other commercial interiors from one system.
Adjustable Speaker Levels

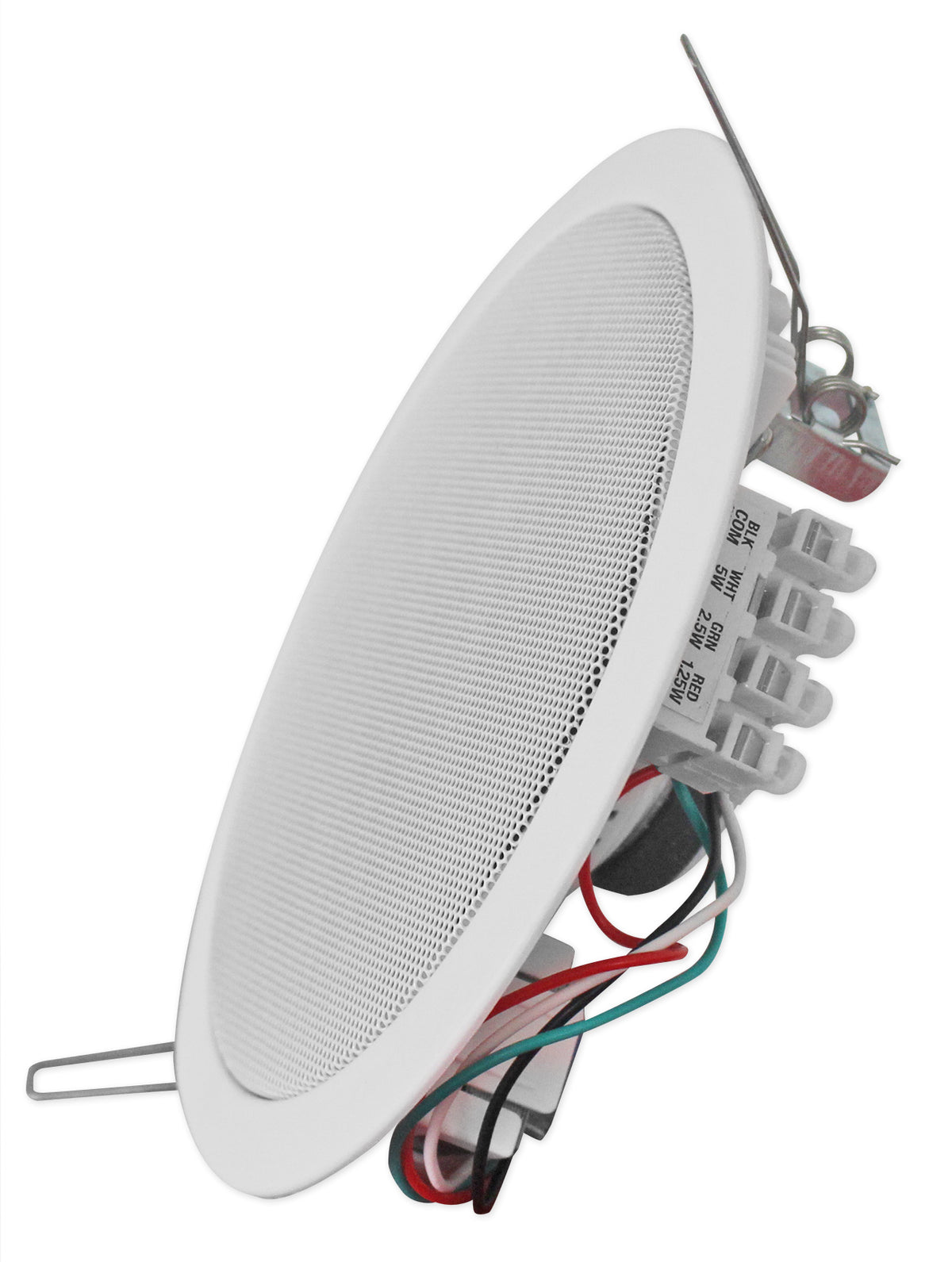

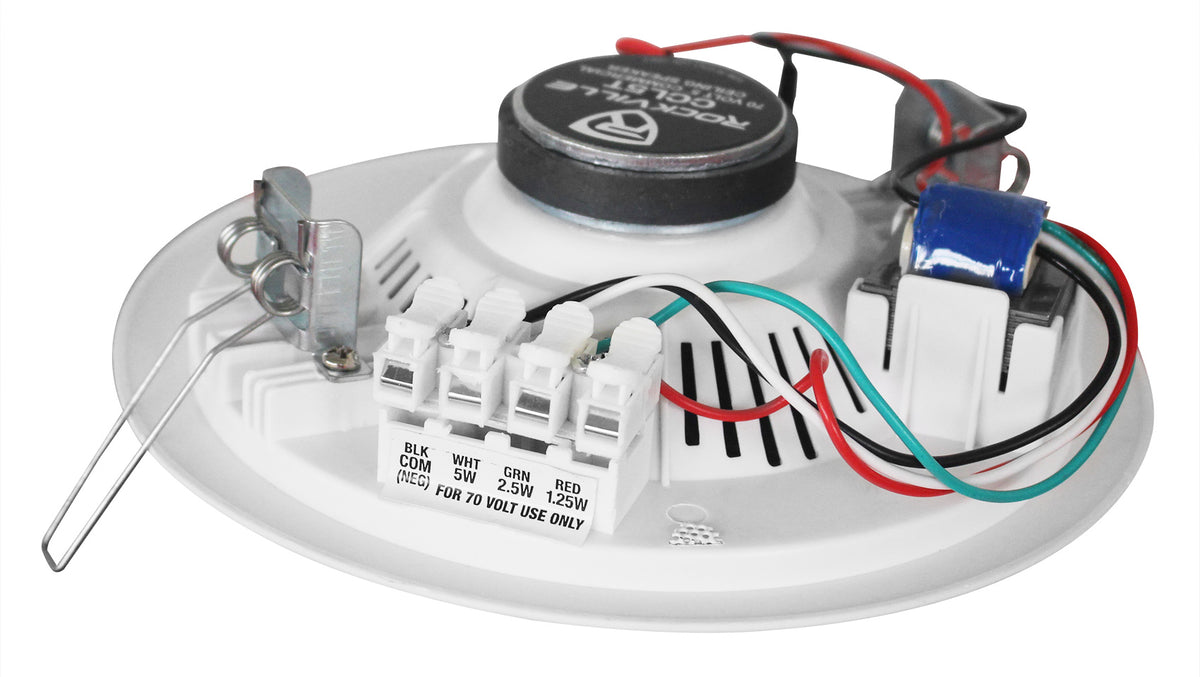

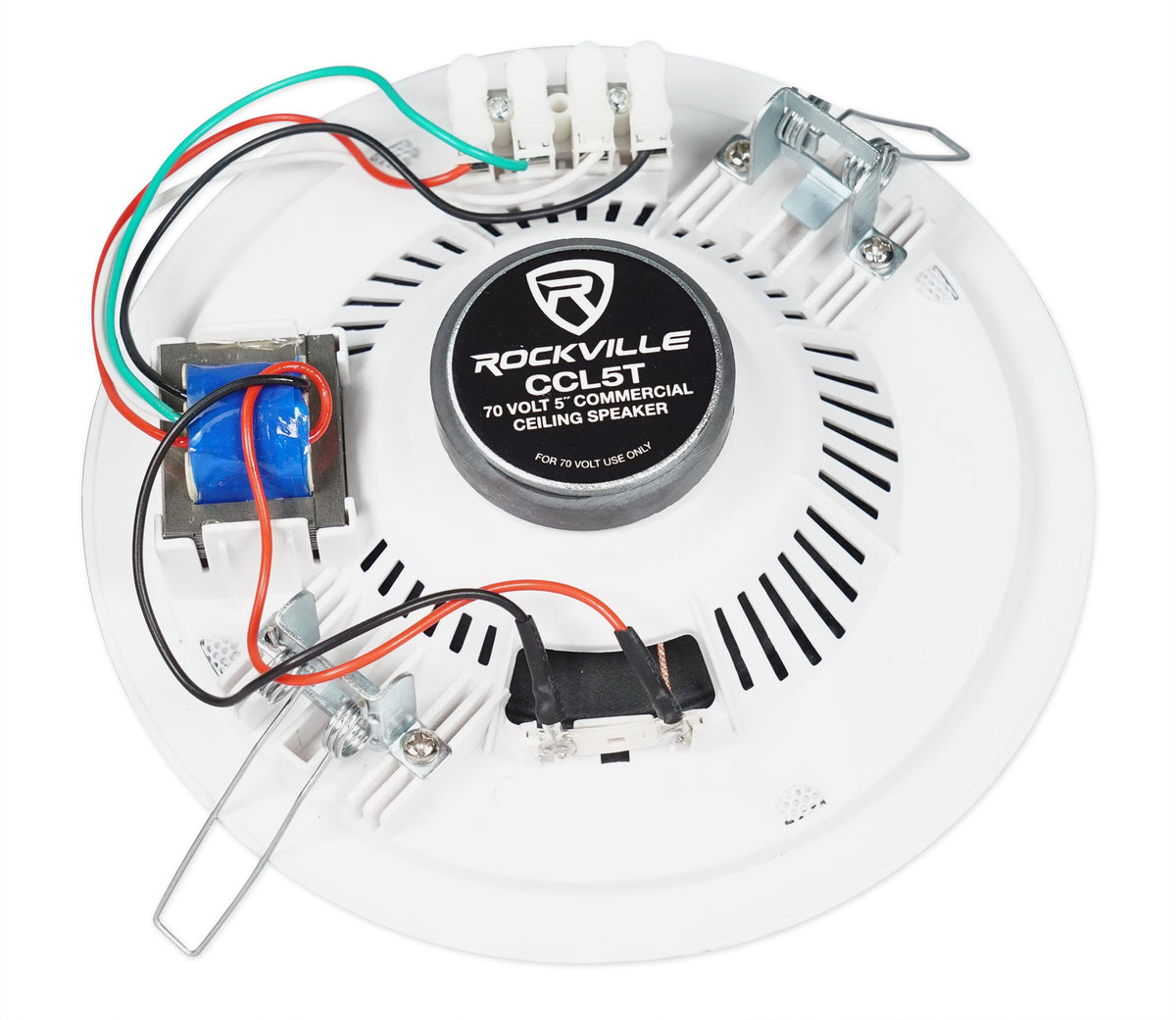

Three transformer taps, 1.25W, 2.5W, and 5W, let installers set each speaker's output for dining areas, hallways, bathrooms, or offices.
Flexible Source Connections

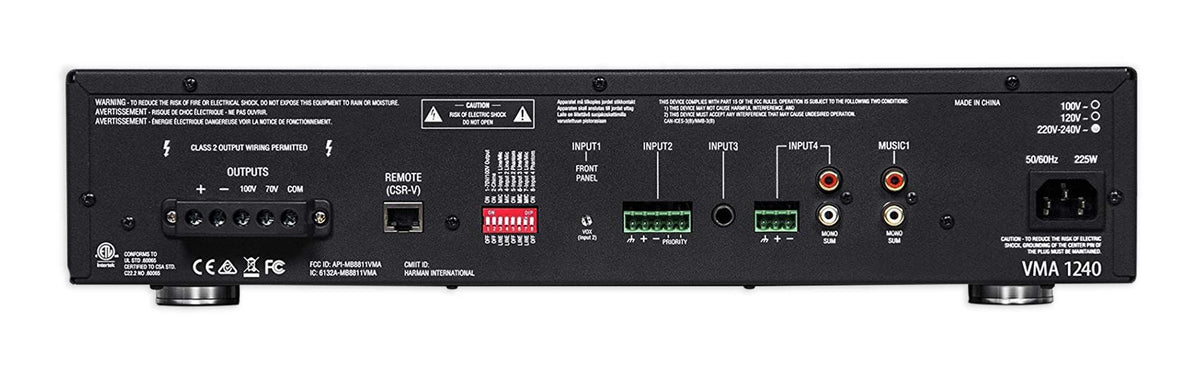

Five input channels with Bluetooth, USB, Euroblock, RCA, and 1/4" connections accommodate music playback, microphones, and common installed-audio sources in one system.
Practical System Control
Per-channel bass and treble controls, configurable routing, voice-activated ducking, and front-panel controls help tailor announcements and music for each installation.
Power Headroom
Keeping the combined 70V tap load near 200W or less leaves the recommended reserve, while the 240W amplifier handles a properly planned speaker layout.
Technical Specifications
- Product Type 70V commercial audio system: 240W mixer/amplifier with 48 5 in ceiling speakers
- Amplifier Power 240W, 1 output channel
- Input Channels 5
- 70V Output Frequency Response 80 Hz to 15 kHz ±3 dB
- 4/8 Ohm Output Frequency Response 20 Hz to 20 kHz ±2 dB
- Amplifier THD Under 0.5%, 20 Hz to 20 kHz
- Signal to Noise Ratio >76 dB
- Phantom Power 27 VDC
- 70V Minimum Load Impedance 20 Ohms
- Speaker Power Taps 1.25W, 2.5W, or 5W
- Speaker Frequency Response 100 Hz to 17 kHz
- Speaker Sensitivity 86 dB @ 1W / 1m
- Speaker Impedance 2K, 4K, or 8K Ohms
- Speaker Mounting Depth 1.77 in
- Speaker Cut-Out Diameter 5.98 in
- Speaker Color White, paintable
- Dimensions 17 in W x 16.3 in D x 3.5 in H
- Weight 25.5 lb
