VMA1240 + (12) WET-7020B 70V Commercial Speaker System
JBL
VMA1240 + (12) WET-7020B 70V Commercial Speaker System
VMA1240 + (12) WET-7020B 70V Commercial Speaker System
240W 70V Mixer Amplifier, 12 IPX55 Wall Speakers, 5 Inputs
Features
- 240W mixer amplifier with 70V output for distributed audio systems
- Five inputs with Bluetooth and USB media support
- Twelve IPX55 speakers with 2.5W to 20W taps, 190W total maximum
- Four-way swivel brackets aim each speaker up, down, left, or right
- Waterproof ABS cabinets, aluminum grilles, and rust-resistant hardware
Couldn't load pickup availability

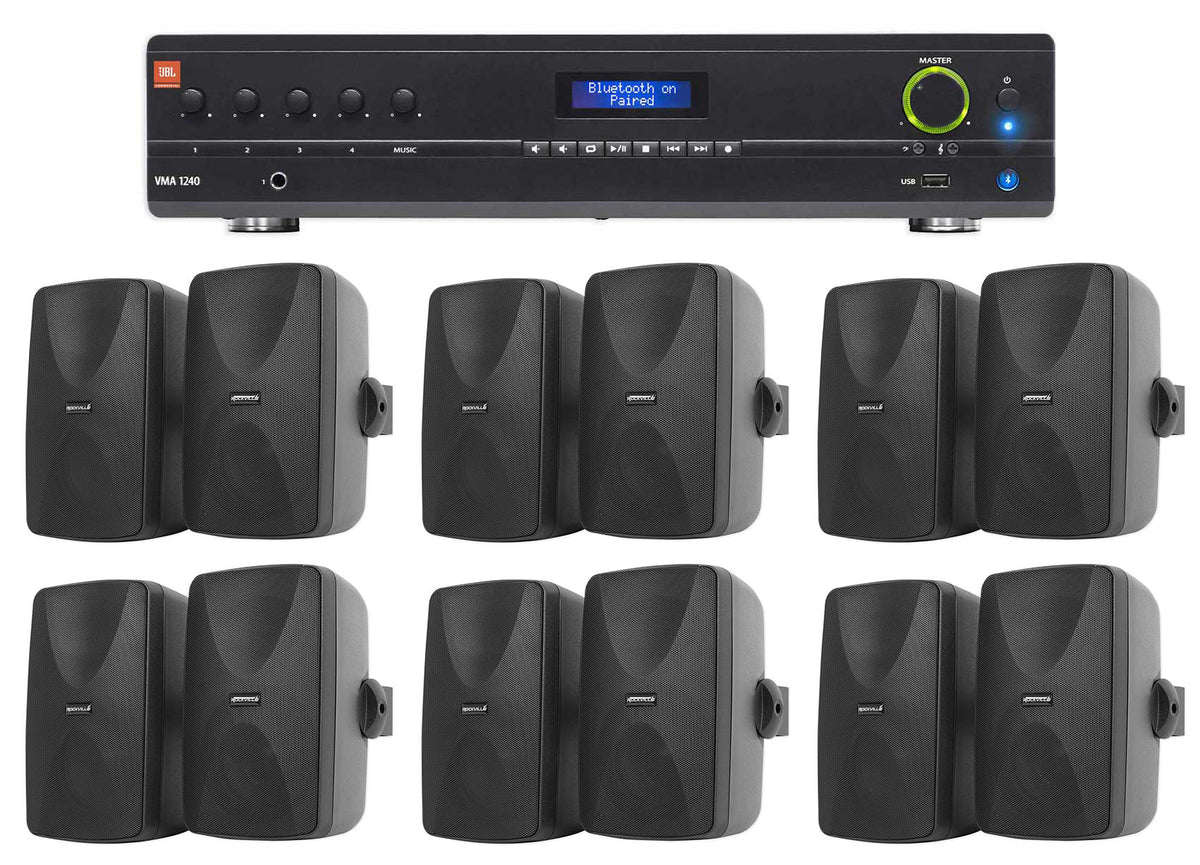

What's Included in the box

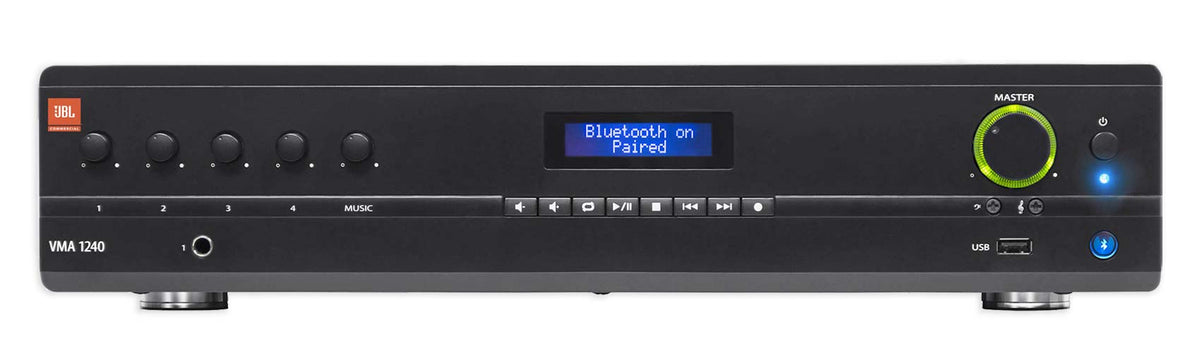

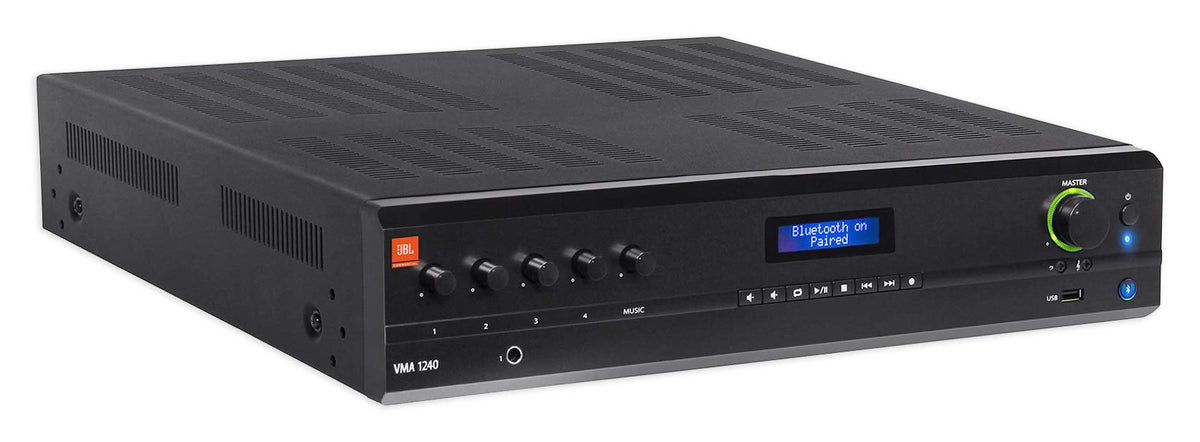

- 1 VMA1240 240W 70V Bluetooth mixer amplifier

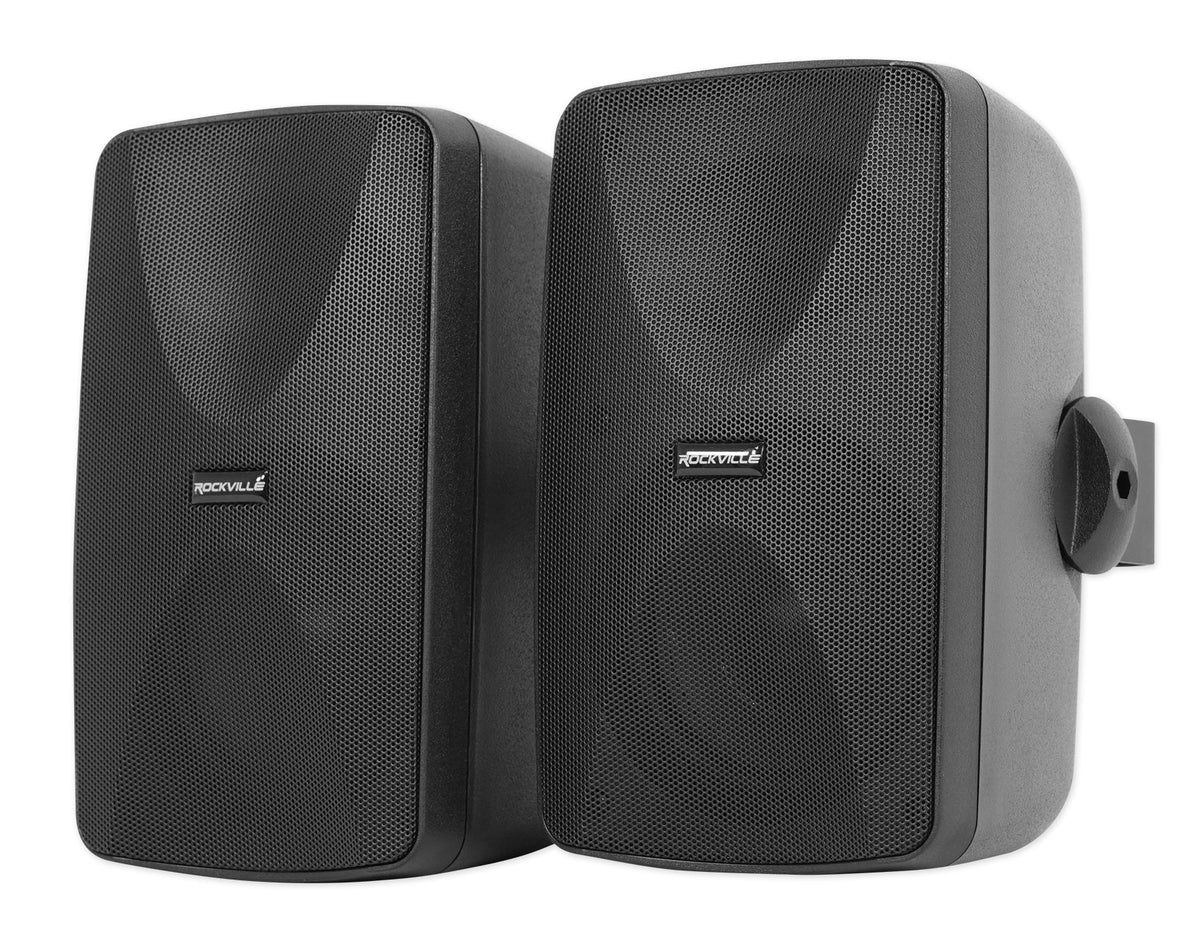

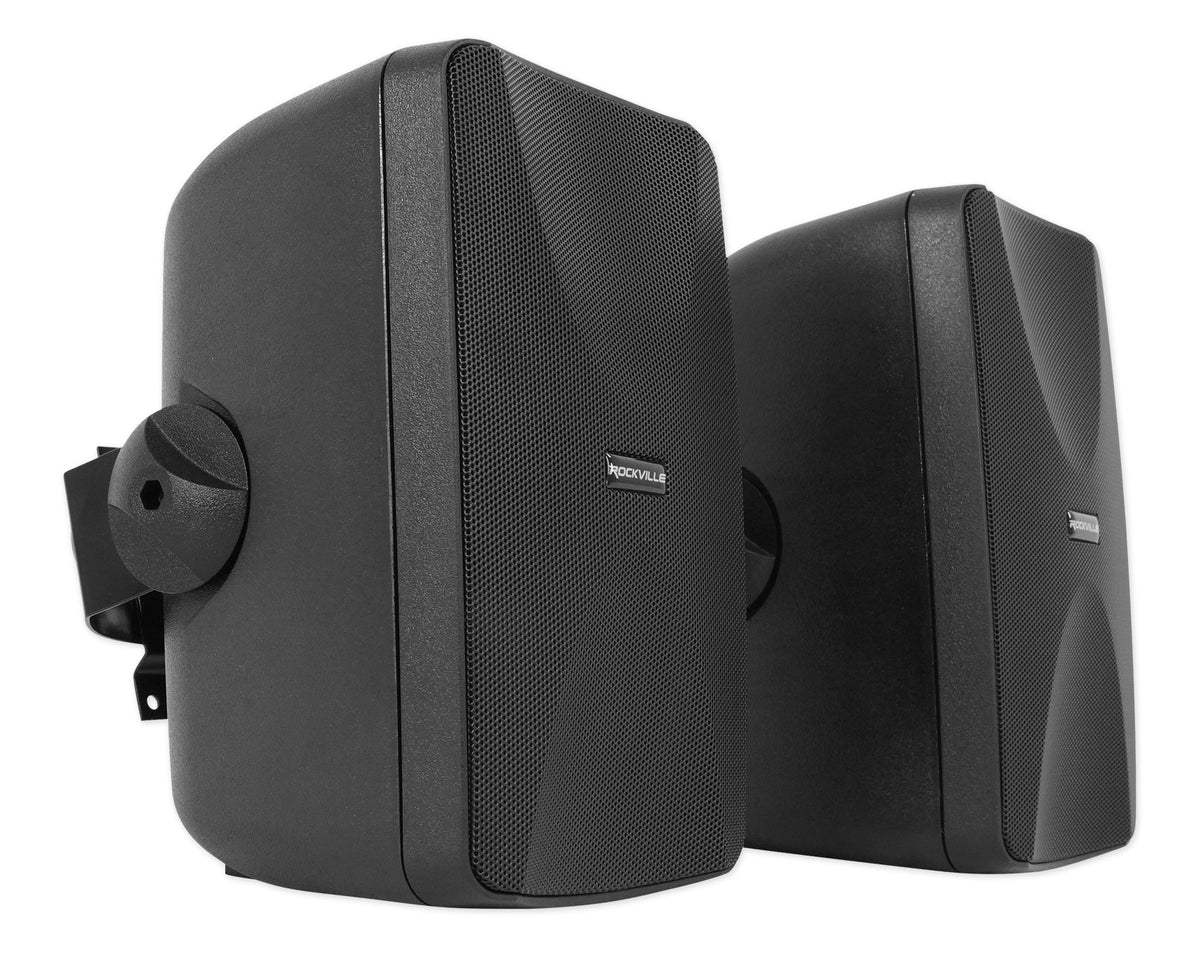

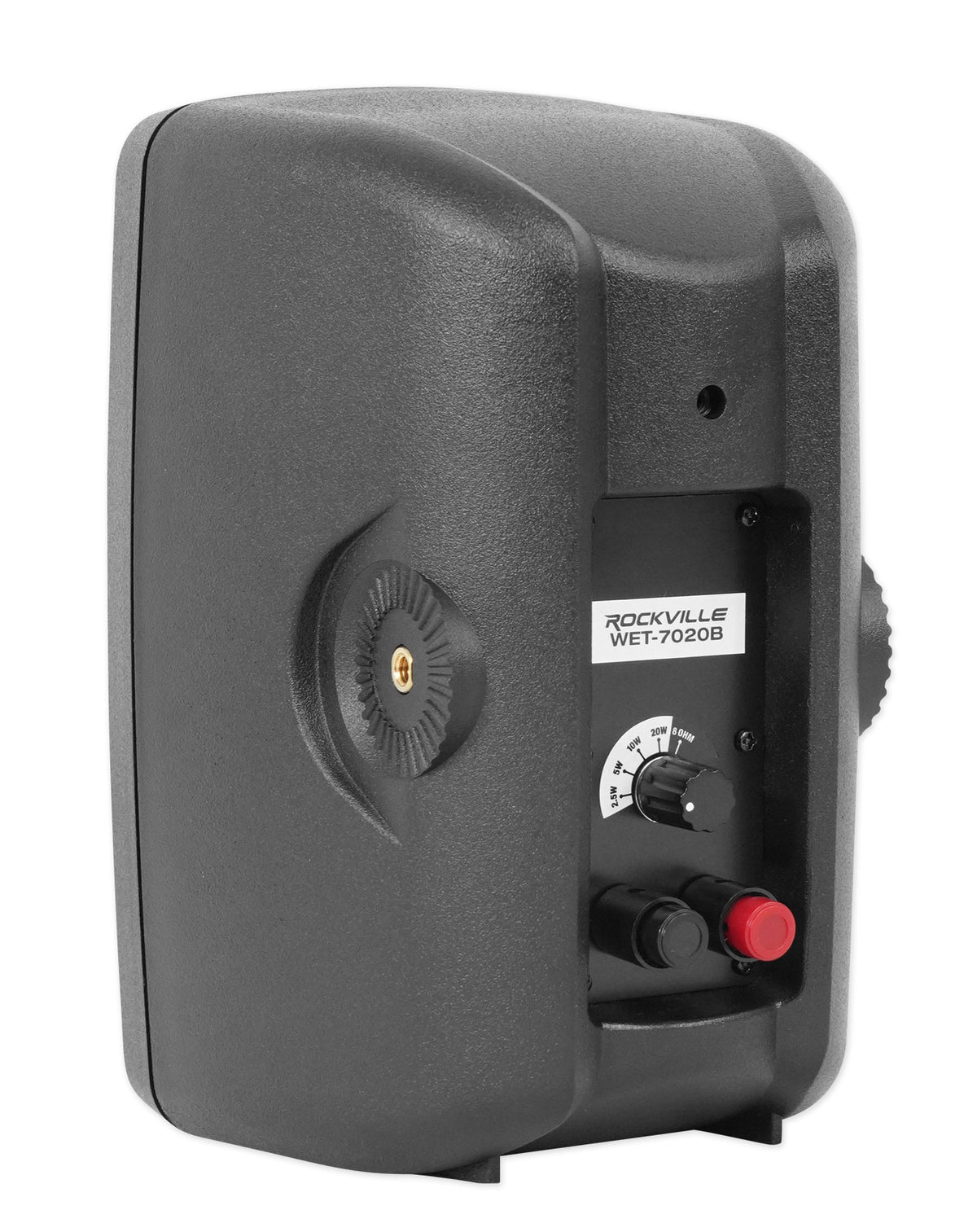

- Six pairs, 12 total, WET-7020B 5.25-inch 70V wall speakers in black
- Rack mount kit
SKU: SKU: VMA1240+(12) WET-5B
View full details














Product Description
Features
Distributed Audio Control
Five inputs, Bluetooth, USB playback, and configurable routing let one mixer amplifier handle music and announcements across multiple listening zones.
Flexible Speaker Taps

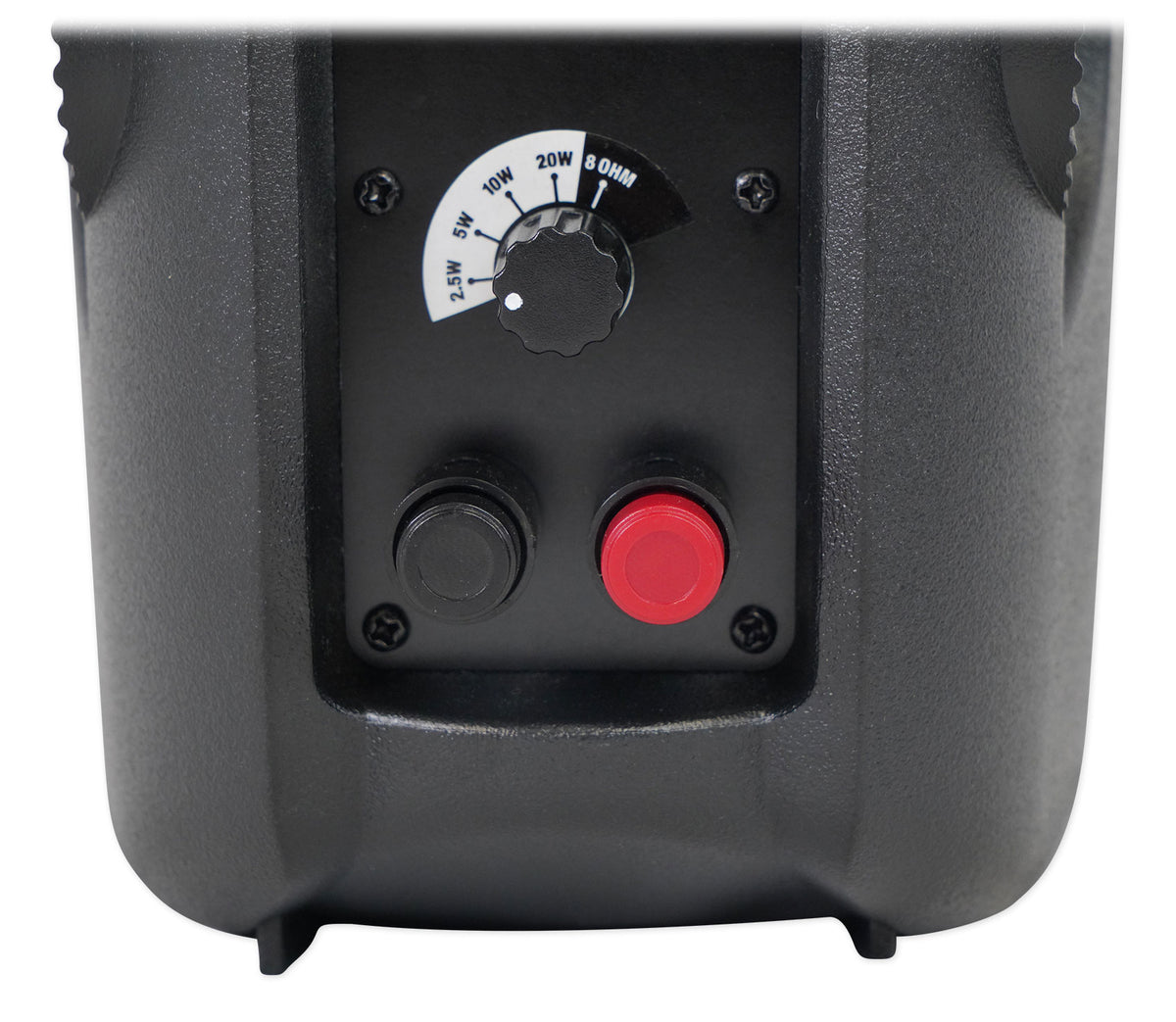

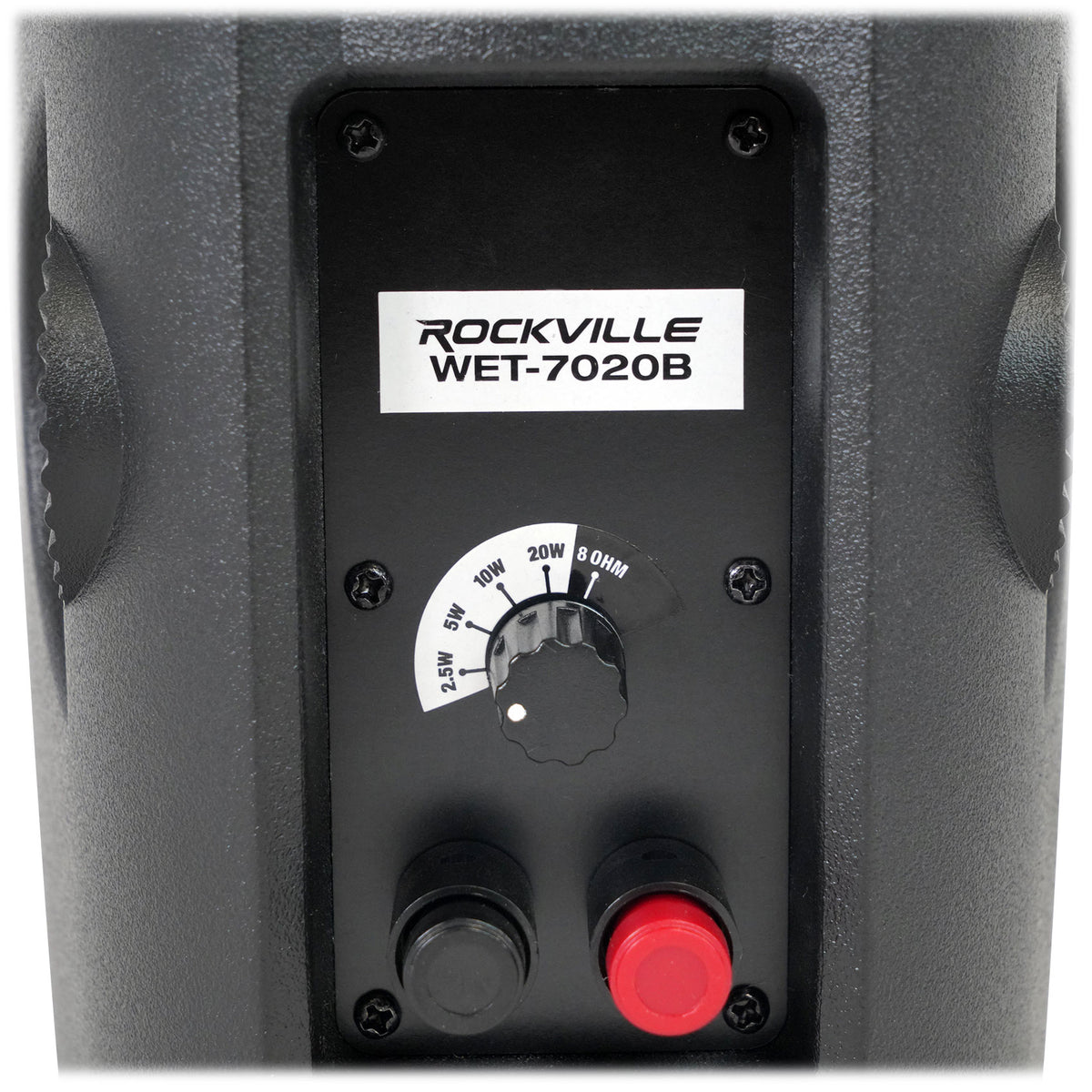

Each cabinet offers 2.5W, 5W, 10W, 15W, and 20W settings, helping match volume to room size while keeping the load controlled.
Weather-Ready Construction
IPX55 sealed ABS cabinets, aluminum grilles, waterproof terminals, and tested steel brackets support dependable speaker placement indoors or outdoors in varied spaces.
Aim Each Cabinet

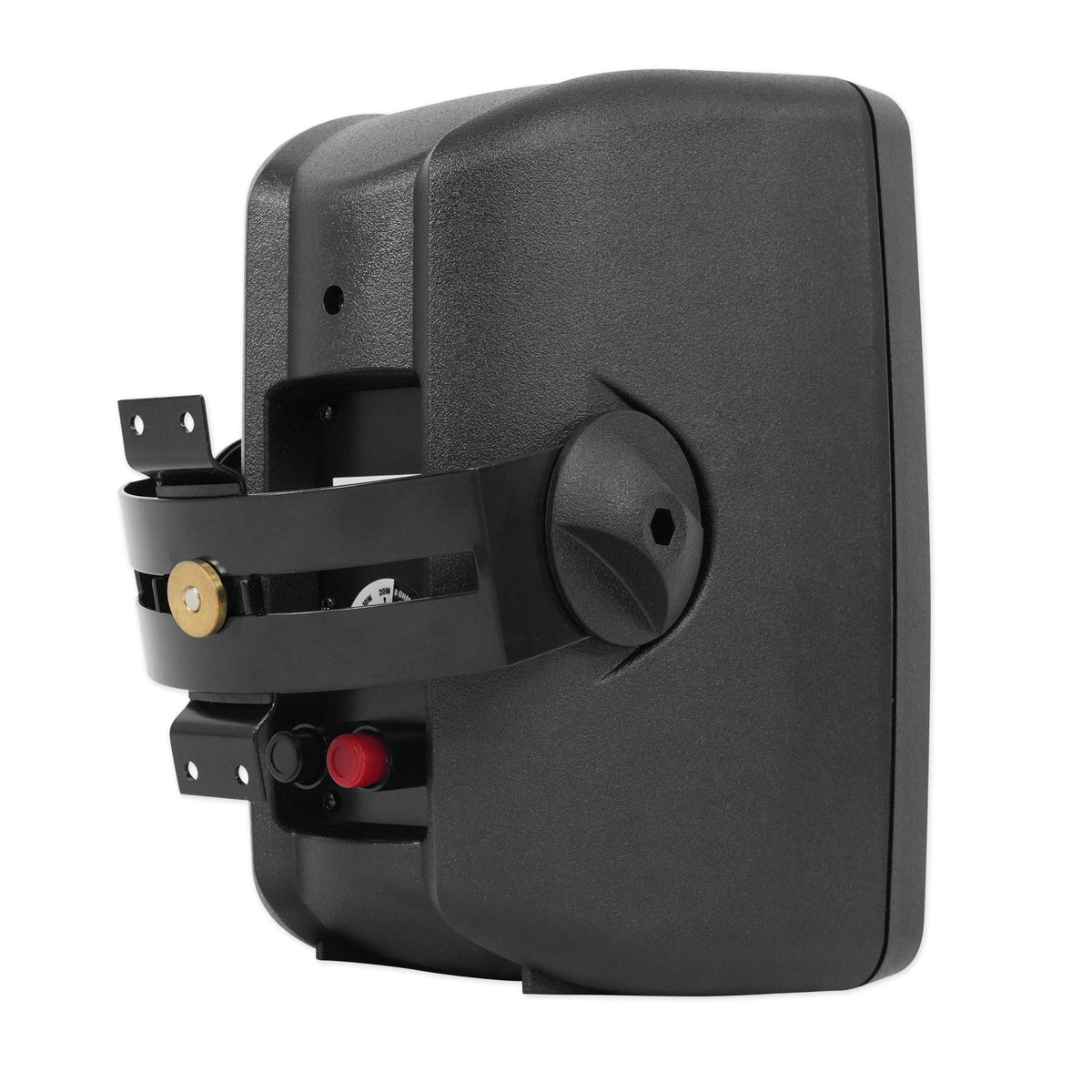

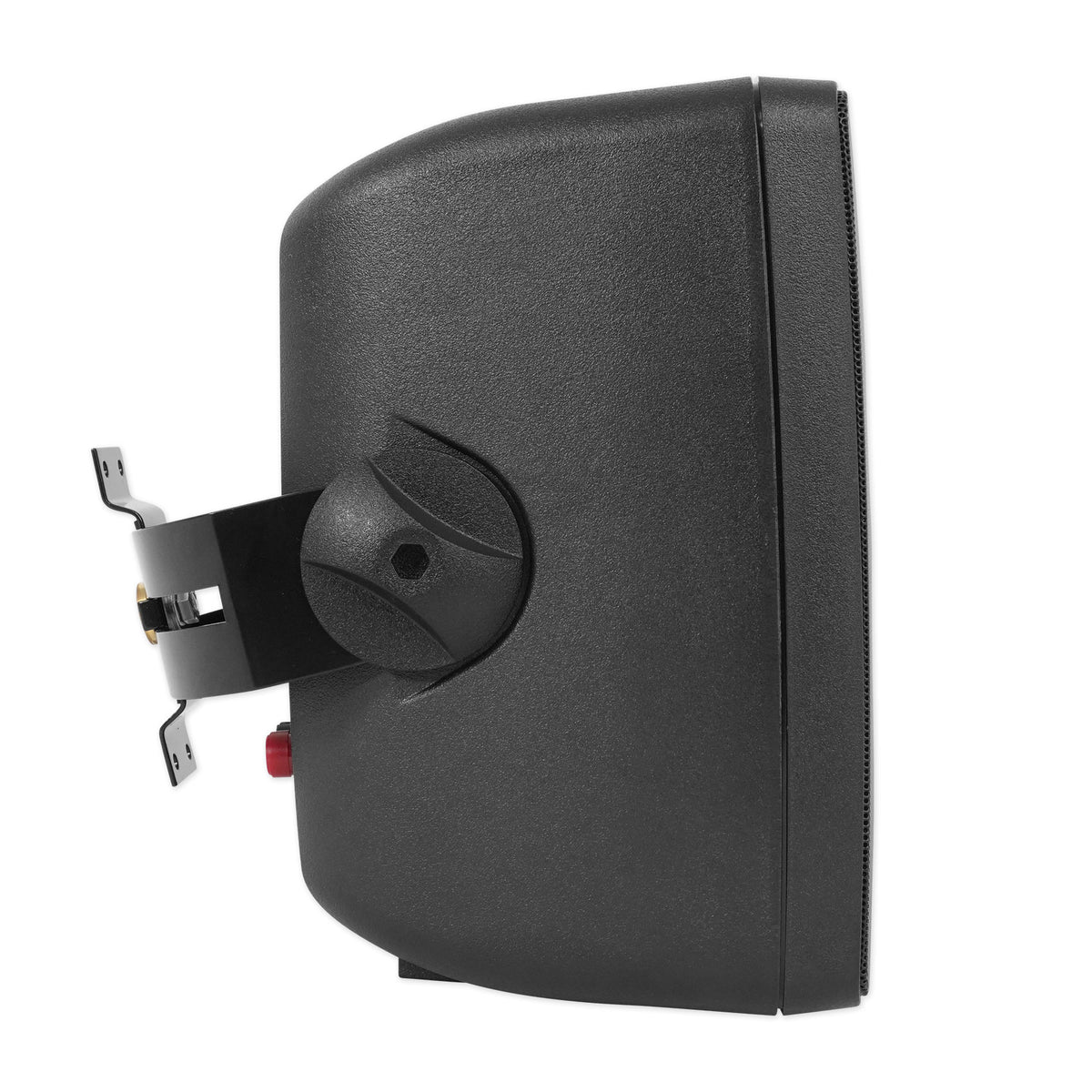

Four-way swivel brackets adjust up, down, left, and right, making it easier to direct sound toward dining areas, patios, or entryways.
Power With Headroom
The 240W amplifier supports a 70V system, while the recommended 190W combined tap limit leaves room for practical level adjustments.
Technical Specifications
- Product Type 70V Commercial Speaker System
- Amplifier Power 240 W
- Output Power 240 W into 4 or 8 ohms
- Amplifier Inputs 5
- Amplifier Output Channels 1

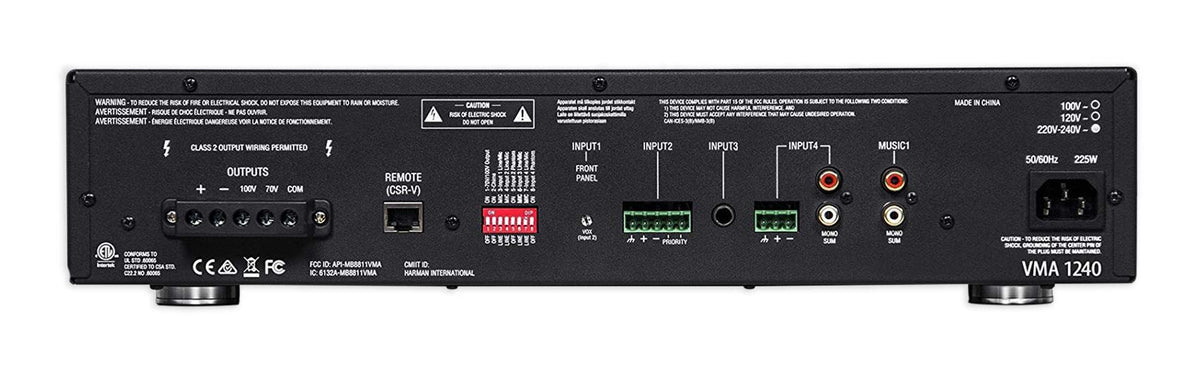

- Amplifier Inputs and Outputs Bluetooth, USB media, Euroblock, RCA, and 1/4 in inputs; Euroblock outputs
- 70V Speaker Tap Options 2.5 W, 5 W, 10 W, 15 W, 20 W
- Maximum Recommended Combined Tap Load 190 W
- Speaker Quantity 12
- Speaker Size 5.25 in woofer
- Speaker Frequency Response 60 Hz to 20 kHz
- Speaker Sensitivity 87 dB
- Speaker RMS Power 40 W at 8 ohms
- Speaker Nominal Impedance 8 ohms
- Speaker Protection Rating IPX55
- Speaker Cabinet Material Waterproof ABS

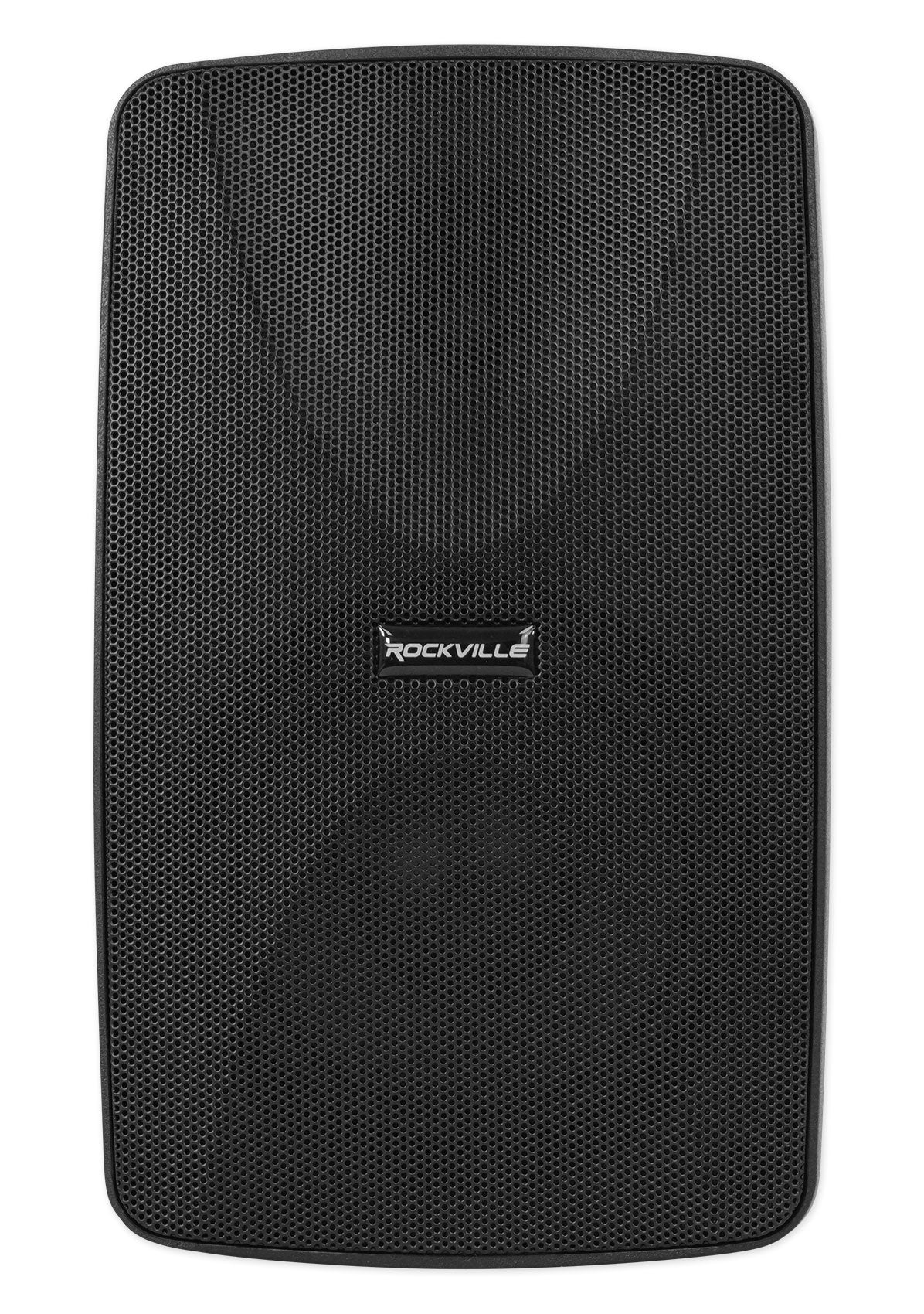

- Speaker Grille Aluminum

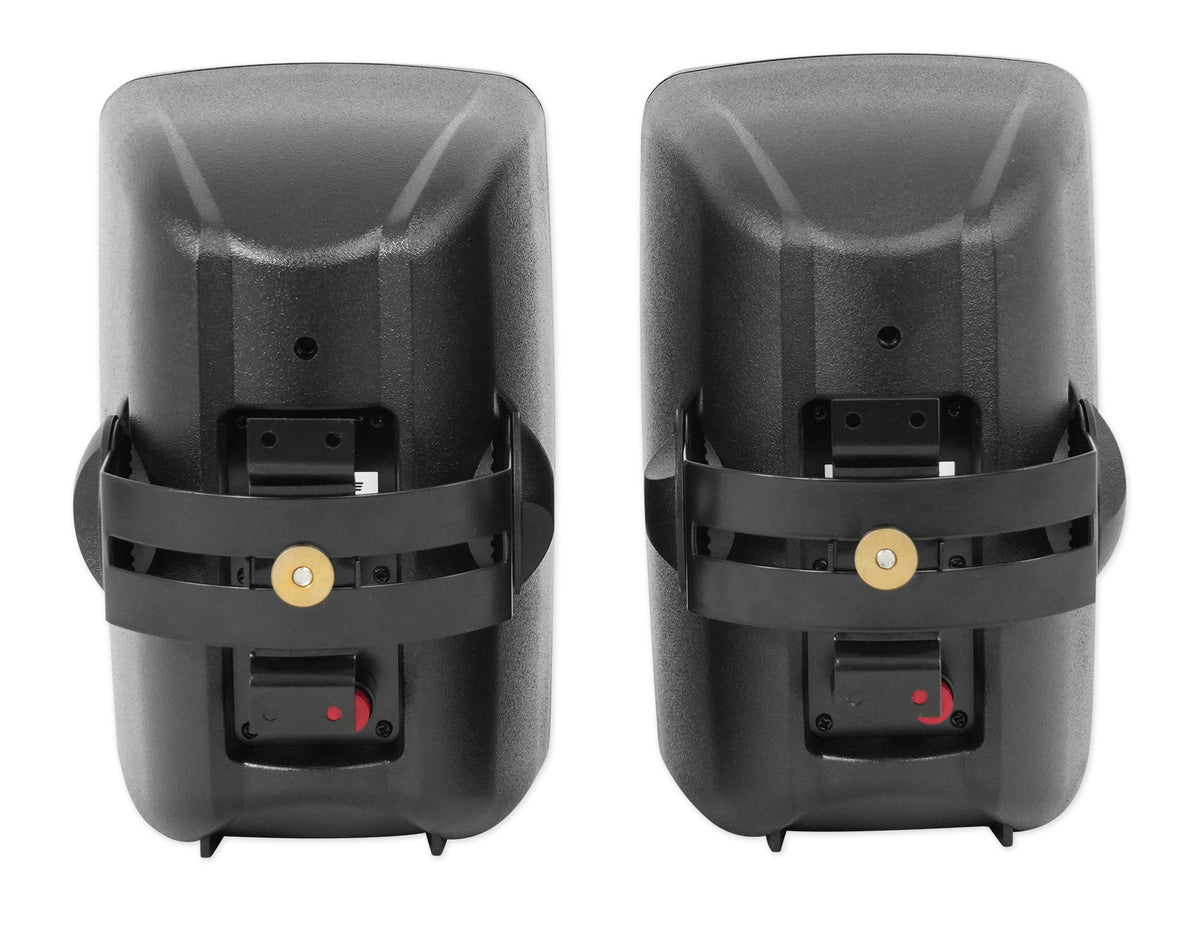

- Speaker Bracket Powder-coated steel, four-way swivel
- Speaker Terminals Waterproof spring-loaded terminals
- Tweeter 13 mm PEI
- 70V Output Frequency Response 80 Hz to 15 kHz, ±3 dB
- Amplifier THD Less than 0.5%, 20 Hz to 20 kHz
- Signal-to-Noise Ratio Greater than 76 dB
- Phantom Power 27 VDC
- Operating Temperature 32°F to 95°F
- Humidity 95% RH
- Storage Temperature -4°F to 185°F
- Weight 25.5 lb amplifier; 4.16 lb each speaker
- Dimensions 17 in x 16.3 in x 3.5 in amplifier; 9.6 in x 7.1 in x 7.5 in each speaker
