VMA1240 + (18) Pairs Cube 70V White Speakers
JBL

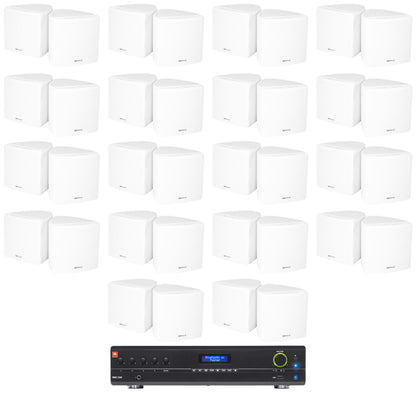

VMA1240 + (18) Pairs Cube 70V White Speakers
VMA1240 + (18) Pairs Cube 70V White Speakers
240W Bluetooth Mixer Amp, 5 Inputs, 36 White Swivel Wall Speakers, Rack Kit, Restaurant and Retail Audio
Free Shipping
Features
- JBL VMA1240 240W 70V mixer amplifier with five inputs and Bluetooth streaming
- 18 pairs of Cube 3.5" 2-way 70V wall speakers in white
- 6W, 3W, and 1.5W speaker taps for zone-by-zone volume control
- Voice-activated ducking lowers music automatically for paging announcements
- 360-degree swivel brackets and Euroblock terminals for faster installs
Couldn't load pickup availability

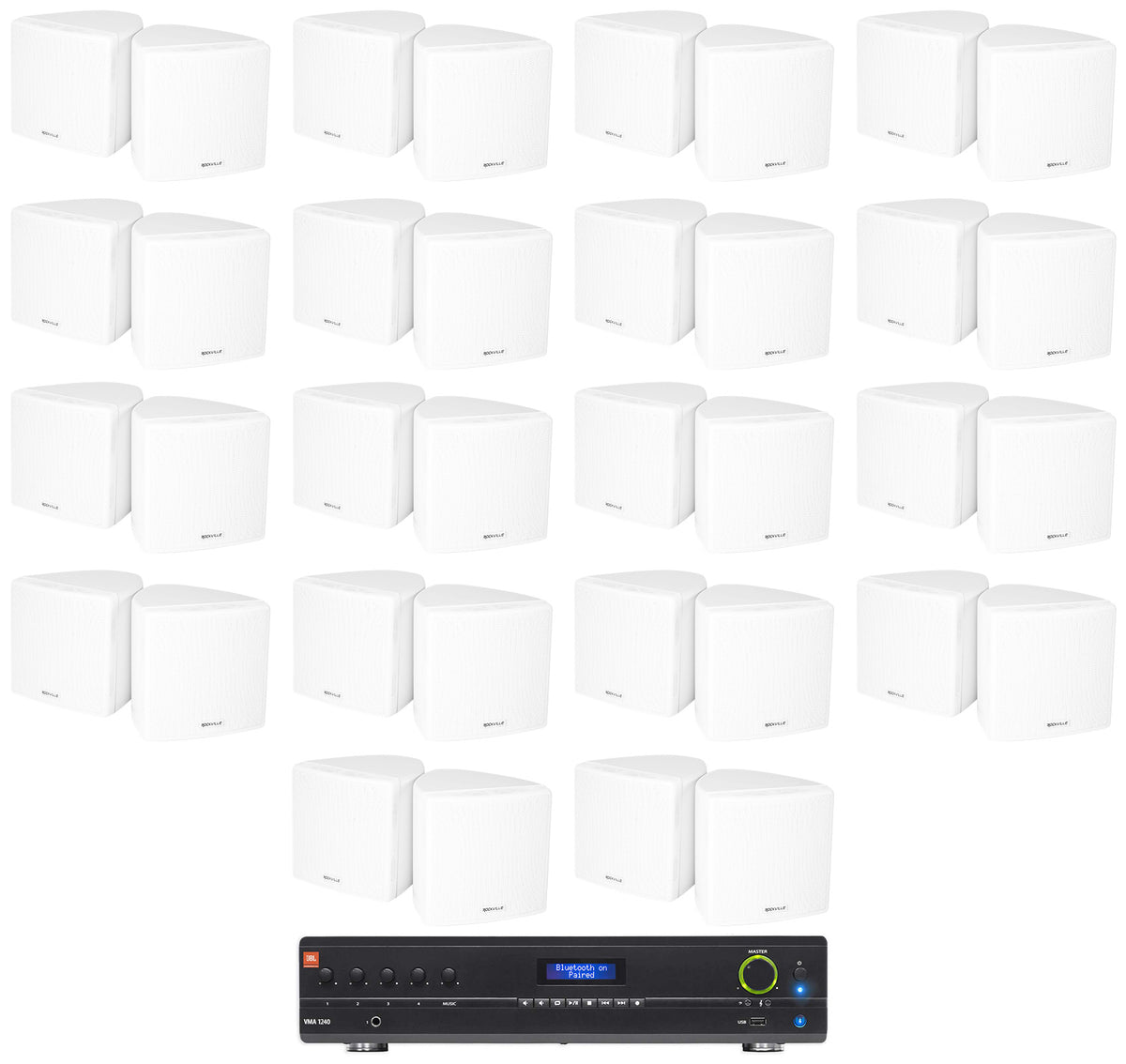

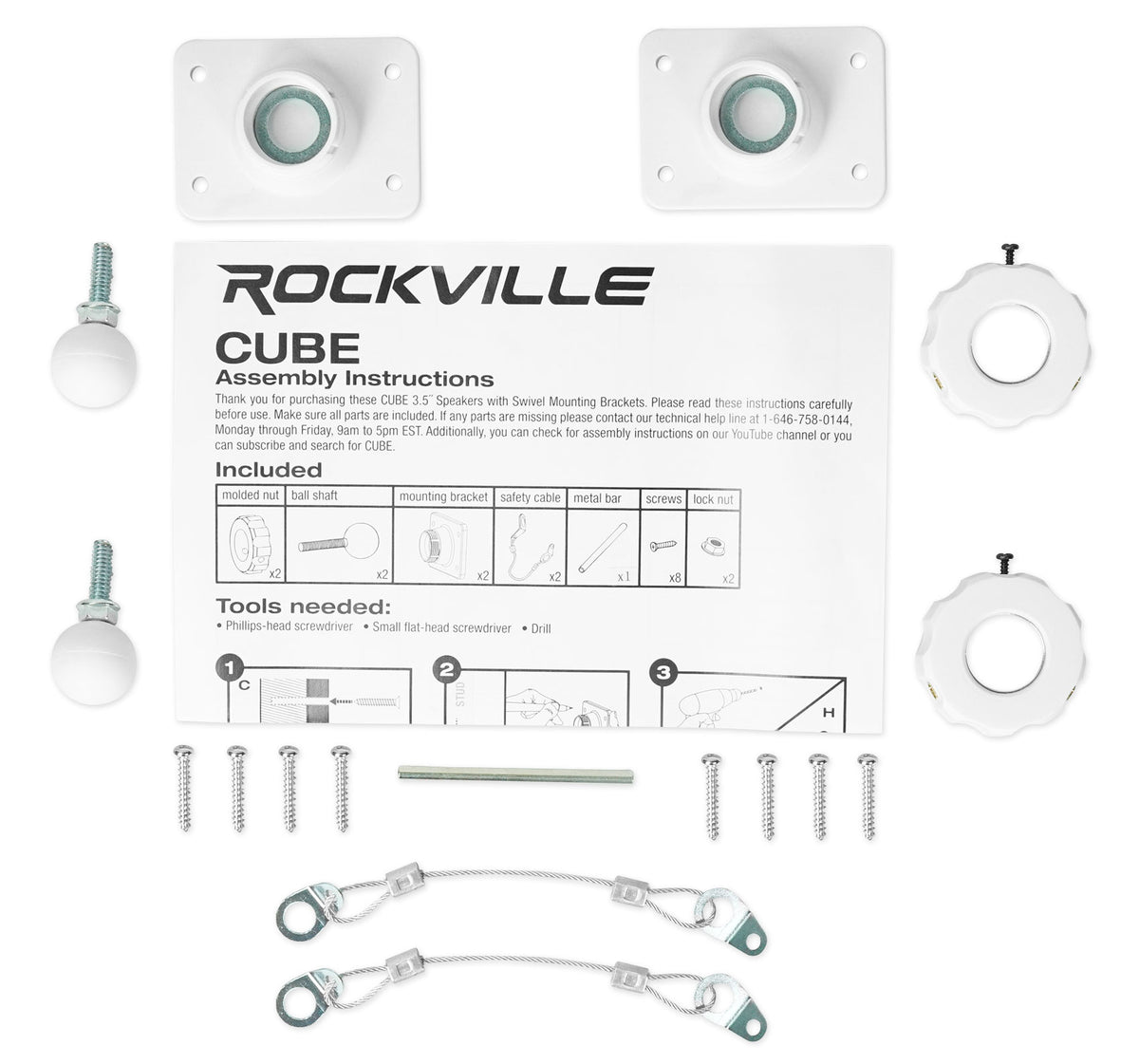

What's Included in the box
- (1) JBL VMA1240 240W 70V Bluetooth Mixer Amplifier
- (1) Rack Mount Kit
- (36) Cube 3.5" White 70V 2-Way Wall Mount Speakers (18 Pairs)
- (36) Mounting Brackets with Metal Bars
- (36) Safety Cables
- (144) Screws
SKU: SKU: VMA1240+(18) Cube 70v White
View full details
















Product Description

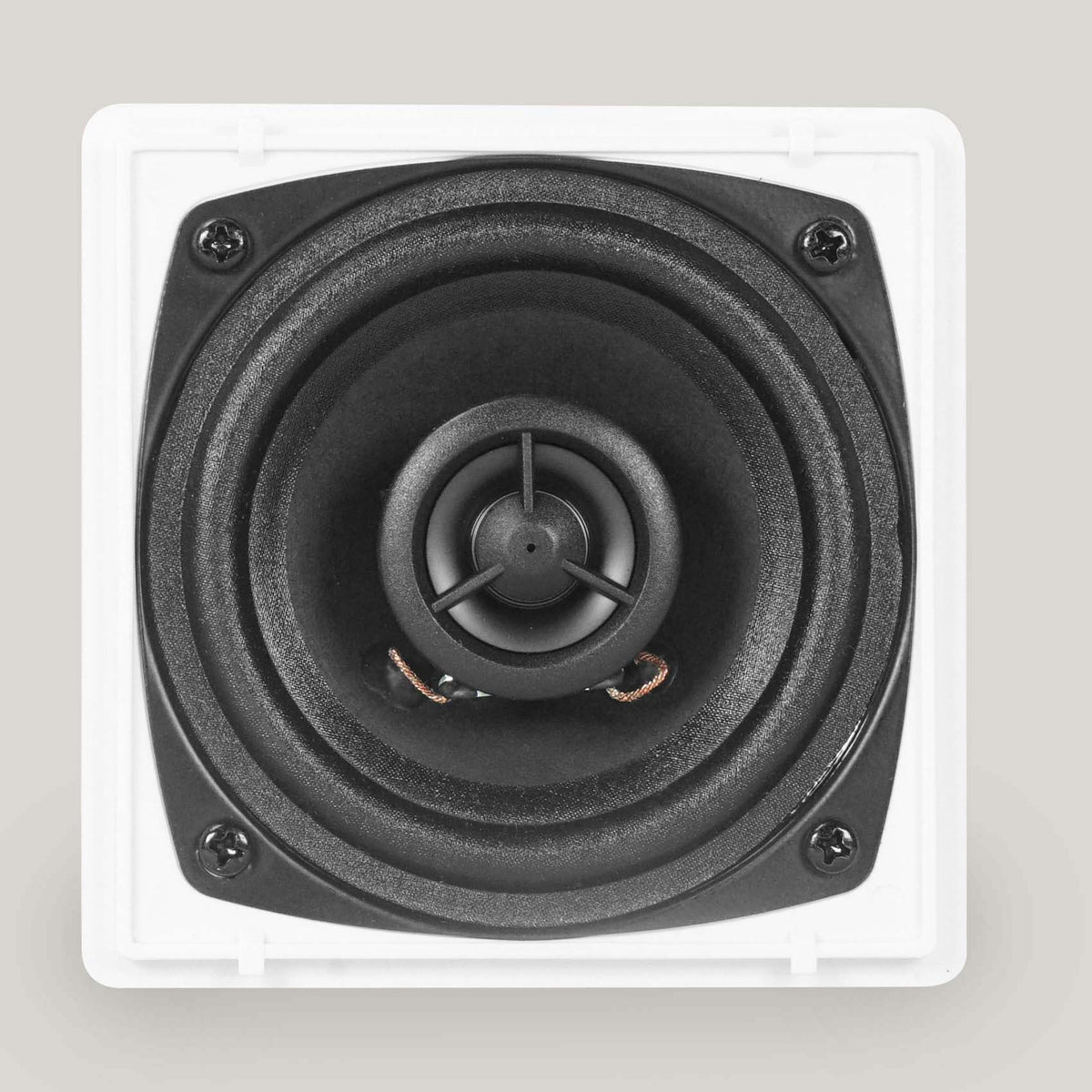

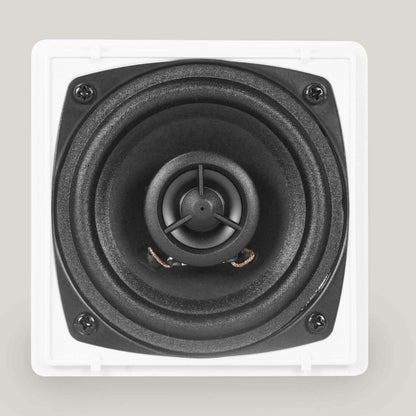

The amp feeds 18 pairs of white Cube by Rockville 70V speakers, 36 in total. Each compact 2-way cabinet pairs a 3.5" paper cone woofer with a 0.5" PEI tweeter, giving clear voice and full music in a footprint just over 4" wide that blends into light walls and ceilings. The 360-degree swivel bracket lets you aim sound at dining tables, checkout counters, or display areas. Rear taps at 6W, 3W, and 1.5W set volume by location, so a dining room can run louder while hallways and restrooms stay at a low background level on the same line. Since 70V wiring carries signal over long cable runs without loss, the system spreads across a large floor plan, and detachable Euroblock terminals make wiring and service quicker.
Included in the Bundle
-
VMA1240

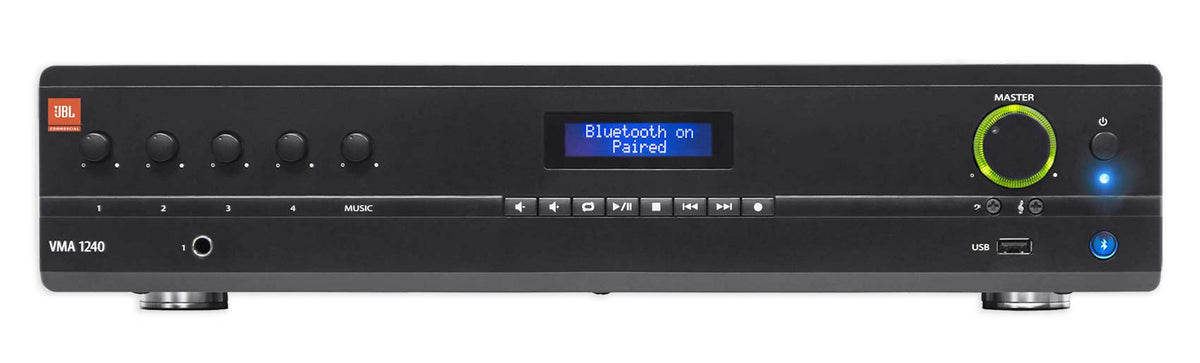

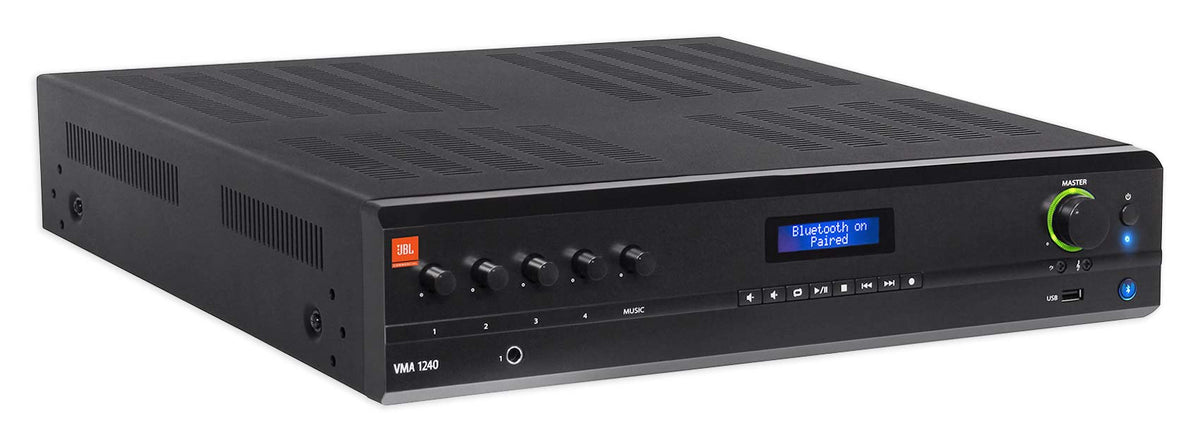

The JBL VMA1240 is a 240W commercial mixer/amplifier built for restaurants, retail spaces, fitness centers, and houses of worship. Five input channels accept Euroblock, RCA, and 1/4" sources, while built-in Bluetooth and a front-panel USB port let you stream music or play MP3 files without extra gear.
Learn More: VMA1240 -

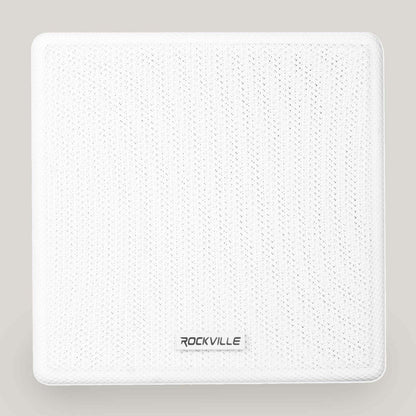

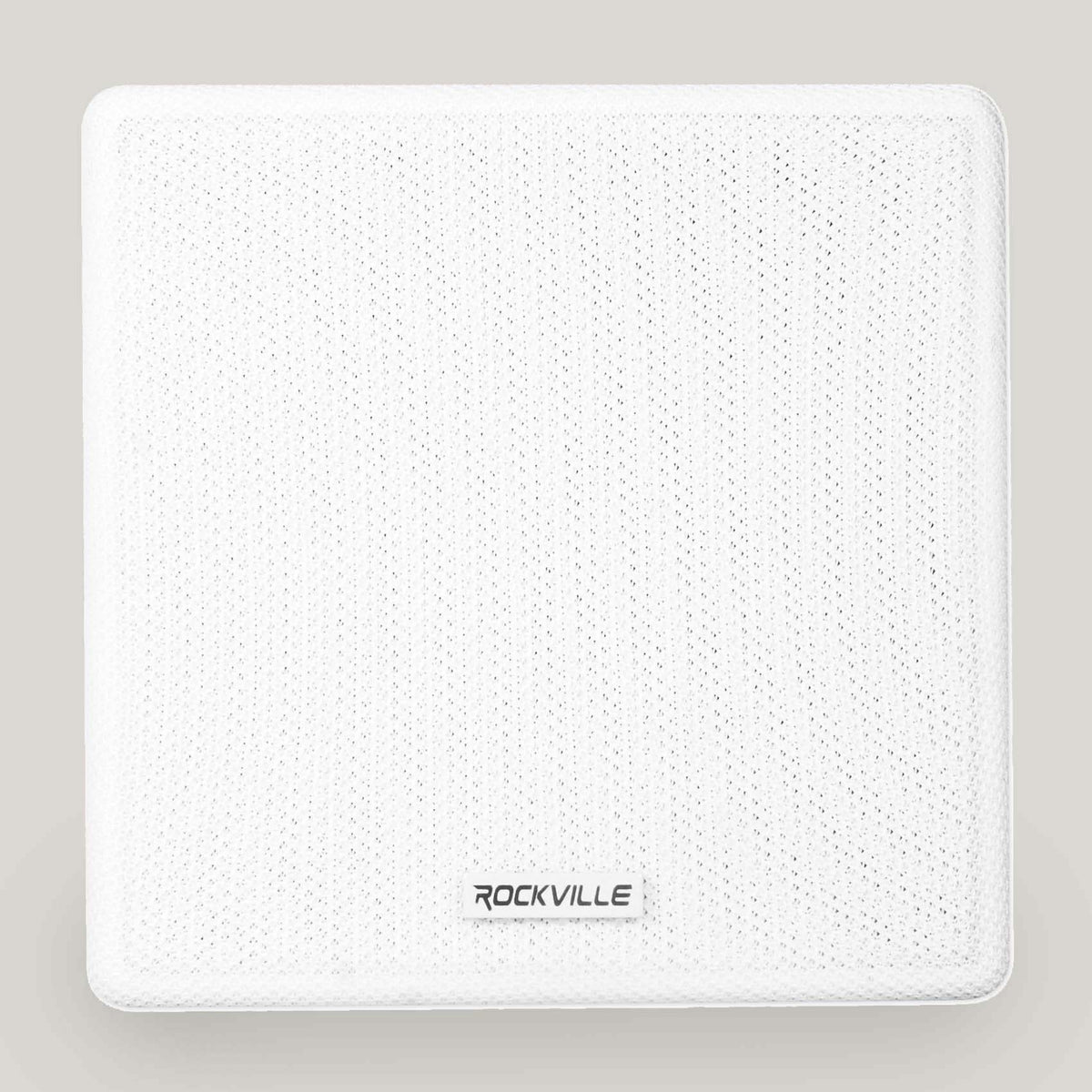

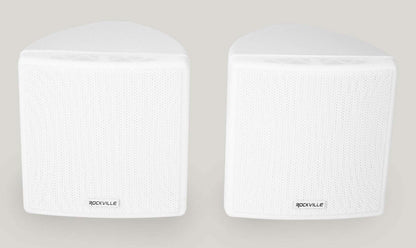

CUBE 70V White

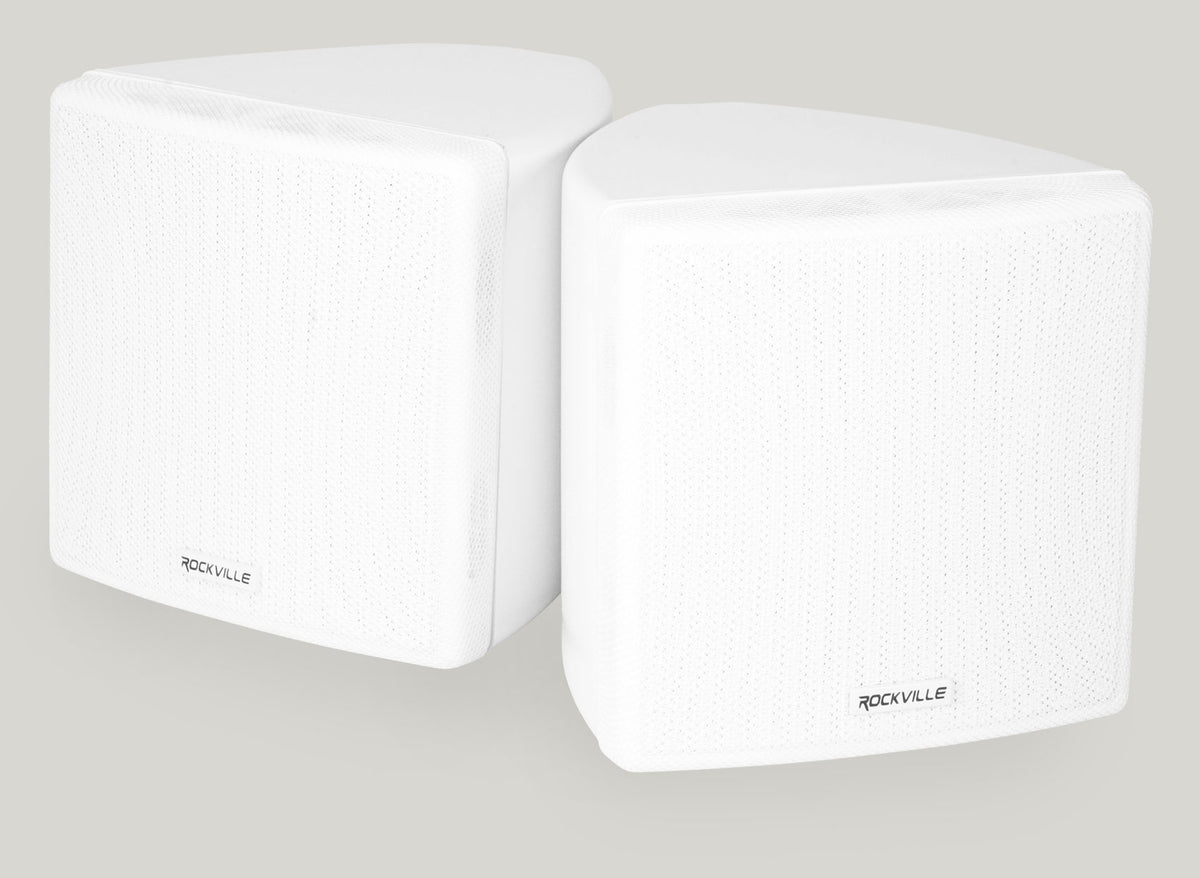

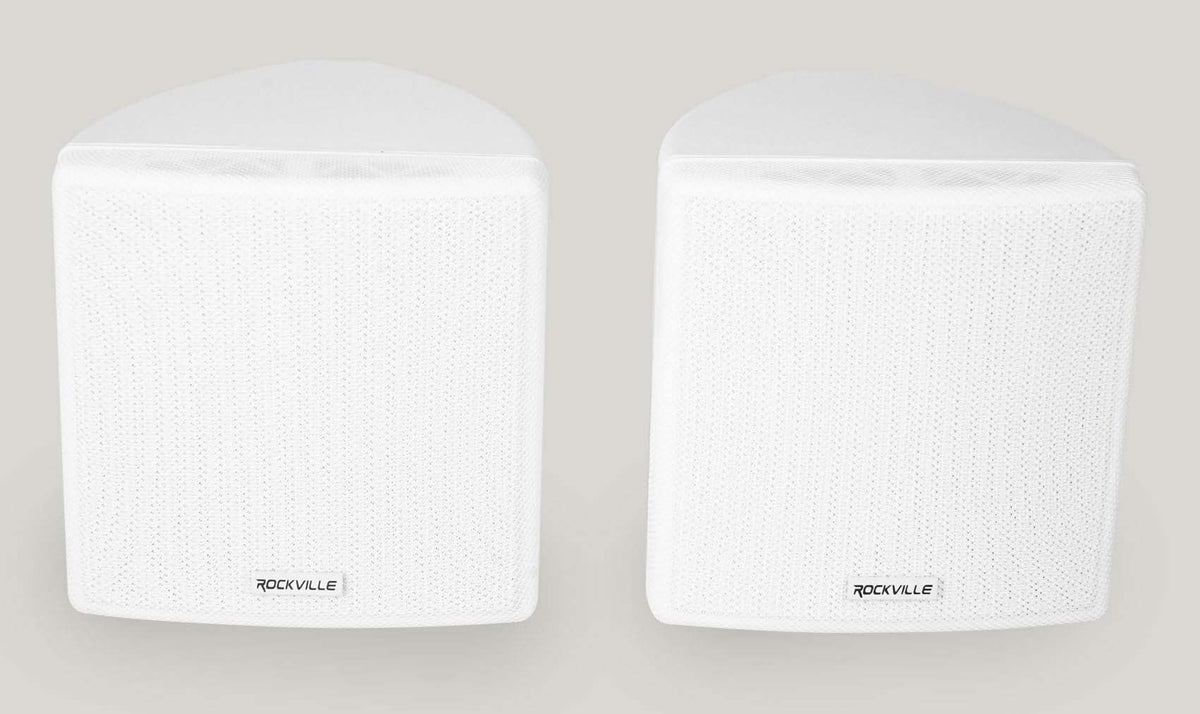

The Cube 70v speakers deliver immersive sound for commercial spaces, blending a compact, stylish design with powerful audio performance. Their 2-way configuration, featuring a dedicated woofer and tweeter, produces clear highs and rich mids, making them ideal for restaurants, offices, and retail environments.
Learn More: CUBE 70V White
Features
One Amp for the Whole Floor
The JBL VMA1240 delivers 240W to 70V and 100V lines, powering all 36 Cube speakers in the package from a single rack-mountable unit in your back office.
Music and Paging Together

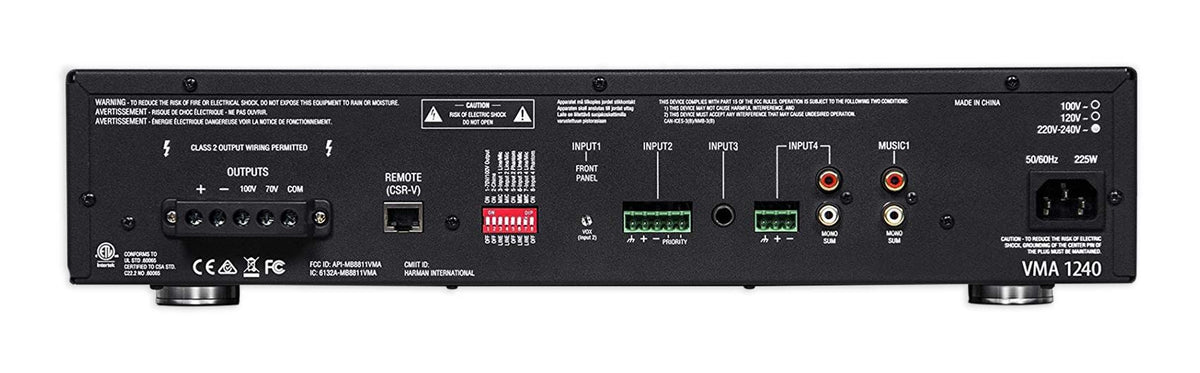

Five inputs with Euroblock, RCA, and 1/4" connections, plus Bluetooth and USB playback, let you run background music and a paging mic from one mixer.
Announcements That Cut Through
Voice-activated ducking lowers the music as soon as someone speaks into the mic, so specials, pages, and closing calls come through clearly without touching a knob.

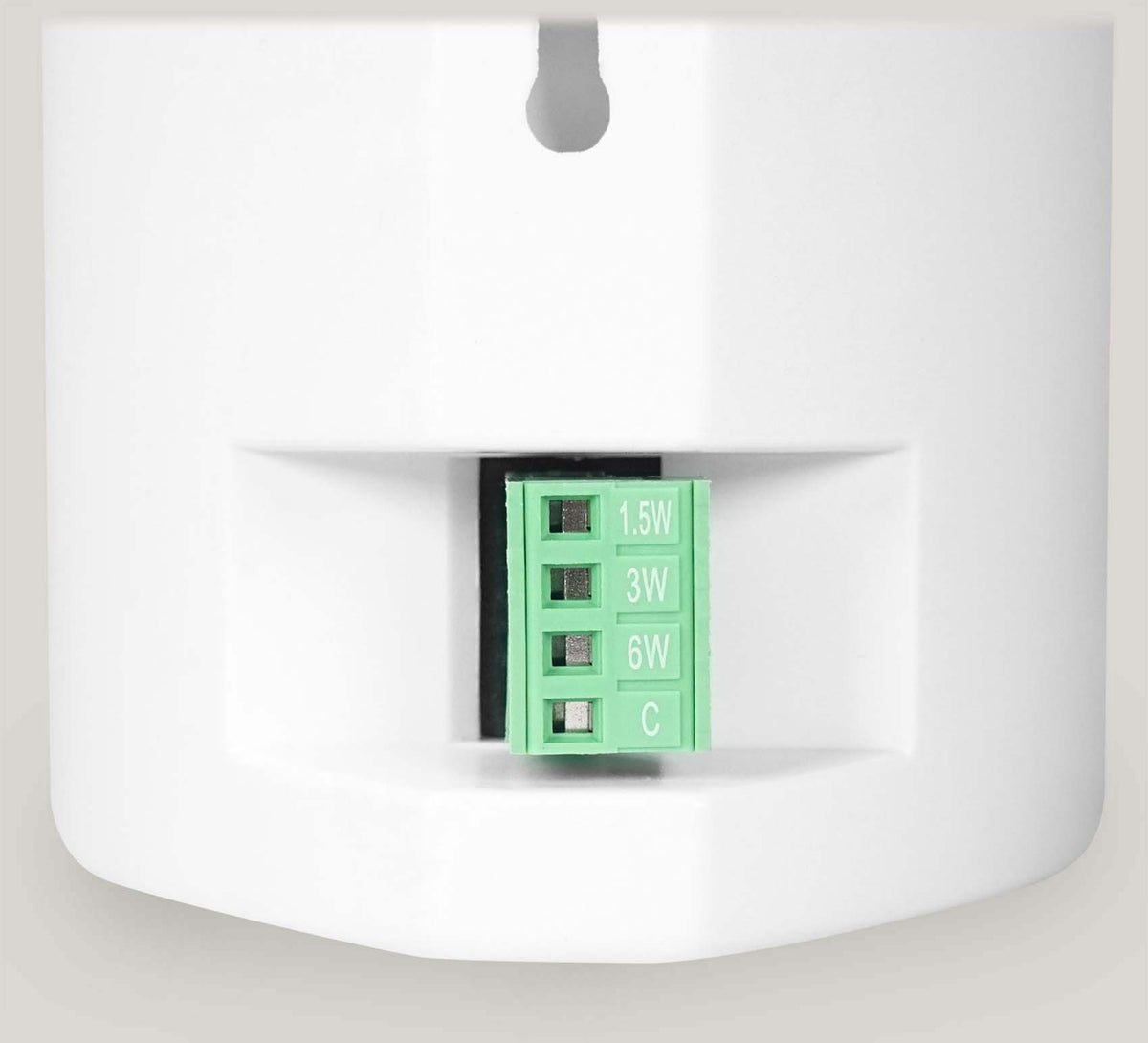

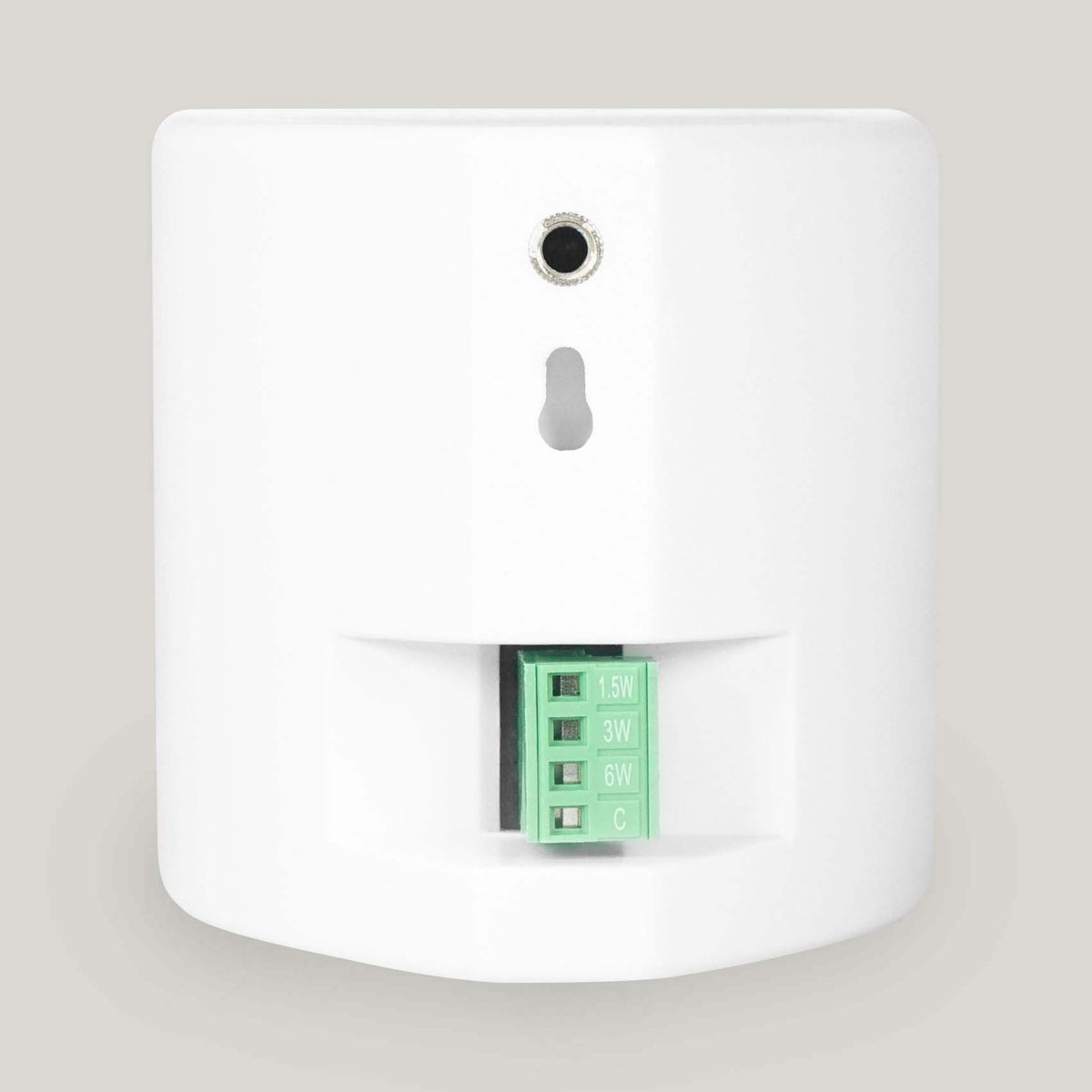

Volume Set by Zone
Each Cube speaker taps at 6W, 3W, or 1.5W, so dining rooms can run louder while hallways and restrooms stay at a comfortable background level.

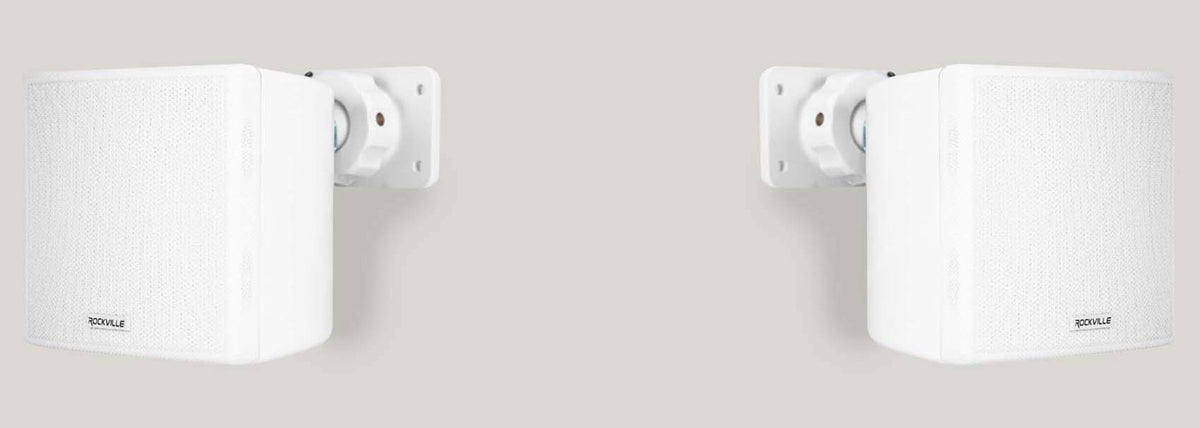

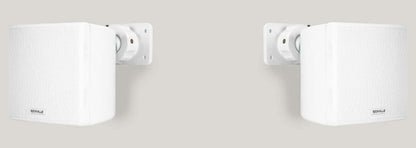

Clean White Look You Can Aim

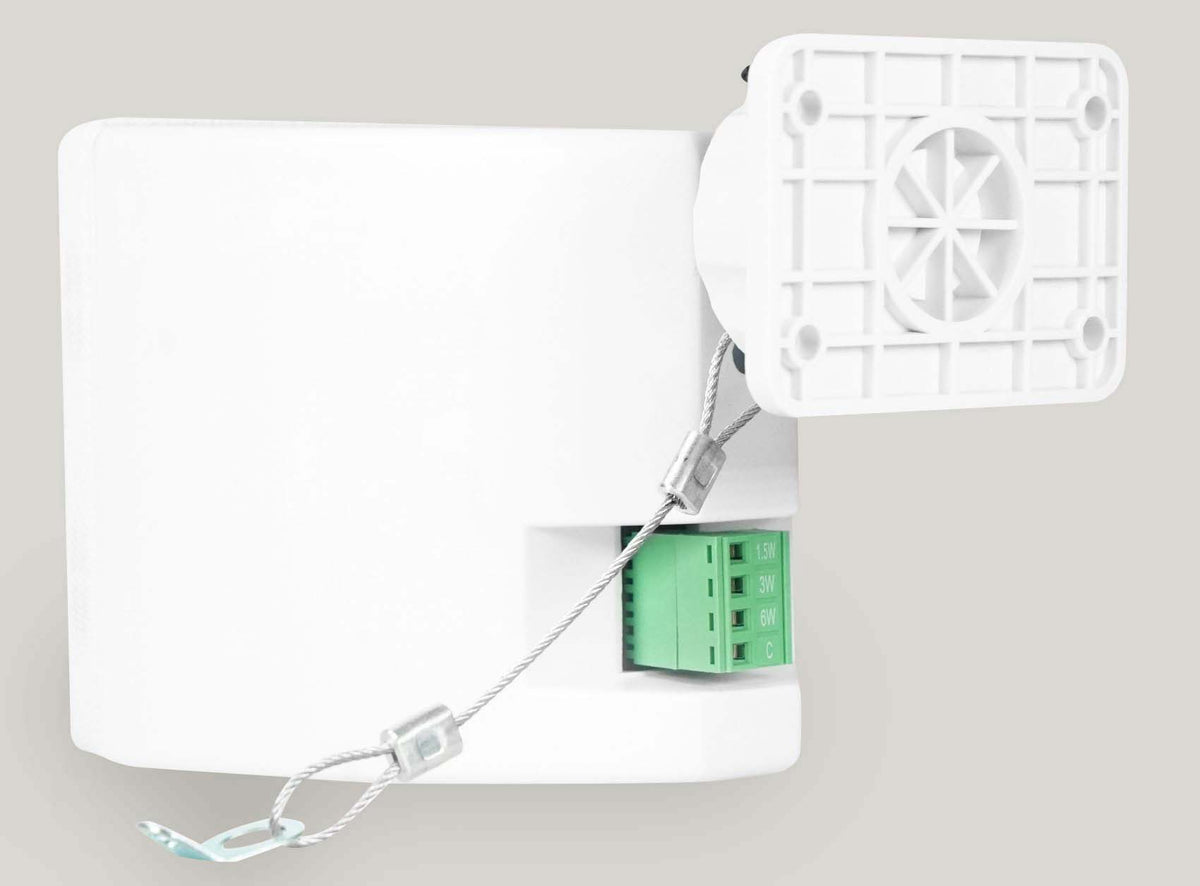

White ABS cabinets just over 4" wide blend into light walls and sit on 360-degree swivel brackets, so you can point sound at seating, counters, or displays.
Technical Specifications
- Product Type 70V Commercial Amplifier and Wall Speaker Package
- Amplifier JBL VMA1240 Mixer Amplifier
- Amplifier Output Power 240W into 4 or 8 Ohms
- Amplifier Outputs 4/8 Ohm, 70V, 100V
- Input Channels 5
- Output Channels 1
- Input Types Euroblock, RCA, 1/4"
- Playback Sources Bluetooth, USB
- Tone Controls Bass ±14 dB @ 50 Hz, Treble ±14 dB @ 10 kHz (Per Channel)
- Frequency Response (4/8 Ohm Output) 20 Hz to 20 kHz ±2 dB
- Frequency Response (70V/100V Output) 80 Hz to 15 kHz ±3 dB
- THD Less than 0.5%, 20 Hz to 20 kHz
- Signal to Noise Ratio Greater than 76 dB
- Phantom Power 27 VDC
- Crosstalk -70 dB
- AC Line Voltage 100, 120, 220 to 240 VAC, 50/60 Hz
- Ducking Voice-Activated
- Rack Mount Kit Included
- Speakers (18) Pairs Cube 70V (36 Total)
- Speaker Configuration 2-Way
- Woofer 3.5" Paper Cone
- Tweeter 0.5" PEI
- 70V Taps 6W, 3W, 1.5W
- Speaker Sensitivity 86 dB ±2 dB (1M/2.83V)
- Speaker Frequency Response 130 Hz to 20 kHz (±3 dB)
- Speaker Cabinet Material ABS
- Speaker Terminals Detachable Euroblock
- Speaker Mounting 360-Degree Swivel Wall Bracket
- Color White
- Weight Amplifier: 25.5 lb, Speaker: 1.76 lb (Each)
- Dimensions Amplifier: 17" x 16.3" x 3.5" (W x D x H), Speaker: 4.13" x 4.72" x 4.13"
