VMA1240 + 2 Pairs WET-7020B + 5 x 4-Pack CCL5T Black
VMA1240 + 2 Pairs WET-7020B + 5 x 4-Pack CCL5T Black
240W 70V Bluetooth Mixer, Two Wall-Speaker Pairs, Five Four-Speaker CCL5T Packs
Free Shipping
Features
- 240W 70V mixer/amplifier with Bluetooth and USB playback
- Five inputs with Euroblock, RCA, and 1/4-inch connections
- Two pairs of IPX55 wall speakers with swivel brackets
- Five four-speaker packs with selectable 70V ceiling taps
- Rack mount kit included for clean equipment installation
Couldn't load pickup availability

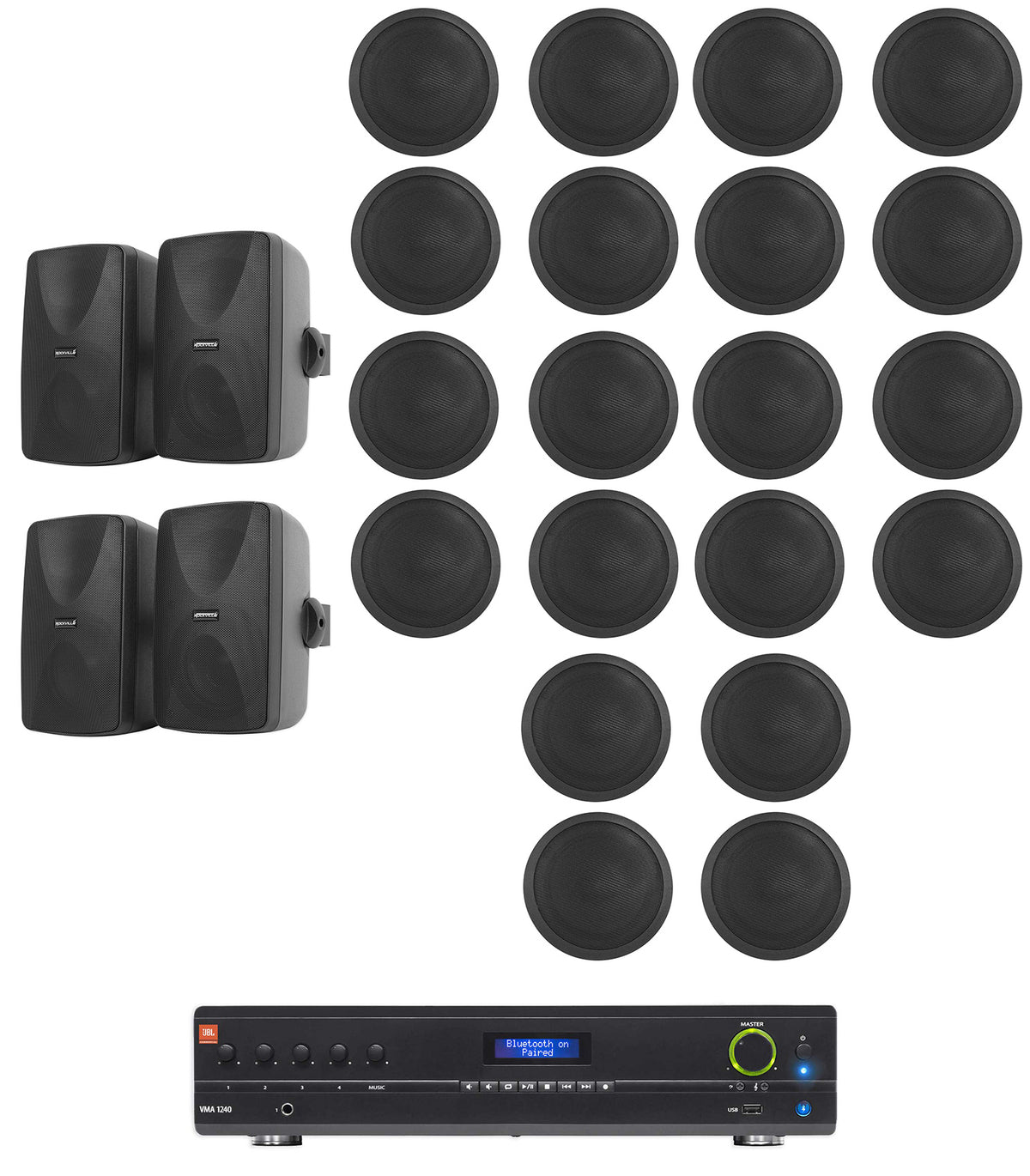

What's Included in the box

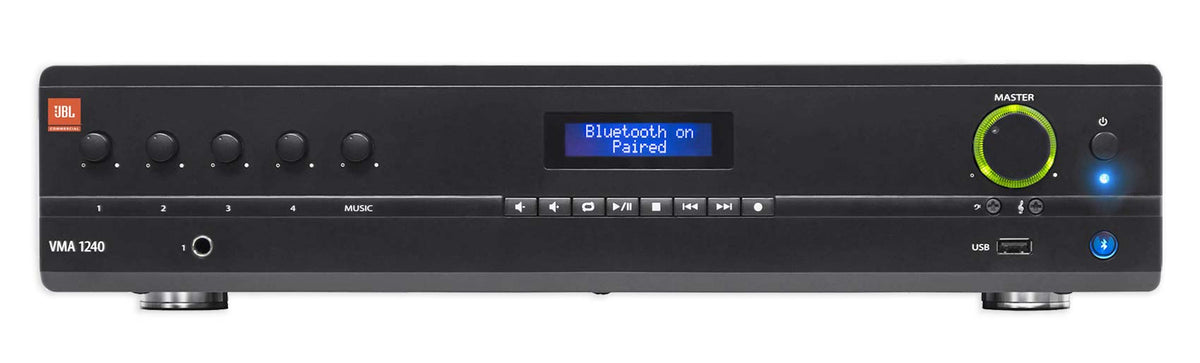

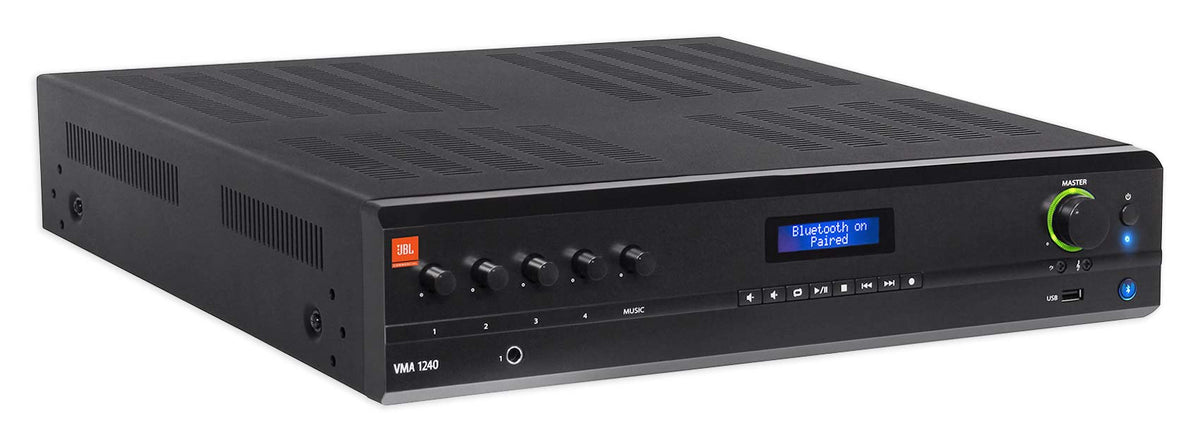

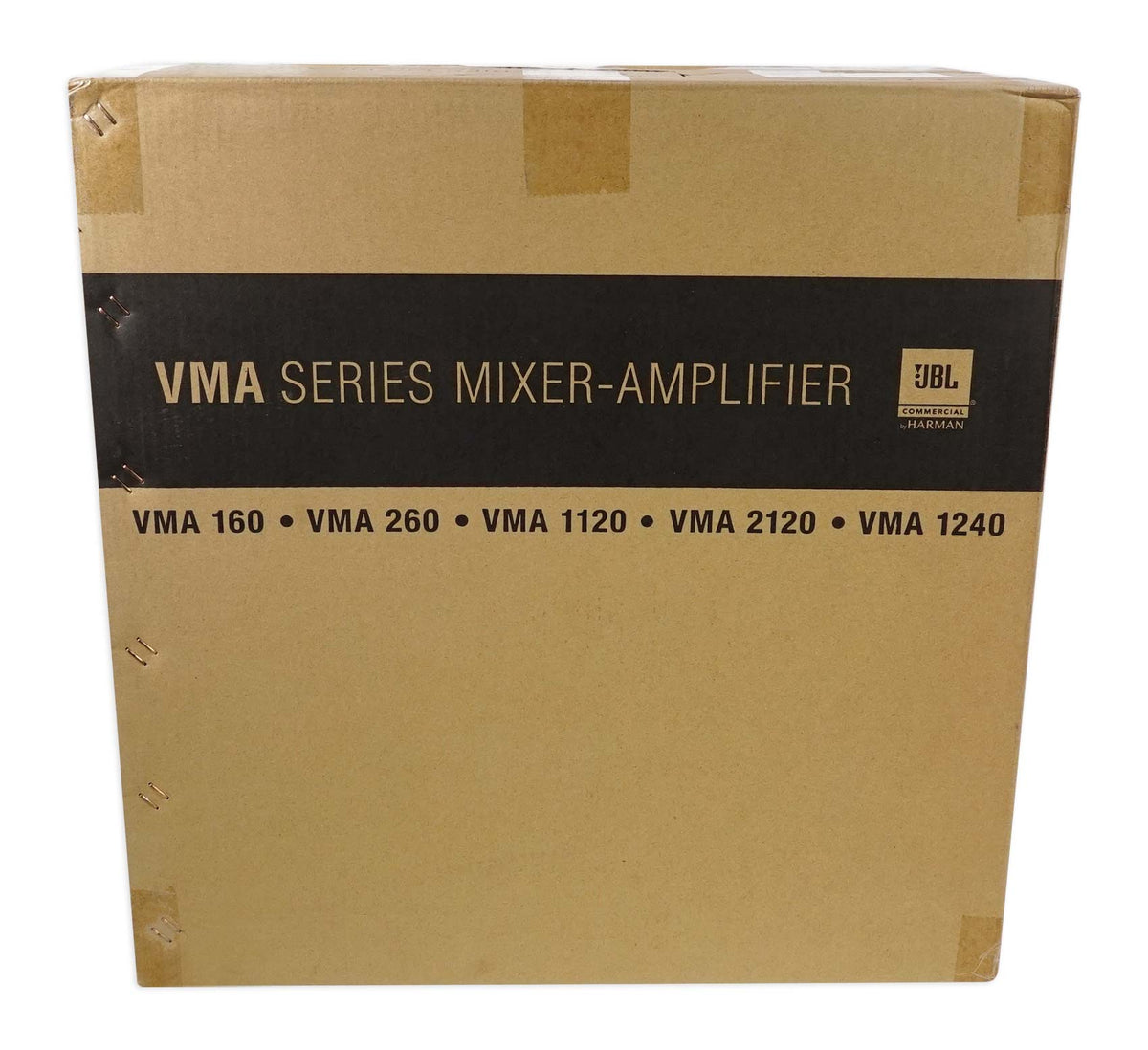

- (1) VMA1240 240W 70V Bluetooth mixer/amplifier

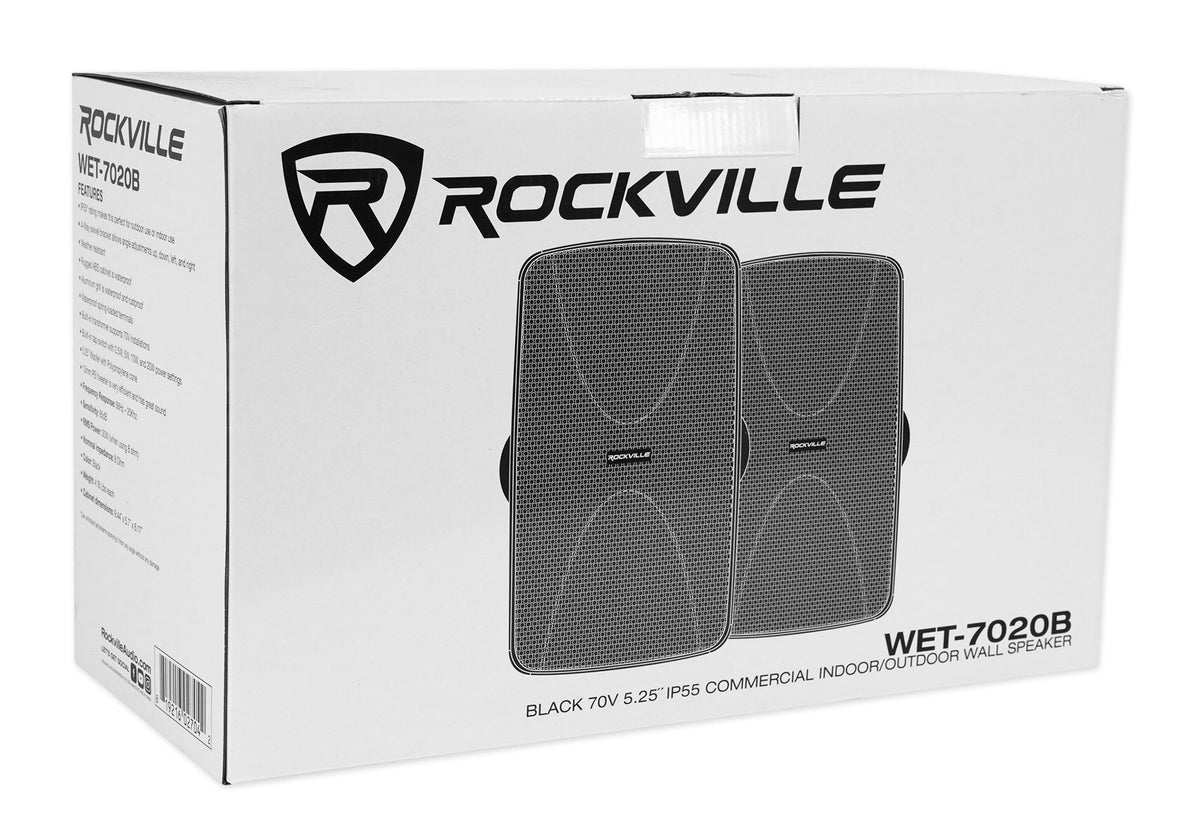

- (2) pairs of WET-7020B 5.25-inch 70V wall speakers, black
- (5) packs of (4) CCL5T 5-inch 70V ceiling speakers, black
- Rack mount kit
SKU: SKU: VMA1240+(2) WET-7020B+(5) CCL5T BLACK
View full details






















Product Description
Features
Centralized Audio Control
Five input channels, Bluetooth, and USB playback let staff manage background music and announcements from one mixer/amplifier in a commercial space.
Flexible Speaker Placement

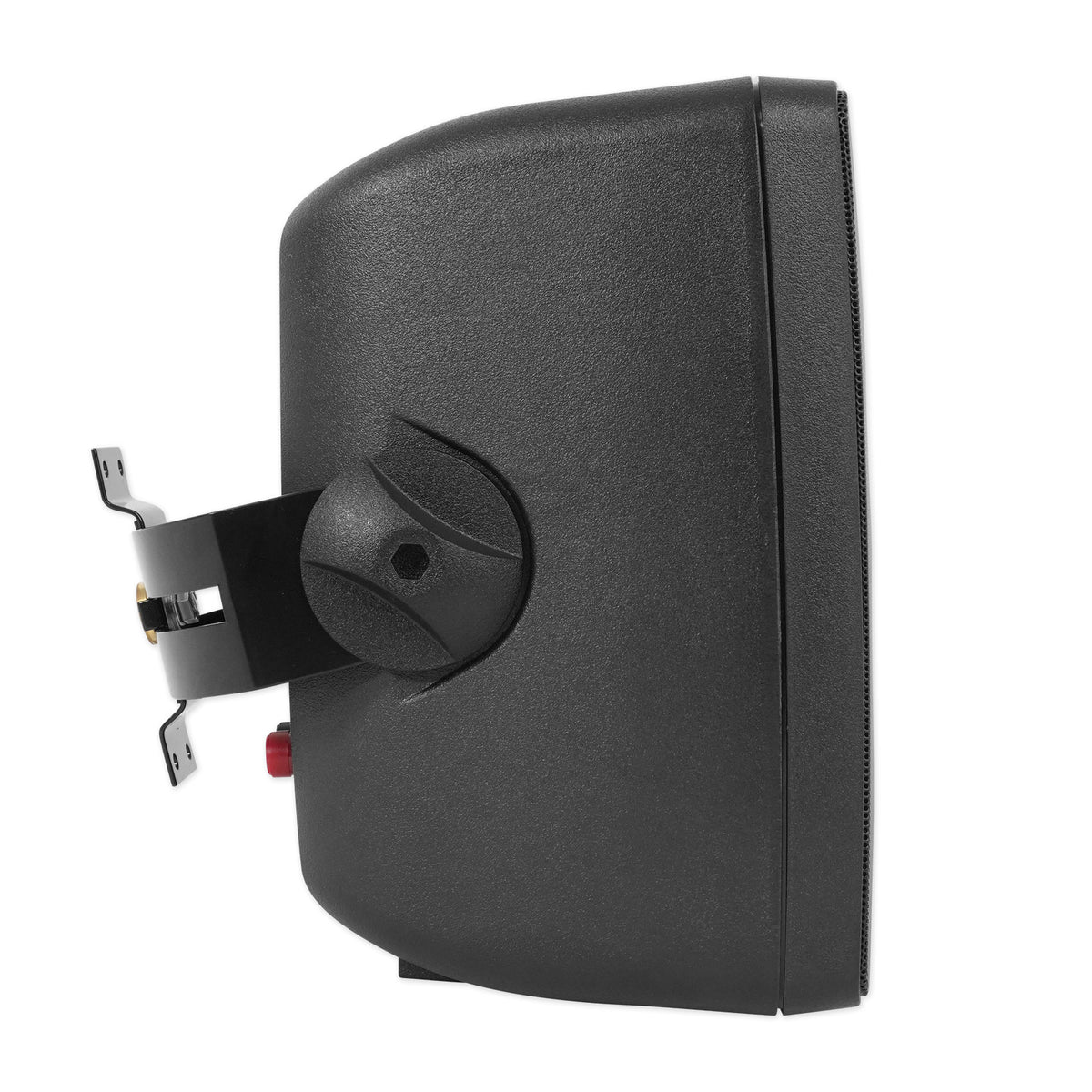

IPX55 wall speakers with four-way swivel brackets can cover indoor or outdoor areas while aiming sound toward listening zones as needed.
Adjustable Coverage
Selectable taps from 1.25W to 20W let installers balance output across ceiling and wall speakers for different room sizes and layouts.
Outdoor-Ready Construction
Waterproof ABS cabinets, aluminum grilles, and salt-spray-tested steel brackets stand up to moisture, sun, dust, and spray in demanding installations.
Rack-Ready Installation
The included rack mount kit keeps the amplifier accessible while the speaker package handles announcements and background music across the space.
Technical Specifications
- Product Type 70V Bluetooth Mixer/Amplifier Bundle
- Amplifier Power 240W into 4 or 8 Ohms
- Input Channels 5
- Output Channels 1
- Playback USB And Bluetooth

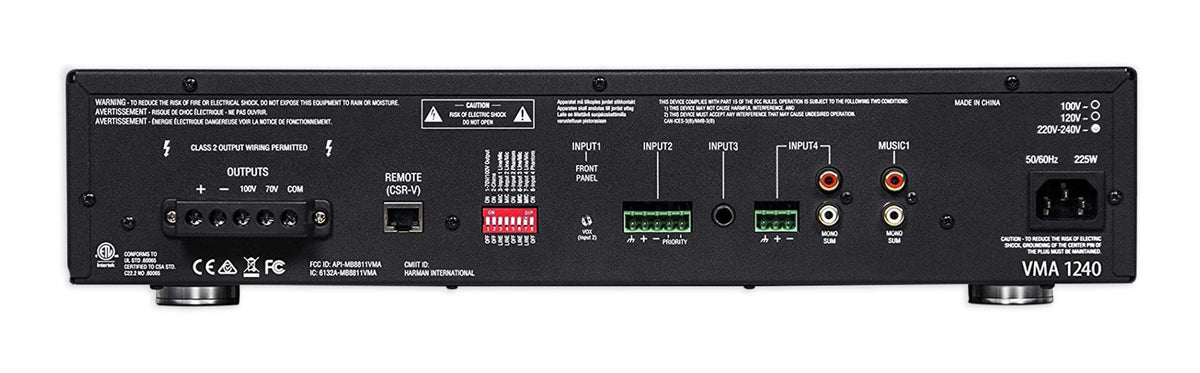

- Inputs Euroblock, RCA, And 1/4-Inch
- Outputs Euroblock; 70V, 100V, 4 Ohm, And 8 Ohm Support
- Tone Control Bass ±14 dB at 50 Hz; Treble ±14 dB at 10 kHz
- 70V/100V Frequency Response 80 Hz to 15 kHz ±3 dB
- 4/8 Ohm Frequency Response 20 Hz to 20 kHz ±2 dB
- Total Harmonic Distortion Less Than 0.5%, 20 Hz to 20 kHz
- Signal To Noise Ratio Greater Than 76 dB
- Phantom Power 27 VDC
- Crosstalk -70 dB
- Nominal AC Line Voltage 100, 120, 220, And 220 To 240 VAC, 50/60 Hz
- Minimum Load Impedance 4 Ohms Low Impedance, 20 Ohms at 70V, 40 Ohms at 100V

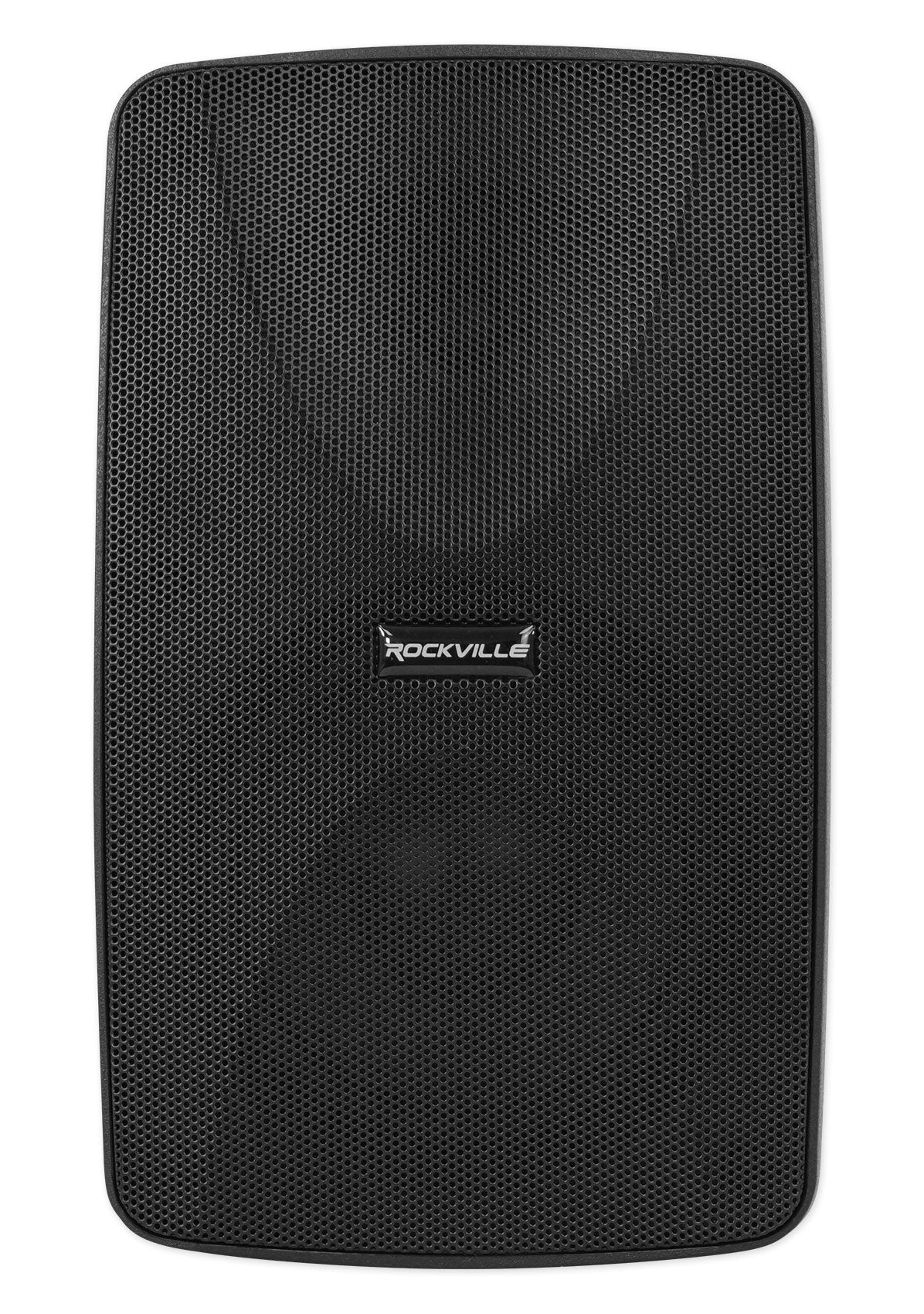

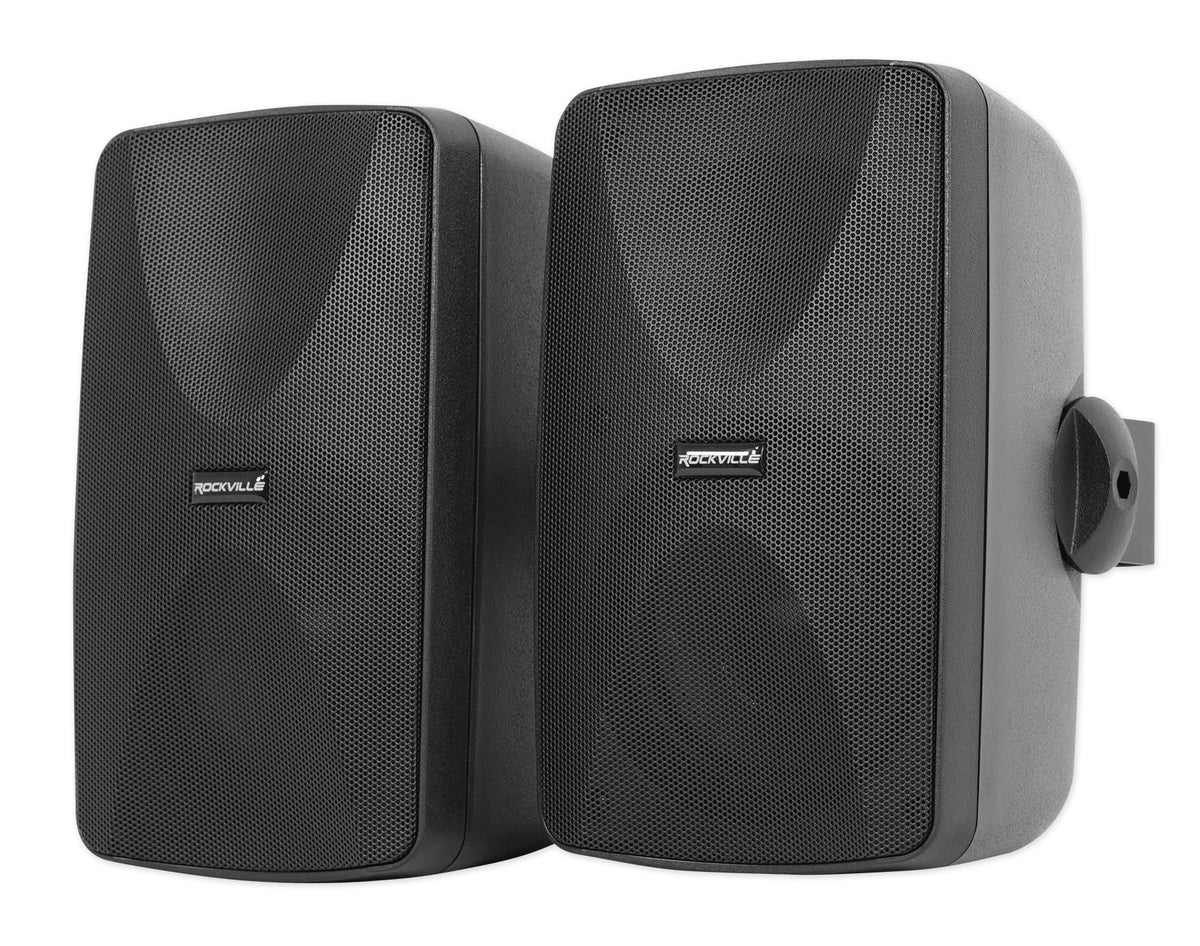

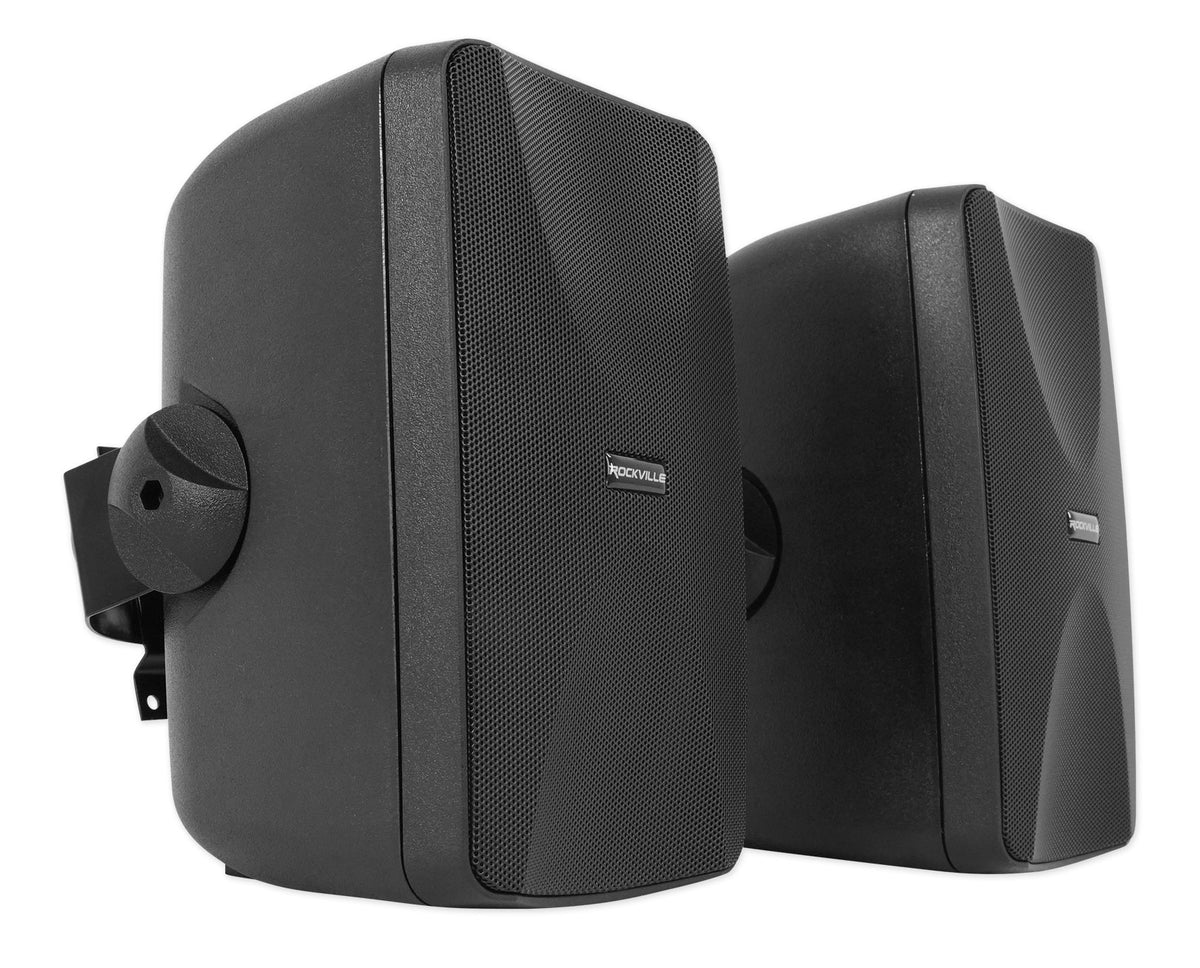

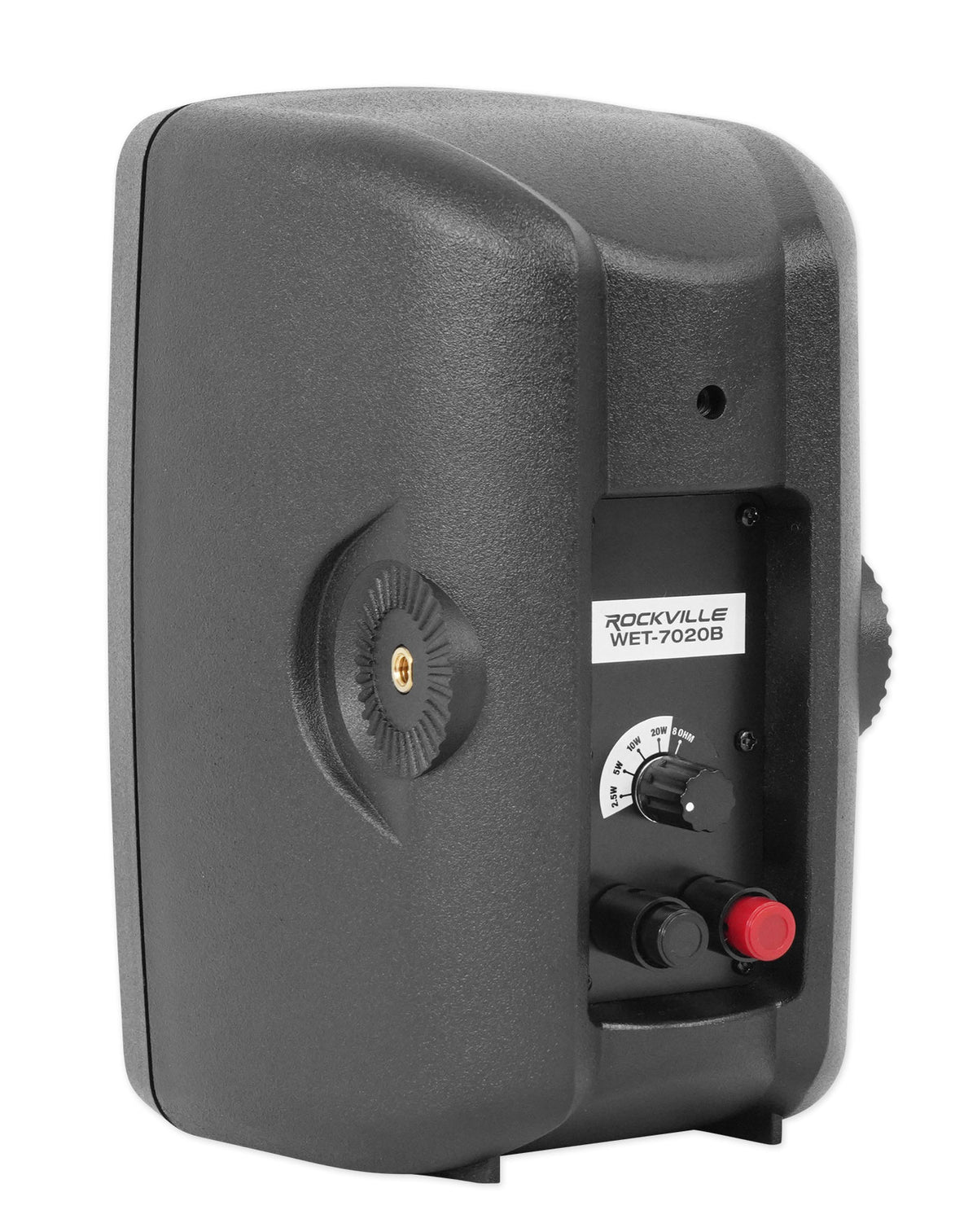

- Wall Speaker Type 5.25-Inch 70V Indoor/Outdoor Wall Speaker
- Wall Speaker Protection IPX55; Waterproof ABS Cabinet; Aluminum Grille; Rust-Resistant Terminals
- Wall Speaker Frequency Response 60 Hz to 20 kHz
- Wall Speaker Sensitivity 87 dB
- Wall Speaker Power Handling 40W RMS at 8 Ohms

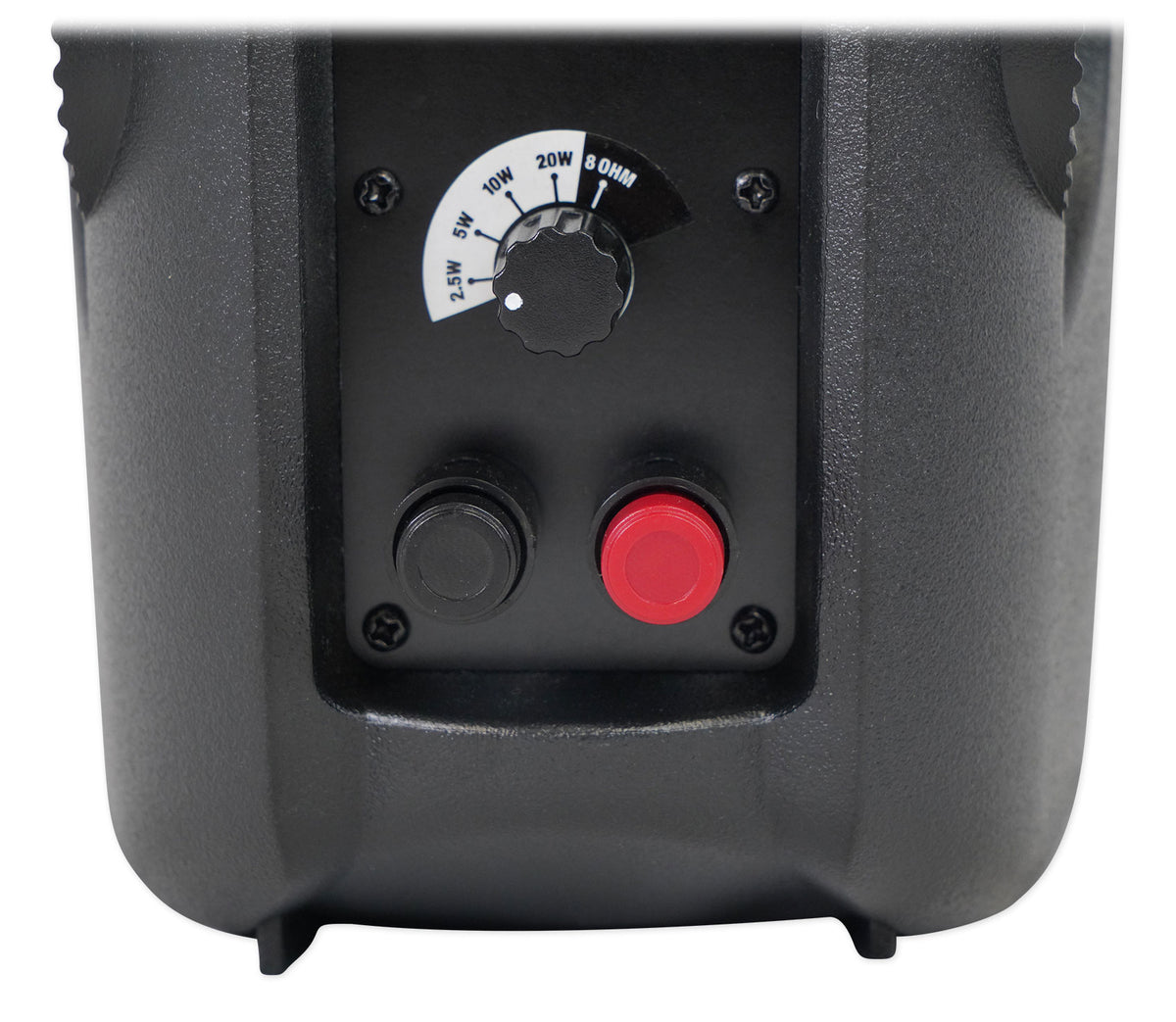

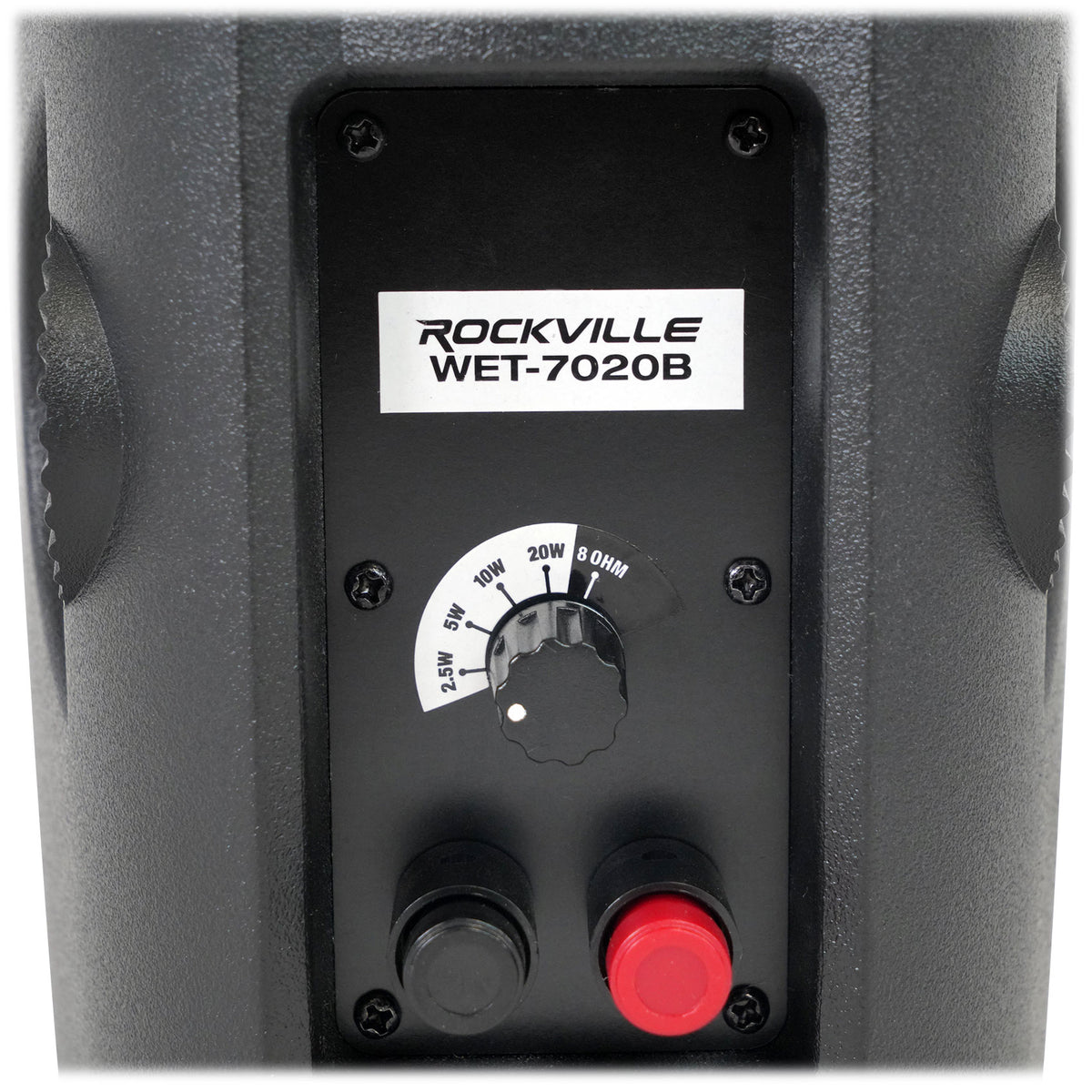

- Wall Speaker 70V Taps 2.5W, 5W, 10W, 15W, 20W
- Wall Speaker Impedance 8 Ohms

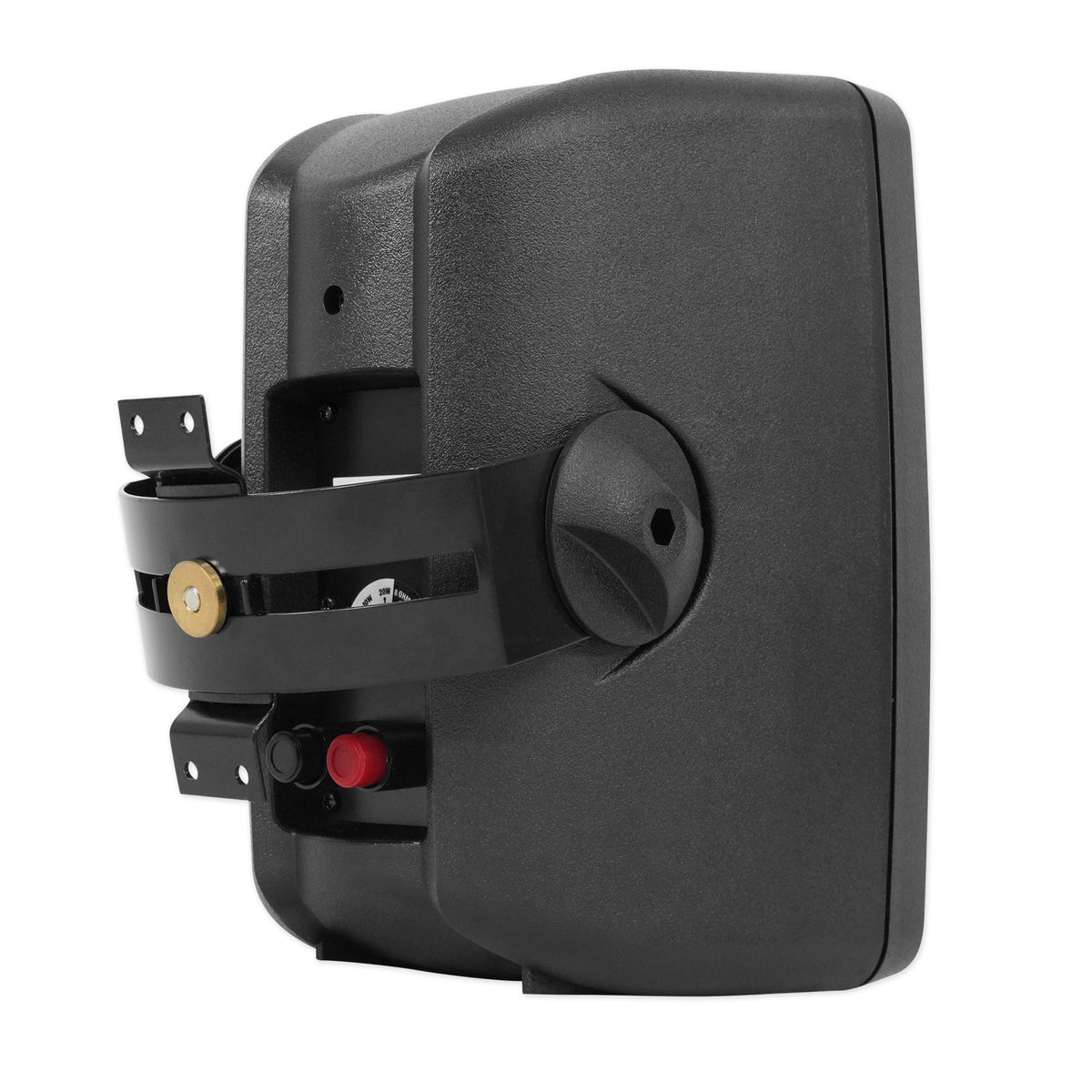

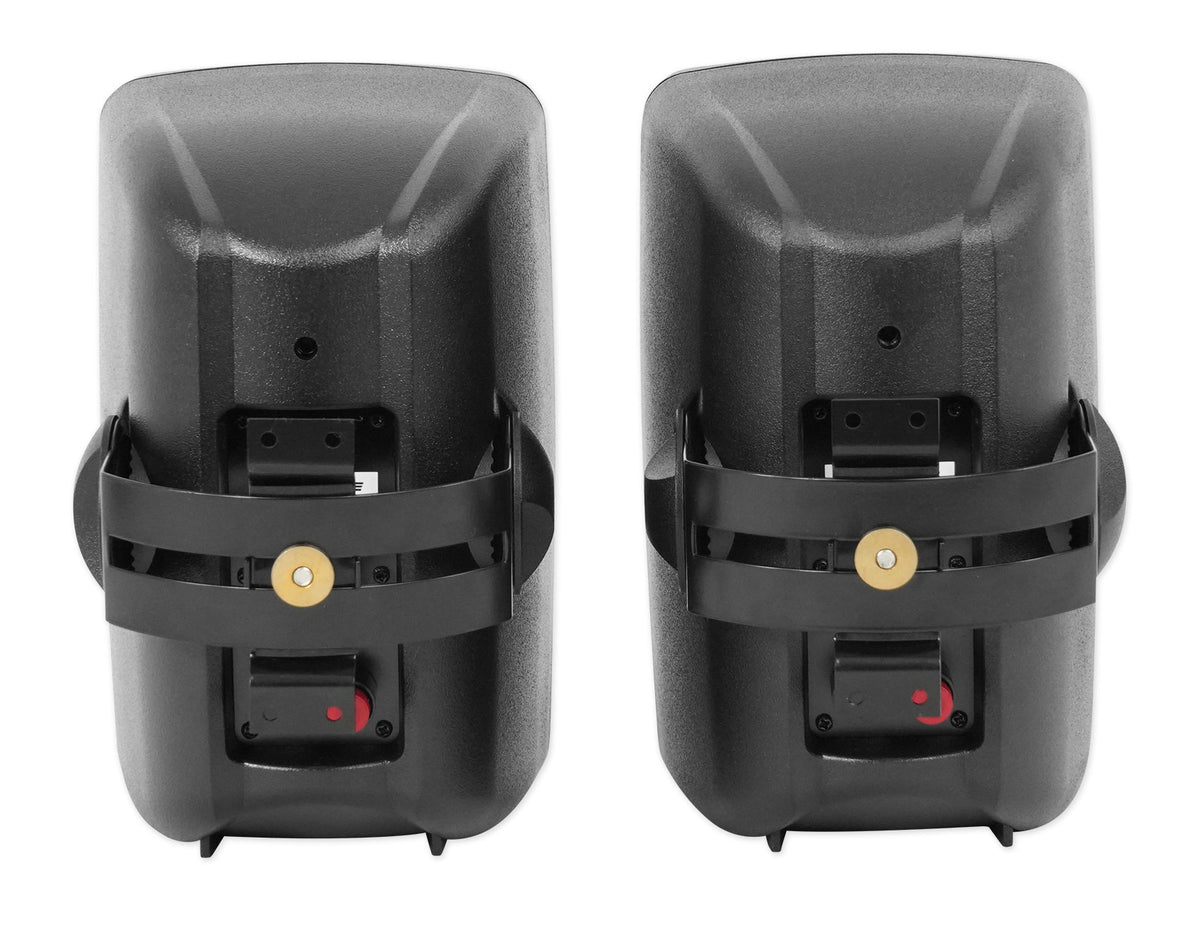

- Wall Speaker Bracket 4-Way Swivel; Powder-Coated Steel; 96-Hour Saltwater Spray Test

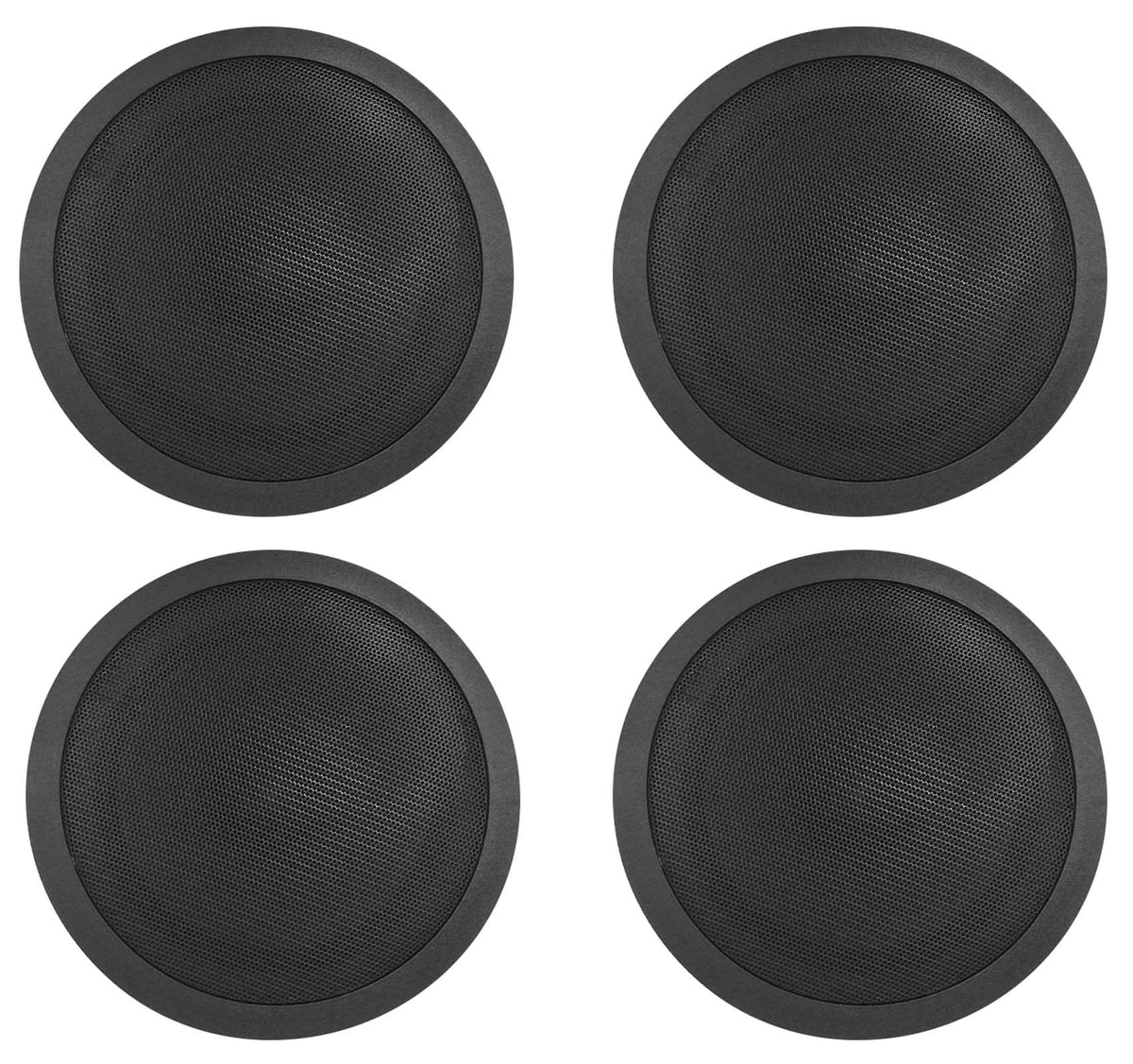

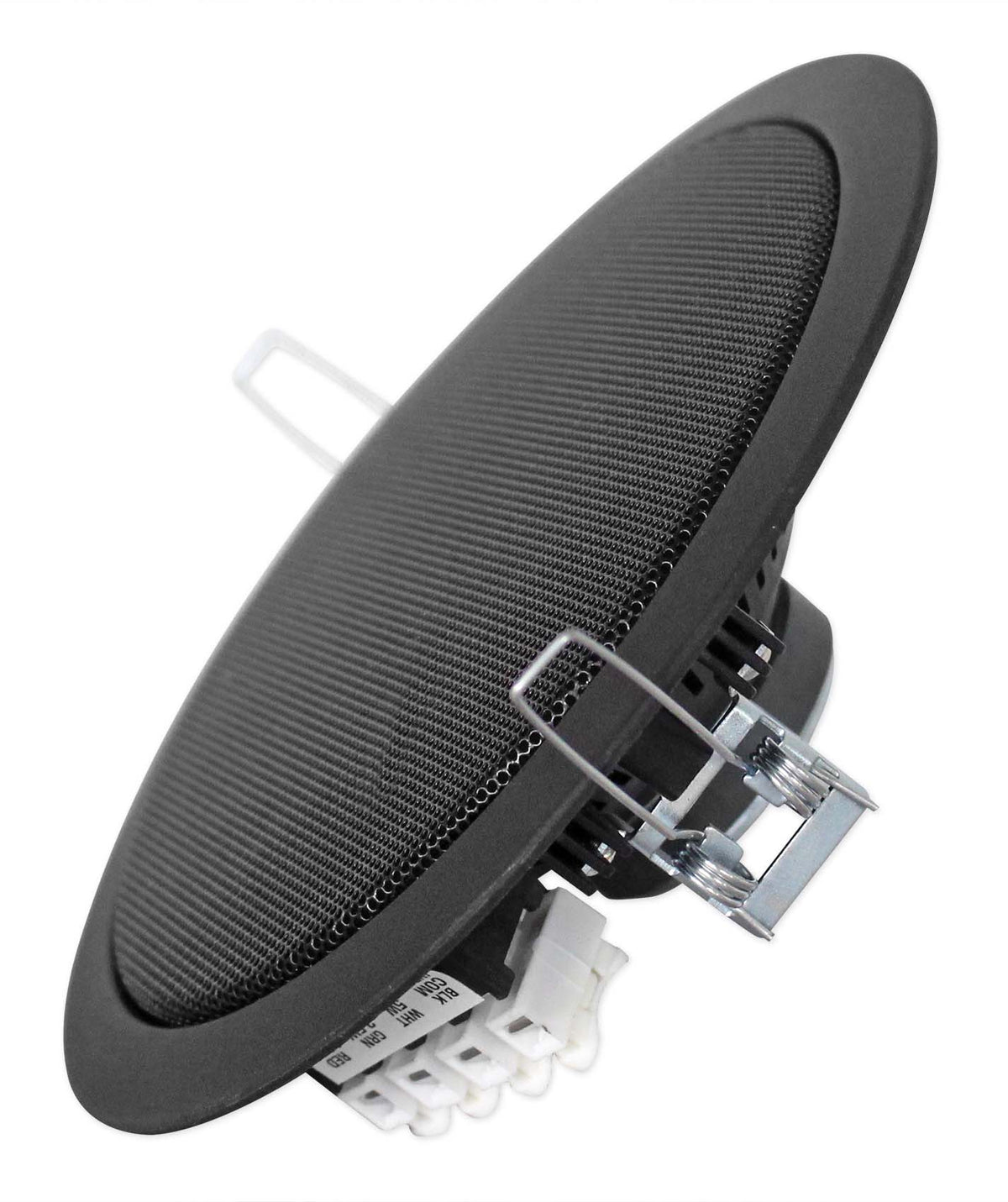

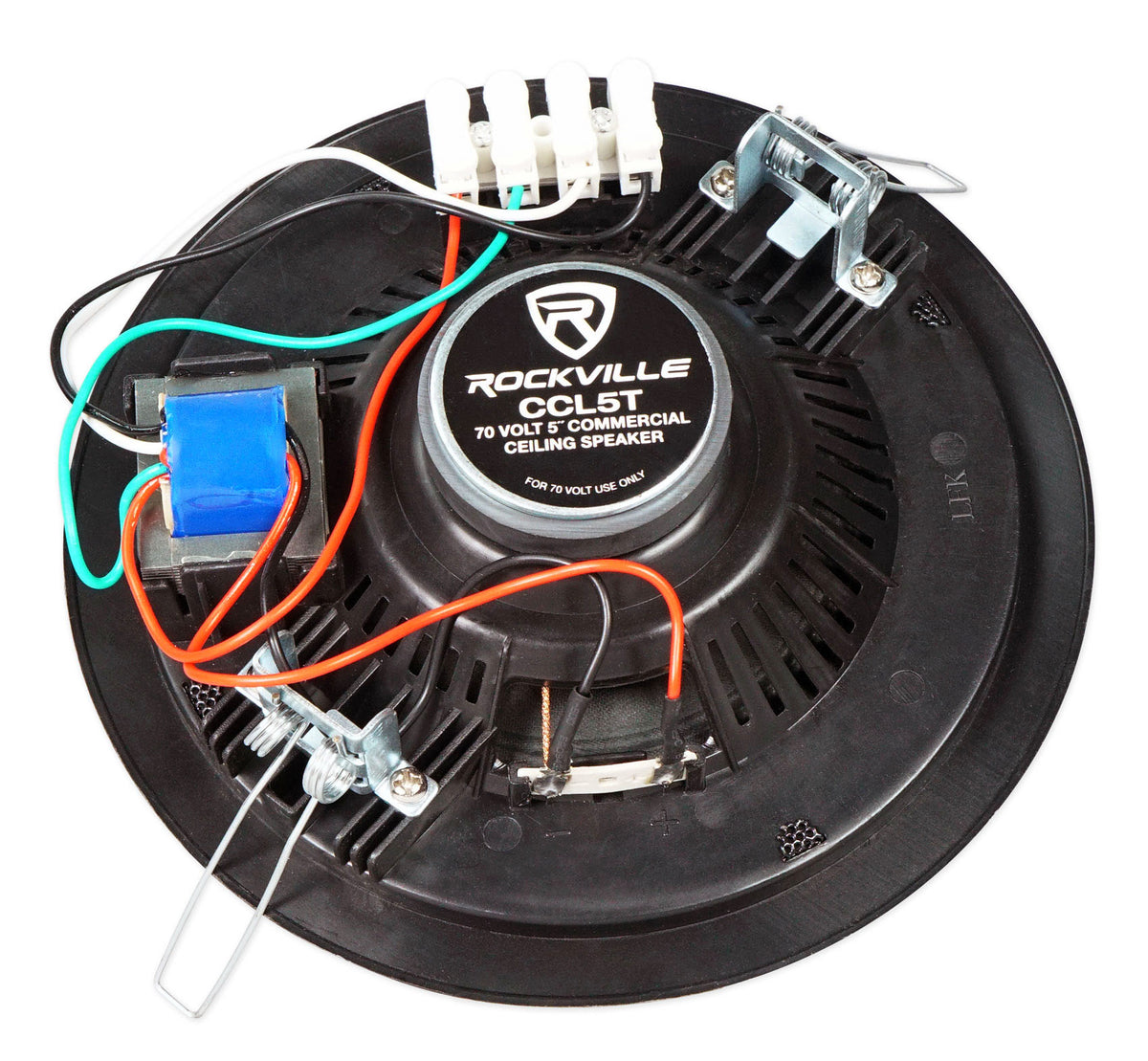

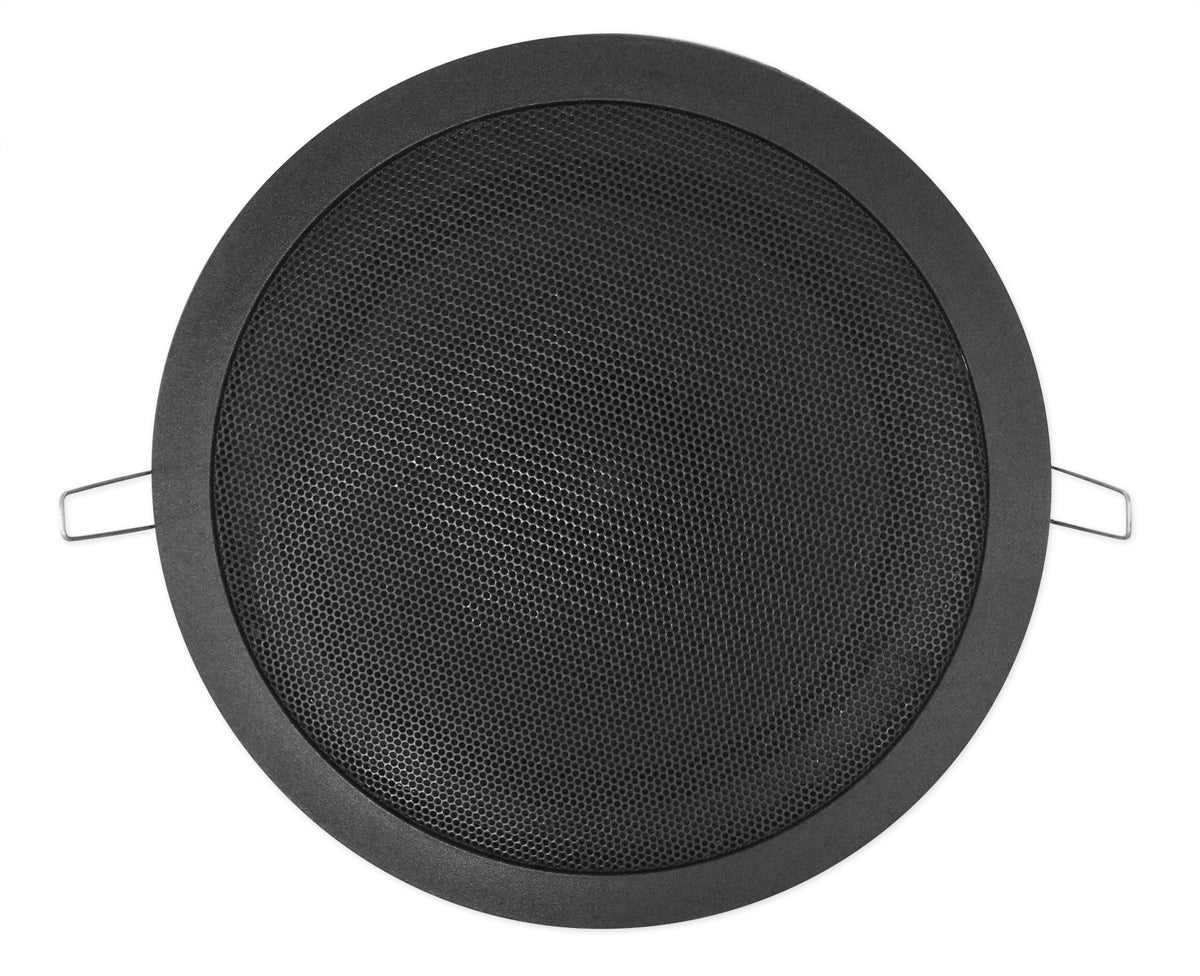

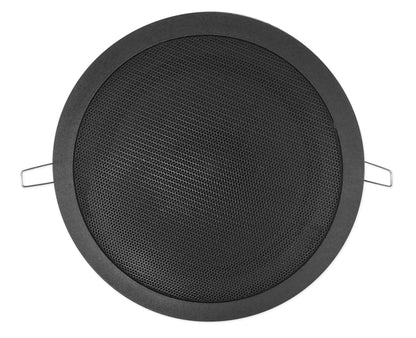

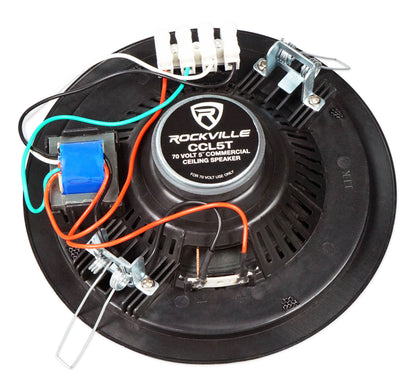

- Ceiling Speaker Type 5-Inch 70V Commercial Ceiling Speaker

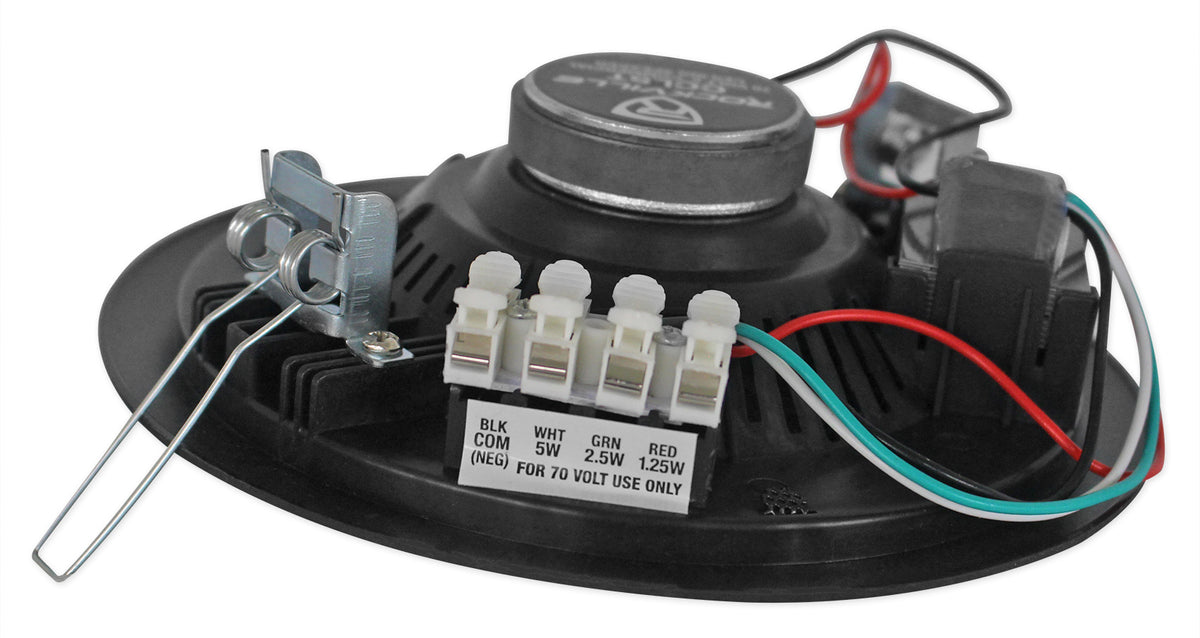

- Ceiling Speaker 70V Taps 1.25W, 2.5W, 5W
- Ceiling Speaker Frequency Response 100 Hz to 17 kHz
- Ceiling Speaker Sensitivity 86 dB at 1W/1m
- Ceiling Speaker Impedance 2K, 4K, 8K Ohms
- Ceiling Speaker Mounting Depth 1.77 in
- Ceiling Speaker Cutout Diameter 5.98 in
- Color Black; Paintable Ceiling Grilles
- Operating Temperature 32°F to 95°F
- Humidity 95% RH
- Storage Temperature -4°F to 185°F
- Weight 25.5 lb (amplifier); 4.16 lb per wall speaker
- Dimensions 17 in W x 16.3 in D x 3.5 in H (amplifier); 9.6 in W x 7.1 in D x 7.5 in H (wall speaker); 1.77 in mounting depth and 5.98 in cutout diameter (ceiling speaker)
