VMA1240 + (24) CCL6T Black
VMA1240 + (24) CCL6T Black

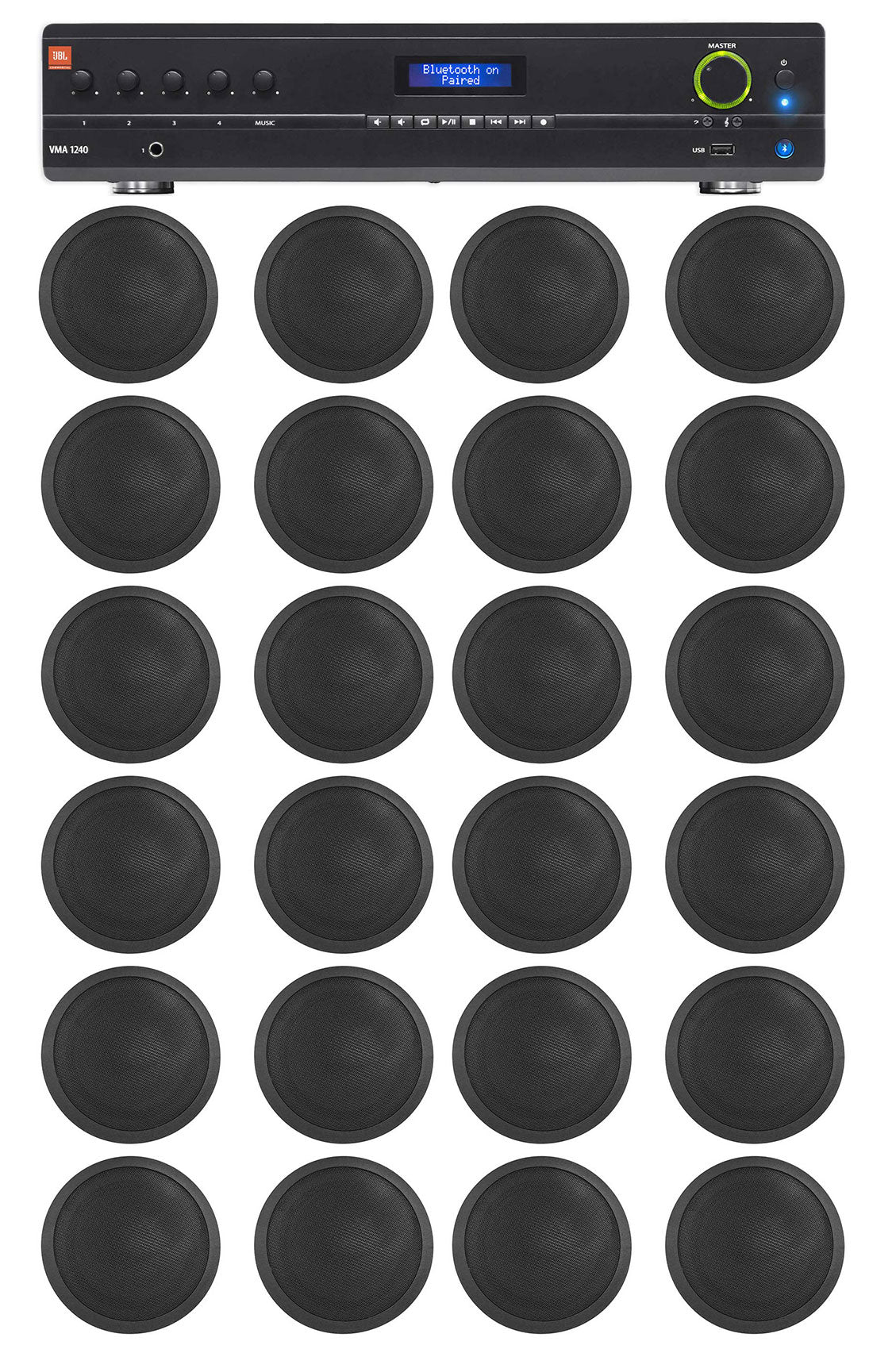

240W 70V Mixer Amplifier, 5 Inputs, 24 6-Inch Ceiling Speakers, Rack Mount Kit
Free Shipping
Features
- 240W amplifier with 70V and 100V outputs
- Five inputs with Bluetooth and USB playback support
- Twenty-four 6-inch speakers for distributed PA and background audio
- 2.5W, 5W, and 10W taps on every speaker
- Rack mount kit included for clean equipment installation
Couldn't load pickup availability
What's Included in the box
- VMA1240 240W 70V Bluetooth mixer/amplifier
- Rack mount kit

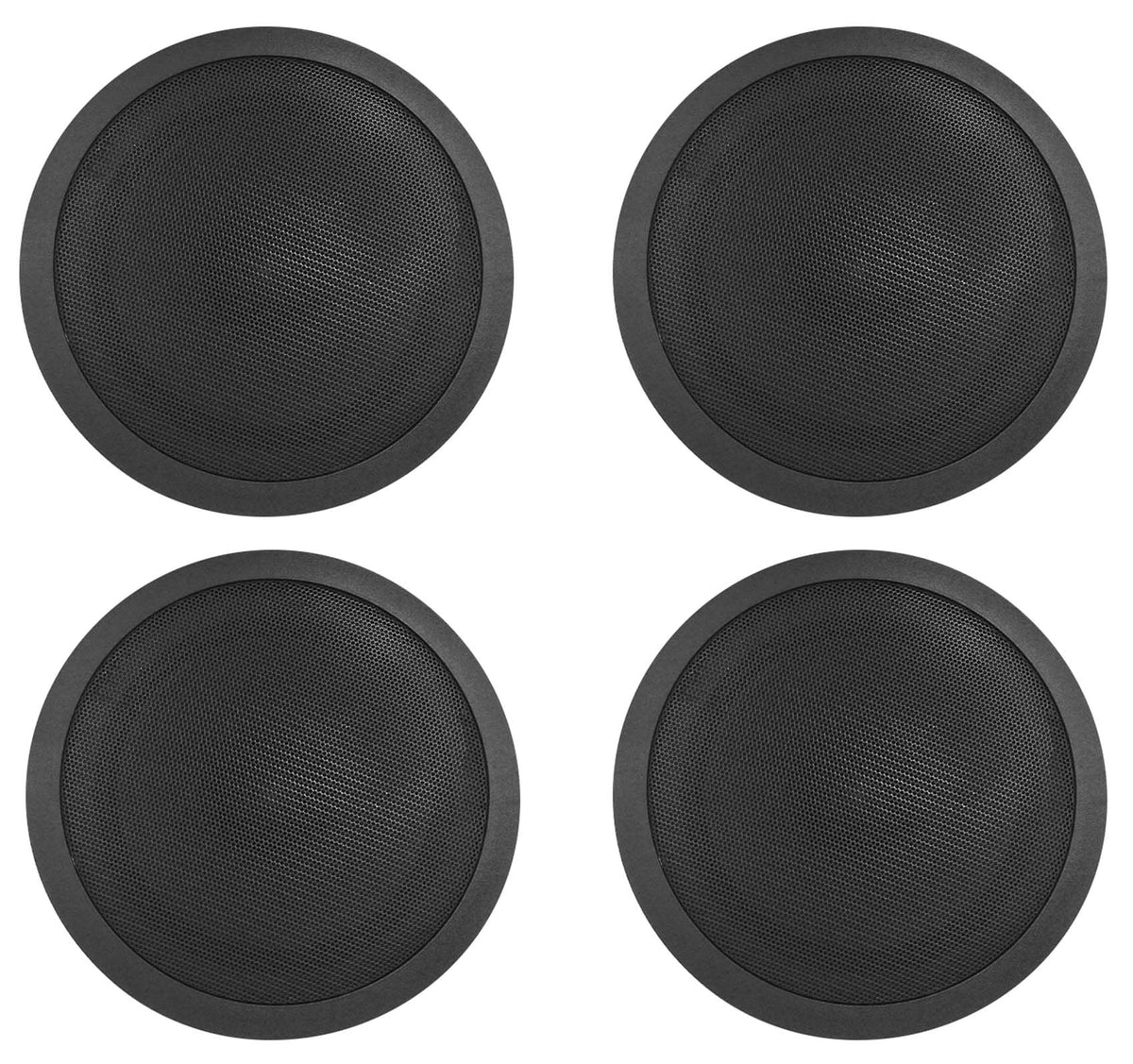

- Twenty-four CCL6T Black 70V 6-inch commercial ceiling speakers
SKU: SKU: VMA1240+(6) CCL6T BLACK
View full details











Product Description
Features
Distributed Commercial Audio
The 240W single-channel amplifier feeds 70V or 100V speaker lines, while 24 ceiling speakers cover restaurants, offices, schools, and retail spaces.
Flexible Speaker Taps

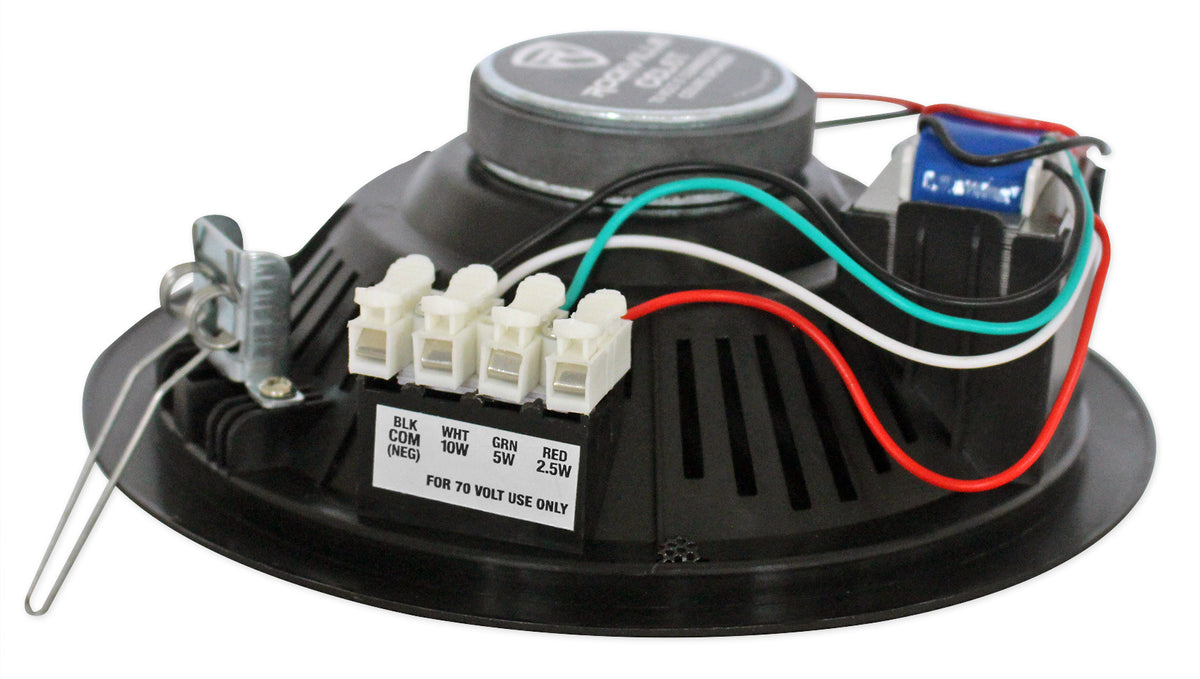

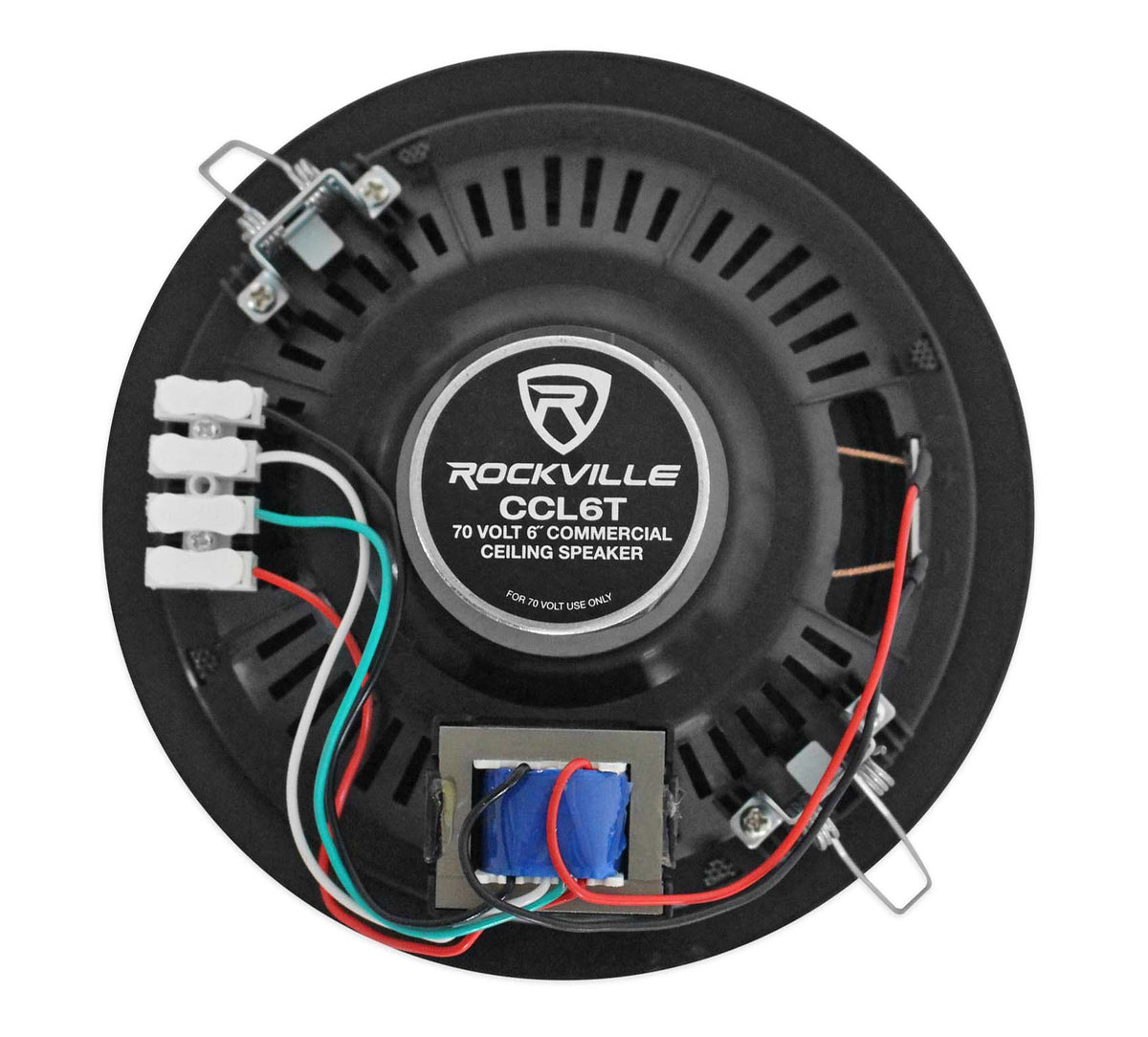

Each speaker offers 2.5W, 5W, and 10W taps, giving installers practical control over volume levels for dining rooms, hallways, offices, and other areas.
Source Connectivity
Five inputs, Bluetooth, USB playback support, RCA, Euroblock, and 1/4-inch connections accommodate microphones, line sources, and playback devices in one system.
Front Panel Control

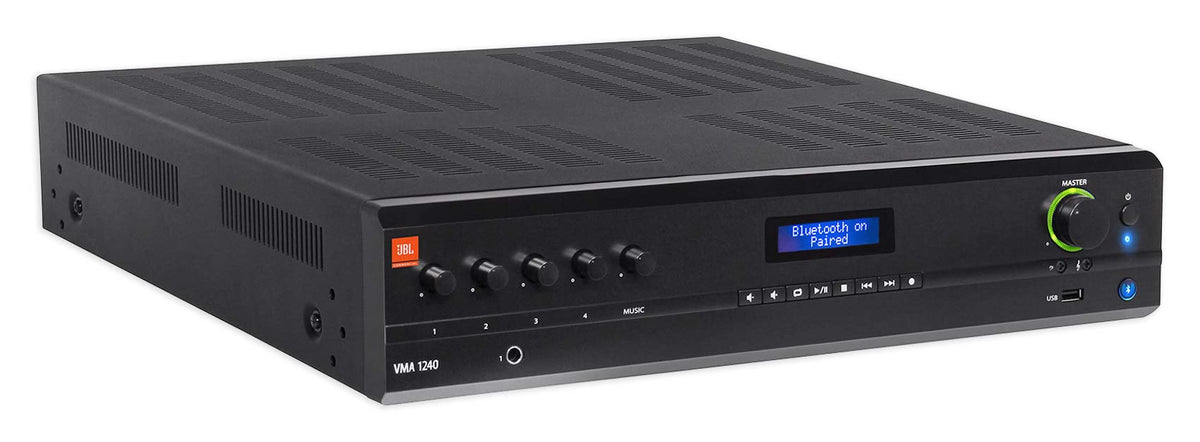

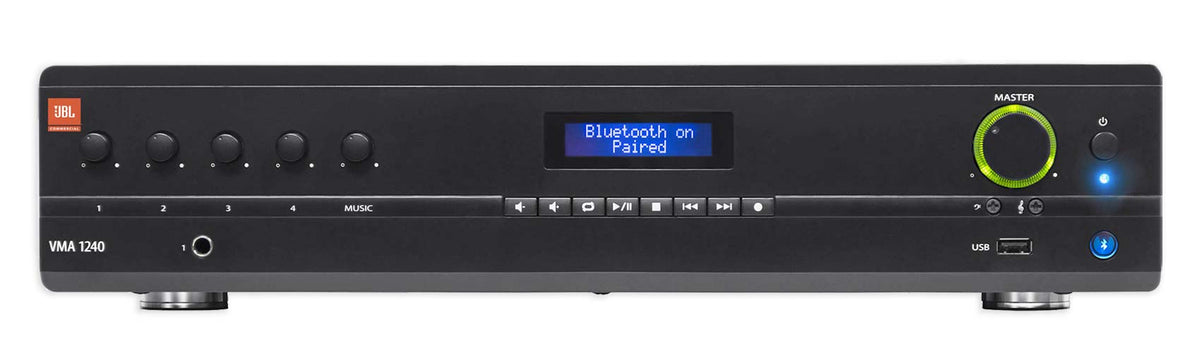

Front-panel controls, a display, per-channel bass and treble adjustment, configurable output routing, and voice-activated ducking keep daily audio easy to manage.
Clean Installation

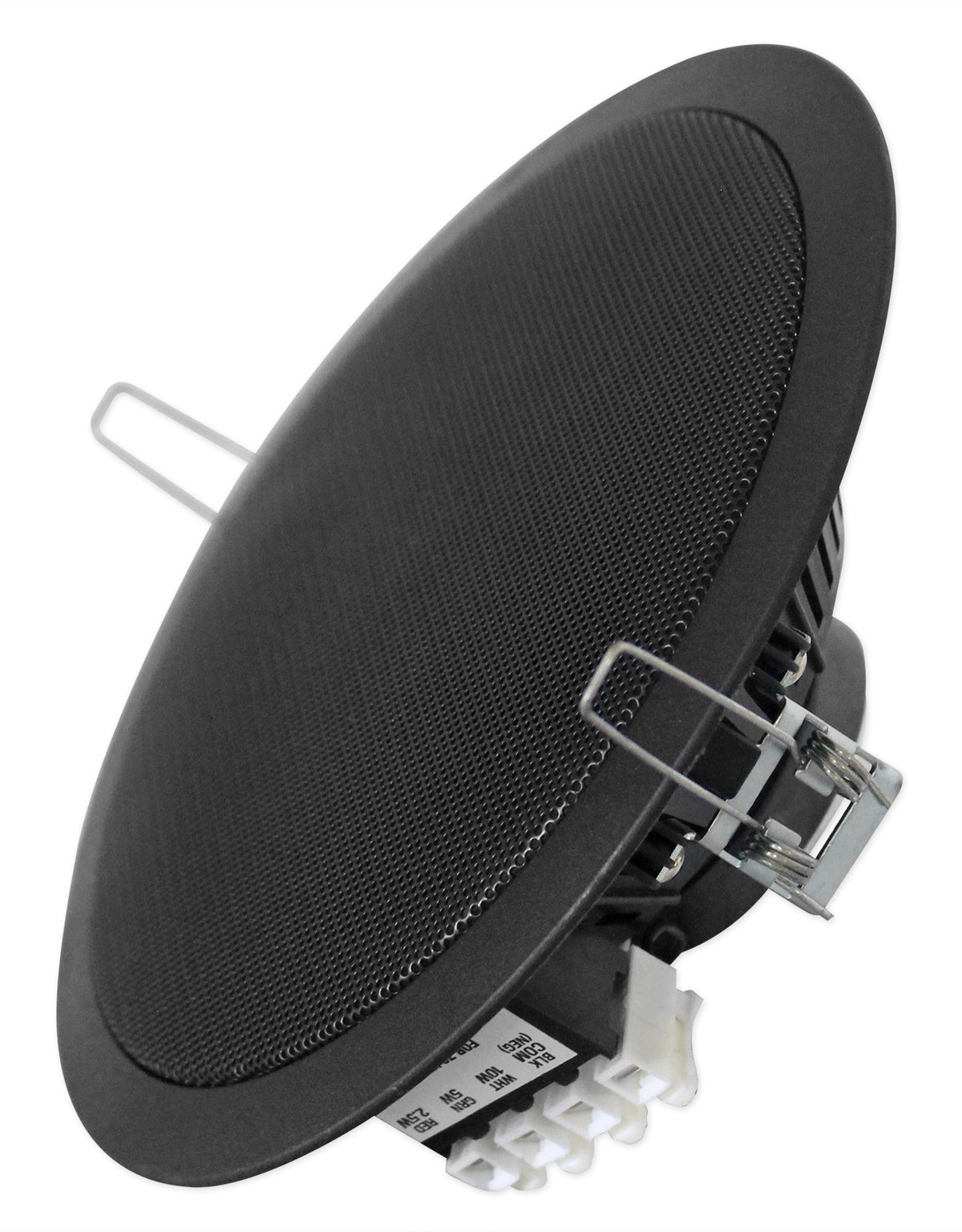

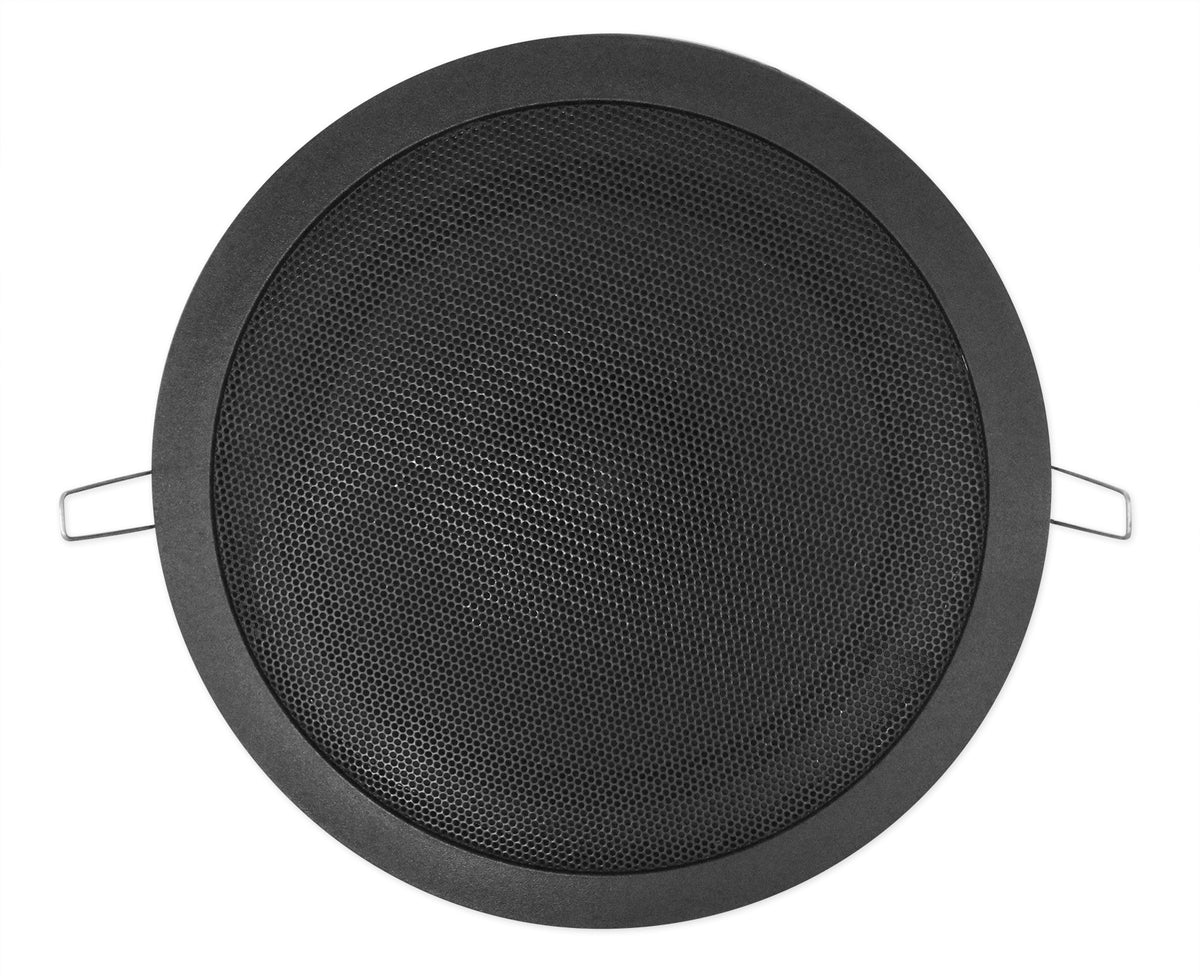

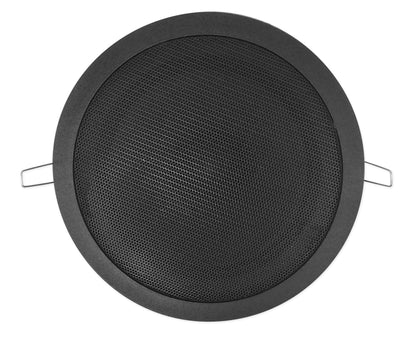

Paintable flush-mount grilles, spring-loaded push terminals, fireproof screw blocks, and a rack mount kit support tidy commercial installations with straightforward speaker wiring.
Technical Specifications
- Product Type 240W 70V/100V Bluetooth Mixer/Amplifier With 24 Commercial Ceiling Speakers
- Amplifier Power 240W into 4 Ohms or 8 Ohms
- Output Channels 1
- Input Channels 5

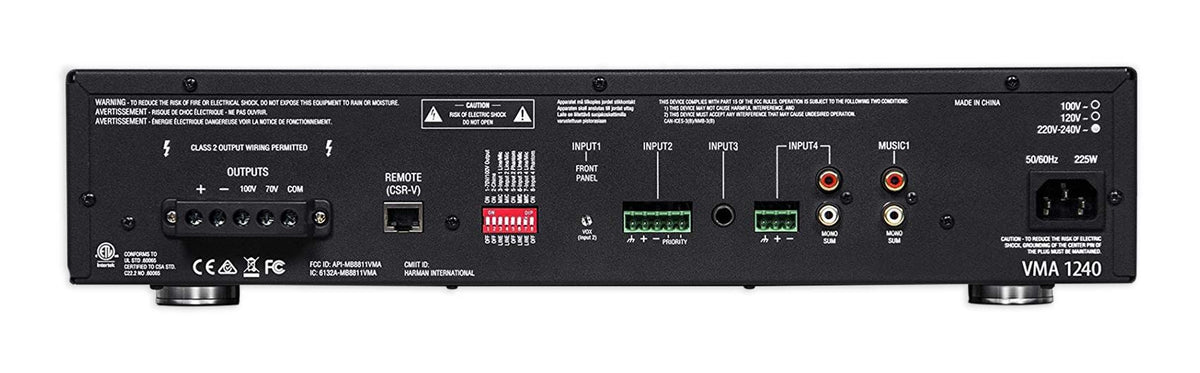

- Amplifier Inputs Euroblock, RCA, and 1/4-inch
- Source Support Bluetooth and USB playback
- Tone Control Bass and treble, ±14 dB at 50 Hz and 10 kHz
- Amplifier Frequency Response 4/8 Ohms: 20 Hz to 20 kHz, ±2 dB; 70V/100V: 80 Hz to 15 kHz, ±3 dB
- Total Harmonic Distortion Less than 0.5%, 20 Hz to 20 kHz
- Signal To Noise Ratio Greater than 76 dB
- Phantom Power 27 VDC
- Minimum Load Impedance 4 Ohms low impedance; 20 Ohms at 70V; 40 Ohms at 100V
- Speaker Quantity 24
- Speaker Size 6-inch woofer
- Speaker Taps 2.5W, 5W, or 10W per speaker
- Speaker Frequency Response 80 Hz to 15 kHz
- Speaker Sensitivity 88 dB at 1W/1m
- Speaker Impedance 1K, 2K, or 4K ohms
- Speaker Mounting Depth 2.36 in
- Speaker Cutout Diameter 6.5 in
- Speaker Color Black, paintable
- Weight 25.5 lb (amplifier)
- Dimensions 17 in x 16.3 in x 3.5 in (amplifier)
