VMA1240 + (24) CCL6T White
JBL
VMA1240 + (24) CCL6T White
VMA1240 + (24) CCL6T White

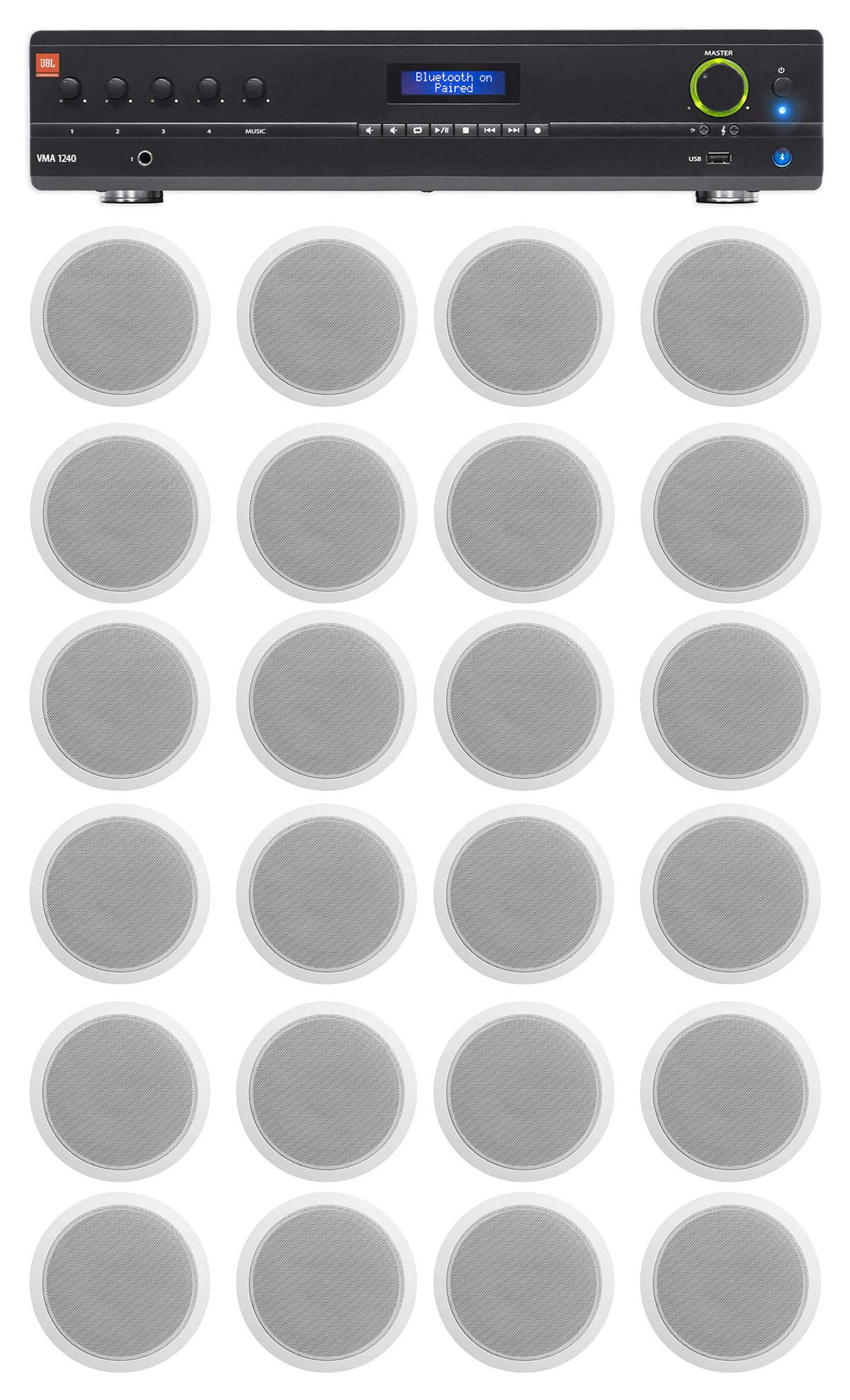

240W 70V Bluetooth Mixer Amplifier, 5 Inputs, Voice-Activated Ducking, (24) 6" White Ceiling Speakers
Free Shipping
Features
- VMA1240 240W mixer amp runs 70V, 100V, or 4/8 ohm speaker loads
- Five-input mixer with Bluetooth, USB, mic, line, and RCA sources
- Voice-activated ducking lowers music automatically during announcements
- Includes (24) CCL6T 6" white ceiling speakers with 10W, 5W, and 2.5W taps
- Rack mount kit, front-panel display, and per-channel bass and treble
Couldn't load pickup availability
What's Included in the box
- (1) VMA1240 240W 5-Input 70V Bluetooth Mixer Amplifier
- (1) Rack Mount Kit
- (24) CCL6T 6" 70V Ceiling Speakers, White
SKU: SKU: VMA1240+(6) CCL6T WHITE
View full details










Product Description

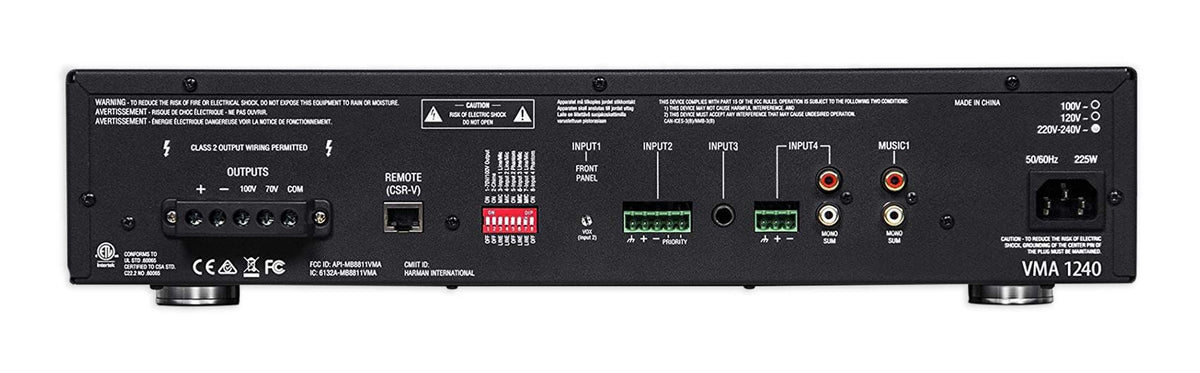

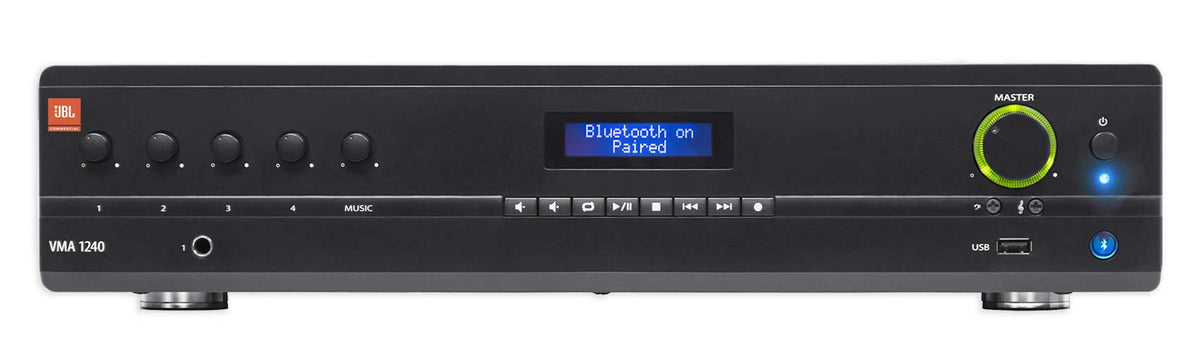

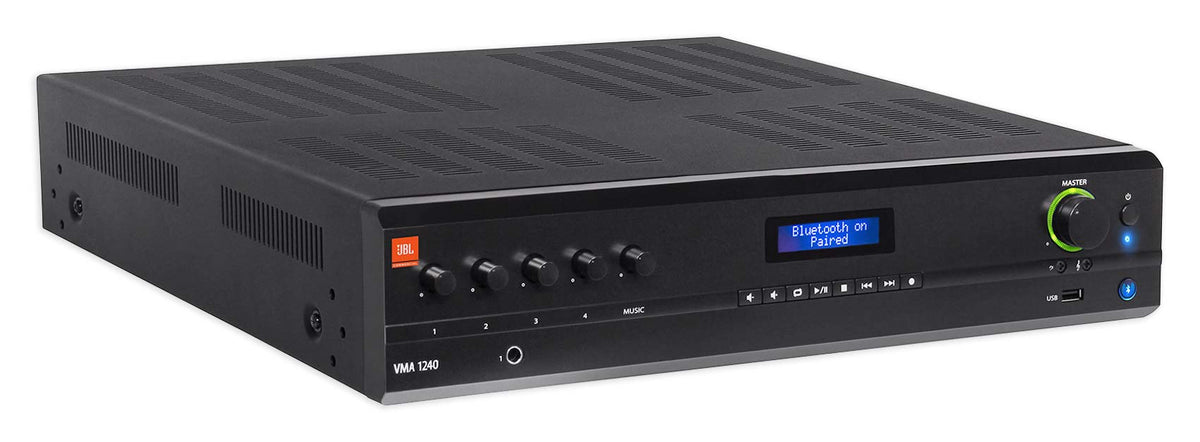

The single 240W output runs 70V, 100V, or 4/8 ohm loads, with configurable output routing, Euroblock outputs, and 27V phantom power for condenser mics. A front-panel display keeps settings easy to read, and the included rack mount kit puts it in an equipment rack or closet.

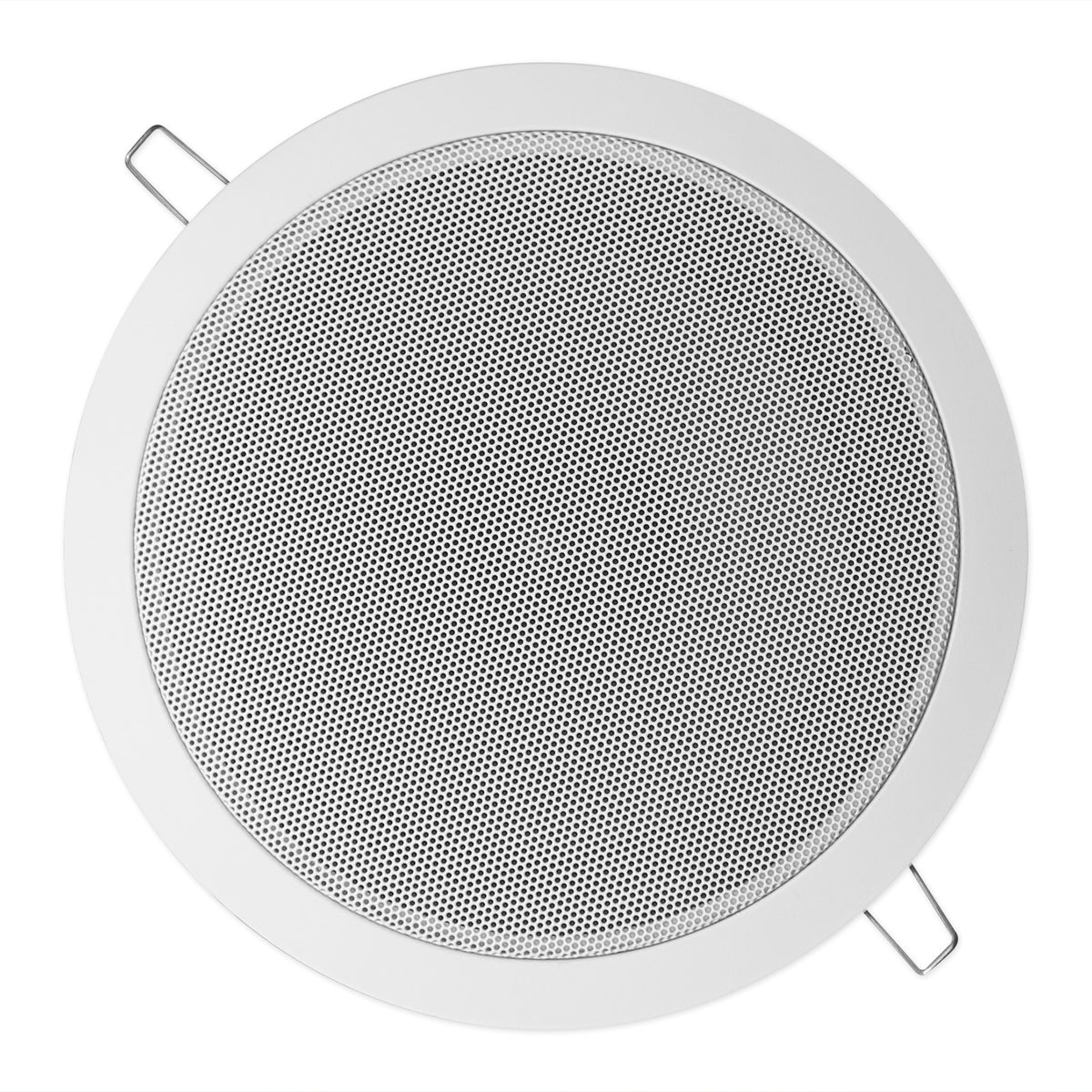

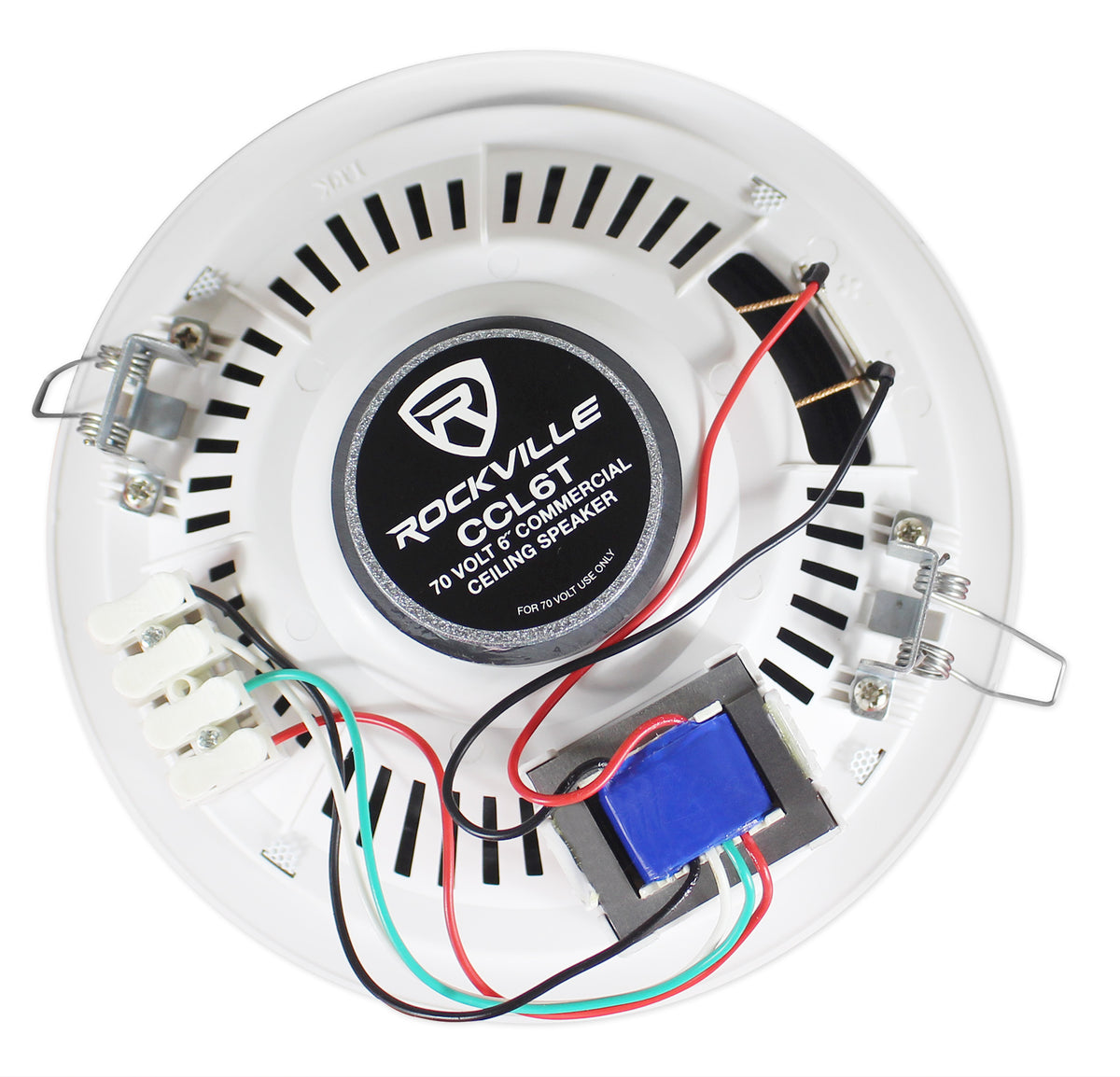

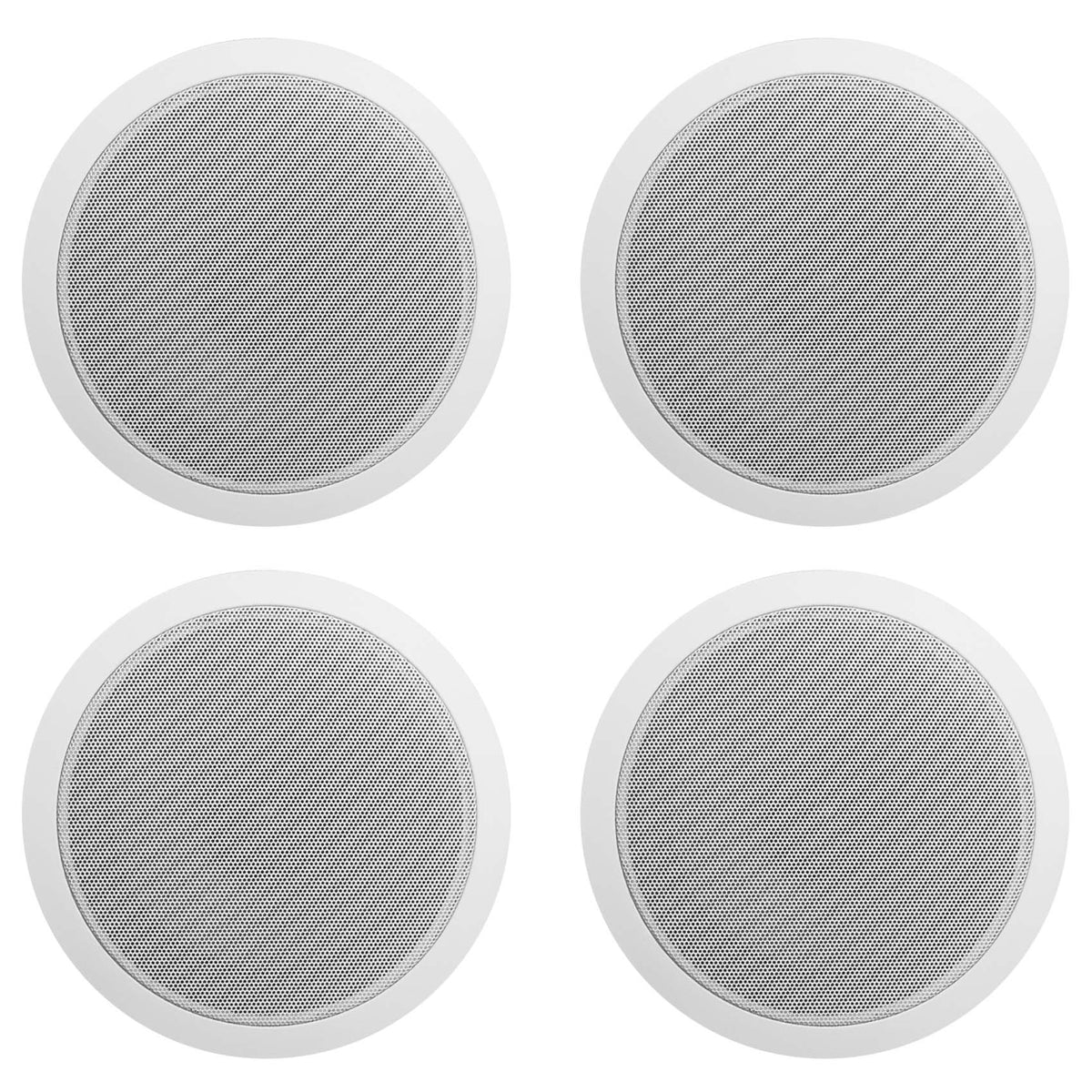

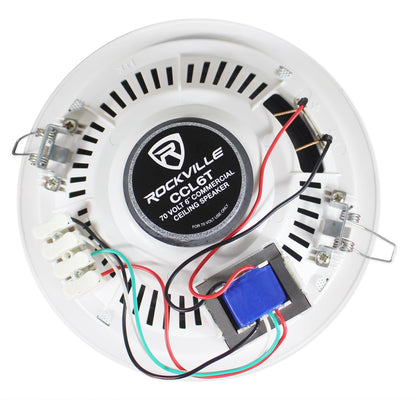

The 24 ceiling speakers are the part of the system you would otherwise source separately. Each CCL6T uses a 6" double paper cone woofer and a built-in transformer with 10W, 5W, and 2.5W color-coded terminals, so the dining room can play at 5W while hallways and restrooms sit at 2.5W. Tapping all 24 at 5W uses 120W, half of the amp's output, leaving plenty of room to bump busier areas to 10W. They need a 6.5" cut-out and only 2.36" of mounting depth, and the white grilles are paintable to match the ceiling.
Features
Announcements That Cut Through
Voice-activated ducking drops the music the moment someone talks into the mic, so specials, pages, and last call come through clearly every time.
Every Source in One Mixer
Five inputs cover mics, line sources, RCA, USB drives, and Bluetooth streaming, with bass and treble on each channel to tune every source for the room.
Runs Nearly Any Speaker Setup
The 240W output drives 70V, 100V, or 4/8 ohm loads with configurable routing, and 27V phantom power supports condenser mics for paging.
Ceiling Speakers Included

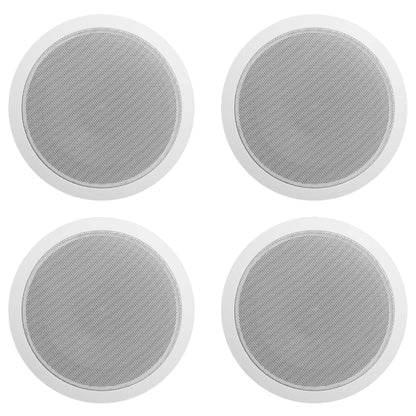

Twenty-four white 6" ceiling speakers come in the box, giving you full room coverage without sourcing speakers separately, and the grilles can be painted to match.
Set Each Area Its Own Level

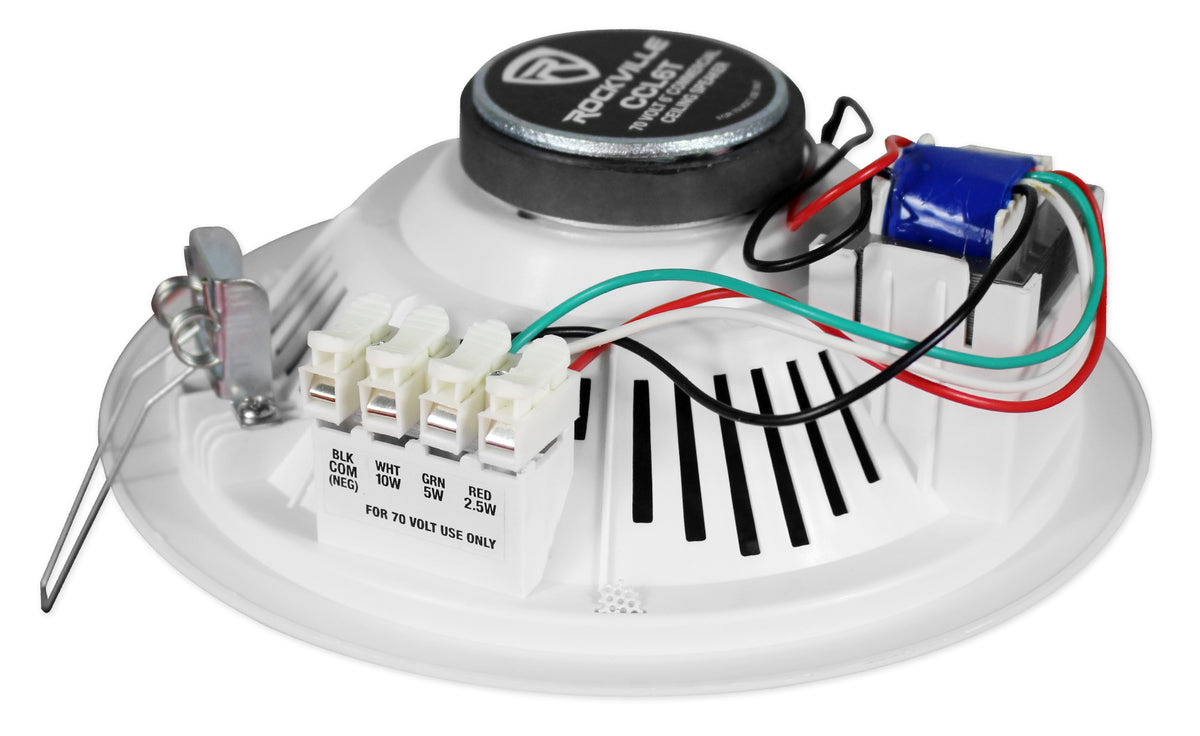

Color-coded 10W, 5W, and 2.5W taps on every speaker let dining areas play fuller while hallways and restrooms stay quiet on the same 70V line.
Technical Specifications
- Product Type 70V Commercial Mixer Amplifier and Ceiling Speaker System
- Amplifier Model VMA1240
- Amplifier Output Power 240W into 4 or 8 Ohms, 70V, or 100V
- Output Channels 1, Configurable Output Routing
- Input Channels 5
- Input Types Euroblock, RCA, 1/4", USB, Bluetooth
- Output Connectors Euroblock
- Tone Controls Bass ±14 dB @ 50Hz, Treble ±14 dB @ 10kHz, Per Channel
- Ducking Voice-Activated
- Input Sensitivity Mic: 5.5 mVrms; Line: 1.3 Vrms; RCA: 130 mVrms
- Input Impedance Mic: 400 Ohms; Line: 20k Ohms; RCA: 50k Ohms
- Phantom Power 27 VDC
- Amplifier Frequency Response 4/8 Ohm: 20Hz to 20kHz ±2 dB; 70V/100V: 80Hz to 15kHz ±3 dB
- THD Under 0.5%, 20Hz to 20kHz
- Signal to Noise Ratio Over 76 dB
- Crosstalk -70 dB
- Minimum Load Impedance 4 Ohms Low-Z; 20 Ohms 70V; 40 Ohms 100V
- AC Voltage 100, 120, 220 to 240 VAC, 50/60Hz
- Operating Temperature 32°F to 95°F
- Rack Mount Rack Mount Kit Included
- Speaker Model CCL6T
- Speaker Quantity 24
- Speaker Woofer 6" Double Paper Cone, 0.75" Voice Coil, 3.5 oz Ferrite Magnet
- Speaker Frequency Response 80Hz to 15kHz
- Speaker Sensitivity 88 dB @ 1W/1m
- Speaker Impedance 1K, 2K, 4K Ohms
- 70V Taps 10W (White), 5W (Green), 2.5W (Red)
- Speaker Terminals Spring Loaded Push Terminals, Fireproof Screw Terminal Block
- Speaker Grille Flush Mount, Paintable
- Speaker Color White
- Cut-Out Diameter 6.5"
- Mounting Depth 2.36"
- Weight Amplifier: 25.5 lb
- Dimensions Amplifier: 17" x 16.3" x 3.5" (W x D x H)
