VMA160 + (8) CCL5T Black 70V Audio System
JBL

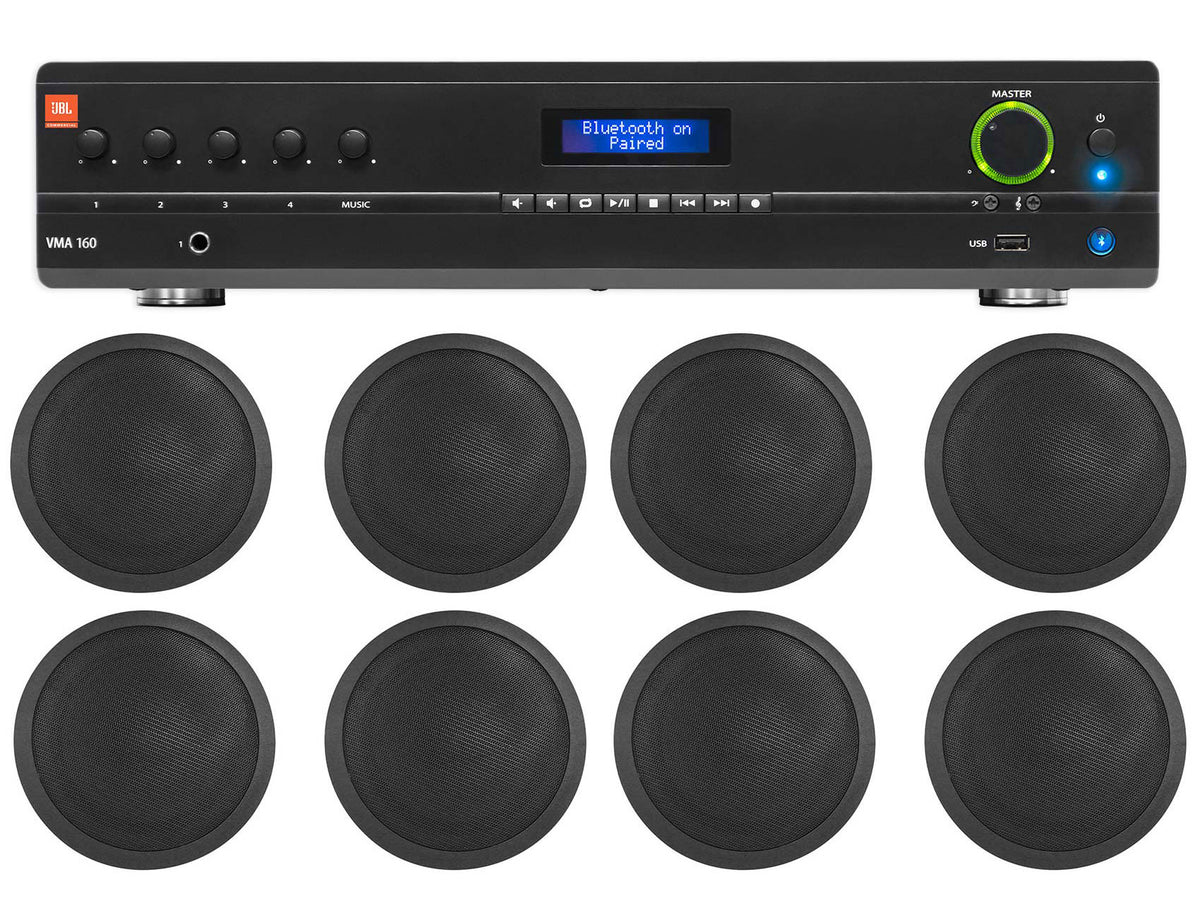

VMA160 + (8) CCL5T Black 70V Audio System
VMA160 + (8) CCL5T Black 70V Audio System
60W 70V Mixer/Amplifier, Bluetooth, 5 Inputs, Eight 5" Ceiling Speakers
Free Shipping
Features
- 60W output supports 70V, 100V, 4 ohm, and 8 ohm systems
- Bluetooth and five inputs handle music and paging sources
- Eight ceiling speakers offer 5W, 2.5W, and 1.25W tap settings
- Eight 5W taps draw 40W total below the amplifier's 60W maximum
- Paintable grilles and spring terminals suit commercial ceiling installations
Couldn't load pickup availability
What's Included in the box
- (1) VMA160 60W 70V mixer/amplifier with Bluetooth and 5 channel inputs

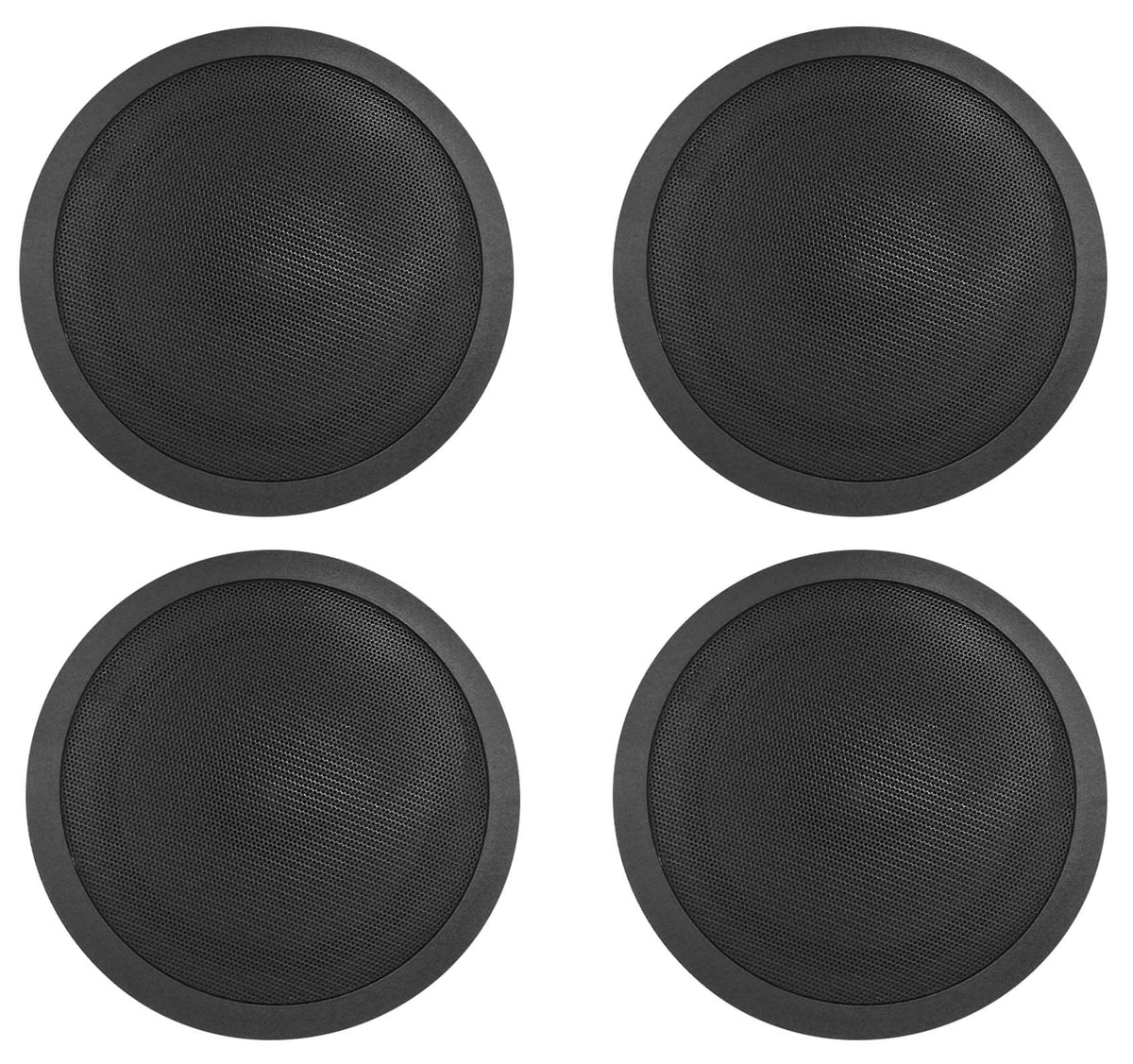

- (8) CCL5T Black 70V 5 inch commercial ceiling speakers
- Rack mounting hardware
SKU: SKU: VMA160+(2) CCL5T BLACK
View full details











Product Description
Features
Distributed Audio Coverage
Eight 5 inch ceiling speakers spread sound across restaurants, offices, schools, and retail spaces for announcements or background music throughout the installation.
Room-Level Volume Control
Choose 5W, 2.5W, or 1.25W transformer taps on each speaker to set output for dining areas, hallways, offices, or quieter rooms.
Music And Paging Support
Bluetooth, five inputs, paging chime, and priority muting let one amplifier handle daily music playback alongside clear public-address announcements in the same space.
Sound Shaping
A 20 Hz to 20 kHz response, below 0.5% THD, and independent bass and treble controls support balanced playback from varied sources.
Installation-Ready Hardware

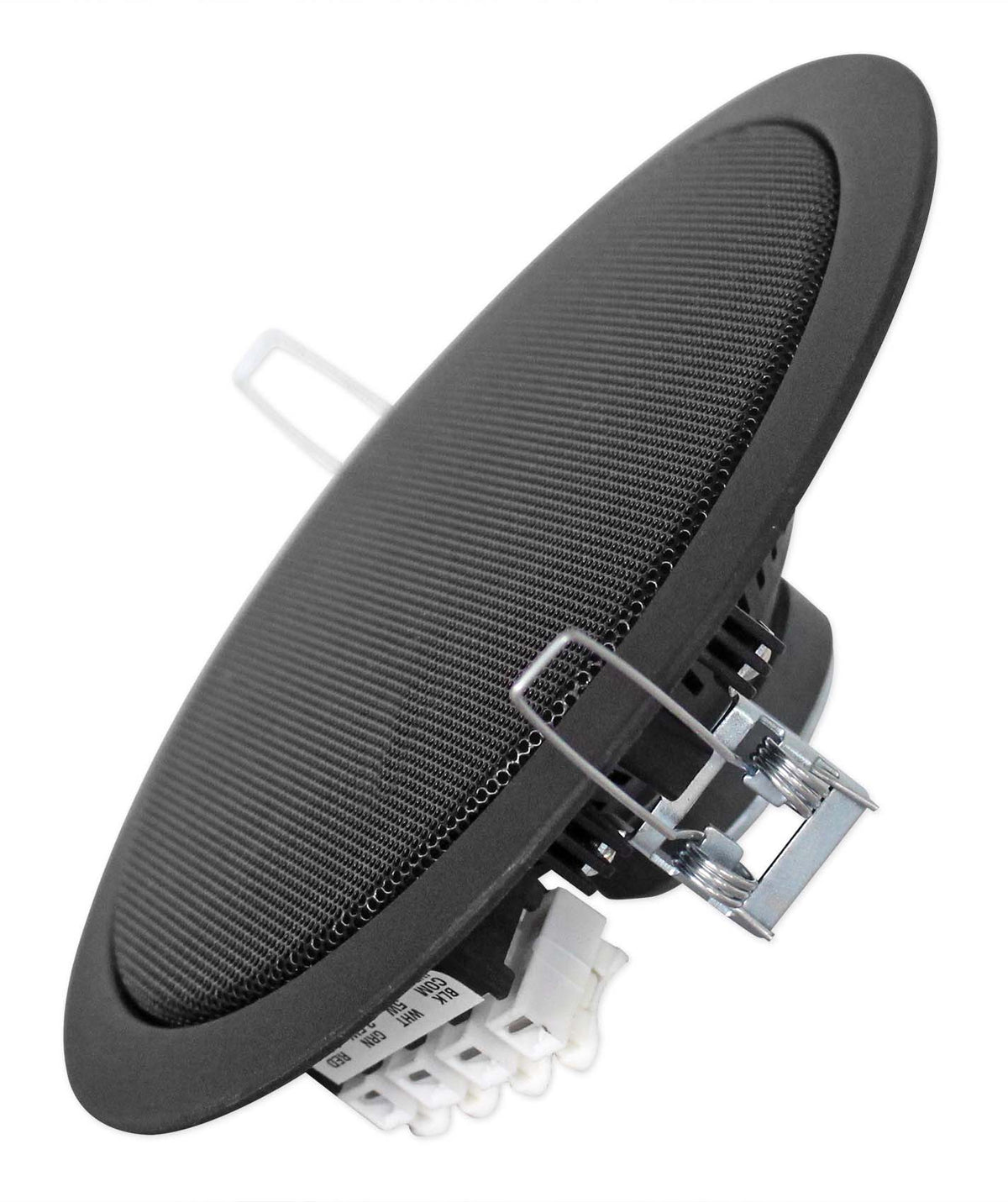

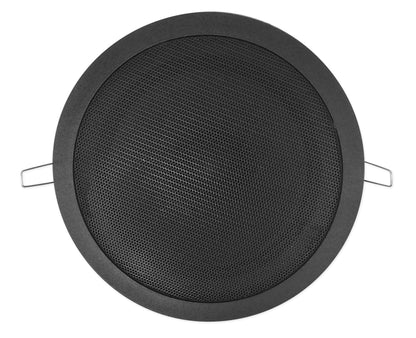

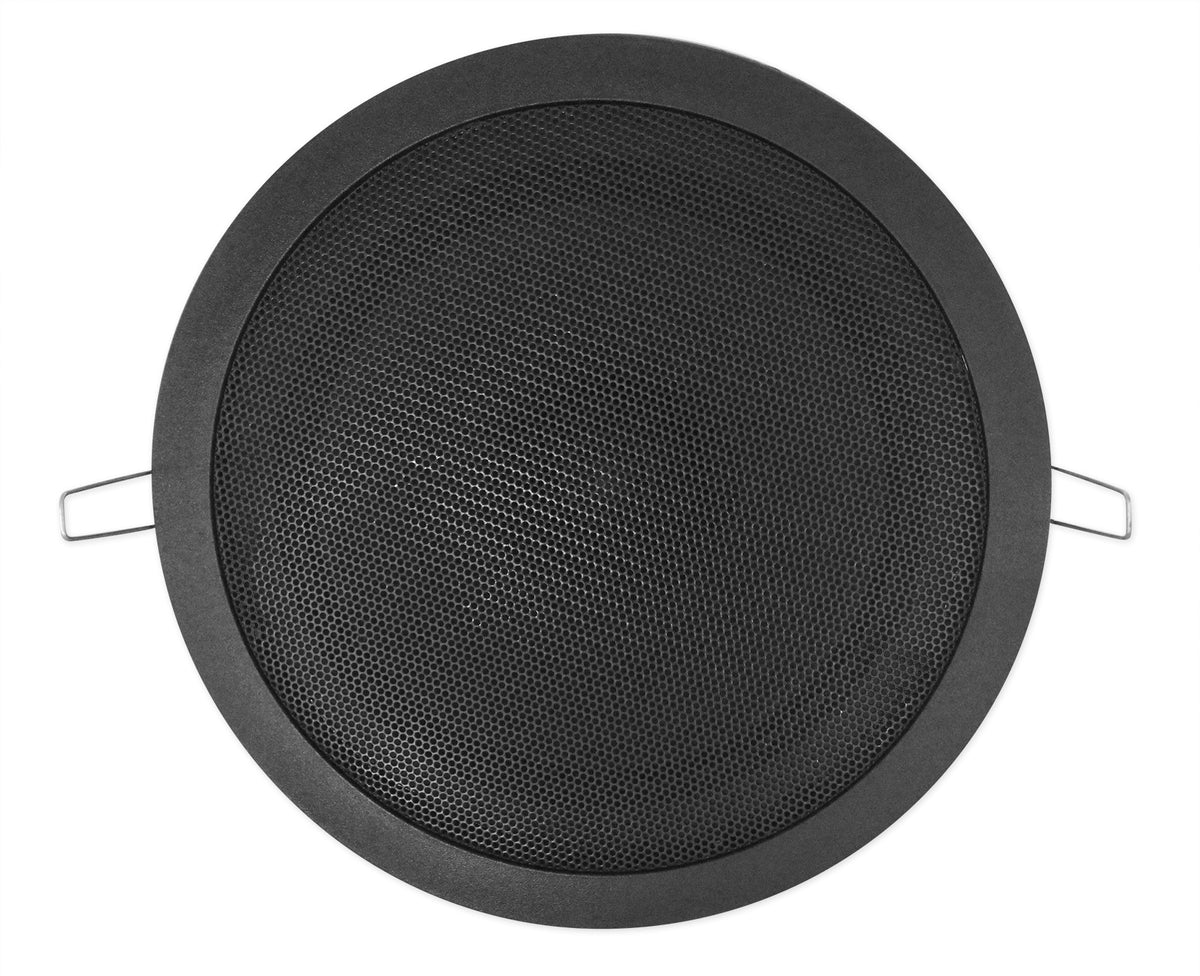

Paintable flush grilles, spring-loaded push terminals, a fireproof screw terminal block, and rack hardware support clean commercial installation in ceiling and rack locations.
Technical Specifications
- Product Type 70V Commercial Audio System

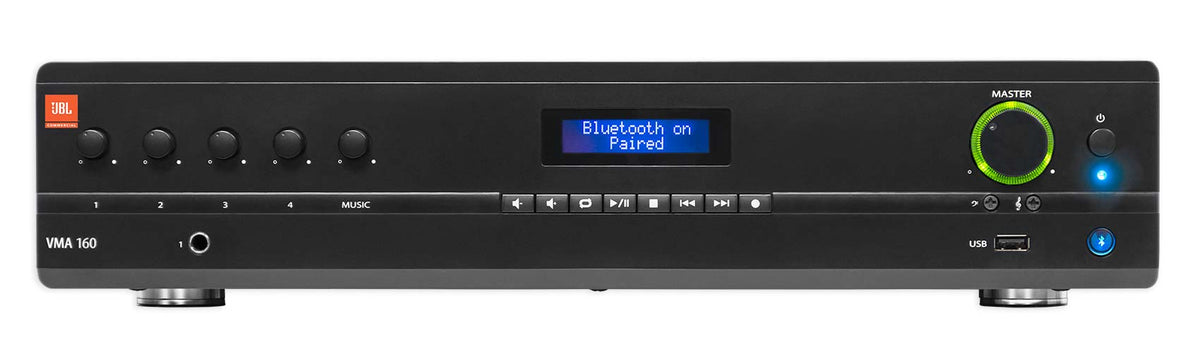

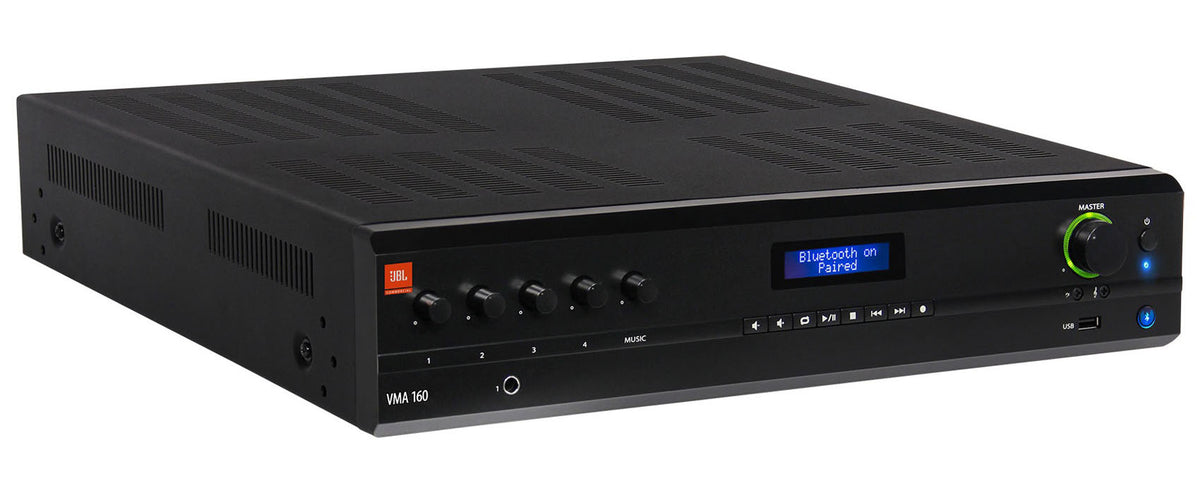

- Included Amplifier VMA160 60W Mixer/Amplifier
- Included Speakers (8) CCL5T Black 5 in 70V Ceiling Speakers
- Maximum Output Power 60W

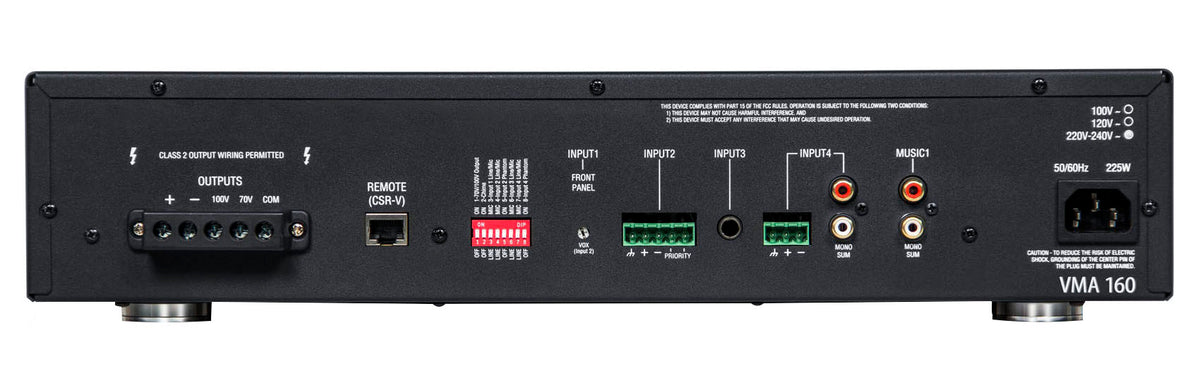

- Amplifier Outputs 70V and 100V high impedance; 4 ohm and 8 ohm low impedance
- Number of Inputs 5
- Number of Outputs 1
- Amplifier Frequency Response 20 Hz to 20 kHz
- Amplifier THD Below 0.5%
- Signal-to-Noise Ratio >76 dB
- Bluetooth Yes
- Phantom Power 27 VDC
- Crosstalk -70 dB
- Insertion Loss 1 dB maximum
- Tone Control Bass +/-14 dB at 50 Hz; treble +/-14 dB at 10 kHz
- Input Impedance Mic: 400 ohms; line: 20 kOhms balanced; RCA: 50 kOhms
- Input Sensitivity Mic: 5.5 mVRMS; line: 1.3 VRMS; RCA stereo: 130 mVRMS
- AC Line Voltages 100V, 120V, 220V, and 220 to 240V at 50/60 Hz
- Speaker Tap Settings 5W, 2.5W, and 1.25W
- Speaker Frequency Response 100 Hz to 17 kHz
- Speaker Sensitivity 86 dB at 1W/1m
- Speaker Impedance 2K, 4K, and 8K ohms

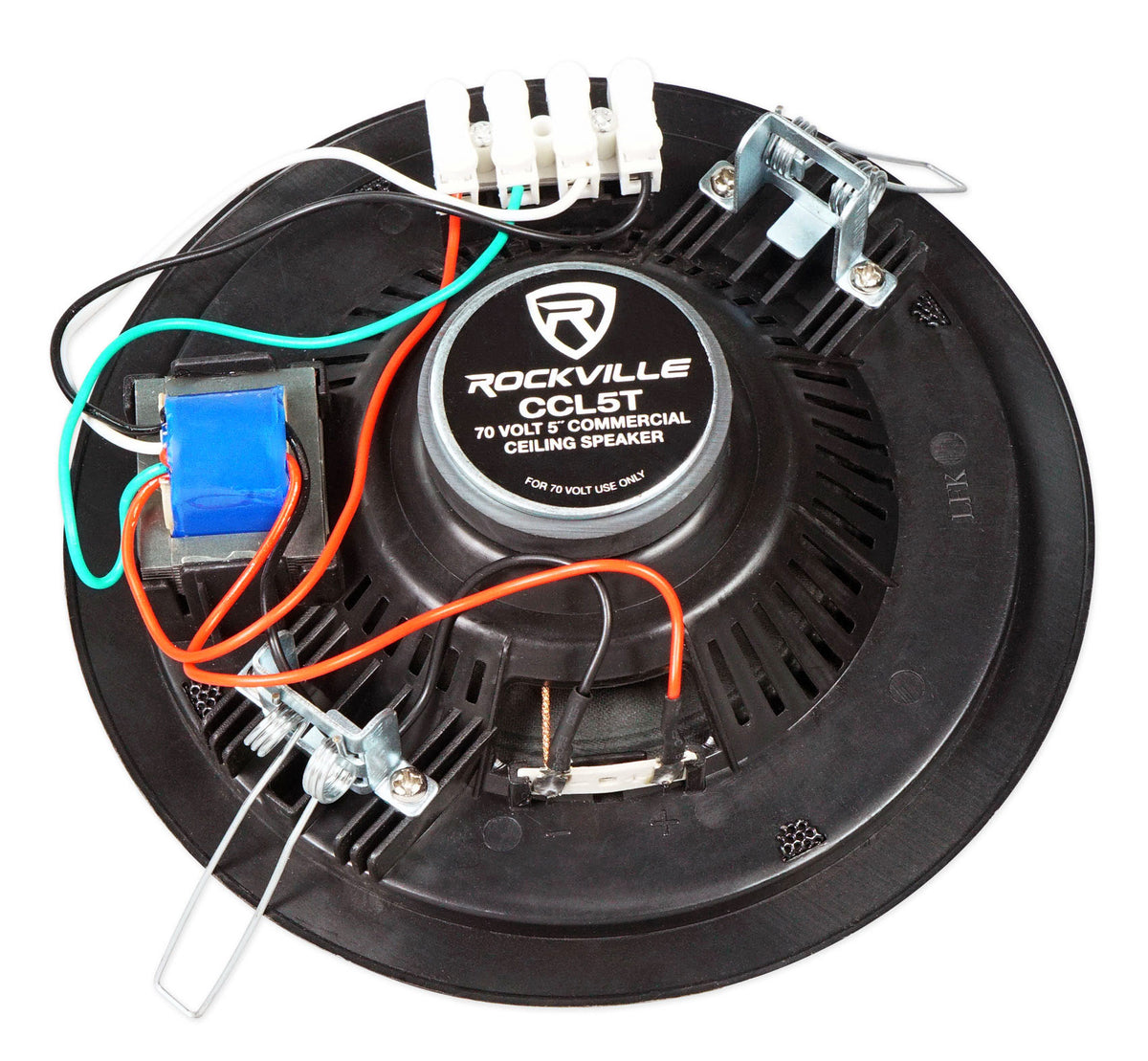

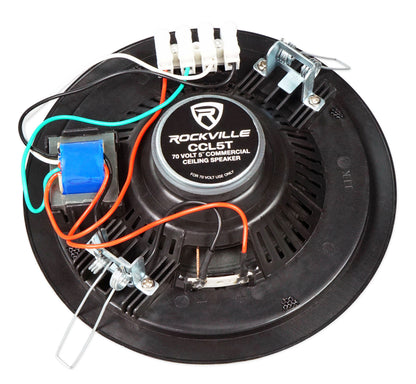

- Speaker Construction Double paper cone, 0.5 in voice coil, 1.7 oz ferrite magnet

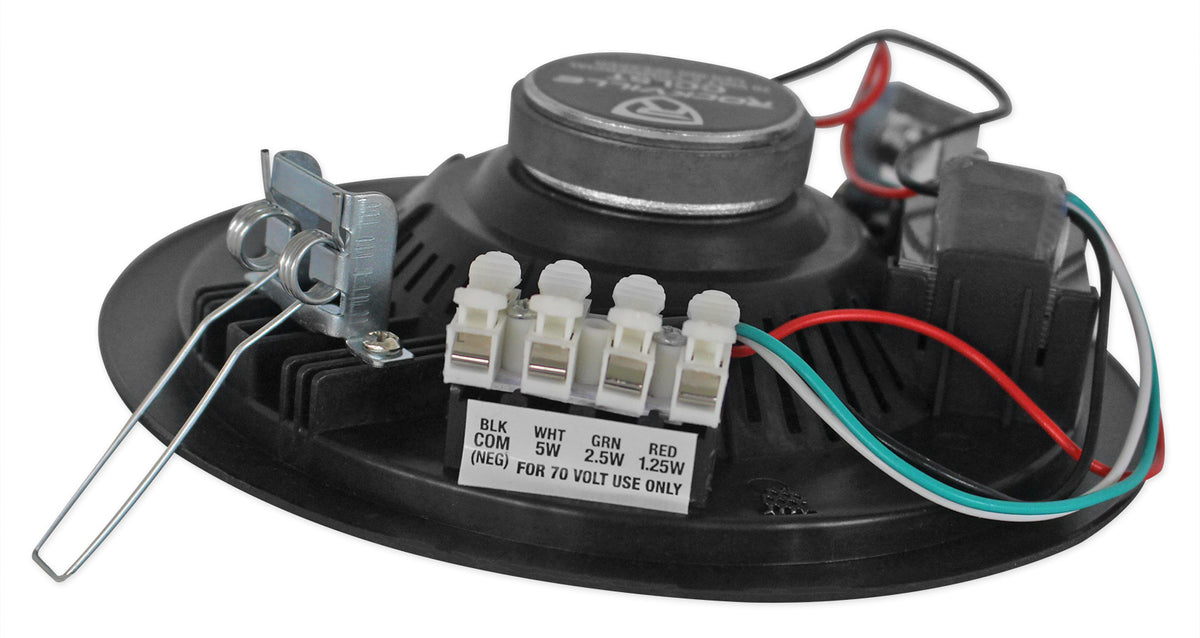

- Speaker Terminals Fireproof screw terminal block and spring-loaded push terminals
- Speaker Mounting Depth 1.77 in
- Speaker Cut-Out Diameter 5.98 in
- Speaker Finish Black, paintable
- Weight 19.4 lb (amplifier)
- Dimensions 17 in W x 16.3 in D x 3.5 in H (amplifier)
