VMA160 + (4) WET-5W 70V Sound System
VMA160 + (4) WET-5W 70V Sound System
60W 70V Mixer Amp, Bluetooth, 5 Inputs, (4) 5.25" IPX55 Indoor/Outdoor Wall Speakers, Restaurants, Patios
Free Shipping
Features
- JBL VMA160 60W mixer amplifier powers 70V, 100V, and 4 or 8 ohm speaker lines
- Five inputs including Bluetooth, mic, line, and RCA for music and paging together
- Four WET-5W 5.25" wall speakers with 1" Mylar dome tweeters for clear full range sound
- IPX55 rated ABS cabinets and aluminum grilles hold up to rain, sun, and dust outdoors
- Speaker tap switches select 2.5W to 20W so each zone plays at the right volume
Couldn't load pickup availability

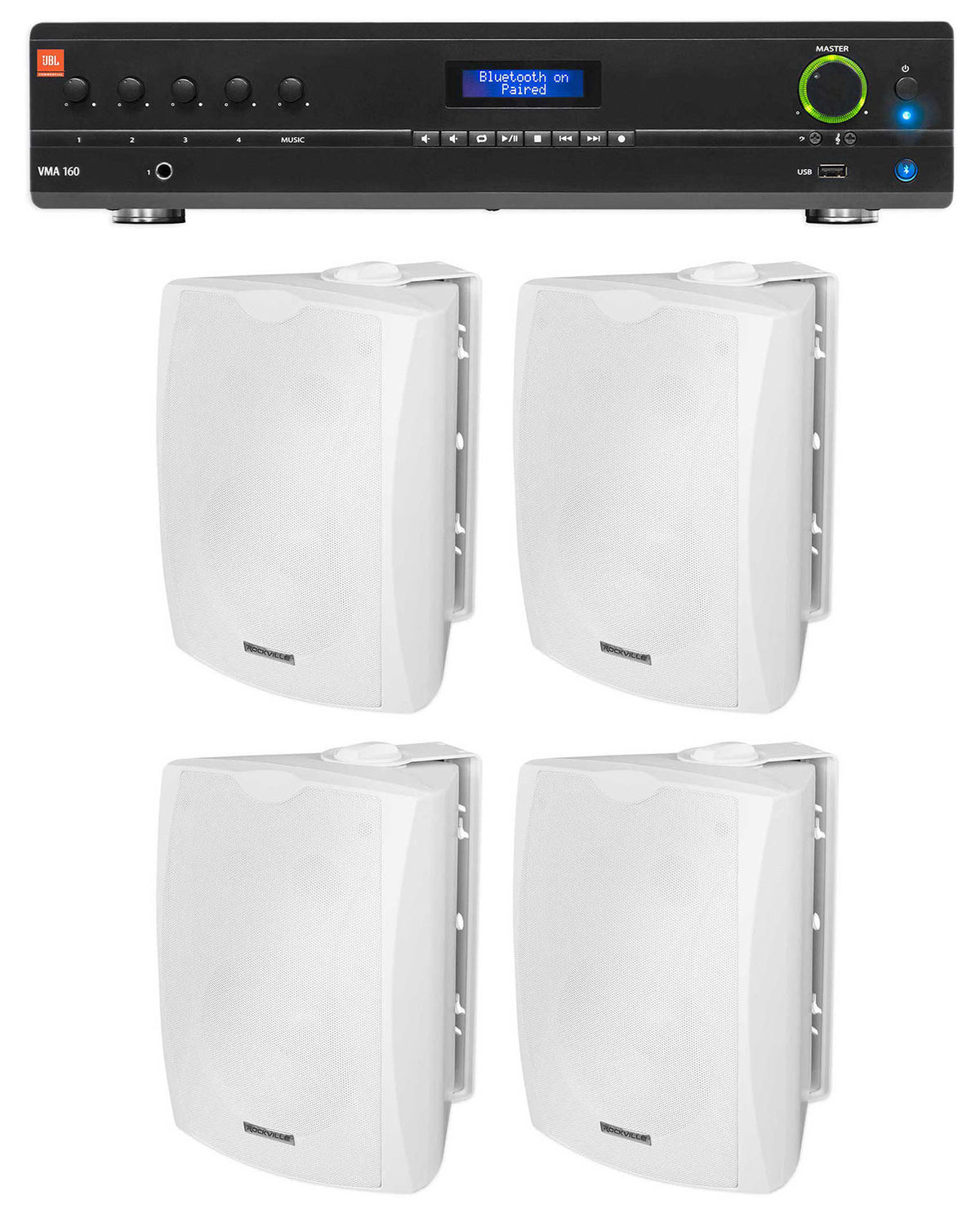

What's Included in the box
- (1) JBL VMA160 60W 70V Mixer Amplifier with Bluetooth
- (1) Rack Mounting Hardware Kit
- (4) Rockville WET-5W 5.25" 70V Indoor/Outdoor Wall Speakers, White

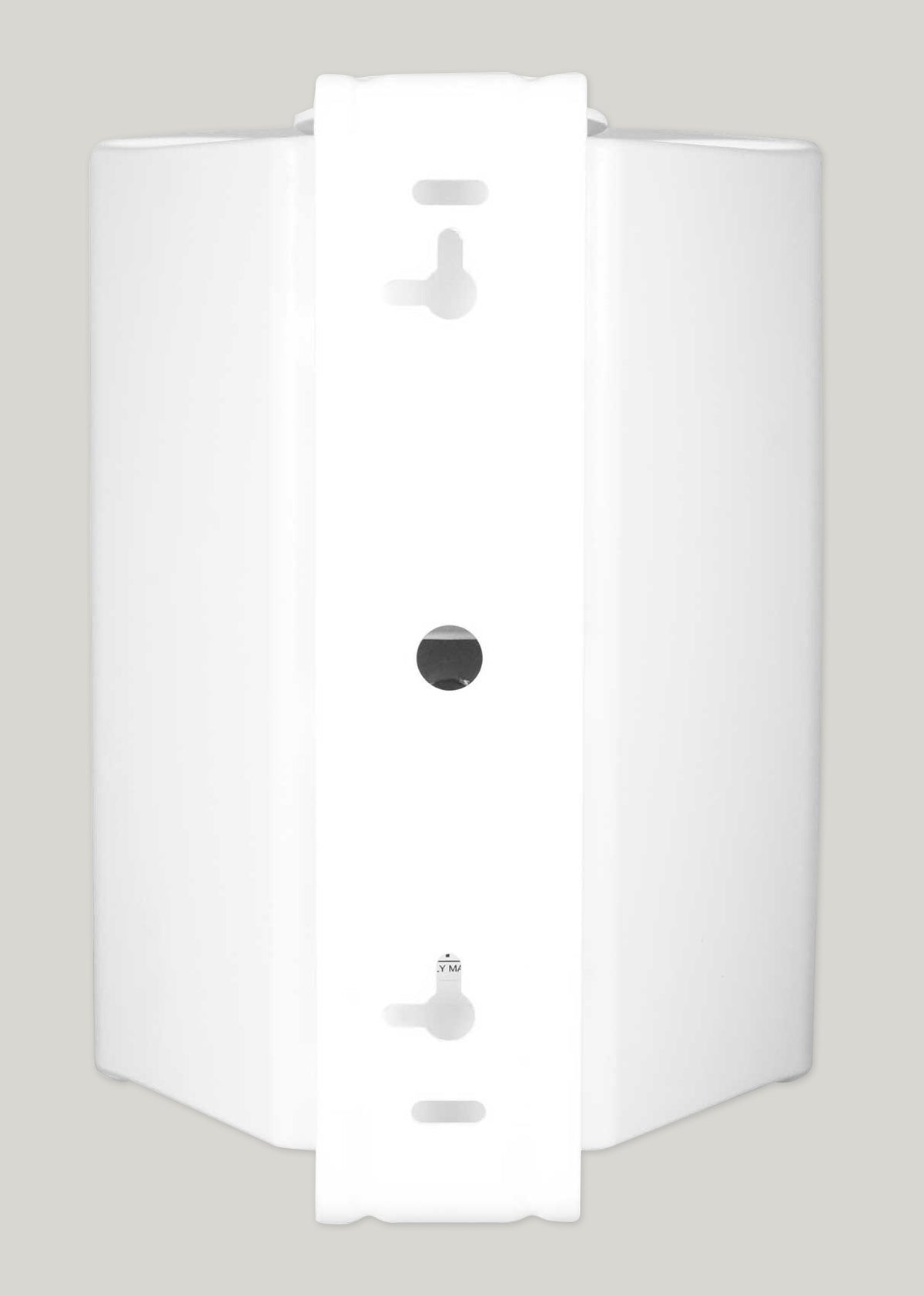

- (4) Stainless Steel Swivel Wall Brackets with Tightening Knobs
SKU: SKU: VMA160+(4) WET-5W
View full details












Product Description

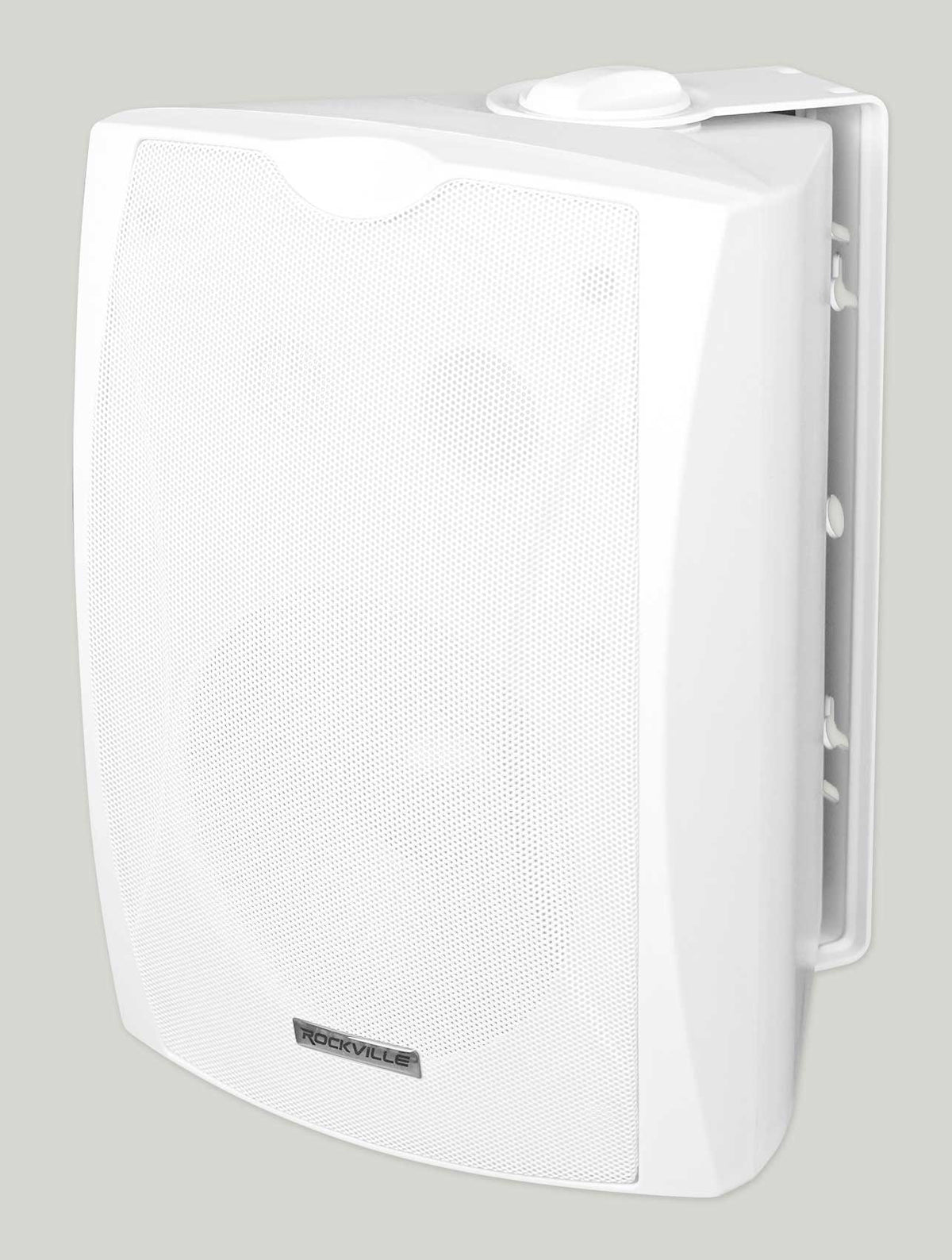

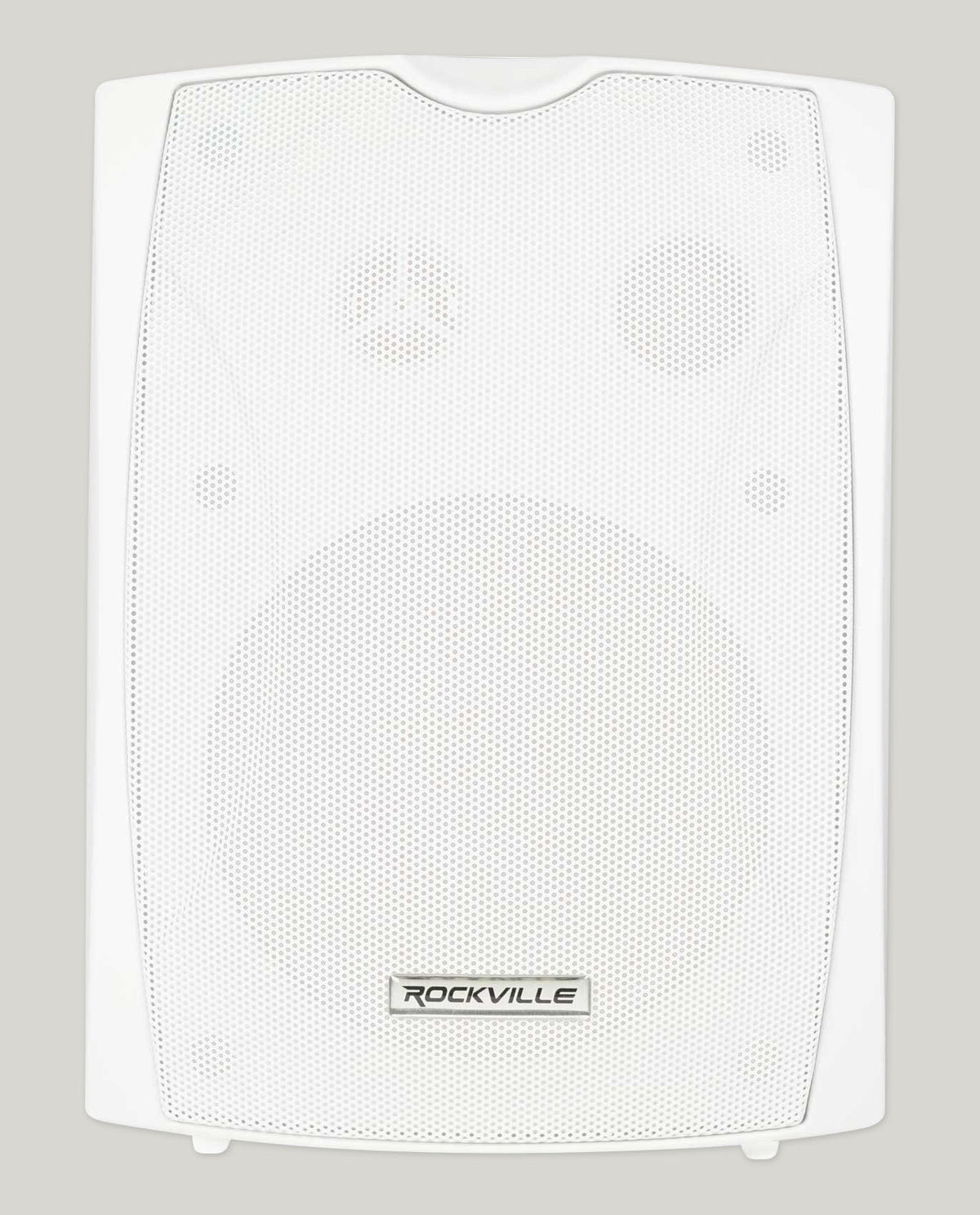

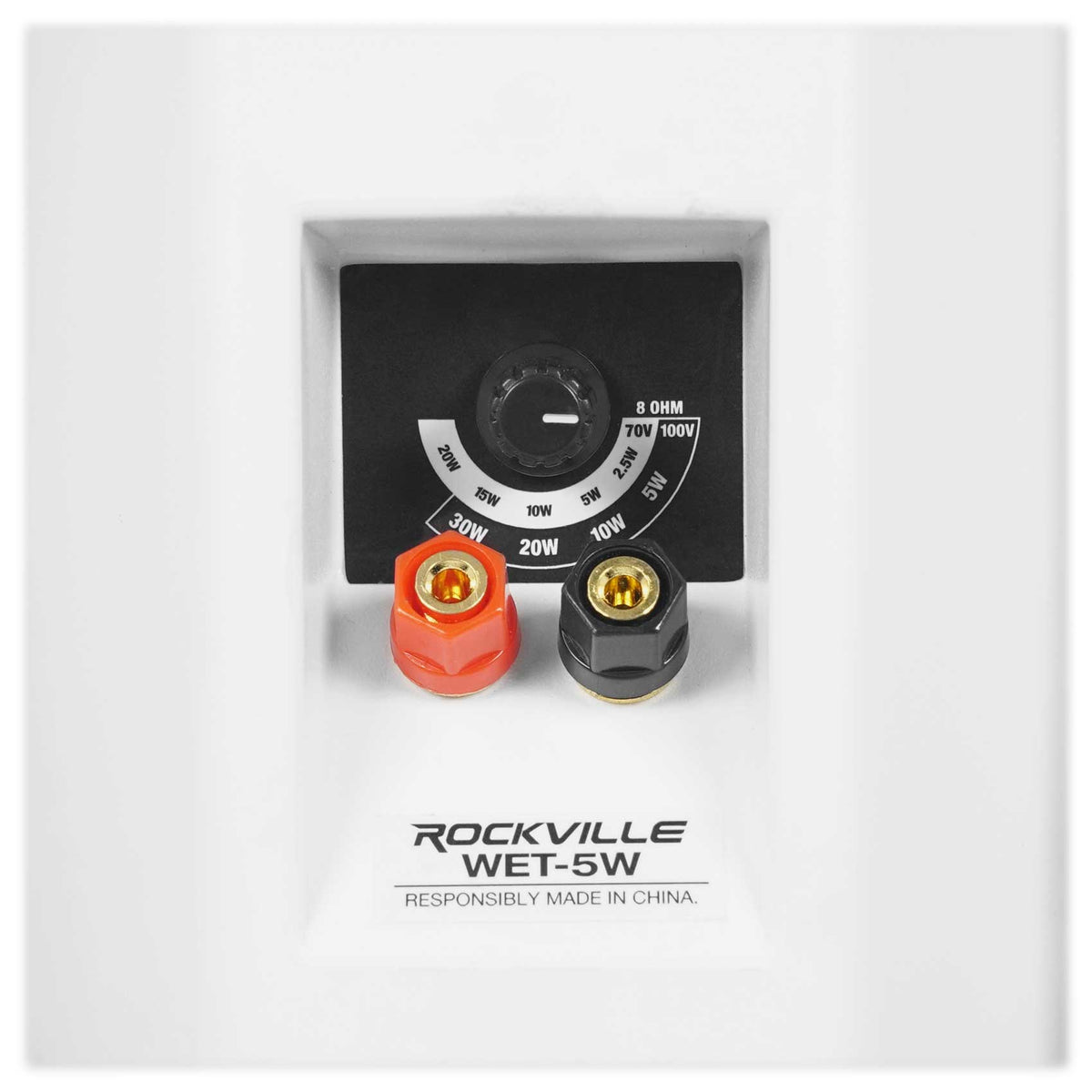

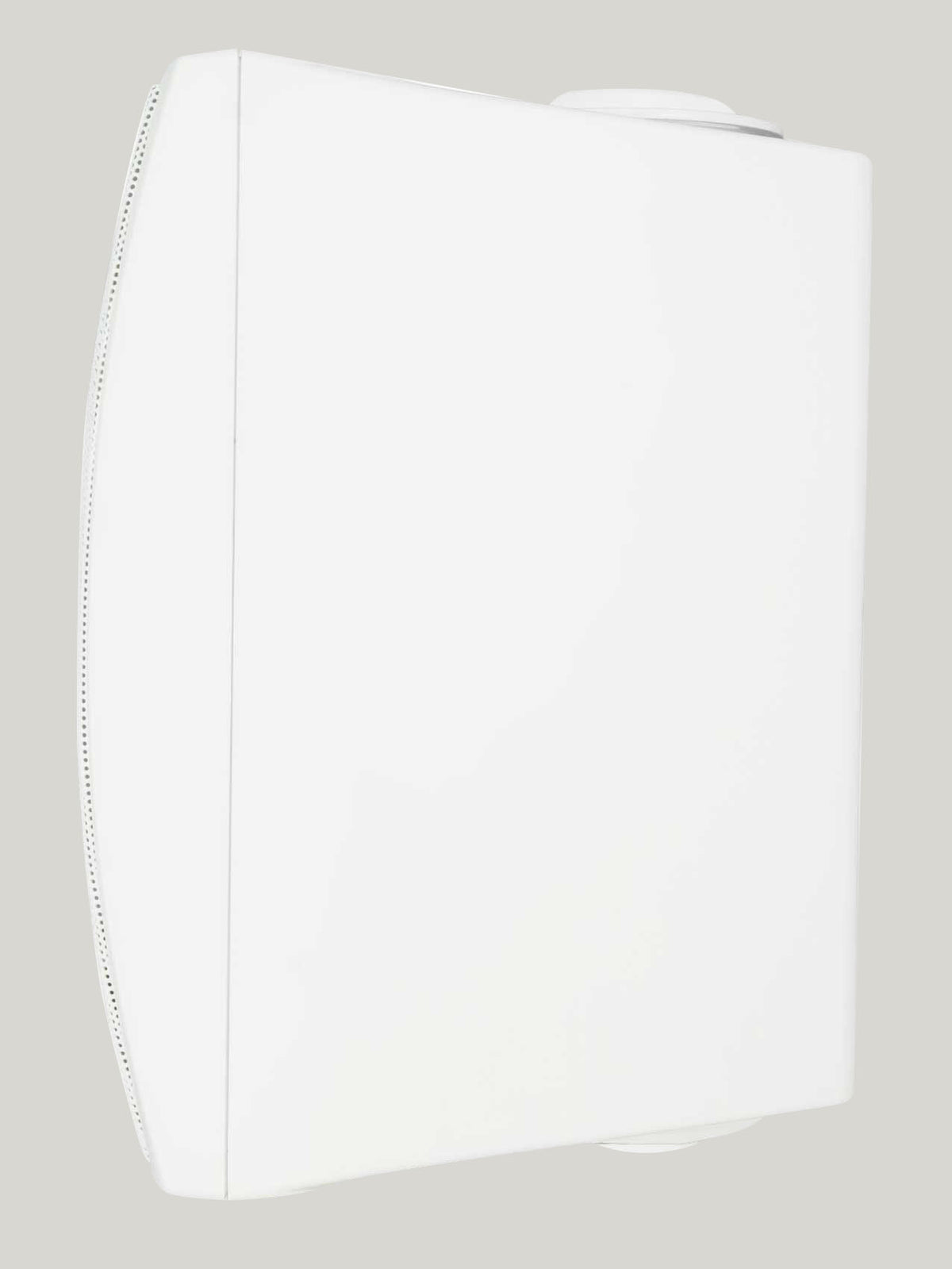

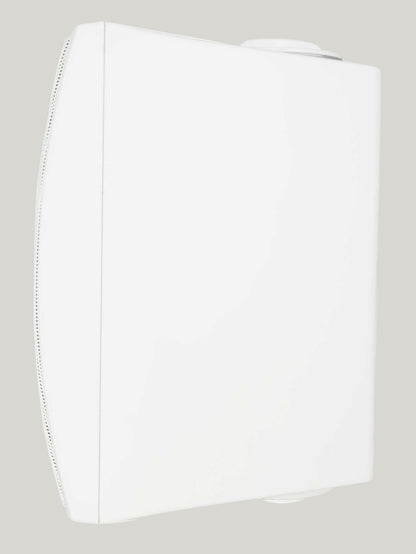

Each WET-5W speaker carries a 5.25" polypropylene woofer and 1" Mylar dome tweeter in a vented, waterproof ABS cabinet with an aluminum grille and stainless steel swivel bracket, so the same speaker works in a dining room, a covered patio, or a pool deck. A built-in tap switch sets each speaker at 2.5W, 5W, 10W, 15W, or 20W on a 70V line, which lets you run the bar area louder and the hallway quieter from a single amplifier. Keep the combined taps at 52W or less; tapping all four speakers at 10W puts you at 40W with headroom to spare. Because 70V wiring runs every speaker in parallel off one pair of terminals, you can pull long cable runs across a building without signal loss or impedance math. Rack mounting hardware comes with the amplifier for a clean equipment closet install.
Included in the Bundle
-
VMA160

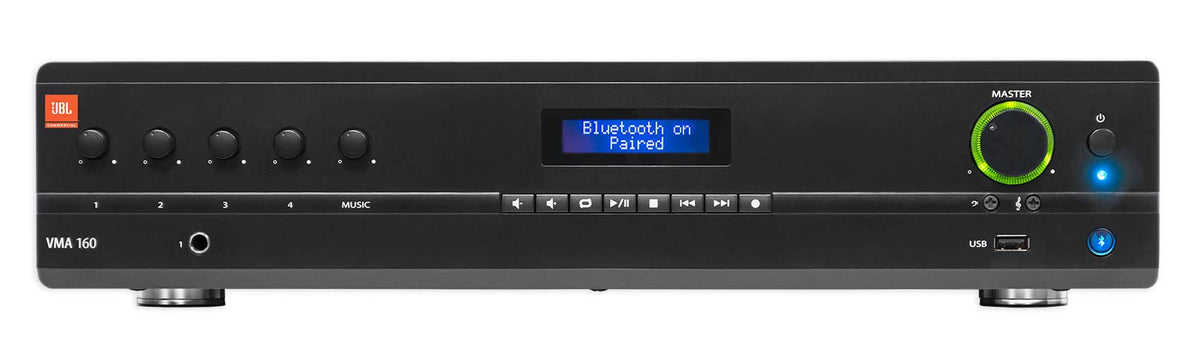

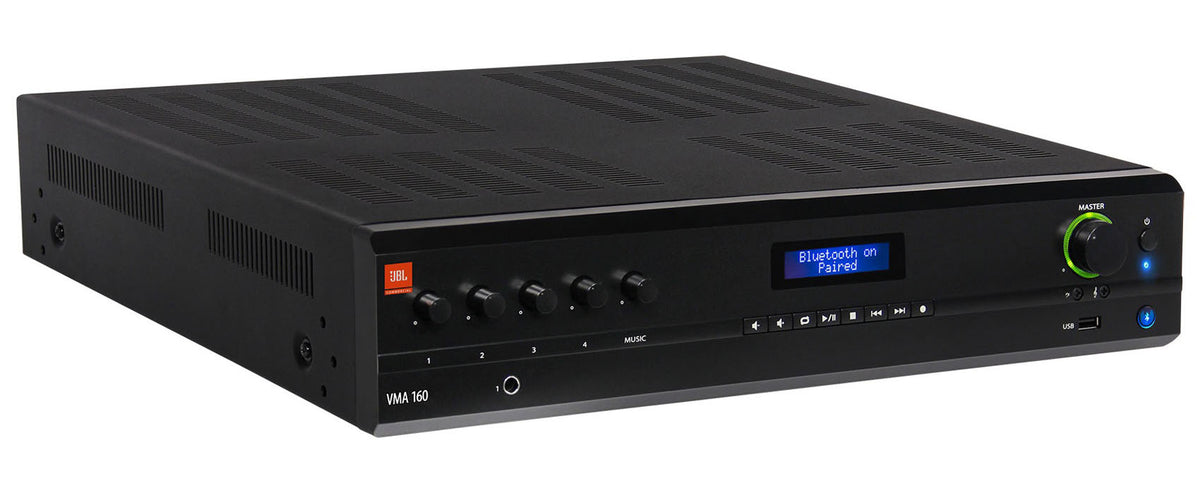

The VMA160 is a five-input, 60W mixer/amplifier for smaller commercial rooms where a full 120W amp is more than the space needs. It runs low-impedance 4 and 8 ohm speakers as well as 70V and 100V distributed lines, so the same unit works for a handful of speakers behind a…
Learn More: VMA160
Features
Complete Commercial Audio Setup
A 60W 70V mixer amplifier and four matched wall speakers arrive together, so you can outfit a dining room, shop floor, or patio without sourcing parts separately.
Music and Announcements Together
Five inputs accept Bluetooth, mic, line, and RCA sources, while paging chime and priority muting lower the music automatically whenever someone makes an announcement.
Built for Indoor and Outdoor Spaces
IPX55 rated ABS cabinets, aluminum grilles, stainless steel brackets, and waterproof terminals let these speakers handle rain, sun, dust, and spray on patios and pool decks.
Volume Control Zone by Zone

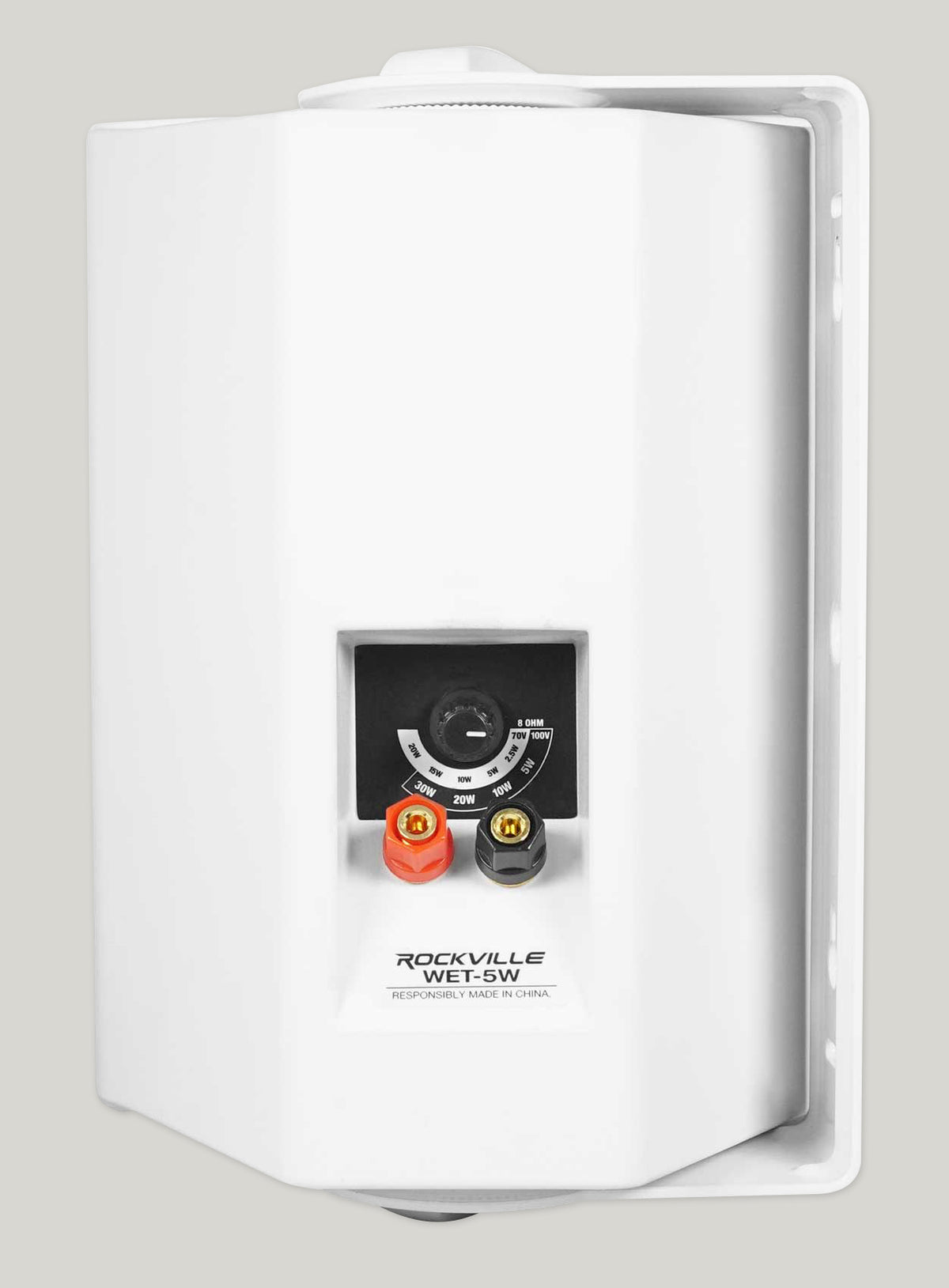

Built-in tap switches set each speaker at 2.5W, 5W, 10W, 15W, or 20W, so the bar plays louder while hallways and quiet corners stay comfortable.
Simple Wiring Over Long Runs
70V wiring connects every speaker in parallel to one pair of amp terminals, letting you run long cable lengths across a building without signal loss or impedance matching.
Technical Specifications
- Product Type 70V Commercial Amplifier and Wall Speaker Bundle
- Amplifier Model JBL VMA160
- Amplifier Max Output Power 60W

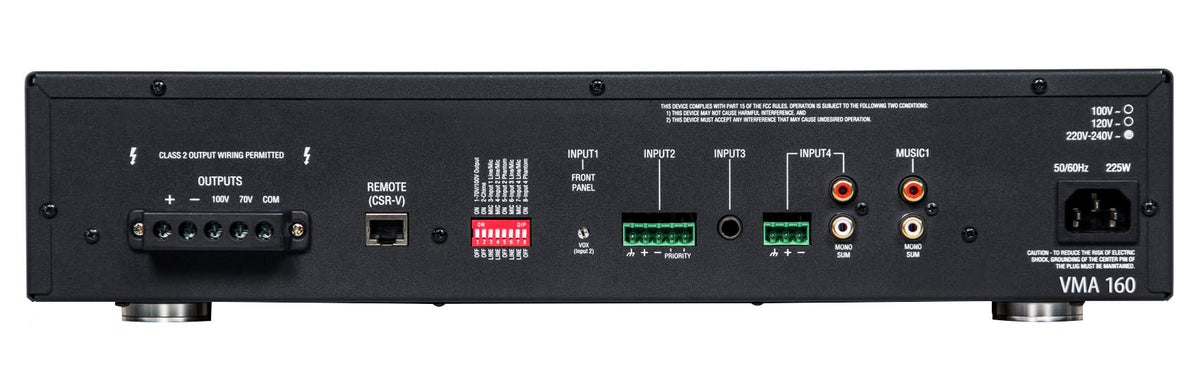

- Amplifier Outputs 70V, 100V, 4 ohm, 8 ohm
- Amplifier Frequency Response 20Hz to 20kHz
- Amplifier THD Less than 0.5%
- Amplifier Signal-to-Noise Ratio Greater than 76dB
- Number of Inputs 5
- Number of Outputs 1
- Bluetooth Yes
- Phantom Power 27VDC
- Crosstalk -70dB
- Input Impedance Mic: 400 ohms, Line: 20k ohms (balanced), RCA: 50k ohms
- Input Sensitivity Mic: 5.5mV RMS, Line: 1.3V RMS, RCA: 130mV RMS
- Tone Control Bass +/-14dB at 50Hz, Treble +/-14dB at 10kHz
- Paging Features Paging chime, priority muting
- AC Line Voltage 100V, 120V, 220V, 220-240V, 50/60Hz
- Recommended Max Speaker Load 52W total tapped power
- Speaker Model Rockville WET-5W
- Speaker Quantity 4
- Woofer 5.25" polypropylene cone
- Tweeter 1" Mylar dome
- Speaker Frequency Response 60Hz to 20kHz
- Speaker Sensitivity 86dB
- Speaker RMS Power 40W (8 ohm)
- Speaker Nominal Impedance 8 ohms
- 70V Tap Settings 2.5W, 5W, 10W, 15W, 20W
- 100V Tap Settings 5W, 10W, 20W, 30W
- Weather Rating IPX55
- Speaker Cabinet Waterproof ABS, vented
- Speaker Grille Aluminum
- Speaker Terminals 5-way binding posts
- Speaker Color White
- Weight Amplifier: 19.4 lb, Speakers: 4.6 lb each
- Dimensions Amplifier: 17" x 16.3" x 3.5" (W x D x H), Speakers: 9.6" x 7.1" x 7.5"
