VMA160 + (4) CCL6T Black 70V Ceiling Speaker System
JBL
VMA160 + (4) CCL6T Black 70V Ceiling Speaker System
VMA160 + (4) CCL6T Black 70V Ceiling Speaker System
60W Bluetooth Mixer Amp, (4) 6" Black Ceiling Speakers, Restaurant, Office, Retail
Free Shipping
Features
- JBL VMA160 mixer/amp delivers 60W to 70V or 100V speaker lines
- Four Rockville CCL6T 6" ceiling speakers with 10W, 5W, and 2.5W transformer taps
- Five inputs cover Bluetooth, mic, line, and RCA sources from a single amp
- Paging chime and priority muting cut the music for clear announcements

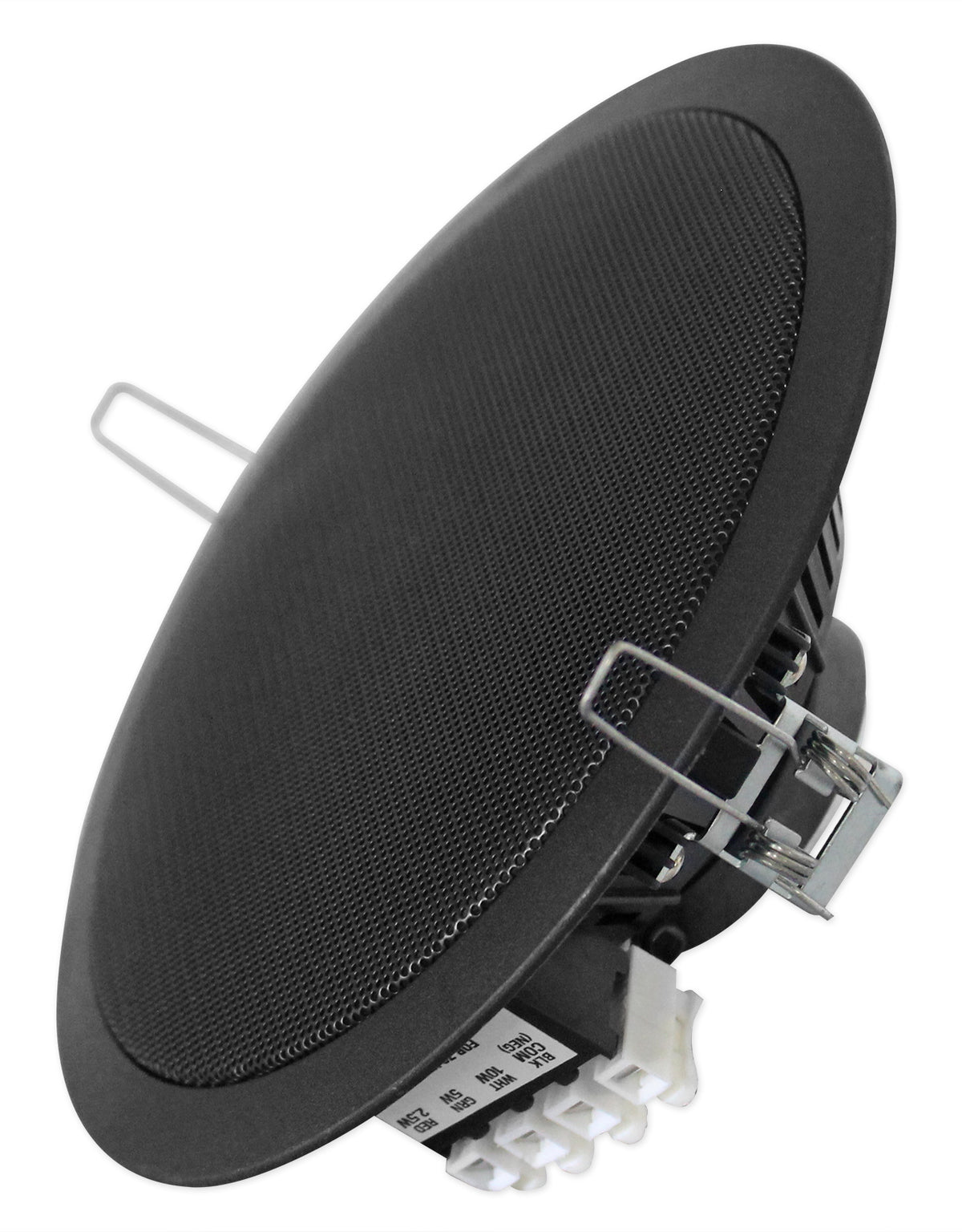

- Paintable flush-mount grilles need only 2.36" mounting depth and a 6.5" cutout
Couldn't load pickup availability

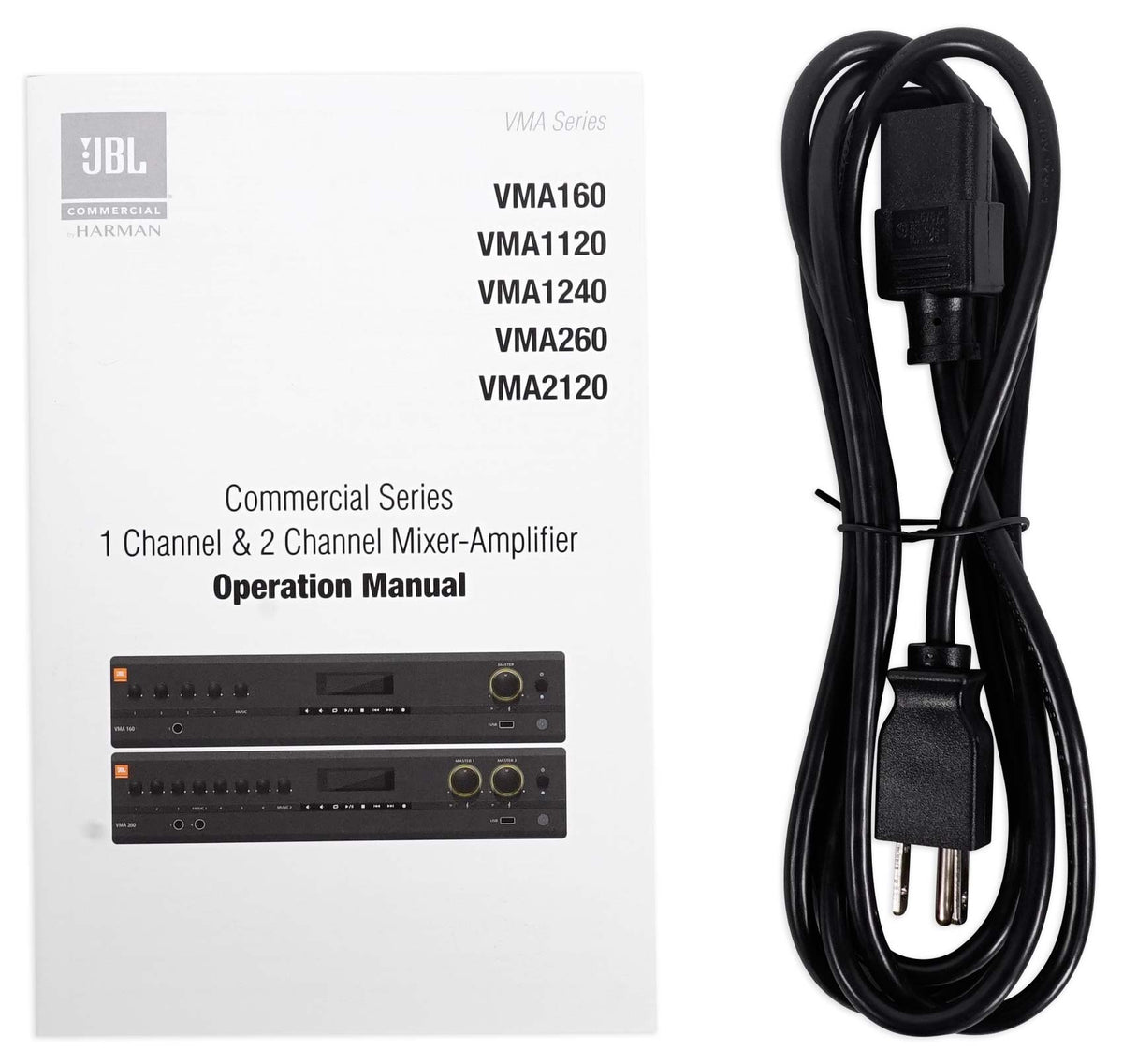

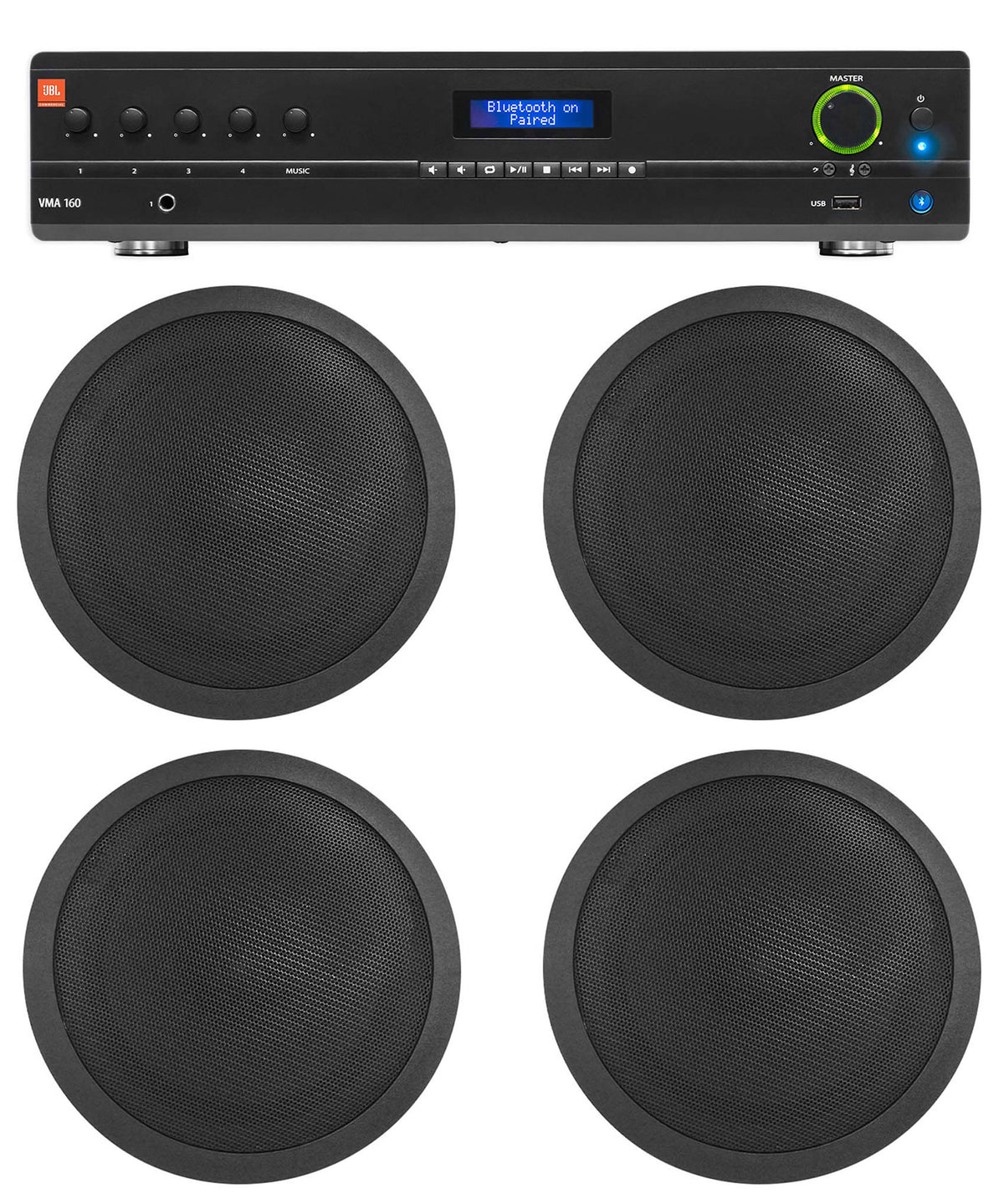

What's Included in the box

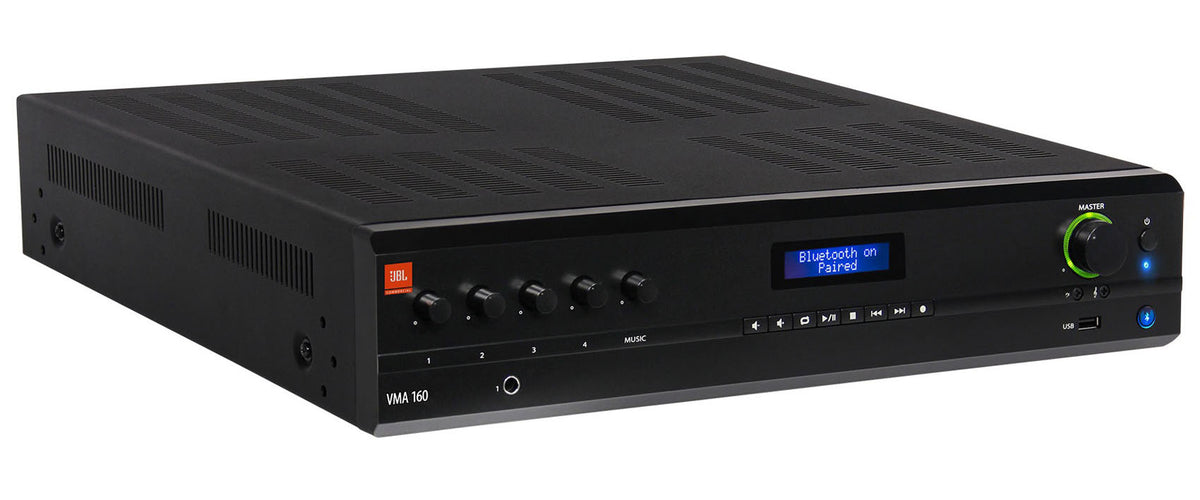

- (1) JBL VMA160 60W 70V Mixer/Amplifier with Bluetooth

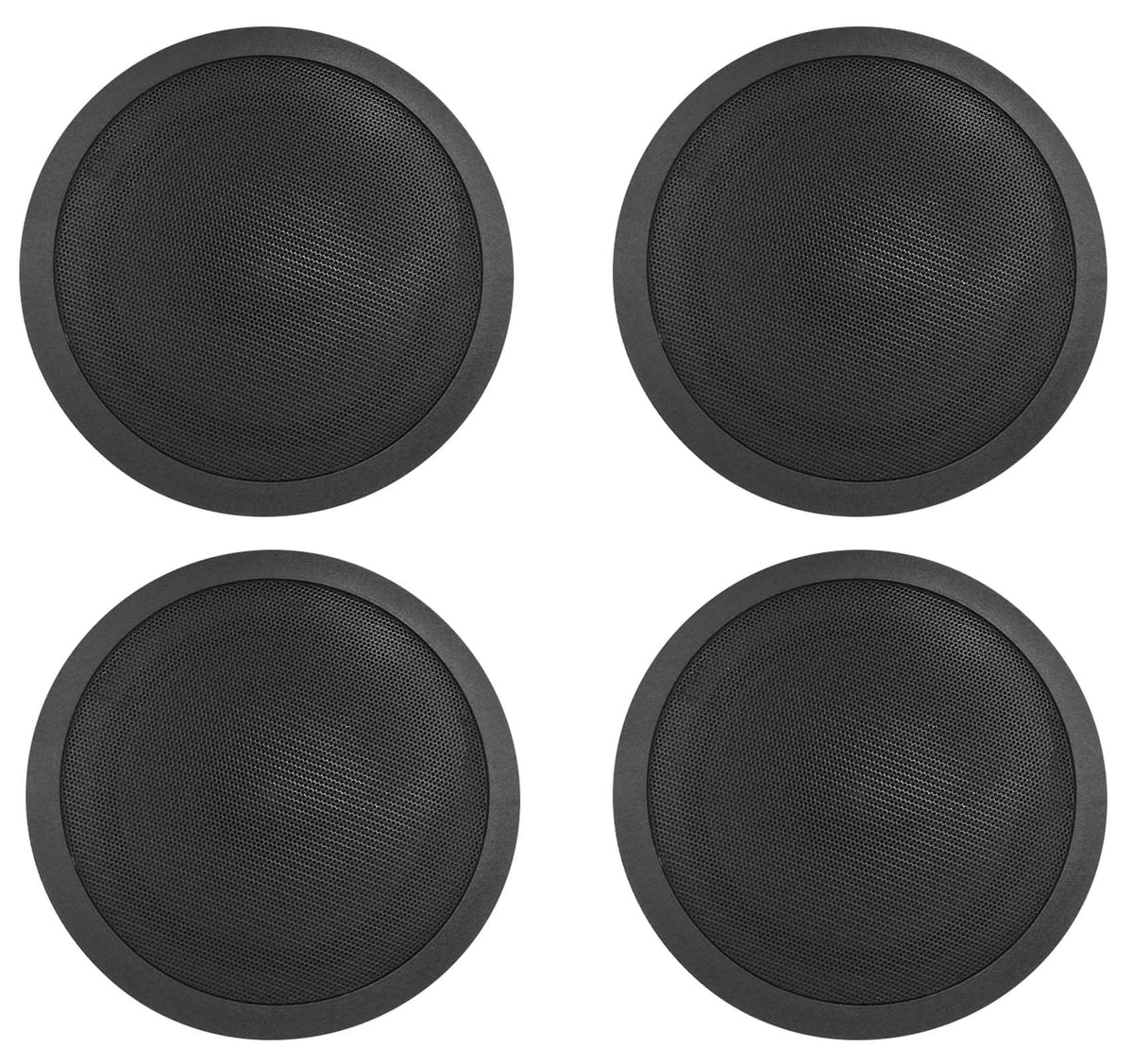

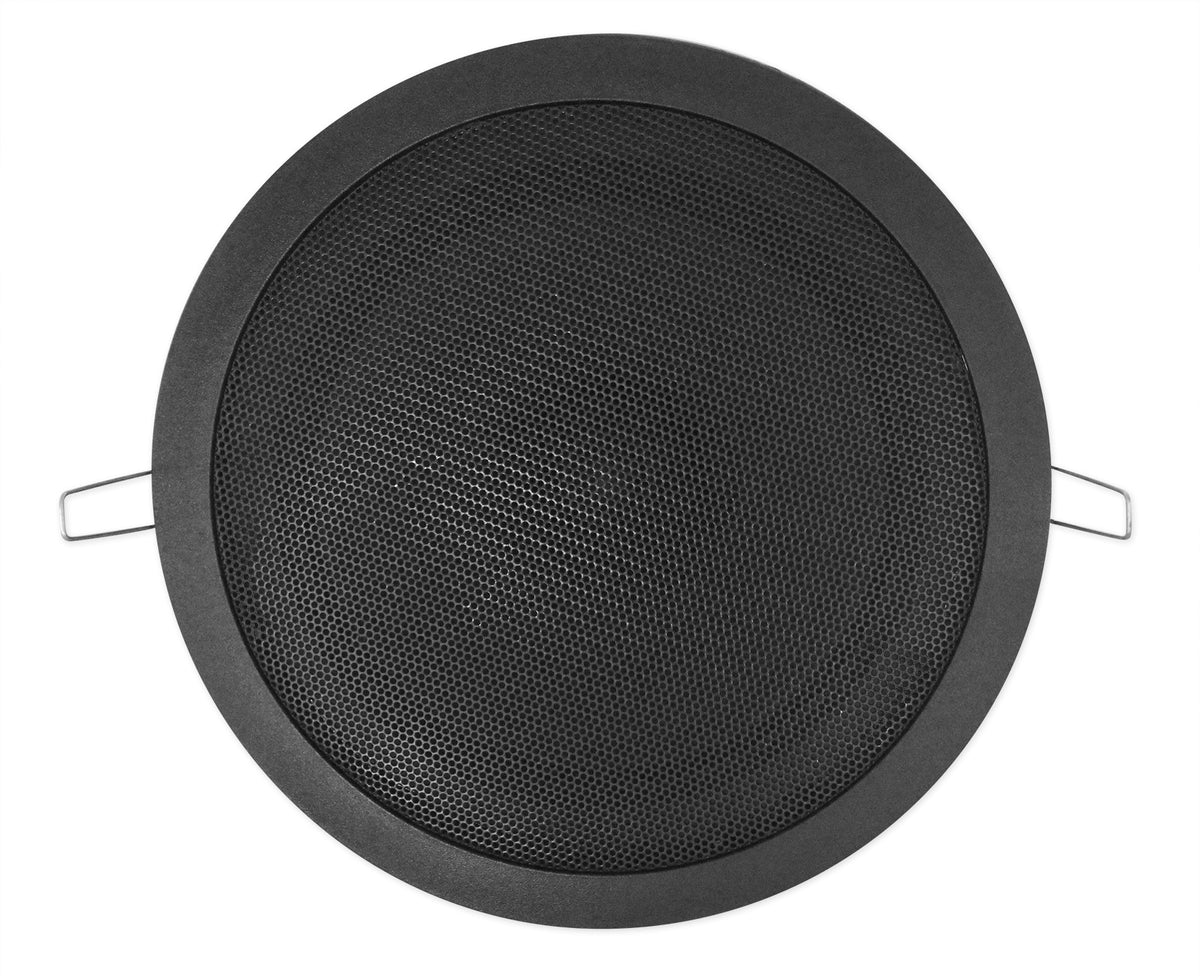

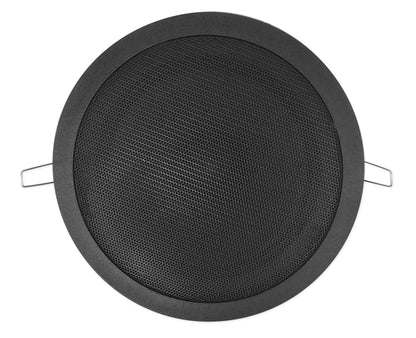

- (4) Rockville CCL6T Black 70V 6" Ceiling Speakers
- (1) Set of Rack Mounting Hardware
SKU: SKU: VMA160+CCL6T BLACK
View full details











Product Description

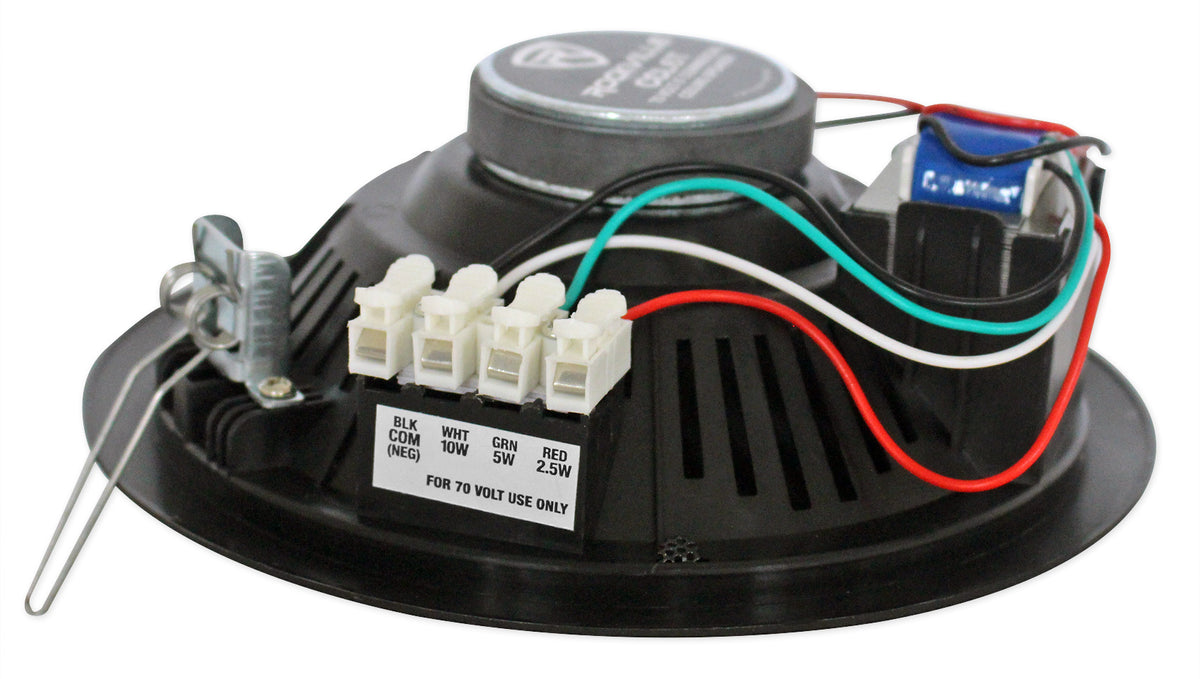

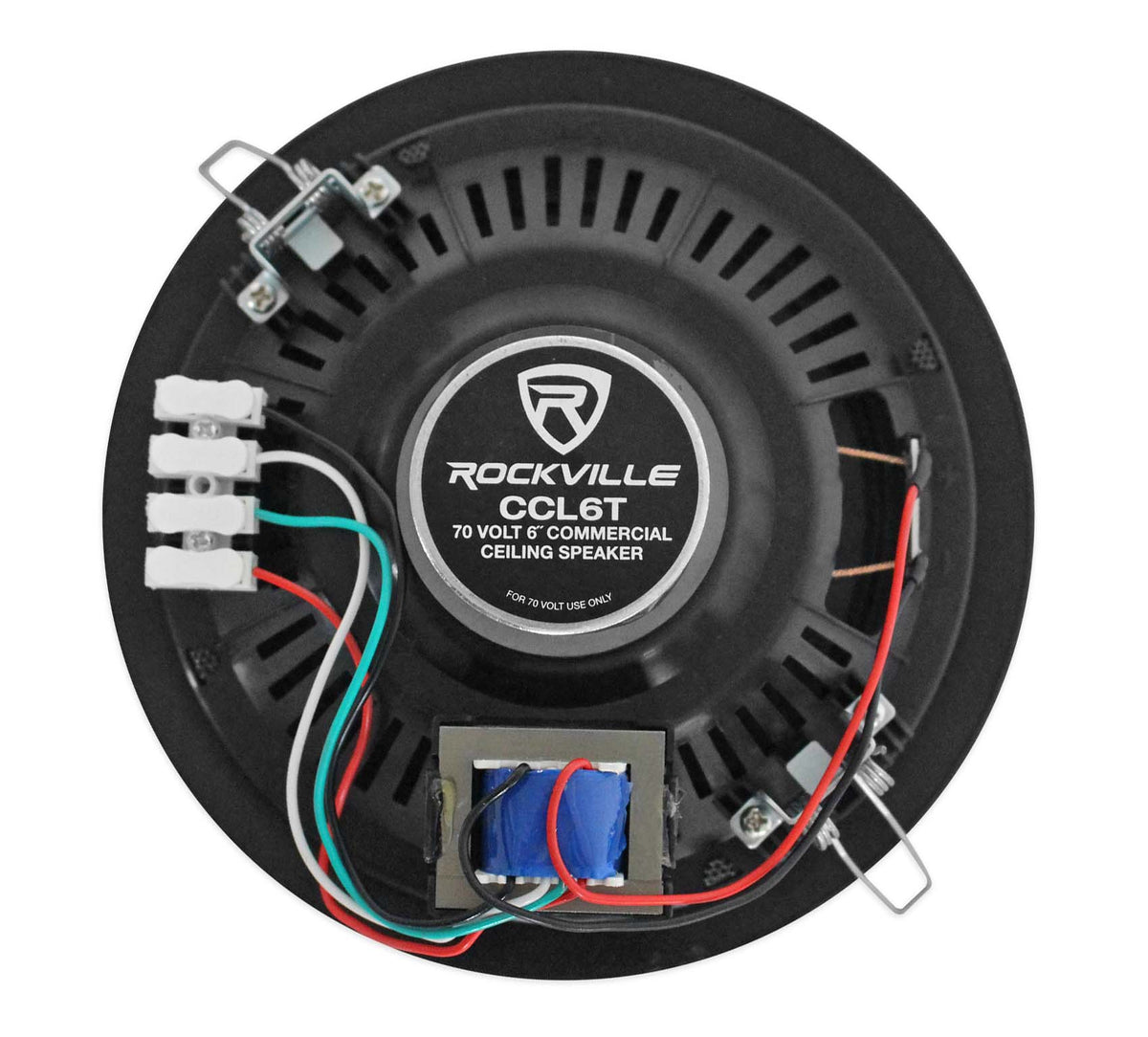

Each CCL6T has a 6" double paper cone woofer and a built-in transformer with 10W, 5W, and 2.5W taps, so you can set volume zone by zone: louder in the dining room, quieter in hallways or restrooms. Because 70V systems hold constant power, wiring stays simple. Positive goes to positive, negative goes to negative, with no impedance math and long cable runs without signal loss. The speakers need just 2.36" of mounting depth and a 6.5" cutout, and the flush-mount grilles can be painted to match your ceiling. Independent bass and treble controls and included rack mounting hardware round out a system that suits a single small business and leaves headroom for adding another 70V speaker later.
Features
Complete System in One Package
The VMA160 amp and four CCL6T ceiling speakers arrive together, giving restaurants, offices, and shops a matched 70V setup for background music and paging without sourcing parts separately.
Stream, Page, and Play at Once
Five inputs, including Bluetooth, mic, line, and stereo RCA, let you play music from a phone and connect a paging microphone on the same amplifier at the same time.
Announcements That Cut Through
A built-in paging chime grabs attention before announcements, and priority muting automatically lowers background music so customers and staff hear every page clearly.
Set Volume Zone by Zone
Each speaker has 10W, 5W, and 2.5W transformer taps, so you can run the dining room louder and hallways or restrooms quieter from the same 60W amp.
Clean Install, Simple Wiring
Constant-voltage 70V wiring skips impedance math and handles long cable runs, while 2.36" mounting depth and paintable flush grilles help the speakers blend into nearly any ceiling.
Technical Specifications
- Product Type 70V Commercial Ceiling Speaker System

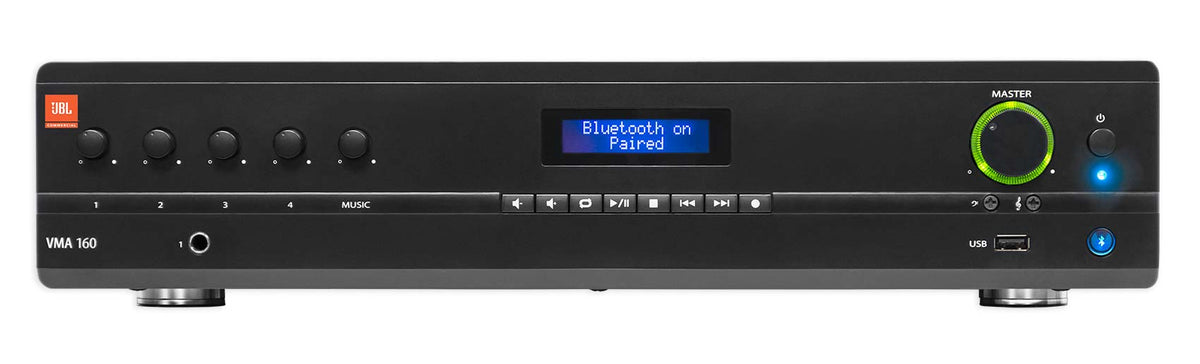

- Amplifier JBL VMA160 Mixer/Amplifier
- Amplifier Output Power 60W

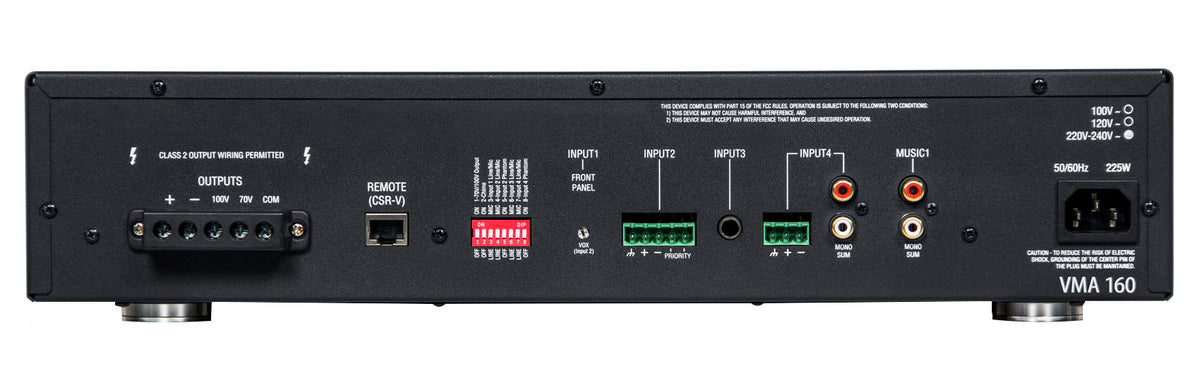

- Amplifier Outputs 70V, 100V, 4 Ohm, 8 Ohm
- Amplifier Frequency Response 20Hz - 20kHz
- THD Less than 0.5%
- Signal-to-Noise Ratio Greater than 76dB
- Inputs 5 (Mic, Line, RCA, Bluetooth)
- Input Impedance Mic: 400 Ohms, Line: 20k Ohms (Balanced), RCA: 50k Ohms
- Phantom Power 27VDC
- Crosstalk -70dB
- Tone Controls Bass +/-14dB @ 50Hz, Treble +/-14dB @ 10kHz
- Paging Features Paging Chime, Priority Muting
- AC Line Voltage 100V, 120V, 220-240V, 50/60Hz
- Rack Mountable Yes, Hardware Included
- Speaker Quantity 4
- Speaker Model Rockville CCL6T Black
- Woofer Size 6"
- Cone Material Double Paper
- Voice Coil 0.75"
- Magnet 3.5 oz Ferrite
- Transformer Taps 10W, 5W, 2.5W
- Speaker Frequency Response 80Hz - 15kHz
- Sensitivity 88dB @ 1W/1m
- Speaker Impedance 1K, 2K, 4K Ohms
- Terminals Spring-Loaded Push Terminals, Fireproof Screw Terminal Block
- Mounting Depth 2.36"
- Cut-Out Diameter 6.5"
- Grille Paintable Flush Mount
- Speaker Color Black
- Amplifier Weight 19.4 lb
- Amplifier Dimensions (W x D x H) 17" x 16.3" x 3.5"
